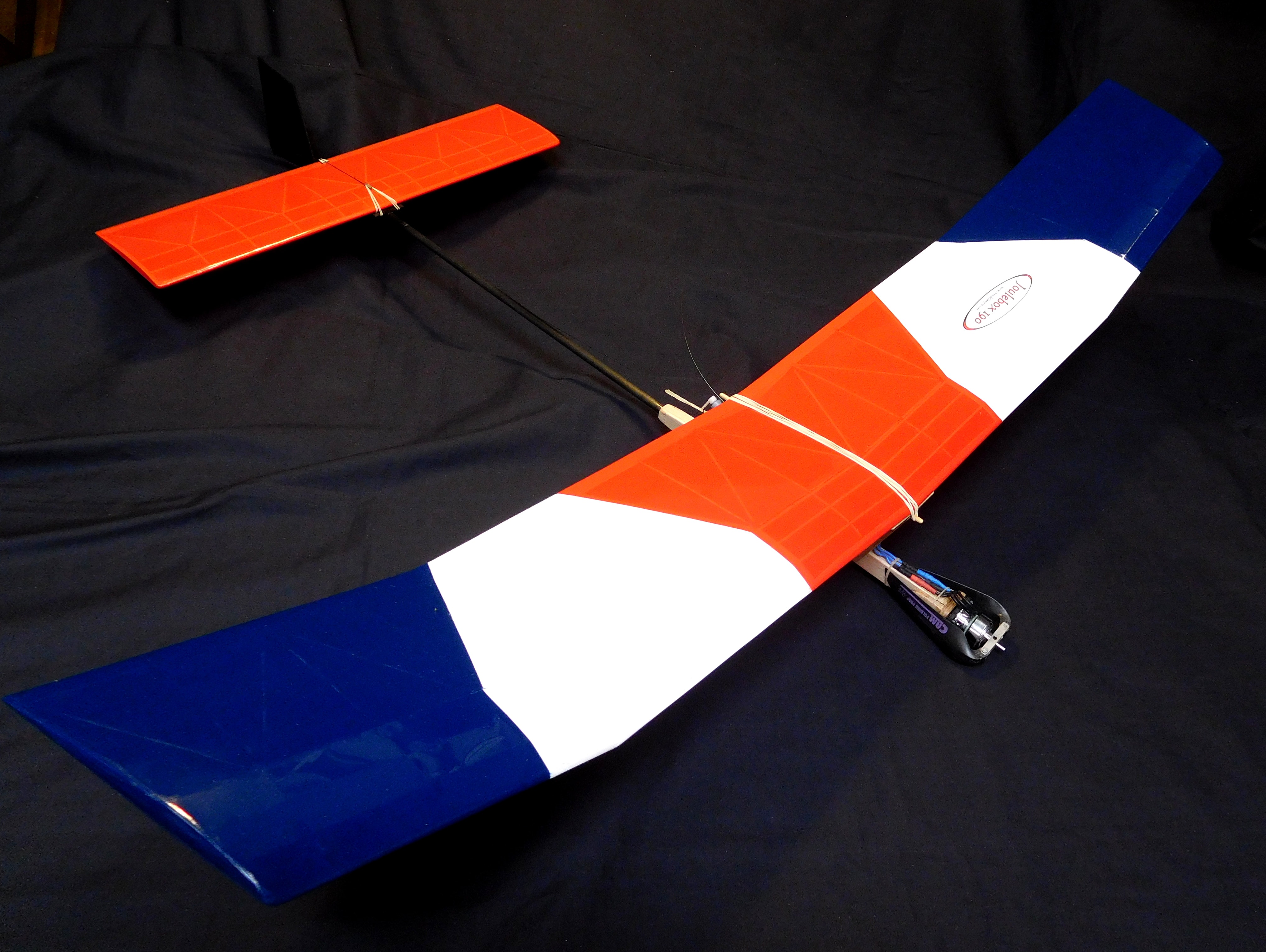

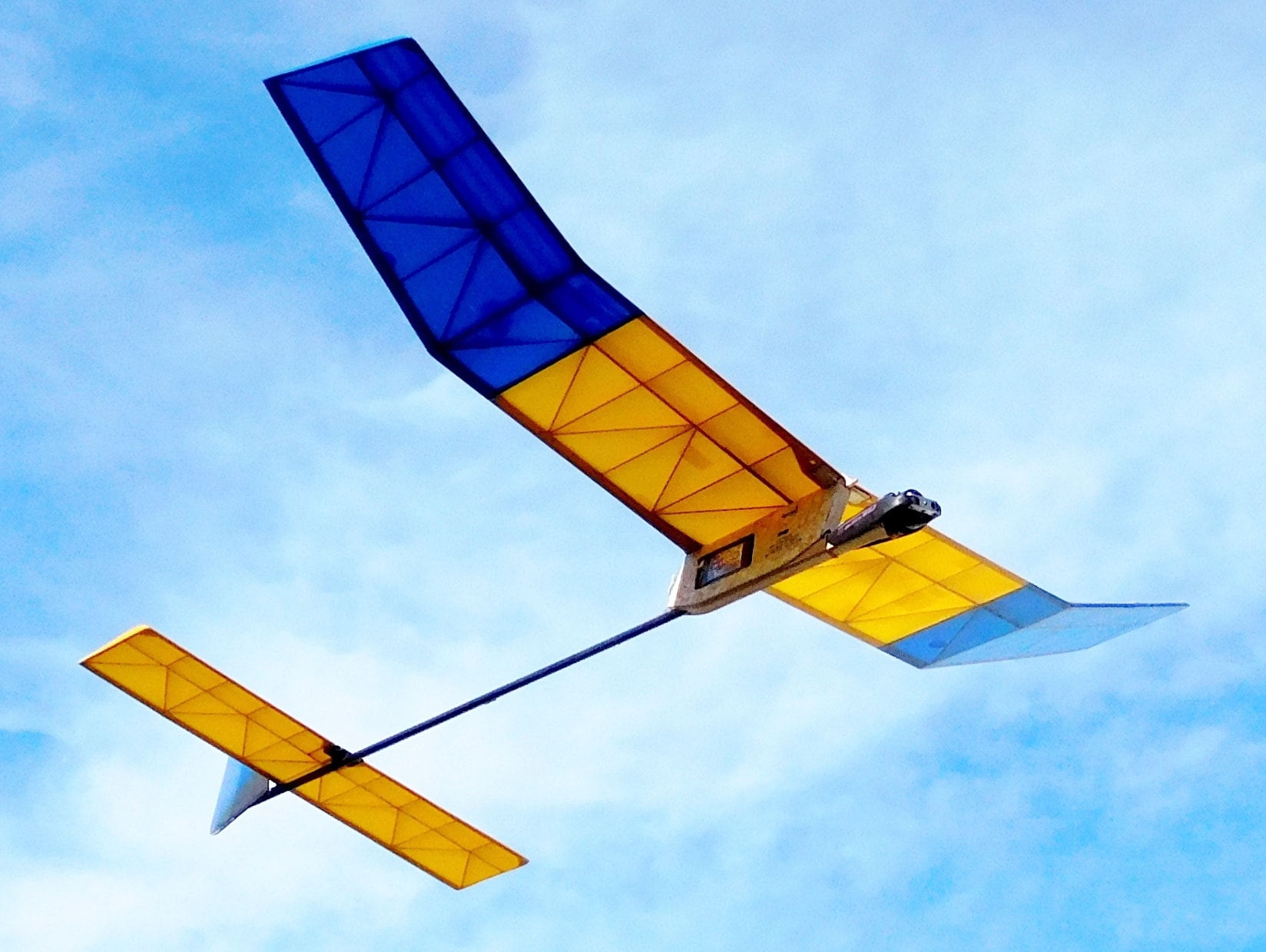

The venerable JOULEBOX just got even better!

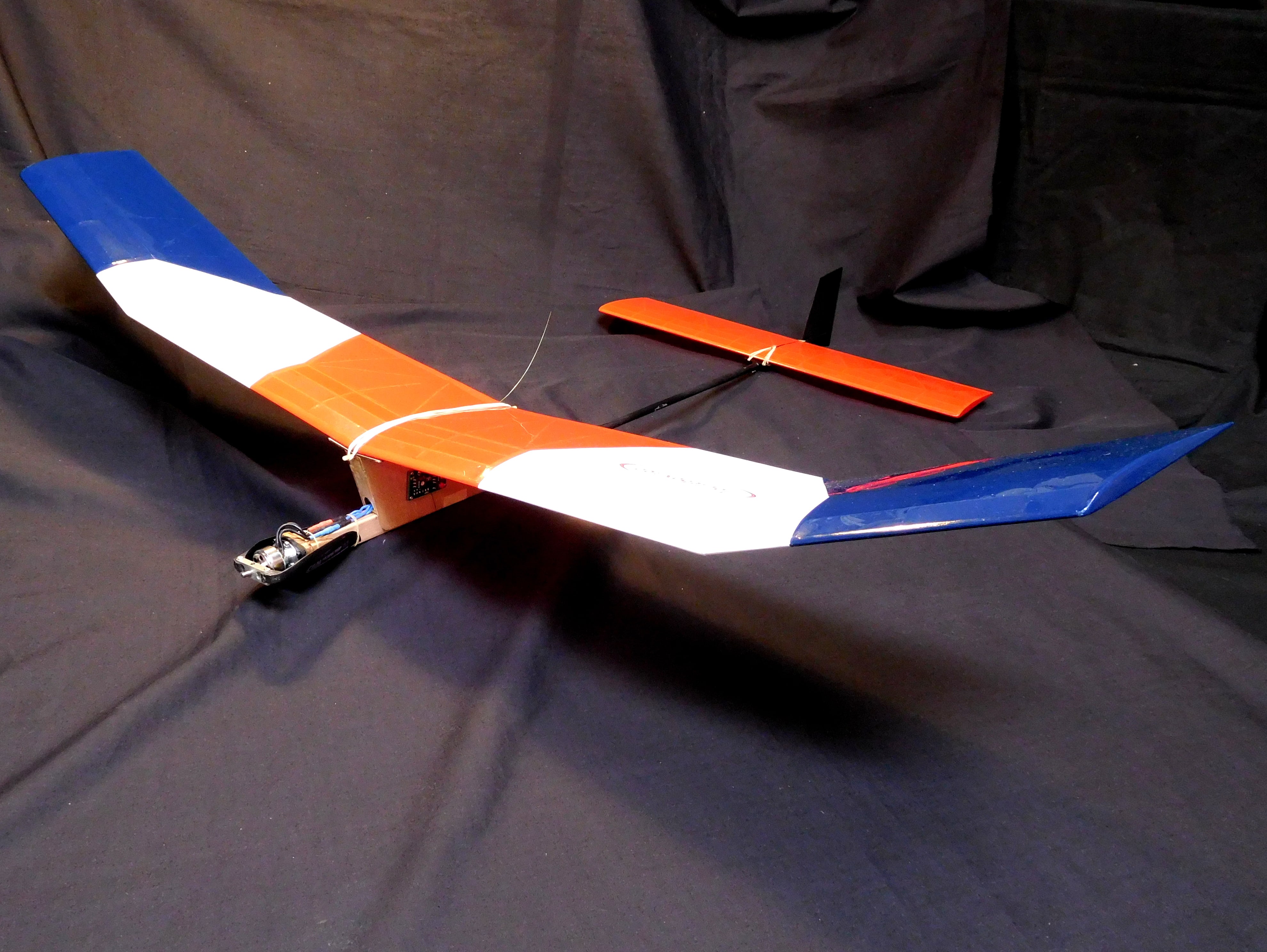

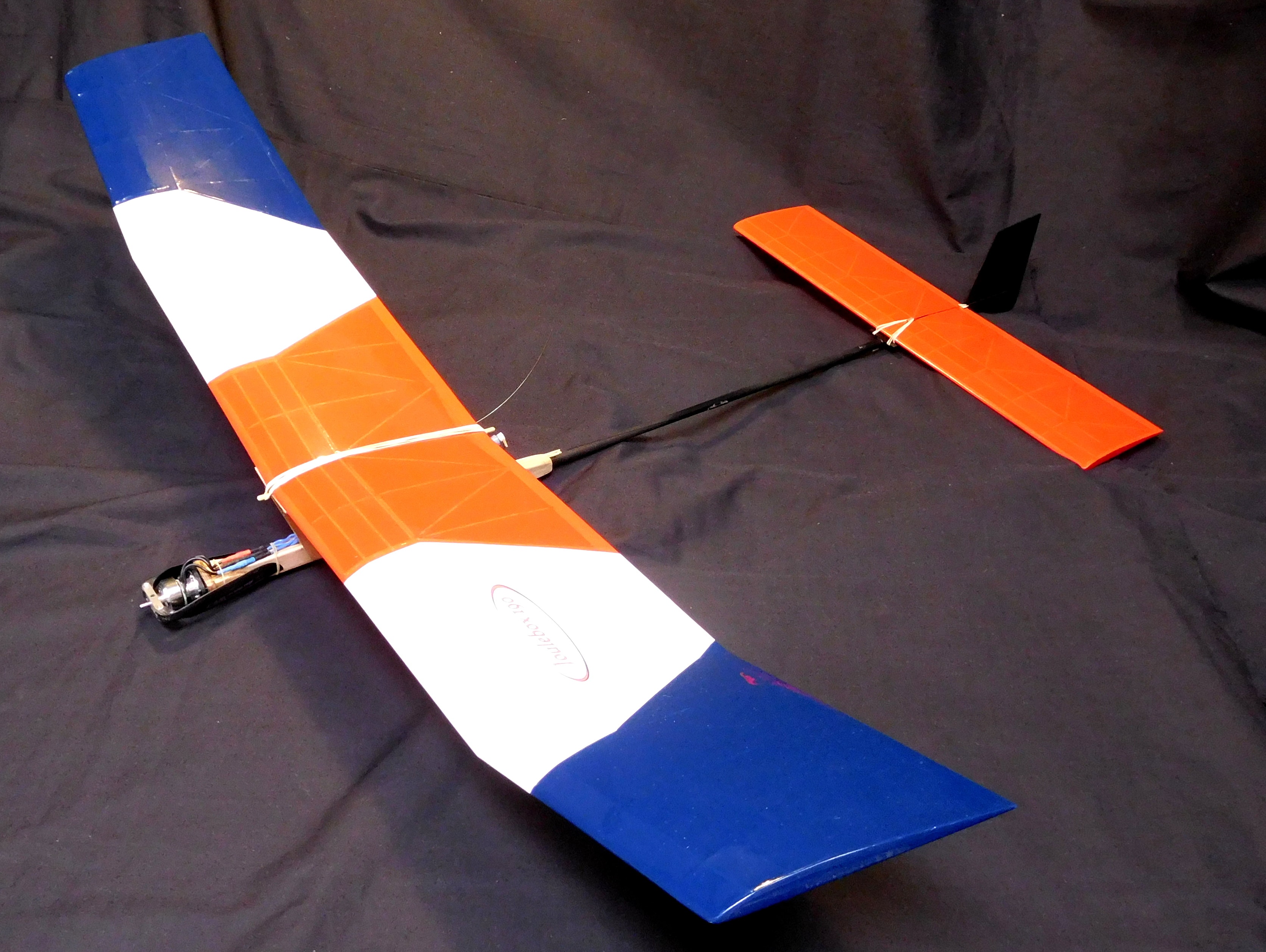

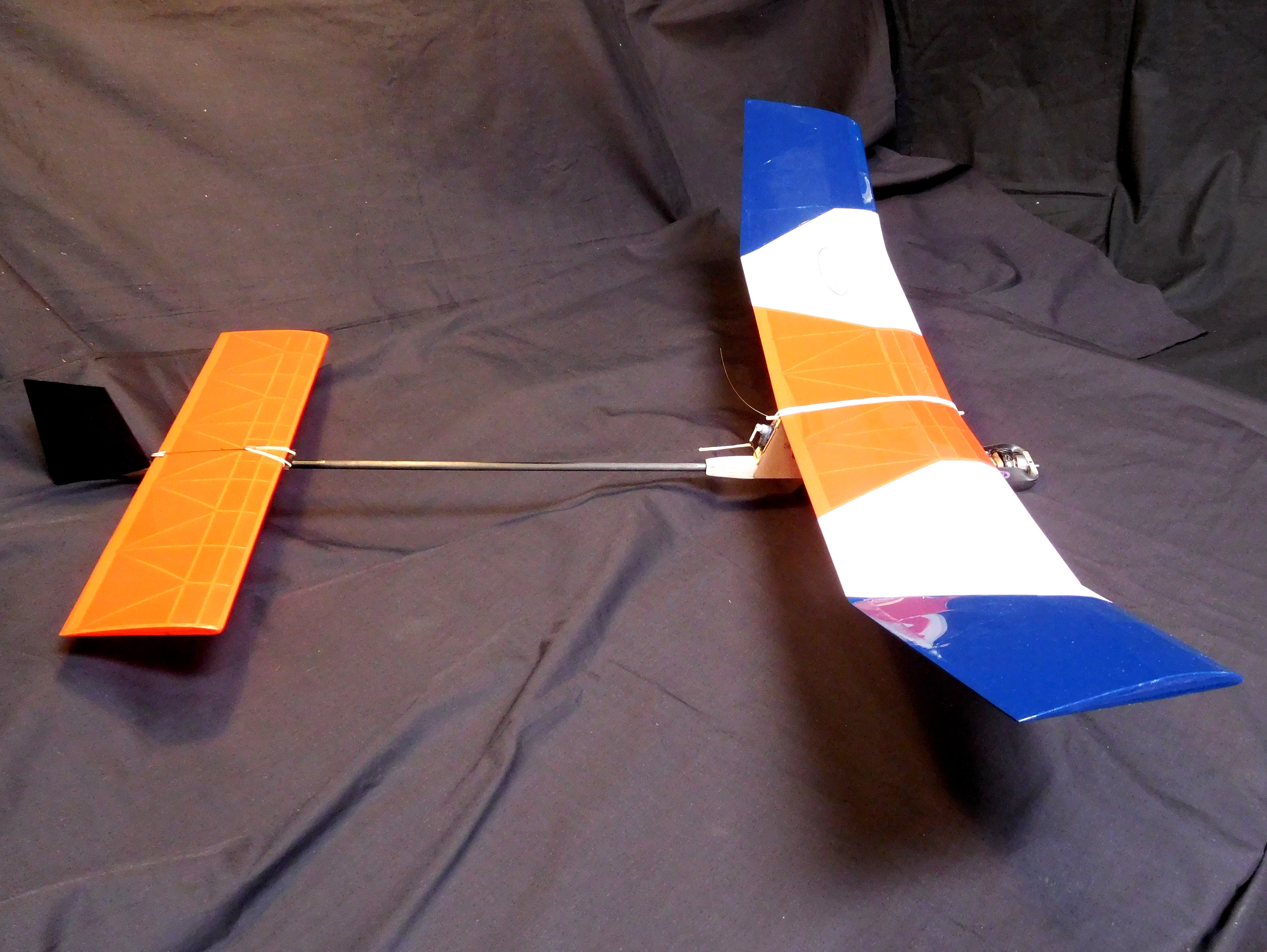

The JOULEBOX 190 MK II has been superseded by the JOULEBOX MK III.

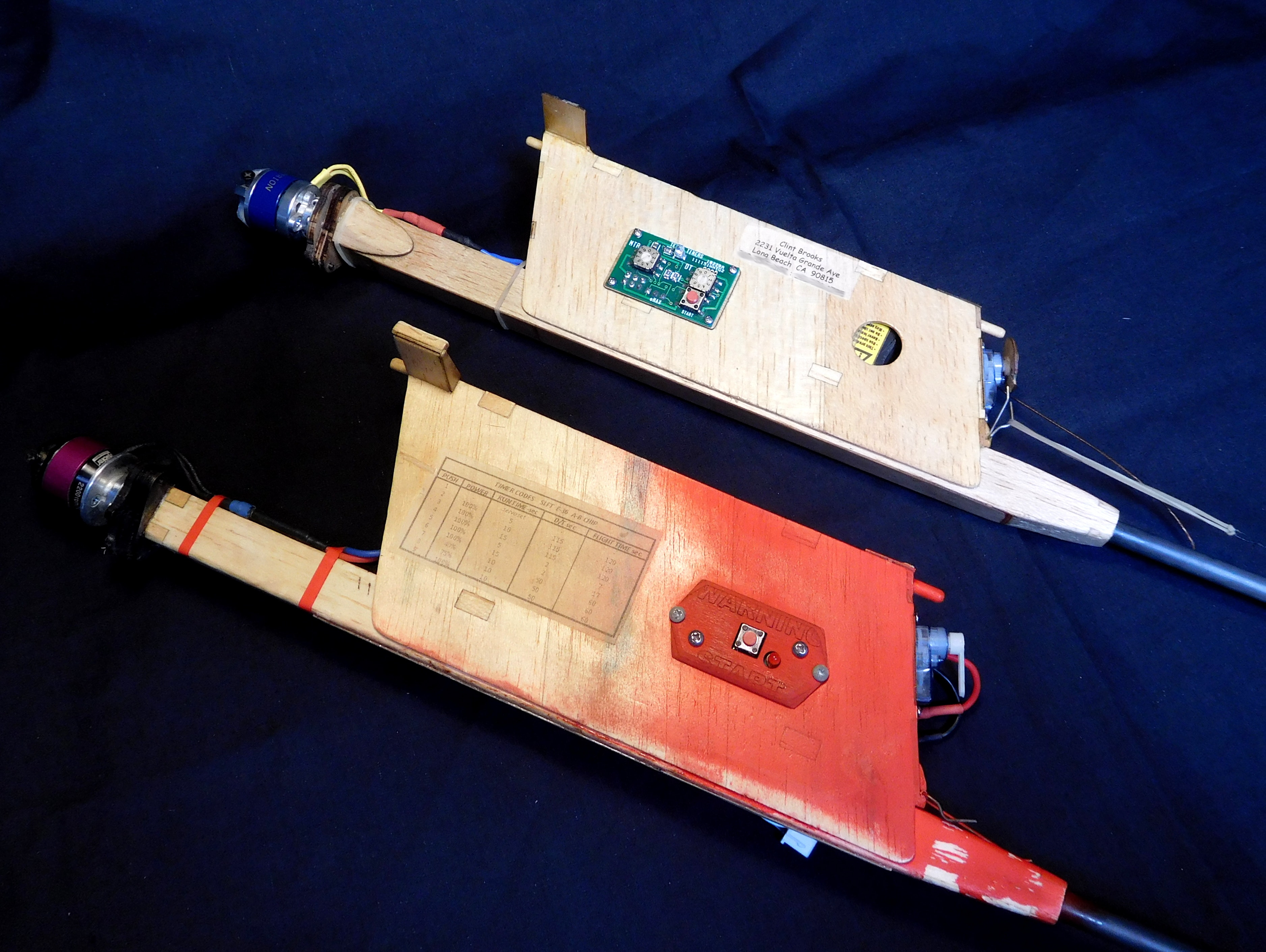

Building on improvements already made in the MK II,
this version has been refined for additional weight reduction

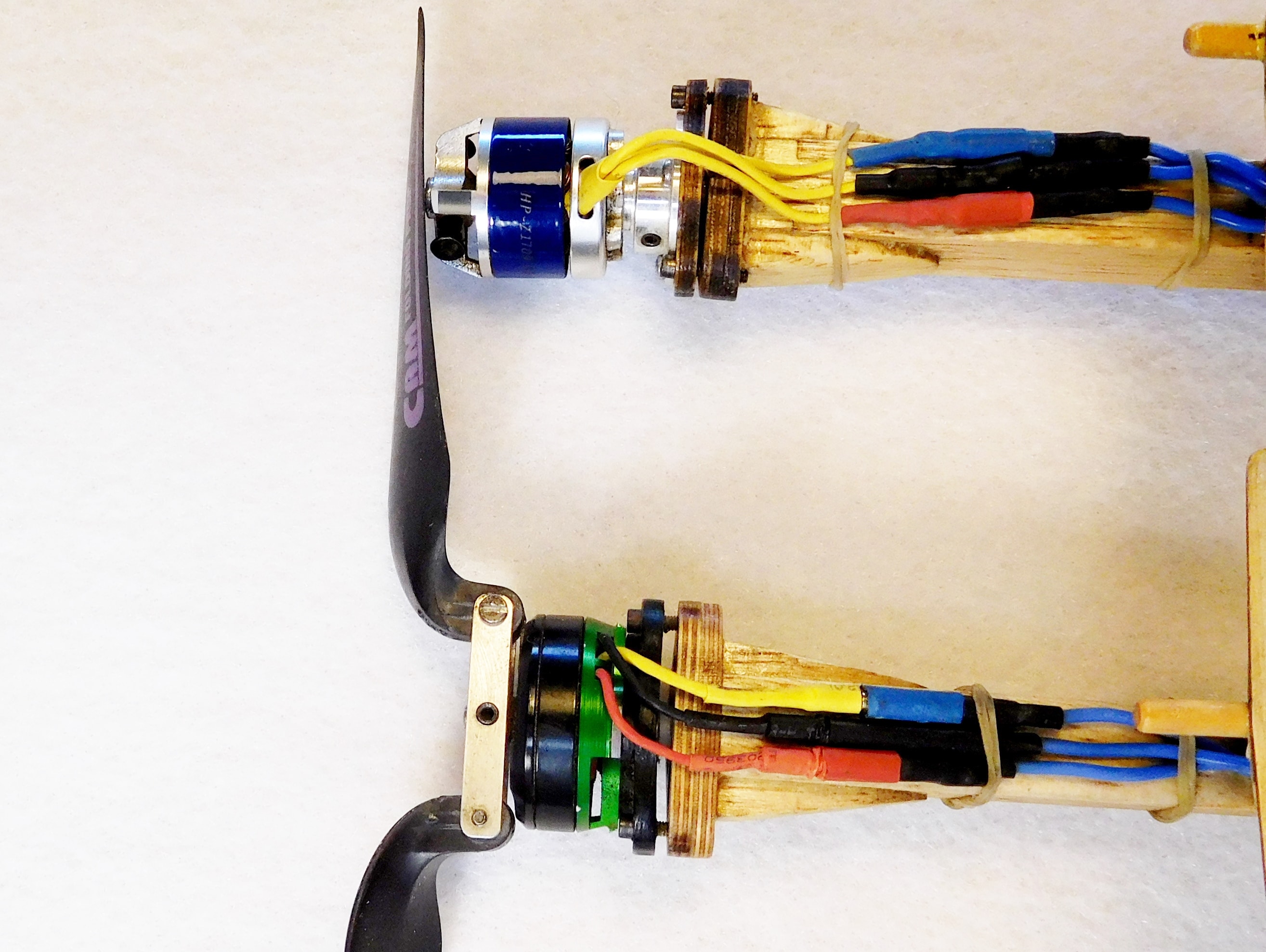

and installation provisions for the Cobra 2203/28 brushless E36/F1S motor.
The JOULEBOX MK III is offered as a Short Kit, a Standard Kit and two Deluxe Kit options.
Deluxe Kit Option A comes with Starlink-Flitetech's electronic timer.

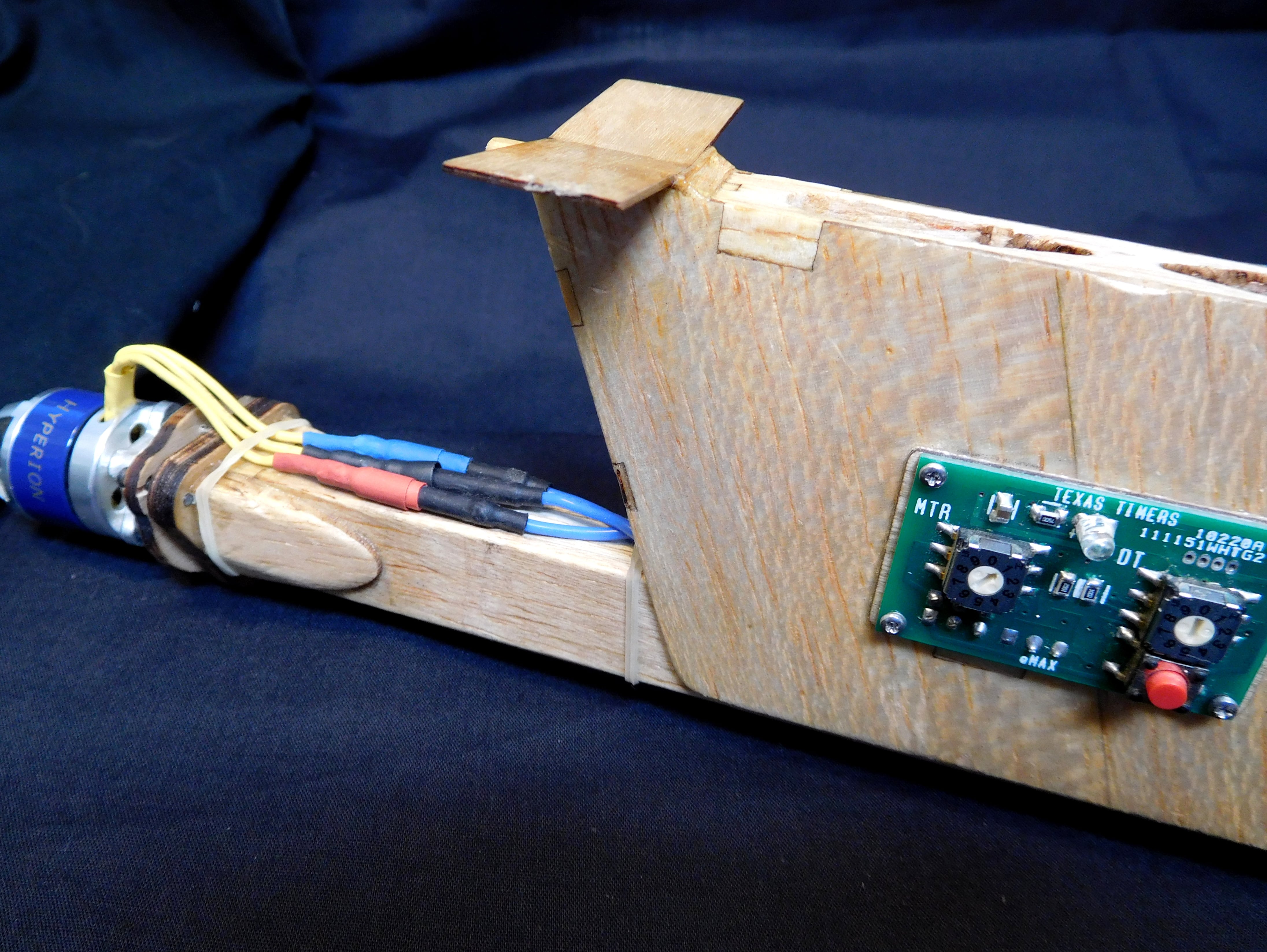

Deluxe Kit Option B comes with Texas Timers eMax electronic timer.

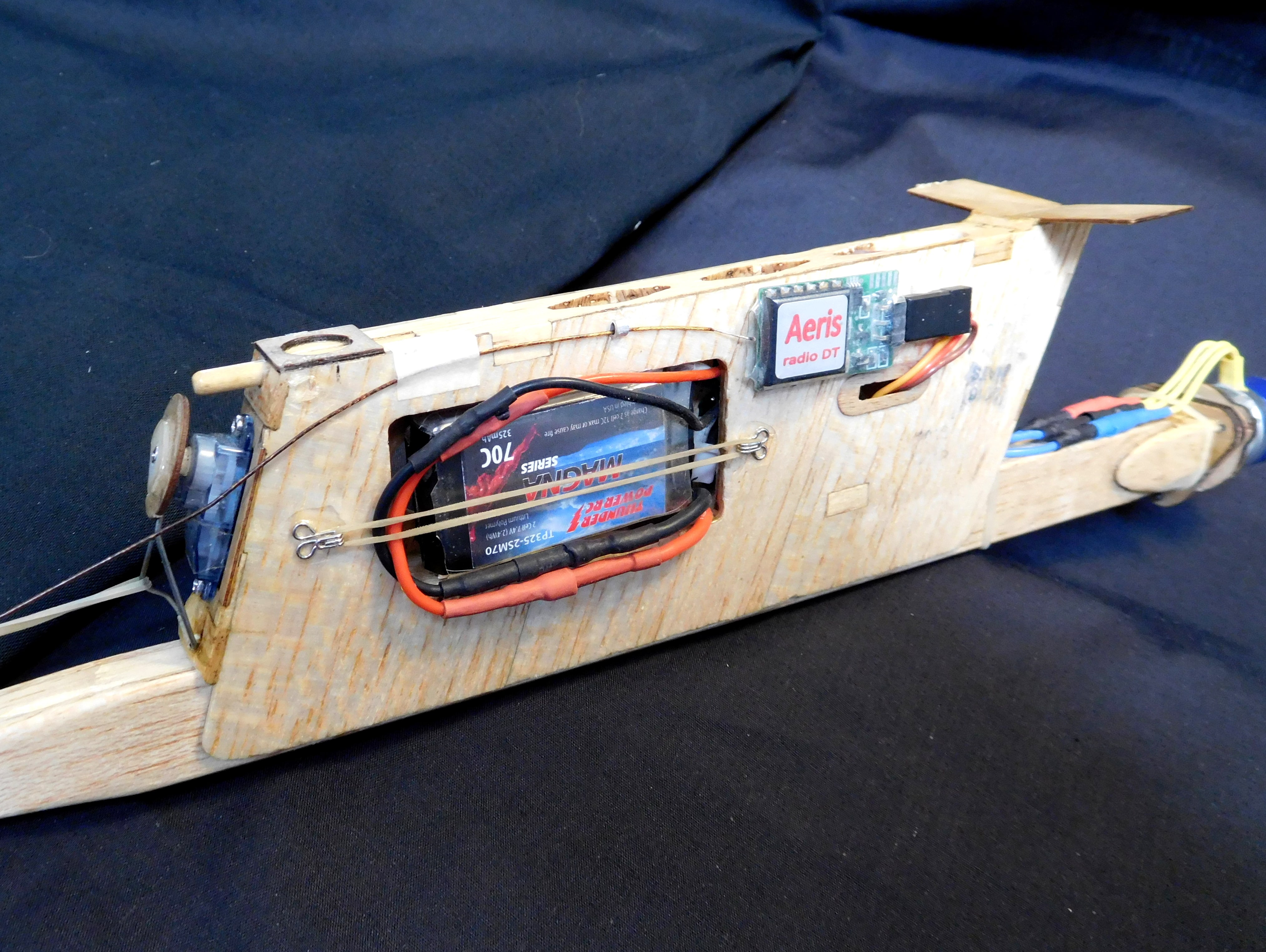

Both timers come with the optional RDT pigtail for use with your RDT system.

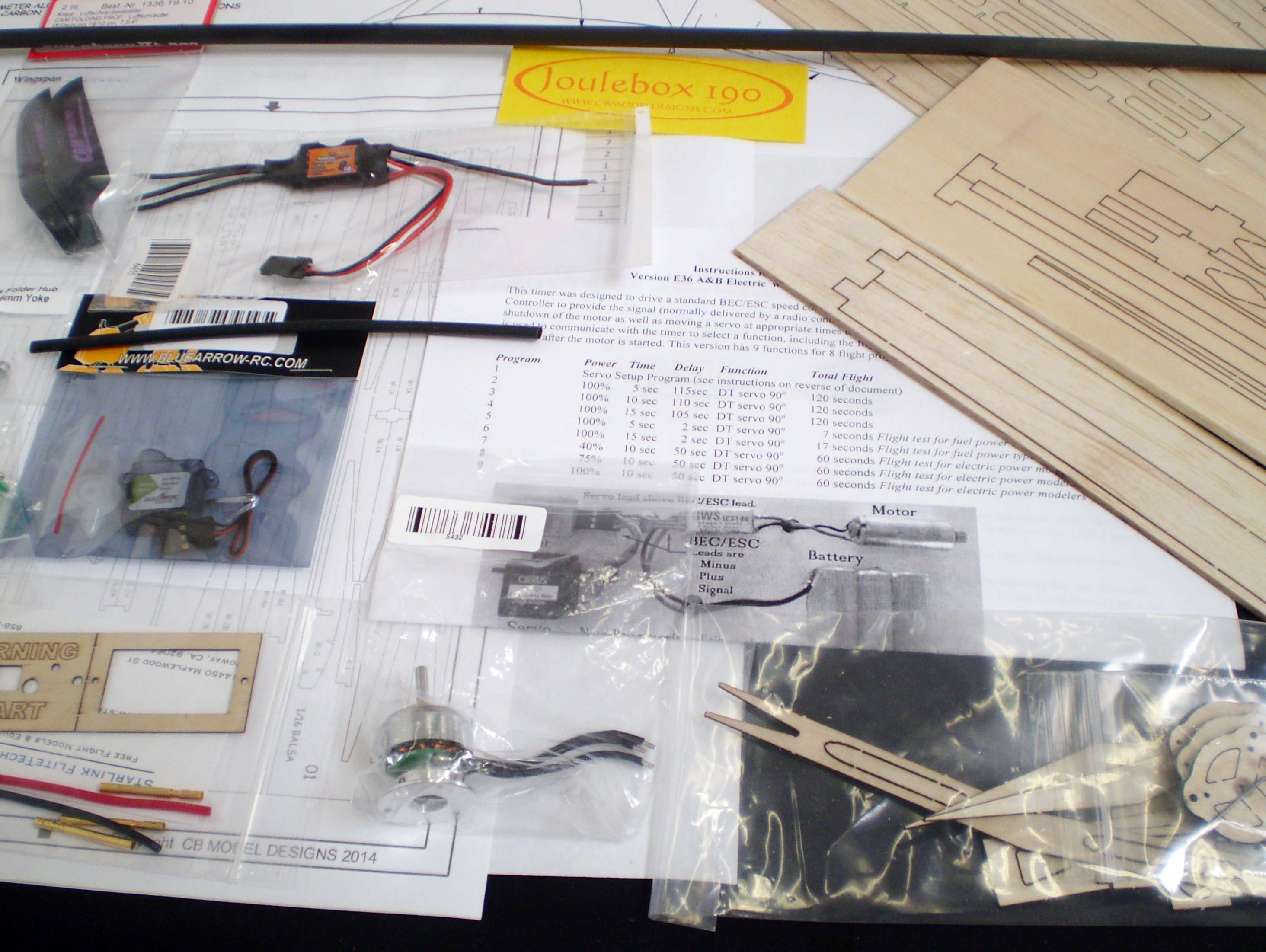

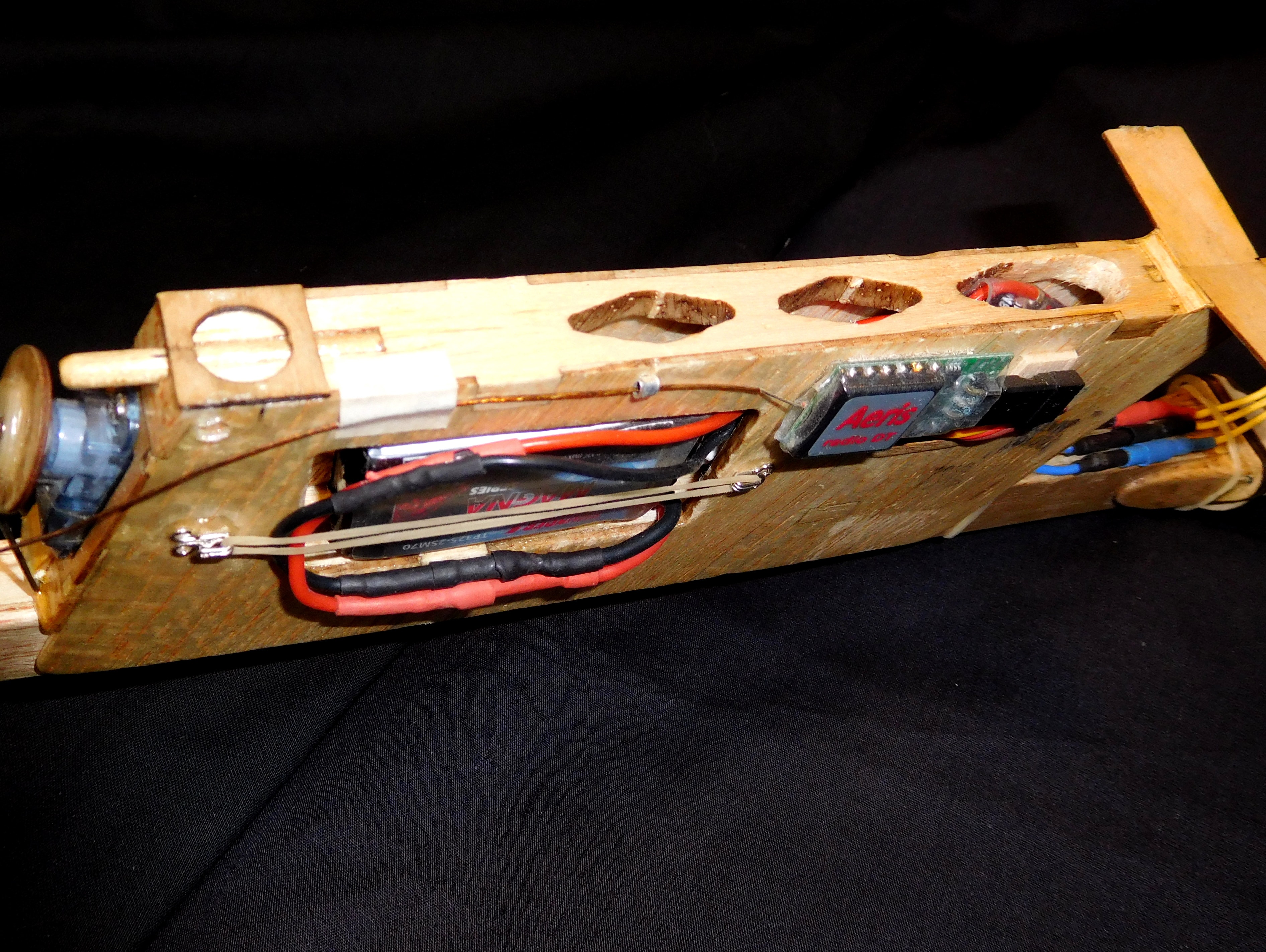

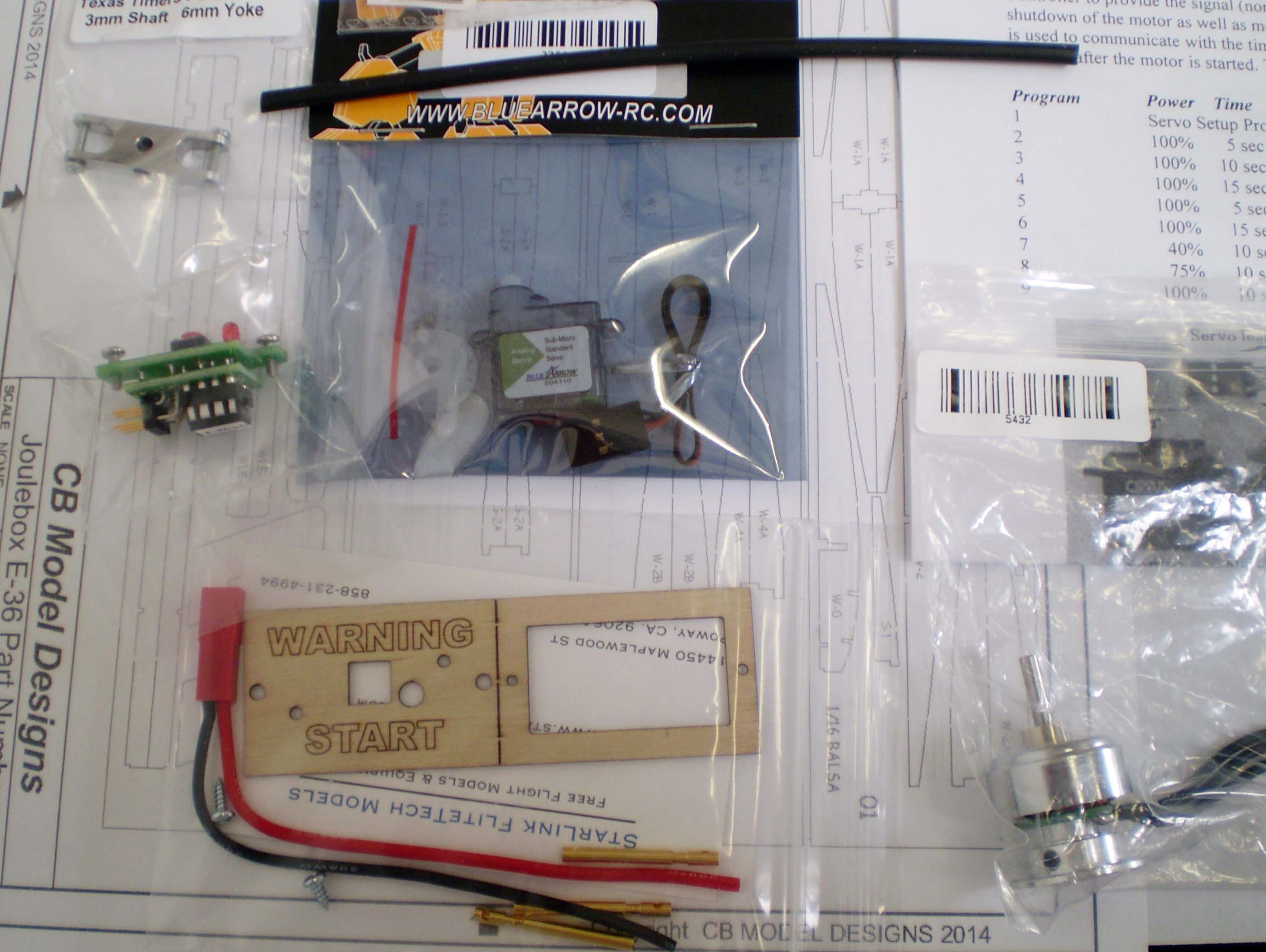

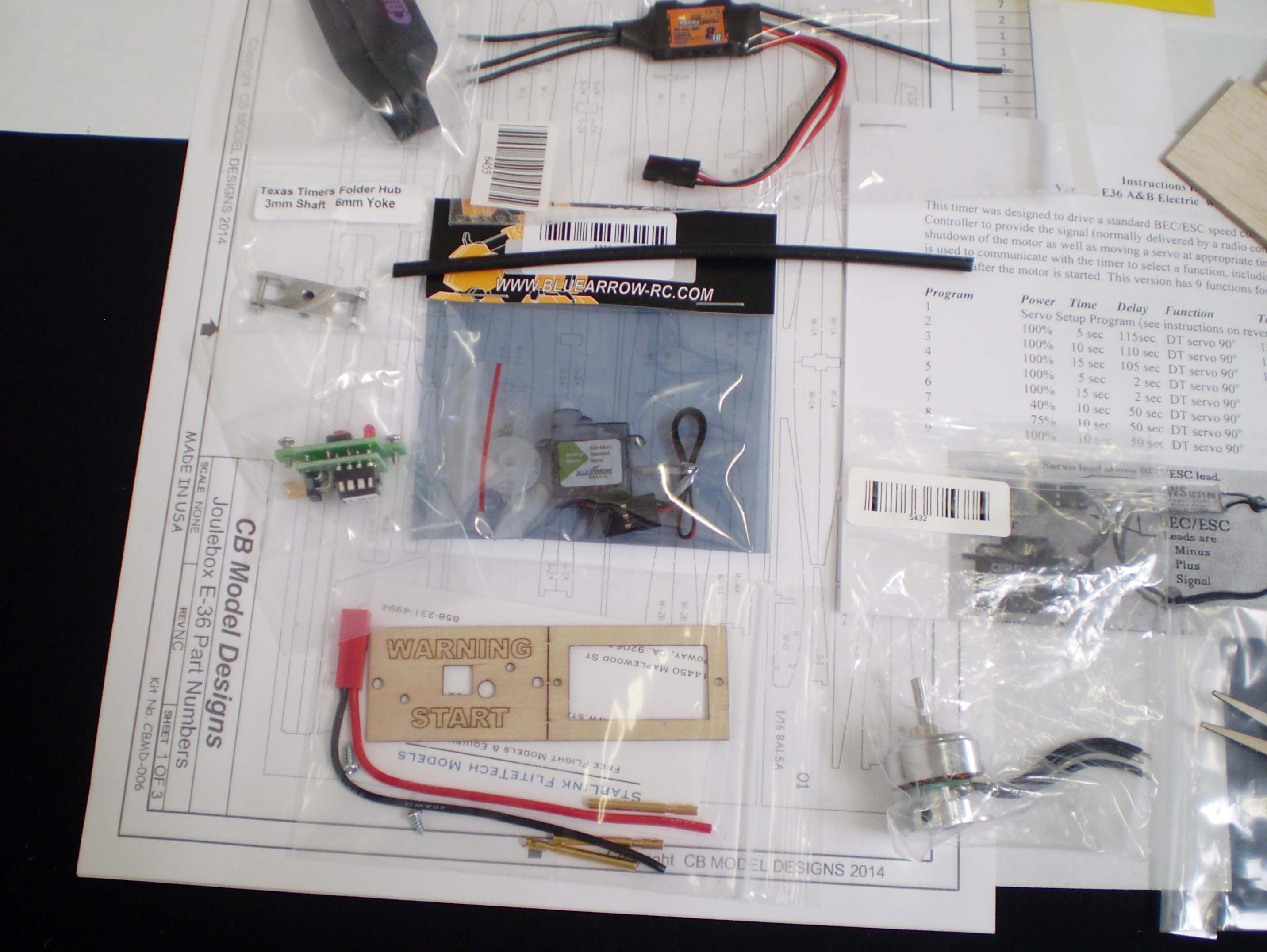

Both Deluxe Kit options come with all the other necessary drivetrain components (with the exception of the LiPo battery which the builder must supply).

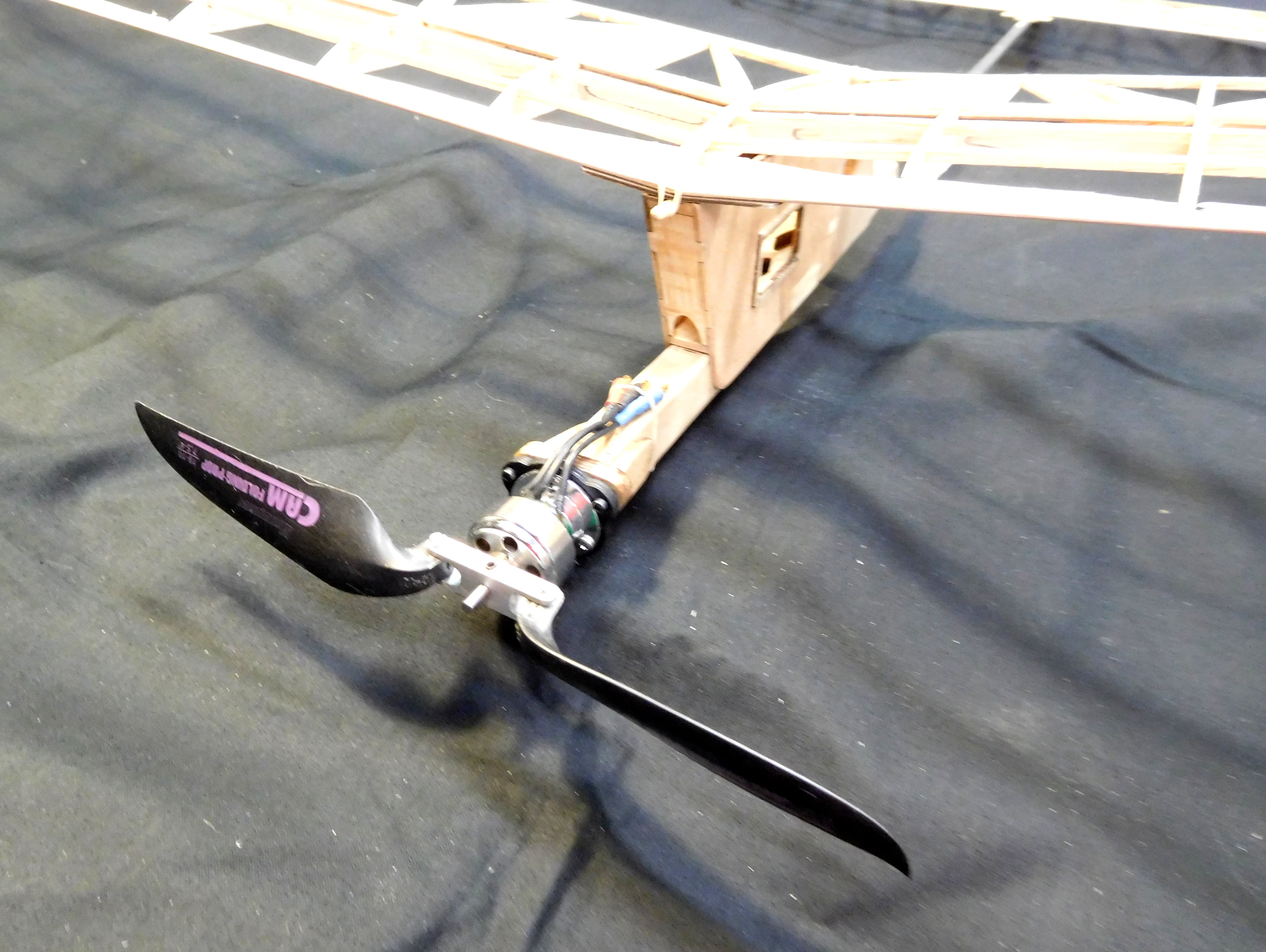

This includes a Cobra 2203/28 brushless motor, a set of 7.5 X 4 Graupner folding prop blades with a Texas Timers prop hub,

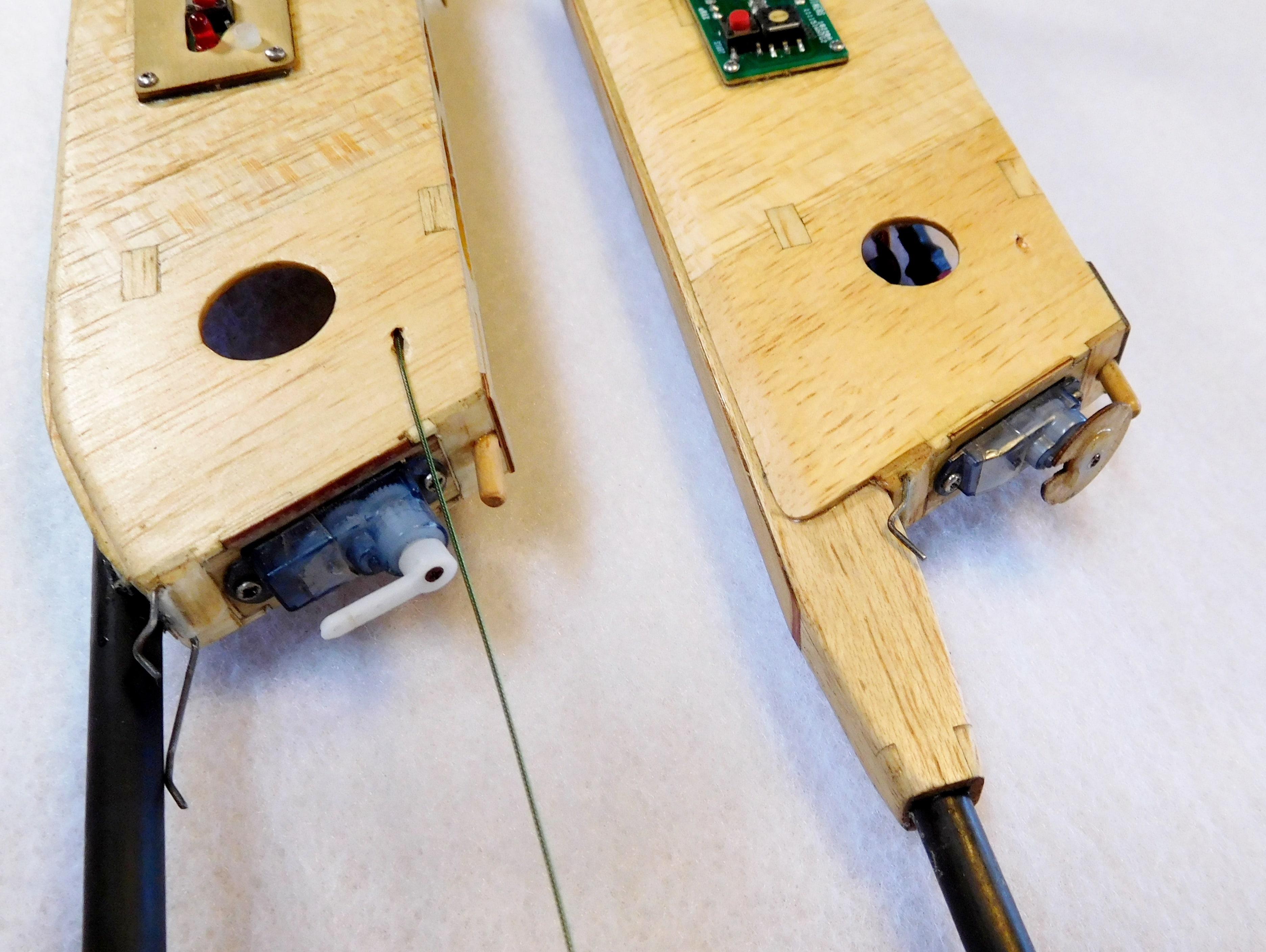

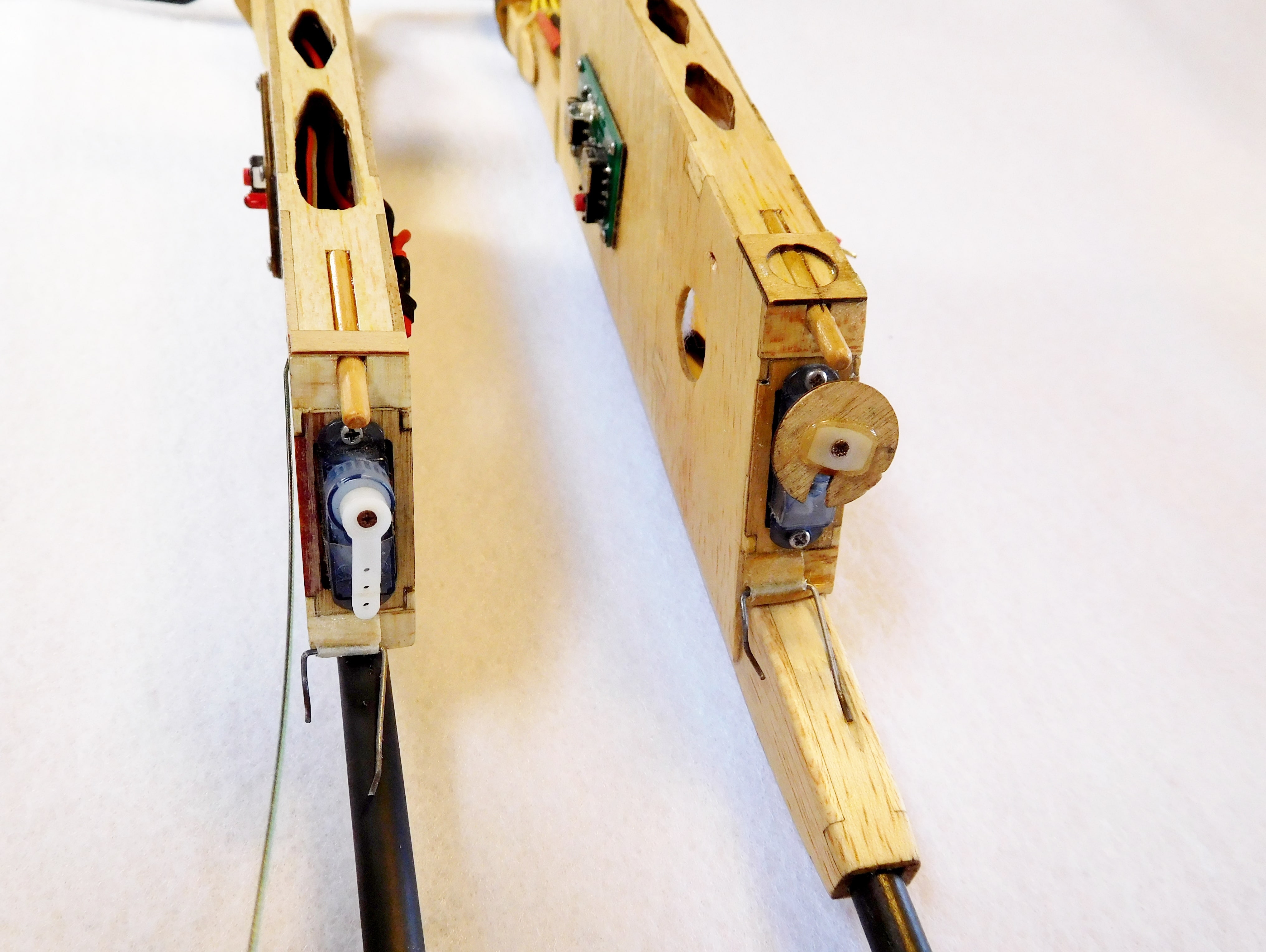

a 12 Amp ESC, a micro servo for DT operation,
an electrical connector set with 2MM bullet pin connectors for the ESC to motor connections and a Deans Micro single pin connector set for ESC to LiPo connection.
Deluxe Kits
(now with 2 electronic timer options):
-

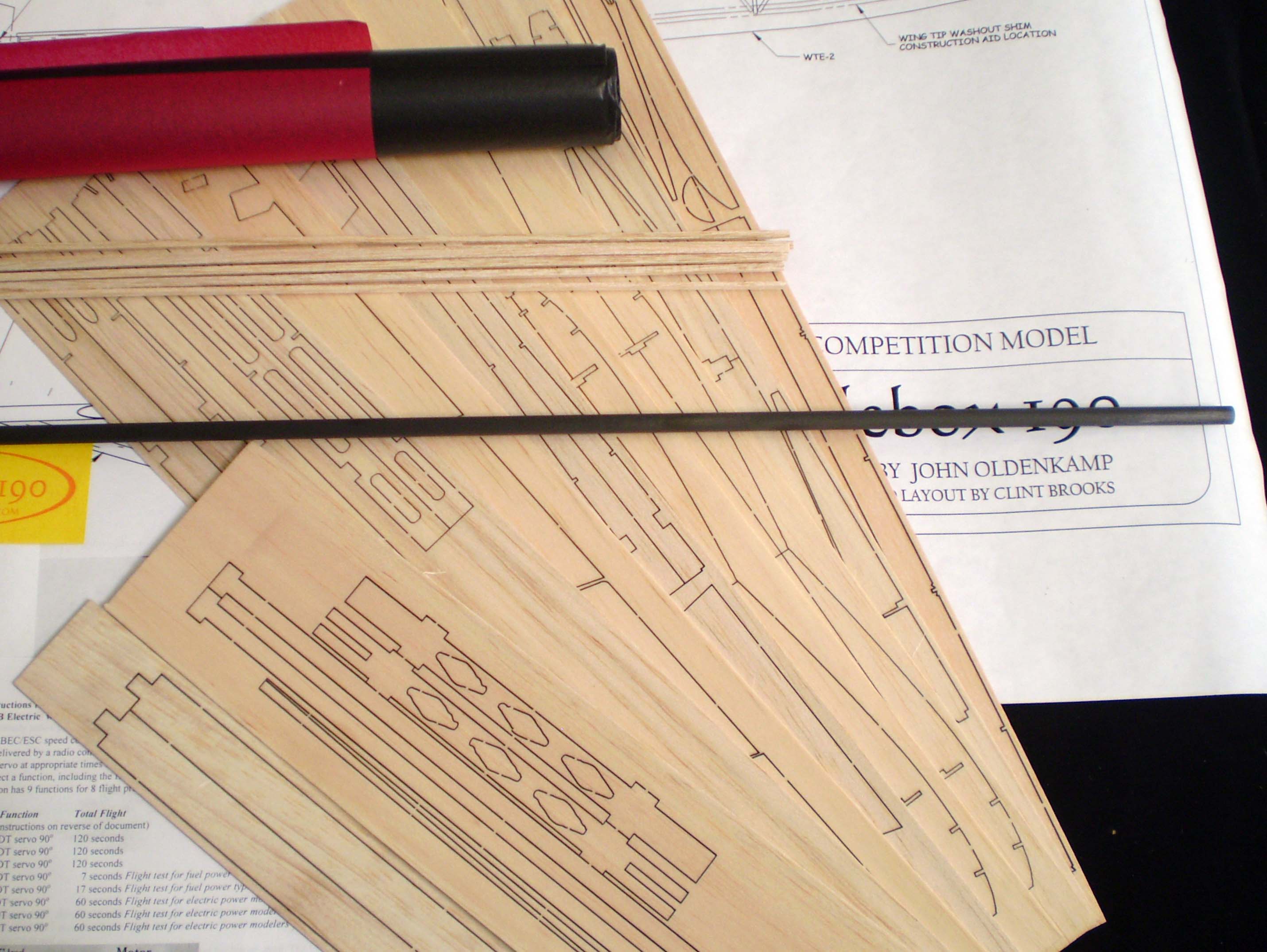

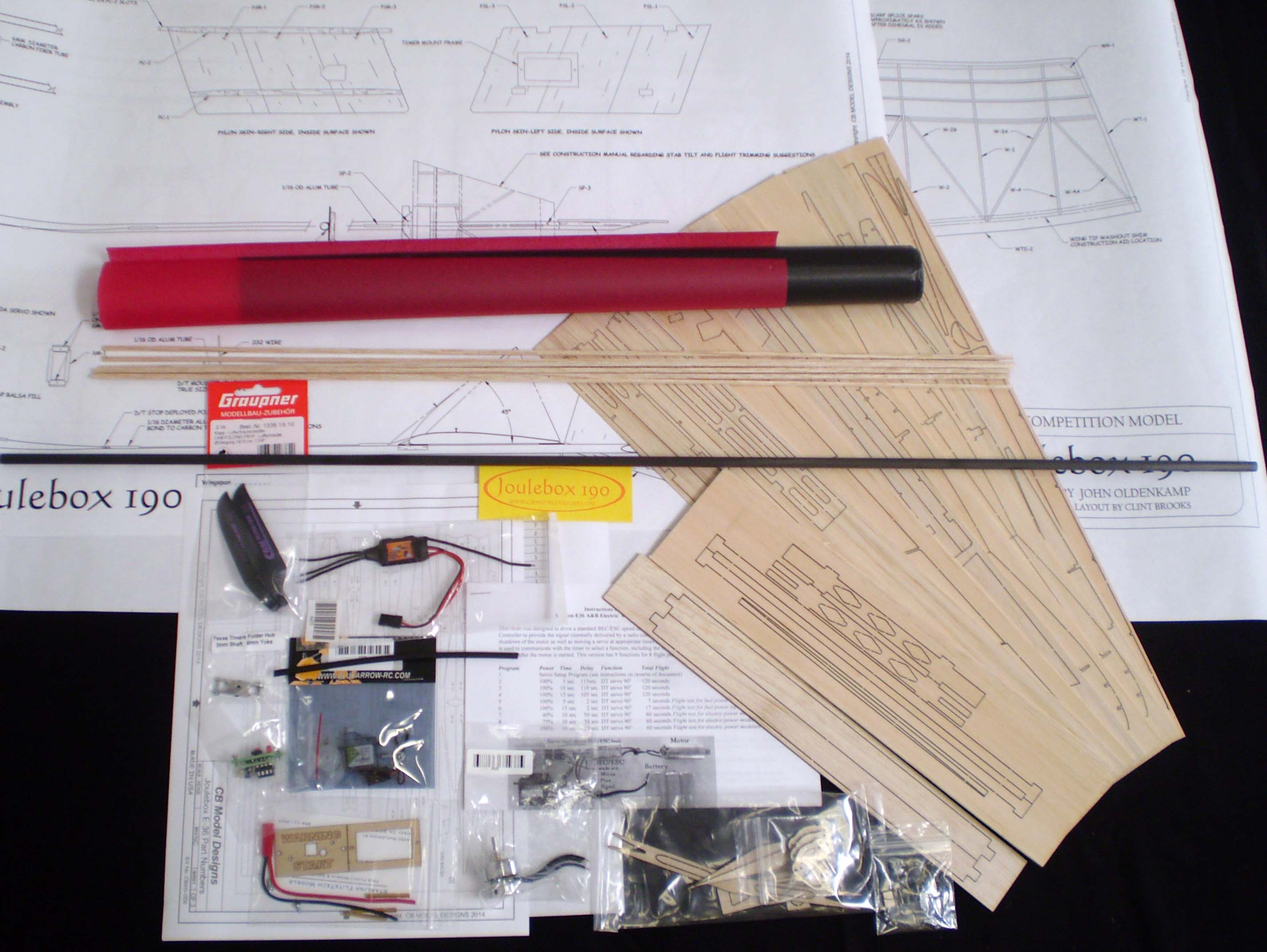

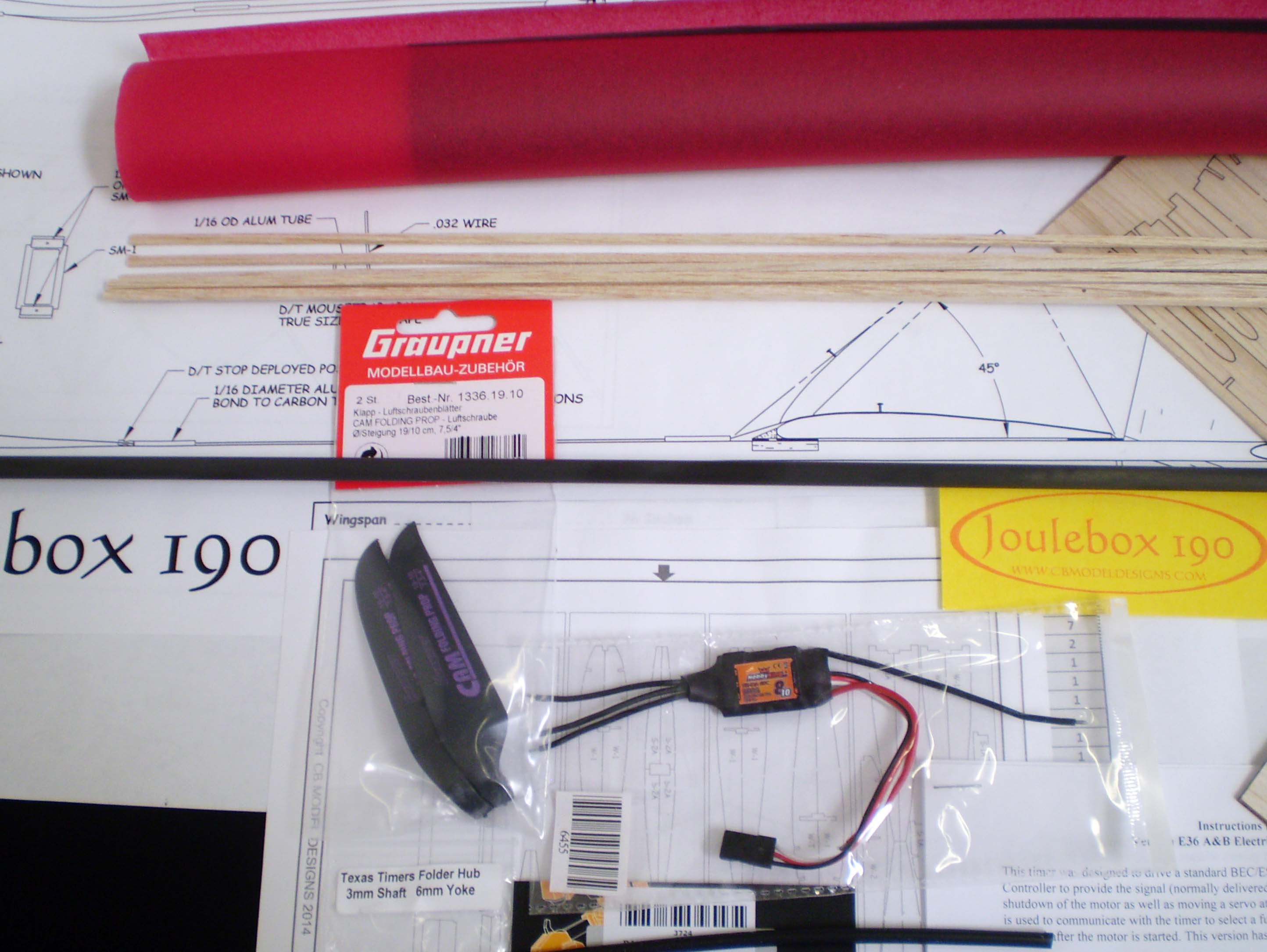

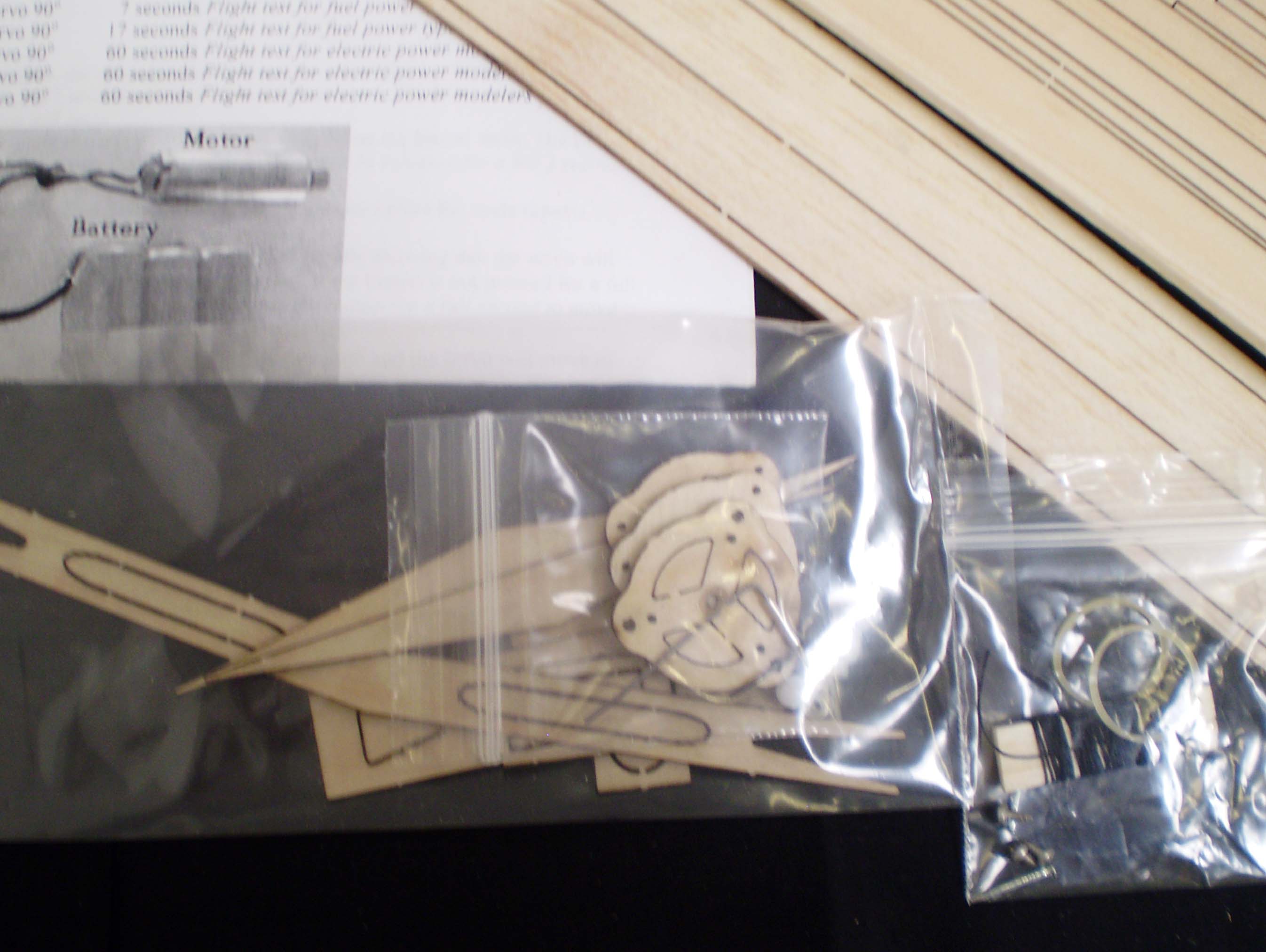

High quality laser cut balsa and plywood parts-have been fit checked and flight proven prior to kit release
-

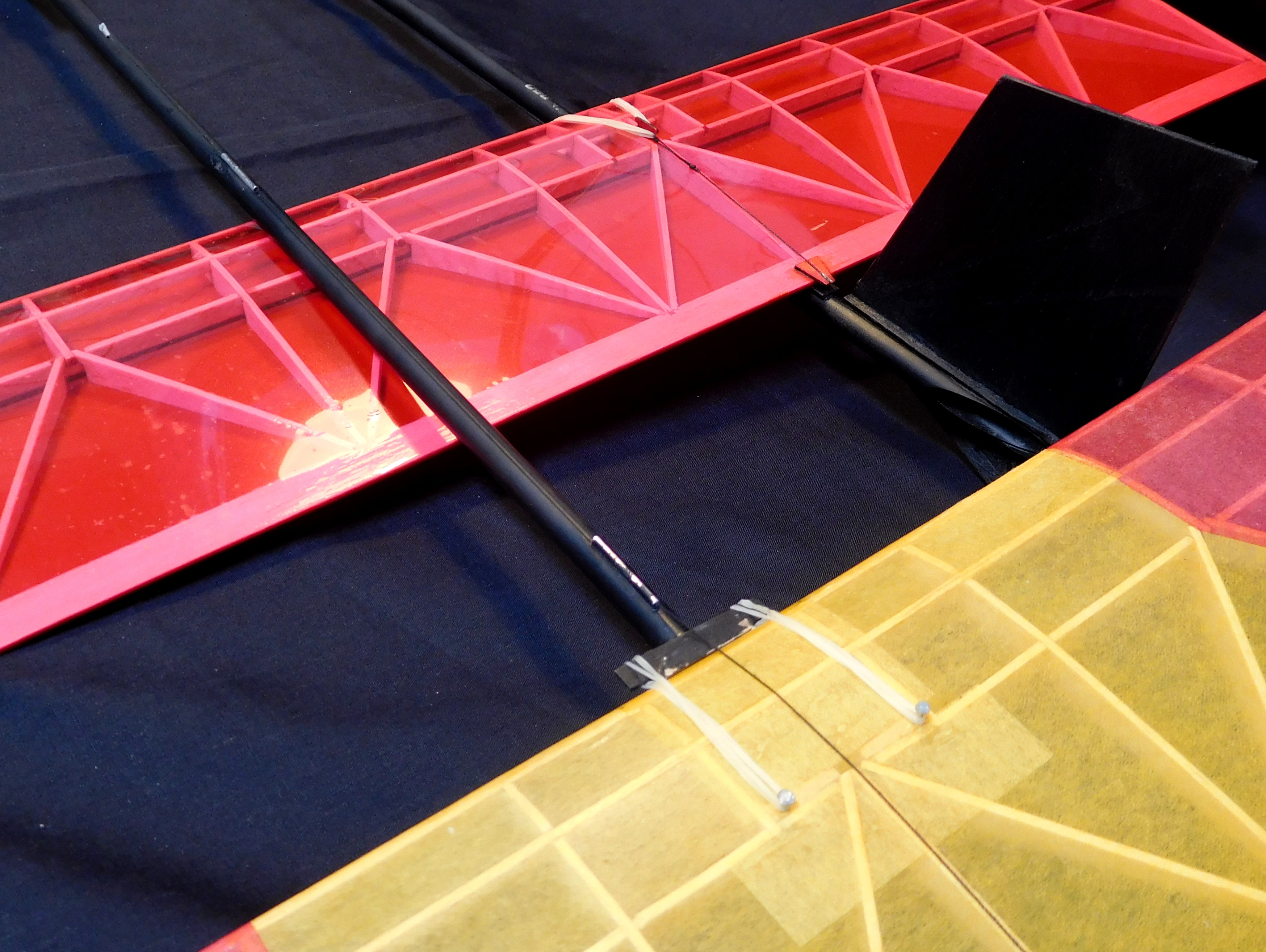

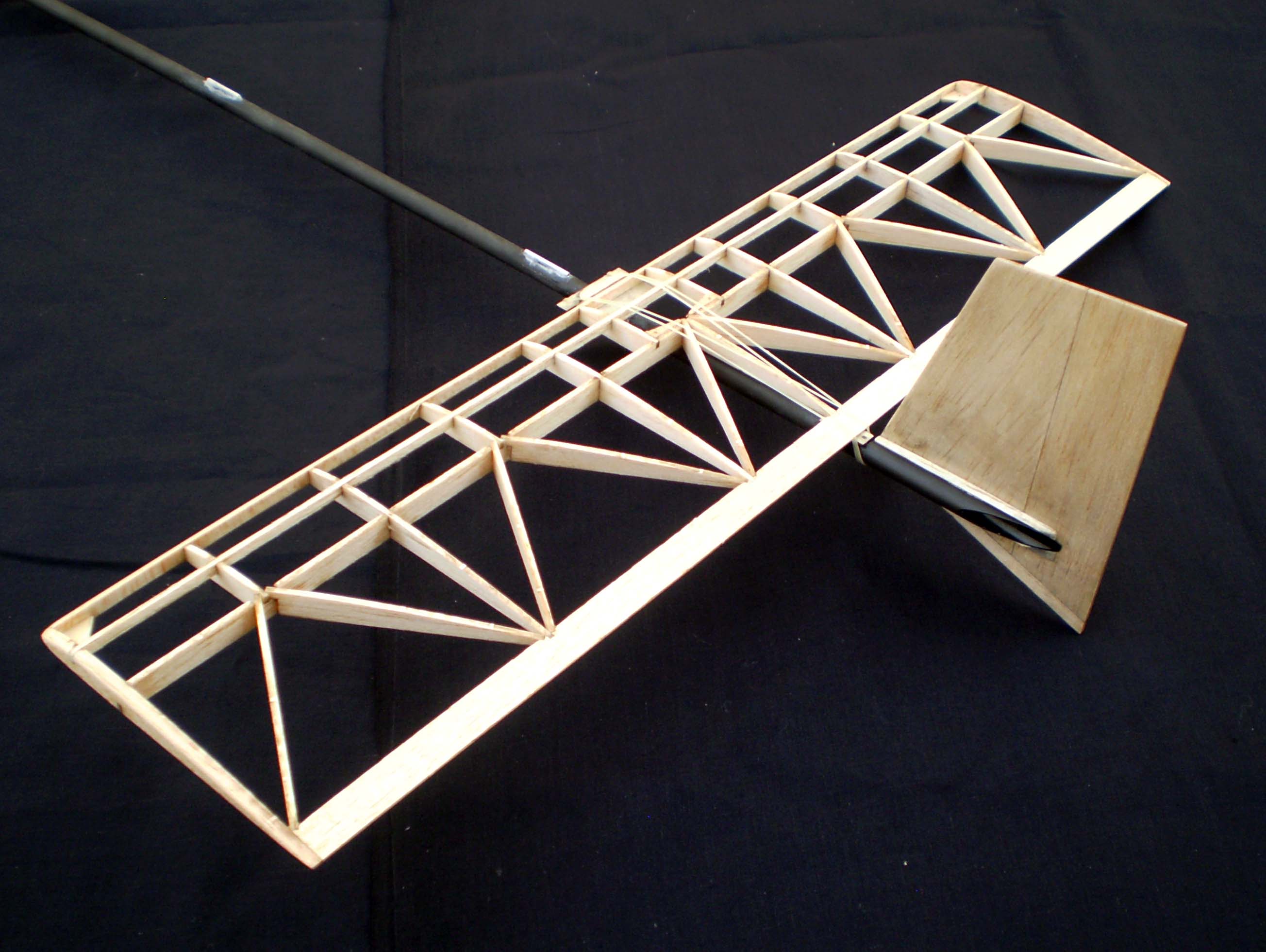

High quality balsa strip stock for wing spar caps, turbulator spars for wing and horizontal stabilizer
-

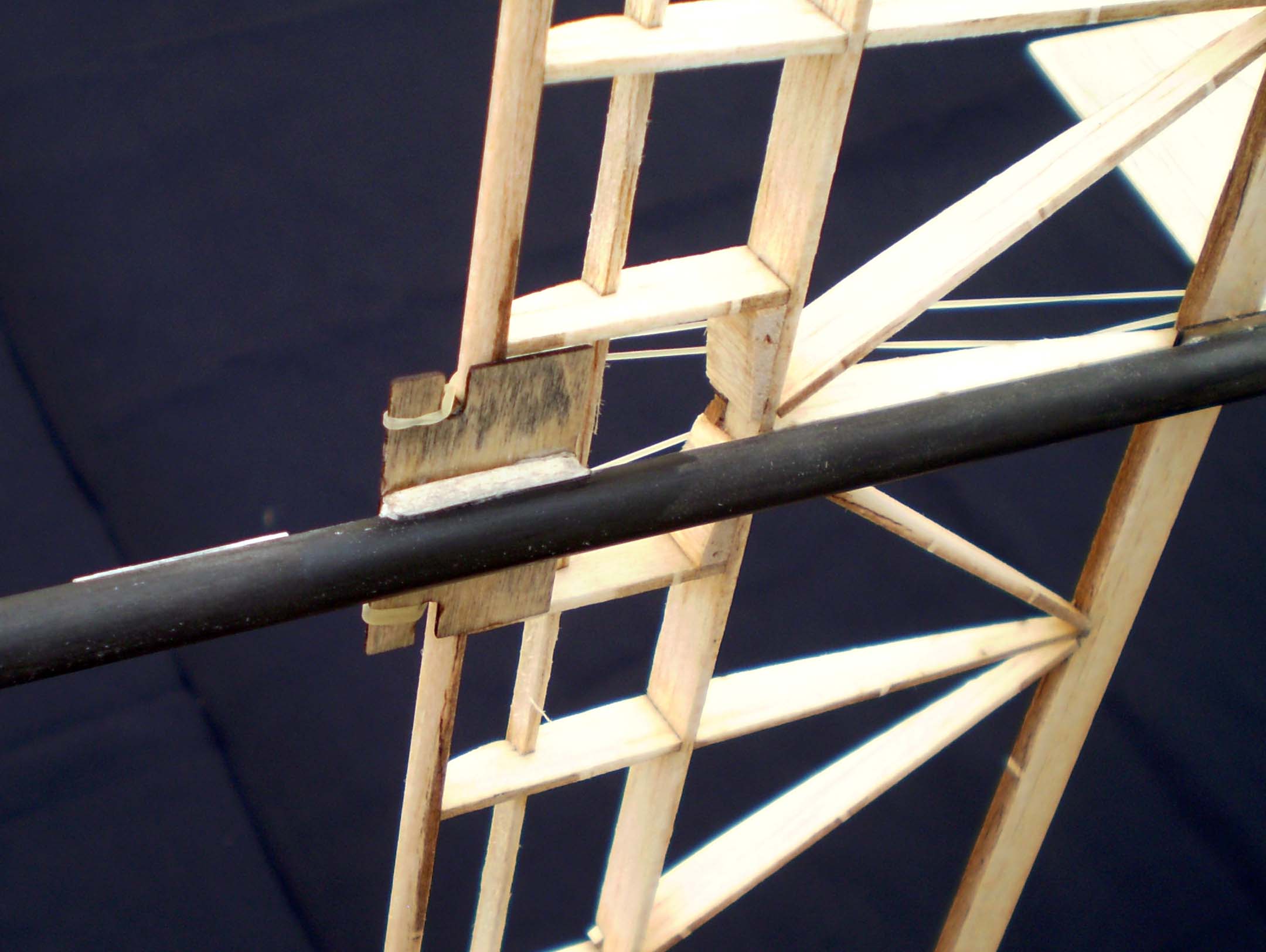

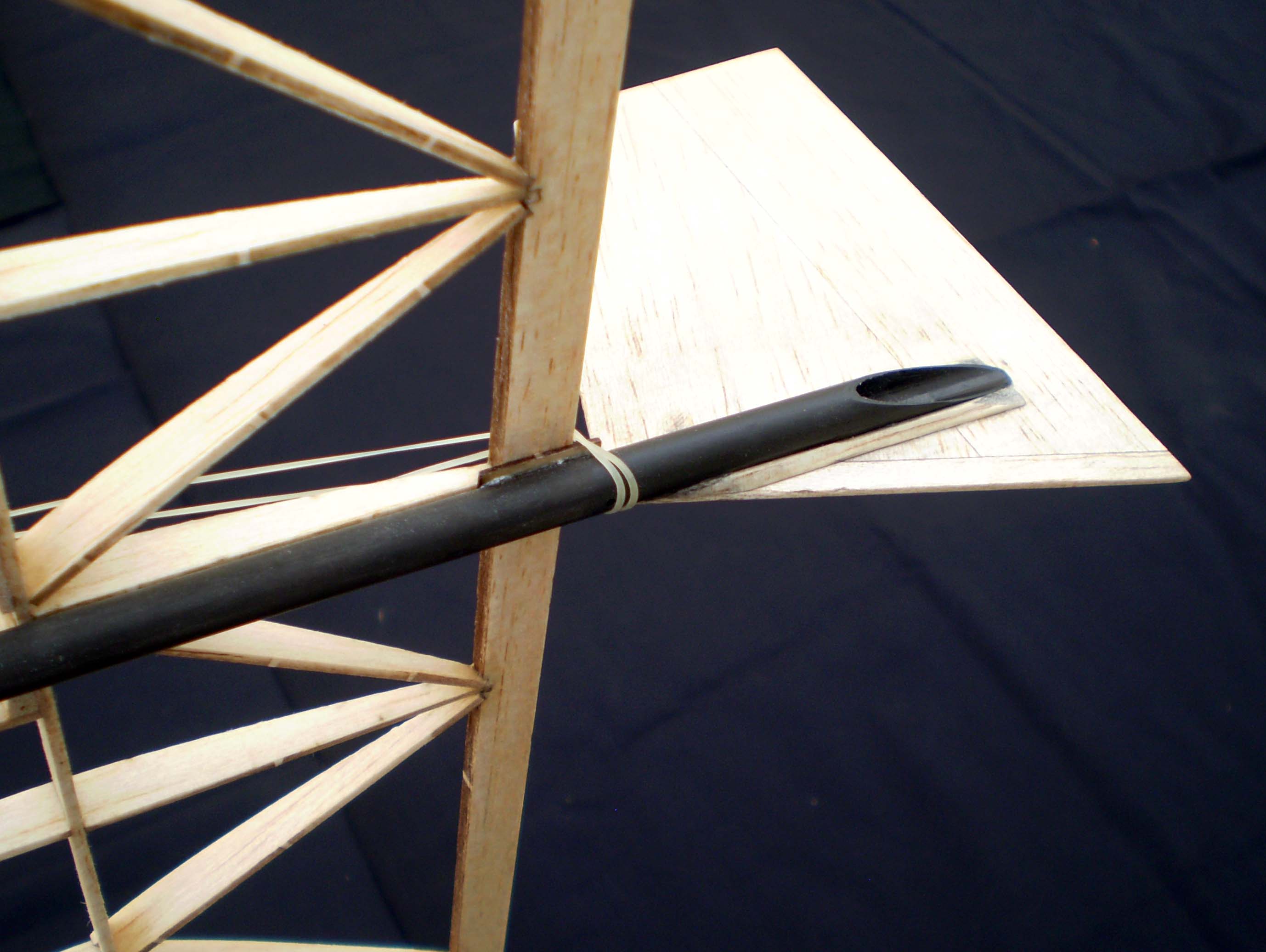

Air Shark P90 grade carbon tube tail boom pre-cut to length
-

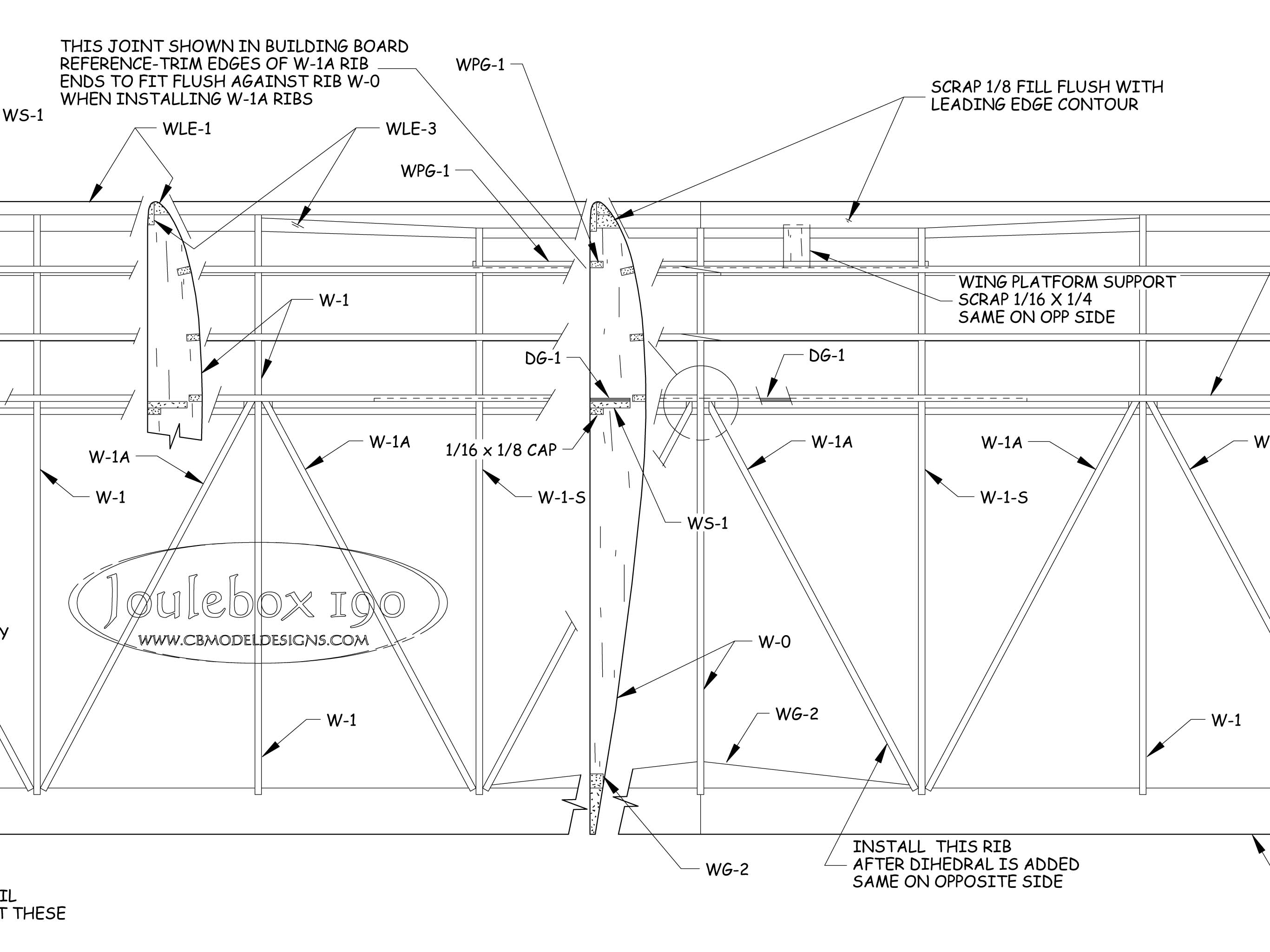

CAD drawings for construction
-
Construction manual
-
Complete hardware package for everything noted on the kit drawing, including the dethermalizer system
-

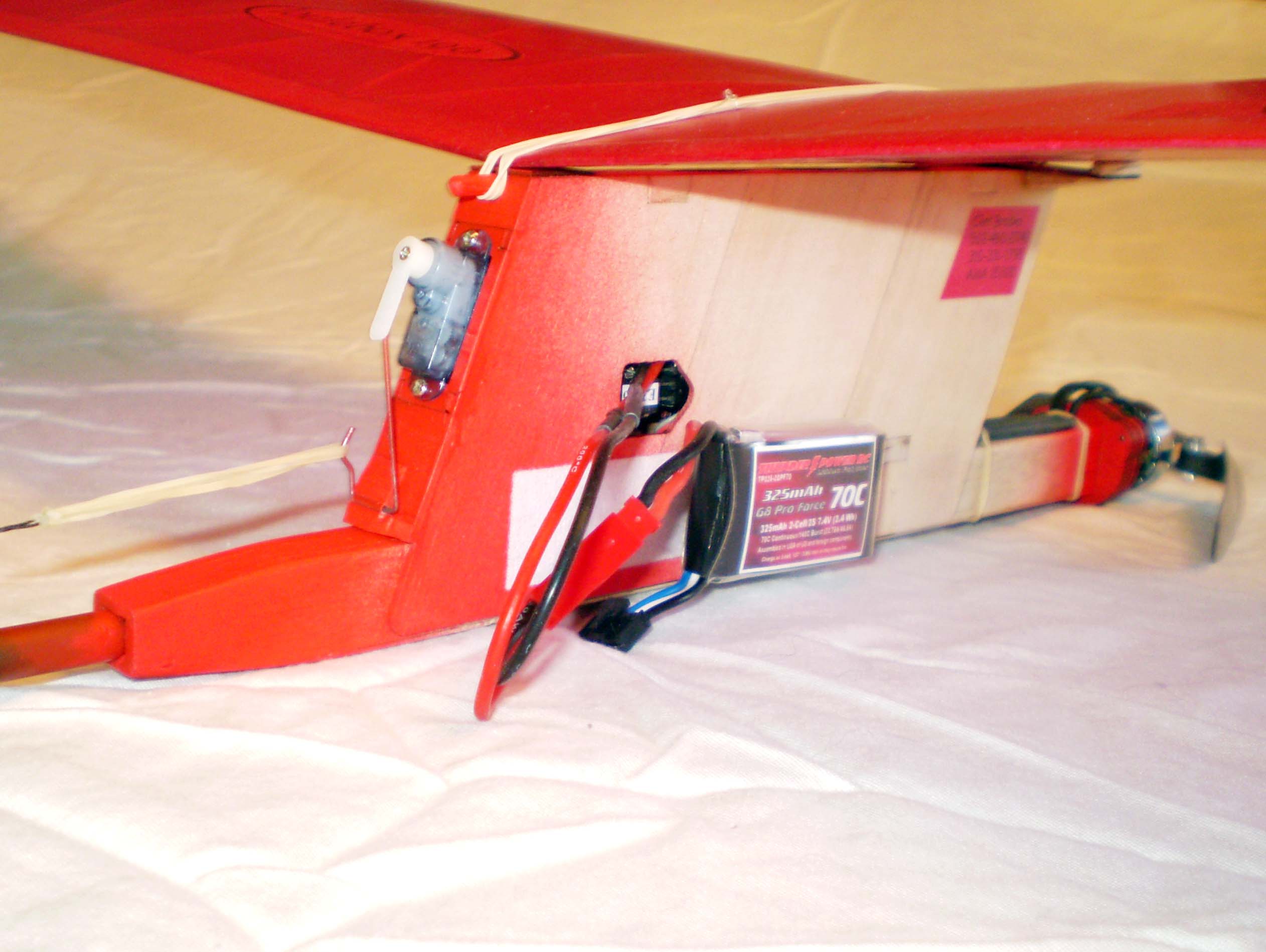

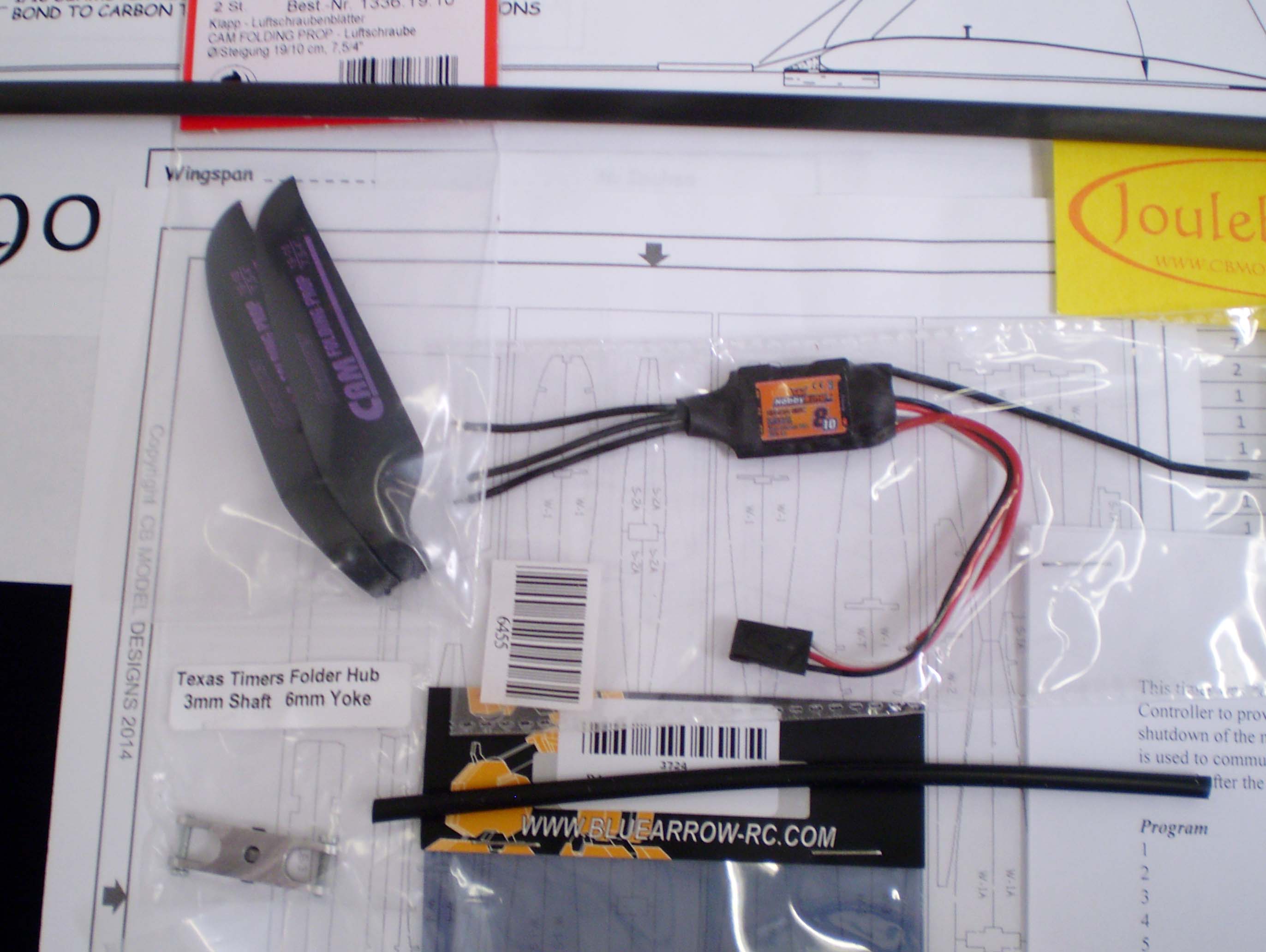

all drivetrain components (with the exception of the LiPo battery which the builder must supply)
-

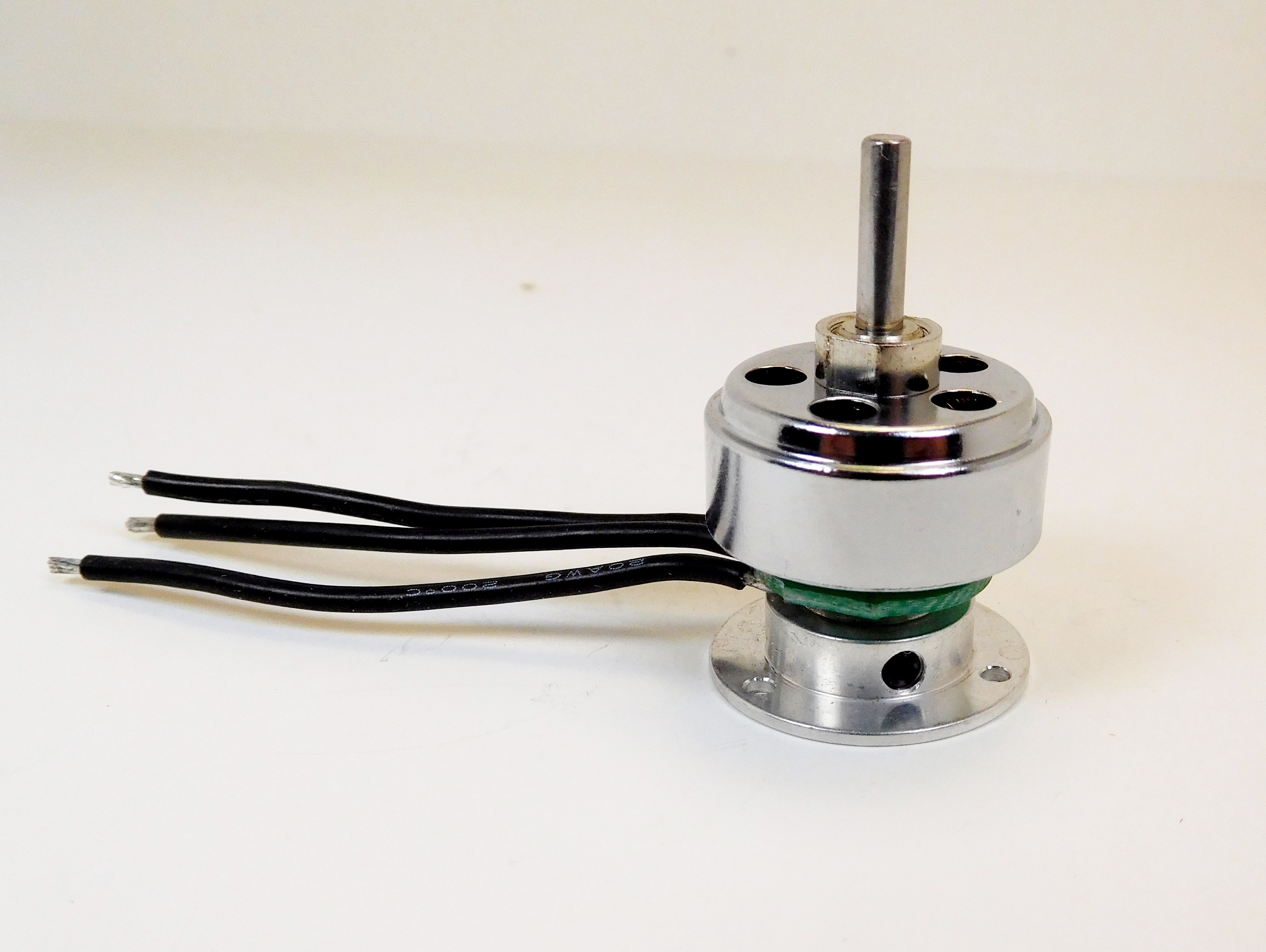

Cobra 2203/28 brushless motor
-

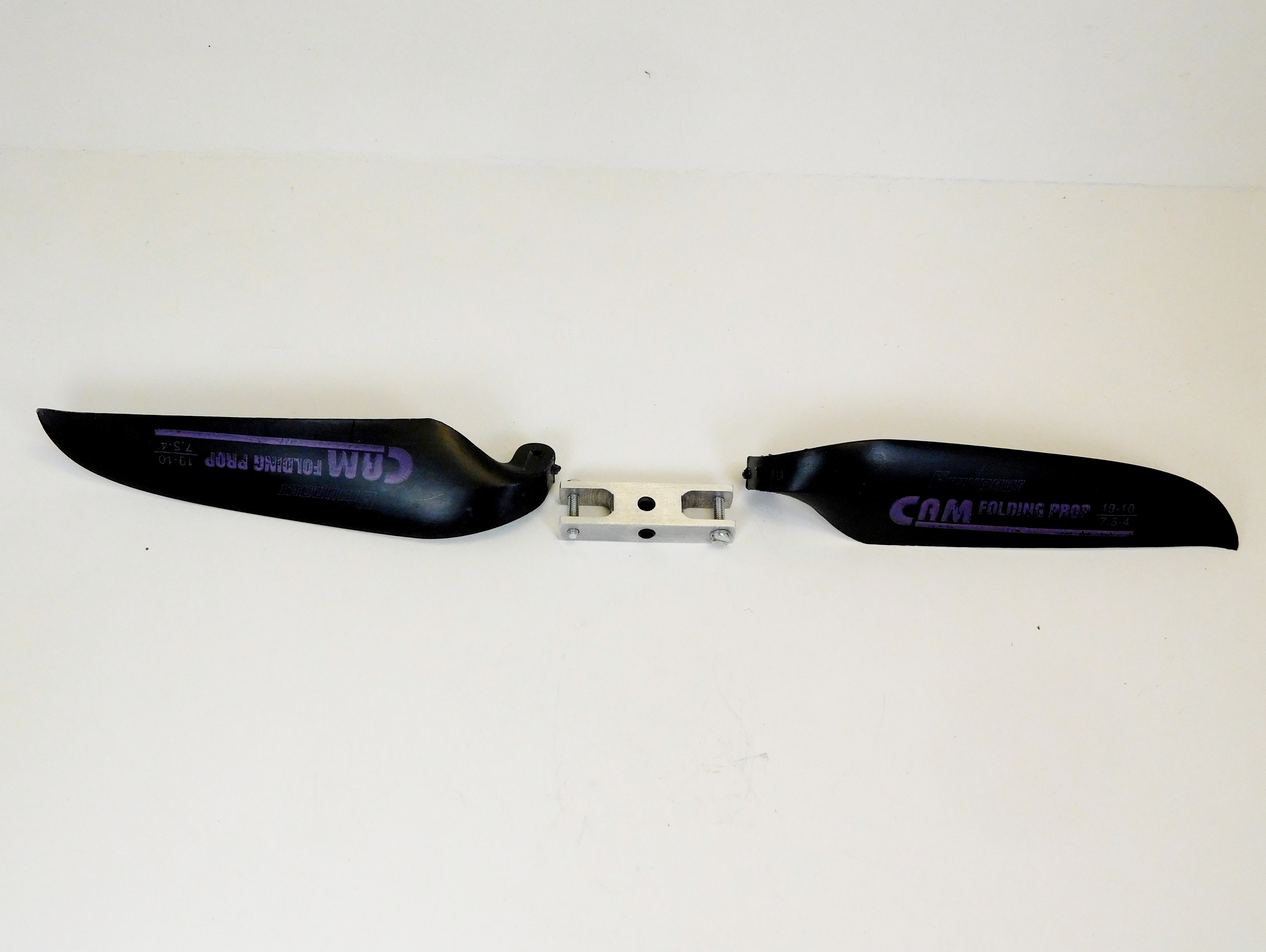

7.5 X 4 Graupner folding prop blades with a Texas Timers prop hub
-
12 Amp ESC
-

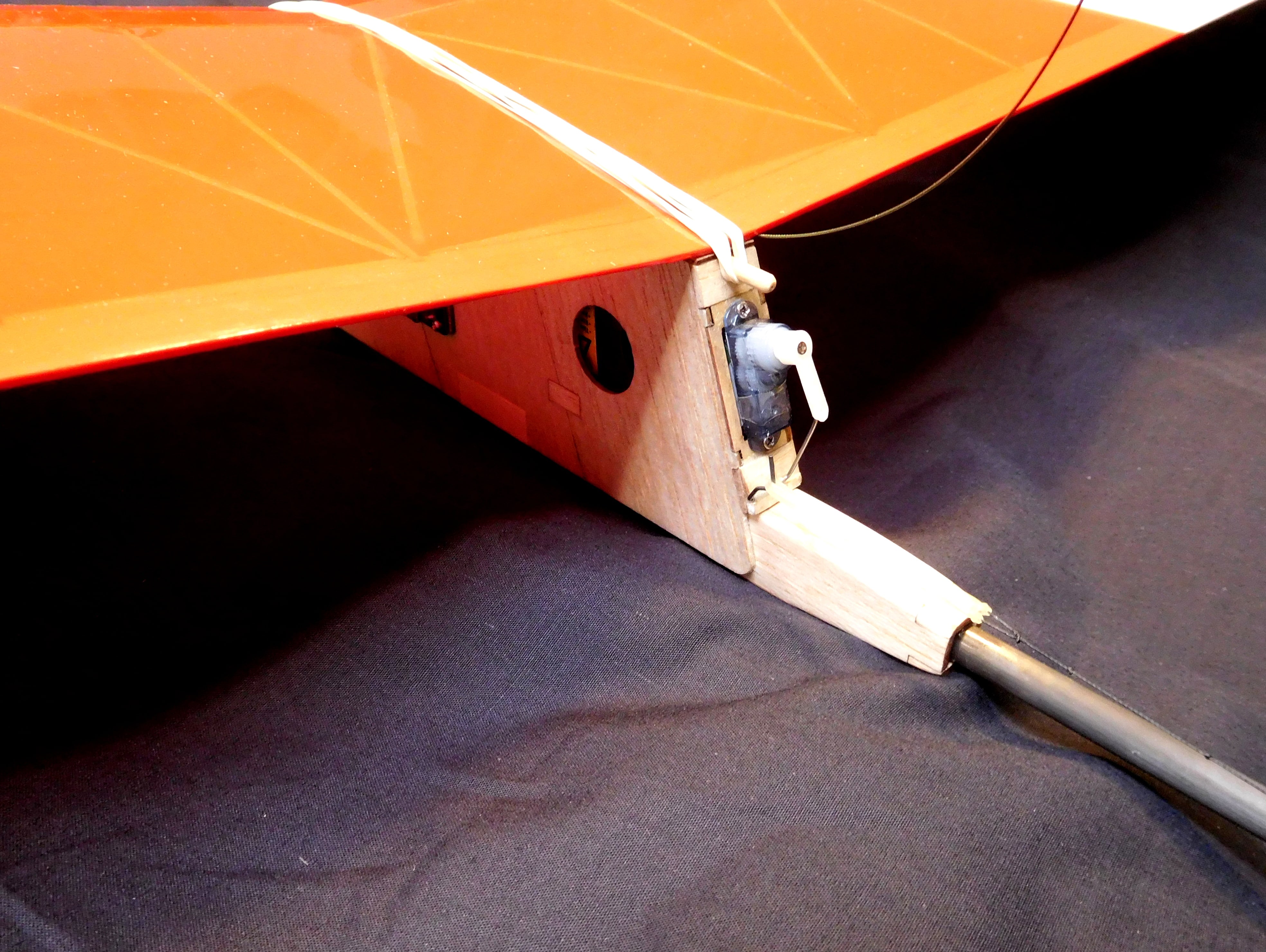

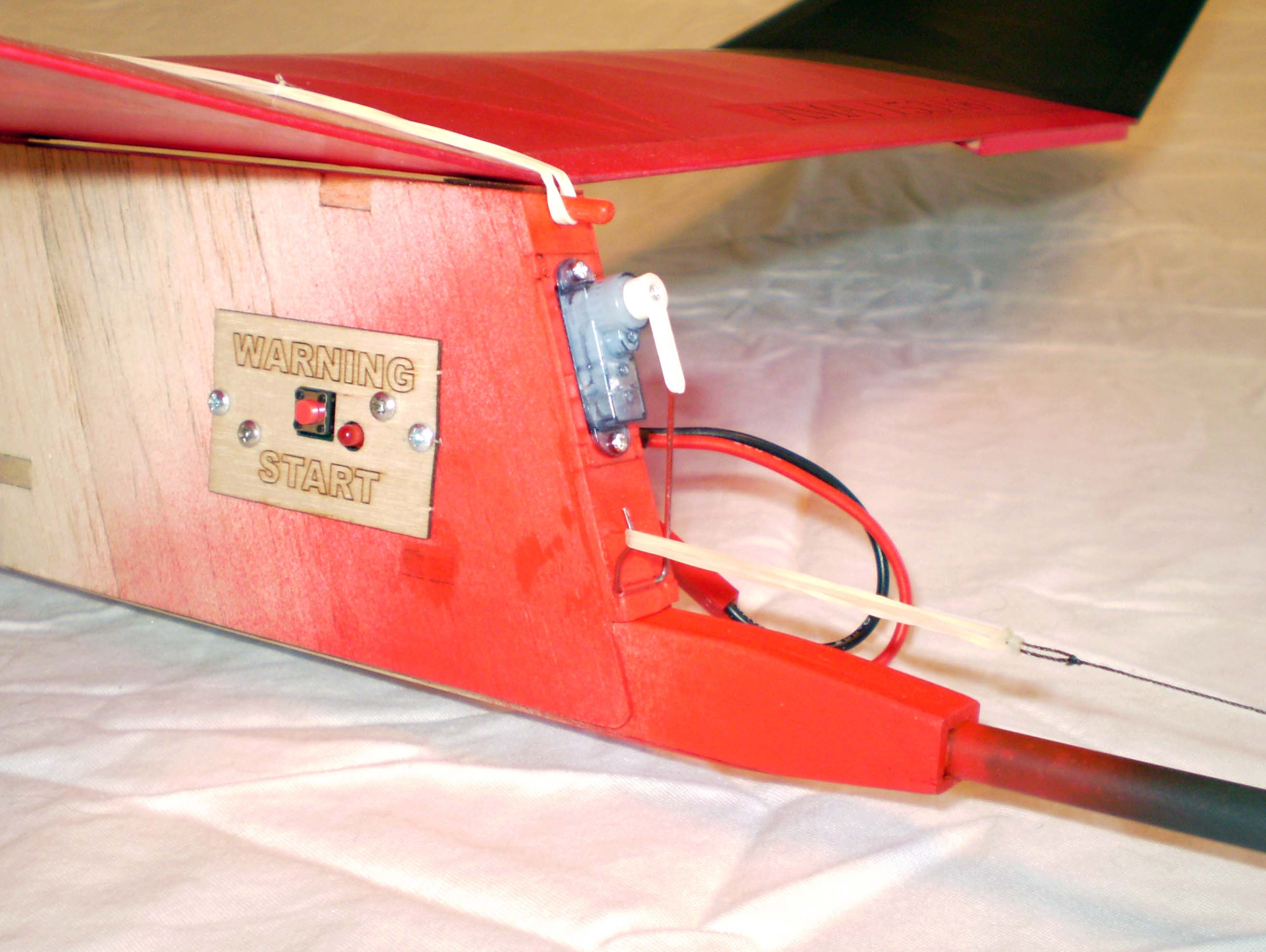

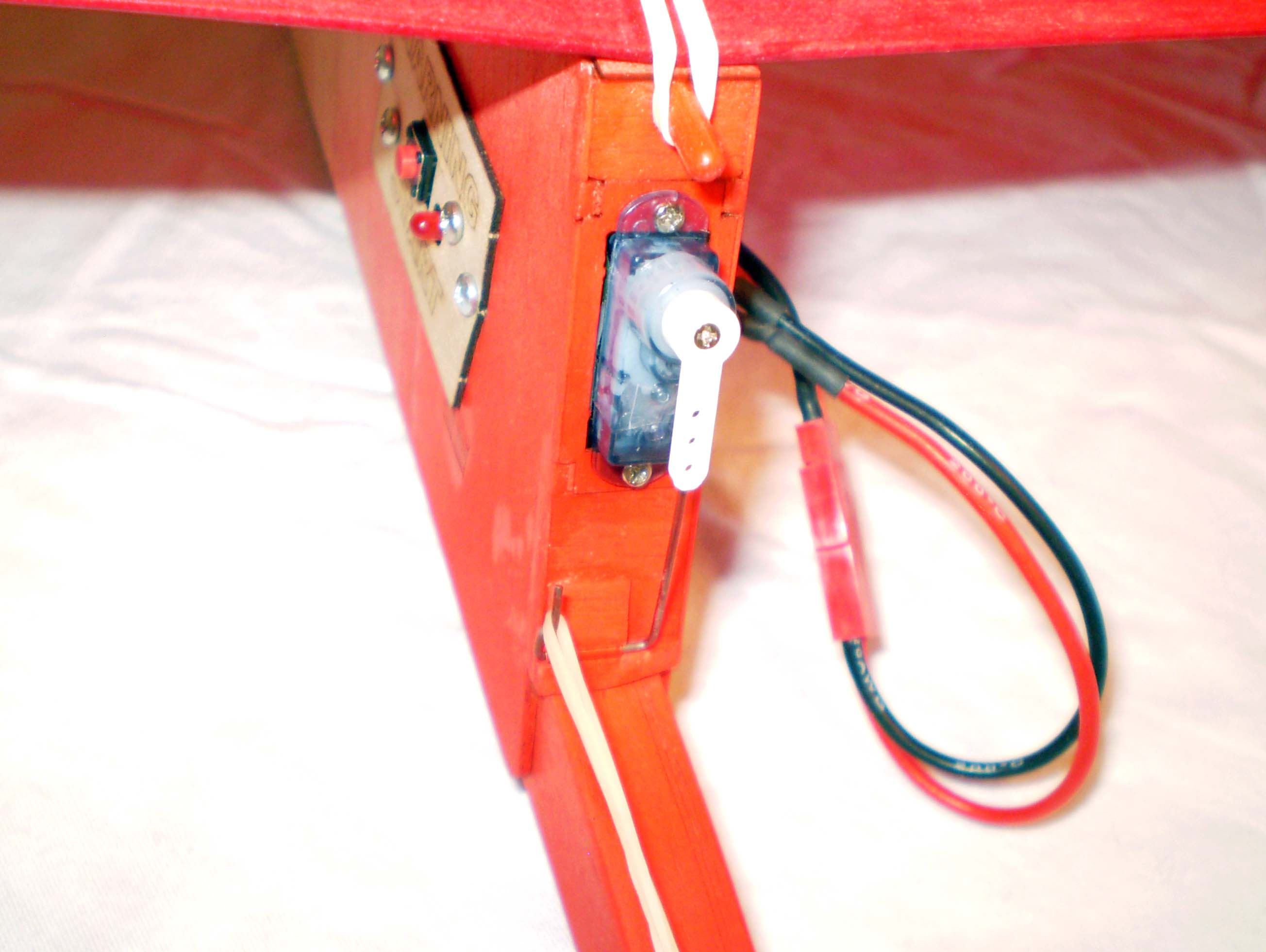

micro servo for DT operation
-

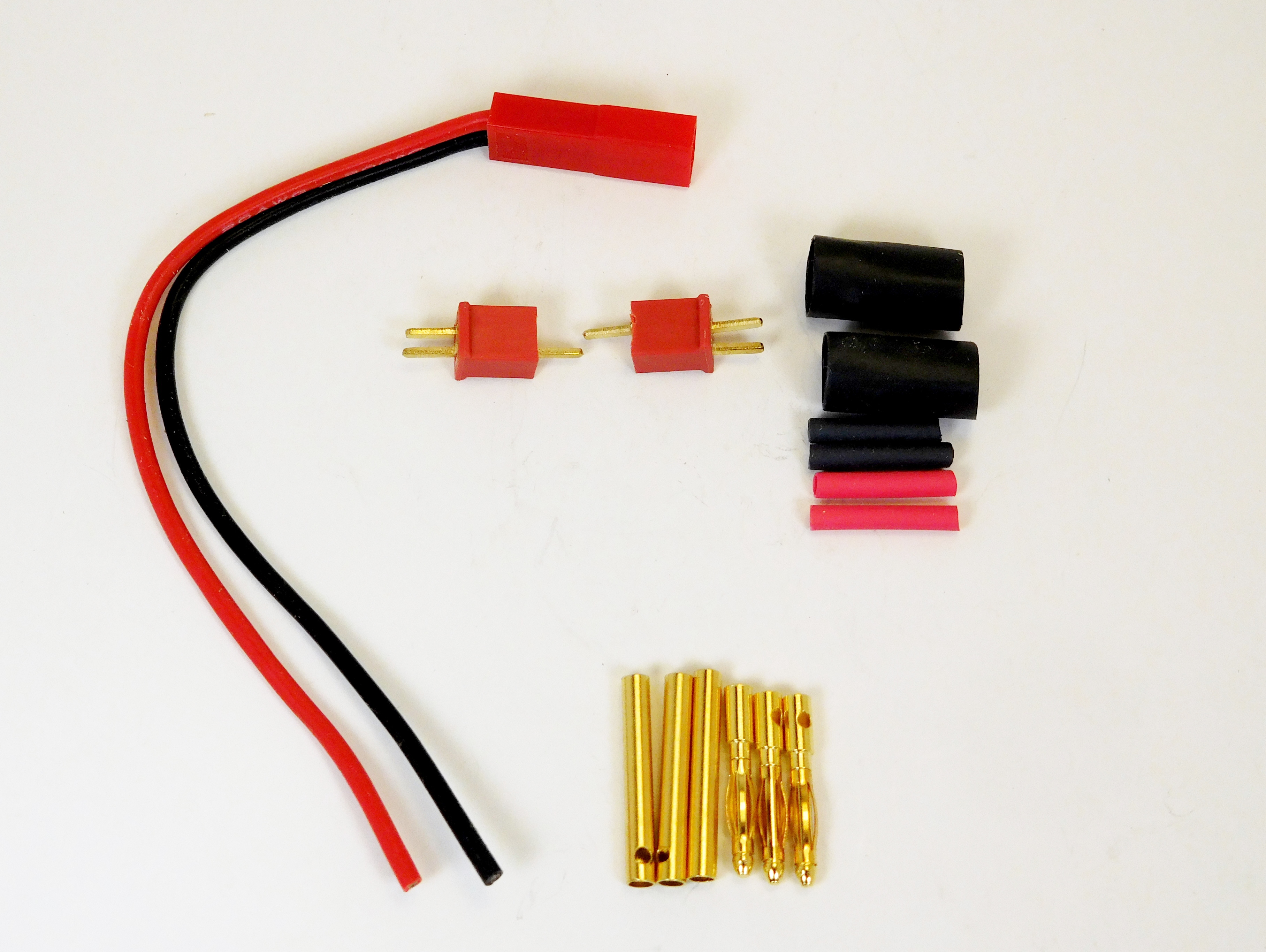

electrical connector set with 2MM bullet pin connectors for the ESC to motor connections
-
Deans Micro single pin connector set for ESC to LiPo connection

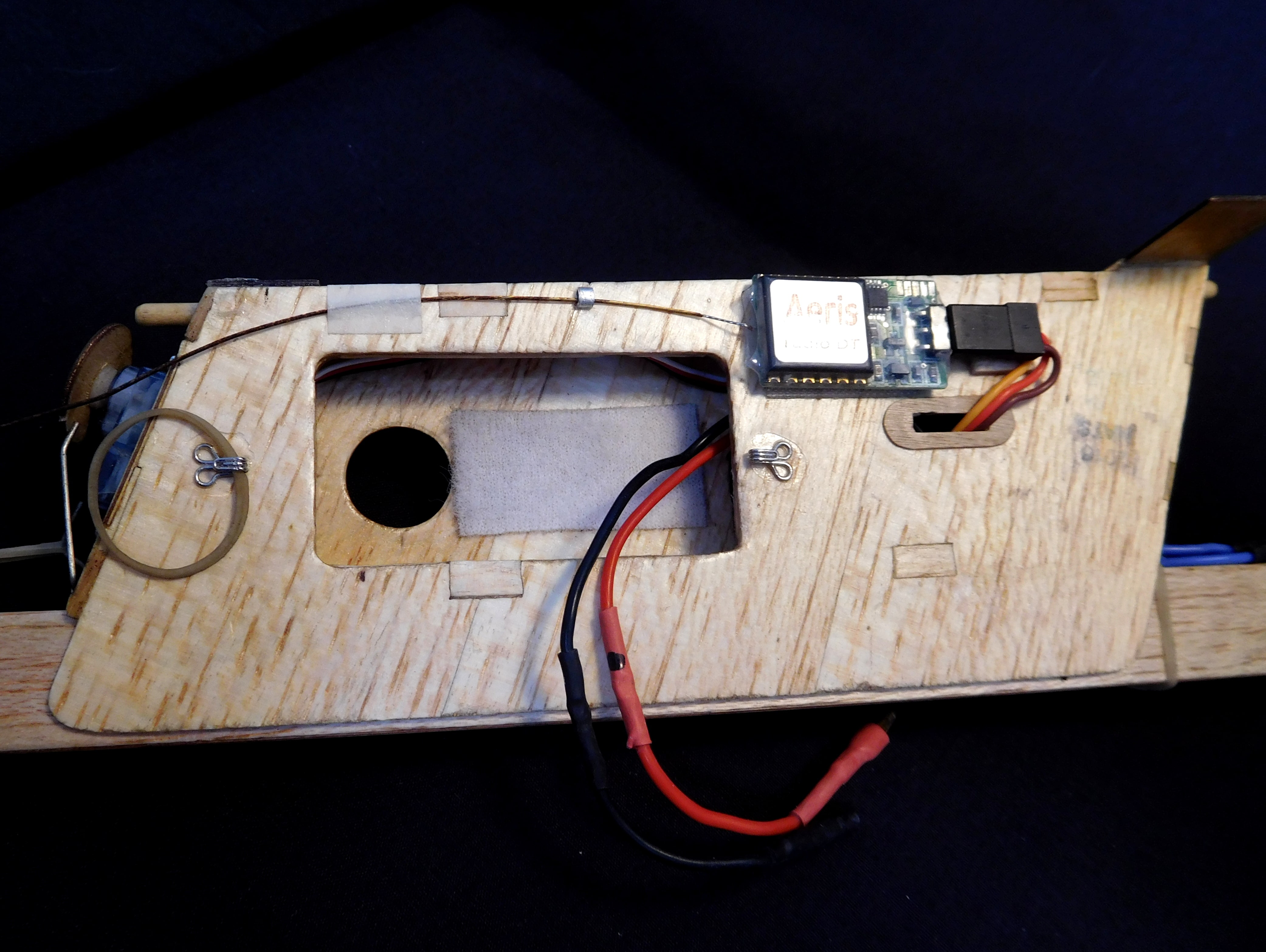

Deluxe Kit - order Option A ($248) - with Starlink-Flitetech's electronic timer
-

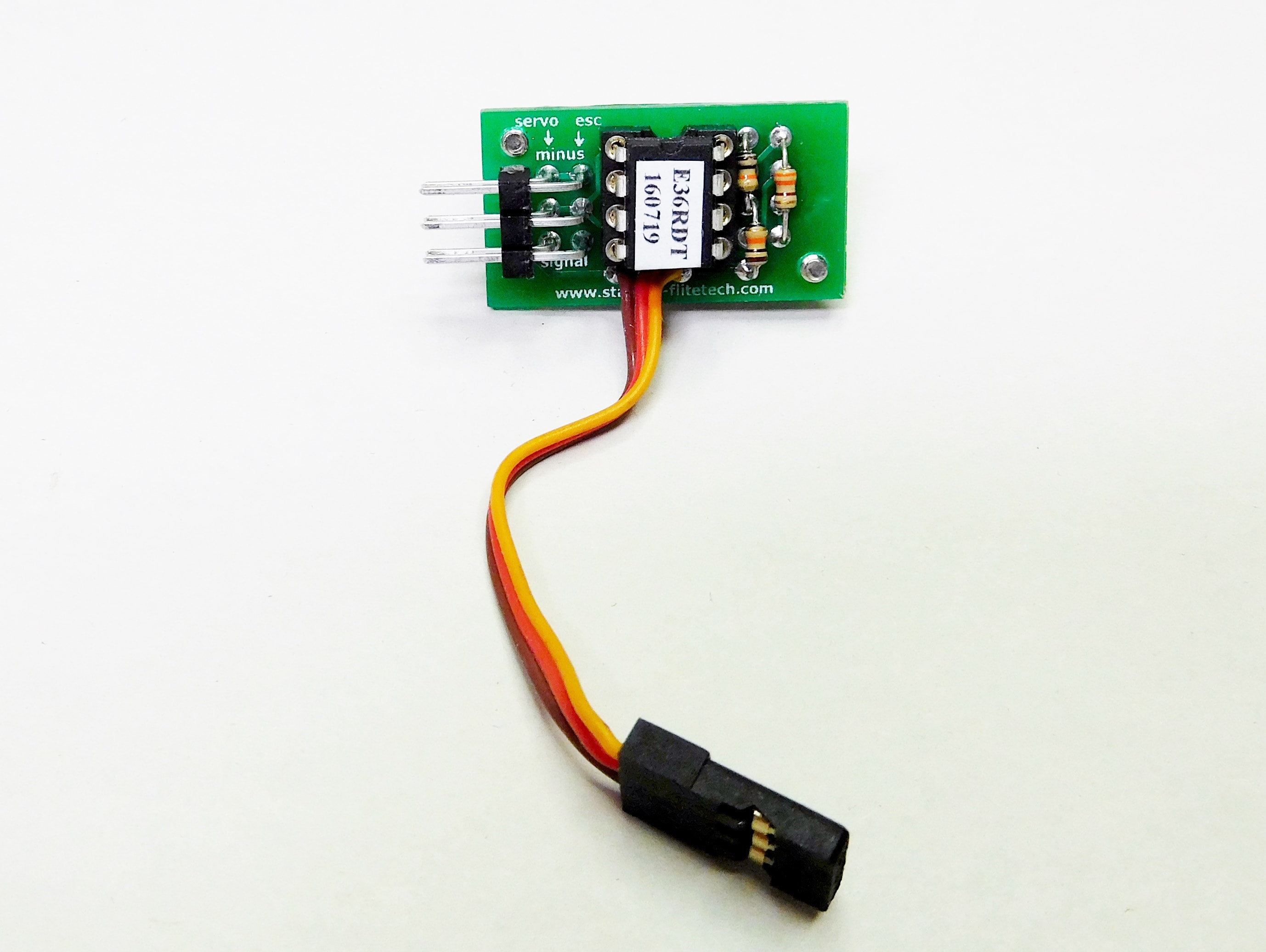

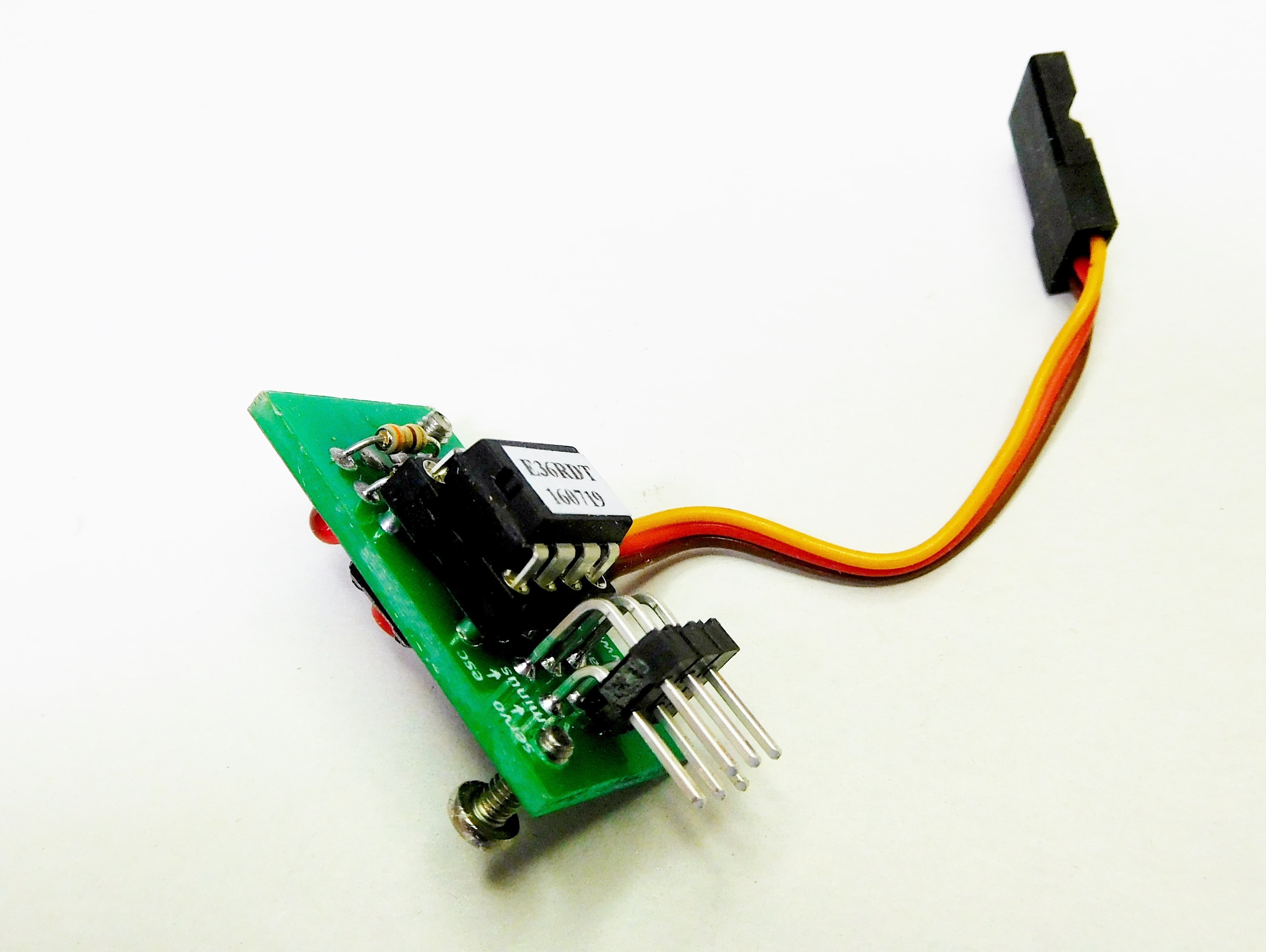

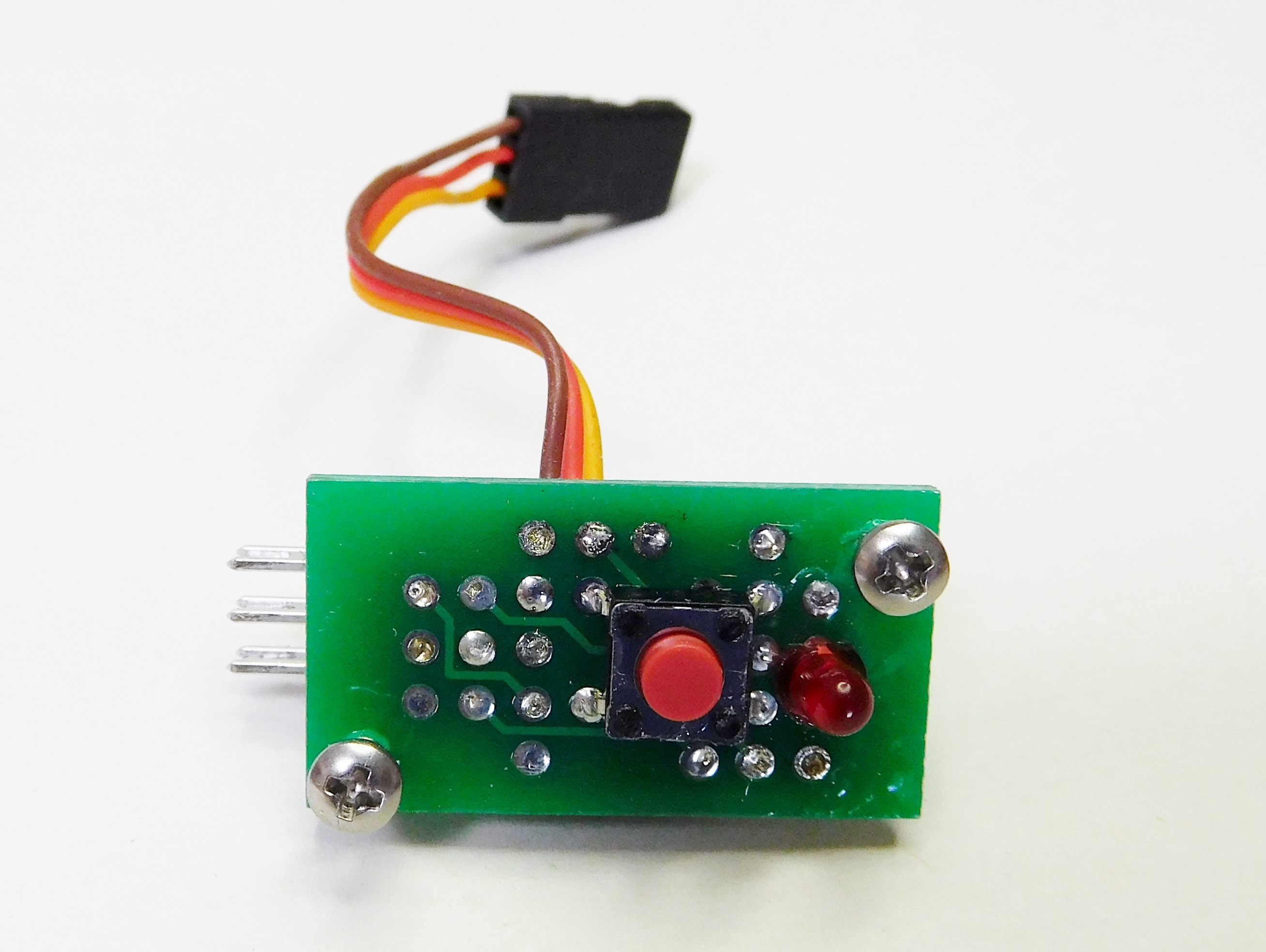

Starlink-Flitetech electronic timer for E-36 with RDT pigtail - model E36RDT
Deluxe Kit - order Option B ($260) - Texas Timers eMax electronic timer
-
Texas Timers Emax Timer H pin with RDT pigtail without AR
Standard Kit ($110)
-
Everything except the items noted in the deluxe kit ordering options A or B are included in the standard kit.
You provide these items to complete the model for flight.
Short Kit ($83)
-
This includes the laser cut parts, CAD drawings and construction manual.
You supply the rest of the components to complete the model for flight.

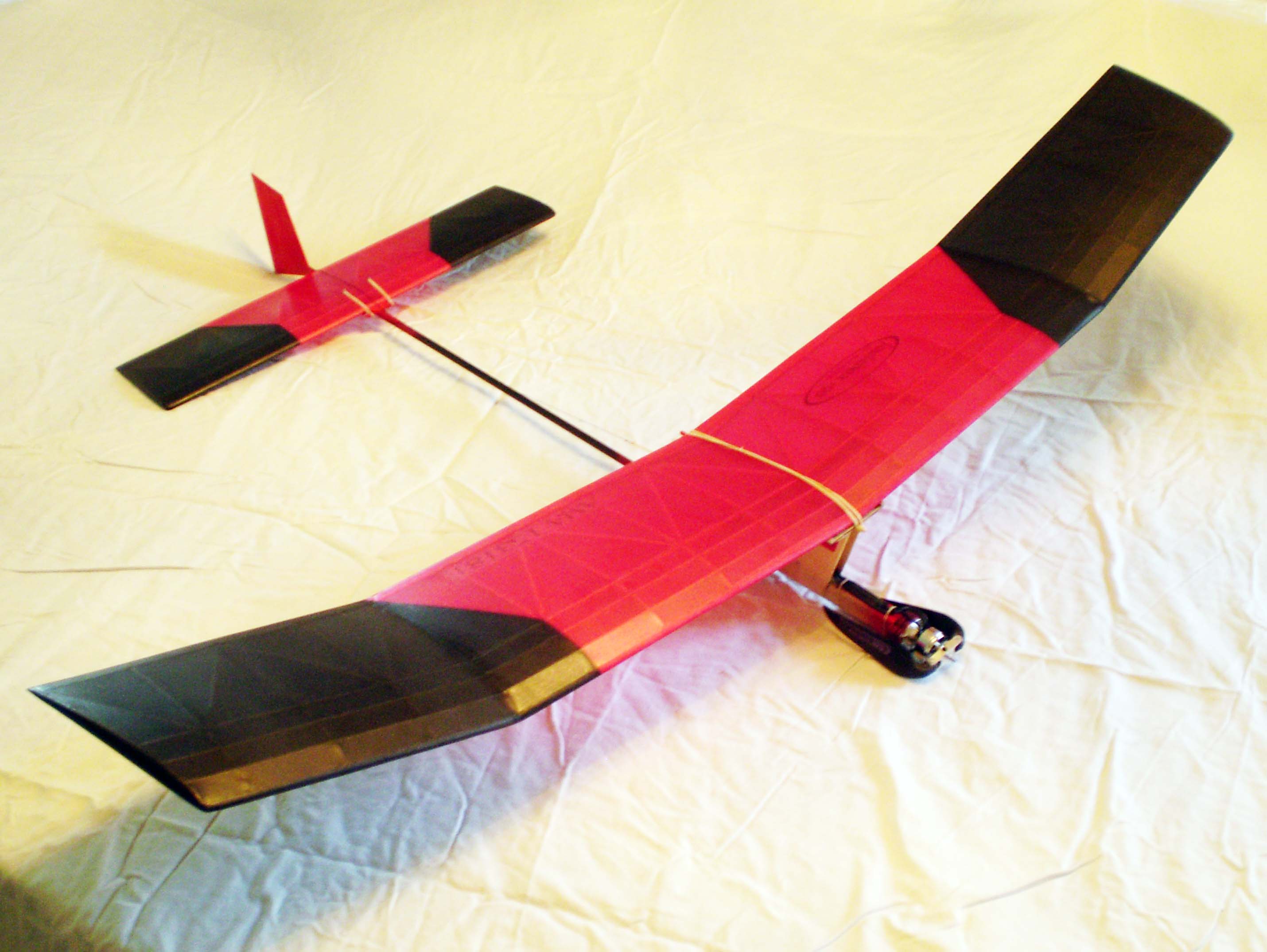

Design Features of the JOULEBOX MK III:
-

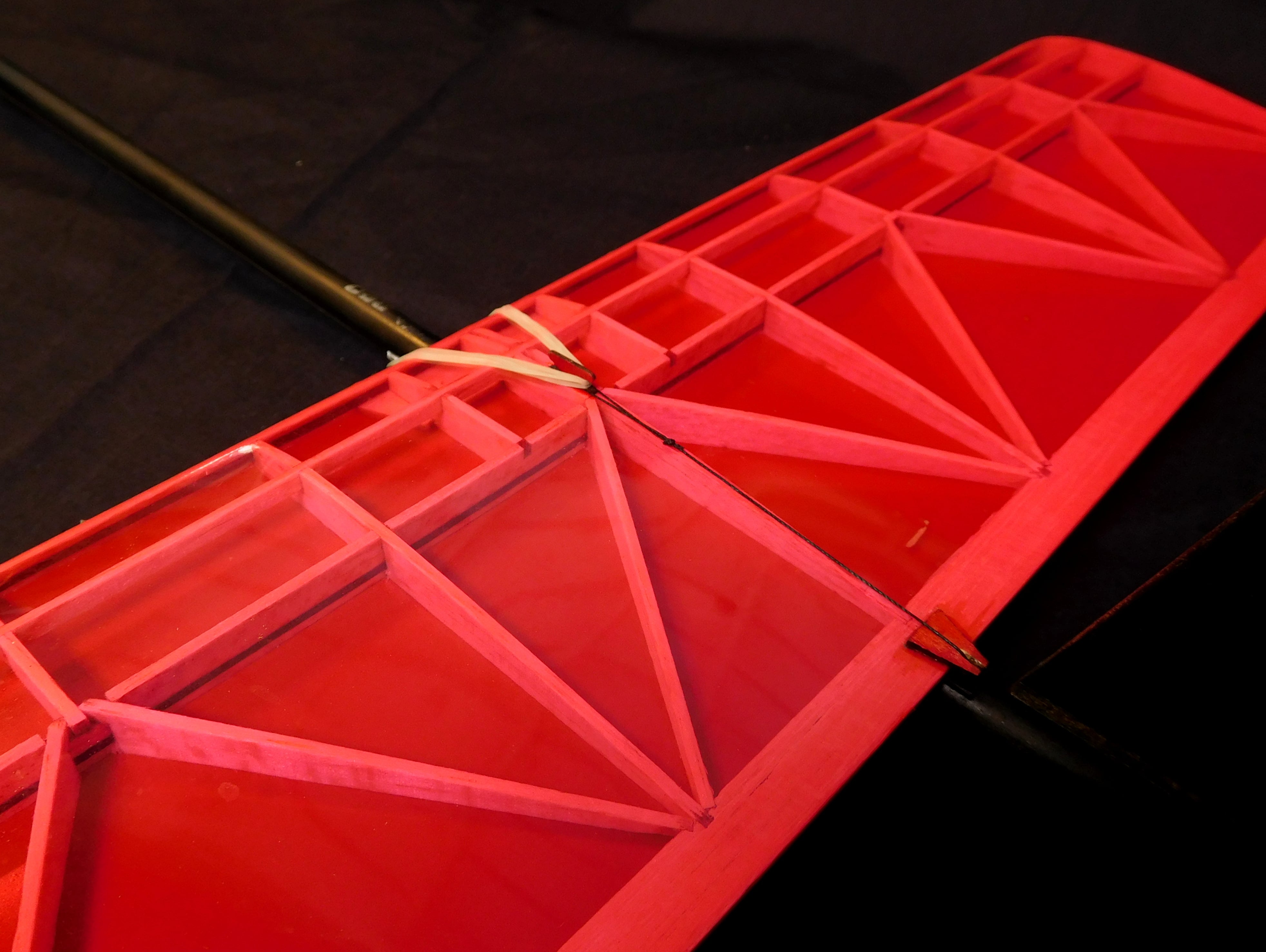

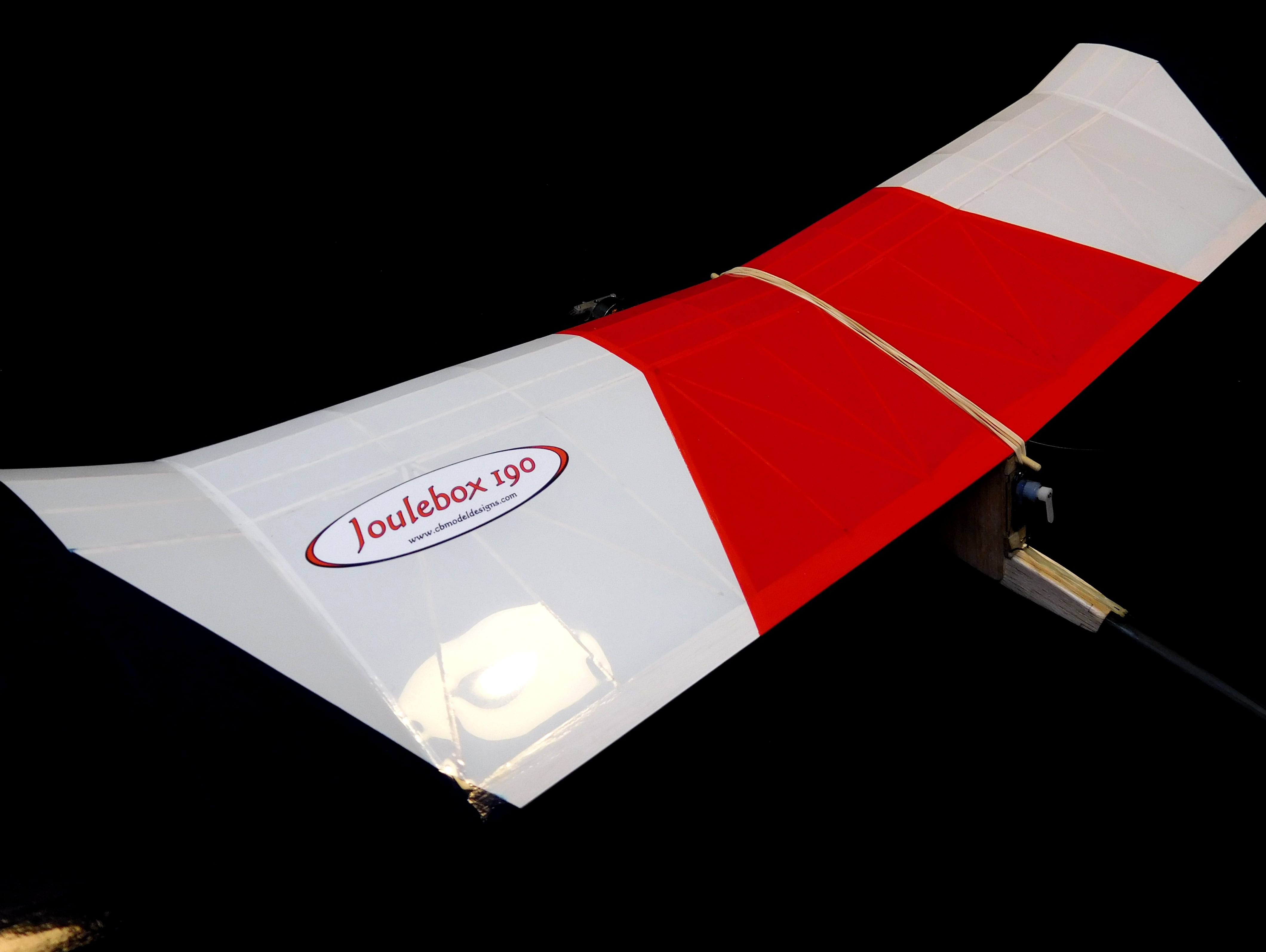

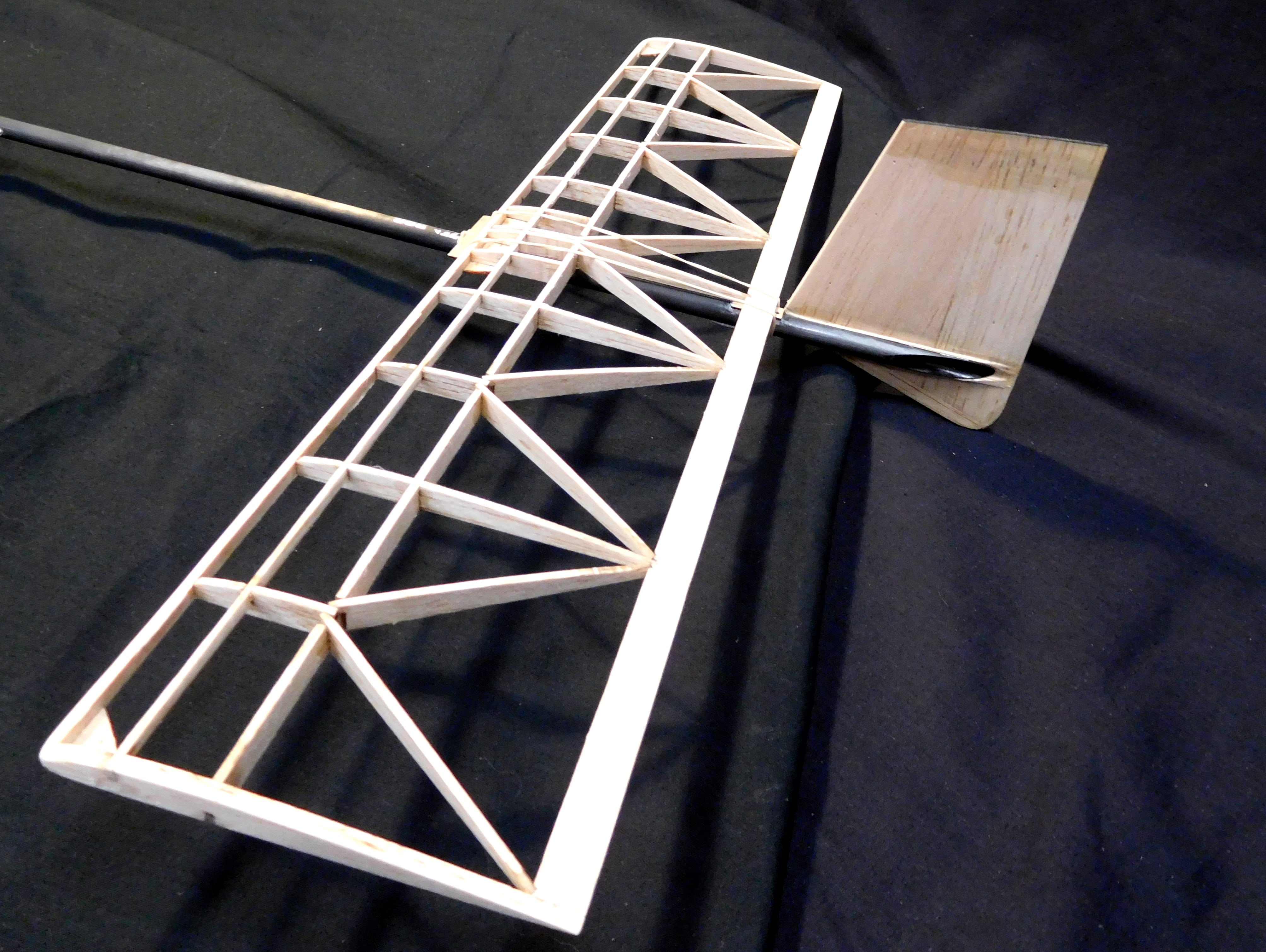

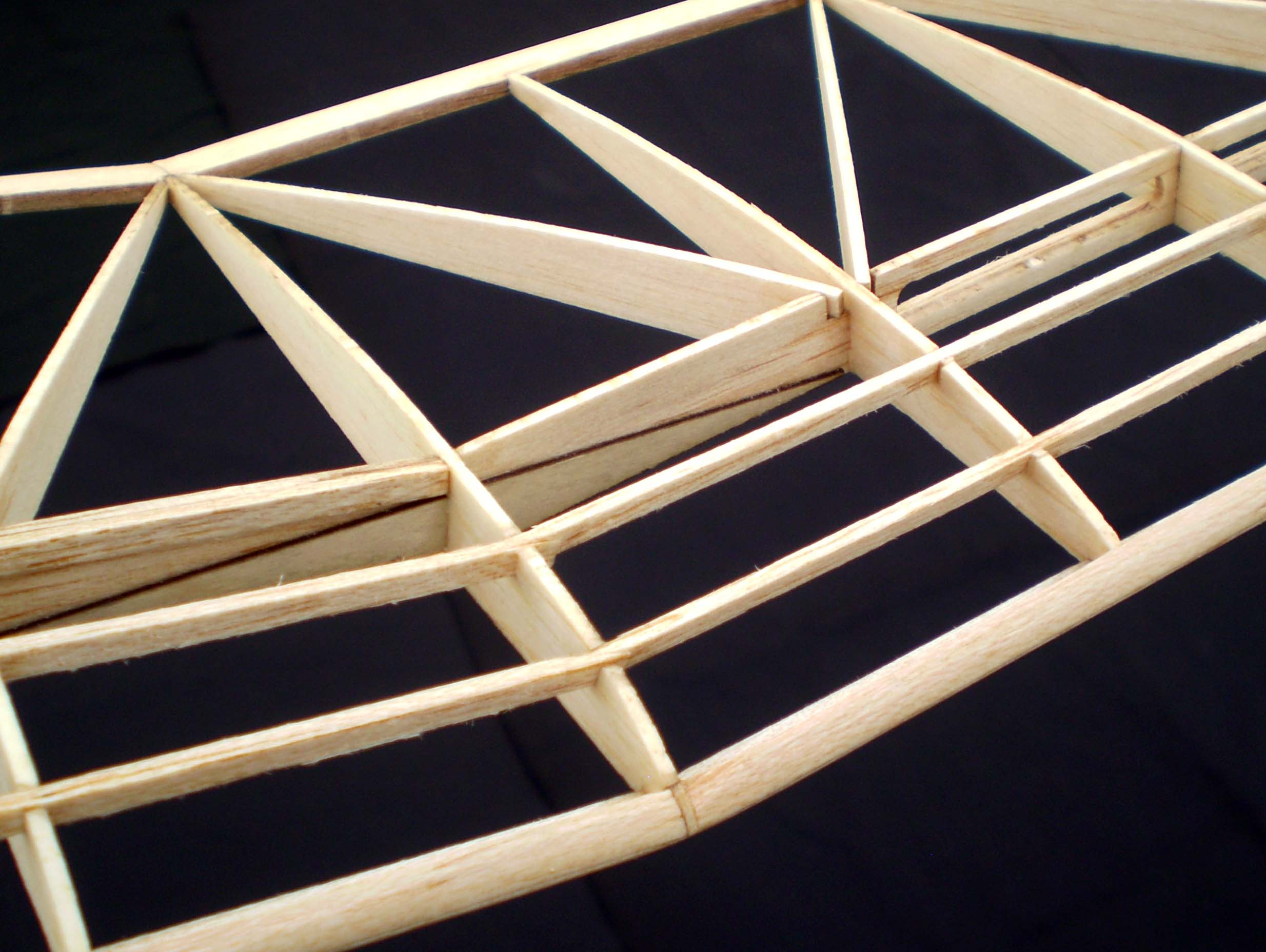

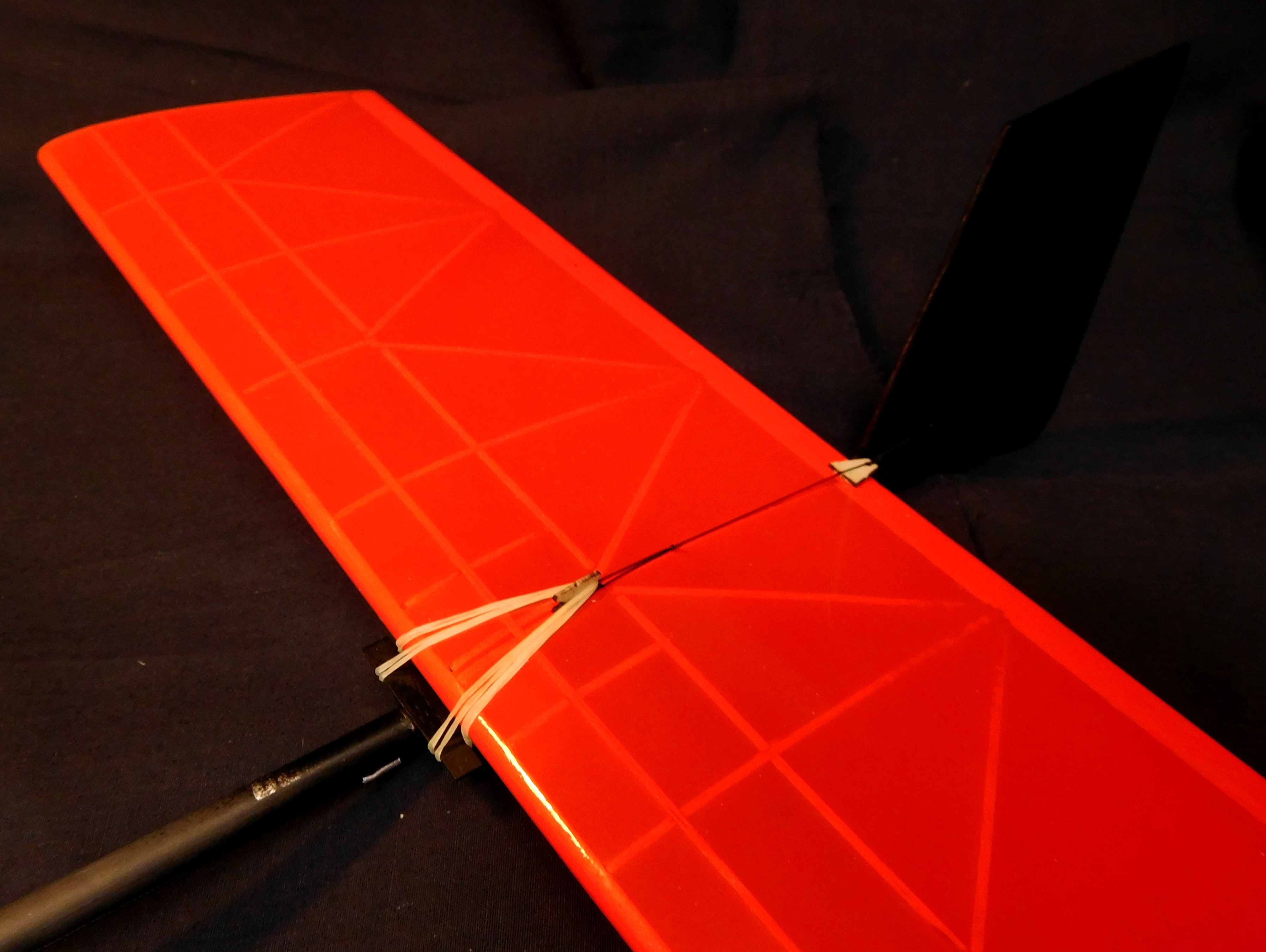

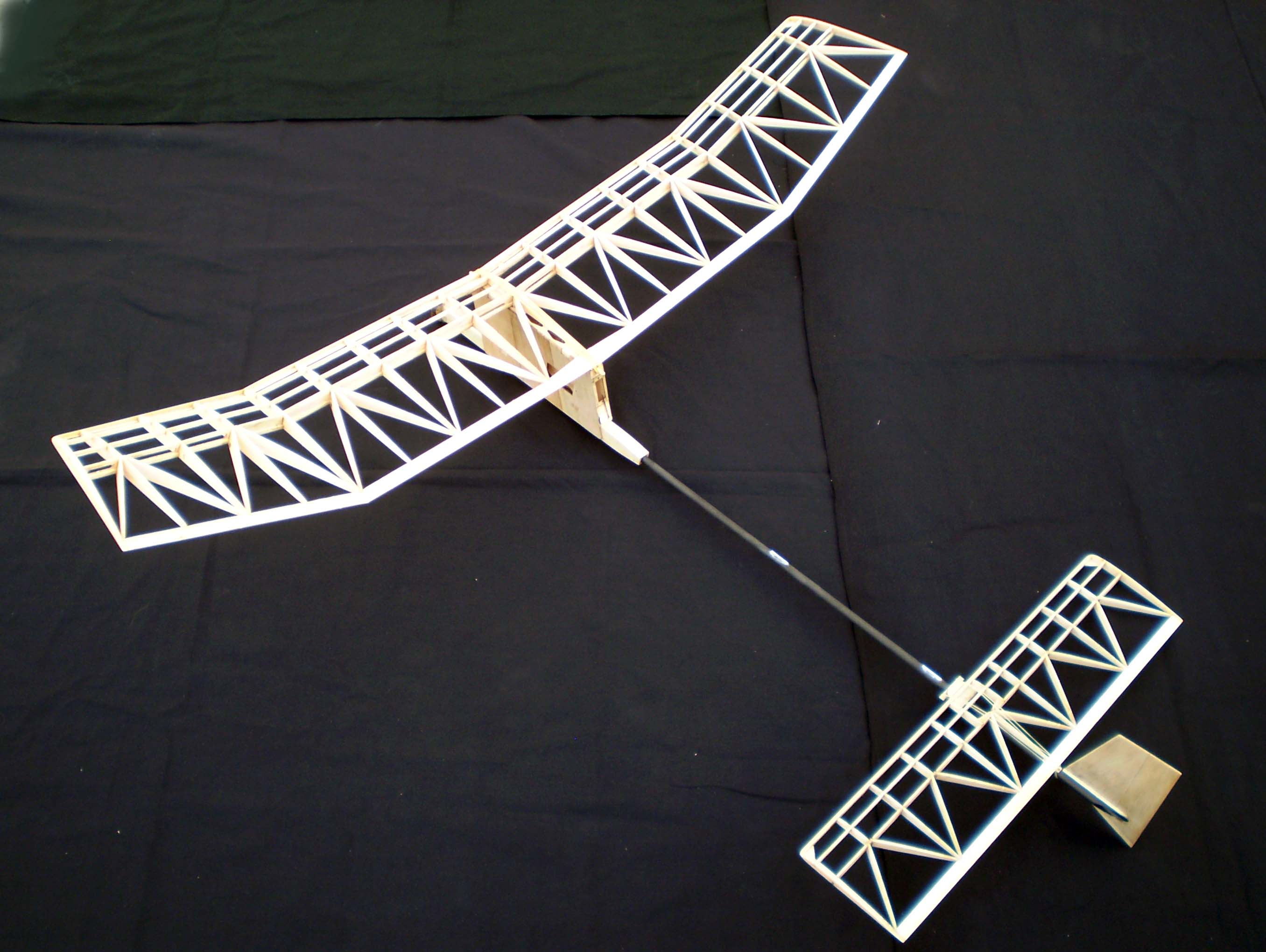

Wing construction includes built-in washout method to provide this important characteristic as you construct the wing.
-

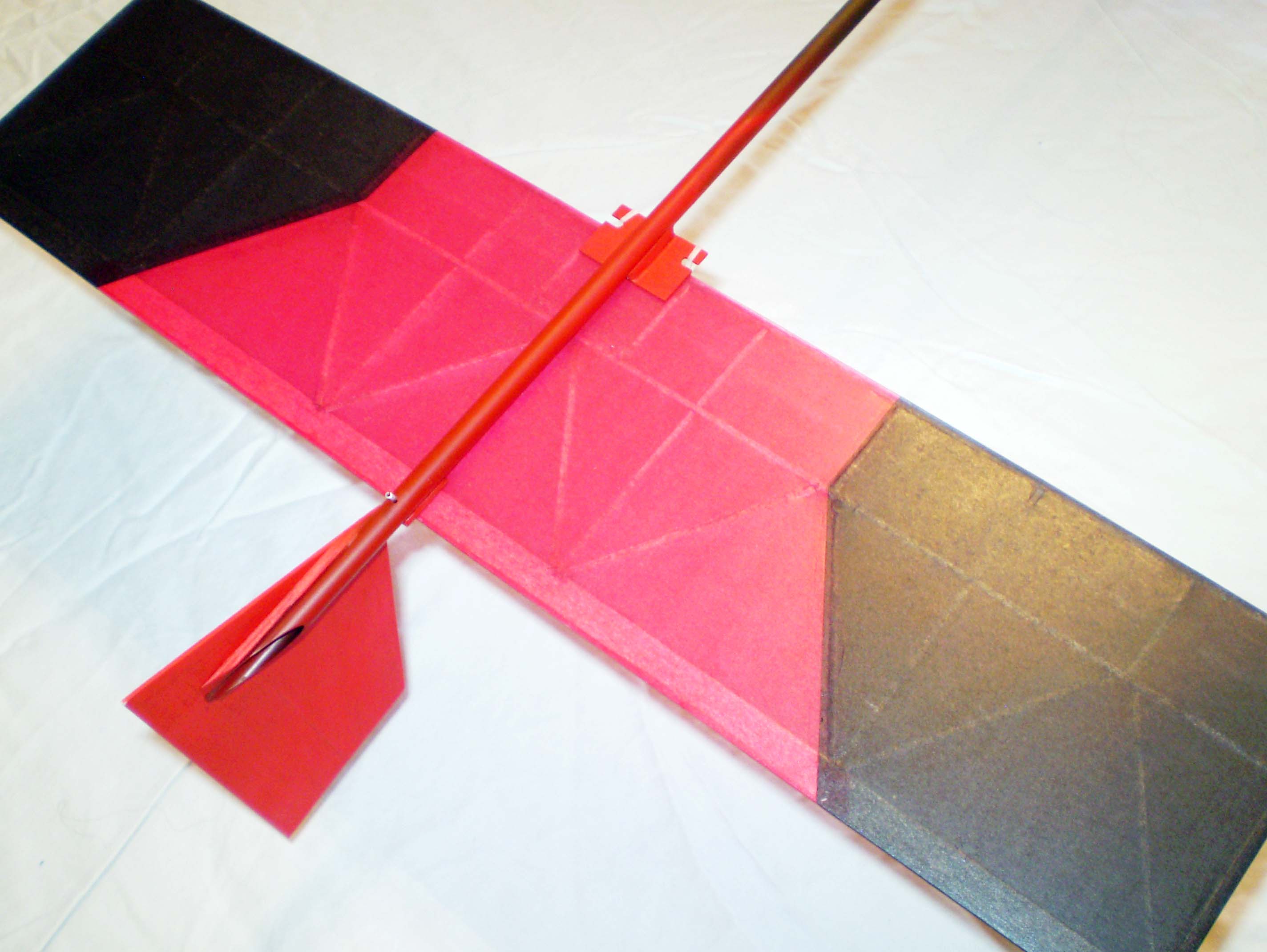

8.8% Neemeyer flat bottom airfoil section is utilized for wing and stabilizer.
-

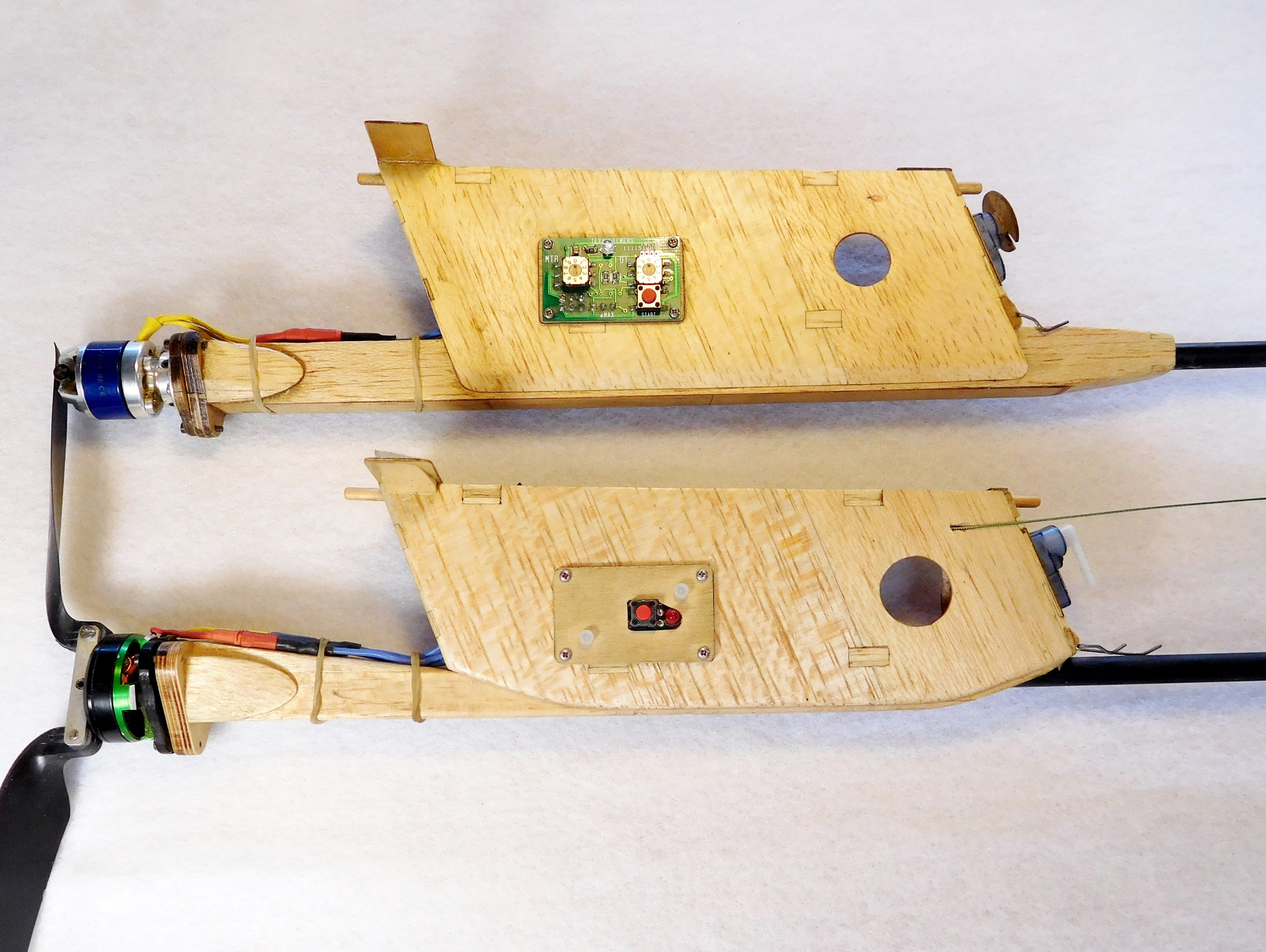

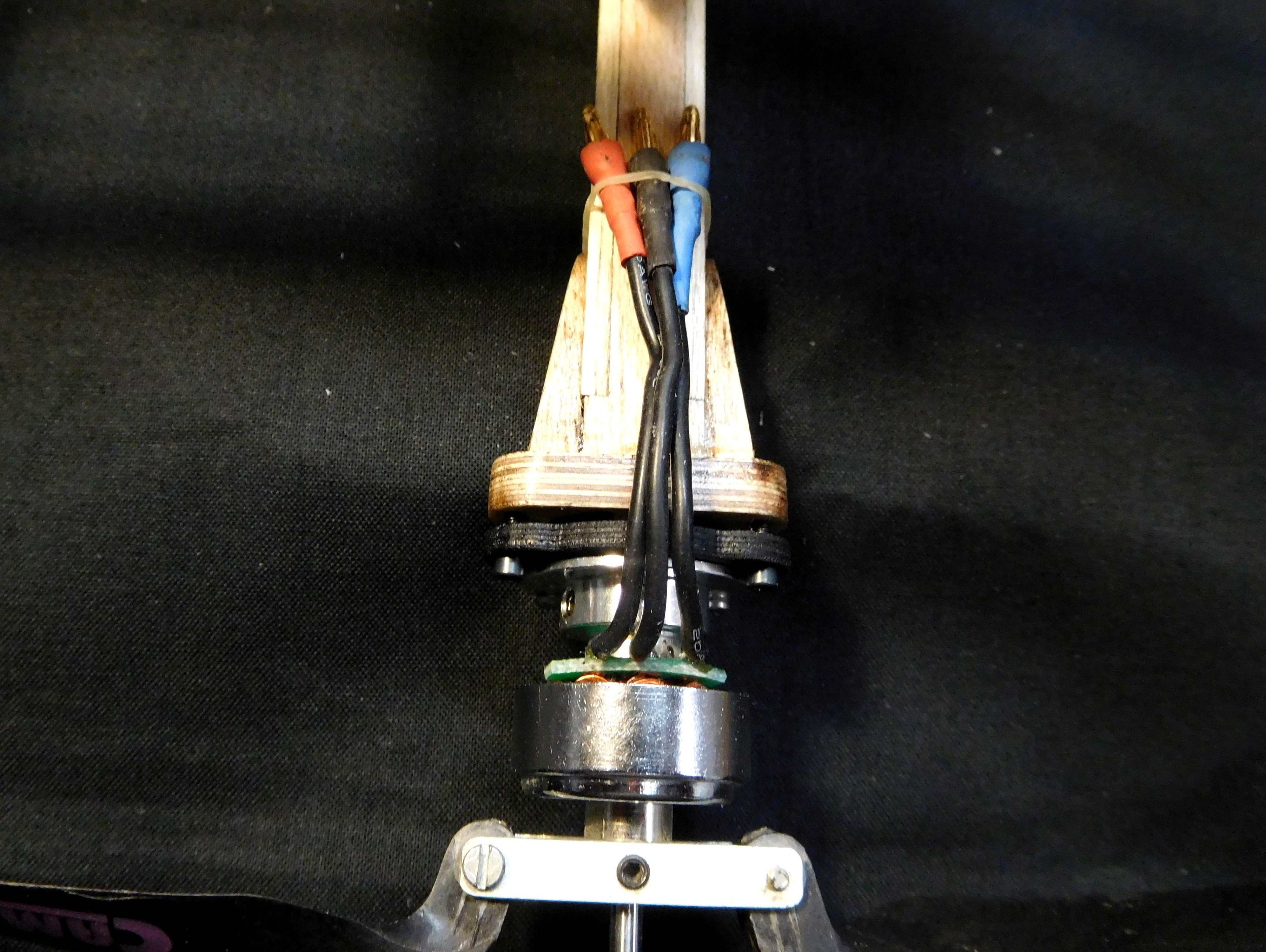

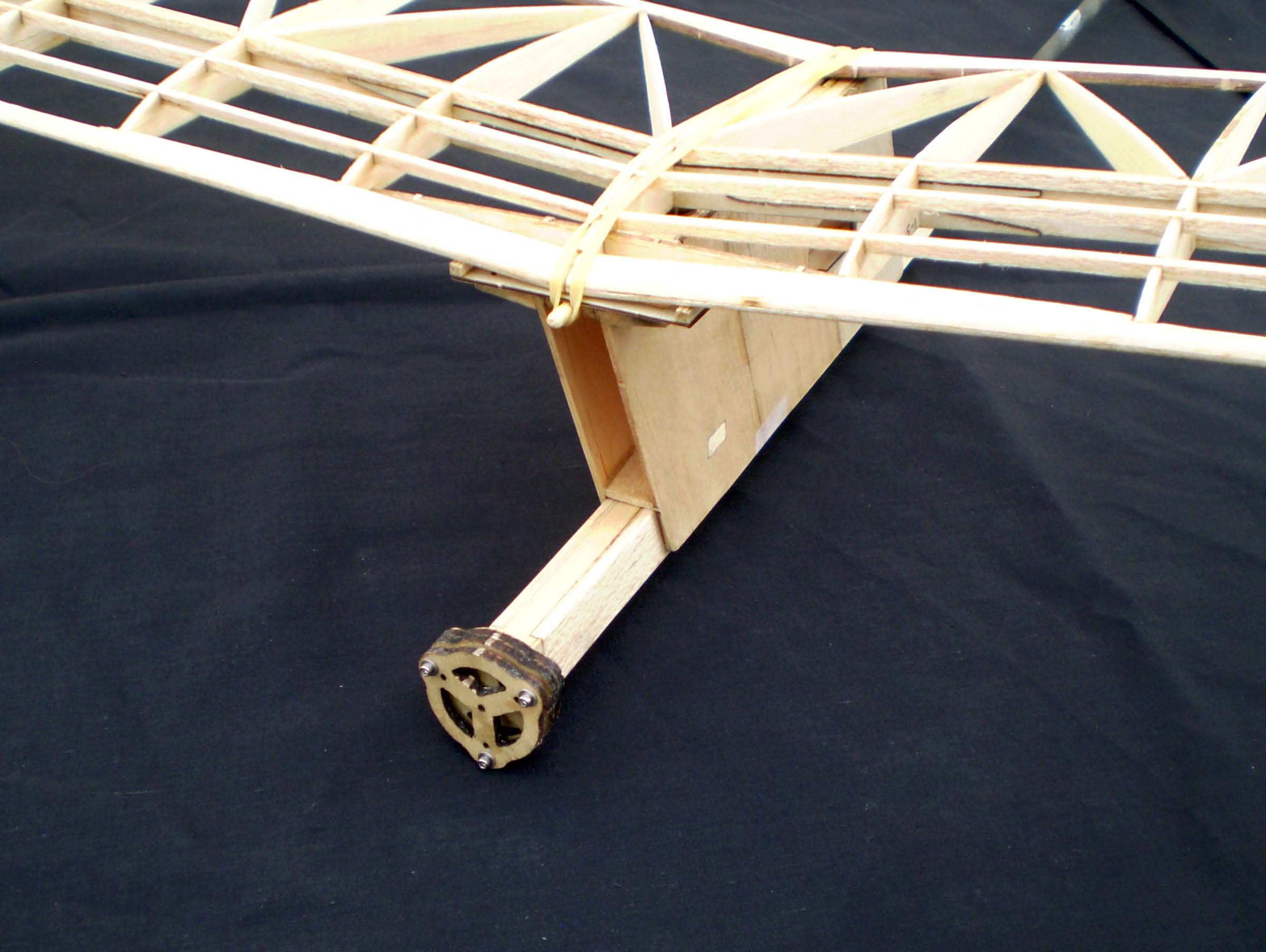

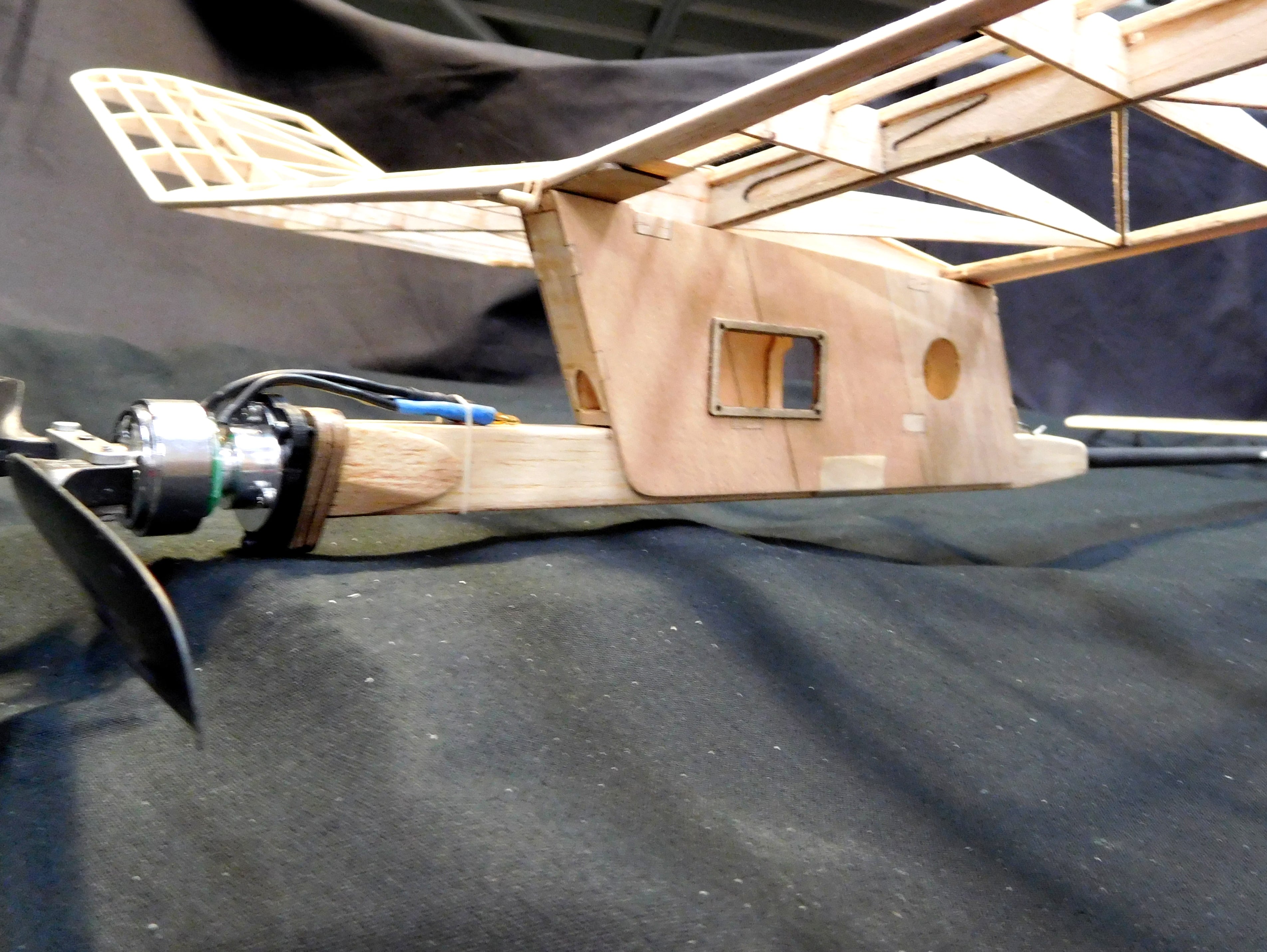

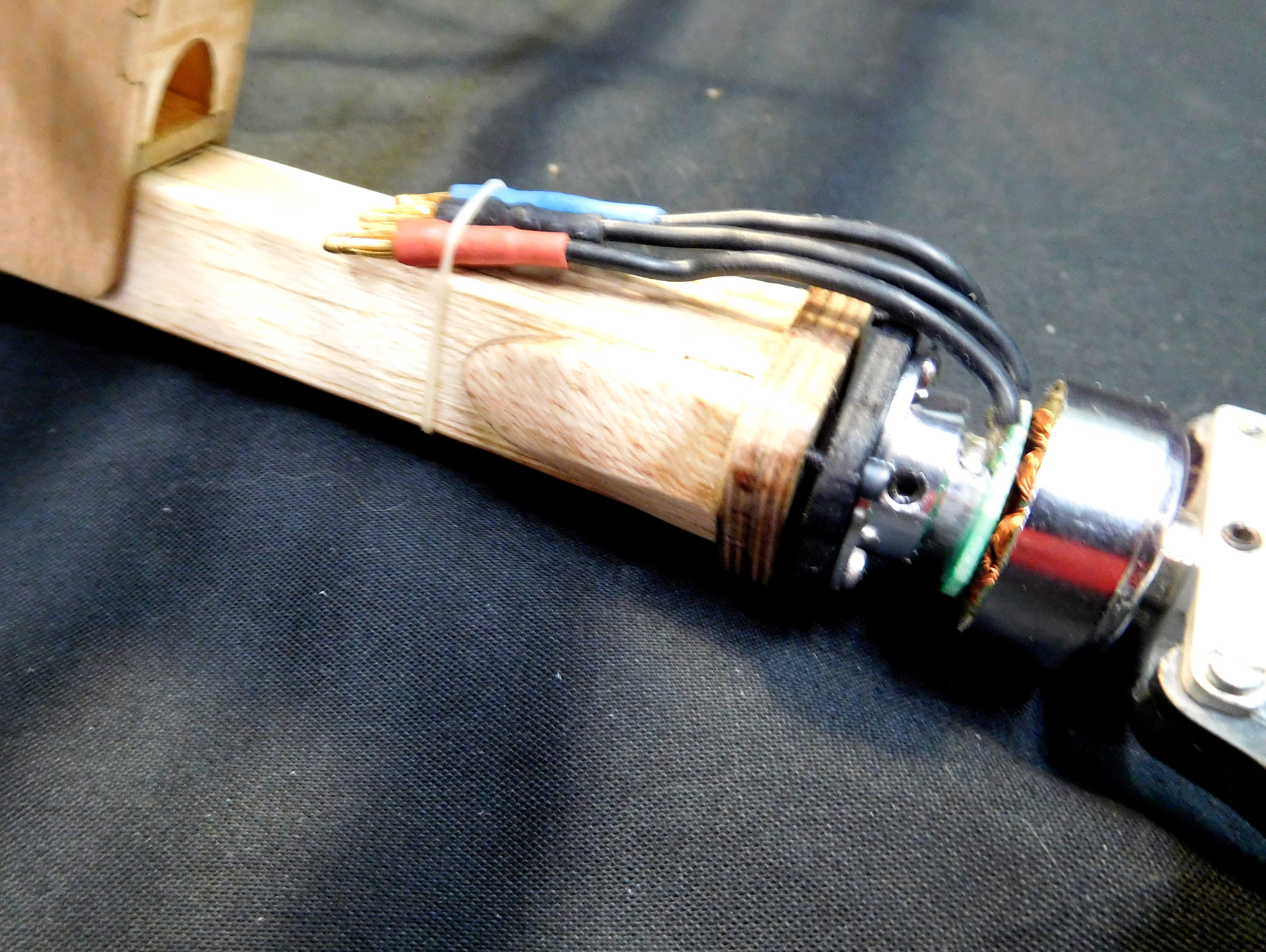

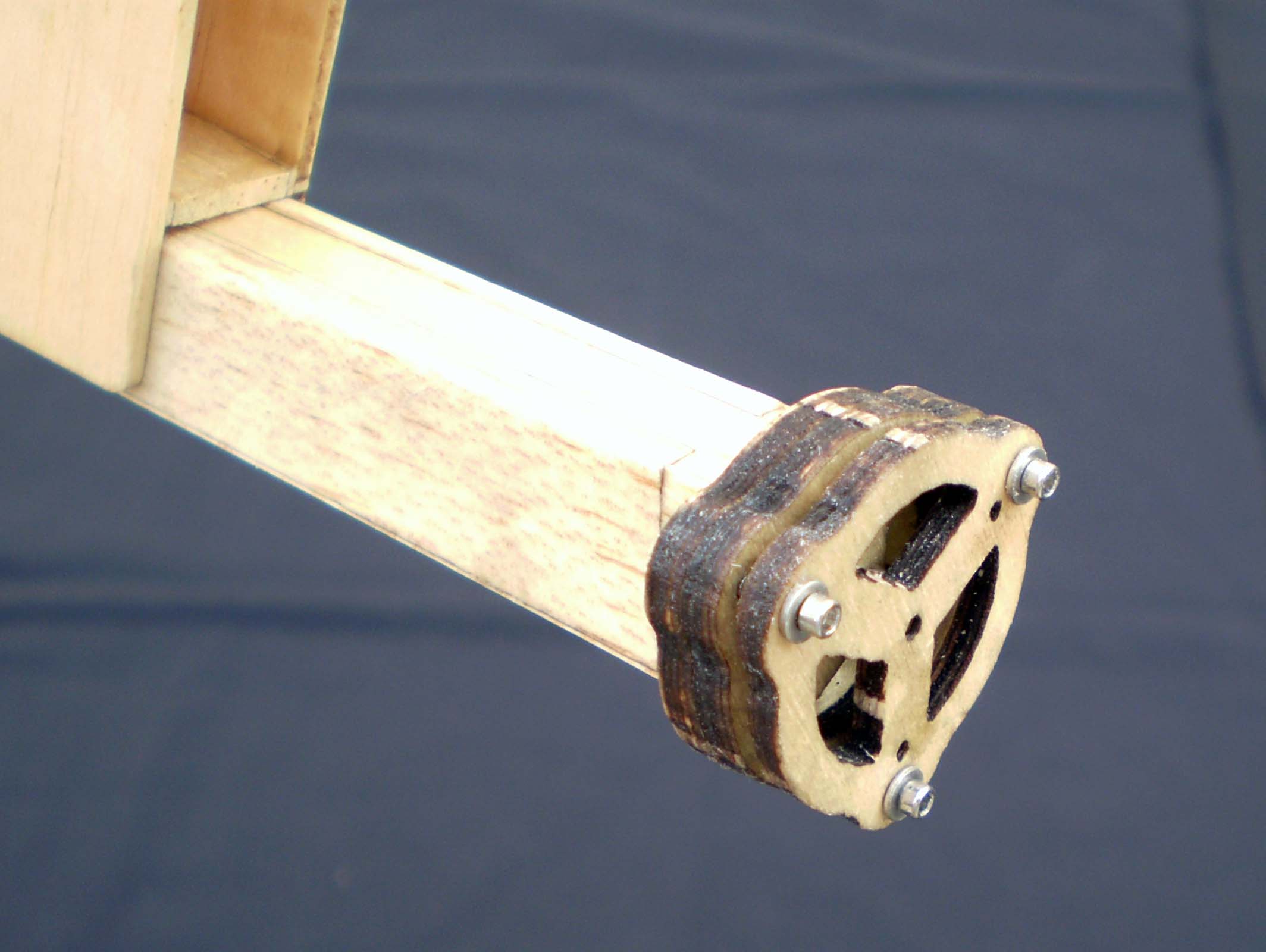

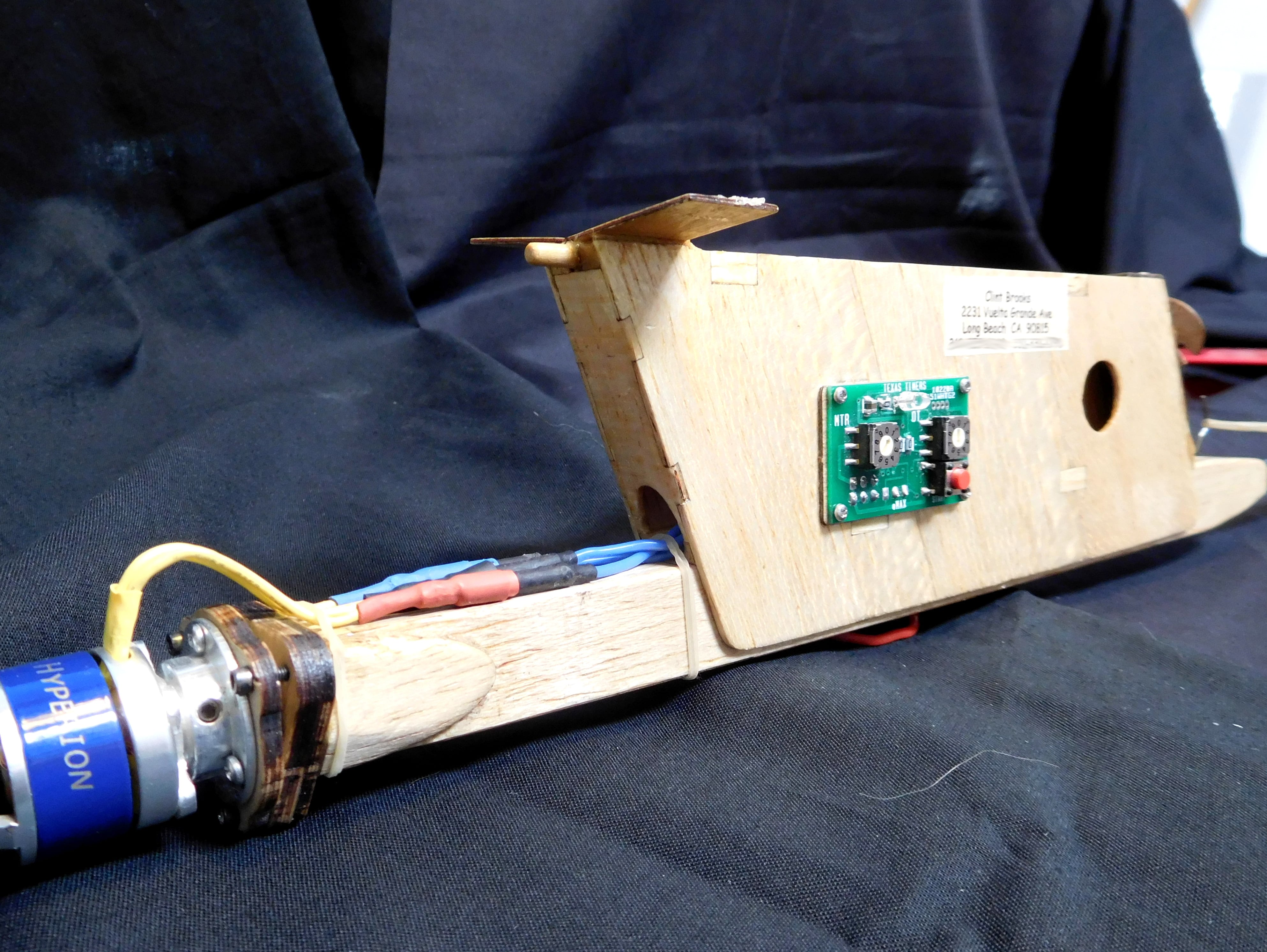

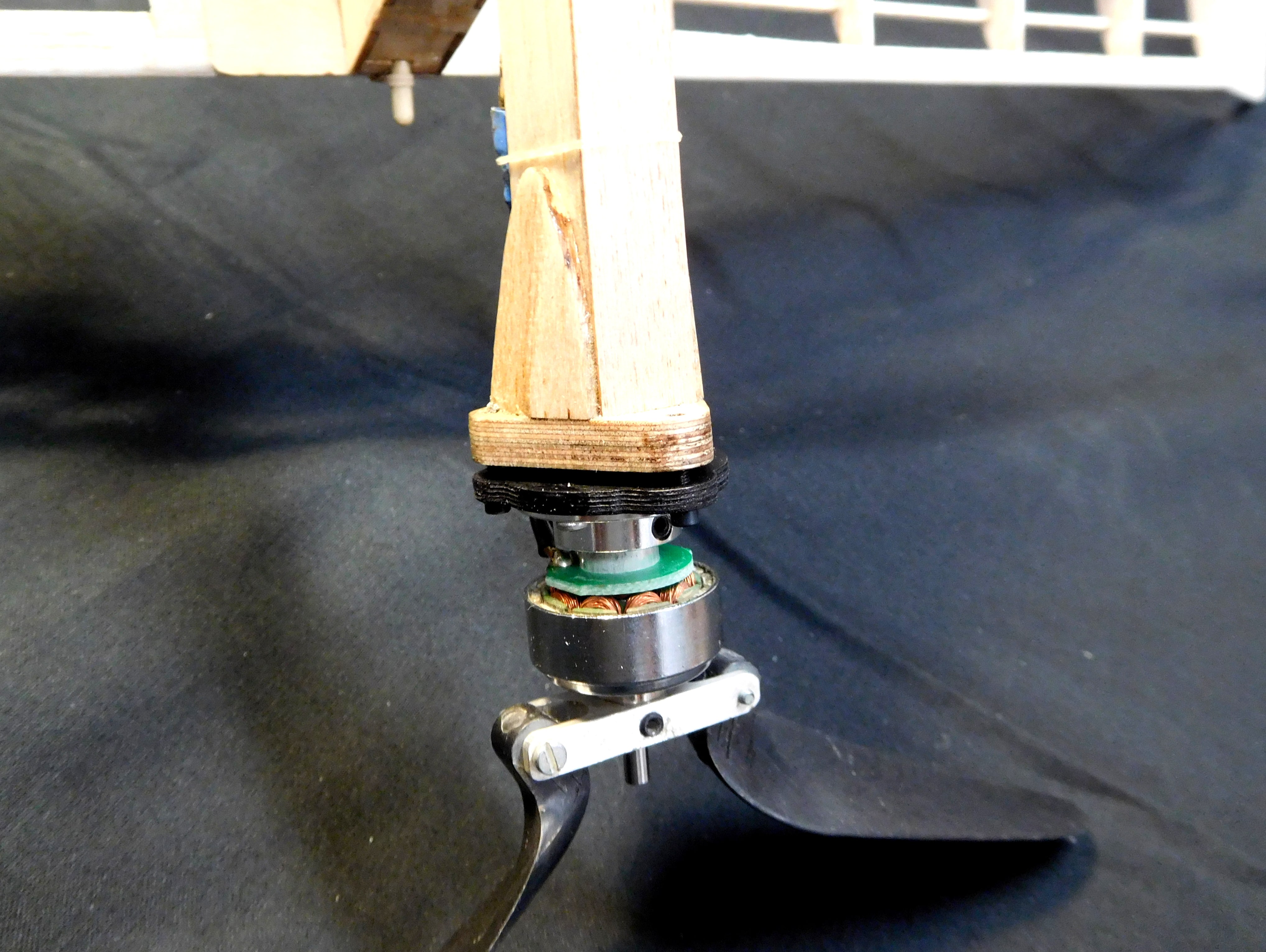

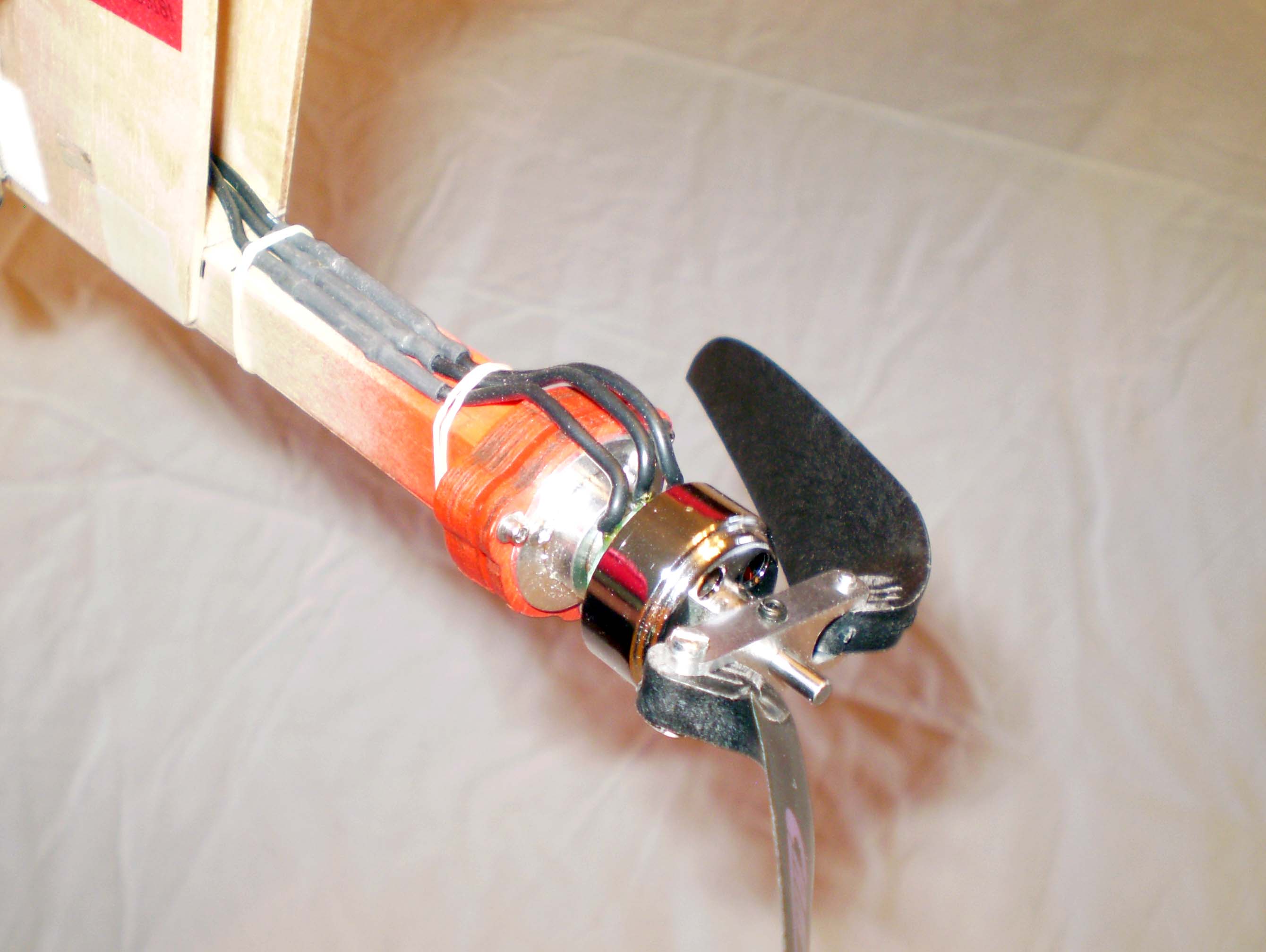

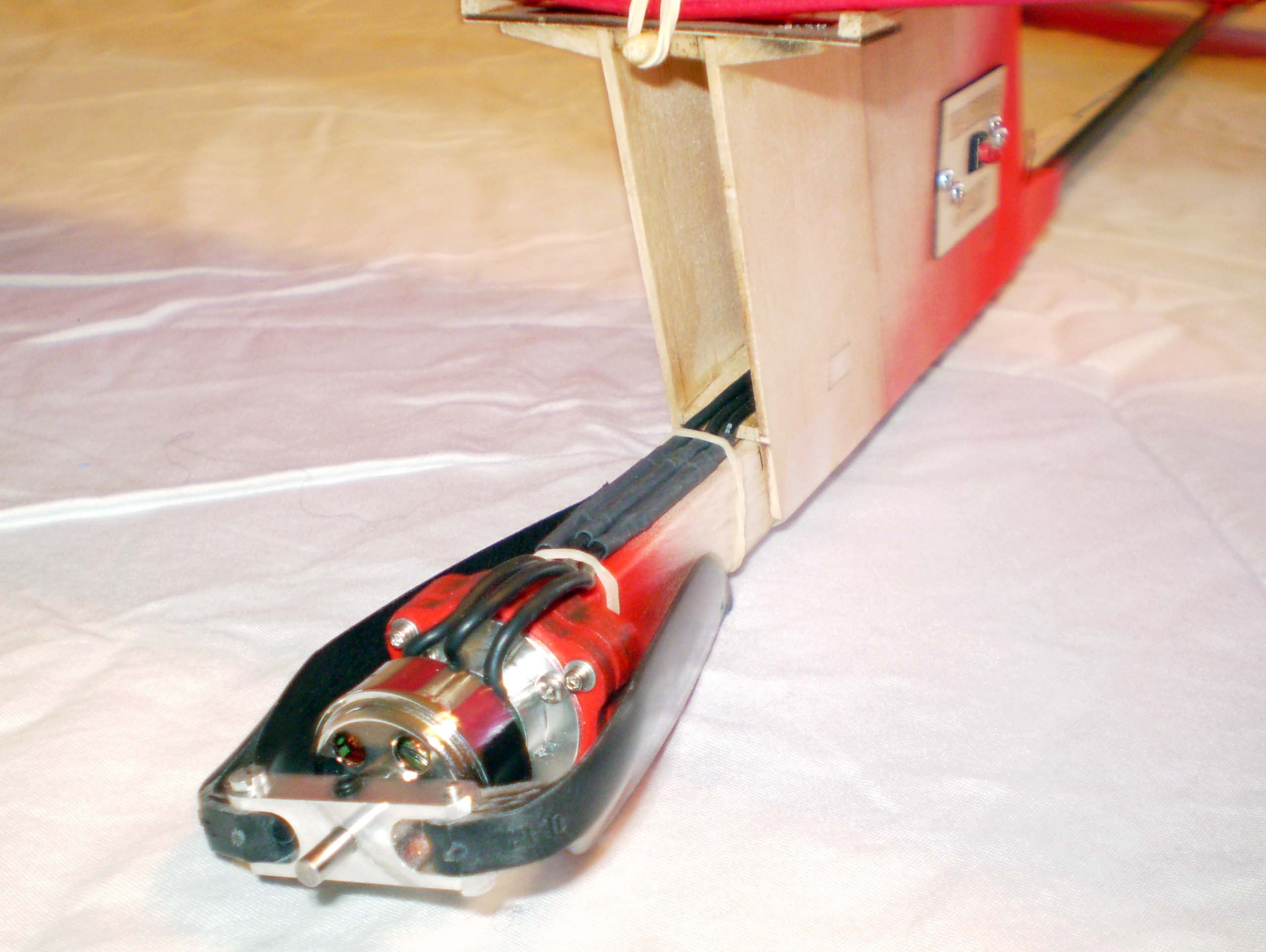

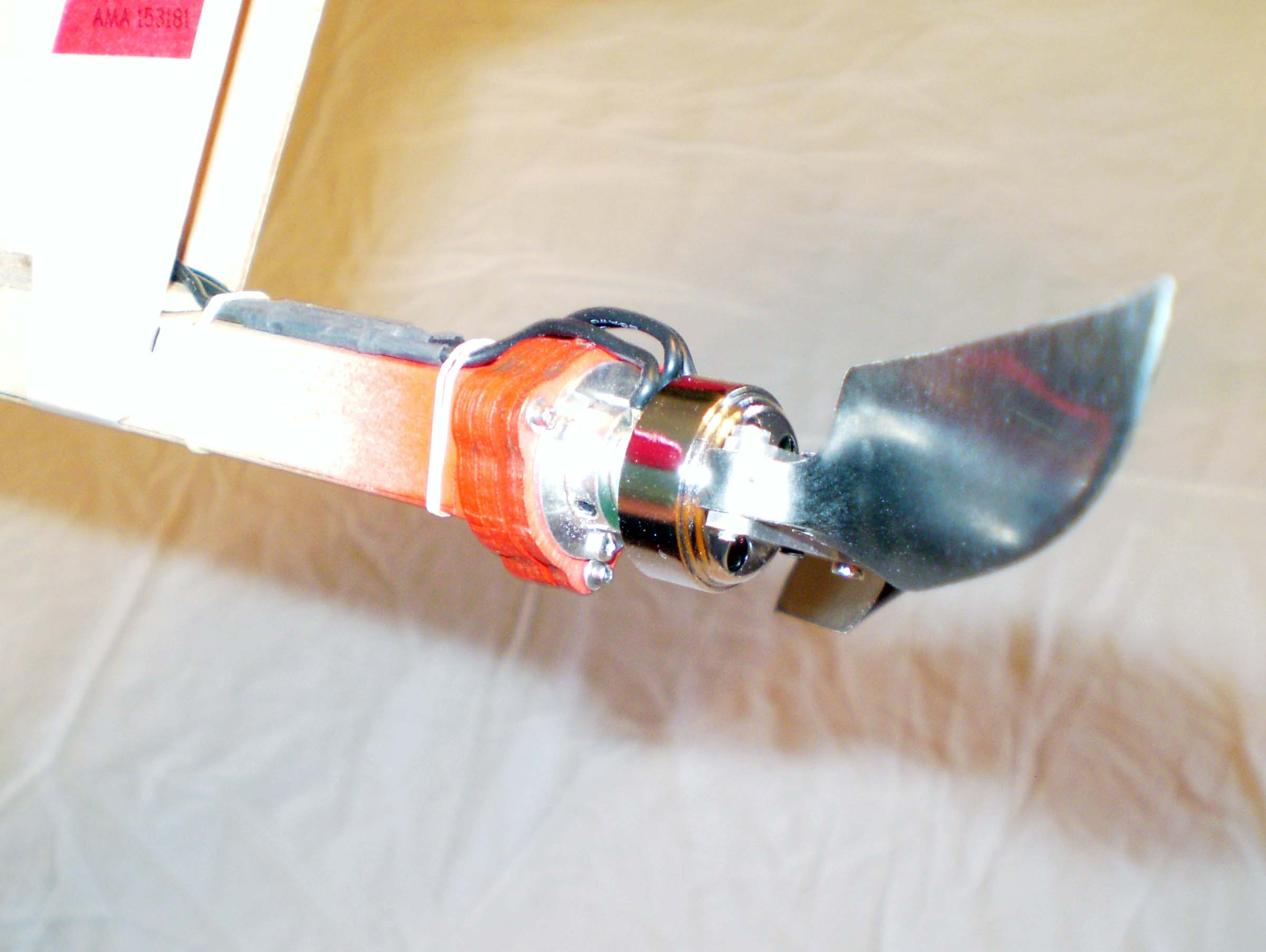

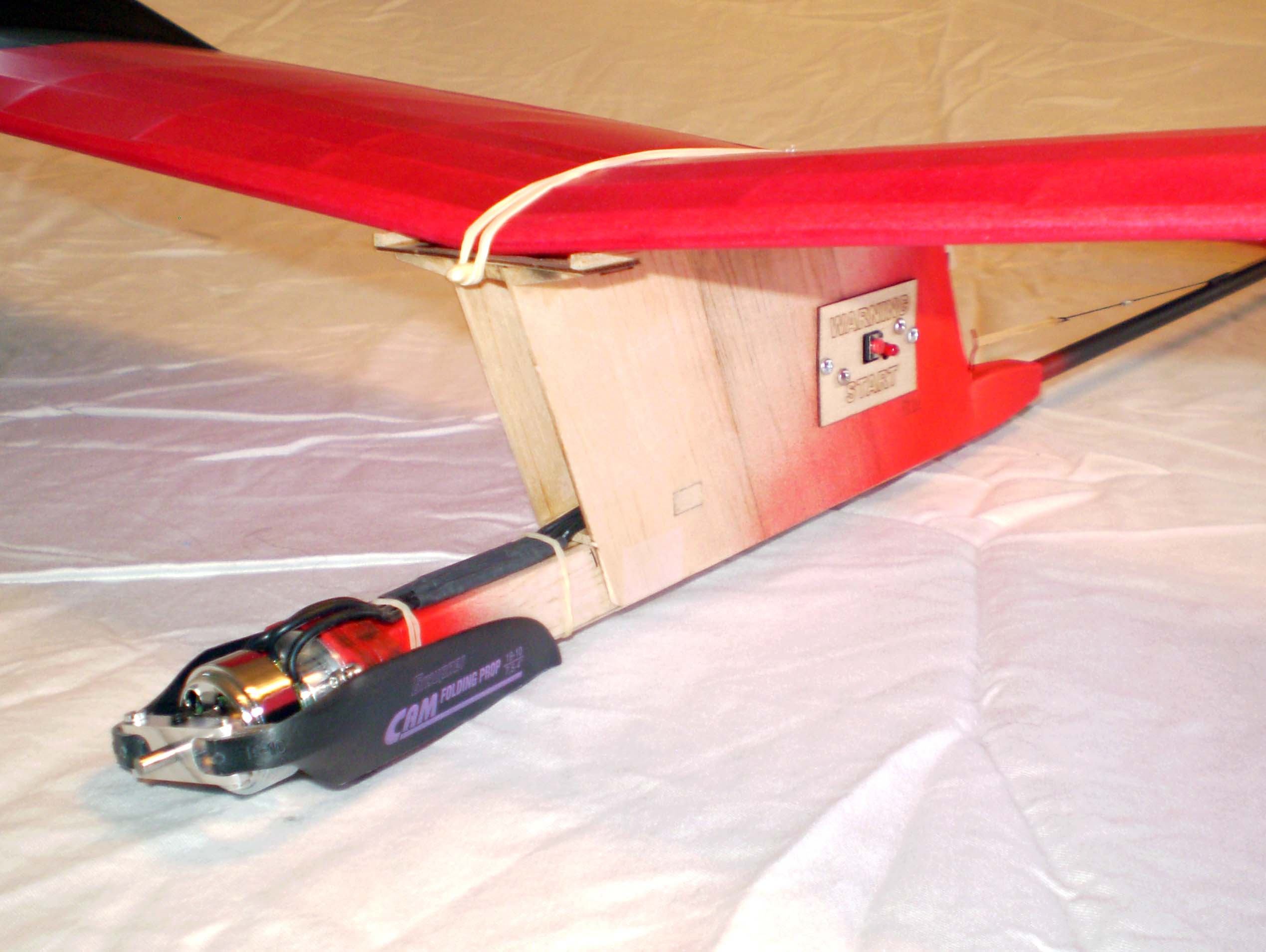

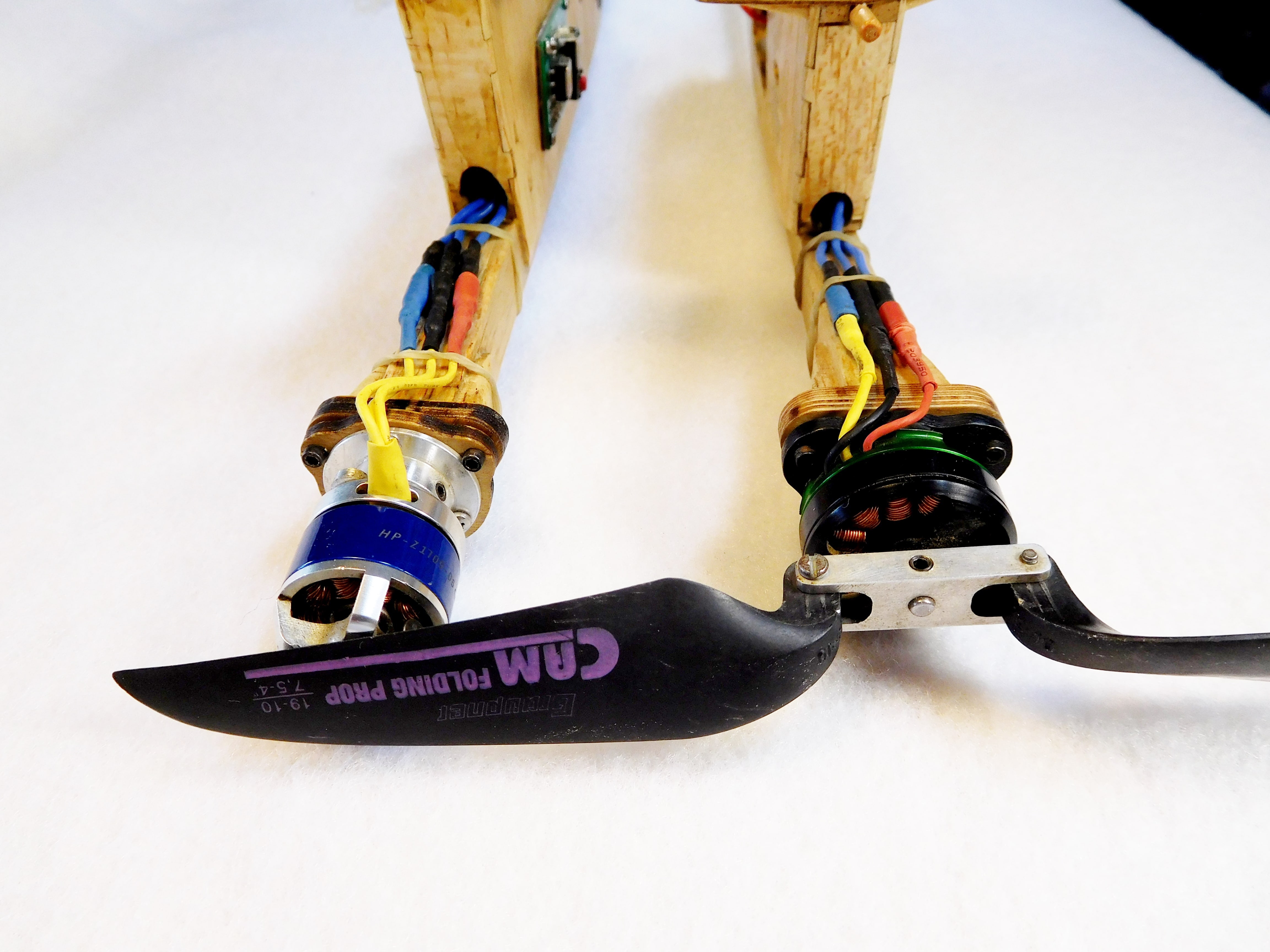

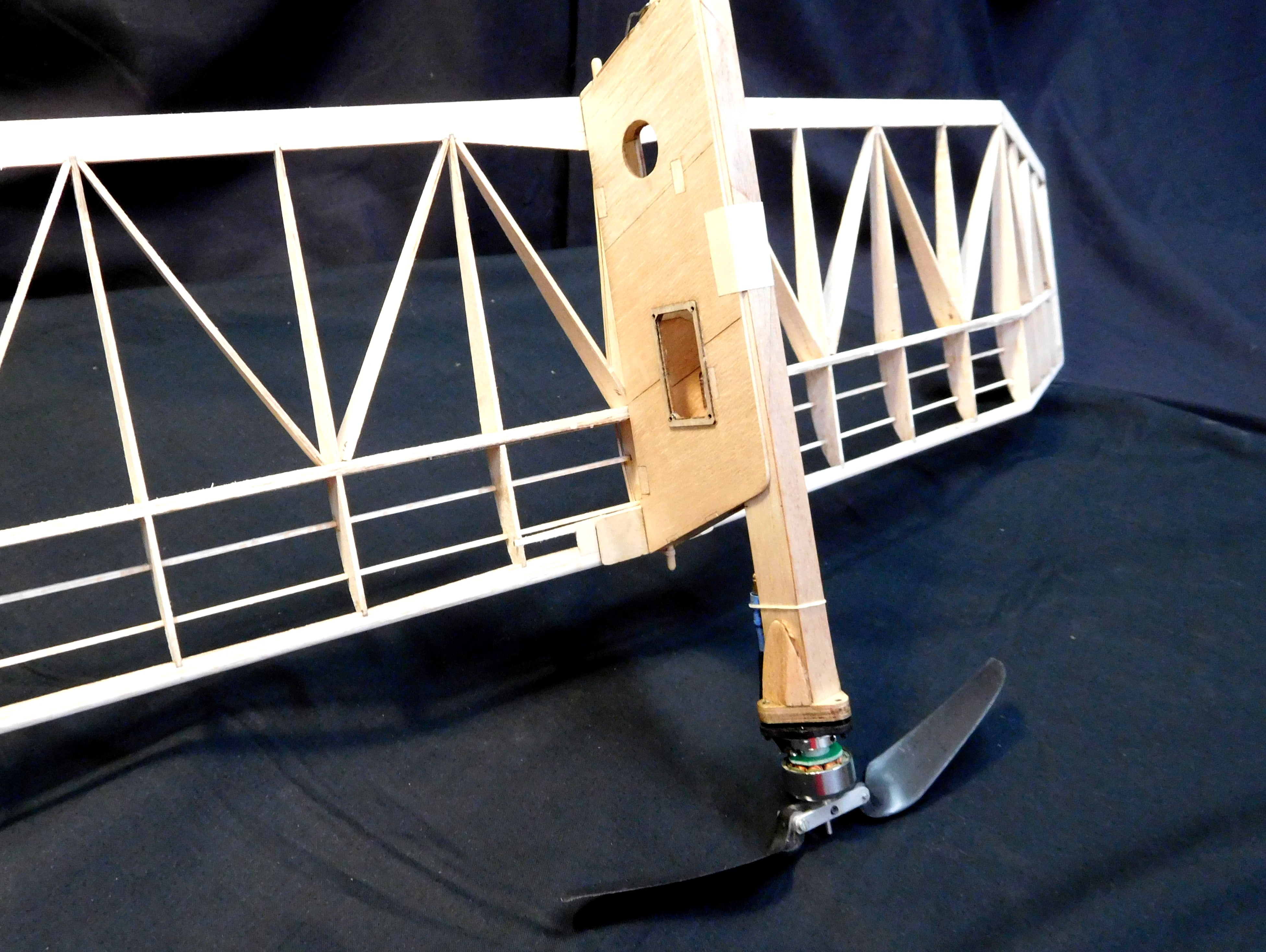

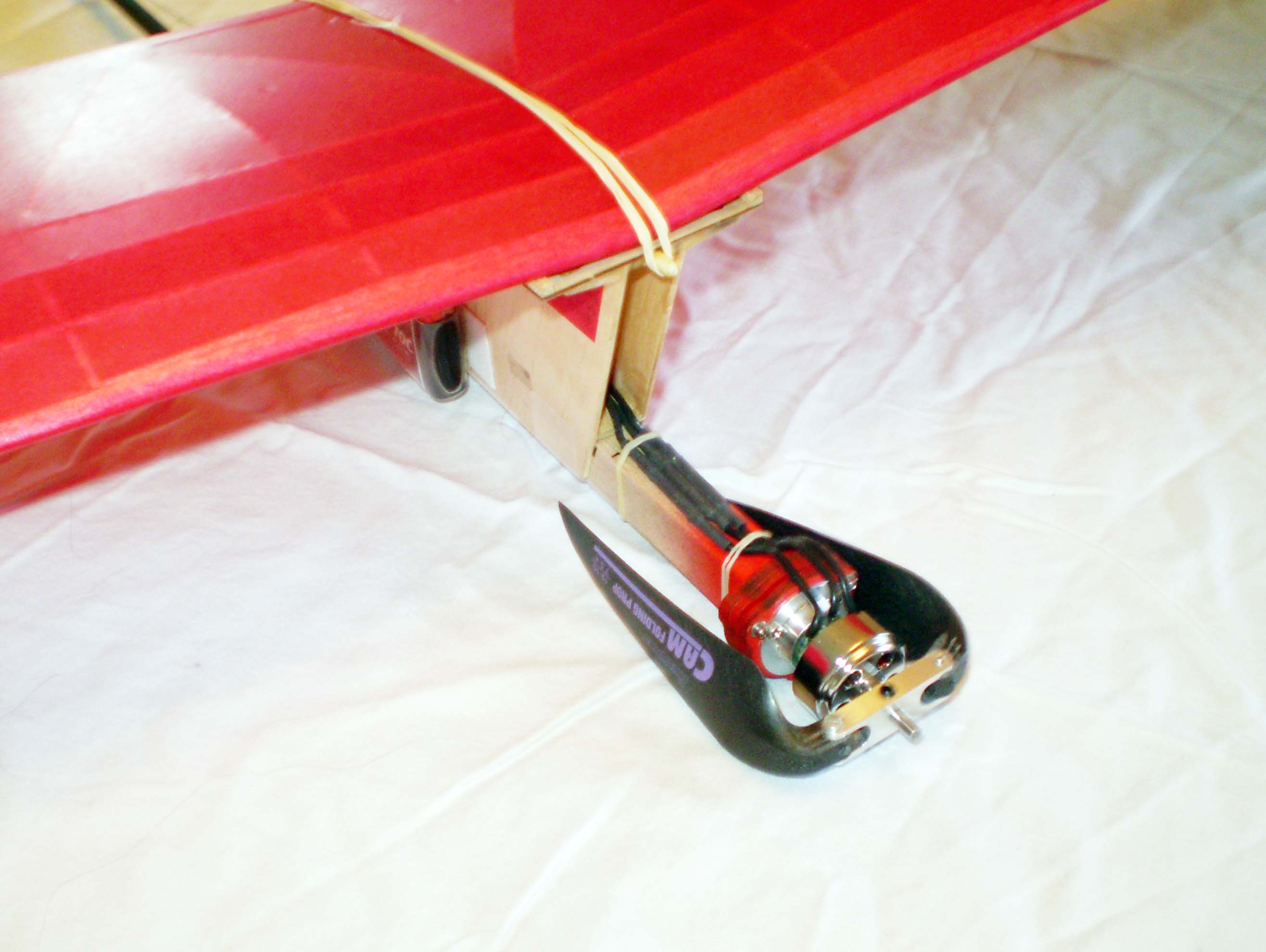

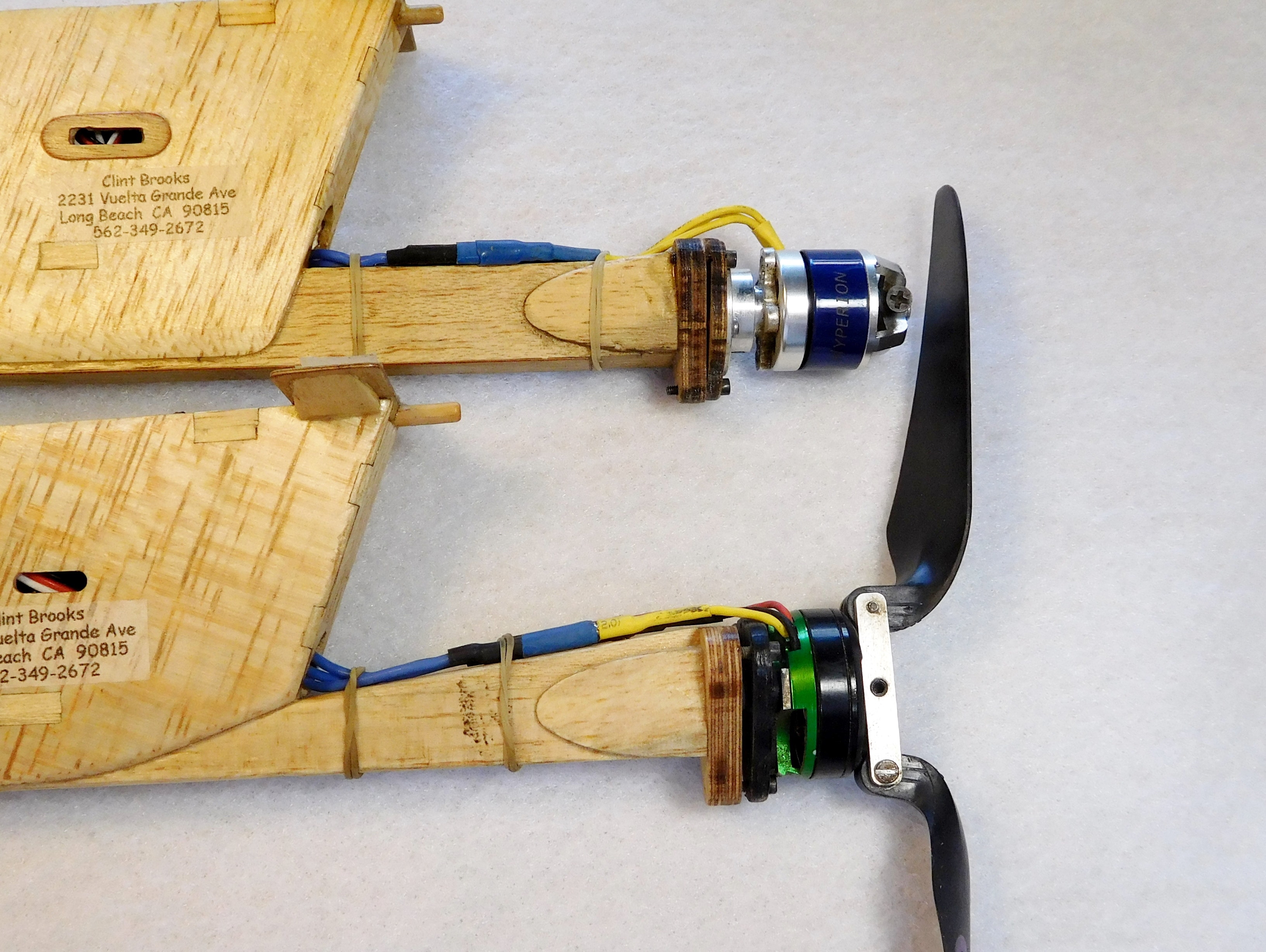

Custom designed spherical motor mount assembly makes thrust adjustments easy for power trim settings; something not seen on any other E-36 design to date.
-

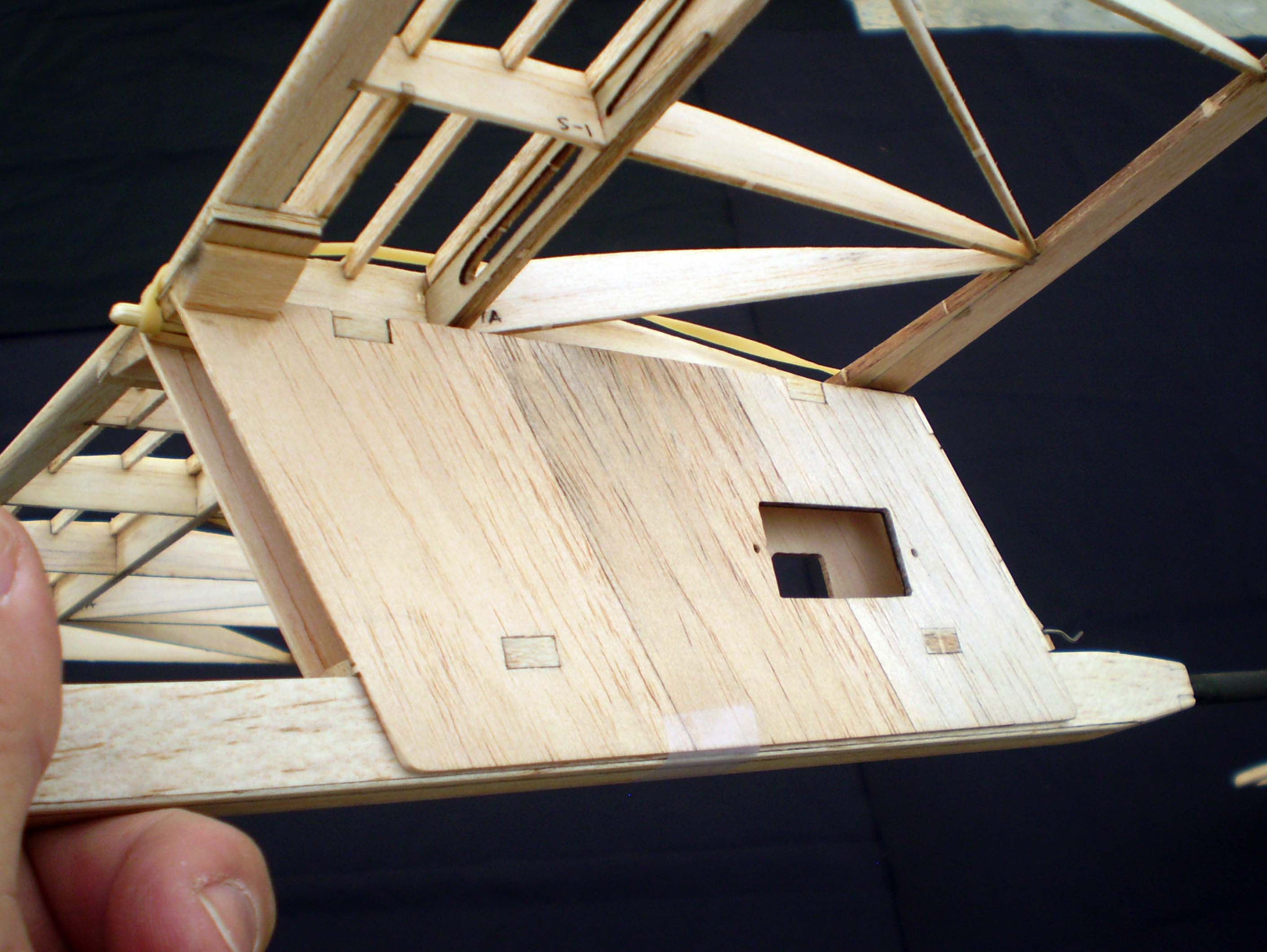

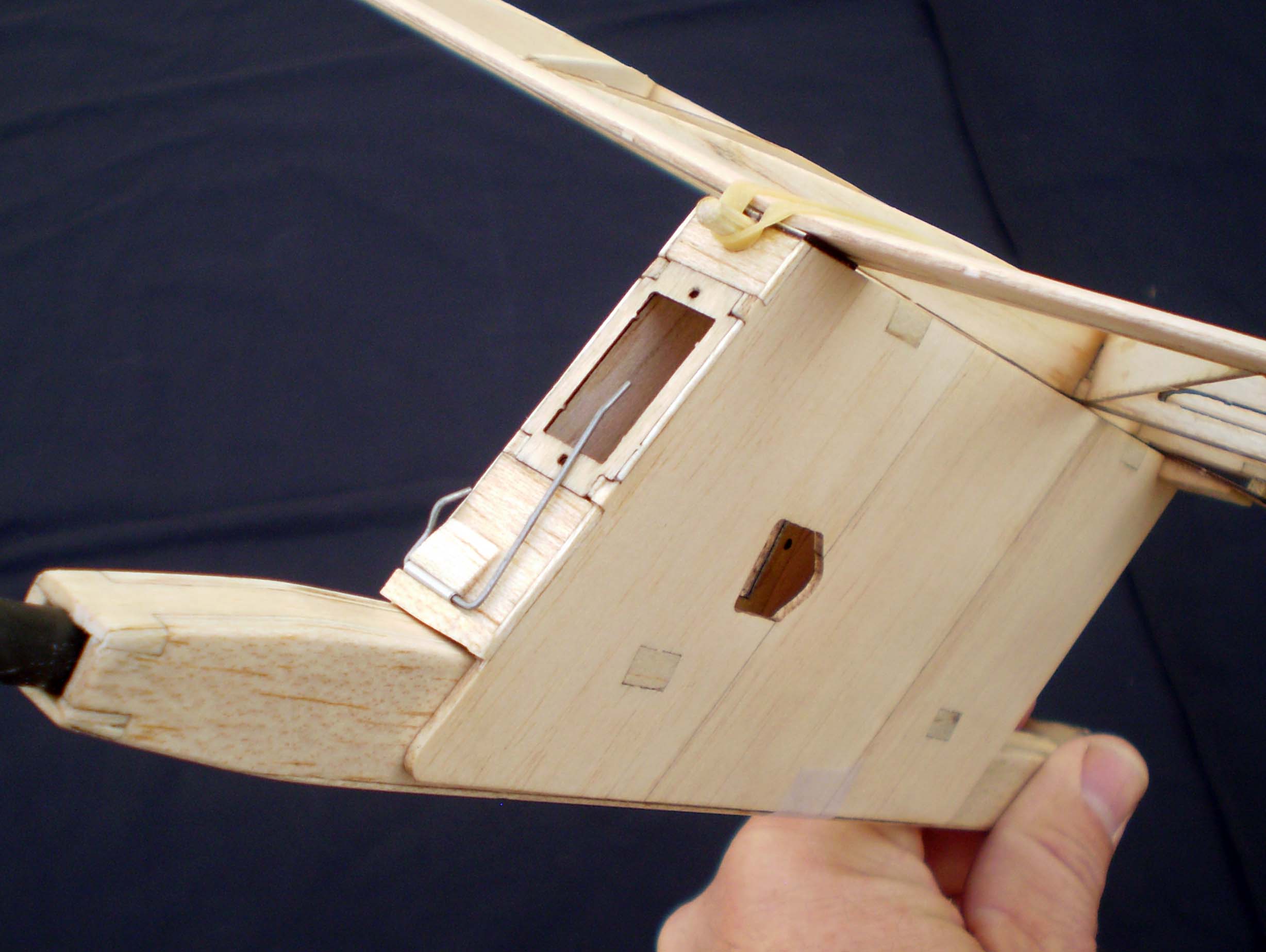

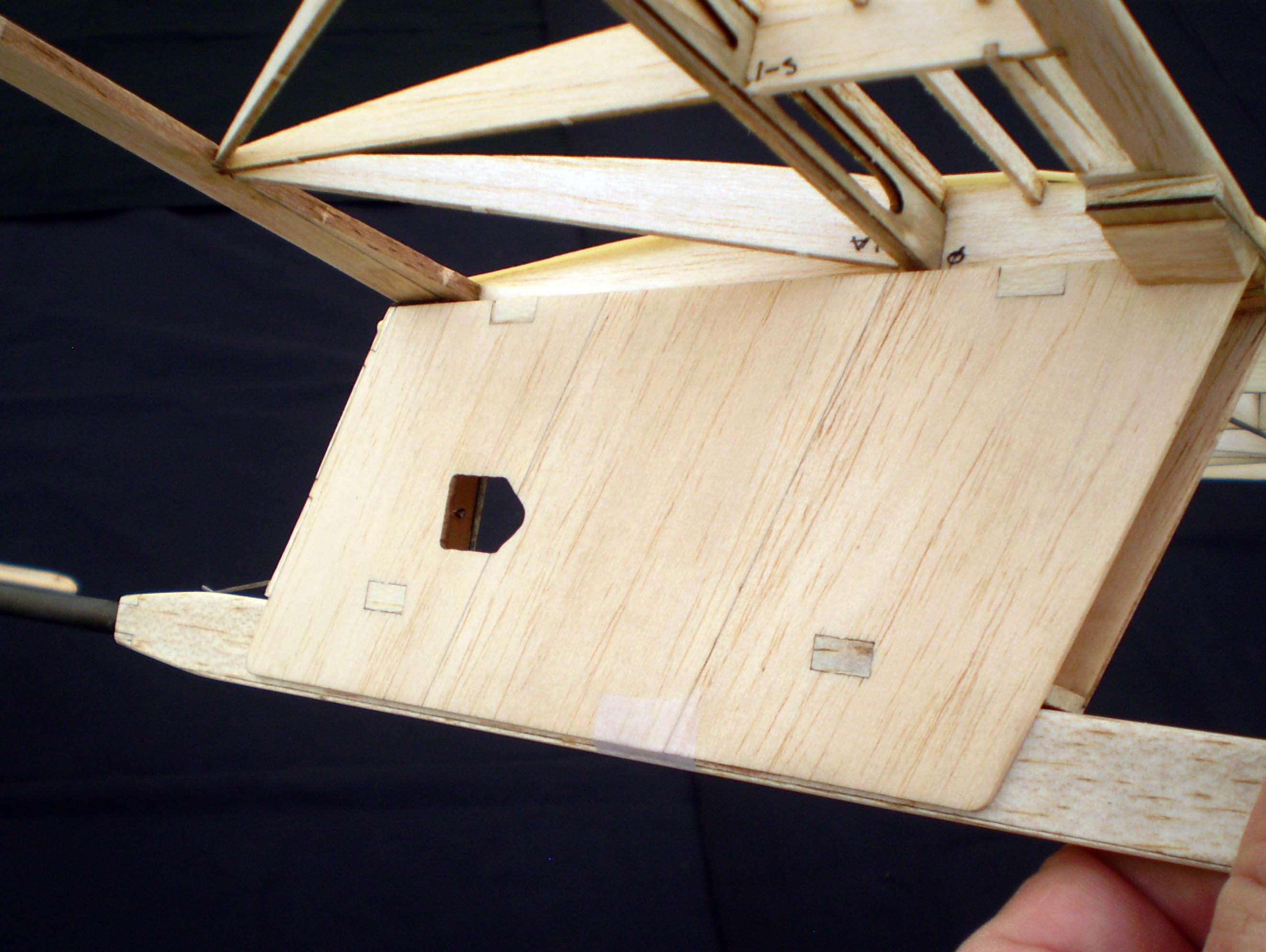

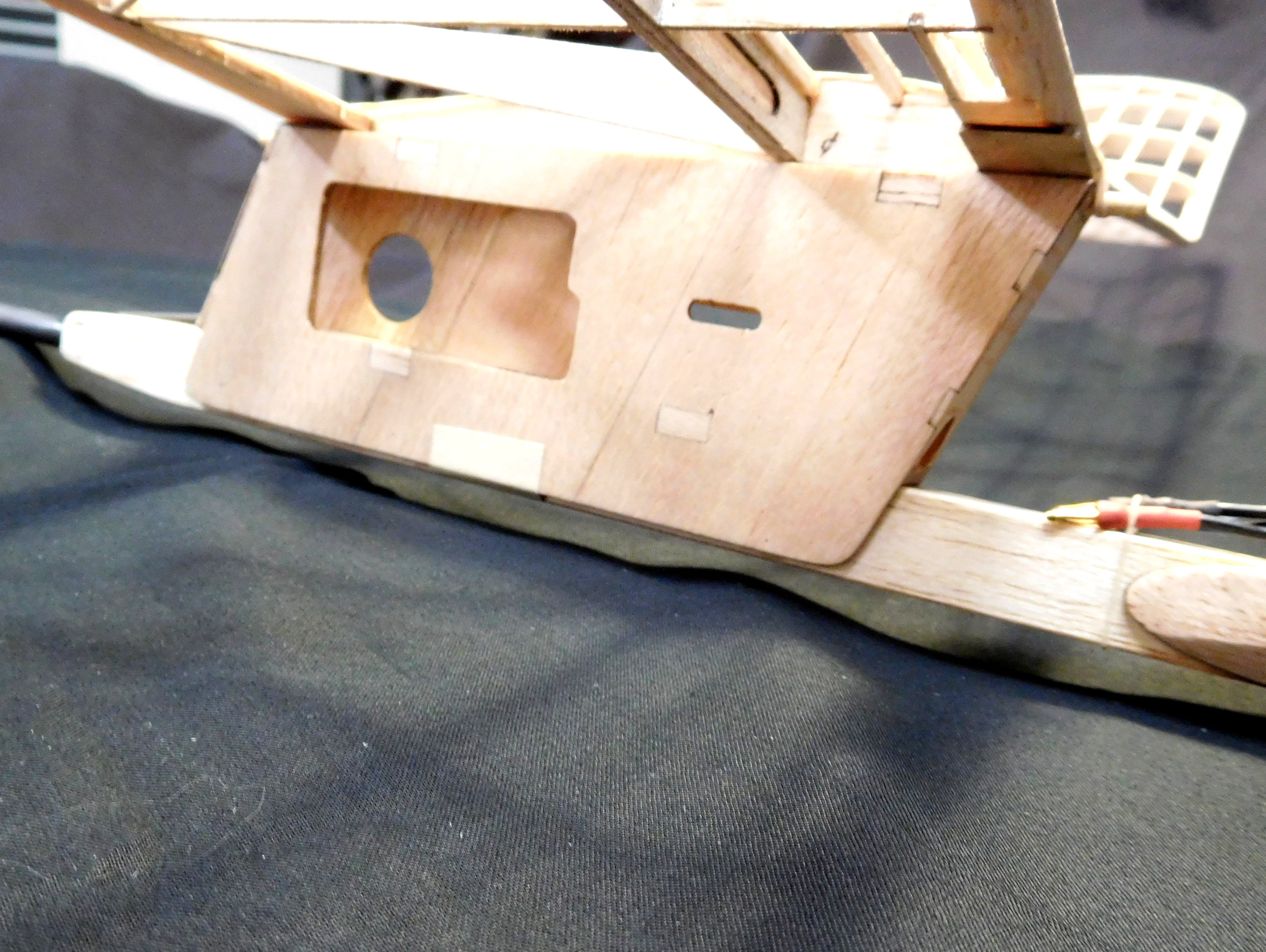

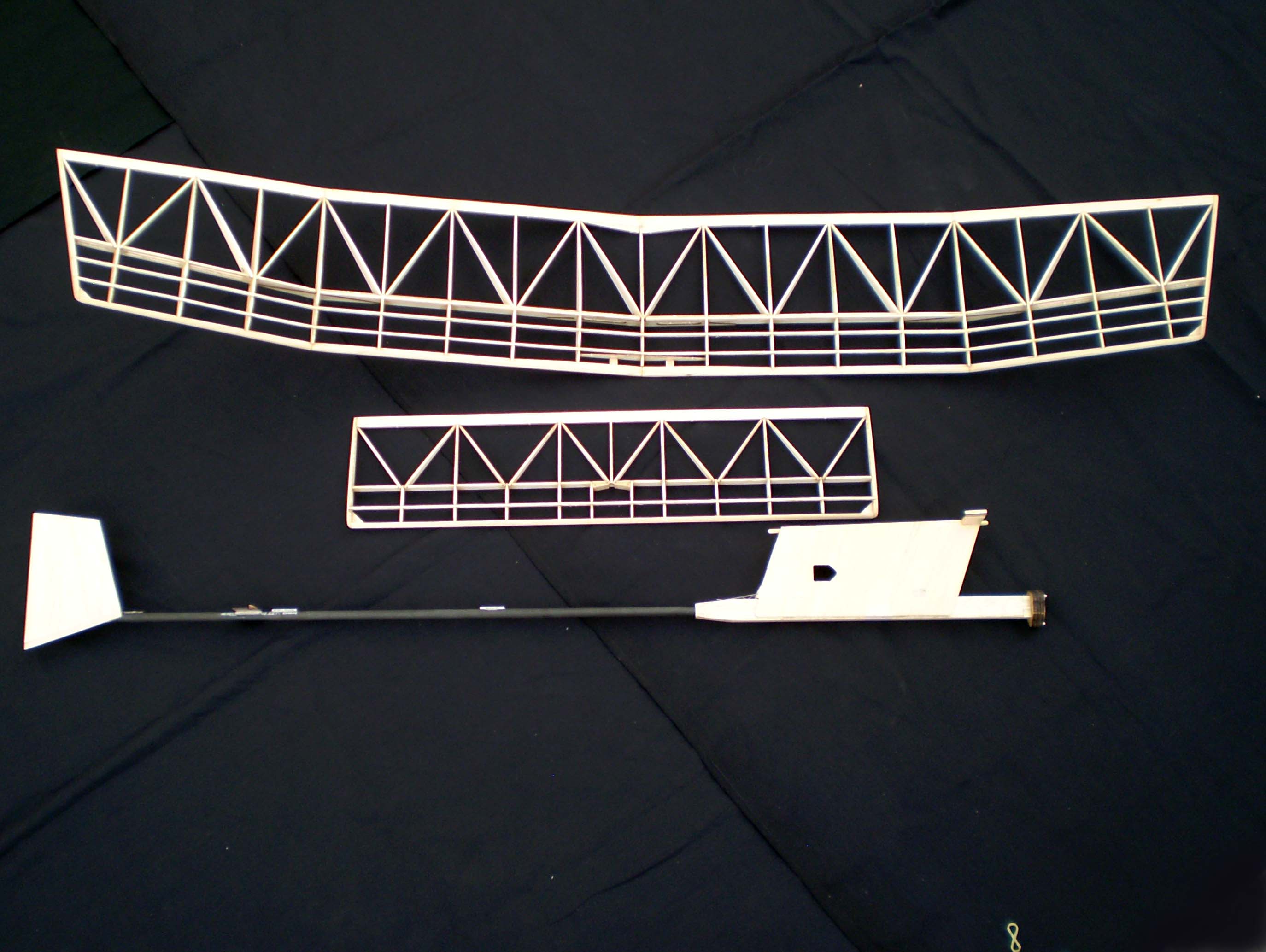

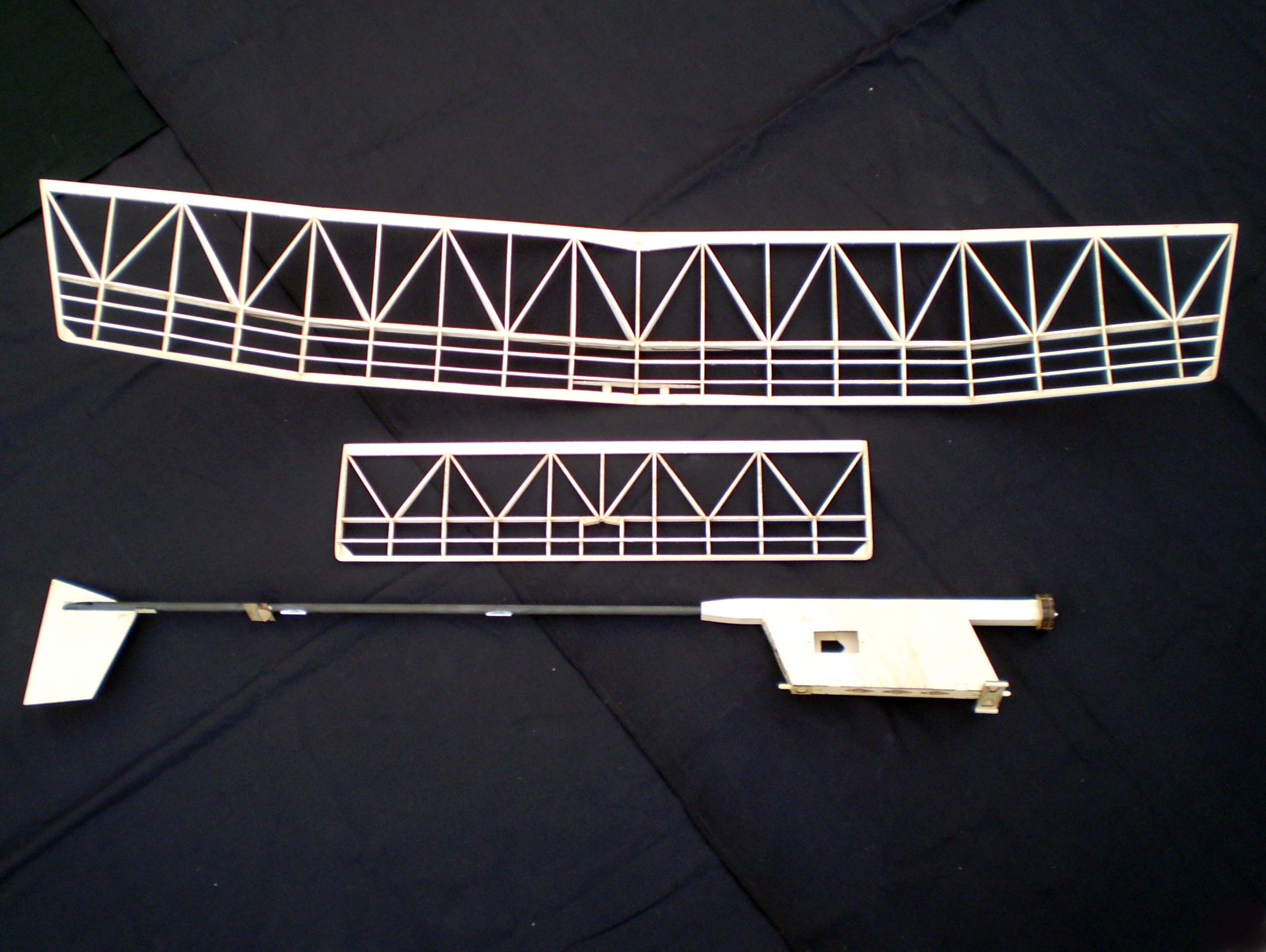

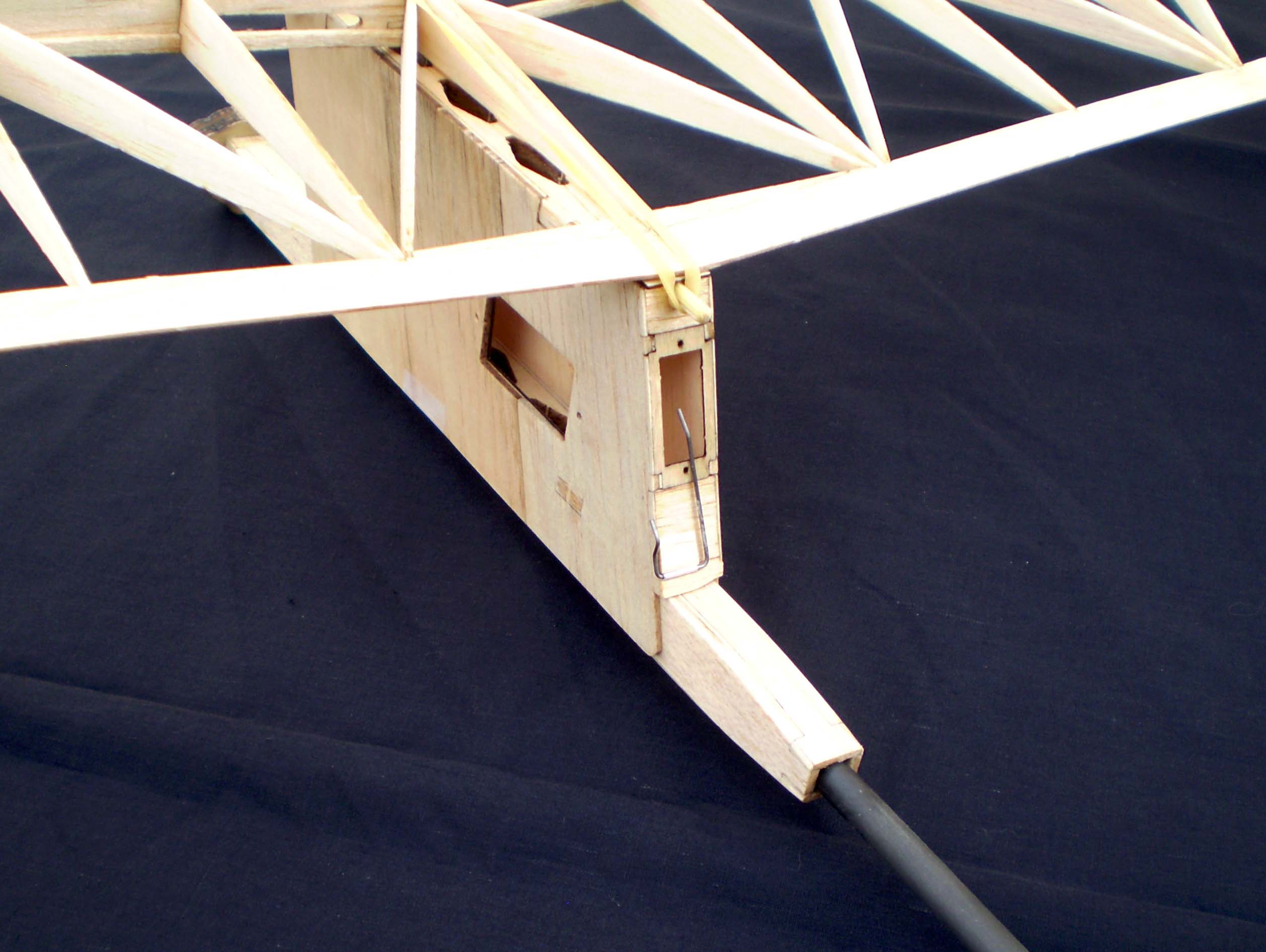

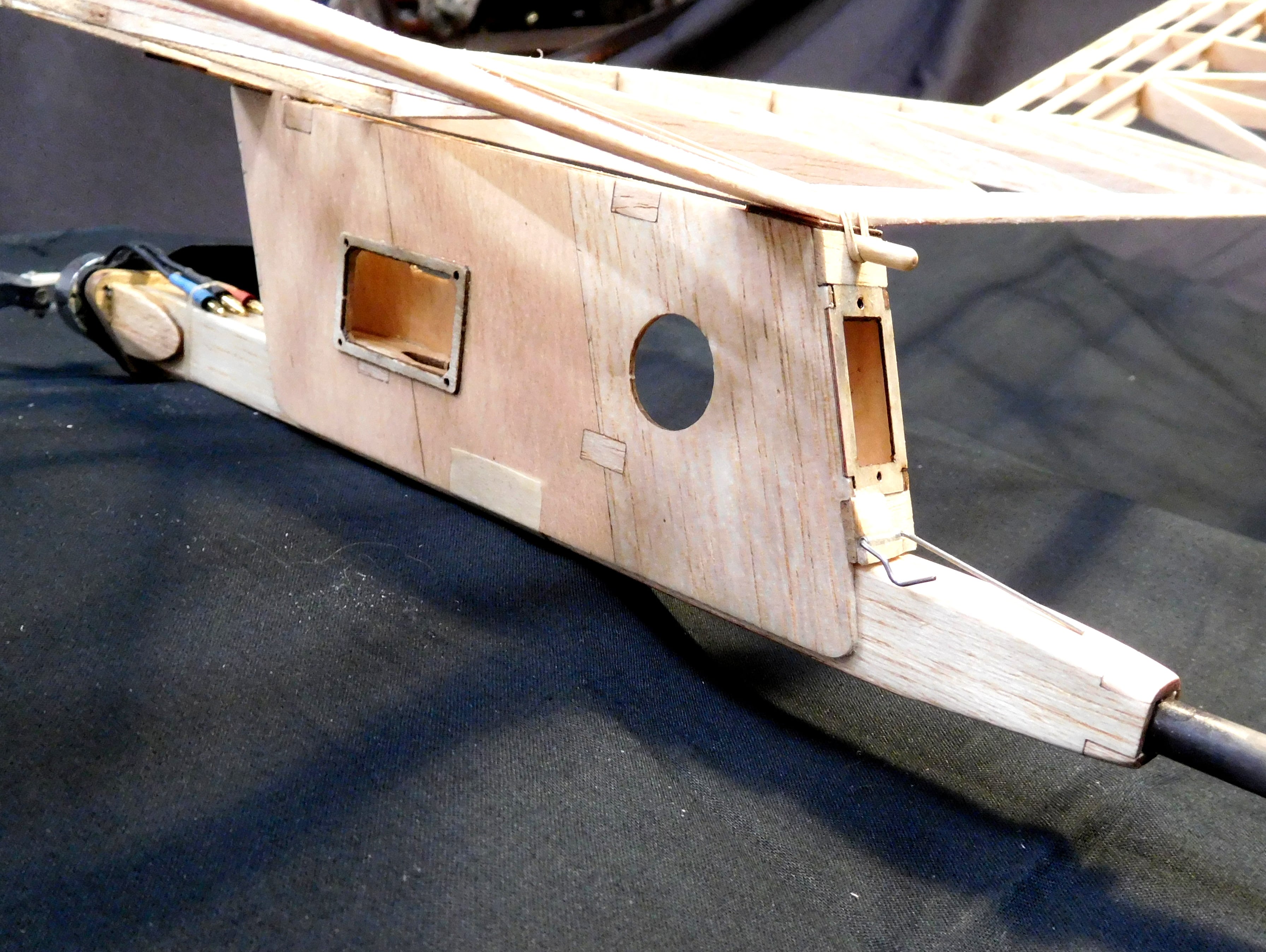

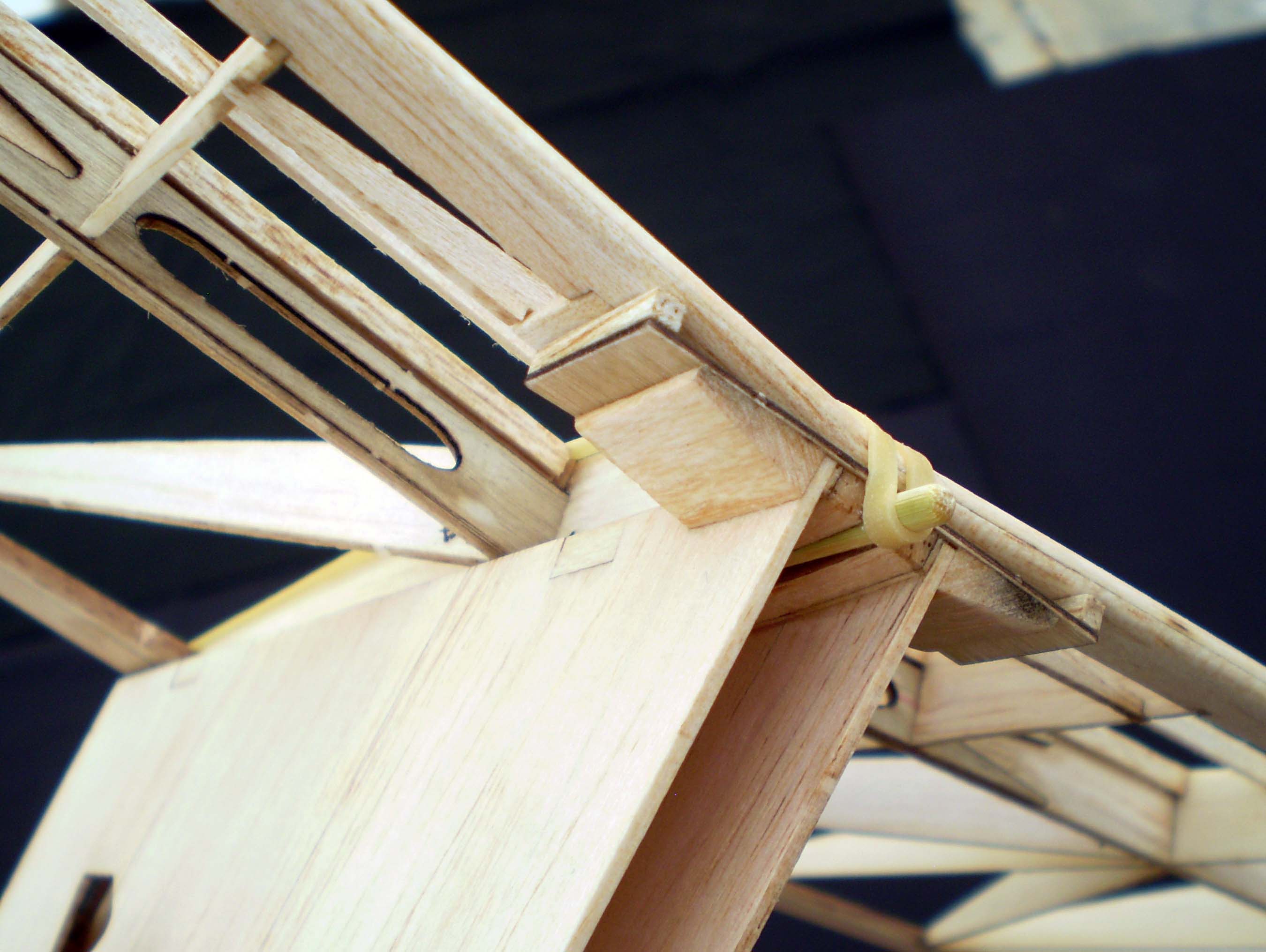

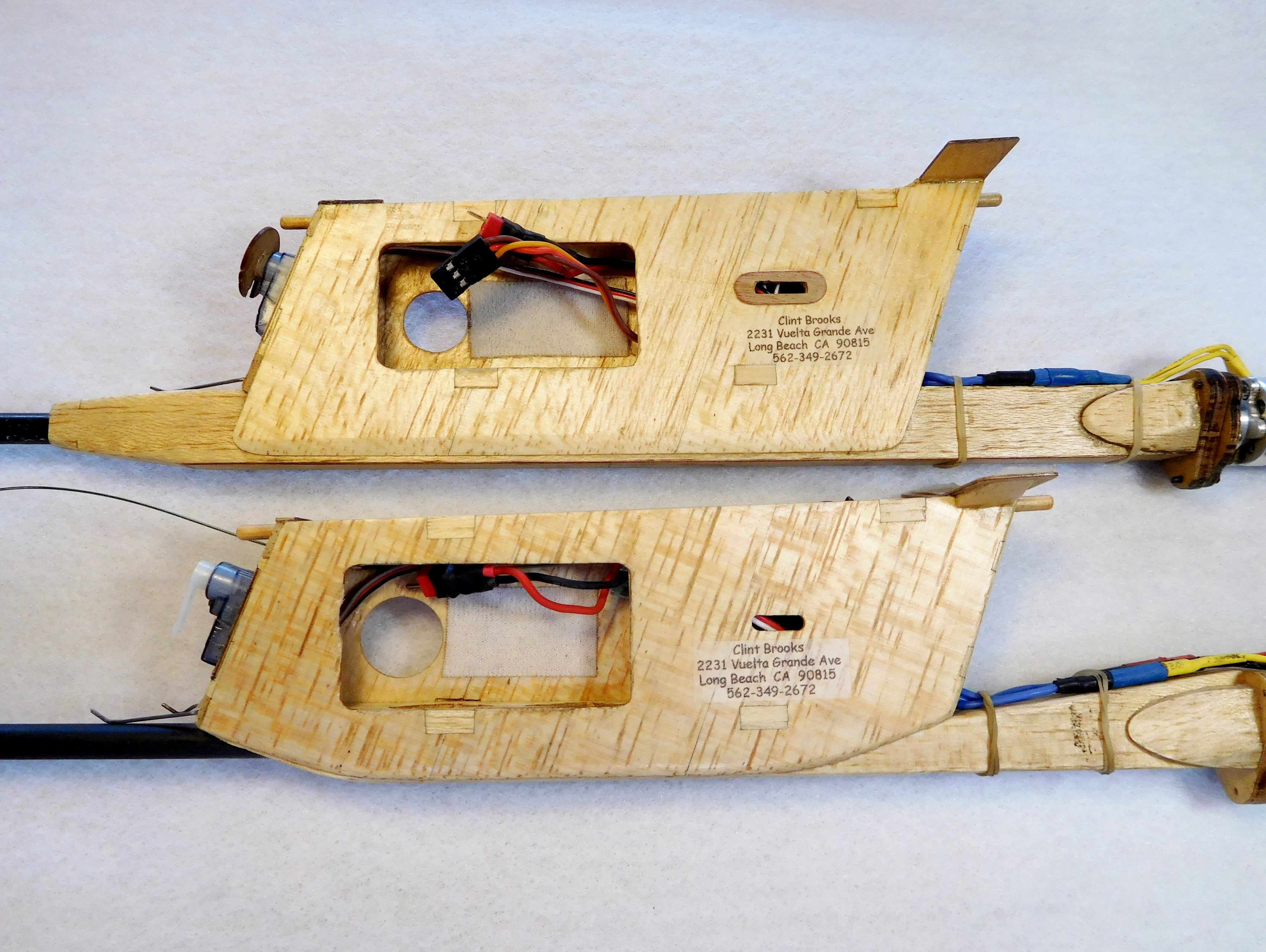

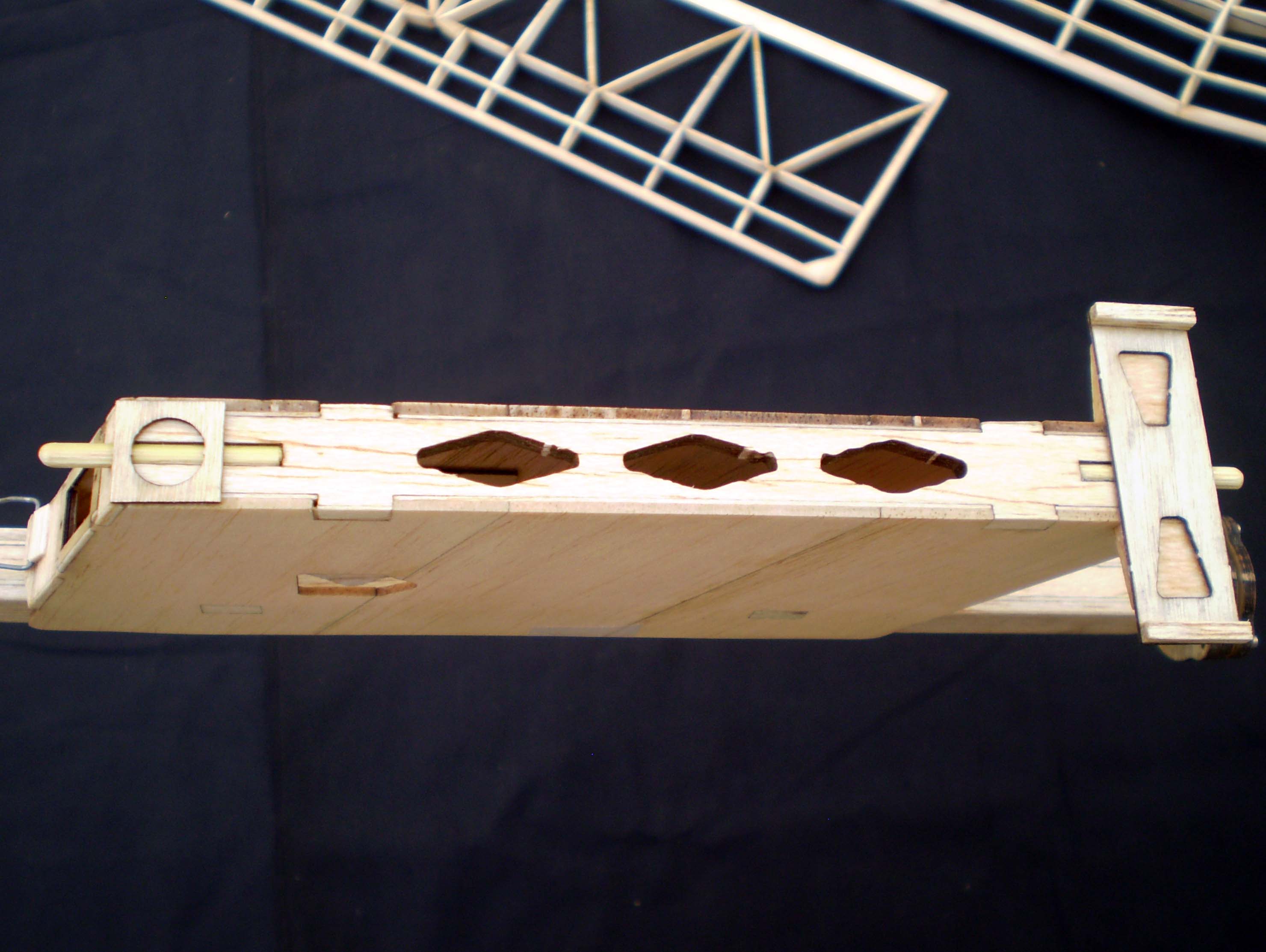

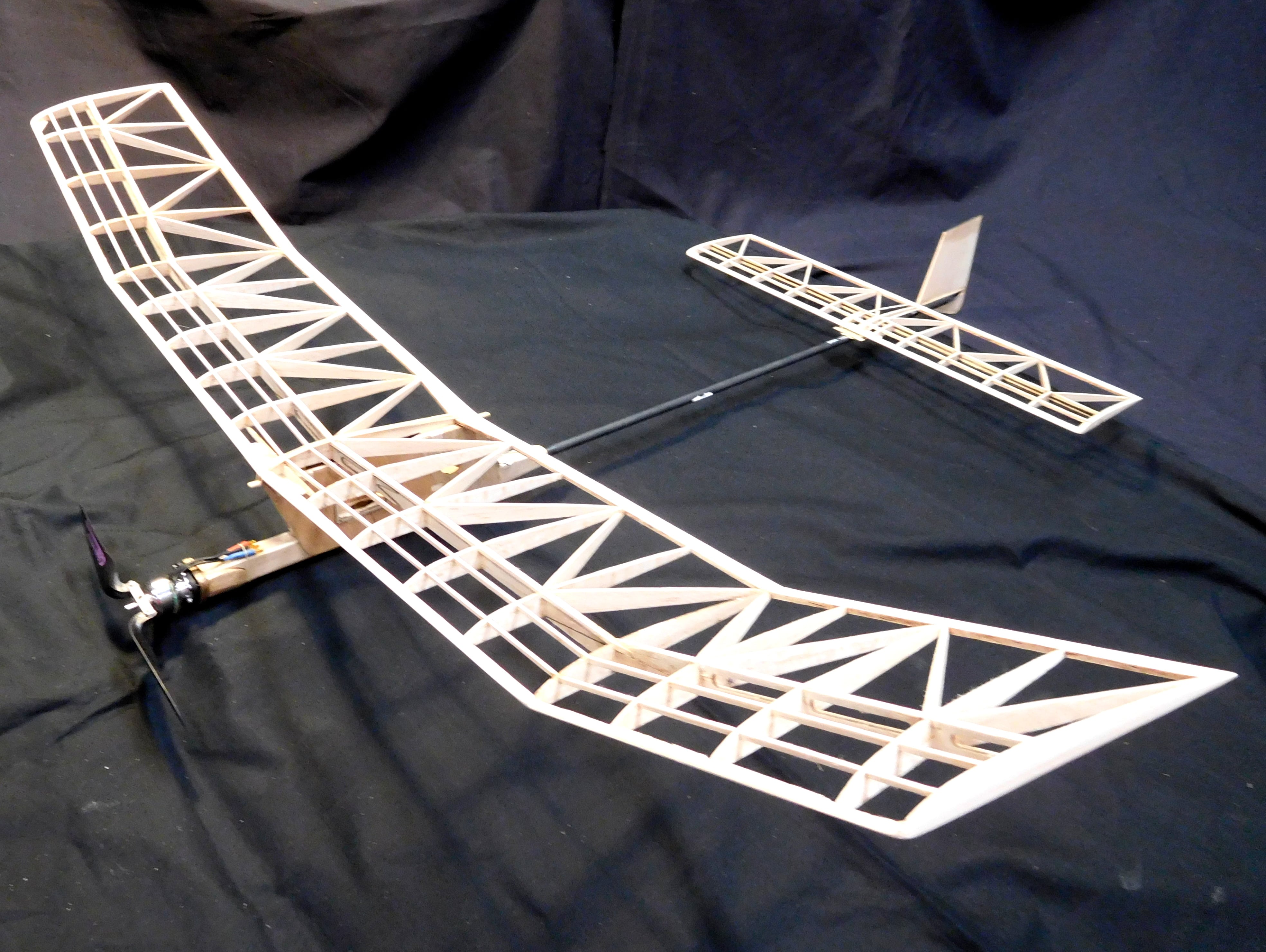

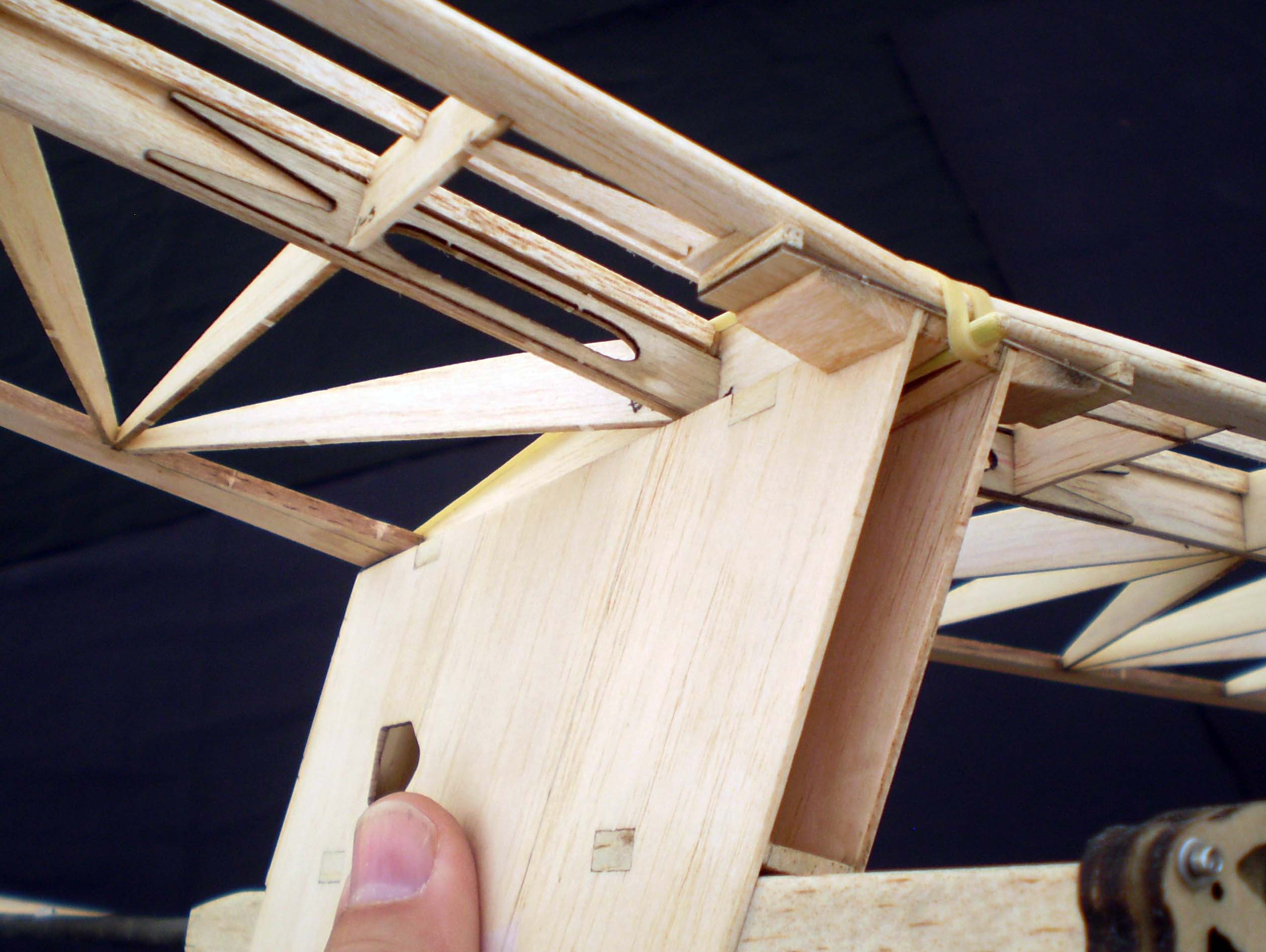

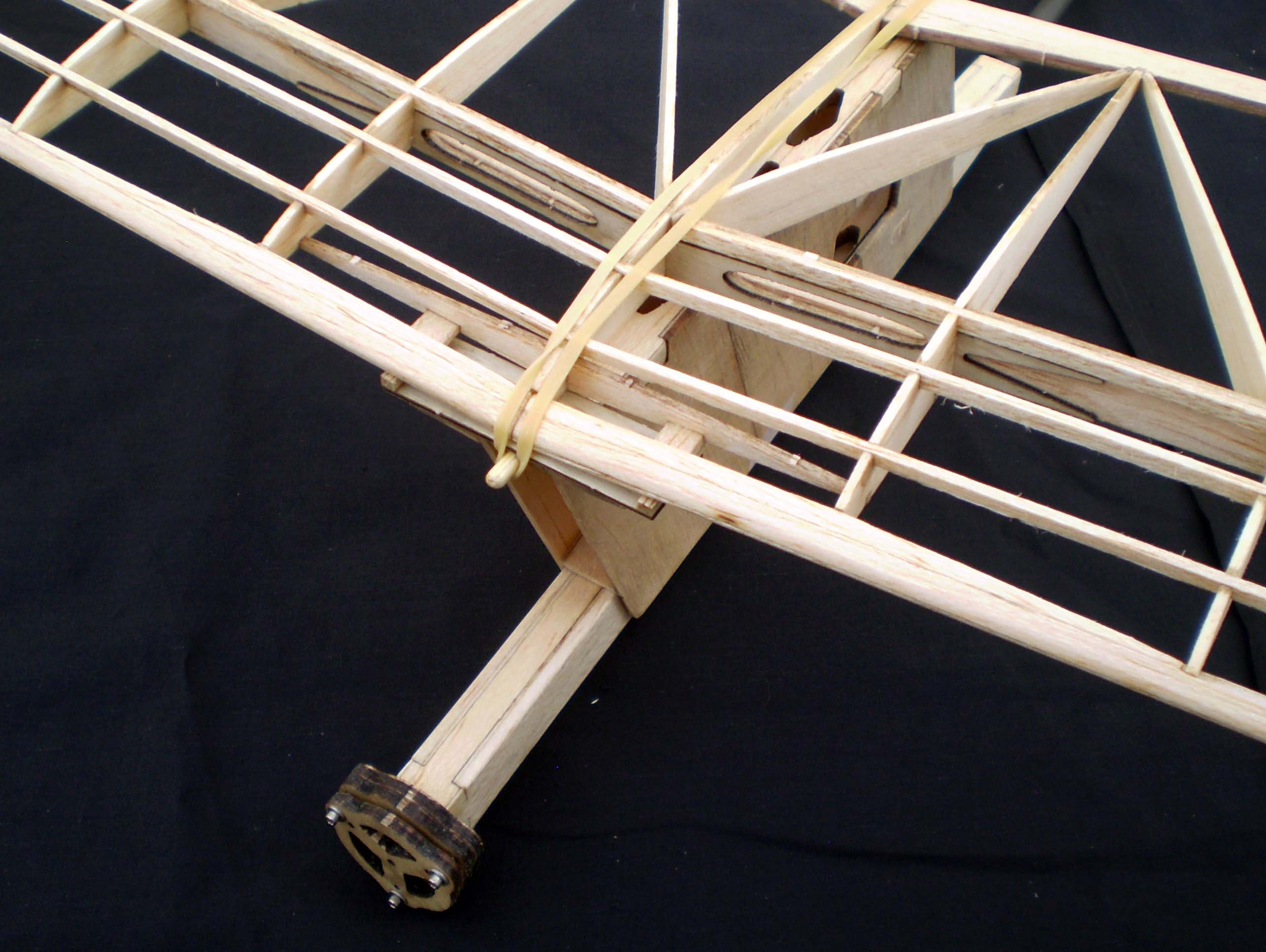

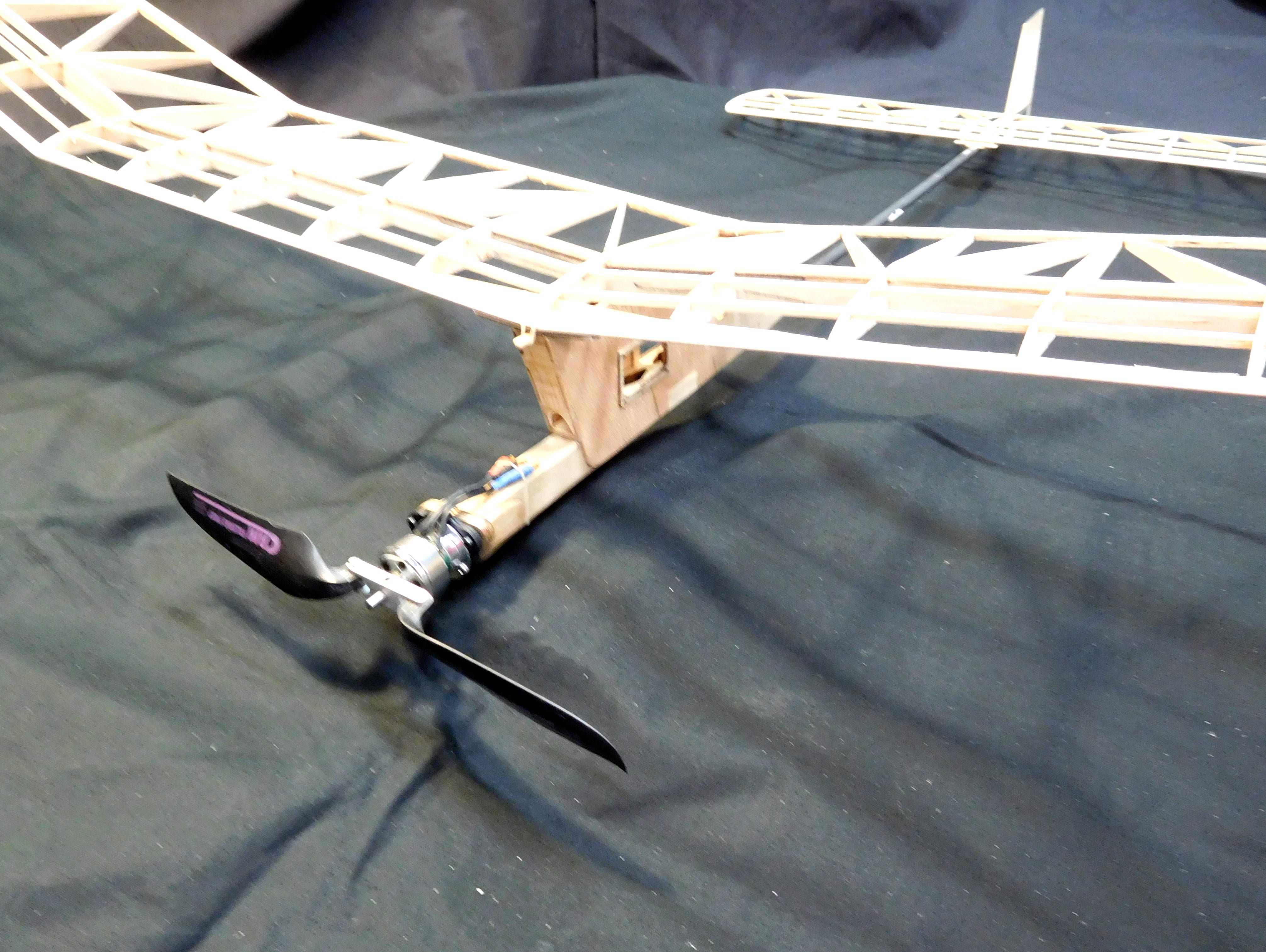

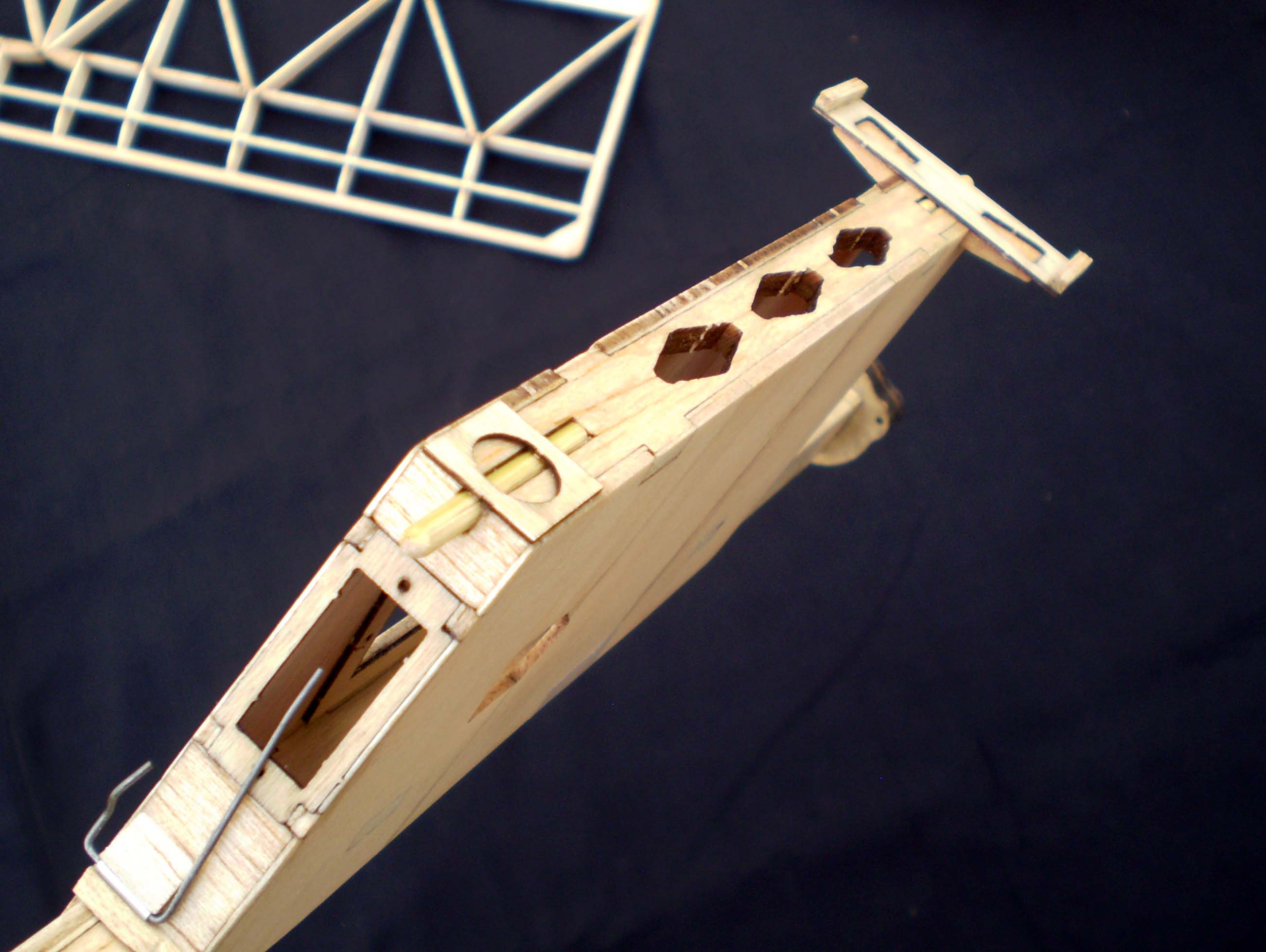

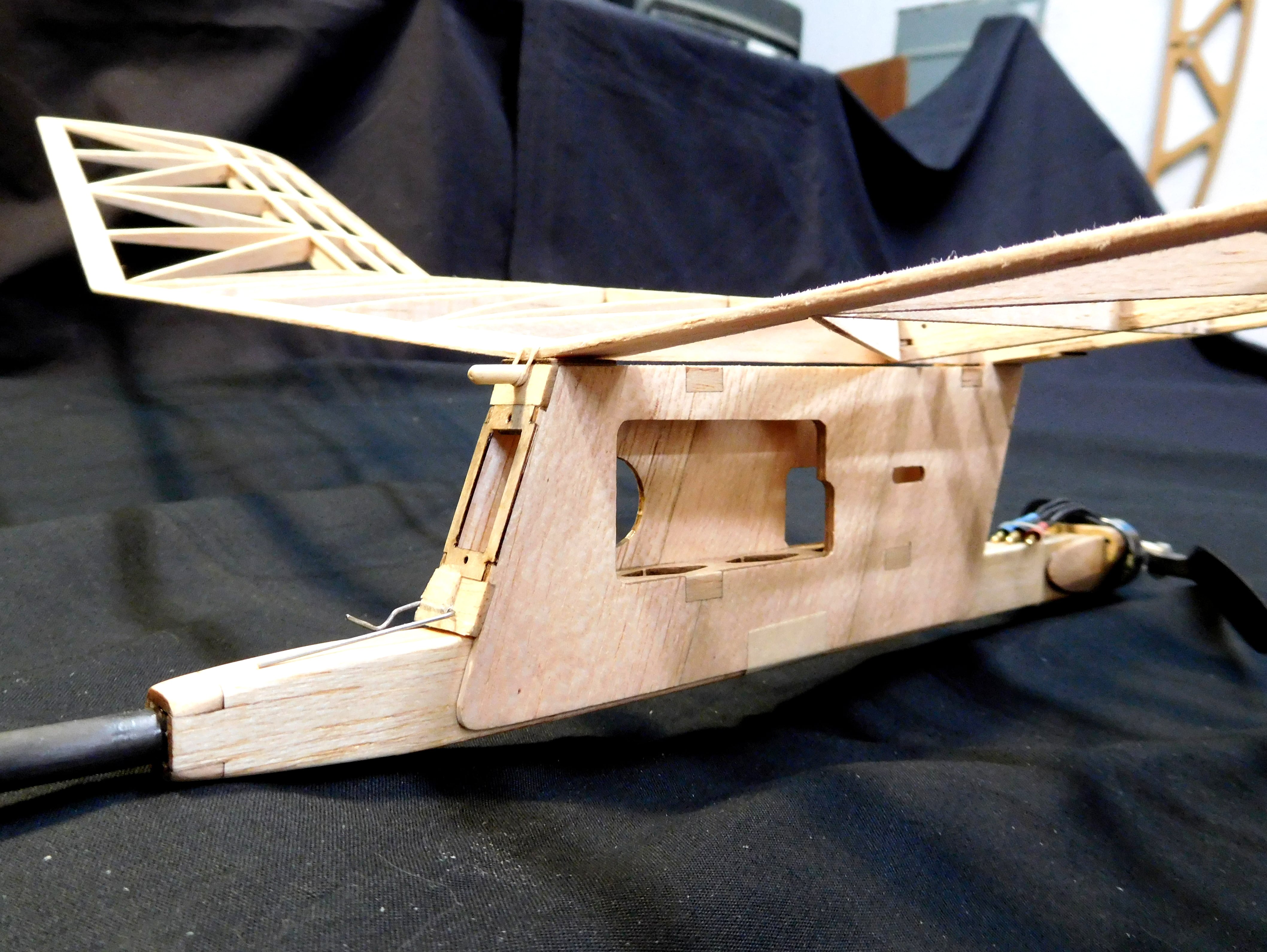

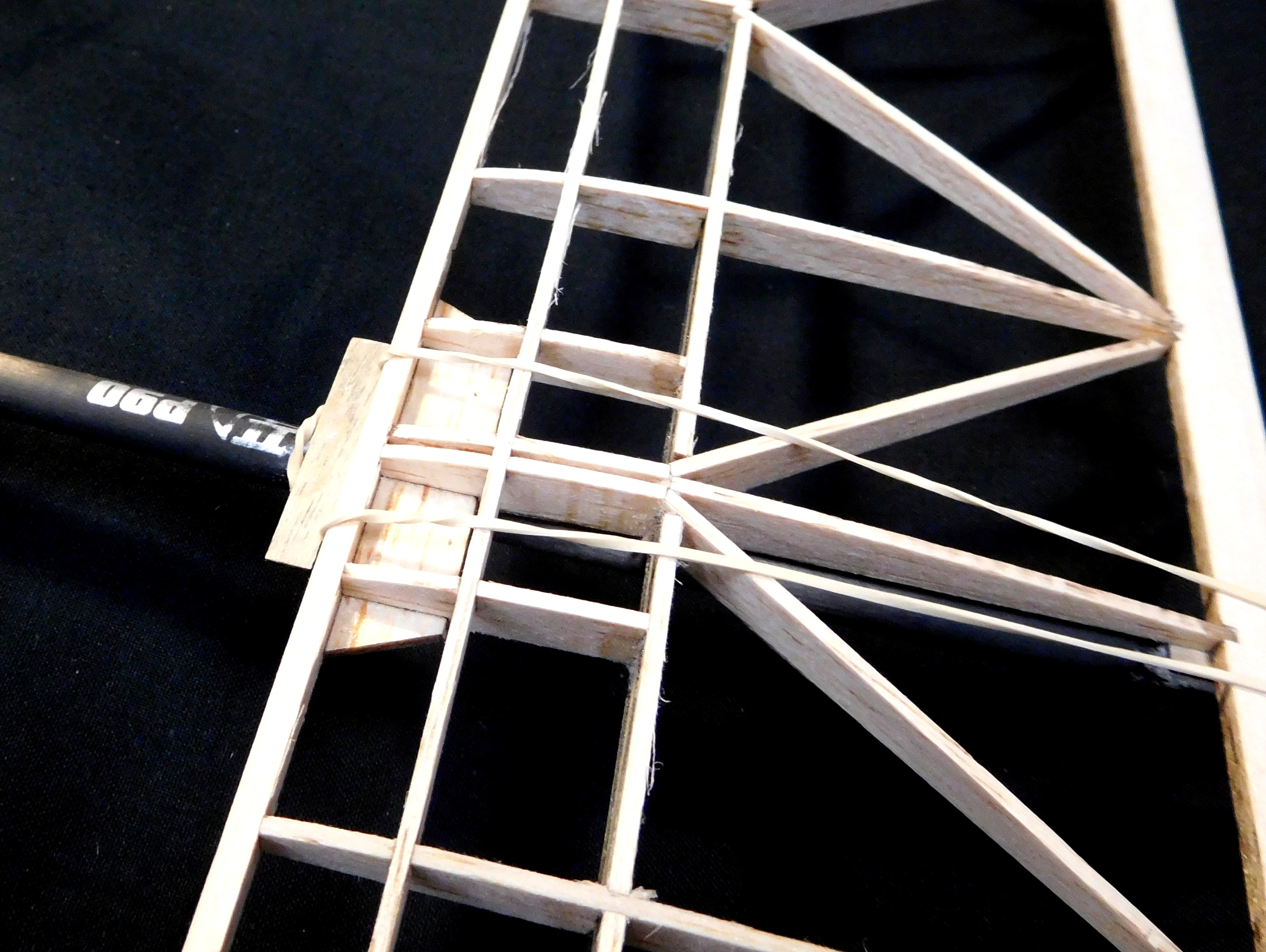

Lightweight construction method that features interlocking features throughout.
-

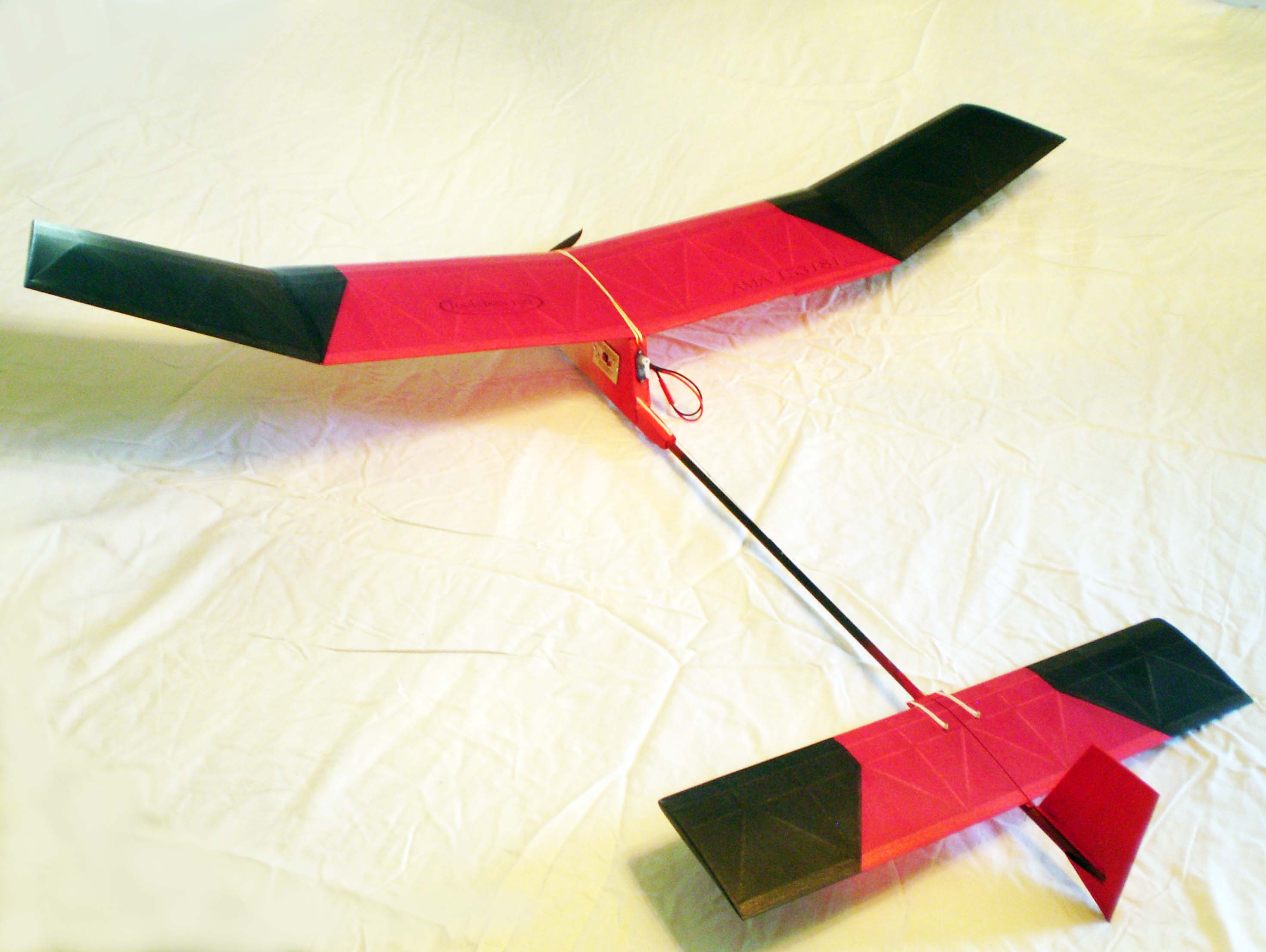

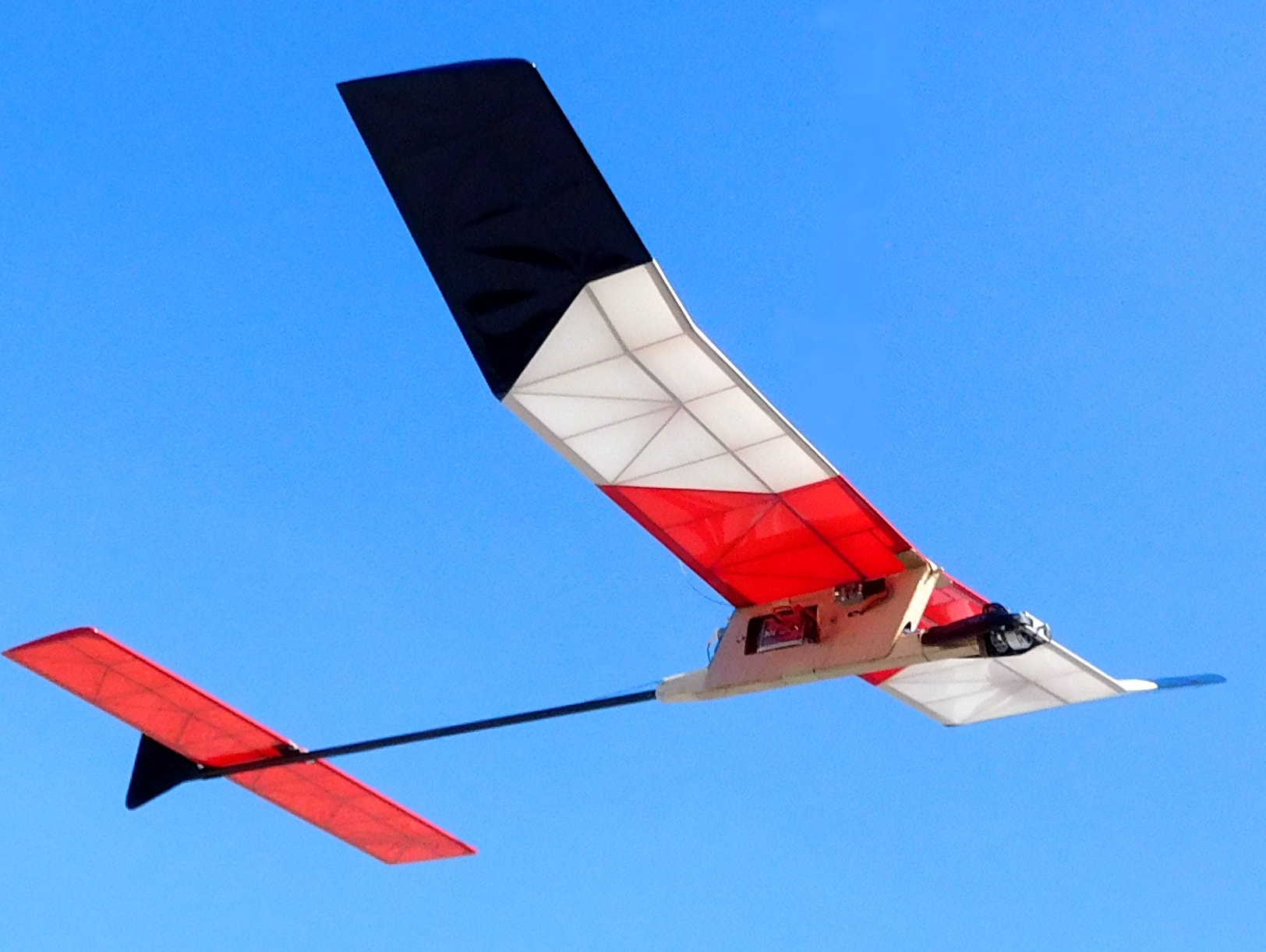

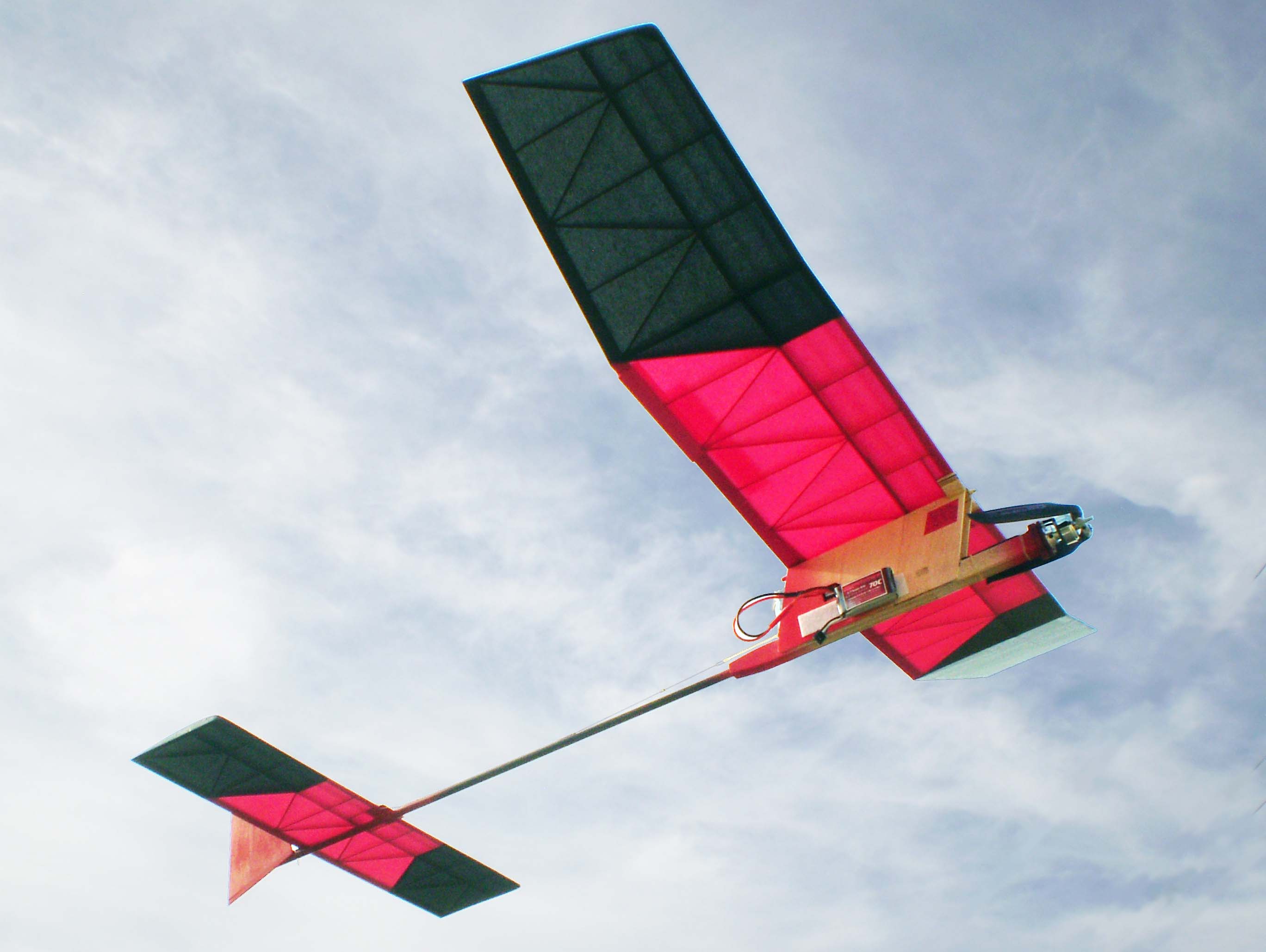

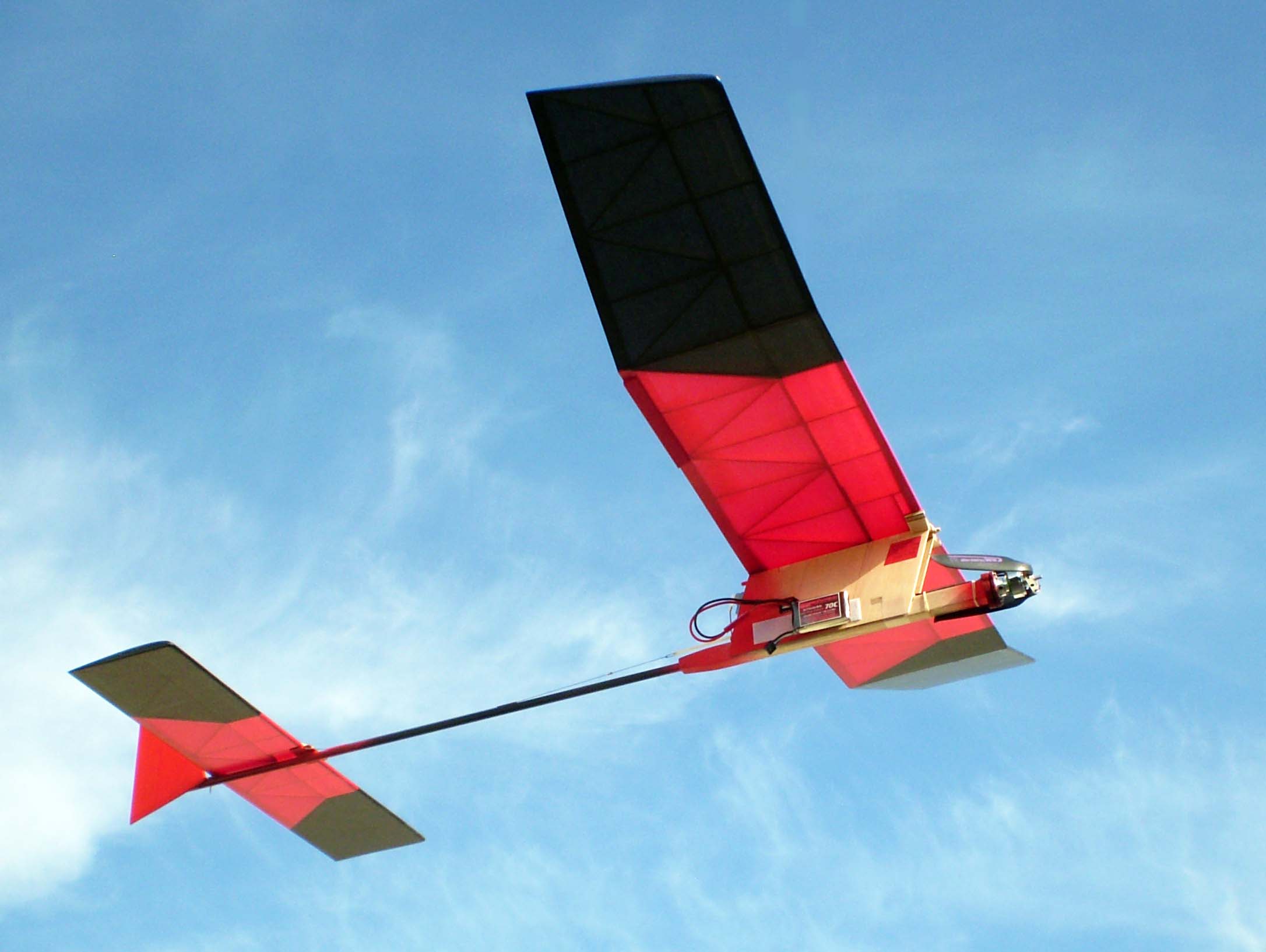

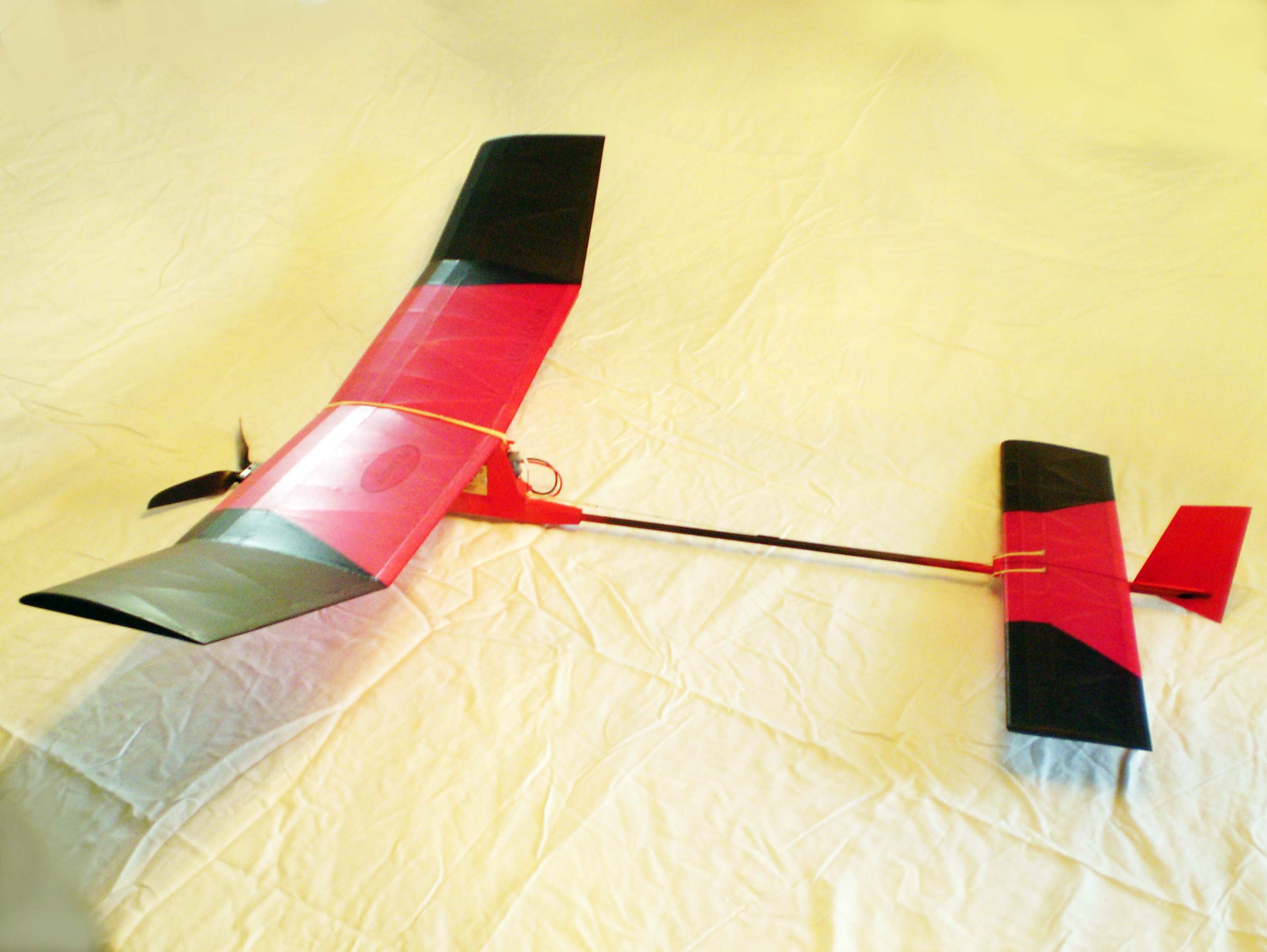

The JOULEBOX as designed and flown by John Oldenkamp, one of the founders of the E-36 class of free flight competition,
proved itself in competition even before being kitted as the JOULEBOX 190;
We took the design and refined it even more for light weight, fast construction and even better flight performance.
Build a winner right out of the box and step into E-36 competition in the easiest possible way.
Specifications:
|
|
|
|
|
|
Wingspan:
|
36 inches projected
|
|
Wing Area:
|
204
square inches
|
|
Nominal length:
|
31-5/8
inches
|
|
Nominal airframe weight uncovered:
|
58 grams
|
|
Nominal weight:
|
150 grams
|
|
|
|
