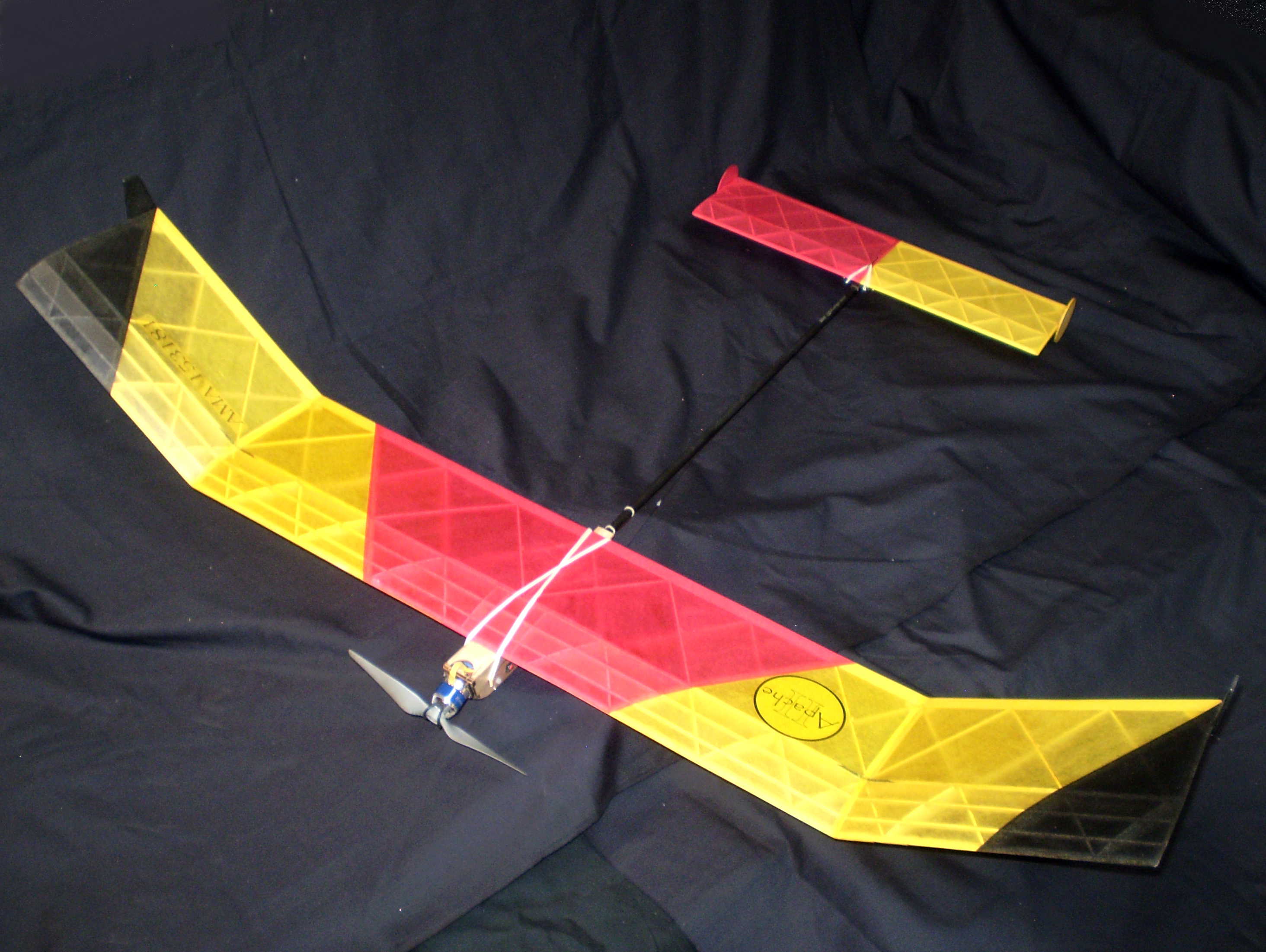

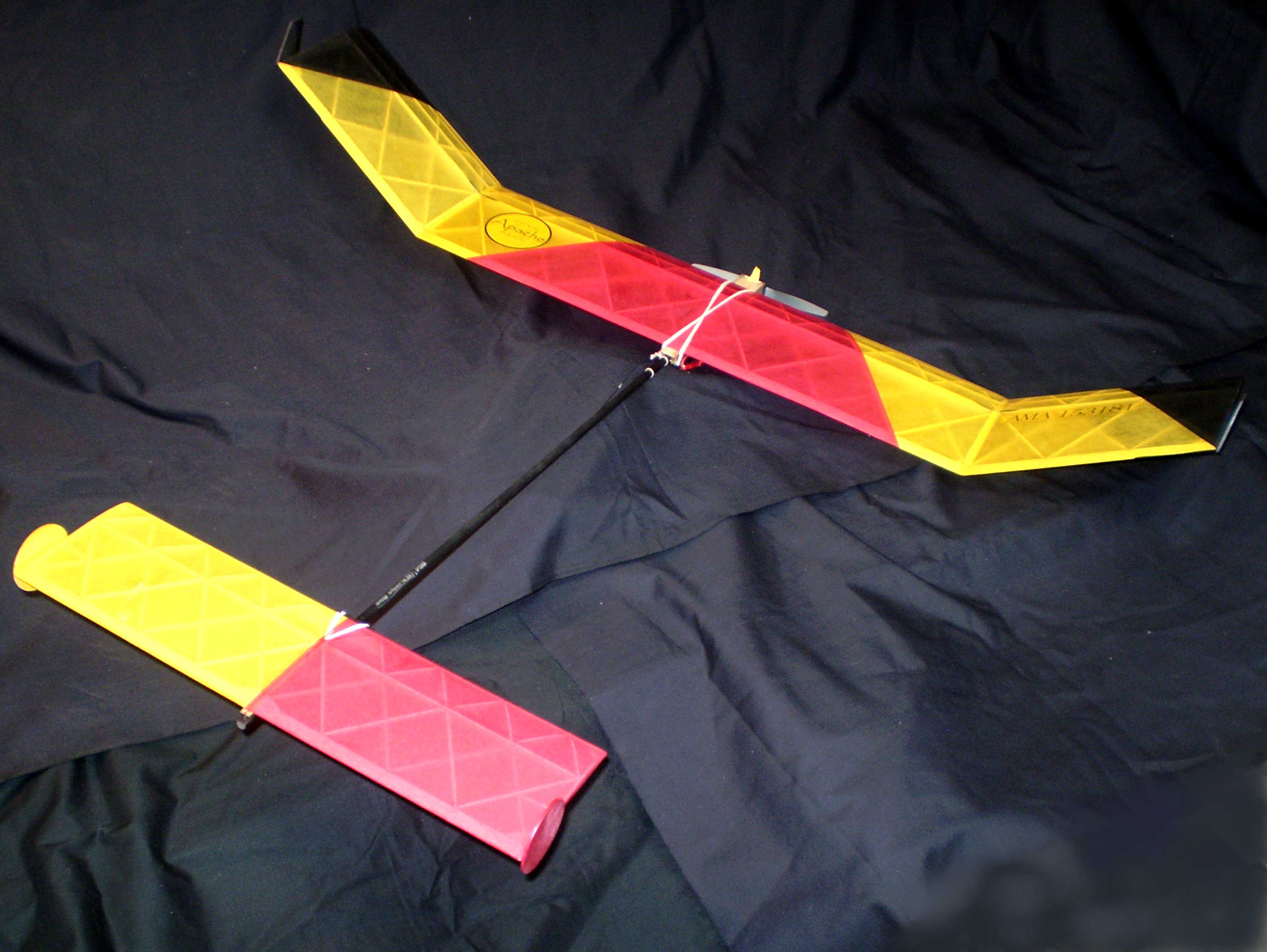

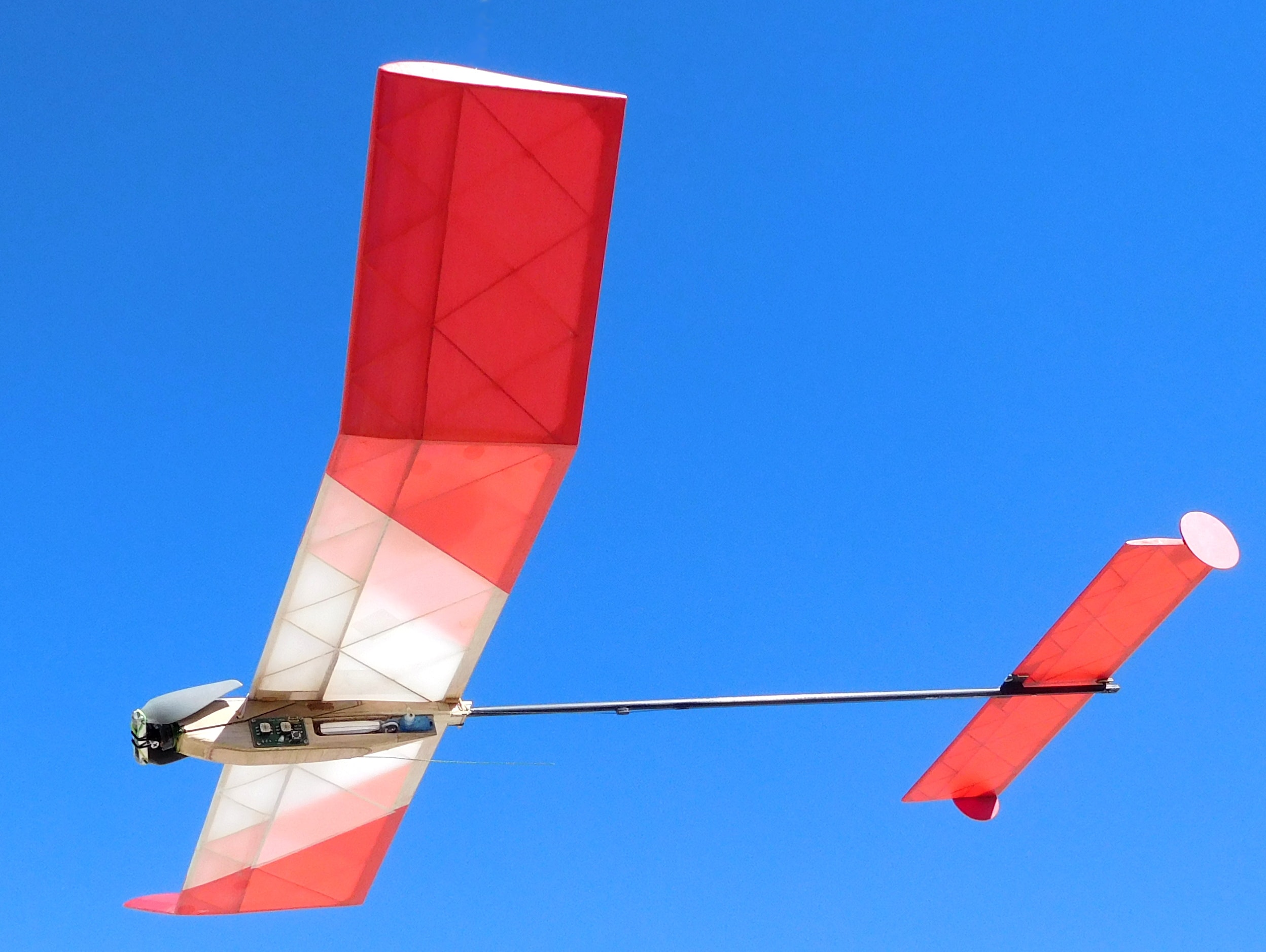

The APACHE II has evolved into the APACHE II MK II.

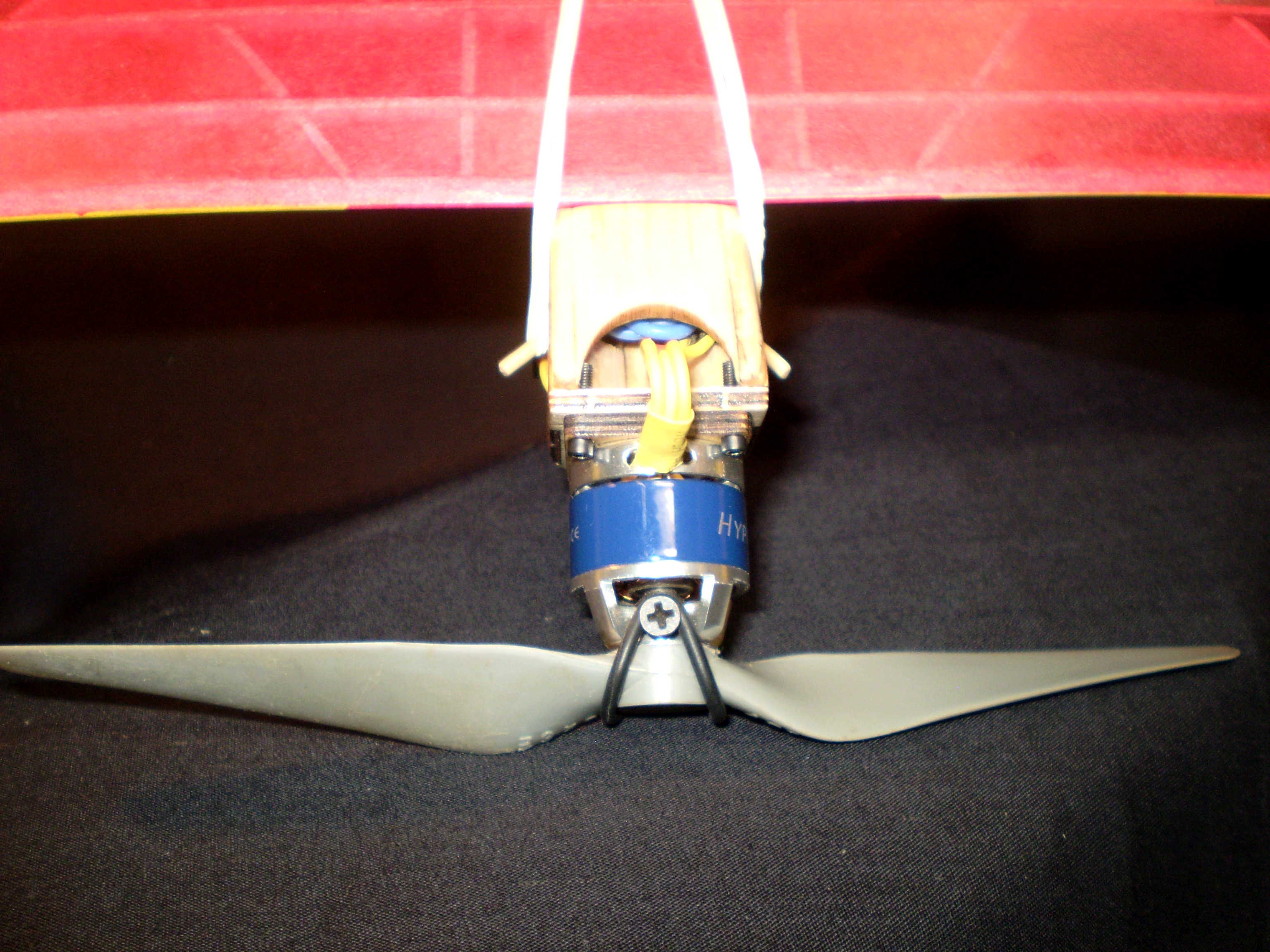

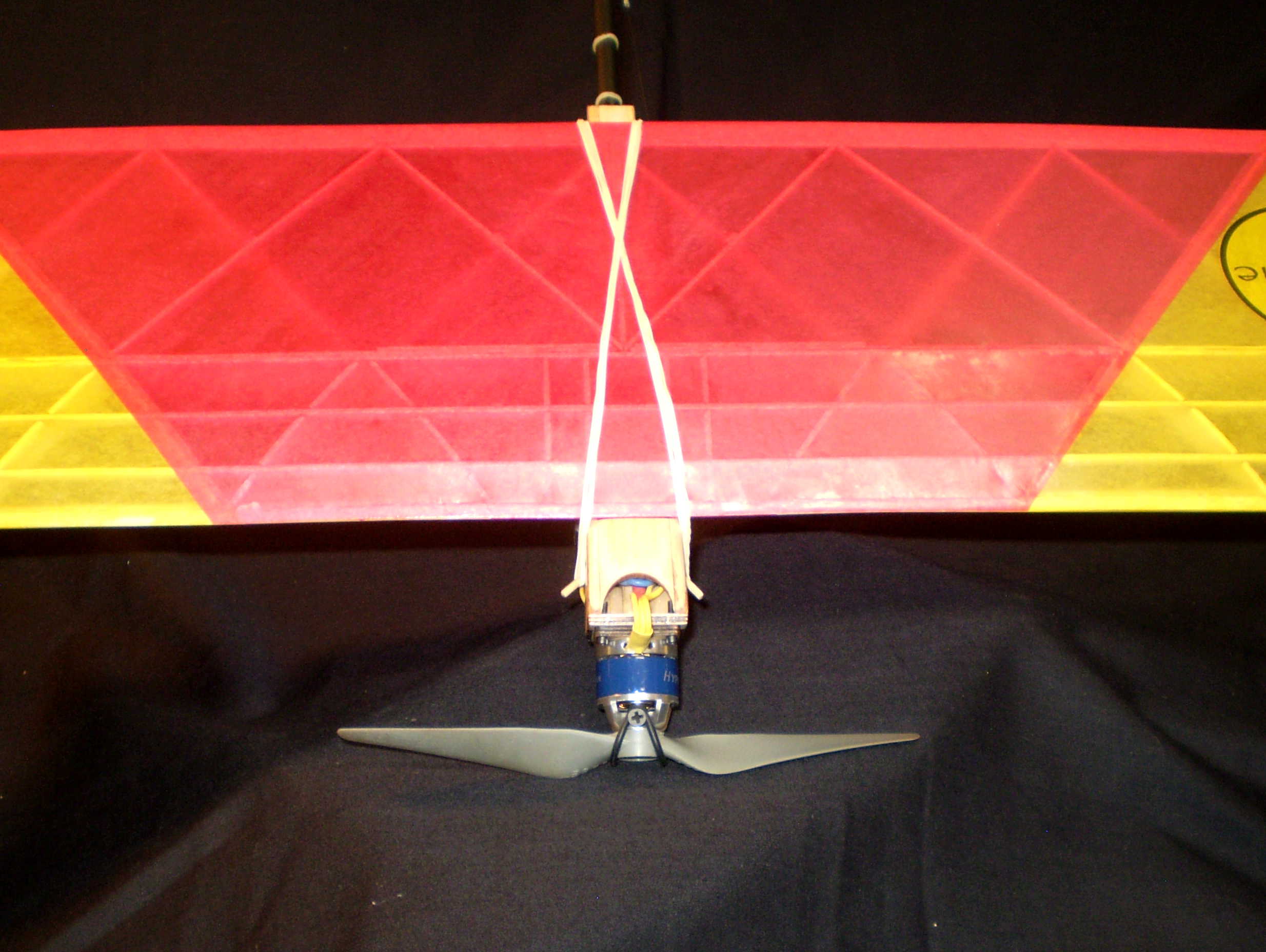

The main design change is the MK II has a slightly longer nose moment to allow for a 7 x 6 folding prop.

The APACHE II MK II is the next generation of the APACHE design that has evolved from Ralph Ray’s 1960 Nationals winning 1/2A gas model which was kitted by Veco for many years.

Now completely re-envisioned into a state of the art E-36 / F1S electric free flight model, this design variant has undergone over a year’s worth of effort to design, flight test and refine it to this unique result.

This process has resulted in a model that is easy to build and flight trim while offering some of the highest performance found today in this class of model.

Intended for experienced free flight modelers, The APACHE II MK II is offered in short kit form to allow you to install the system of your choice for the drive train and electronics.

We also offer just the laser cut balsa and plywood parts by themselves if you want to build another model.

The APACHE II MK II Short Kit includes:

·   Top quality laser cut balsa and plywood parts-fit checked and proven prior to kit design release.

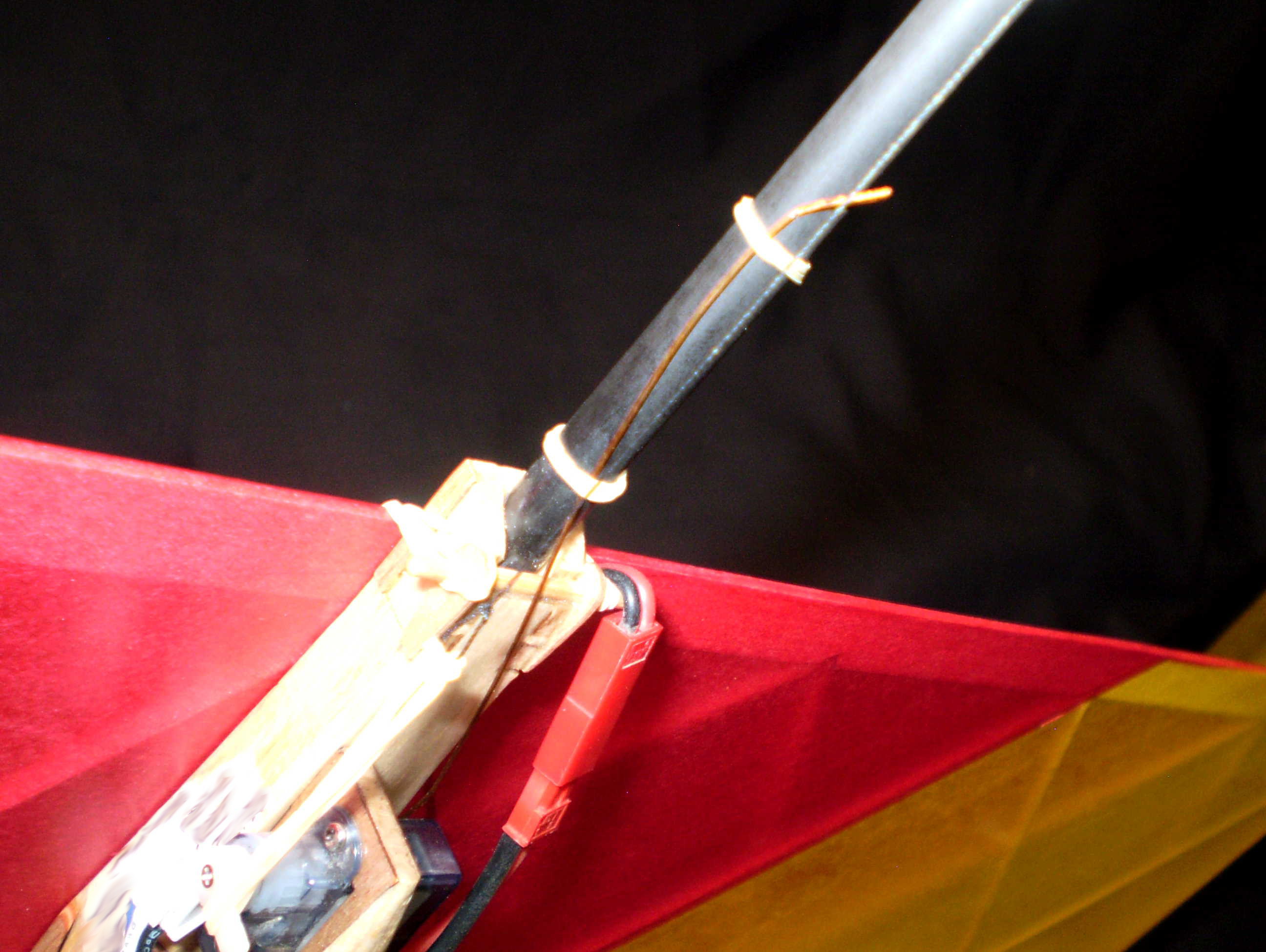

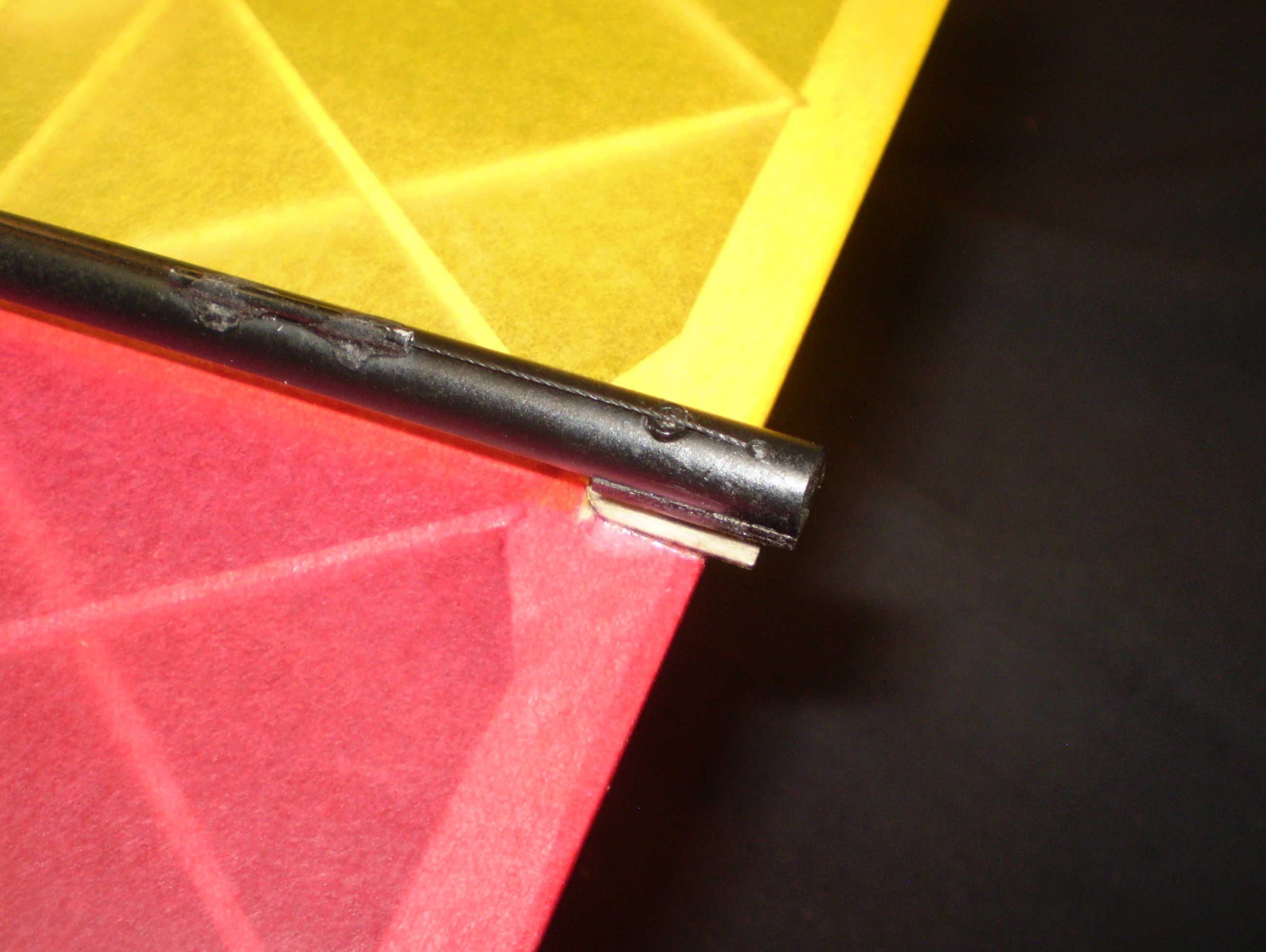

·   Air Shark P90 carbon tail boom tube; pre-cut to length and detailed for the stab incidence adjustment assembly installation.

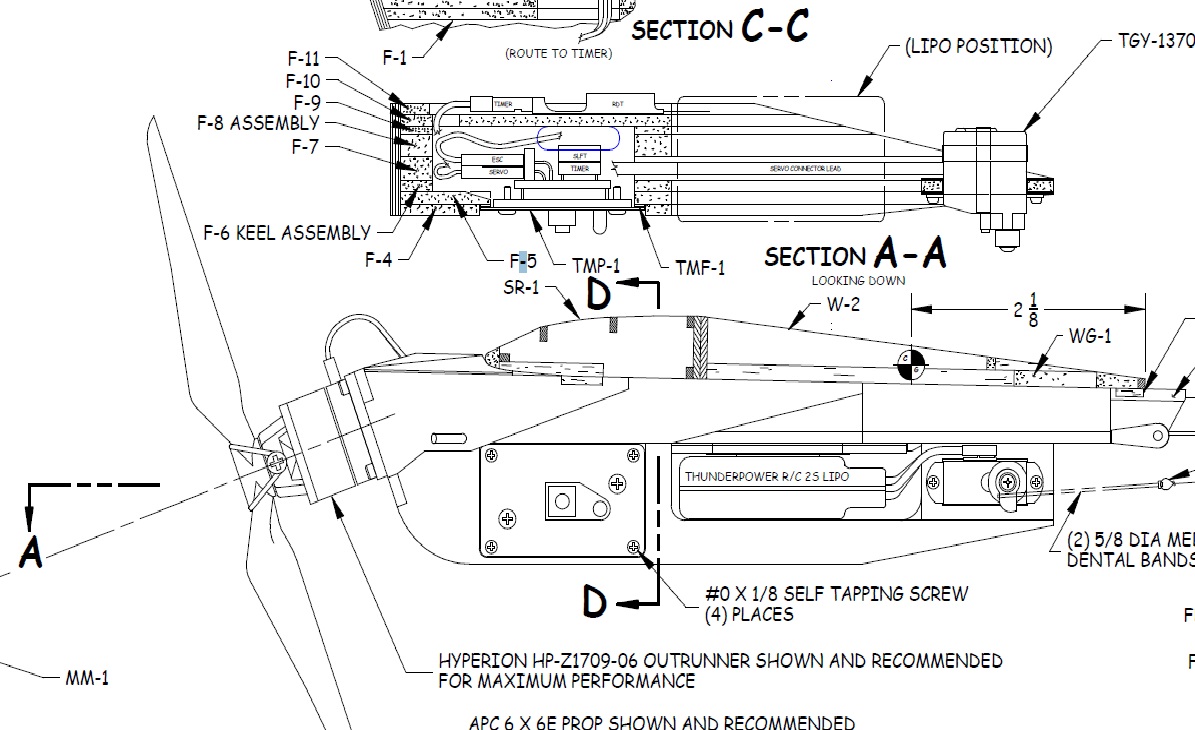

·   Two full size printed plan sheets.

·   Printed Construction Manual.

·   You supply the strip stock, hardware, covering material, drive train and electronics.

·   Will accept Starlink-Flitetech or Texas Timers eMax (straight pin) electronic timers

Design features of the APACHE II MK II:

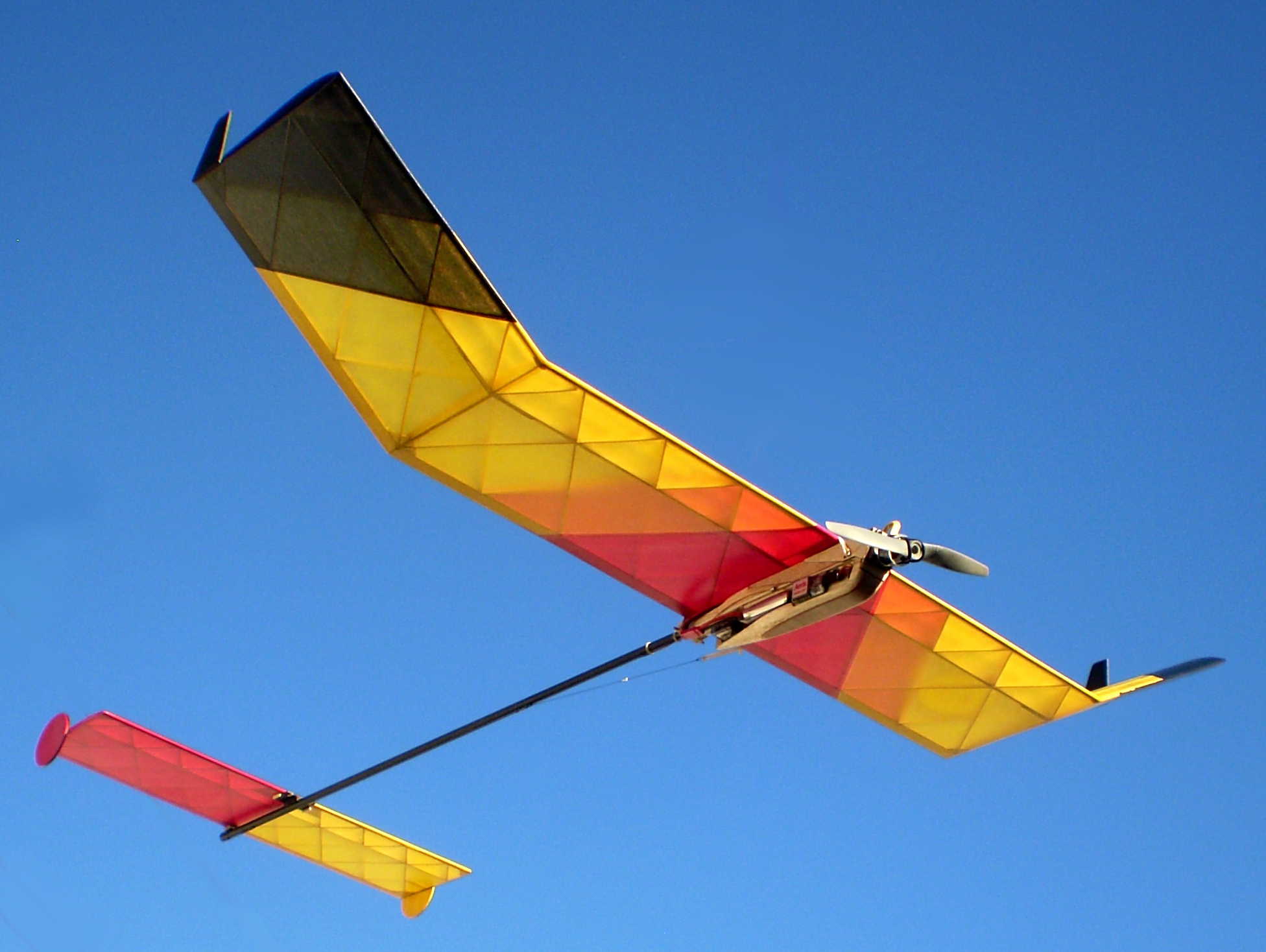

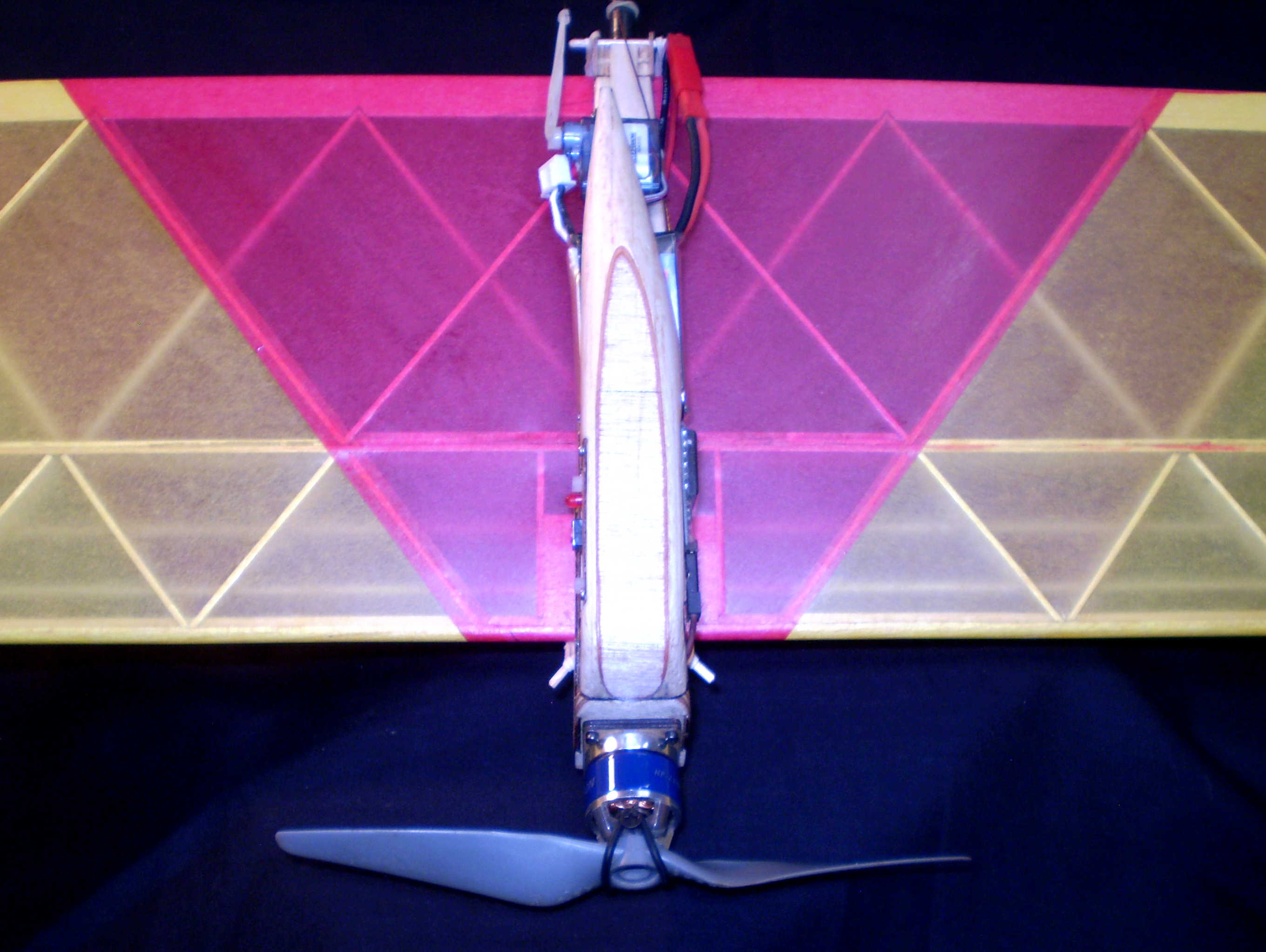

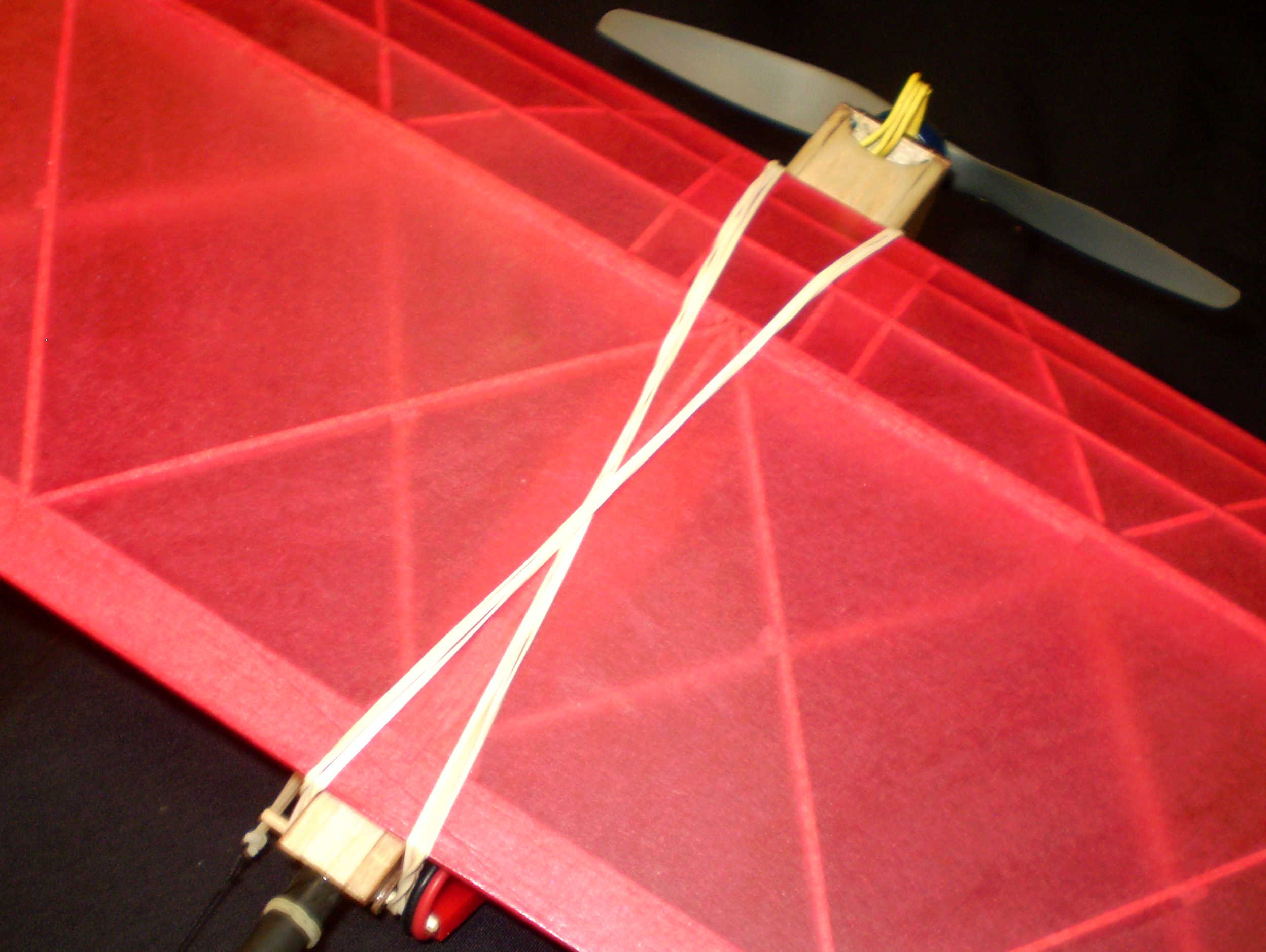

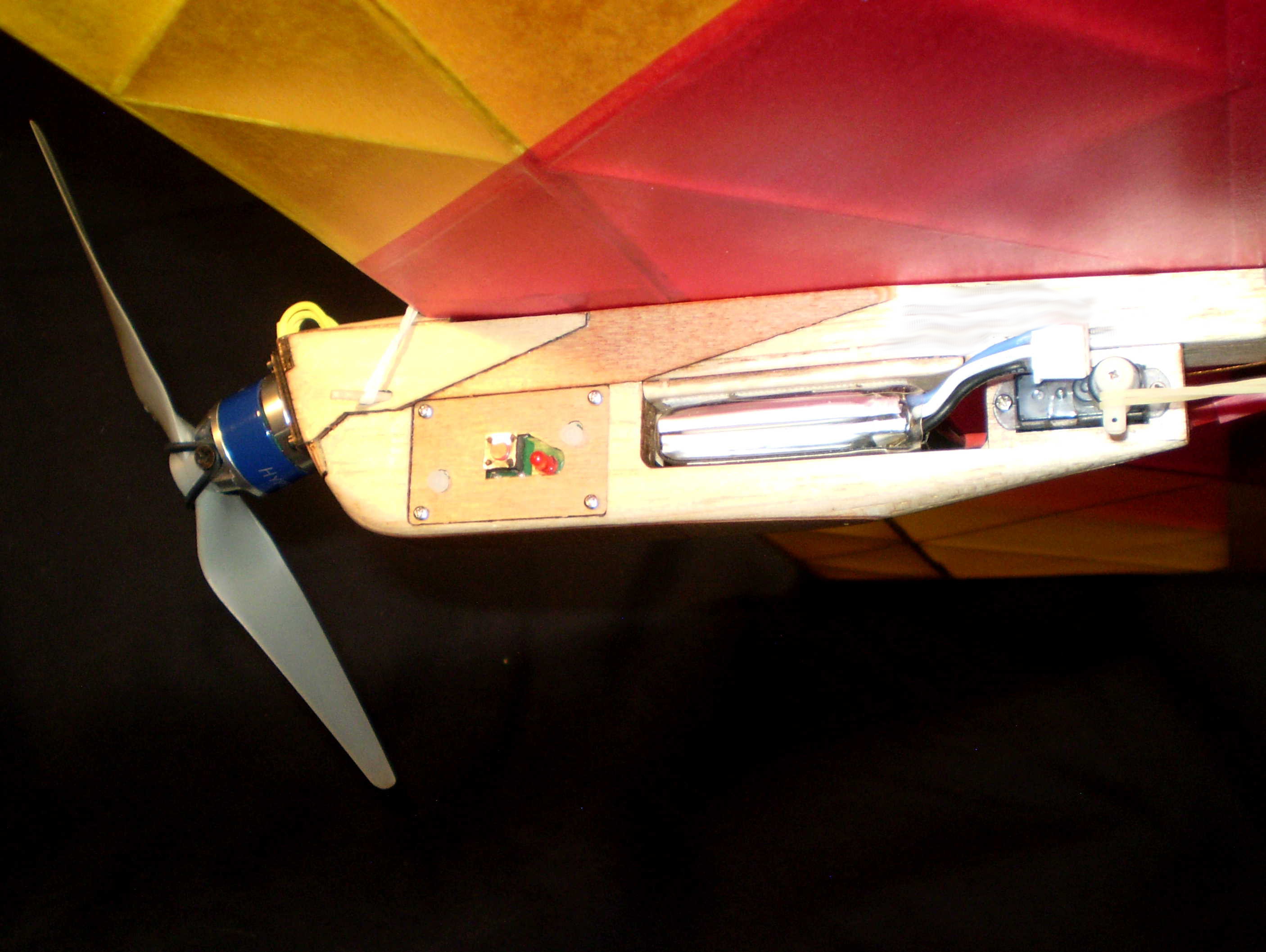

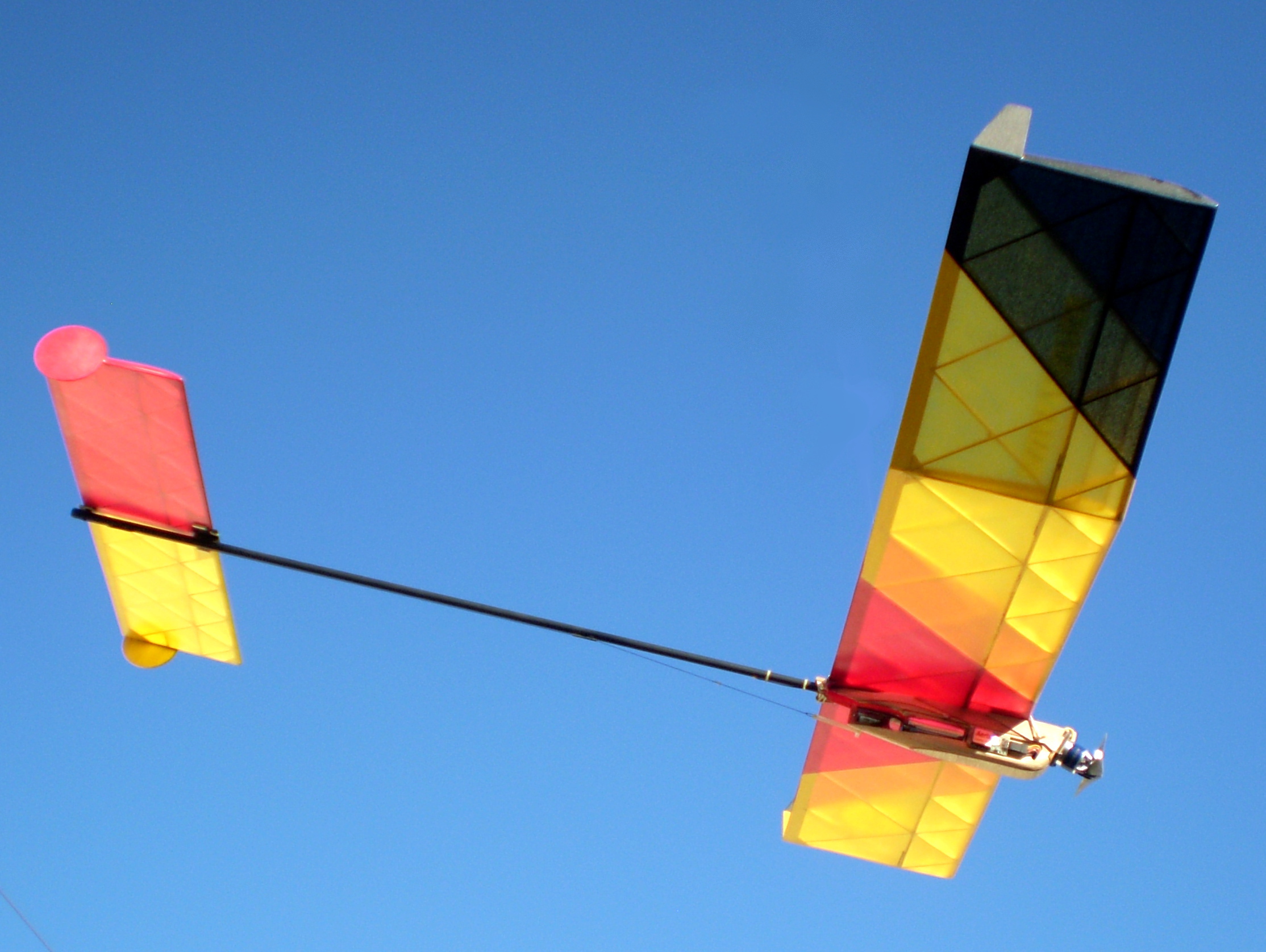

·   Unique pod and boom fuselage design with shoulder wing mounting.

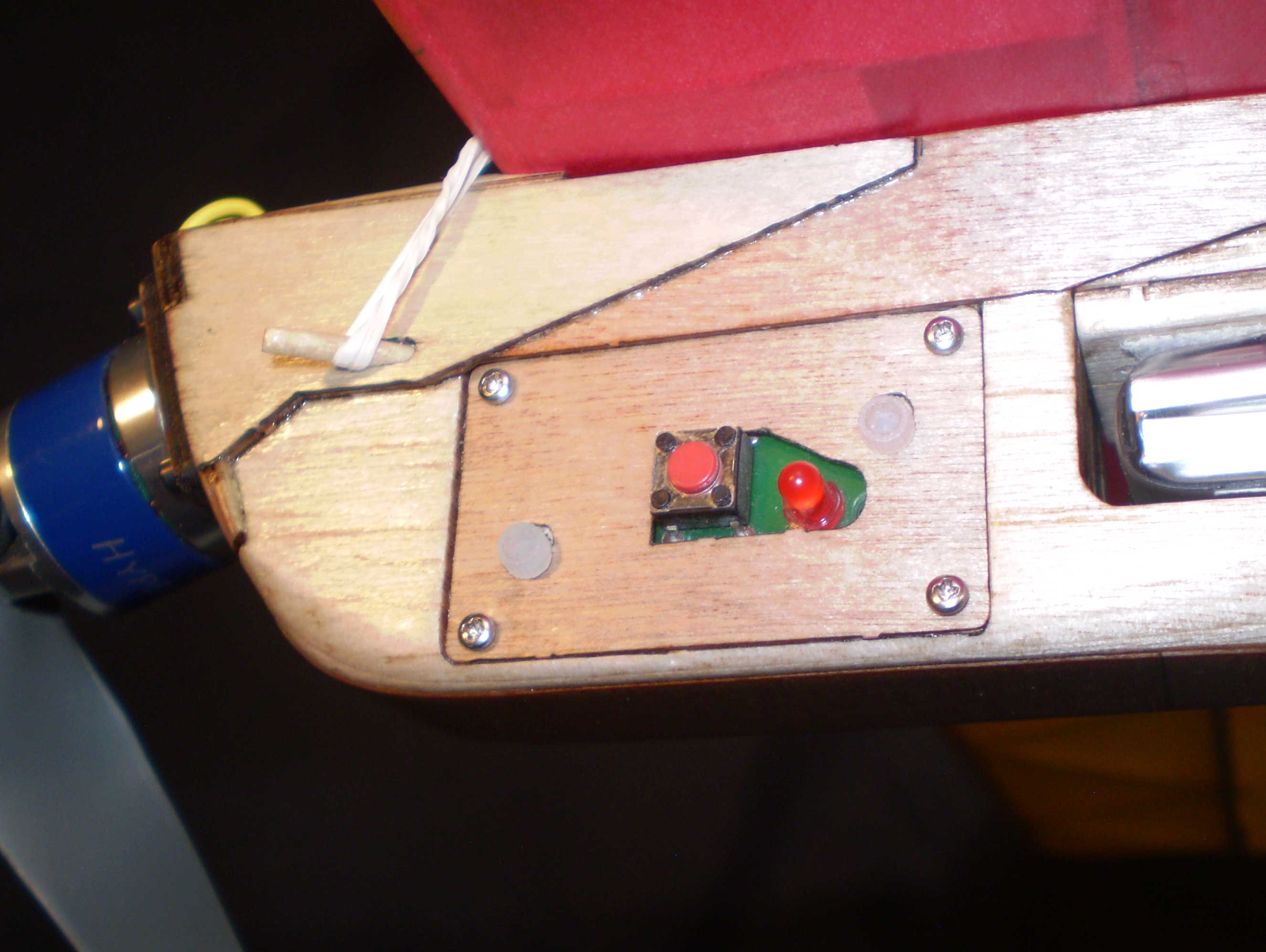

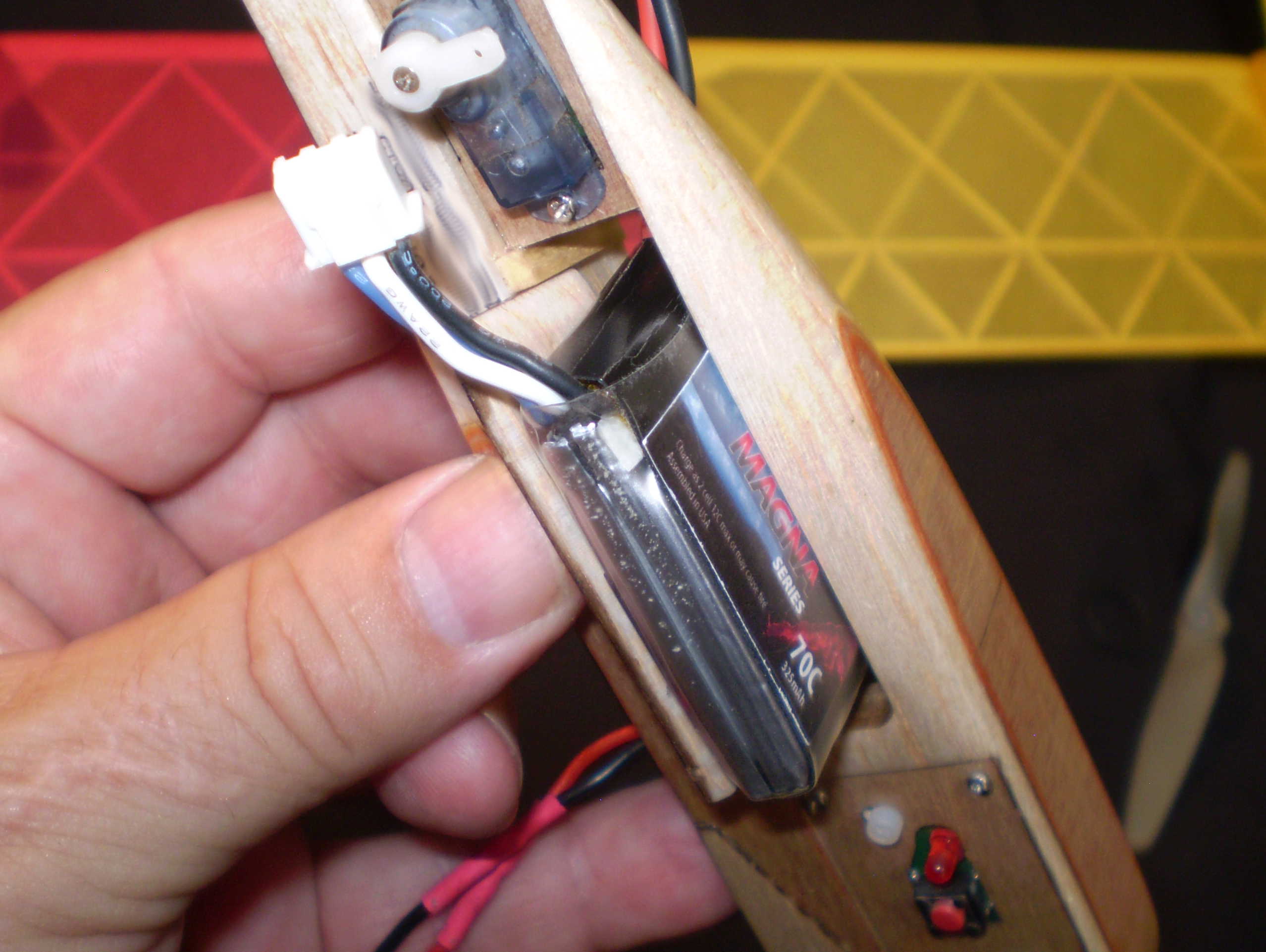

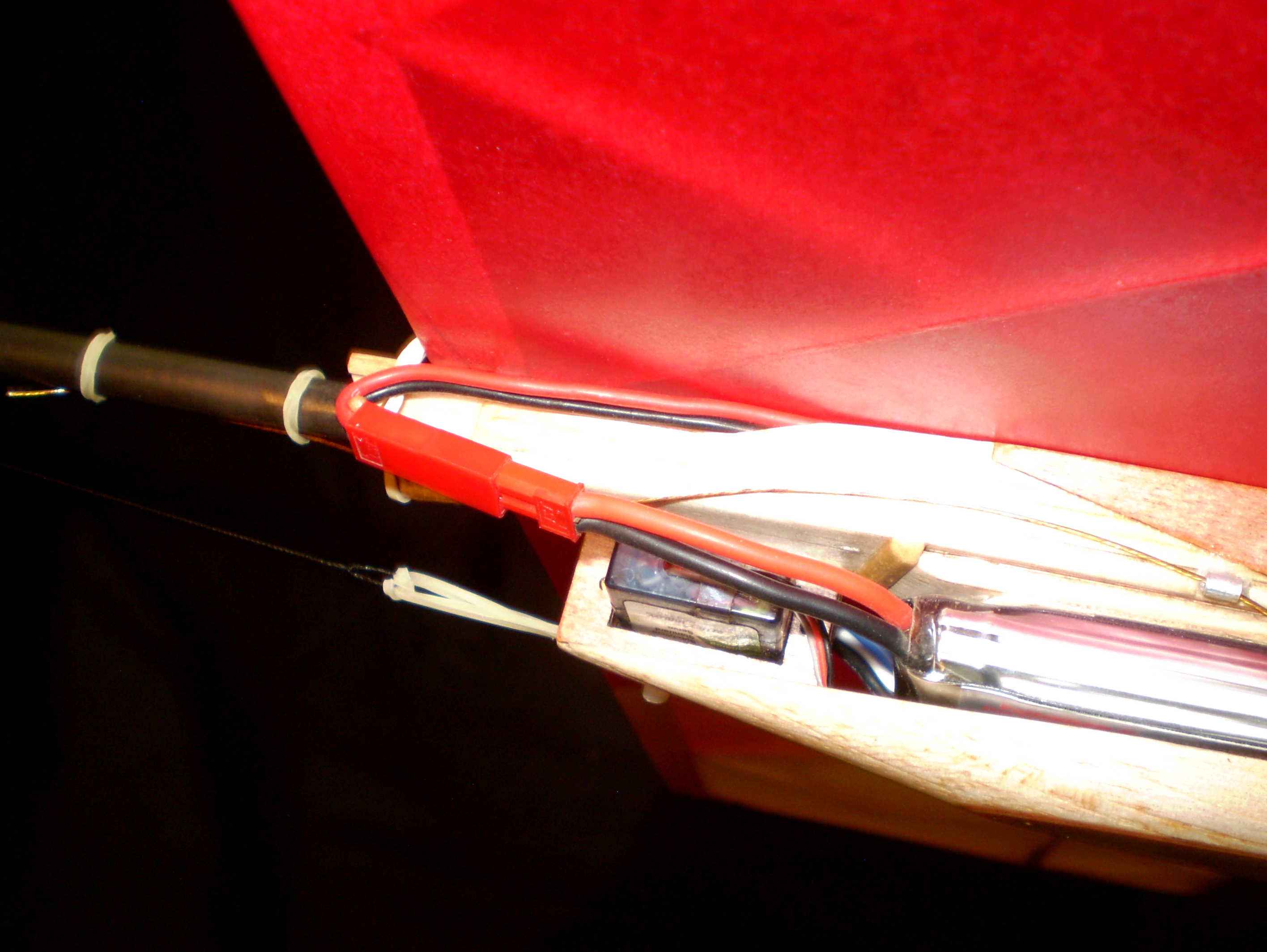

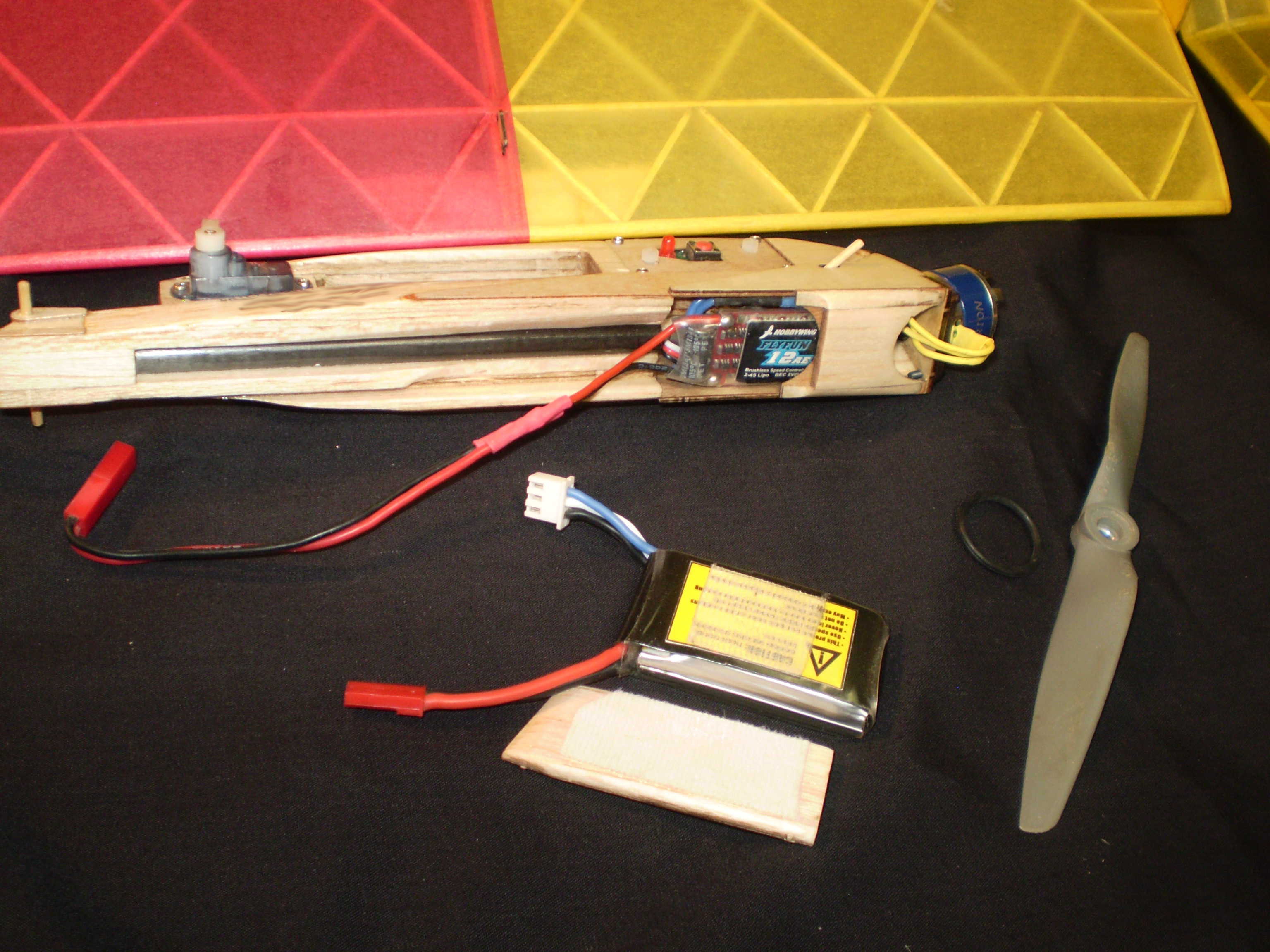

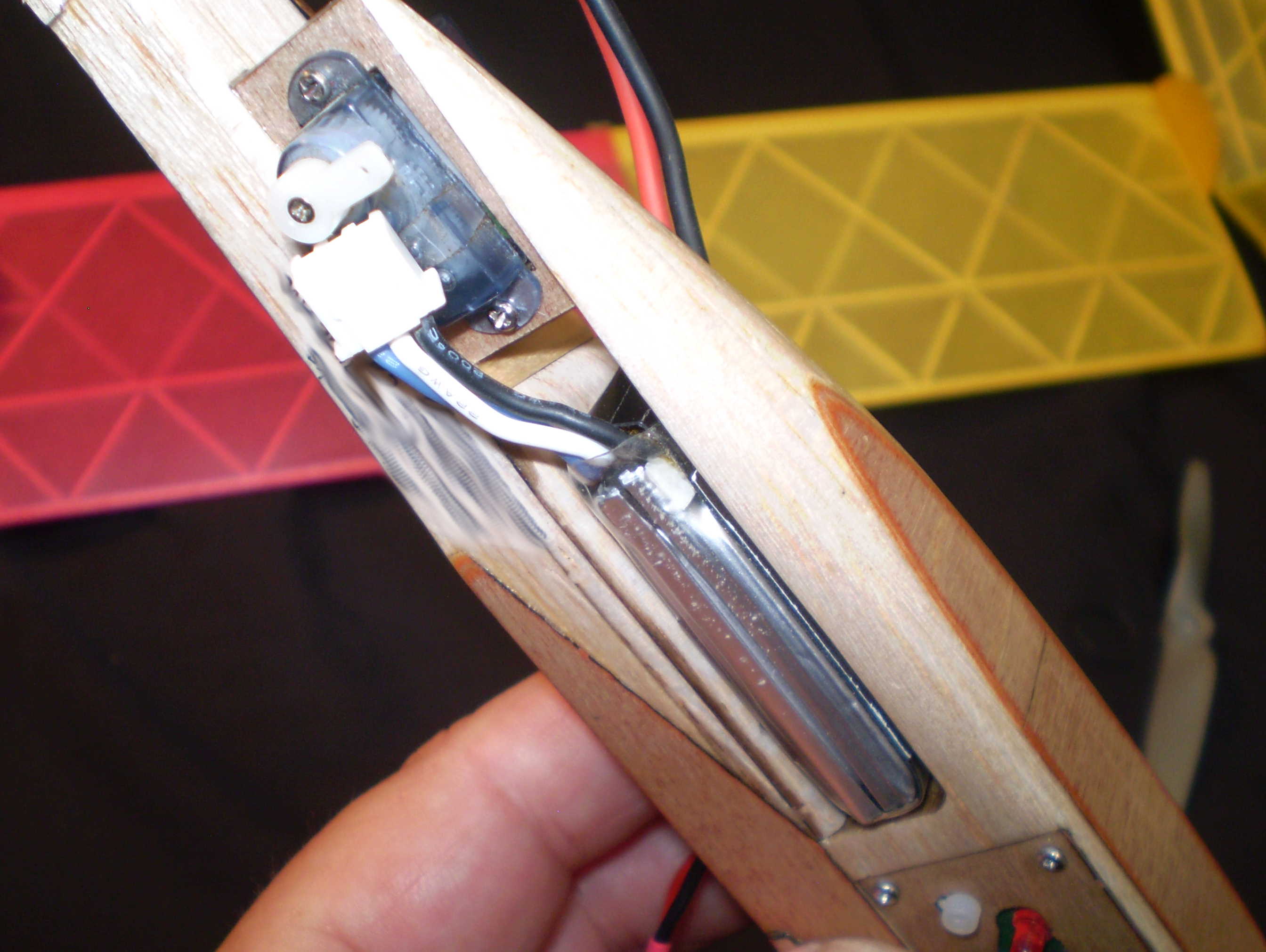

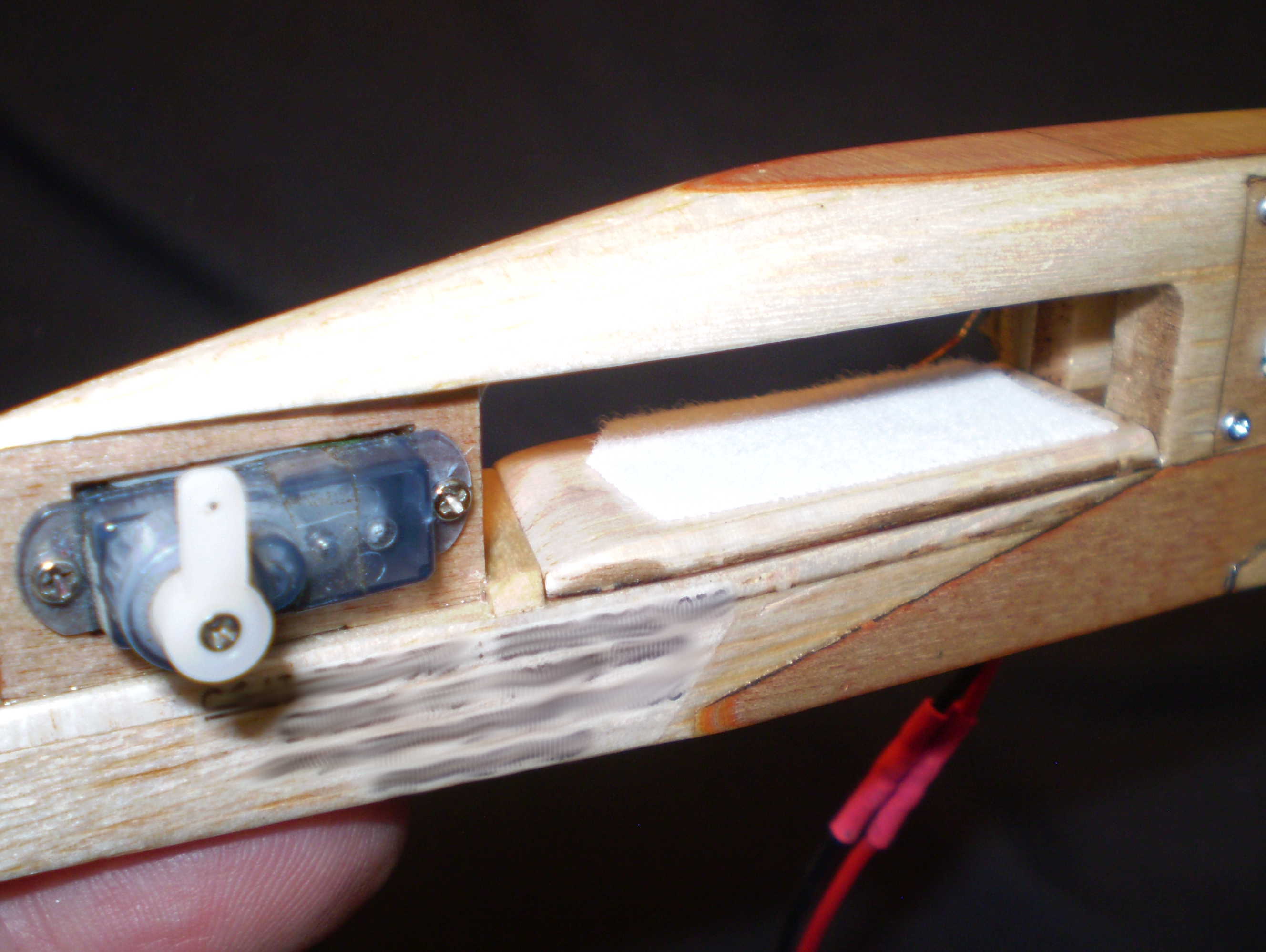

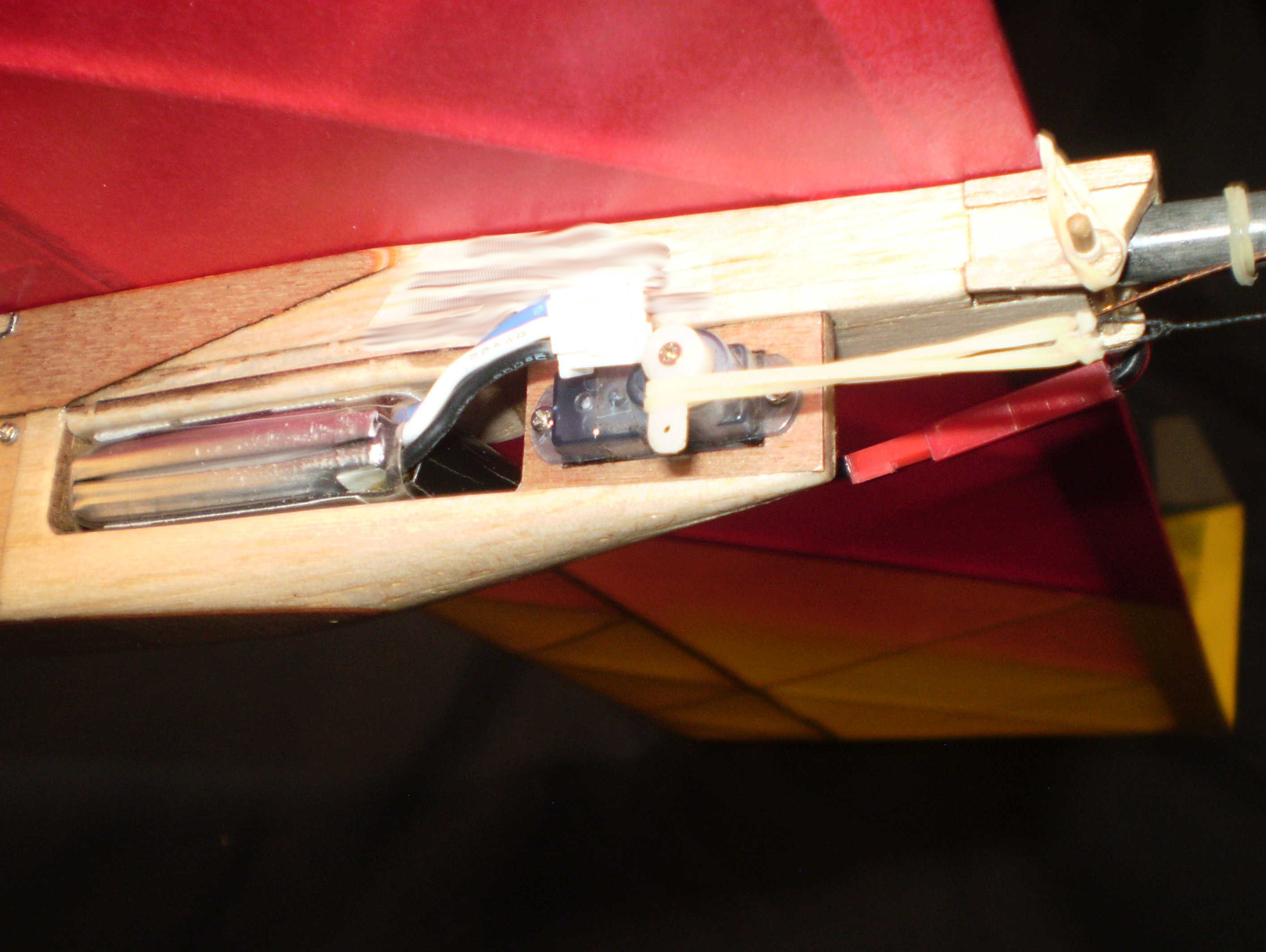

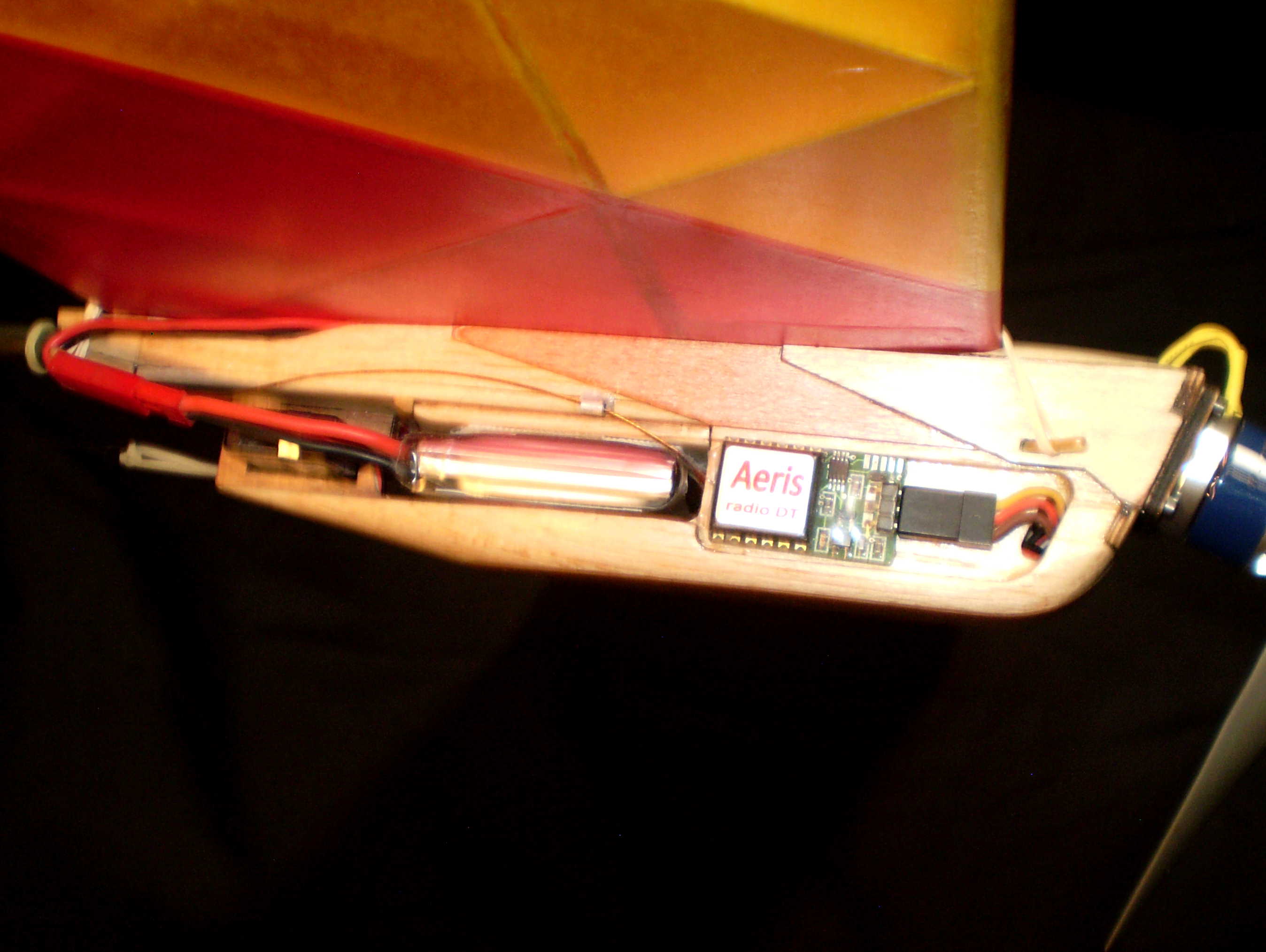

·   Electronic systems are completely packaged and highly integrated within the fuselage pod design-no mystery engineering to sort out for installing components.

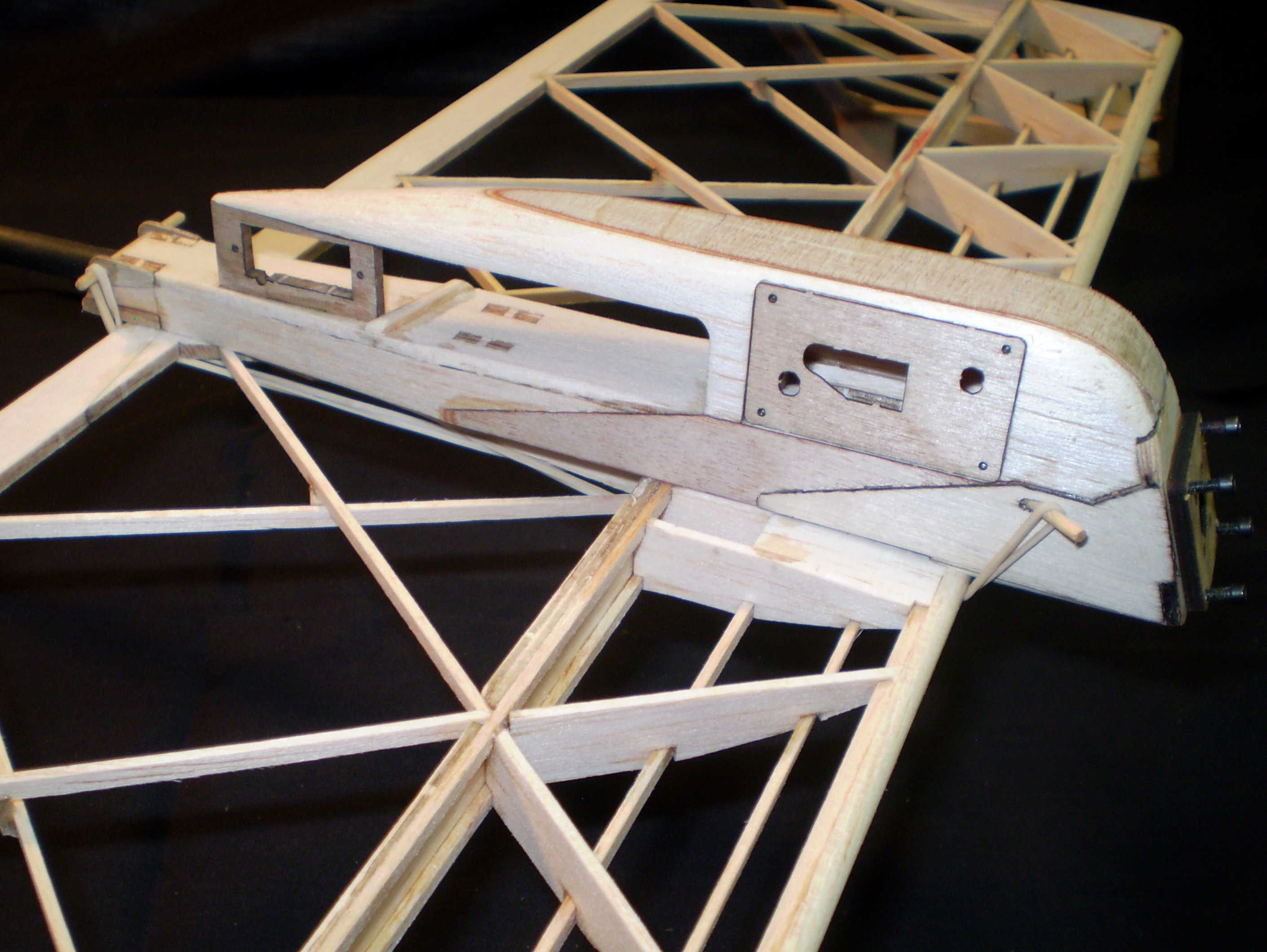

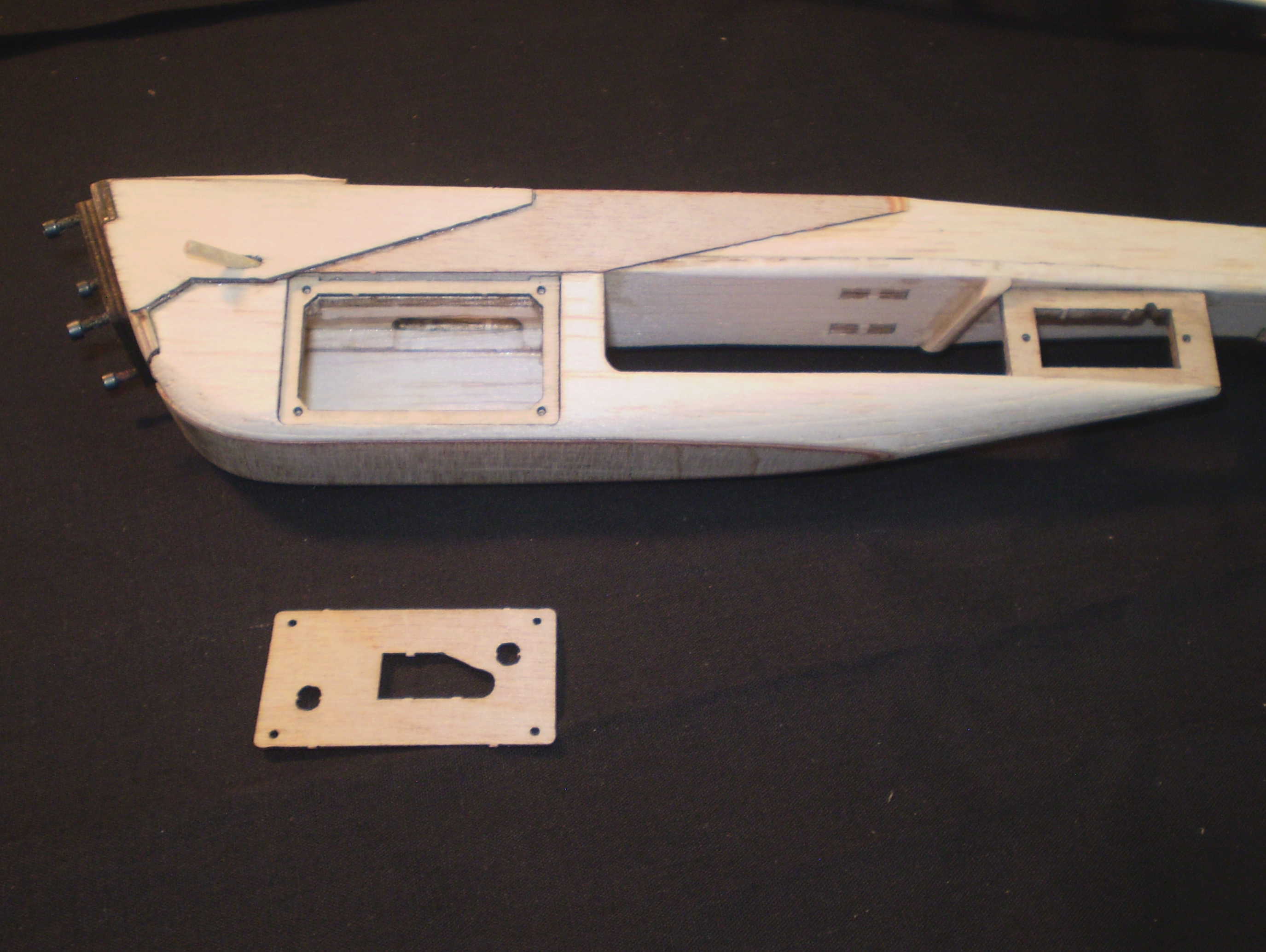

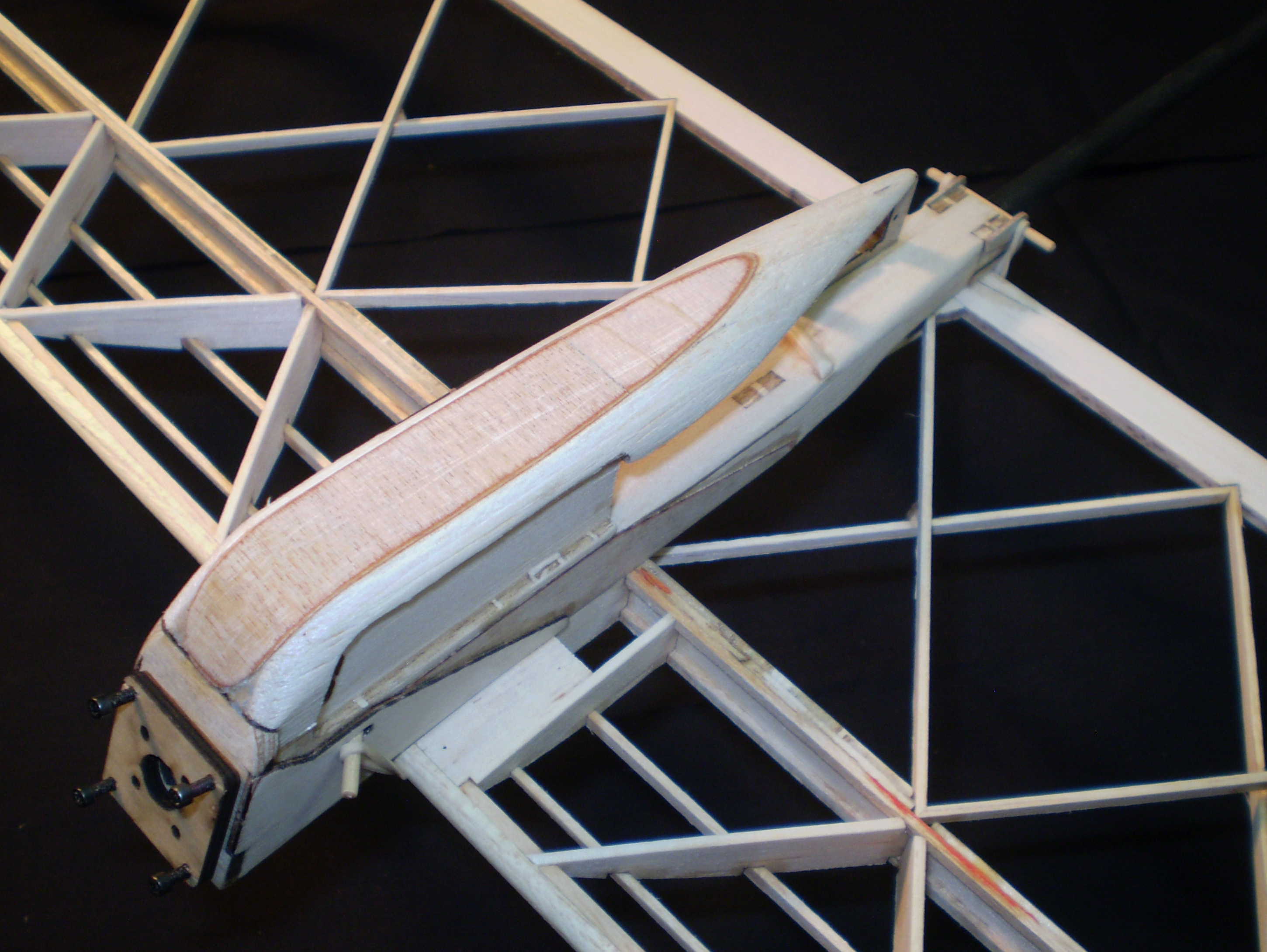

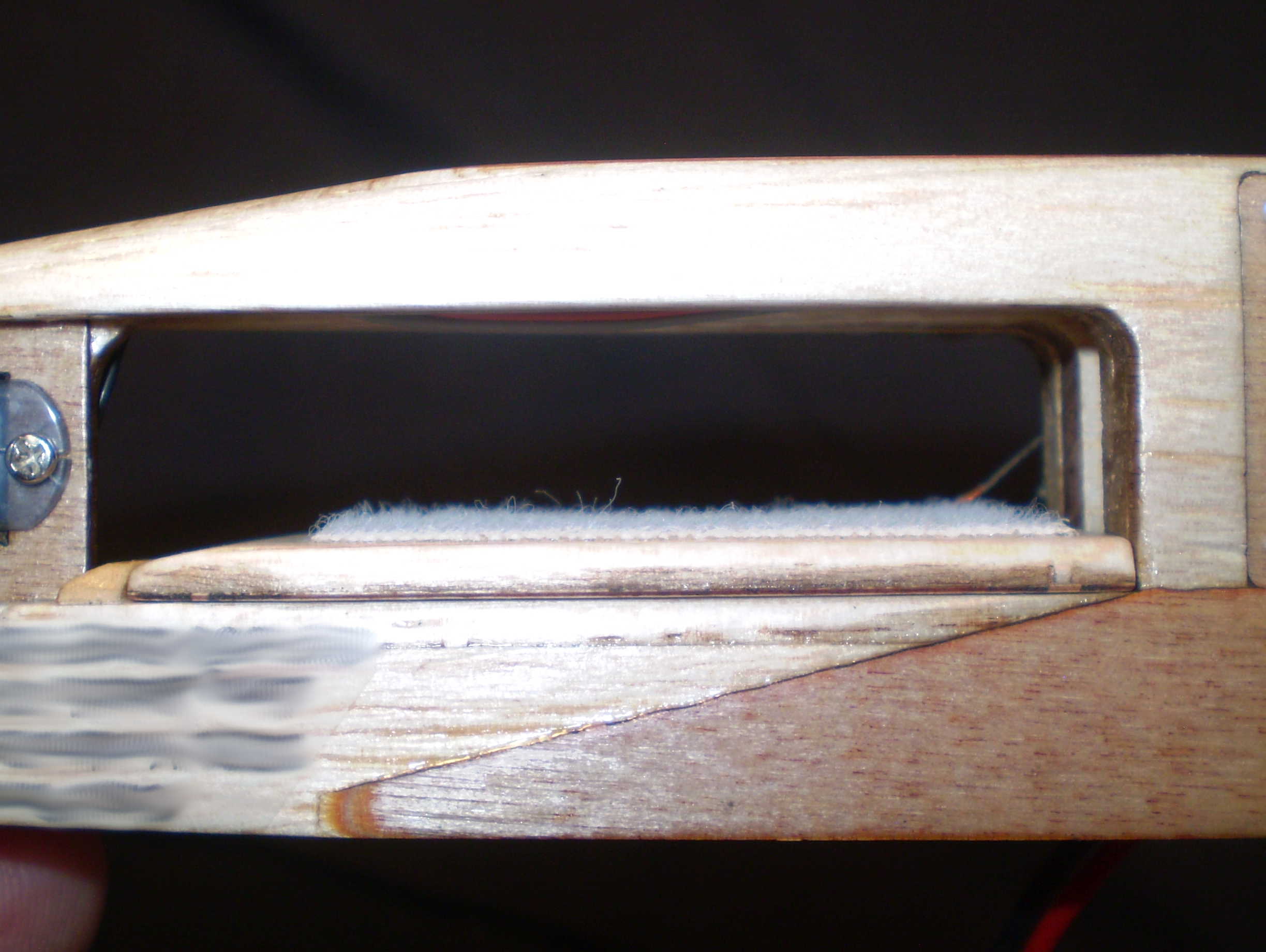

·   Robust crutch and keel structural design on the pod is durable and easy to handle for launching the model. Component installation layout is designed for ergonomic ease of use and control of the launch.

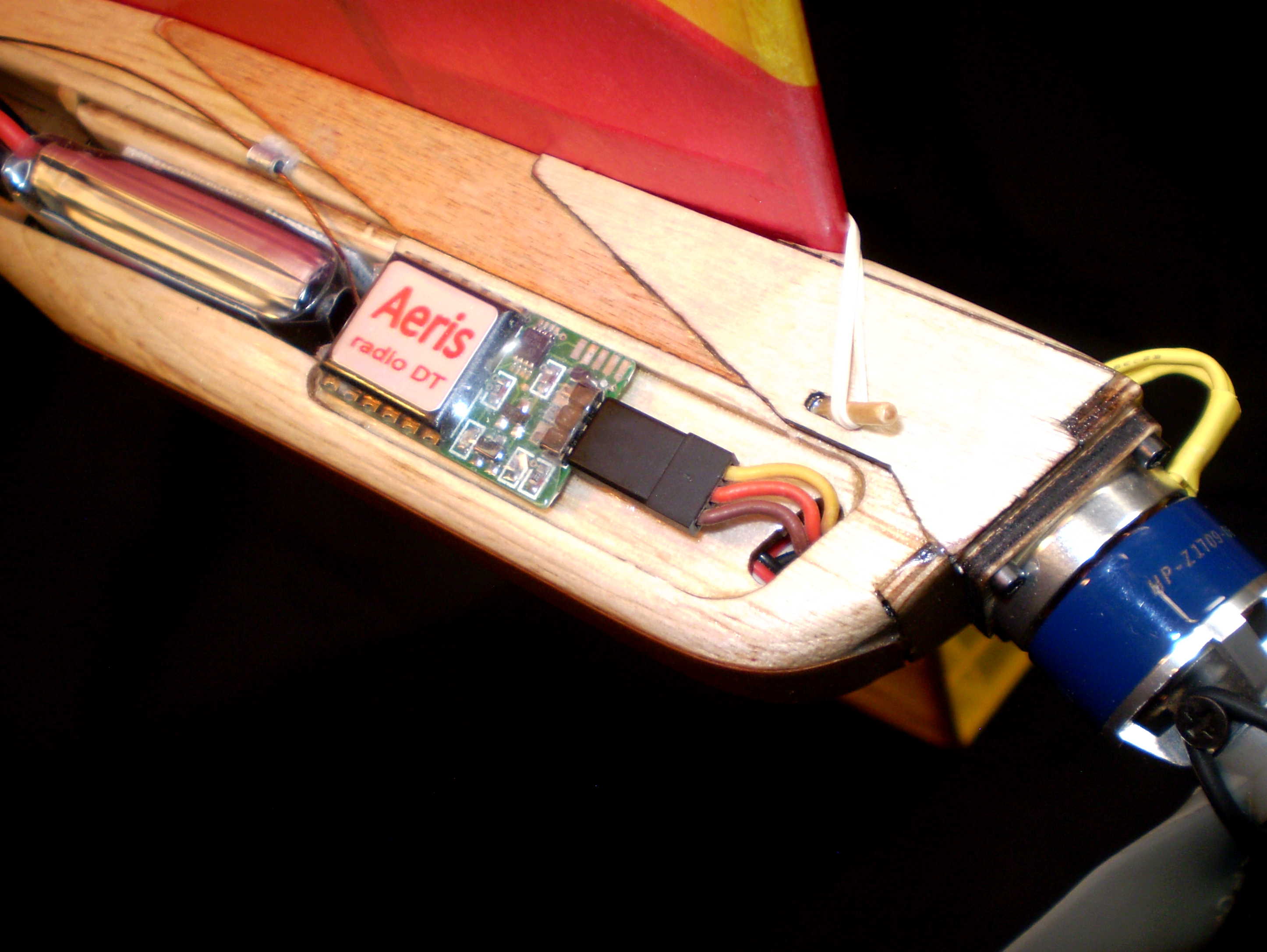

·   RDT installation is included in the pod design.

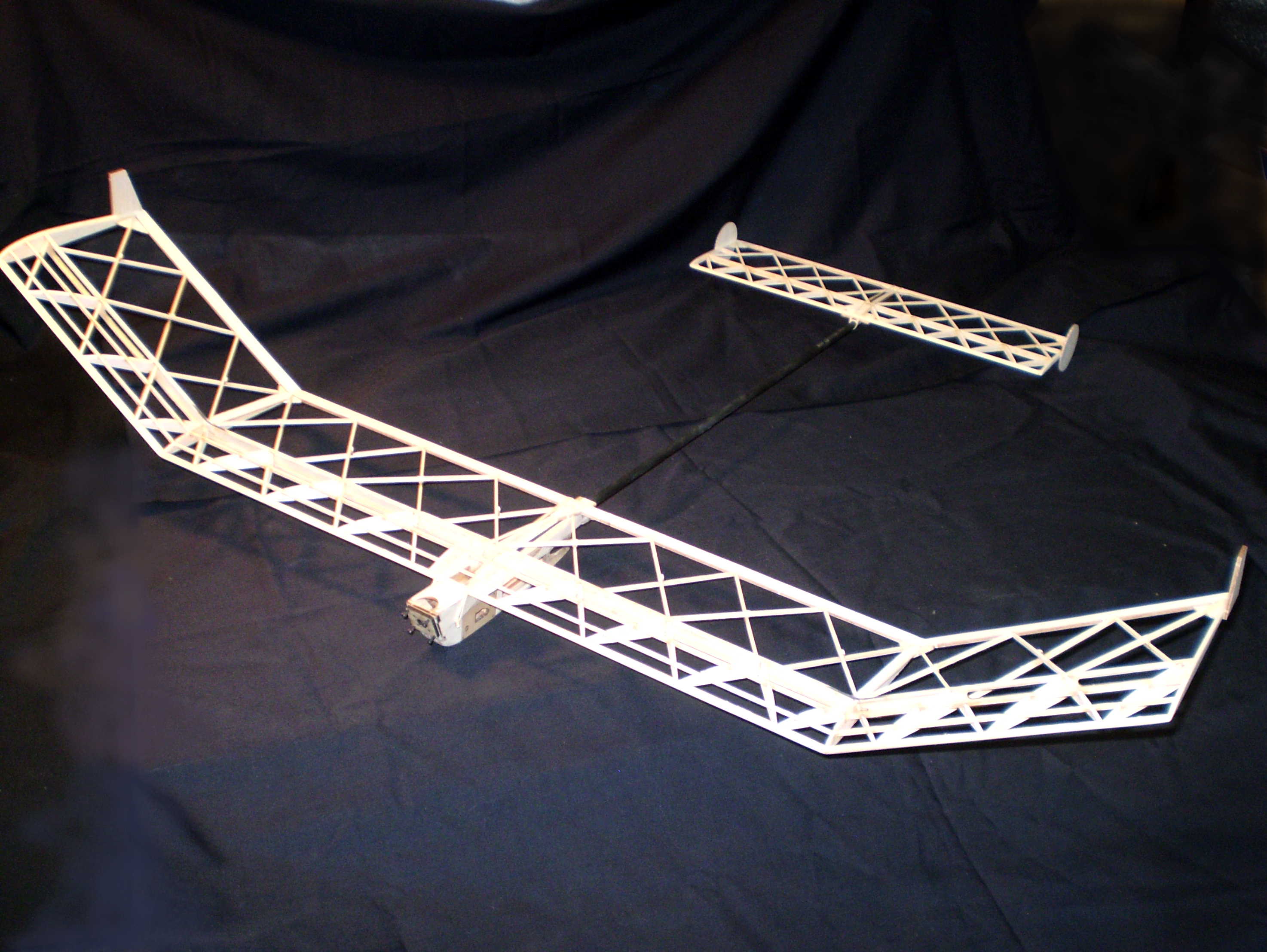

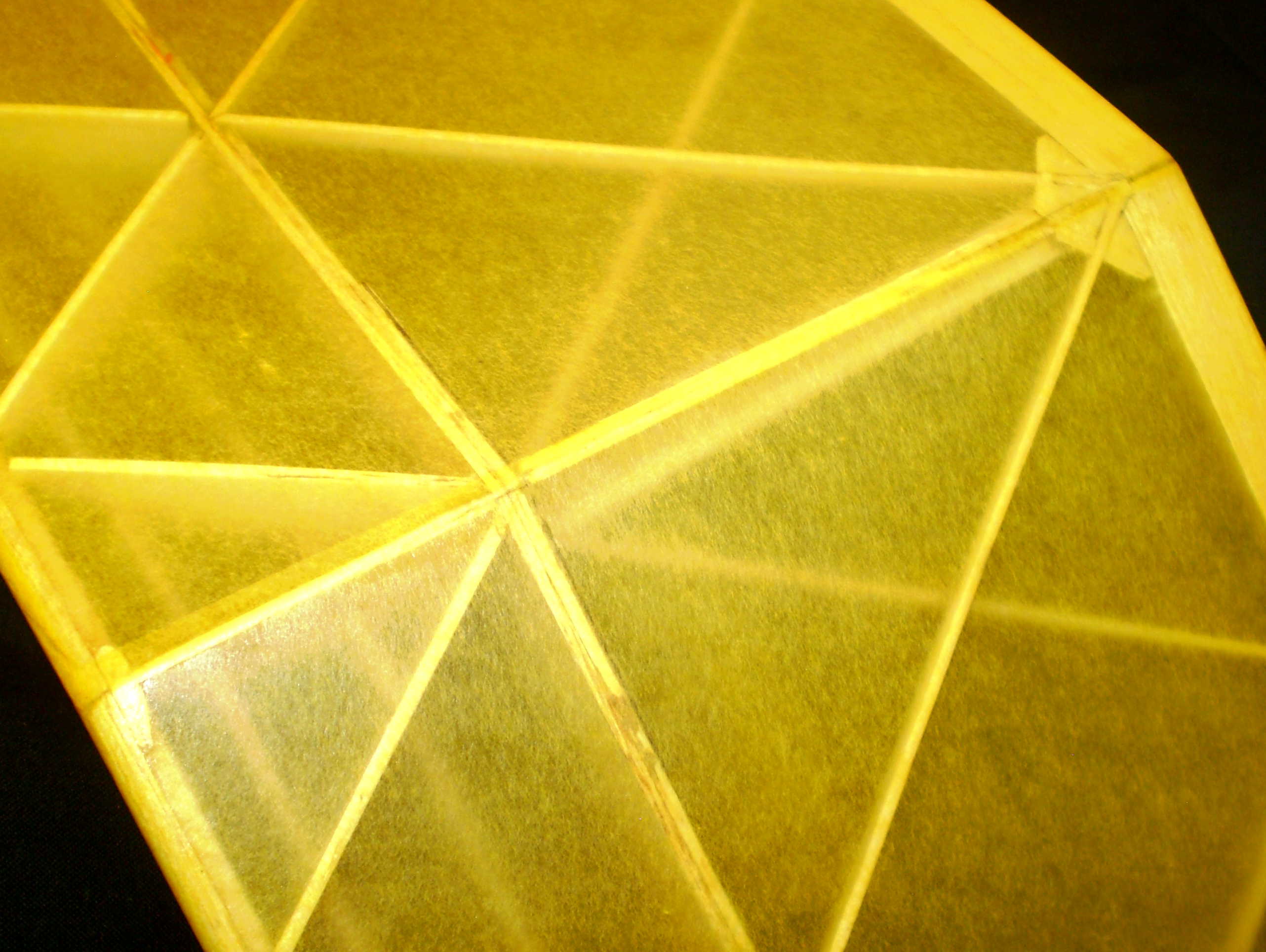

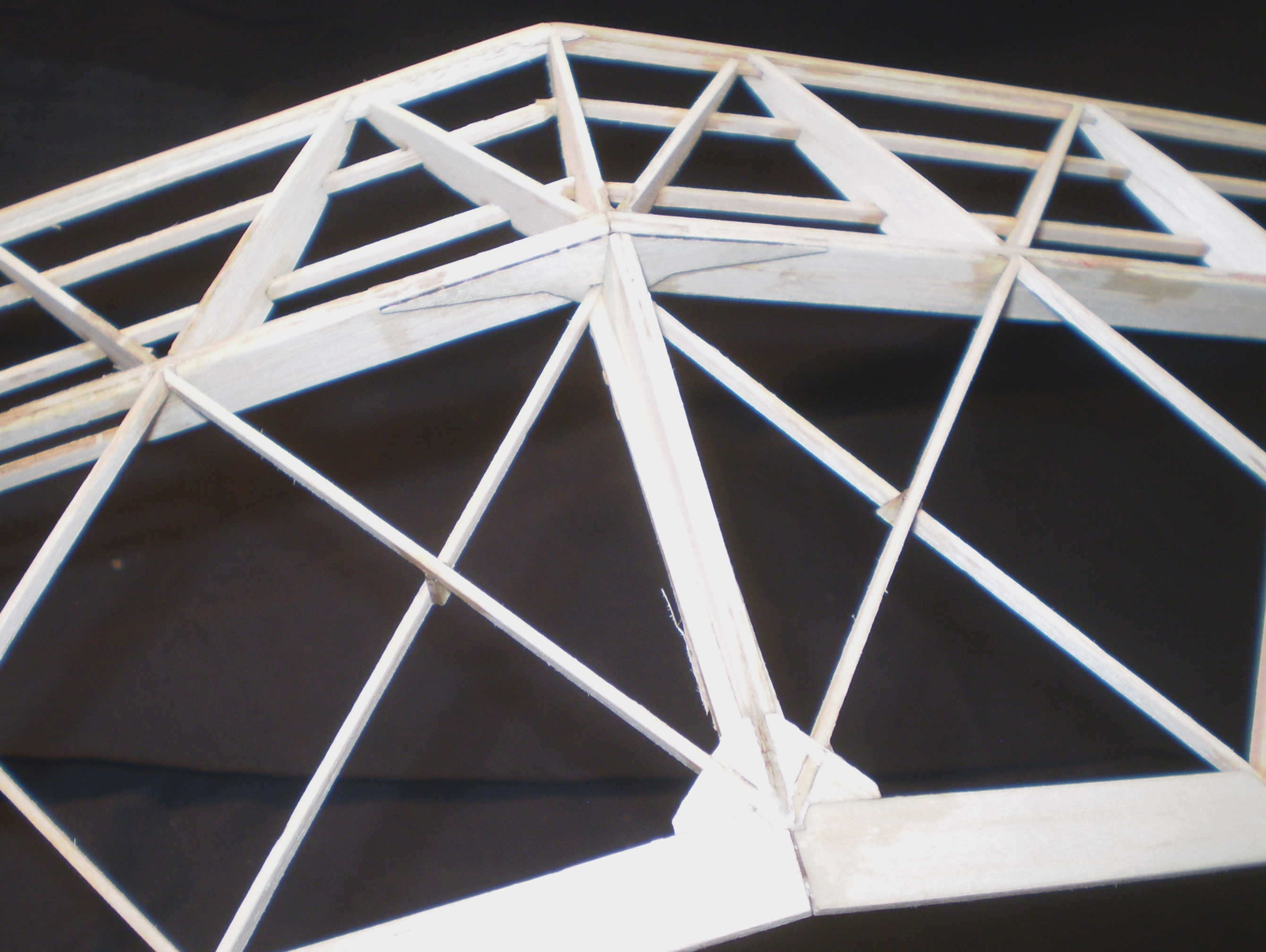

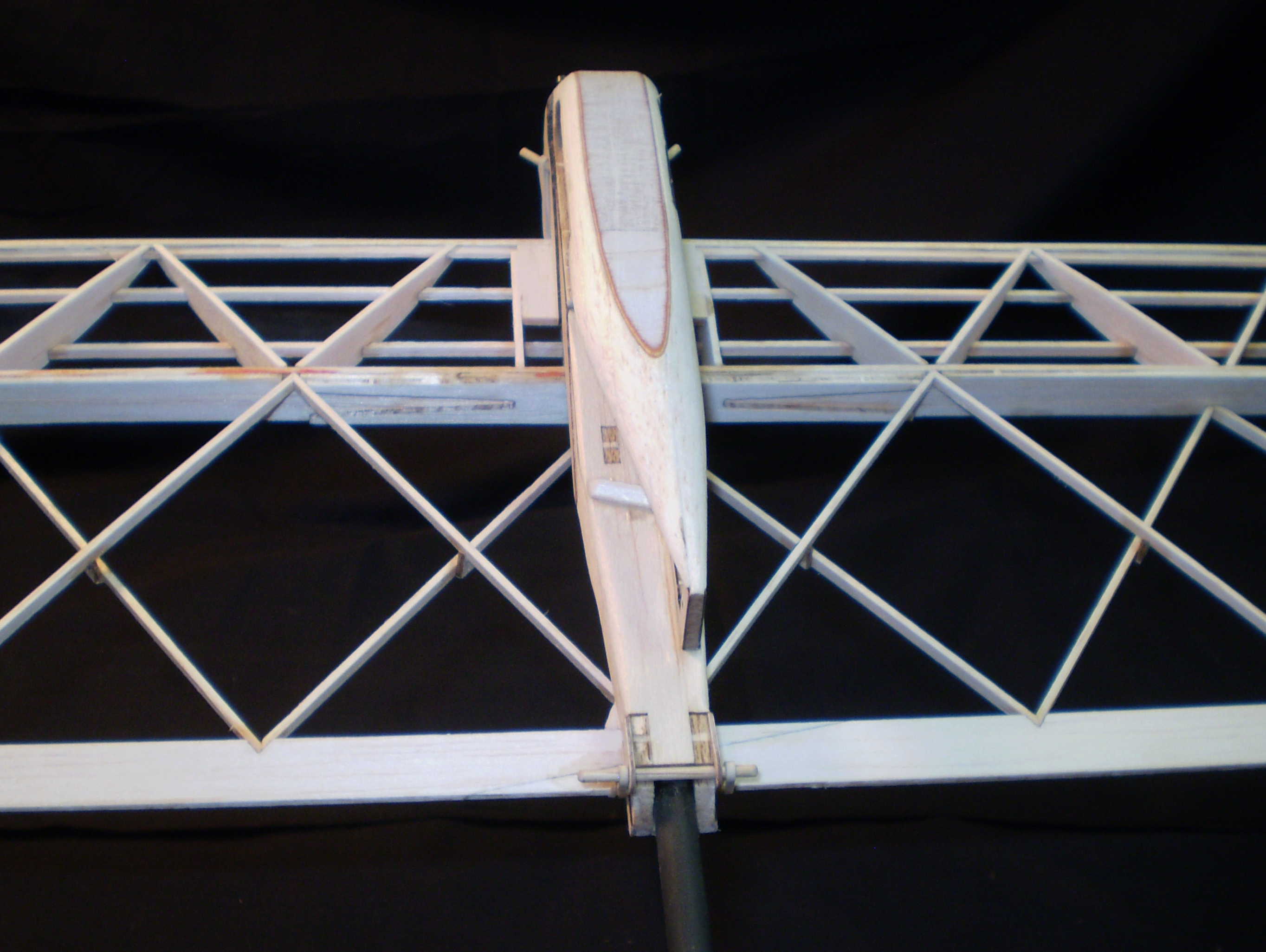

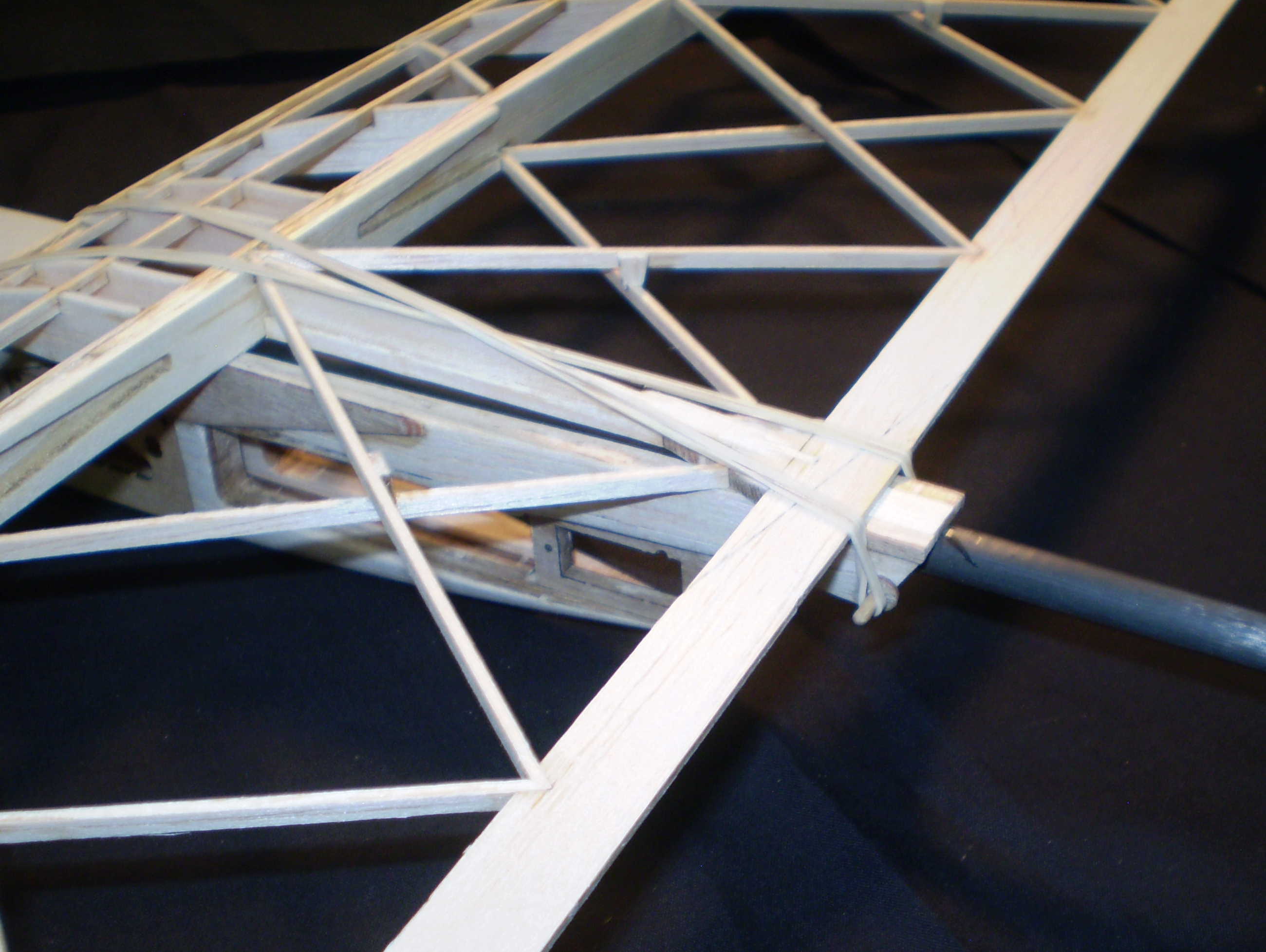

·   Unique three panel wing construction that comprises an airfoil ‘D’ section, full depth spars and a staggered truss aft wing box section that has built in wash-out in the tip panels-used on the Monarch P-30 and carried forward as a proven robust structural concept on the Apache II MK II.

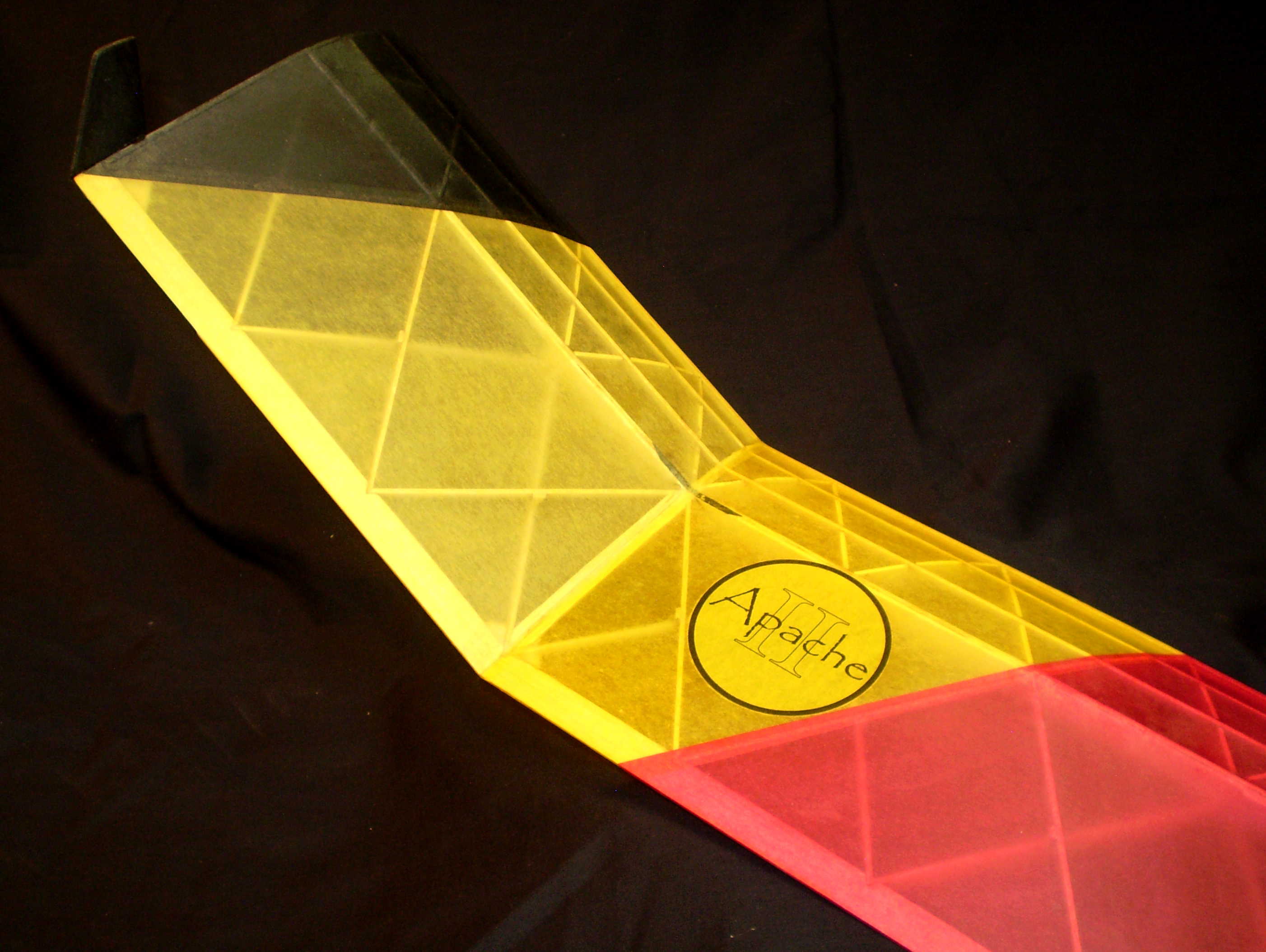

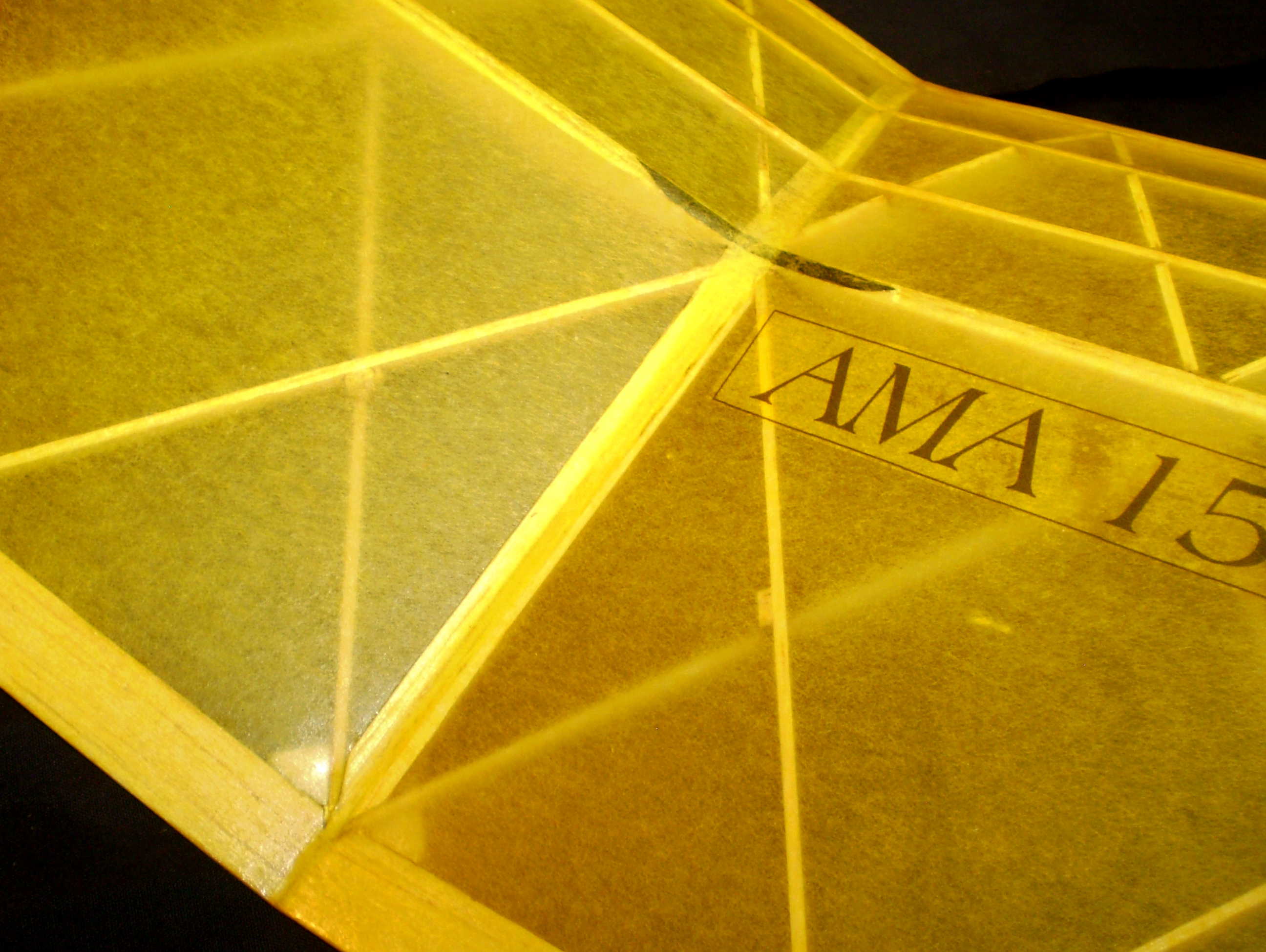

·   Airfoils on the wing and stab are flat bottom and flat top aft of the maximum camber of the airfoil ‘D’ section-covering is easy to apply and aerodynamically smooth on all flying surfaces. The wing airfoil is a derivative of the proven ‘stanfoil’ style developed by Stan Buddenbohm.

·   The wing airfoil section is 8.48% constant thickness. There is 13% lower entry on the wing leading edge with the stanfoil flat upper entry feature the entire span.

·   The horizontal stabilizer is a 5% constant thickness section with a 5% lower entry section.

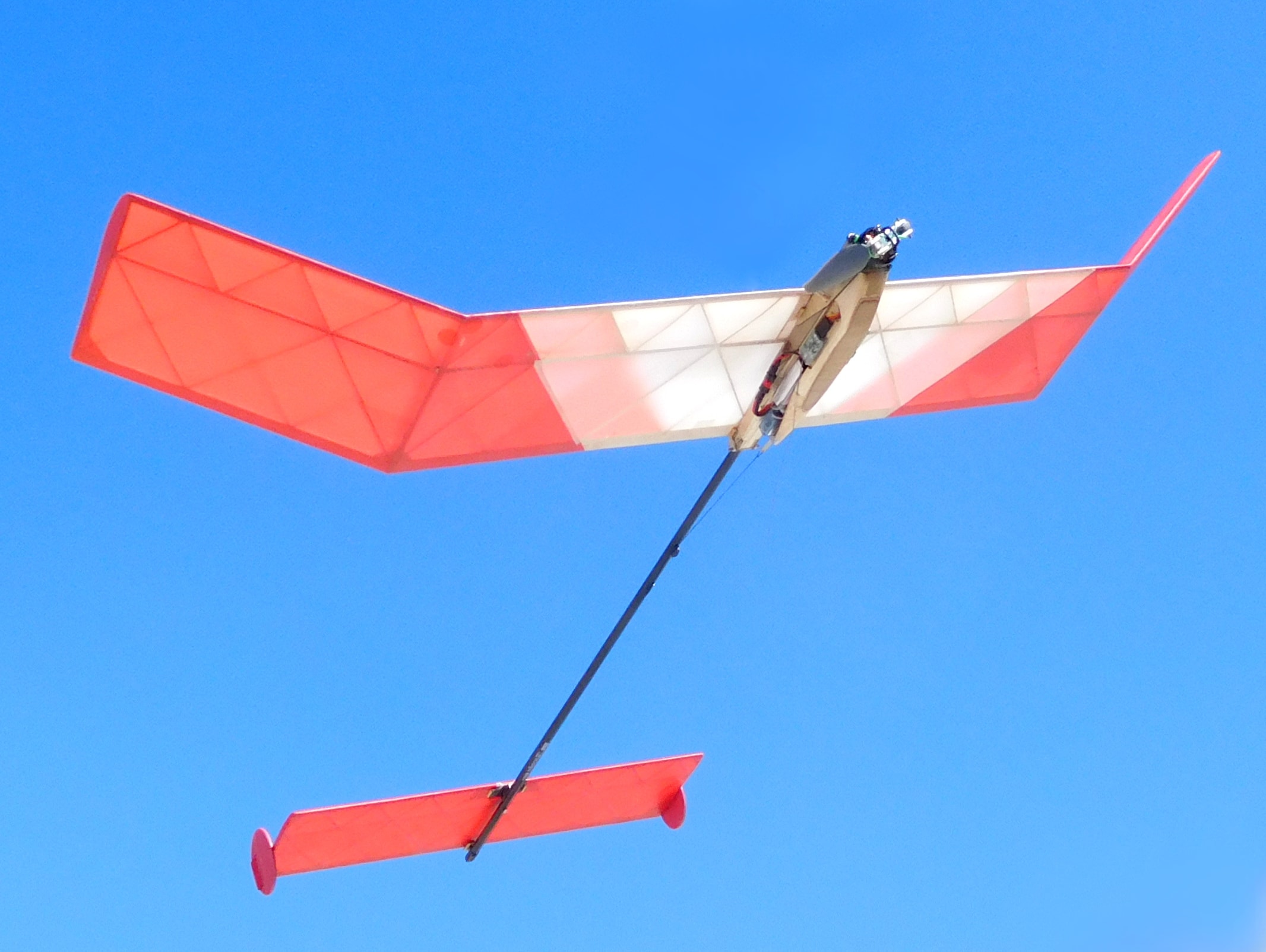

·   Round tip plate fins are very stable for twist and warp and weigh less than an equivalent single fin configuration.

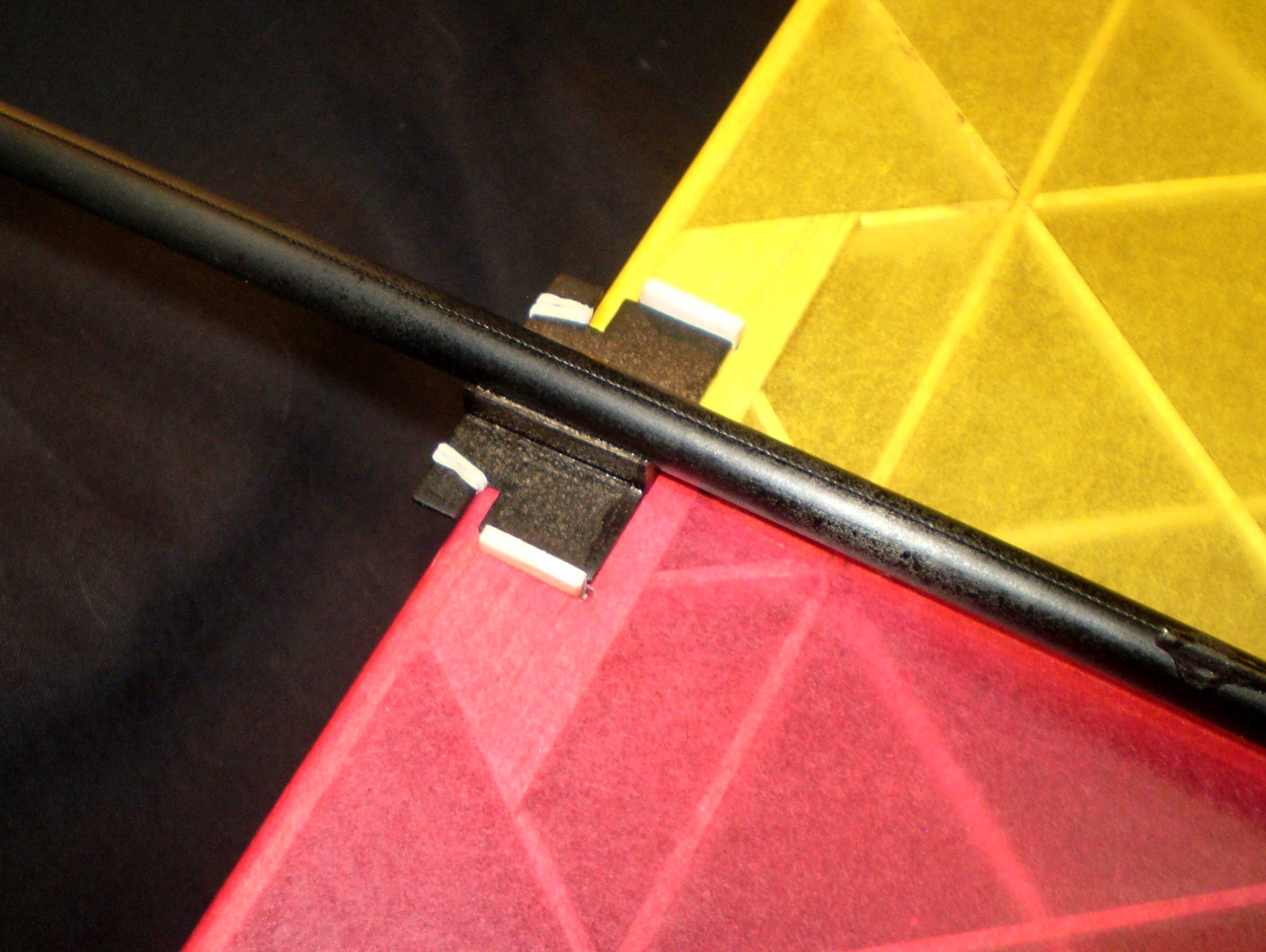

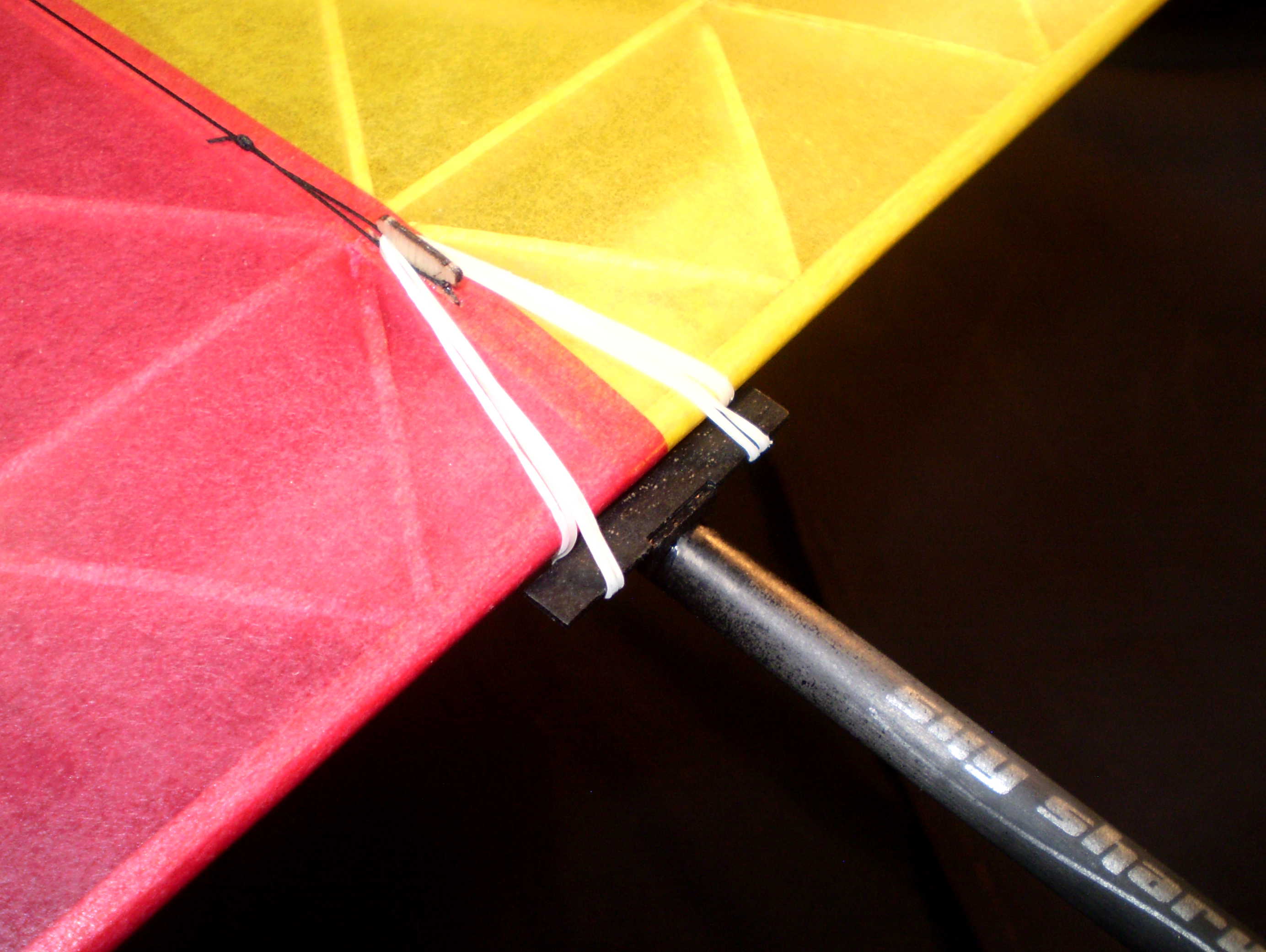

·   Incidence adjustment screw for setting the horizontal stab position makes flight trimming simple and quick.

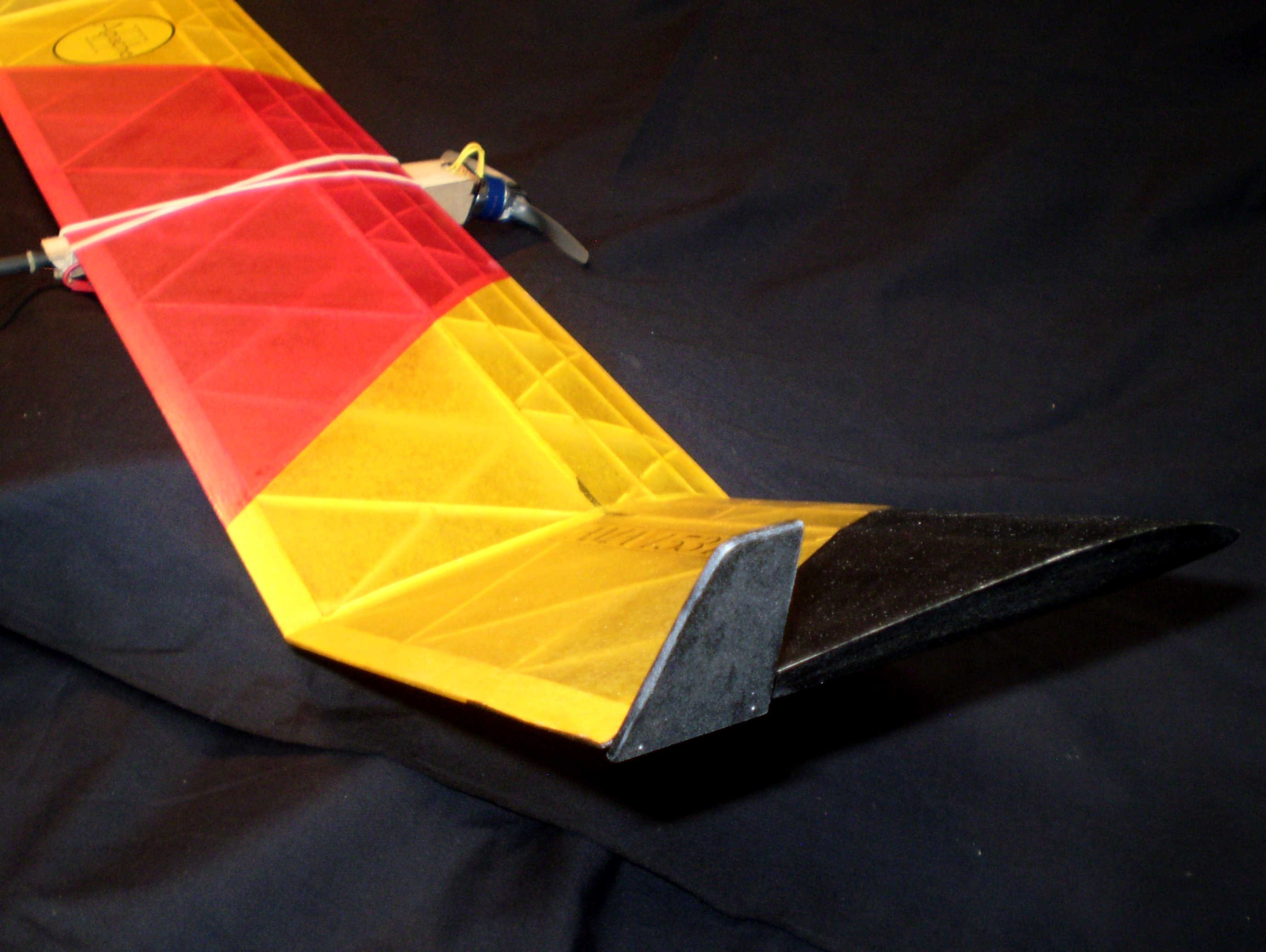

·   Wing tip plates help reduce wing pitching moment structural twist at higher speeds in the climb-helps the model stay vertical under the high speed phase of the climb.

·   The model can be trimmed for left or right hand climb pattern to suit the flyer.

·   The model can be constructed to suit a left or right handed flyer with no degradation of the ergonomics of the design for launching.

·   Excellent loitering glide characteristic for maximum contest performance; a great choice for a five second airplane in contests with a high performance motor installed.
