our products - SUPER 'J' AMA Electric A/B Competition and Sport Model

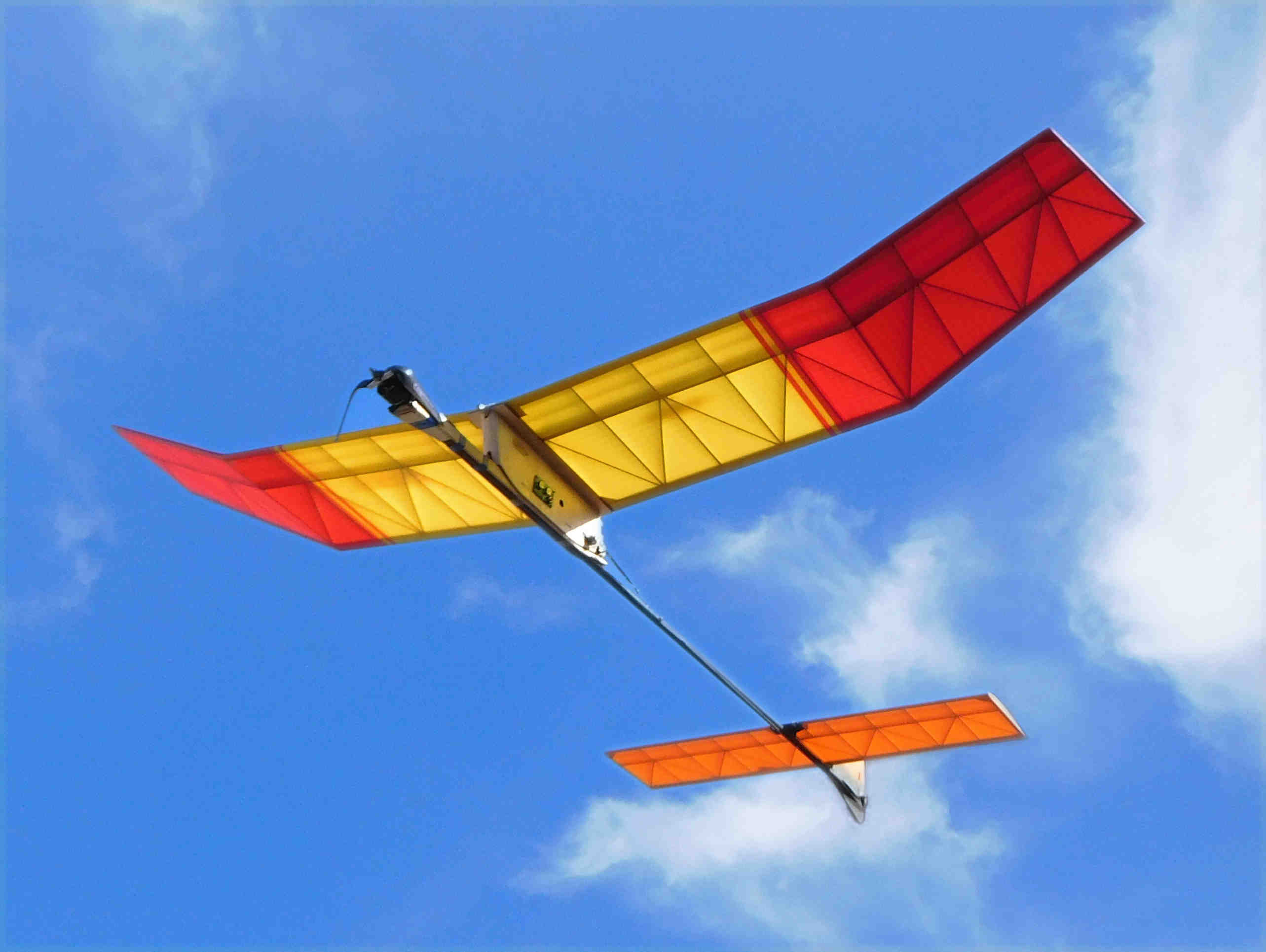

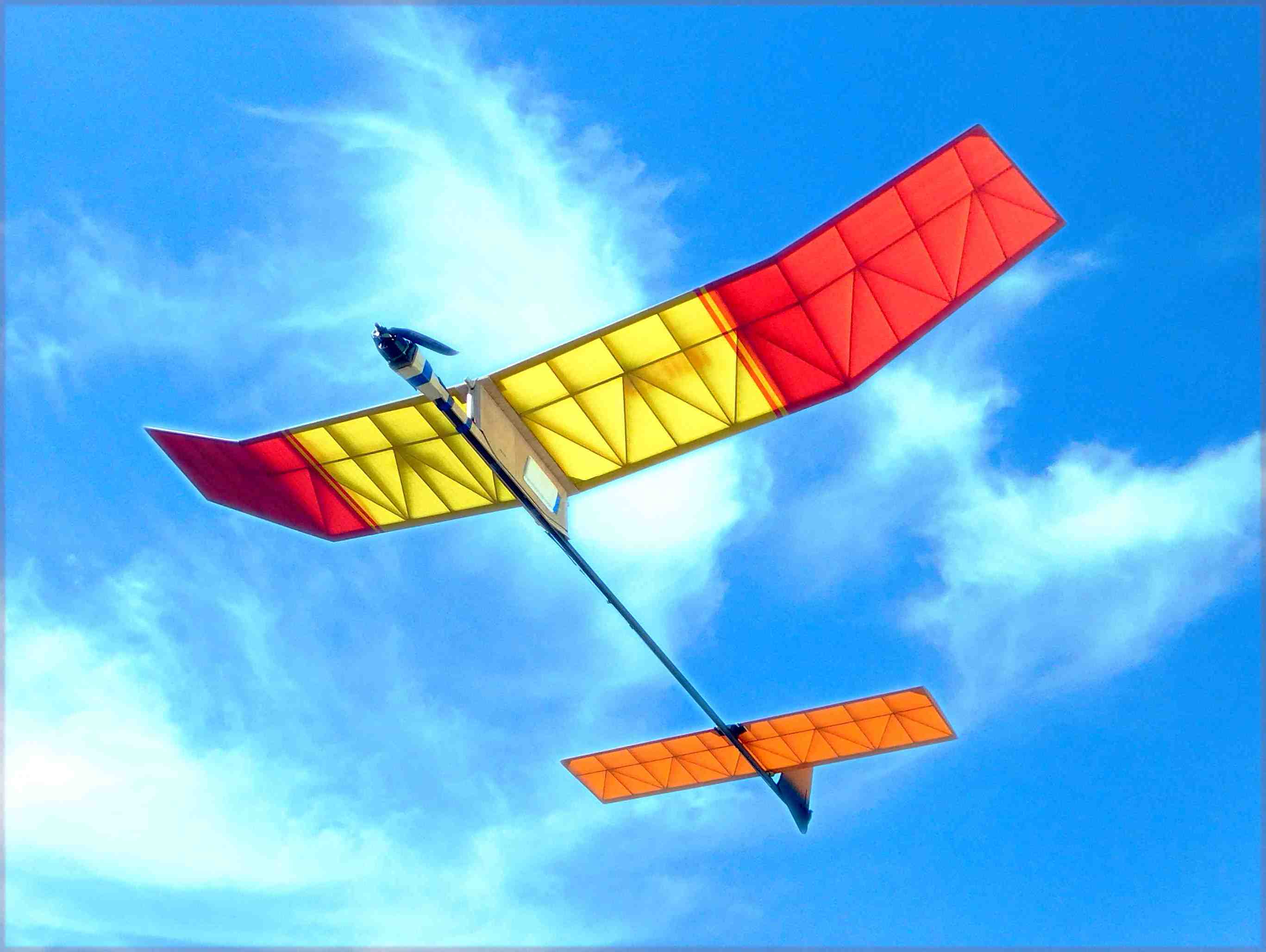

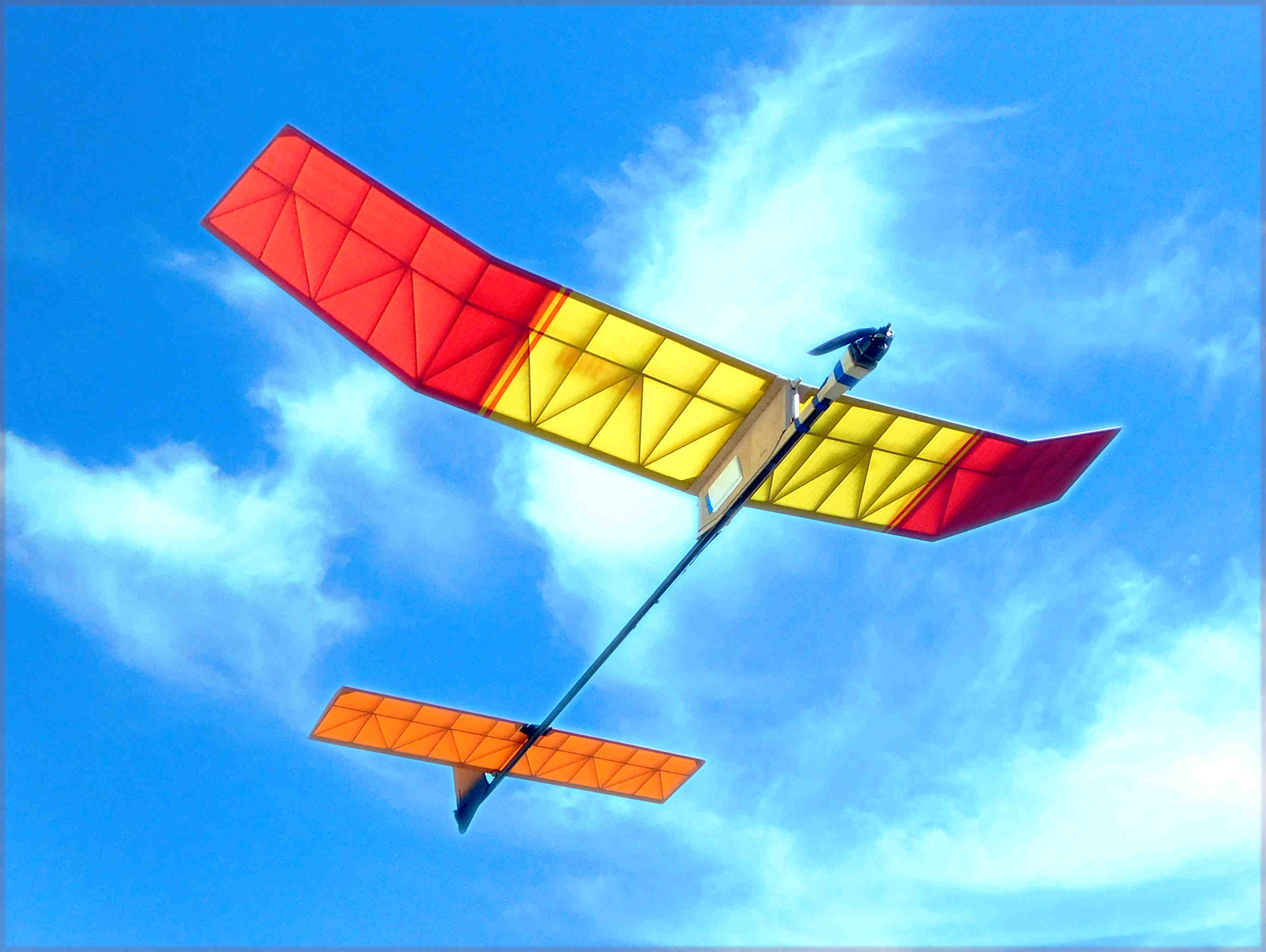

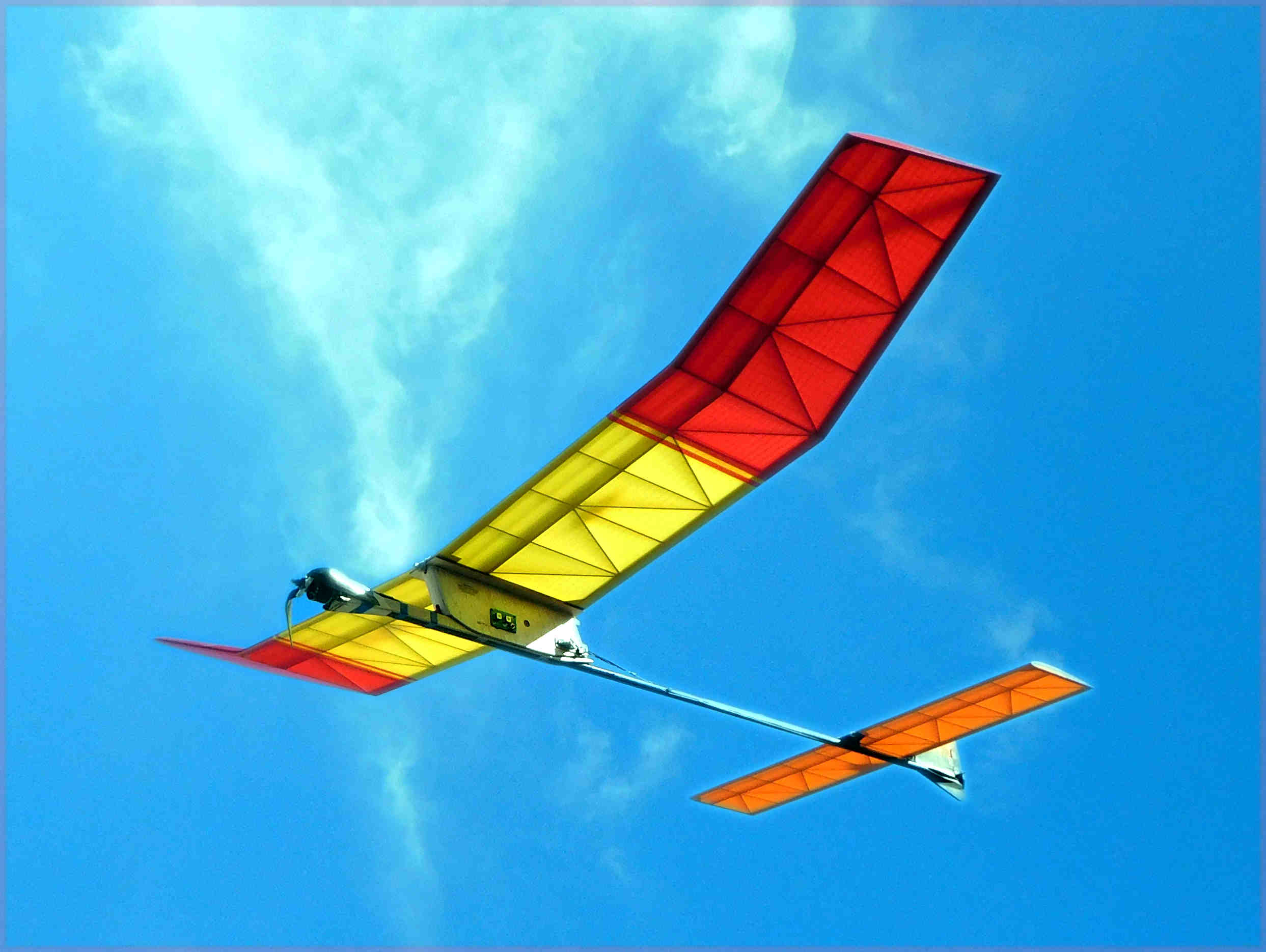

SUPER 'J'
AMA Electric A/B Competition and Sport Model









The SUPER ‘J' is a scaled-up version of the JOULBOX E-36 design.

Thhe SUPER 'J' was devloped as the result of numerous JOULEBOX E-36 customer suggestions for a larger JOULBOX to fly in the AMA Electric A/B events. Maintaining the same arrangement and construction concept as the E-36 JOULEBOX, this design is simple and familiar to JOULBOX E-36 builders and offers an easy transition to this larger size competition class.

The SUPER ‘J’ kit highlights:
• The standard kit includes strip stock and laser cut parts for all airframe components. The carbon fuselage tube is also included.
• A finishing hardware pack is included to facilitate completion of the model for motor and subsystem installation, including details to install an optional auto rudder.
• The detailed CAD based construction drawing shows all the electronic components installed.
• The model can be built as a lock down version for AMA A/B electric, or with an auto rudder configuration for AMA B electric, which allows auto surfaces.

Design features of the SUPER ‘J’:

• Wing is a five-panel configuration with a flat center section.
• Fuselage concept is the same style deployed for the Joulebox E-36. A single carbon tube runs the full length for strength and ease of assembly.
• The wing pylon concept is similar to the E-36 design, and has fairing assemblies at the forward and aft ends for improved aerodynamic streamlining.
• The drivetrain and electronics installation are the same as the E-36 model except a larger motor, prop, ESC and lipo are utilized. Electronic timers used in the E-36 model work fine in the Super ‘J’. If running the auto rudder, a timer with an auto rudder or similar function will be needed. DT servo is the same size and style used in the E-36 version.

Specifications:

Wingspan……………………………………...54-1/2 inches-projected
Wing area……………………………………...419 square inches-projected/less center panel
Nominal length………………………………..45 inches
Nominal weight ready to fly with 450 Mah 3S lipo……...14 ounces


  $160 - SUPER 'J' Standard Kit

  $144 - SUPER 'J' Short Kit





shipping notes:

  • Domestic Shipping and Handling charges are based on the costs of shipping our full our partial kits from our west coast facility to the far east coast of the United States. Currently a single full or short kit ships for $14.20, 2 ship for $19.05 and 3 for $22.05.

  • If the actual Shipping and Handling costs to your location are less than what was collected during the PayPal checkout process by $2 or more, a refund will be issued to you PayPal account for the excess shipping costs.

  • Please email us   for an estimate of shipping and handling charges for quantities of kits in excess of 3.

  • sales tax for California residents is 9.25%

  • Please email us to inquire about international shipping and handling charges
