our products - Curtis XP-40Q Short Kit - FAC Mass Launch

Curtis XP-40Q:

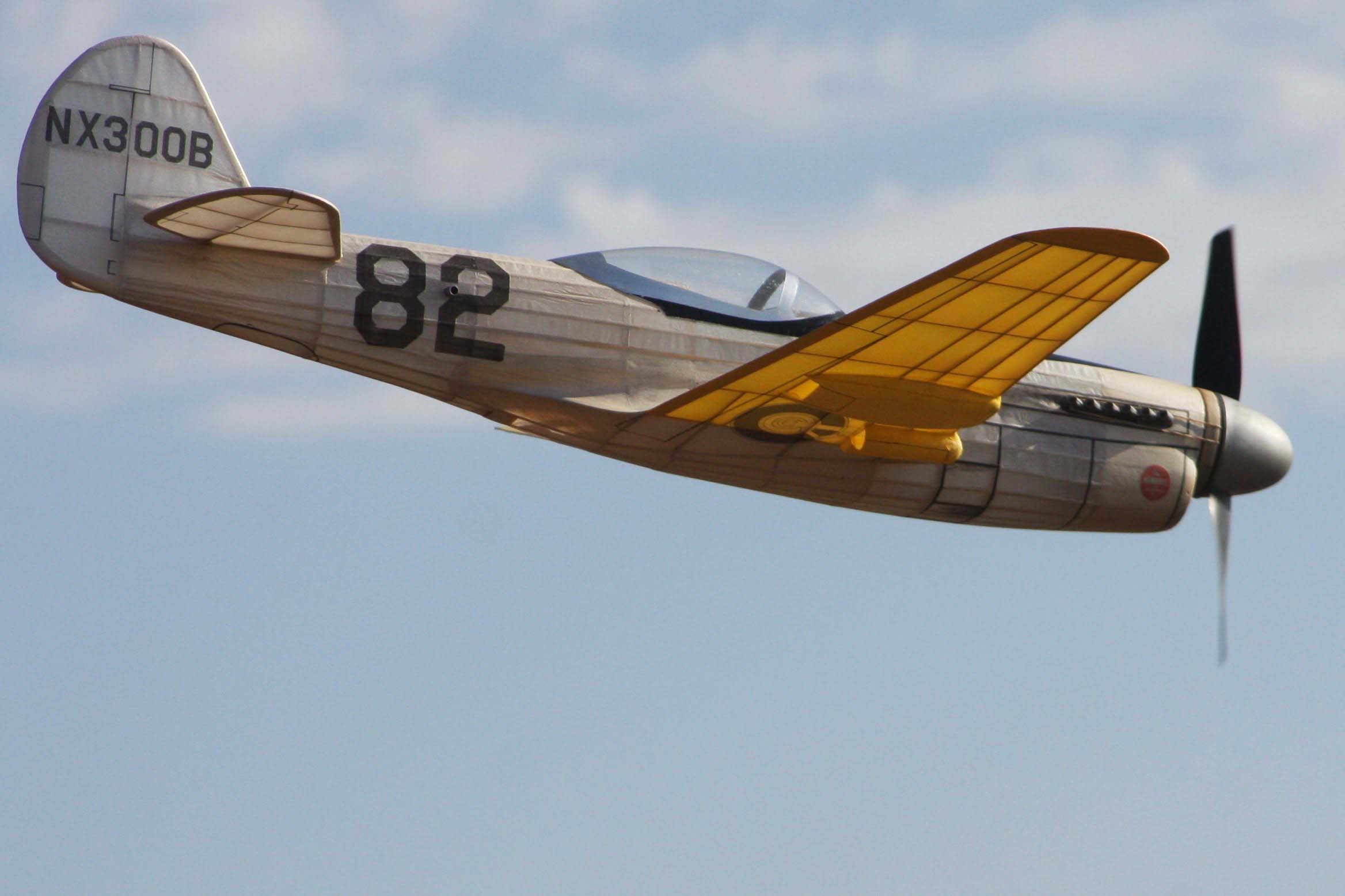

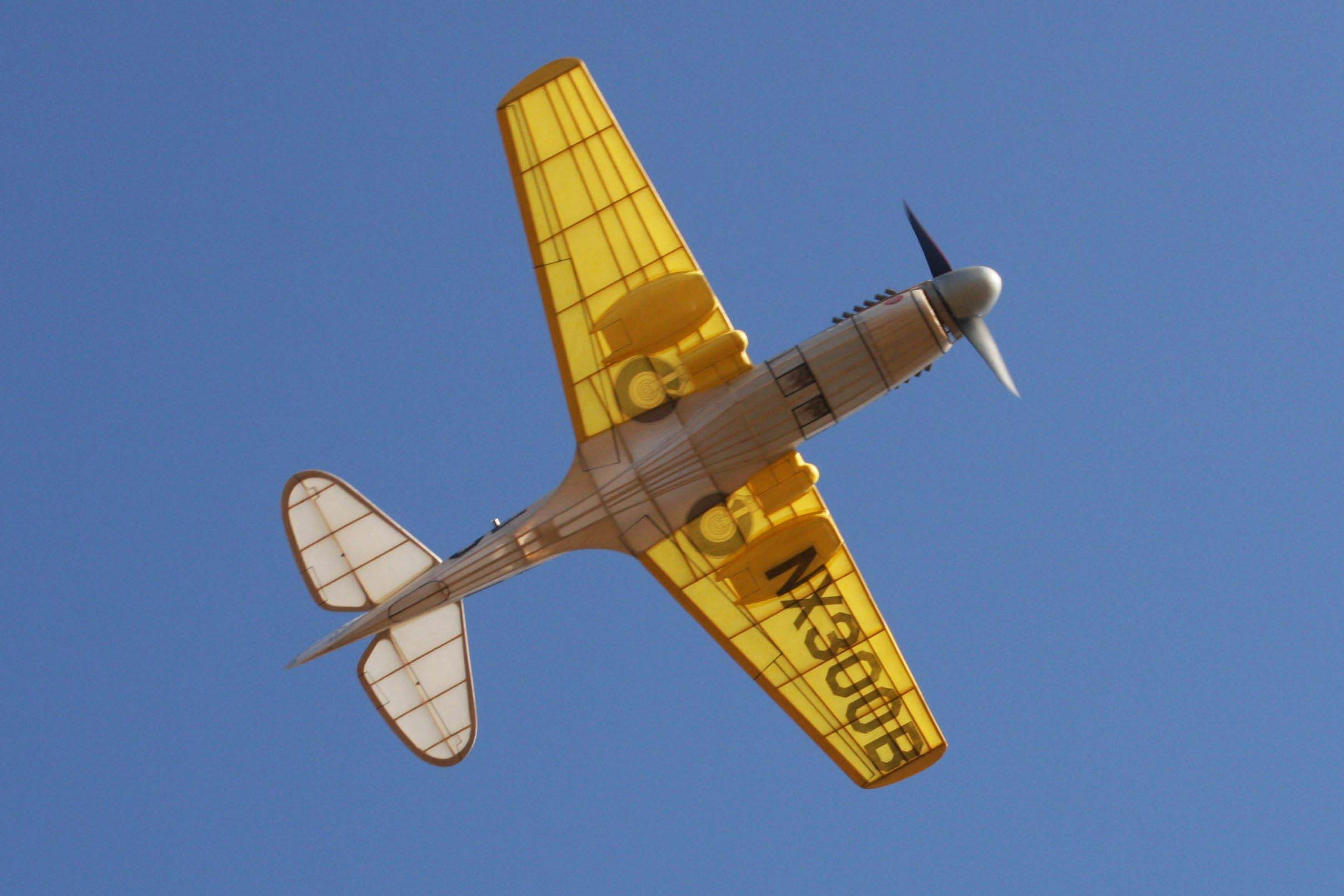

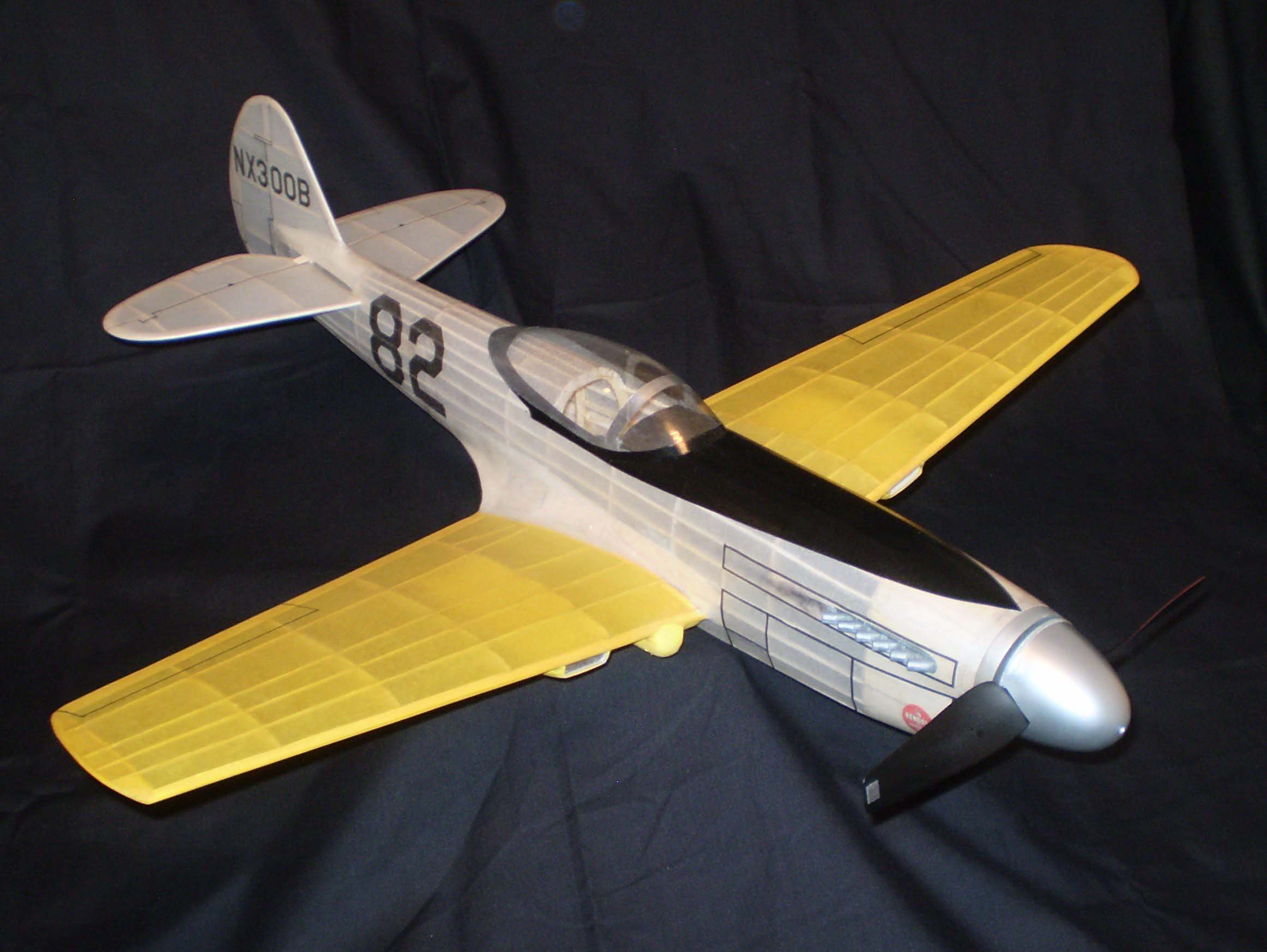

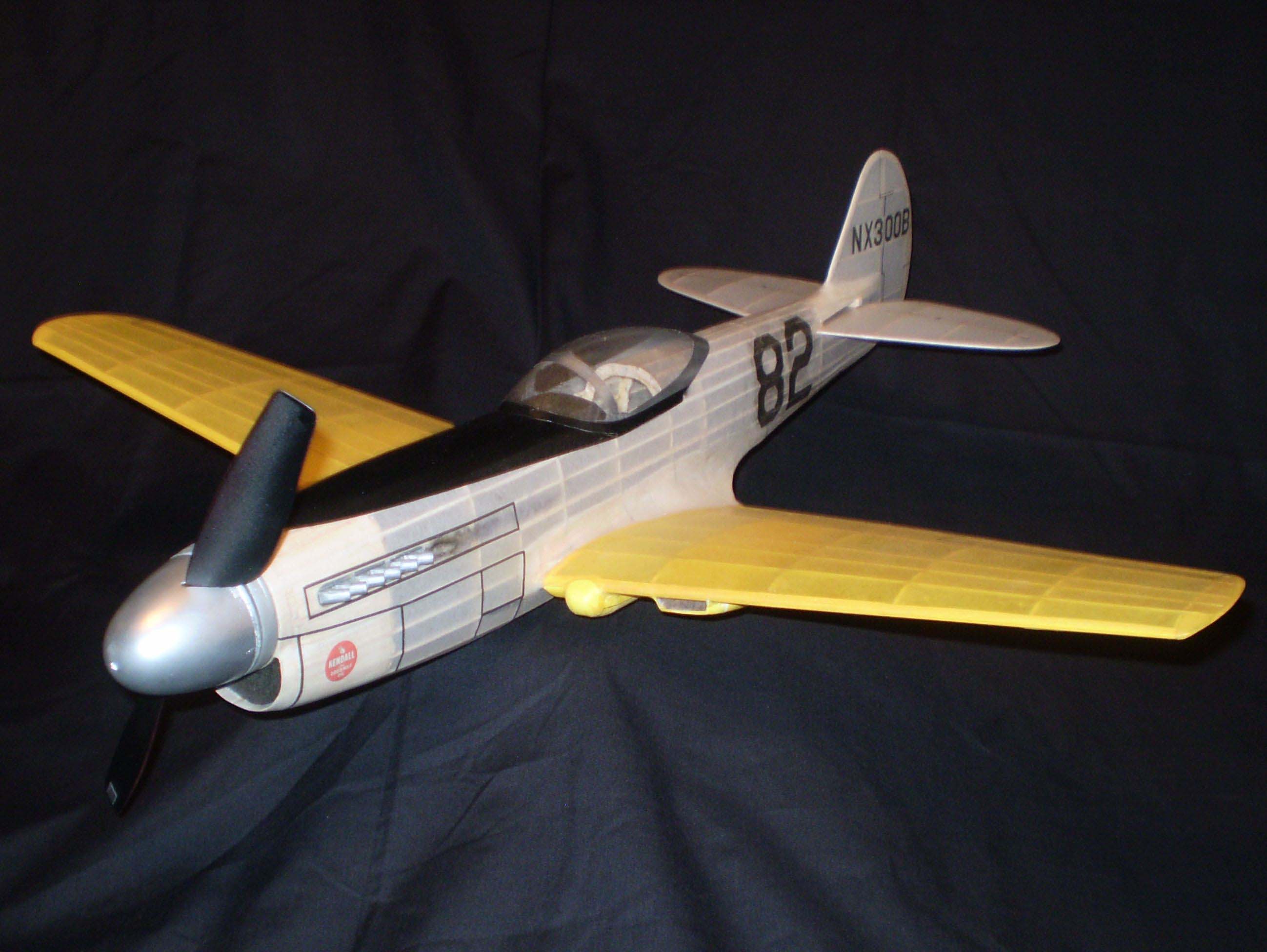

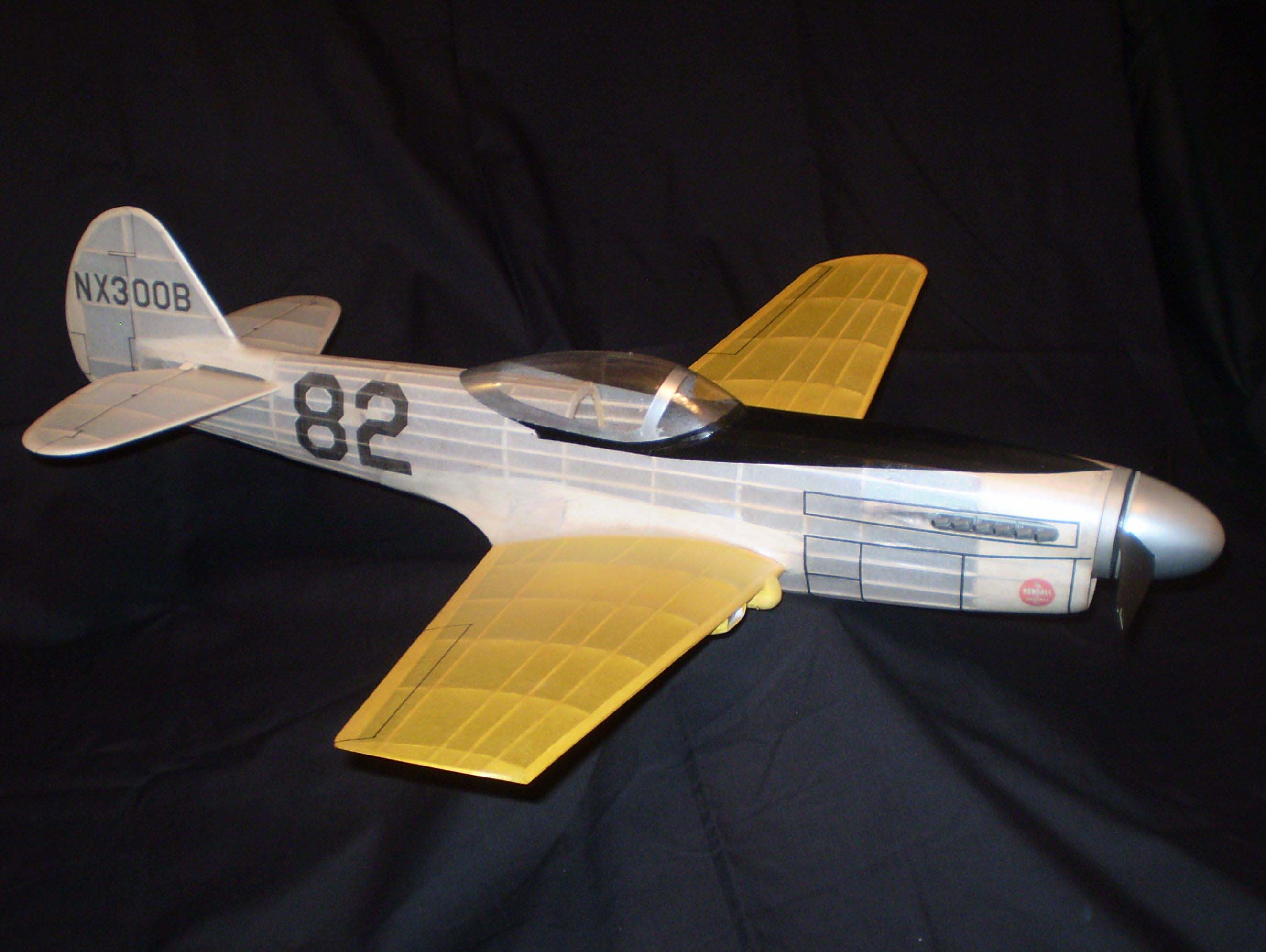

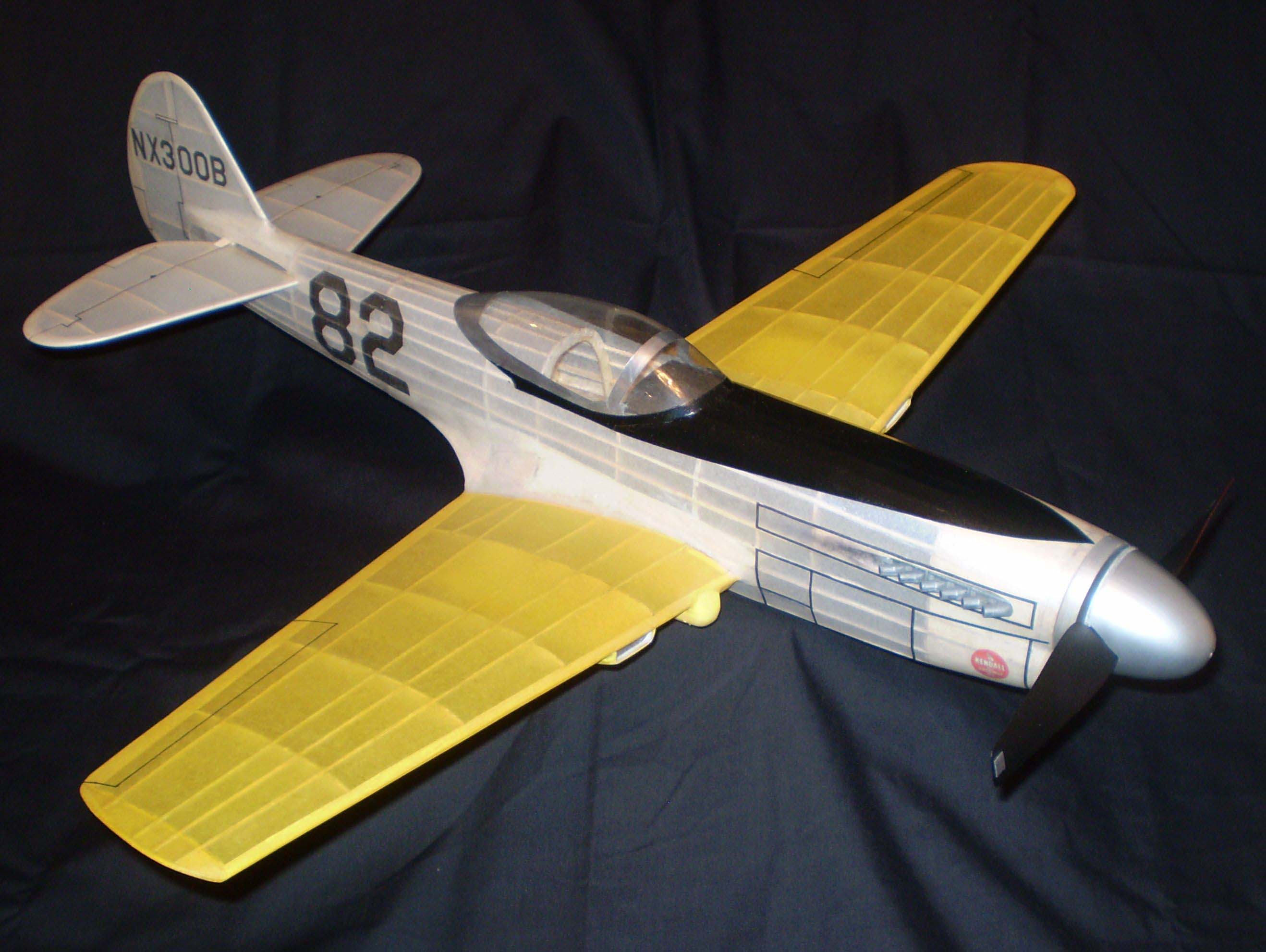

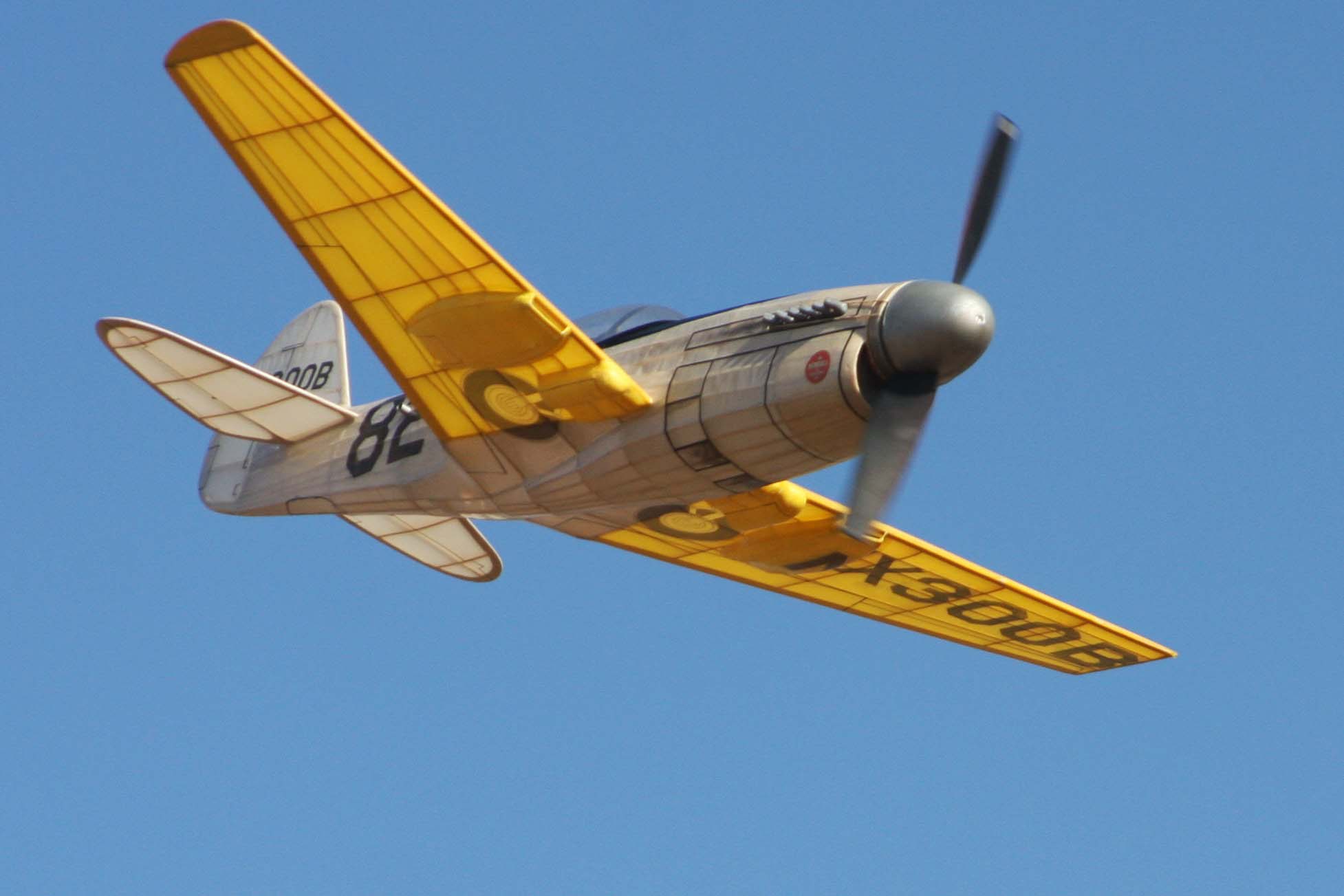

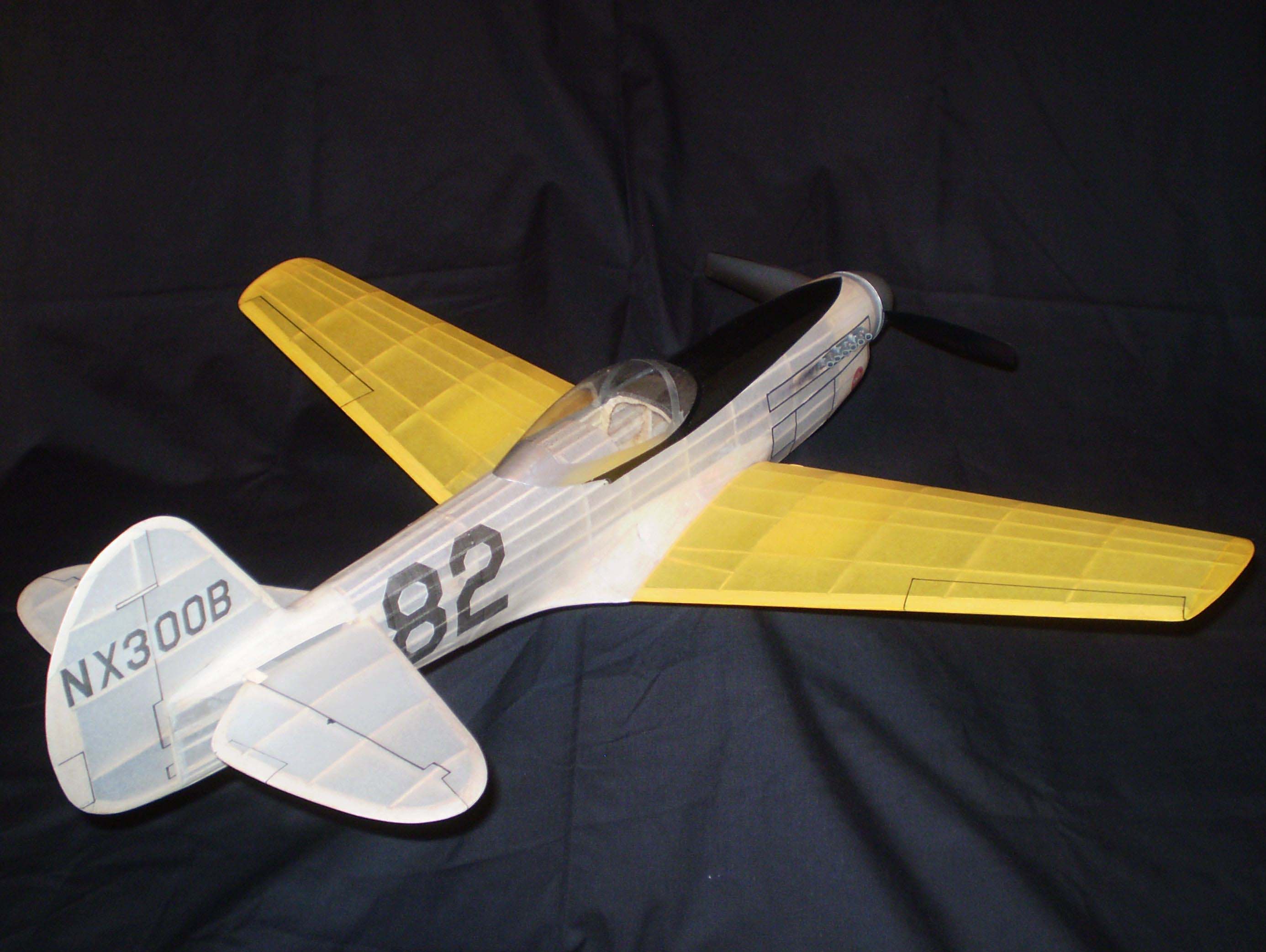

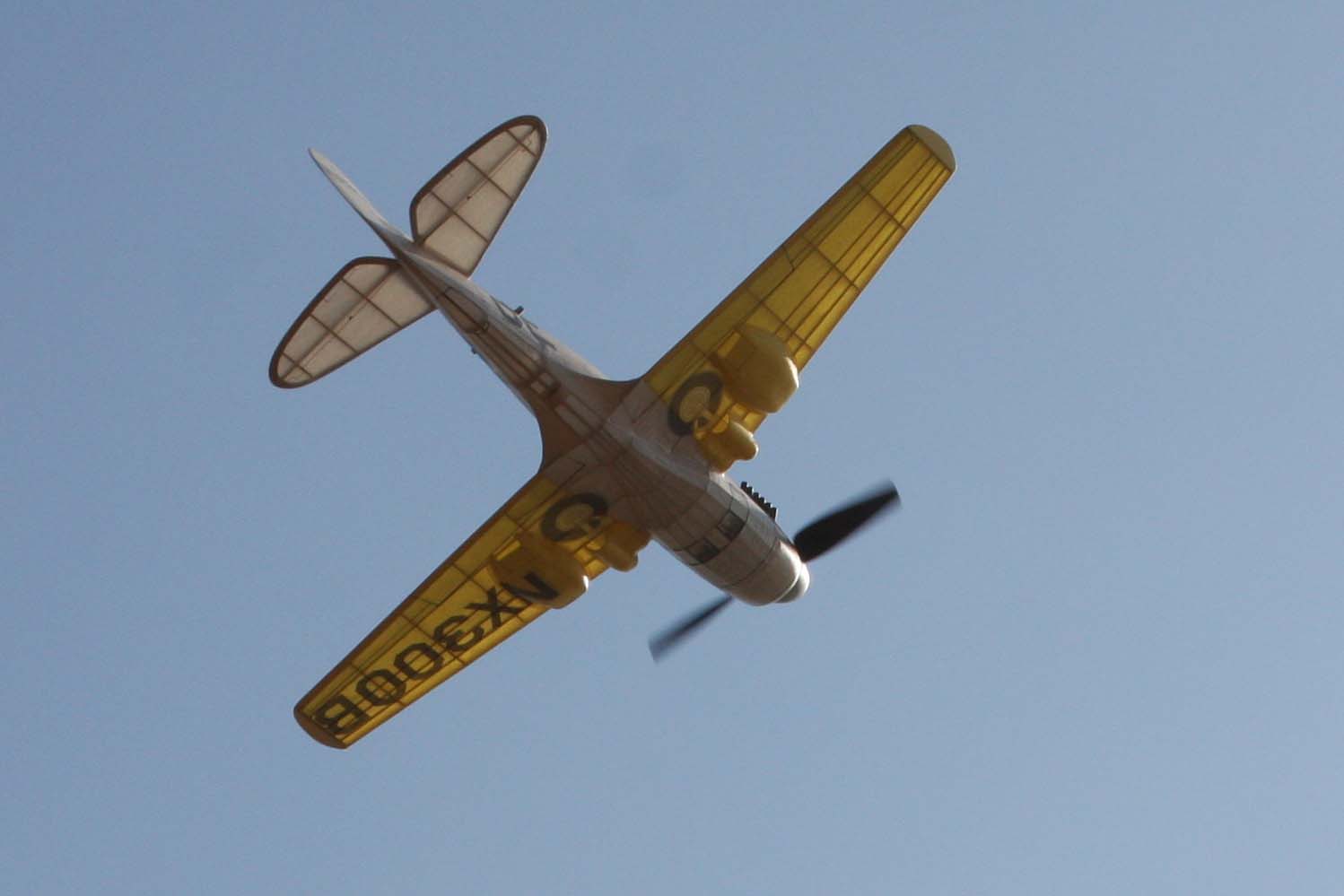

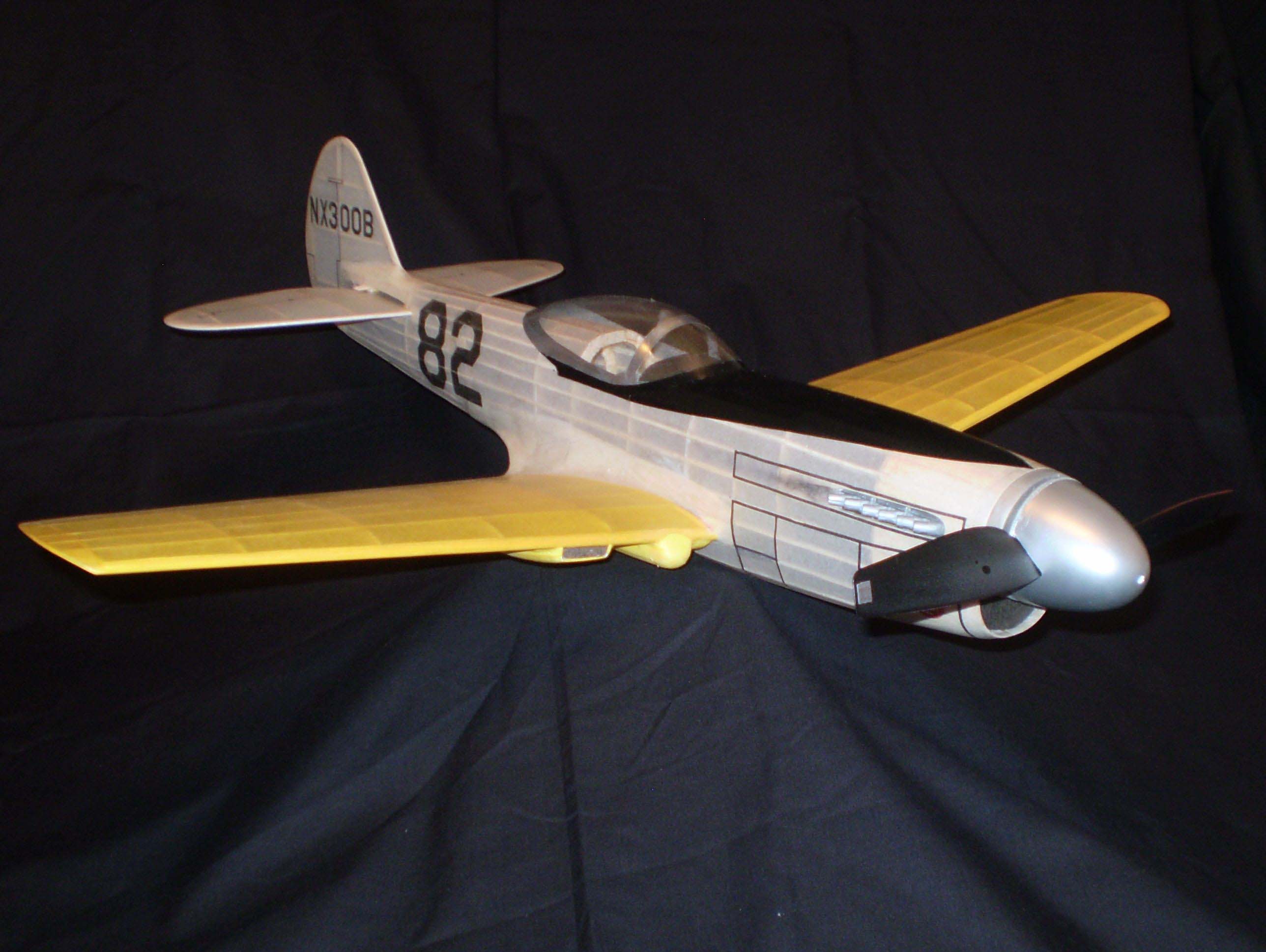

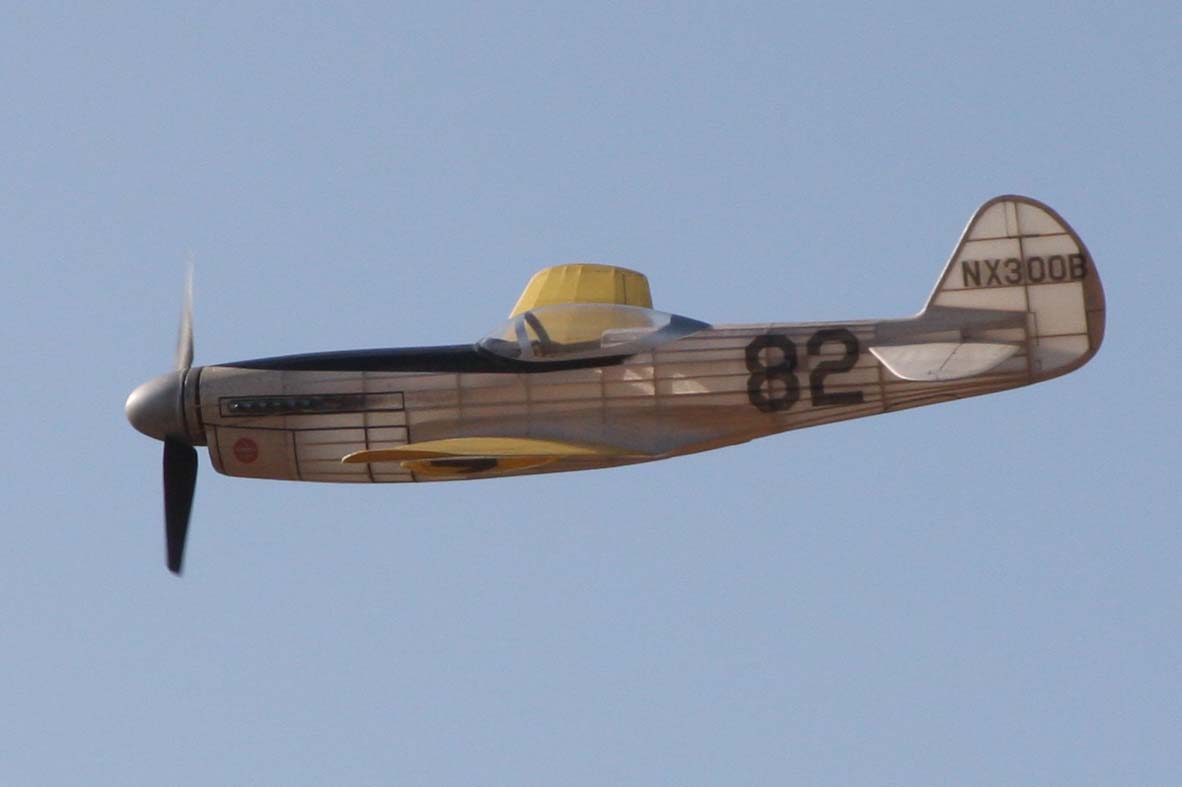

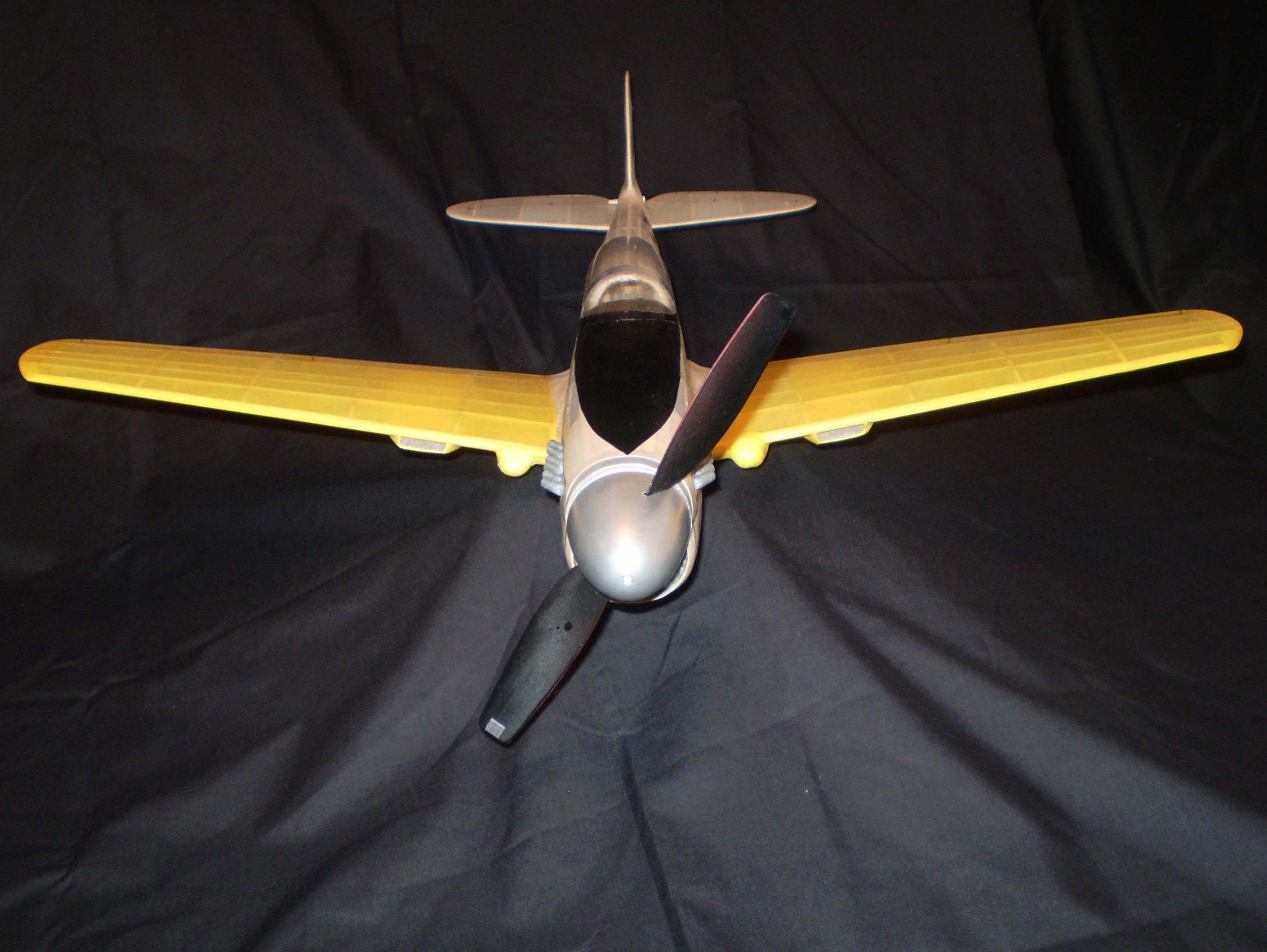

1947 Thompson Trophy Racer:





Curtiss XP-40Q Short Kit  FAC Scale

The Curtiss XP-40Q was the final version of the venerable P-40 design produced by Curtiss.  This sleek and muscular design did not offer any significant advantages over other contemporary fighters and the project was terminated after three prototypes were constructed.  Largely forgotten, the lines of this airplane offer superb proportions for rubber power, with a long nose moment and fuselage and clipped wings.

No landing gear detail is provided, model is intended as gear-up version for Flying Aces Club mass launch events.

Build the Curtiss XP-40Q and baffle everyone at the flying field when you bring it out to fly, and impress them with long and spectacular flights

Curtiss XP-40Q Short Kit Information:
  • Two full size rolled construction drawings
  • Construction notes and part number legends for laser parts
  • Formed plastic parts for underwing heat exchanger fairings, landing gear fairings, gun blisters and prop spinner
  • Formed canopy
  • Laser cut part sheets
Specifications:
Wingspan: 26  inches
Length:  27 inches
Weight::  approximately 78 grams
.

Curtiss XP-40Q Construction Manual  (PDF file)

The Construction Manual is supplied in printed form with each short kit.

Curtiss XP-40Q Construction Details - Part 1 (PDF file)
Detailed construction details of the fuselage.

Curtiss XP-40Q Construction Details - Part 2 (PDF file)
Detailed construction details of the wing and final assembly.

Curtiss XP-40Q Construction Details - Part 3 (PDF file)
Detailed construction details of covering the model.

Curtiss XP-40Q Marking Sheets (PDF file)
These marking sheets can be used to finish your XP-40Q

Curtiss XP-40Q Marking Sheets - Thompson Trophy Racer  (PDF file)
These marking sheets can be used to finish your XP-40Q



Curtiss XP-40Q Short Kit

  $35

  • Domestic Shipping and Handling charges are based on the costs of shipping our full our partial kits from our west coast facility to the far east coast of the United States. Currently a single full or short kit ships for $12, 2 ship for $17 and 3 for $23.

  • If the actual Shipping and Handling costs to your location are less than what was collected during the PayPal checkout process by $2 or more, a refund will be issued to you PayPal account for the excess shipping costs.

  • Please email us  for an estimate of shipping and handling charges for quantities of kits in excess of 3.

  • sales tax for California residents is 9.25%

  • Please email us to inquire about international shipping and handling charges

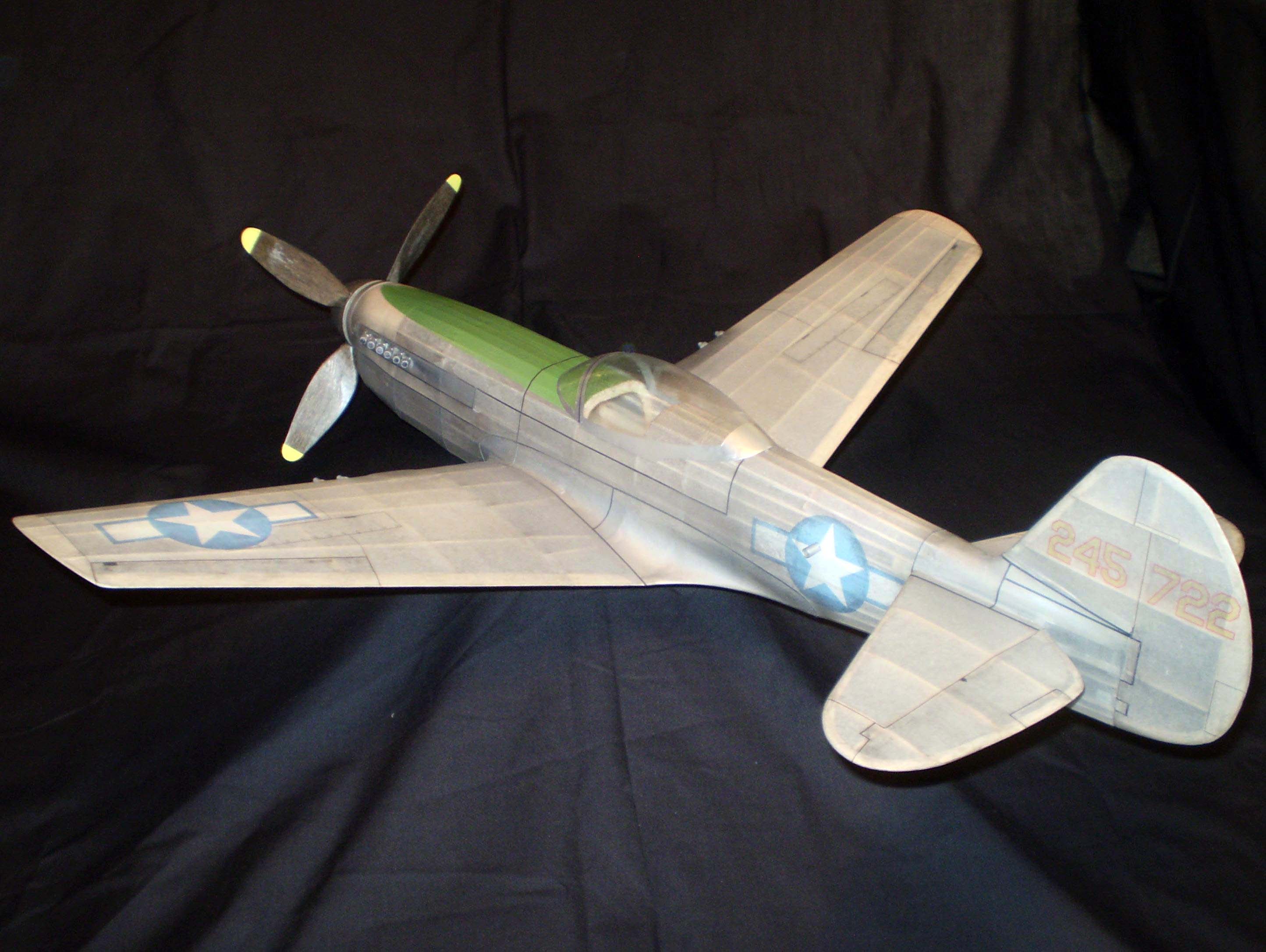

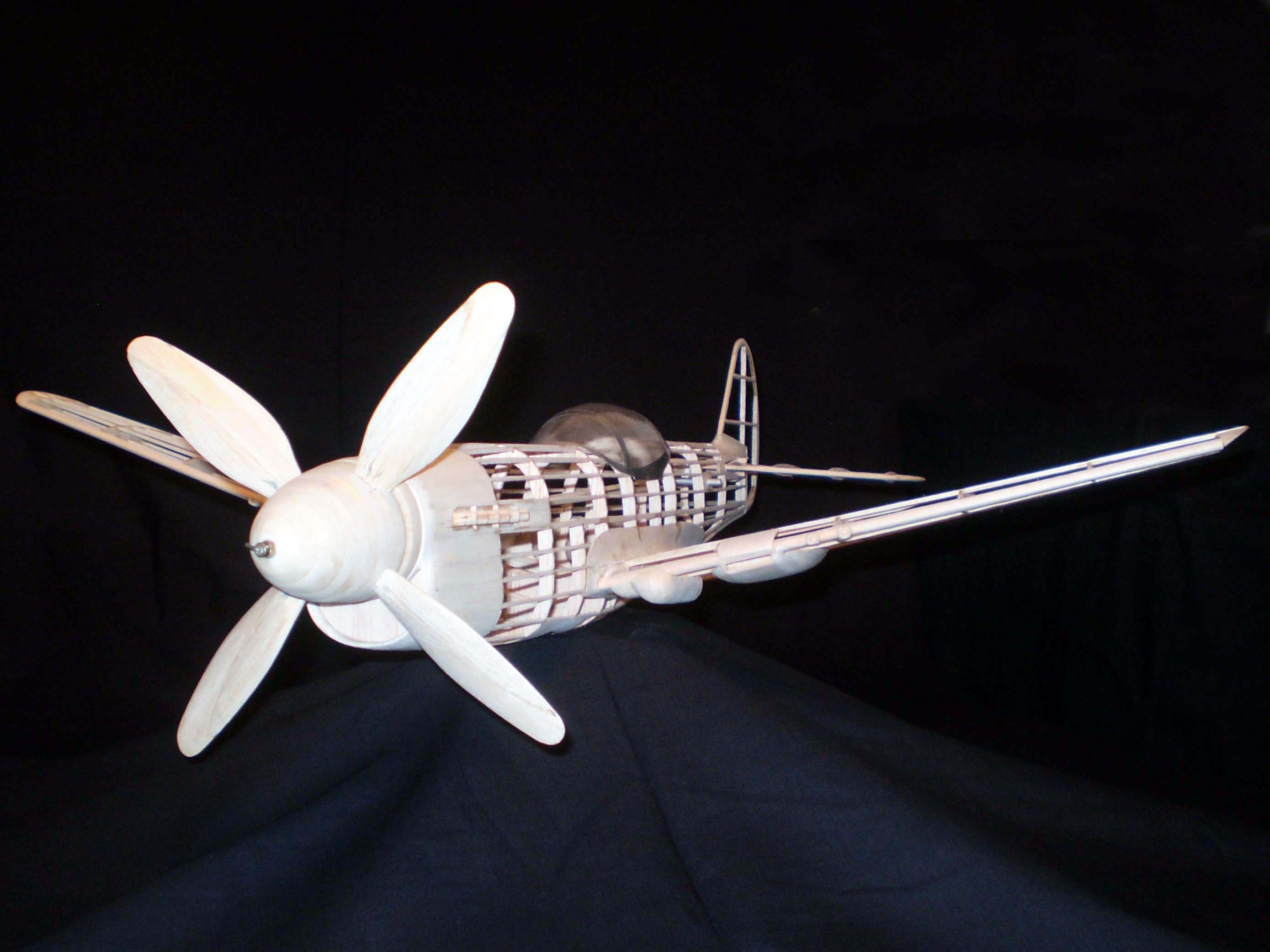

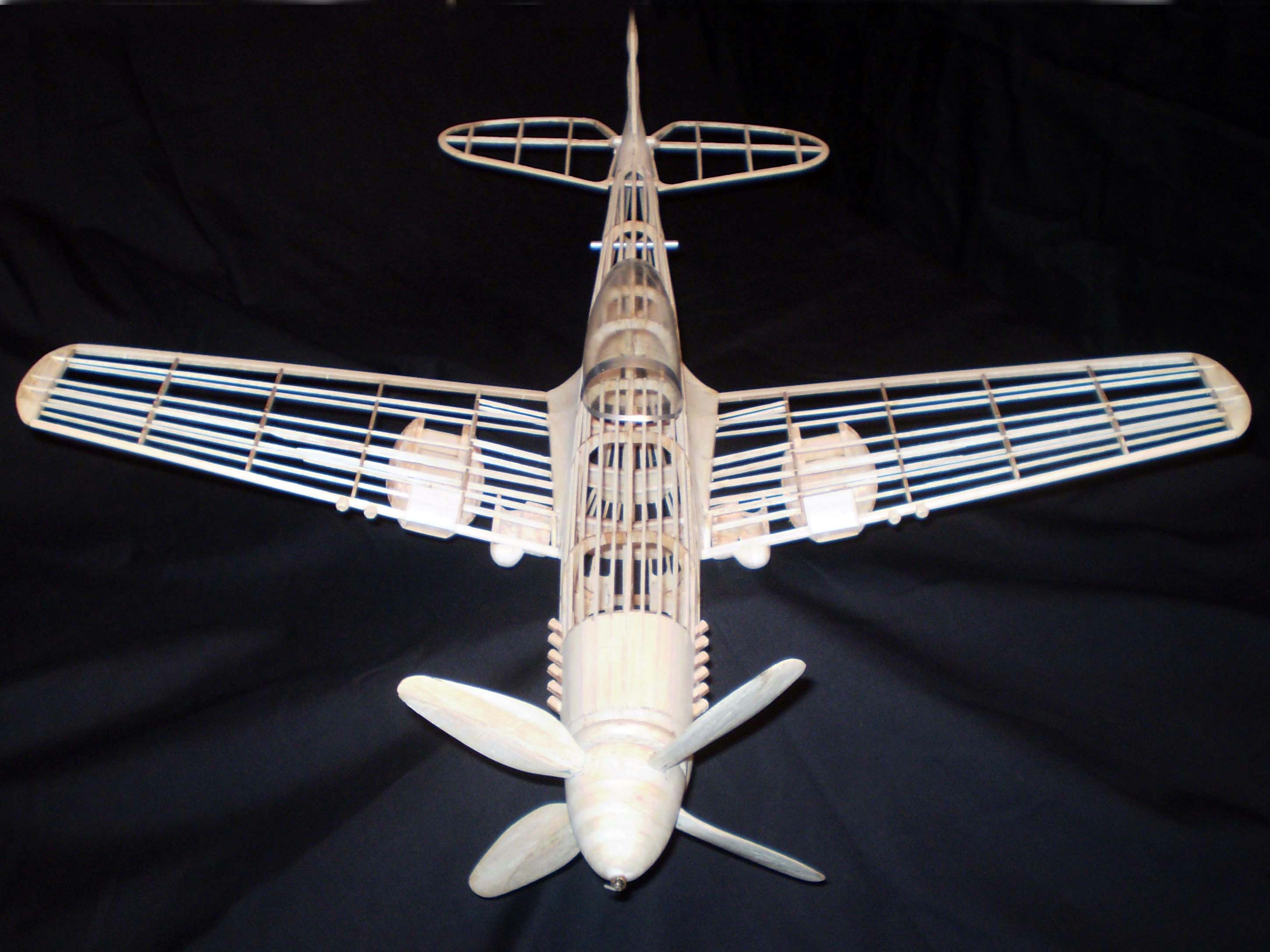

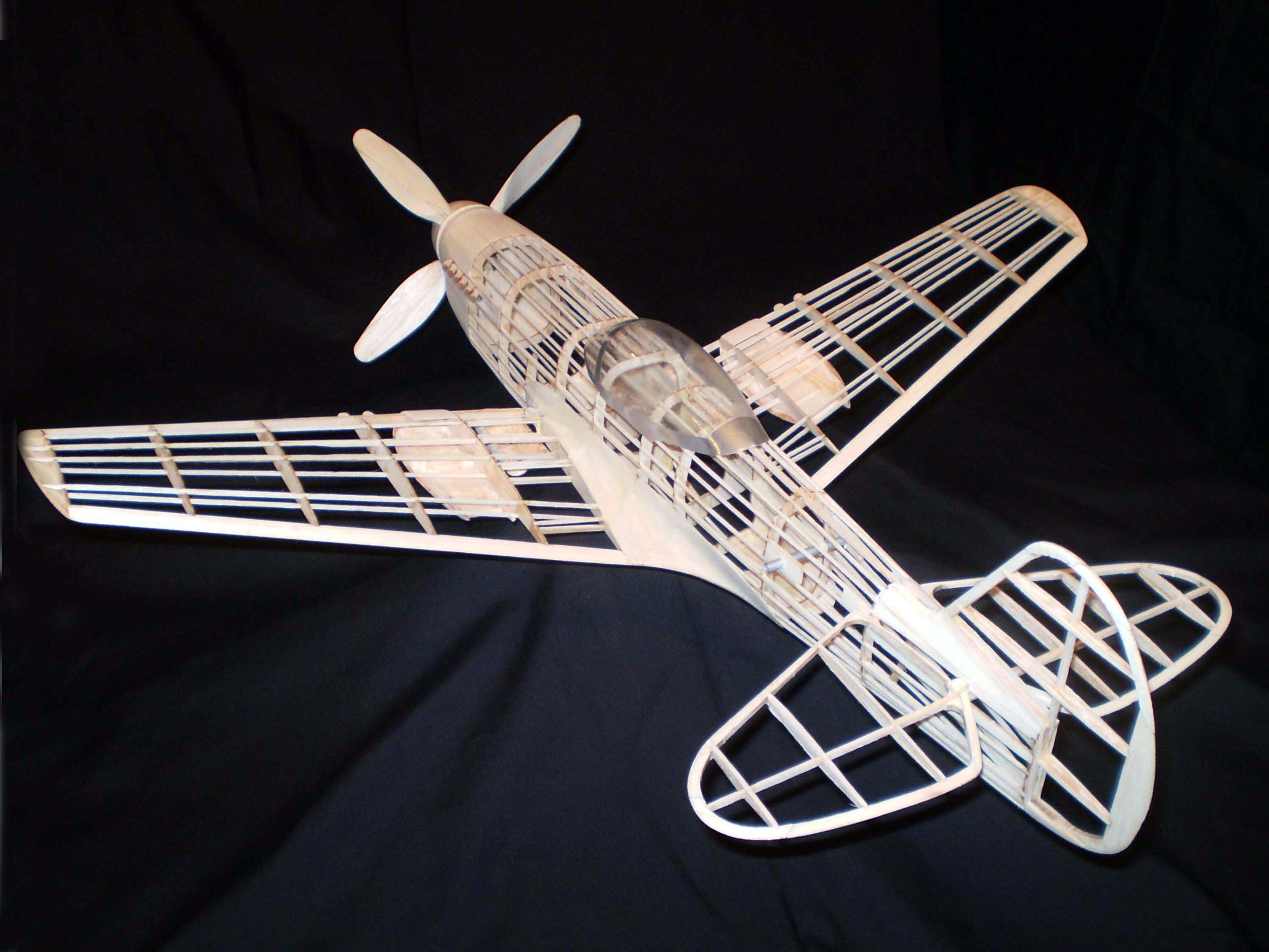

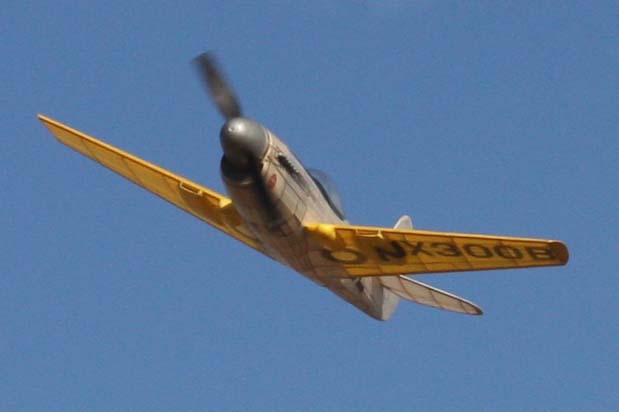

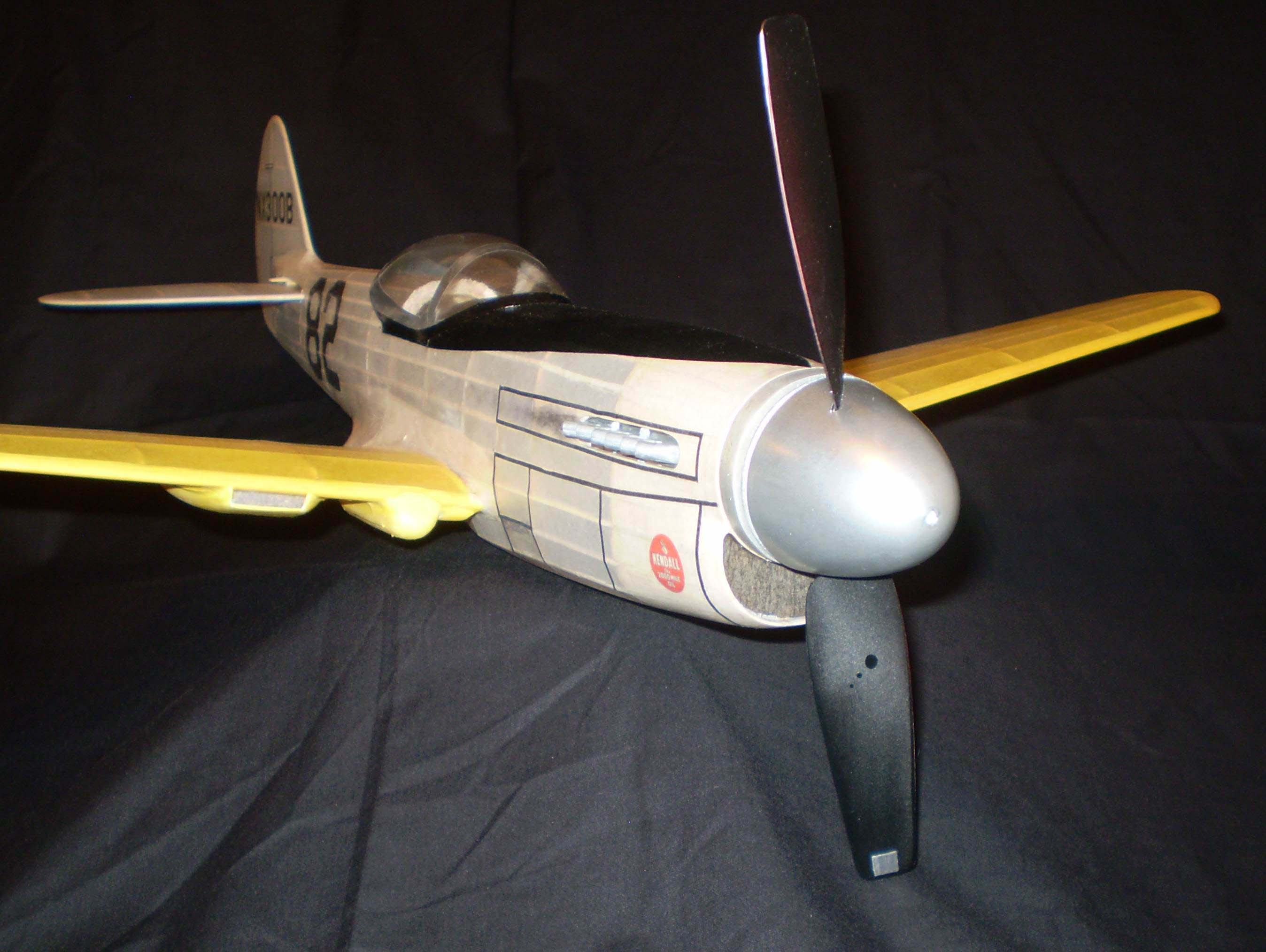

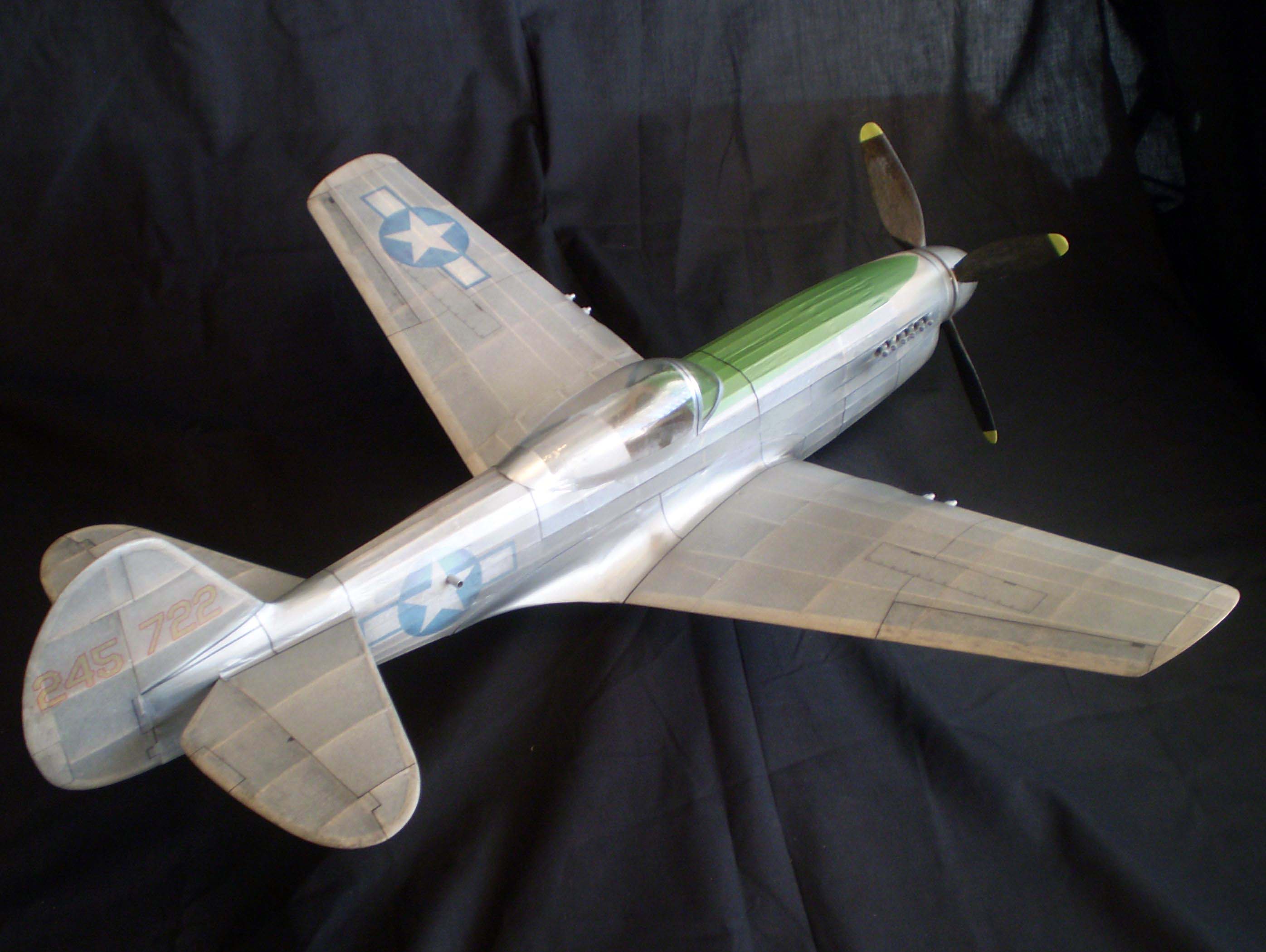

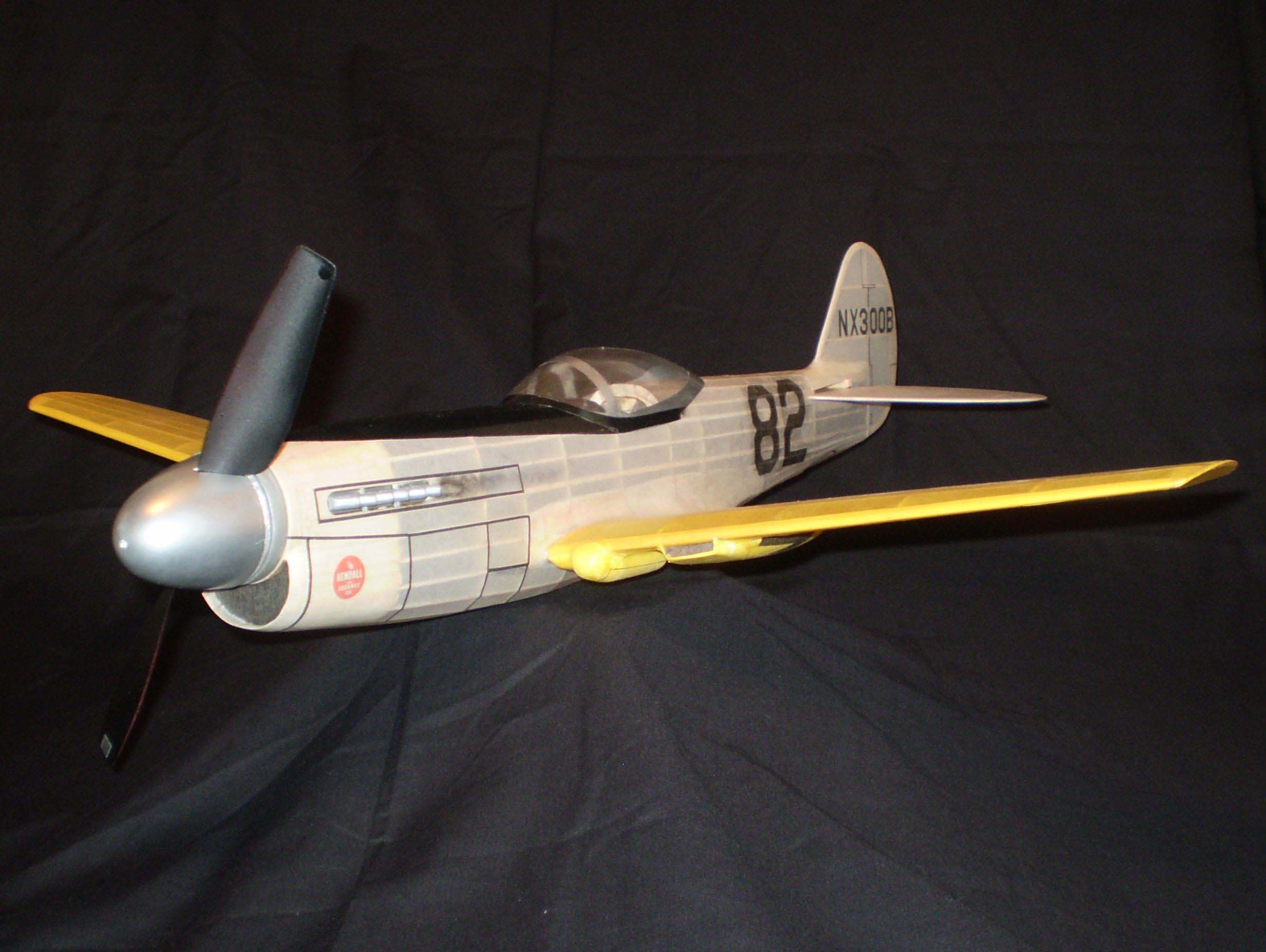

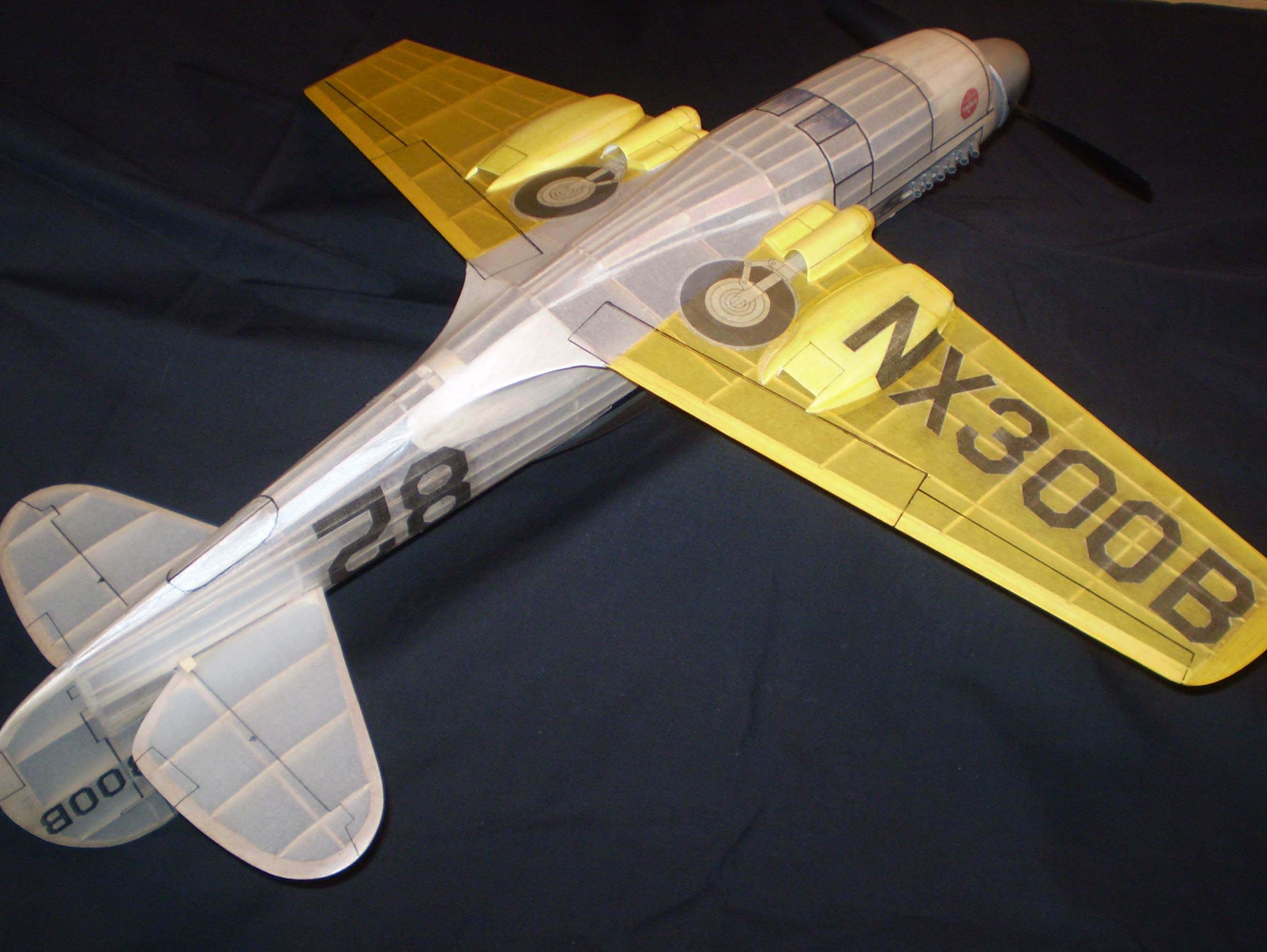

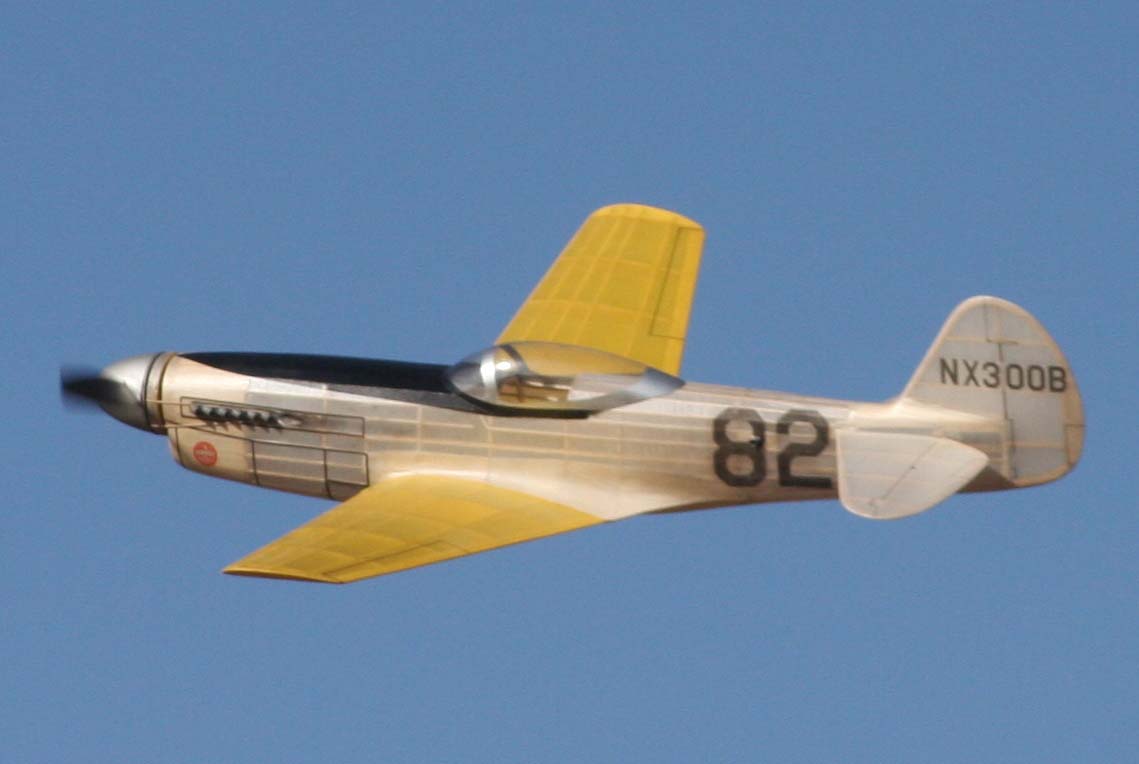

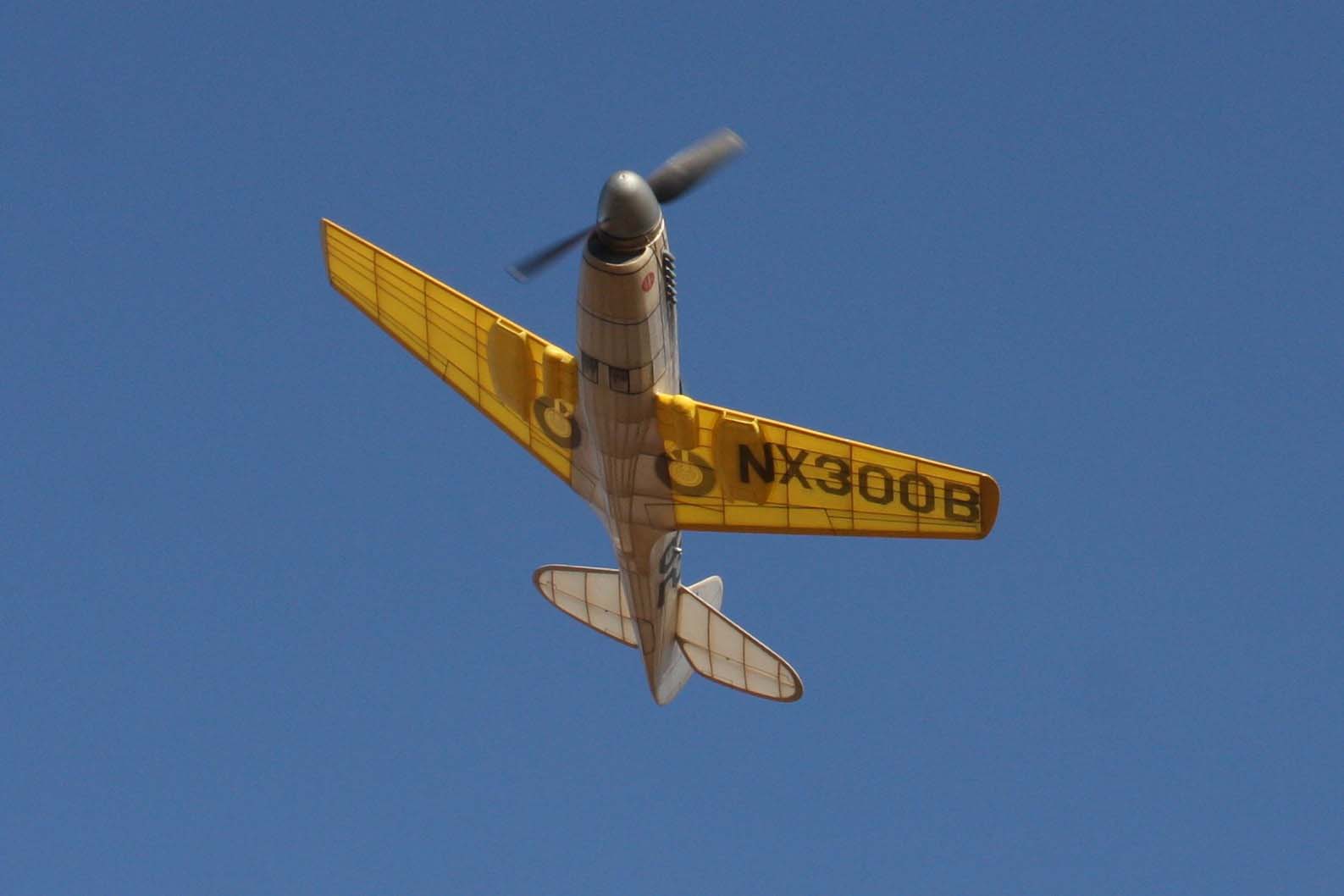

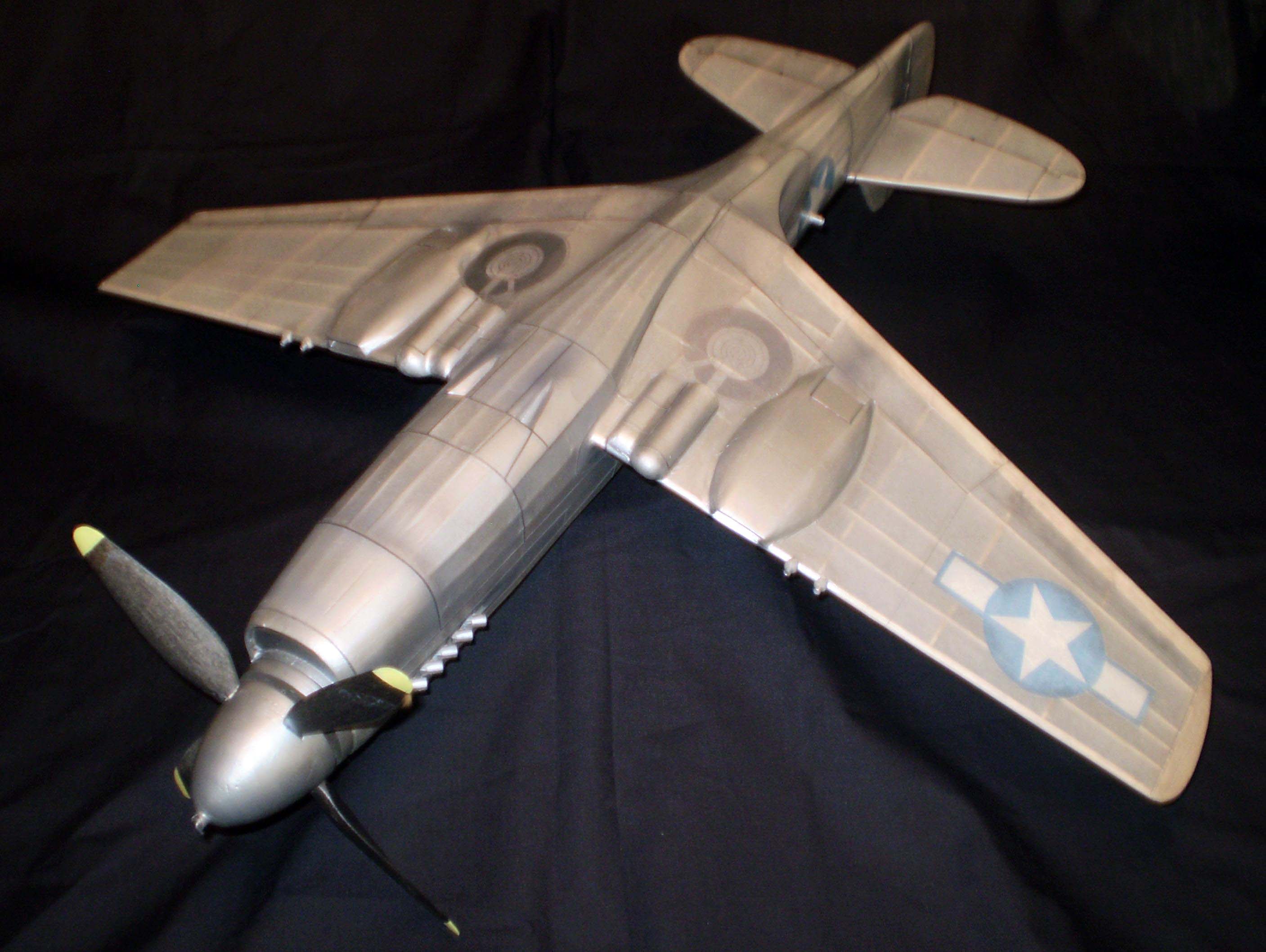

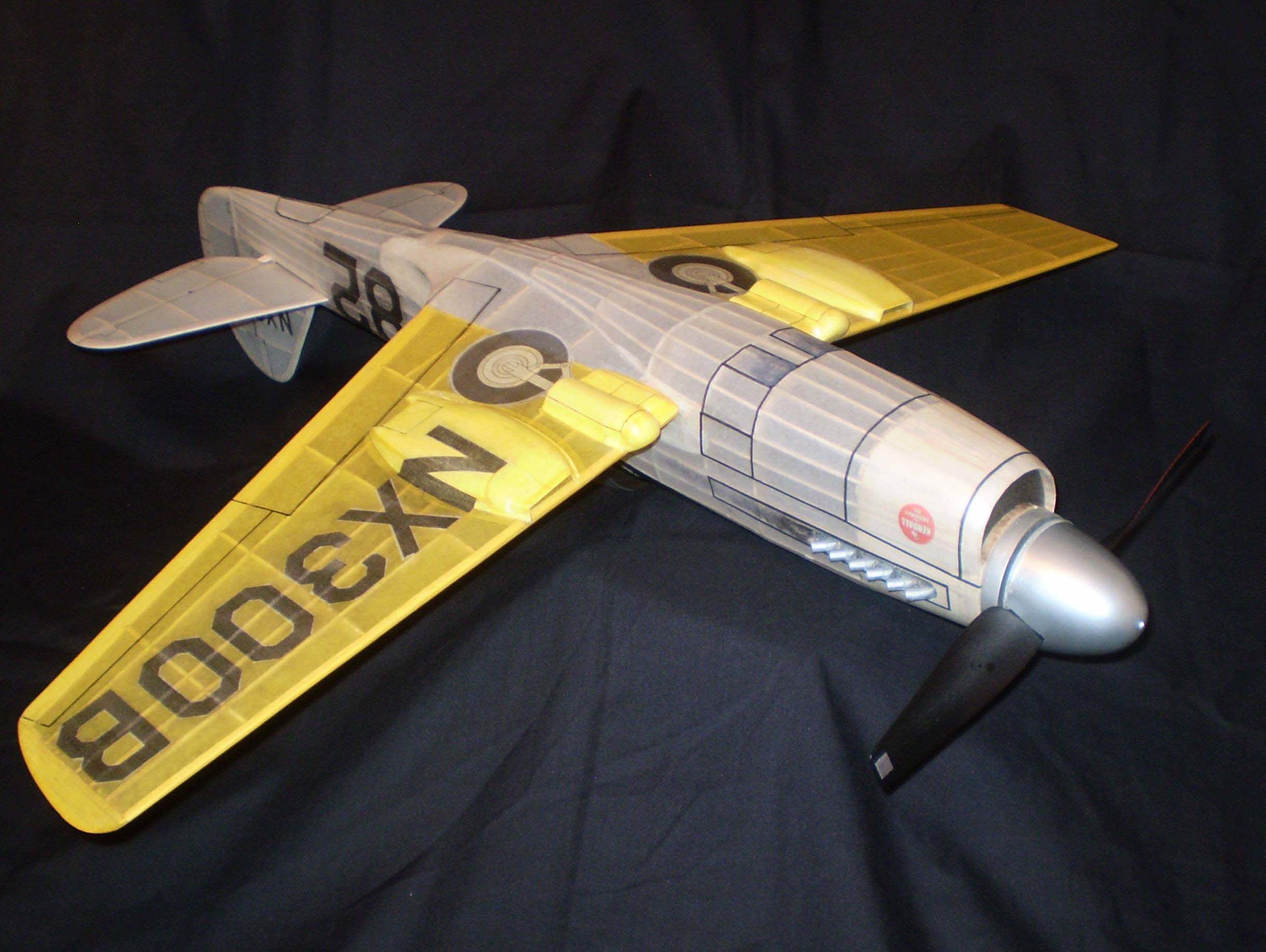

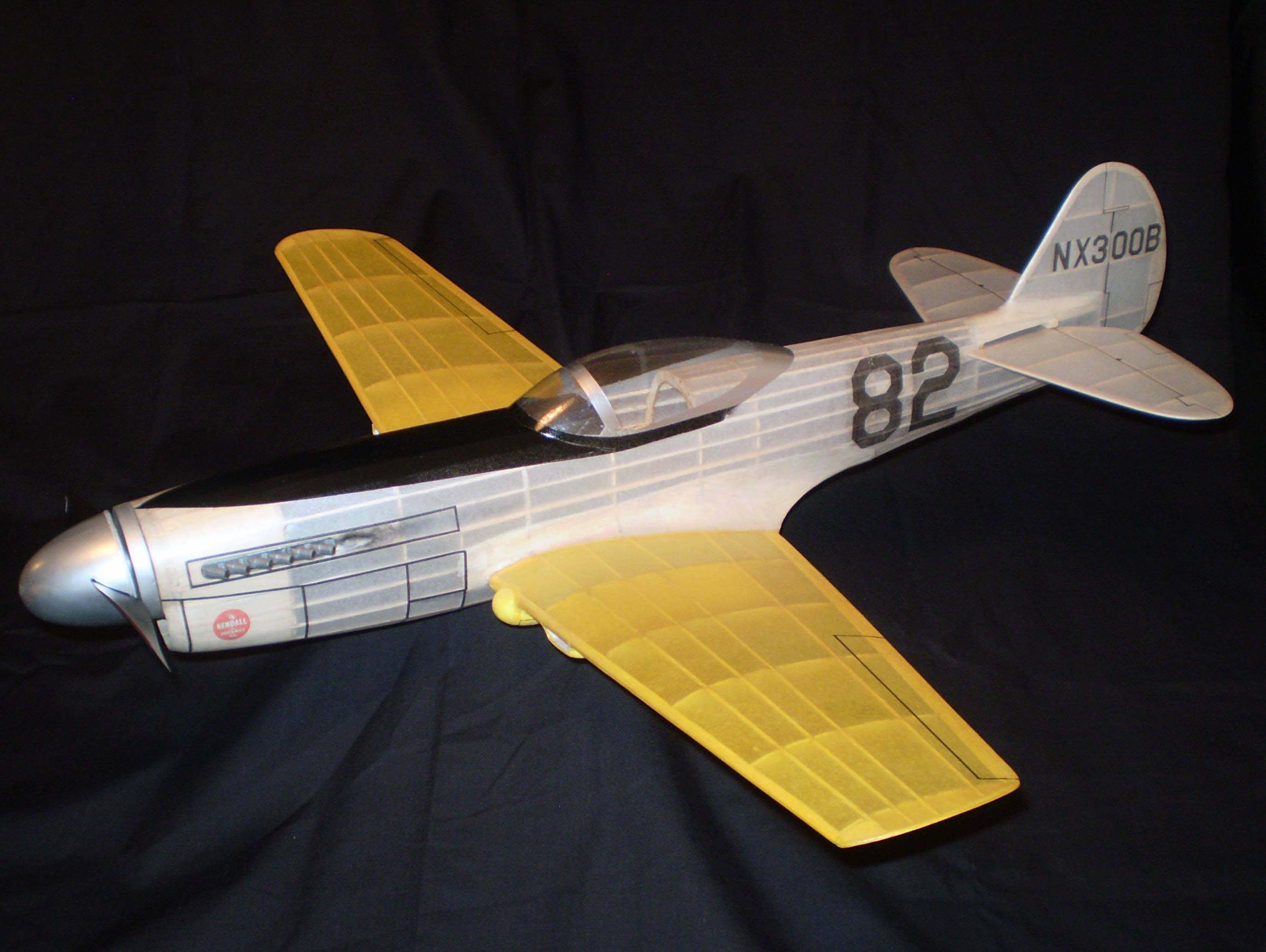

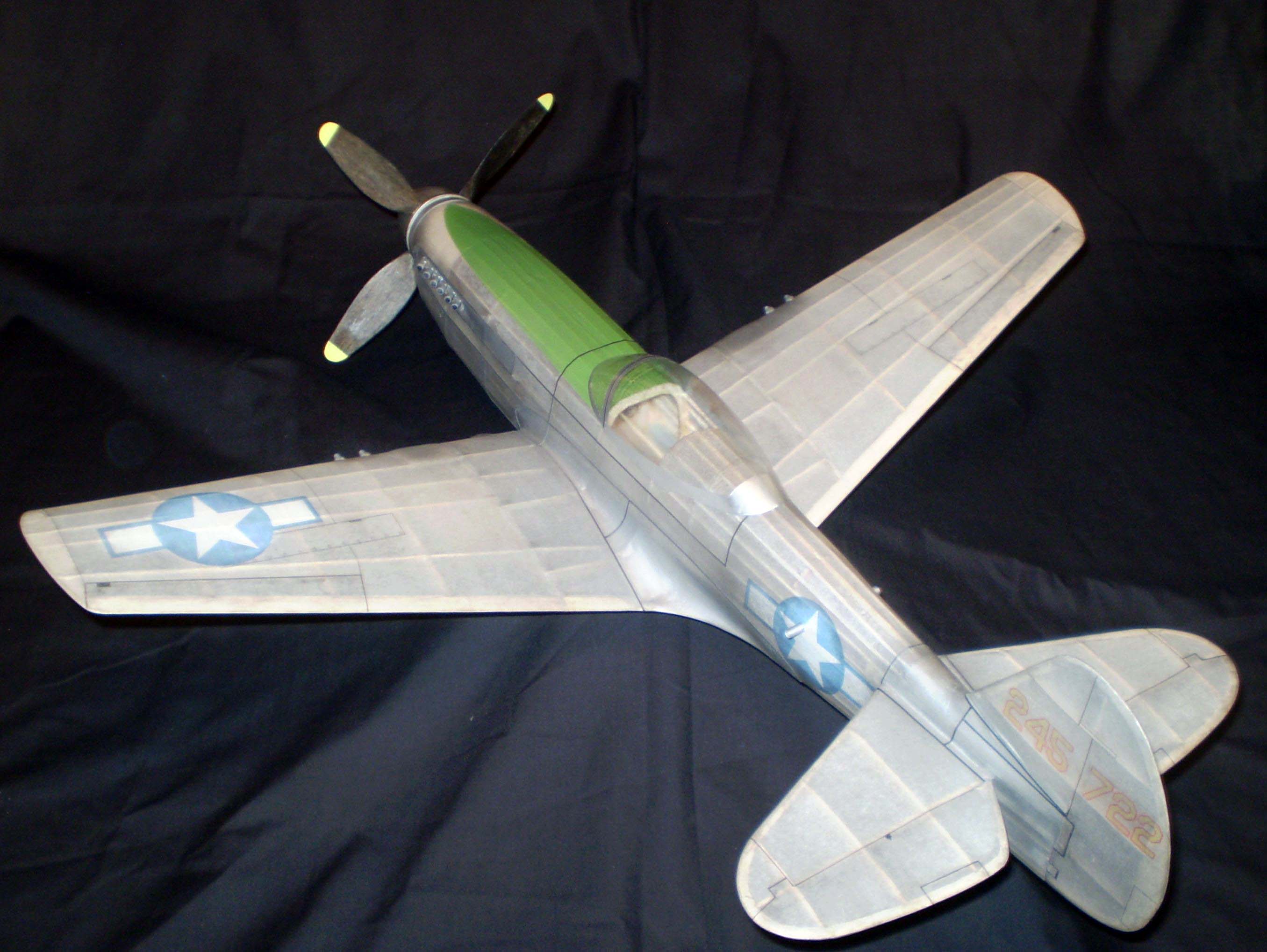

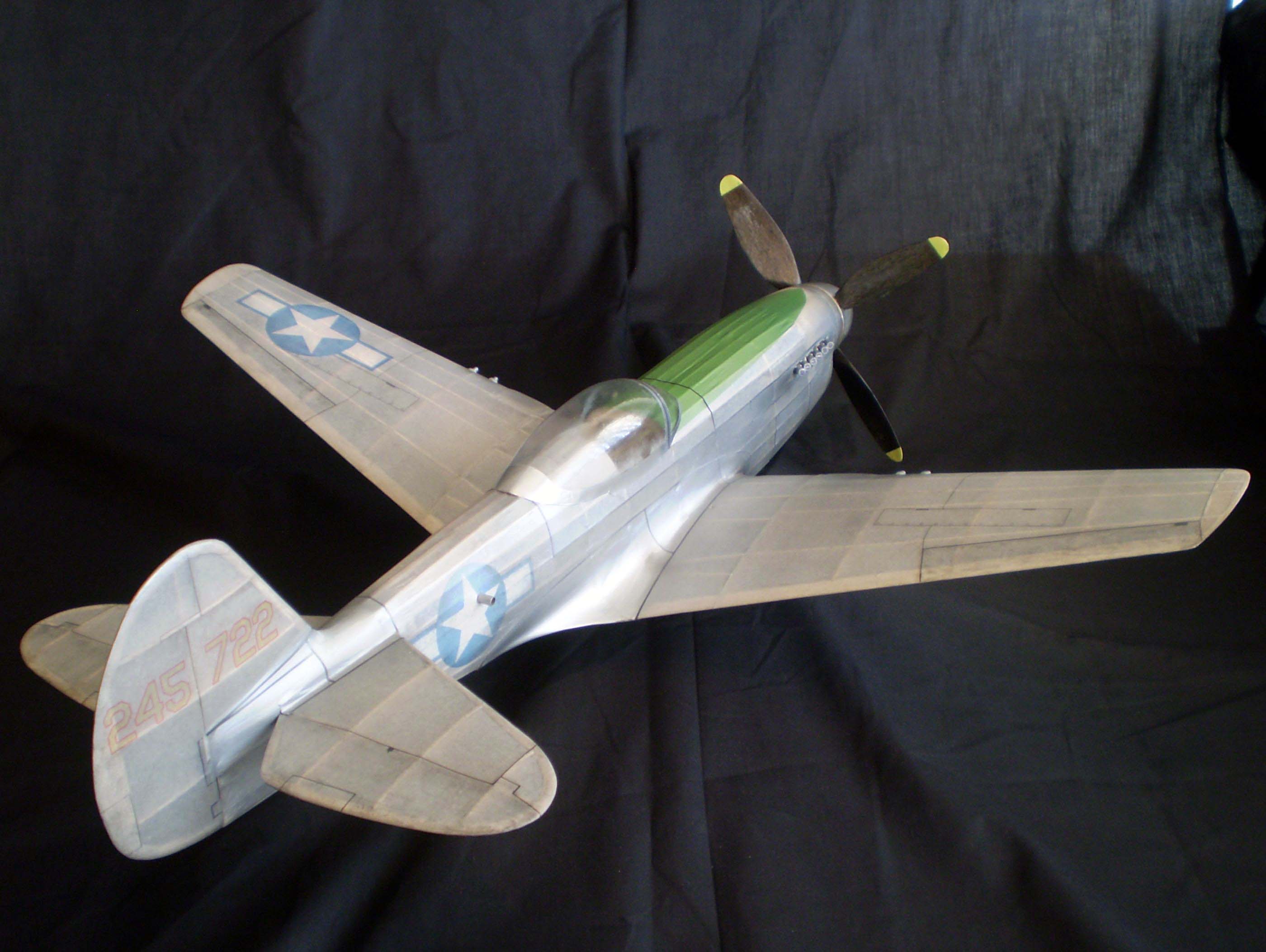

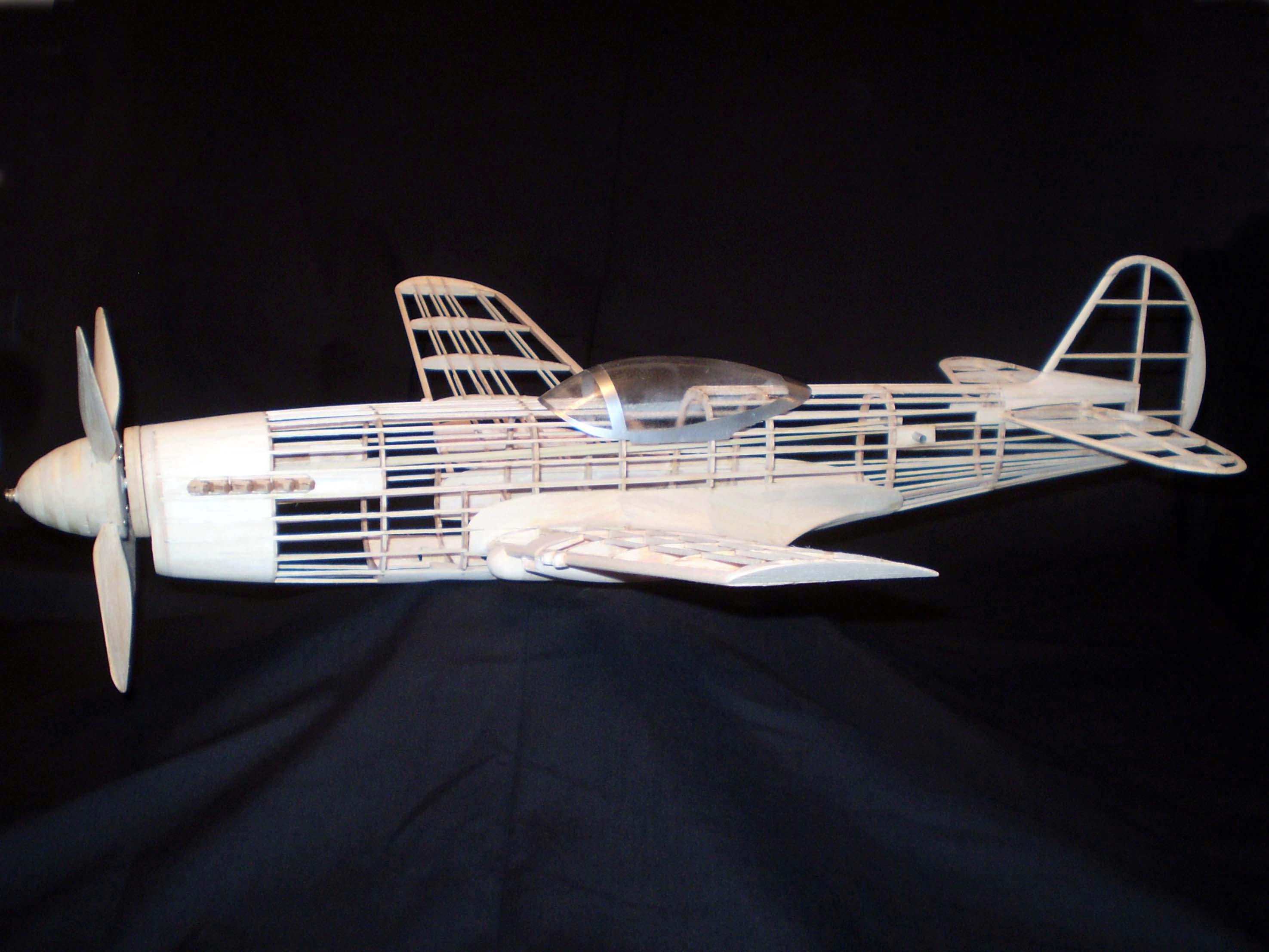

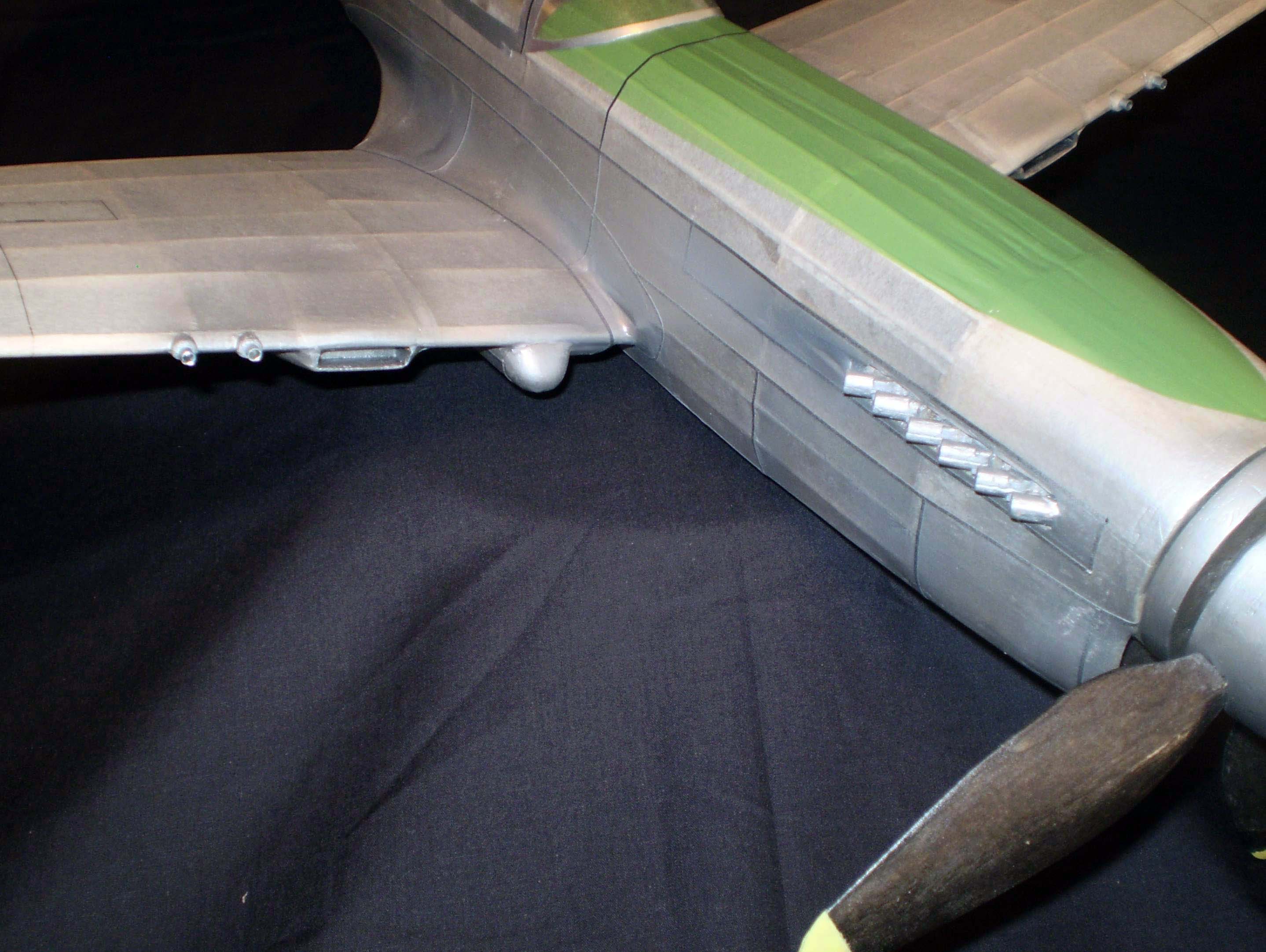

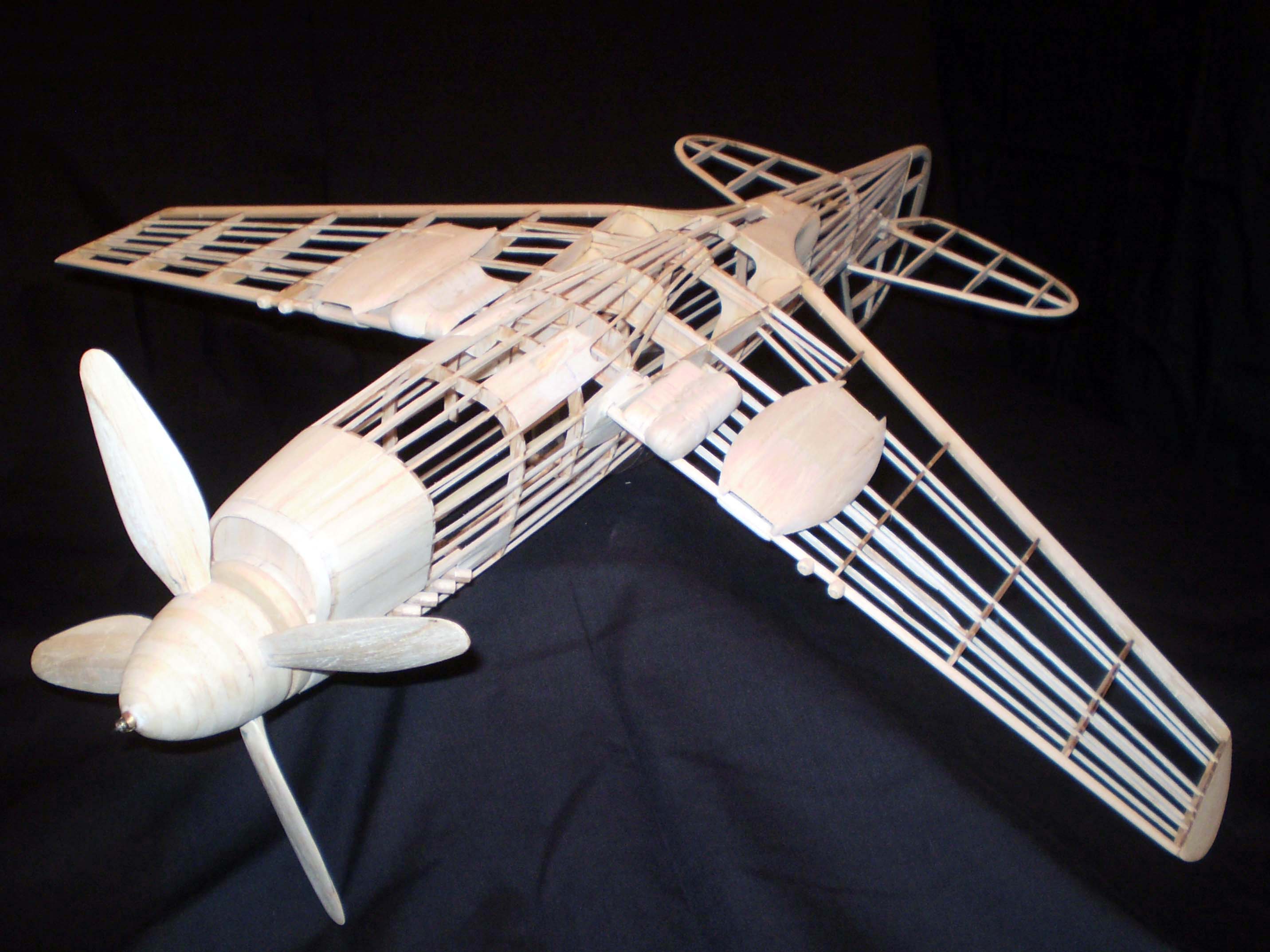

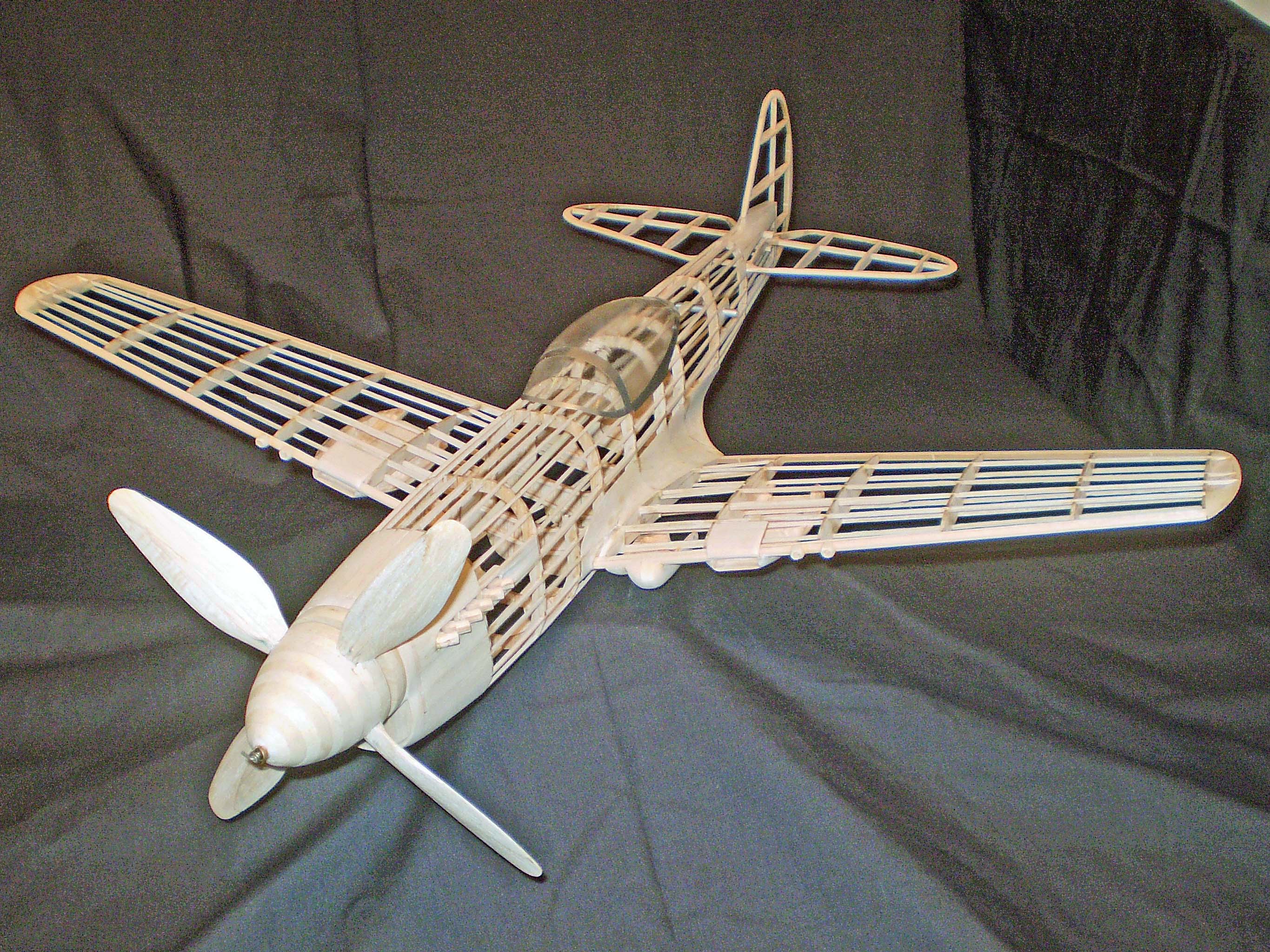

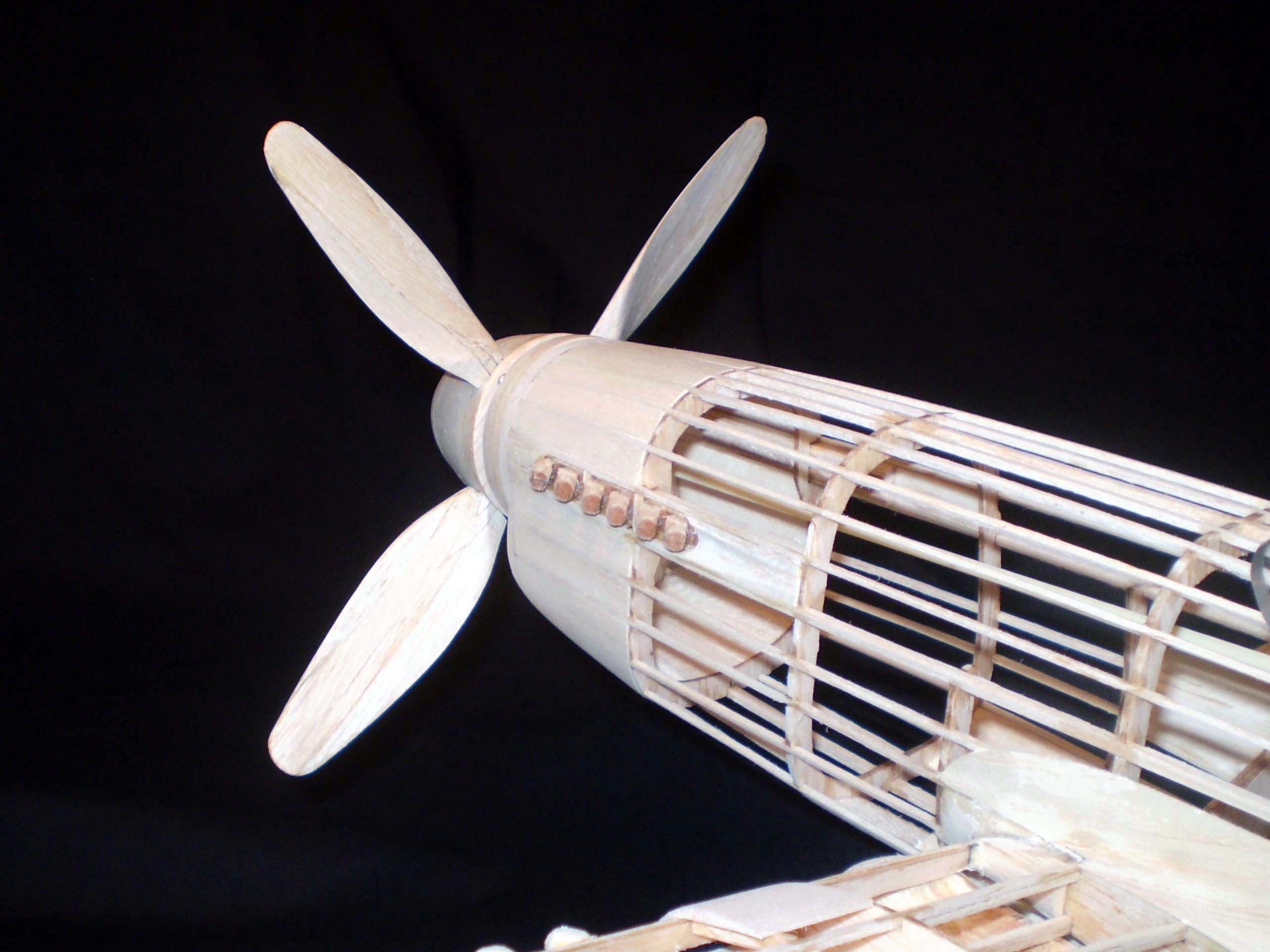

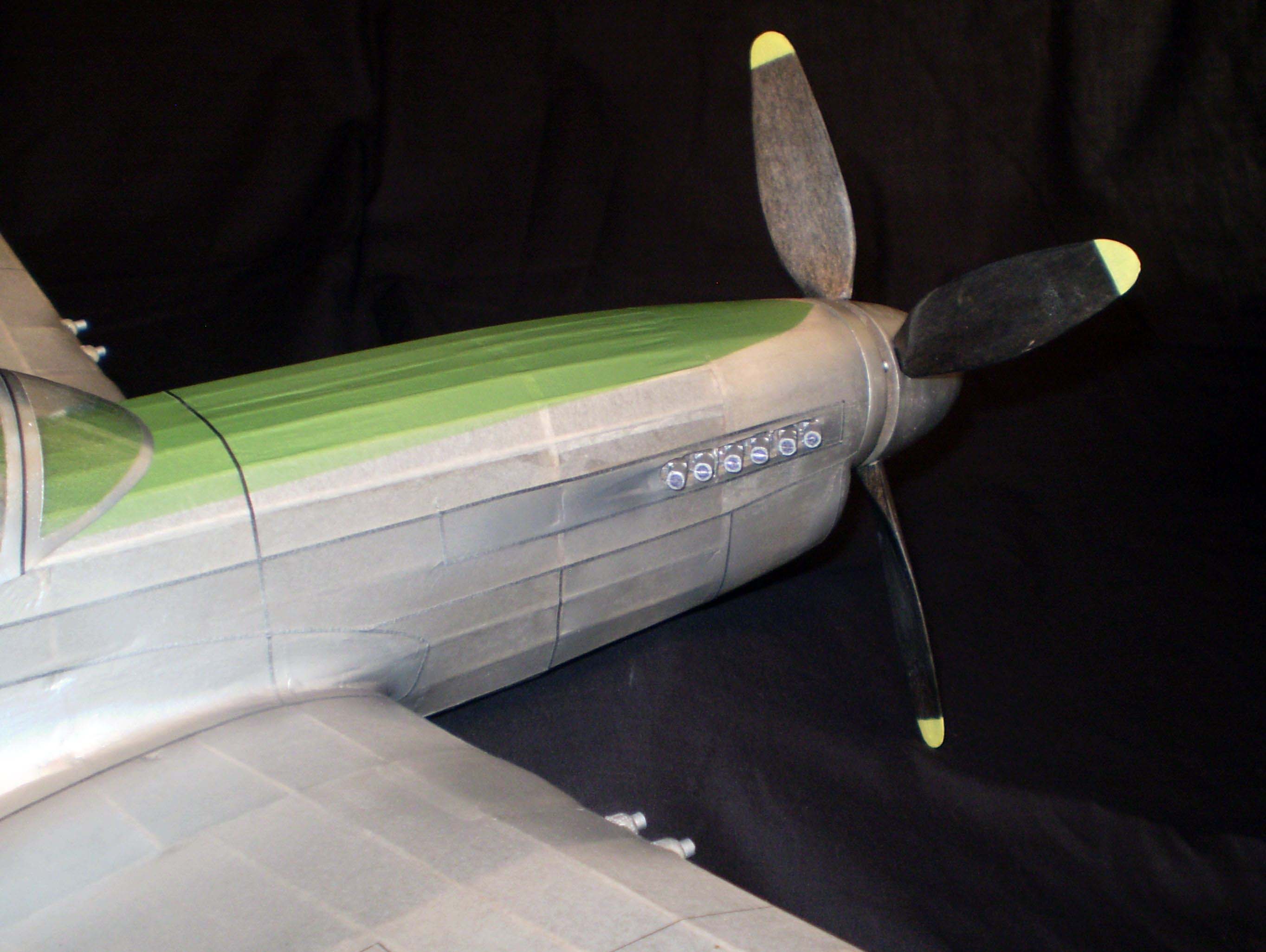

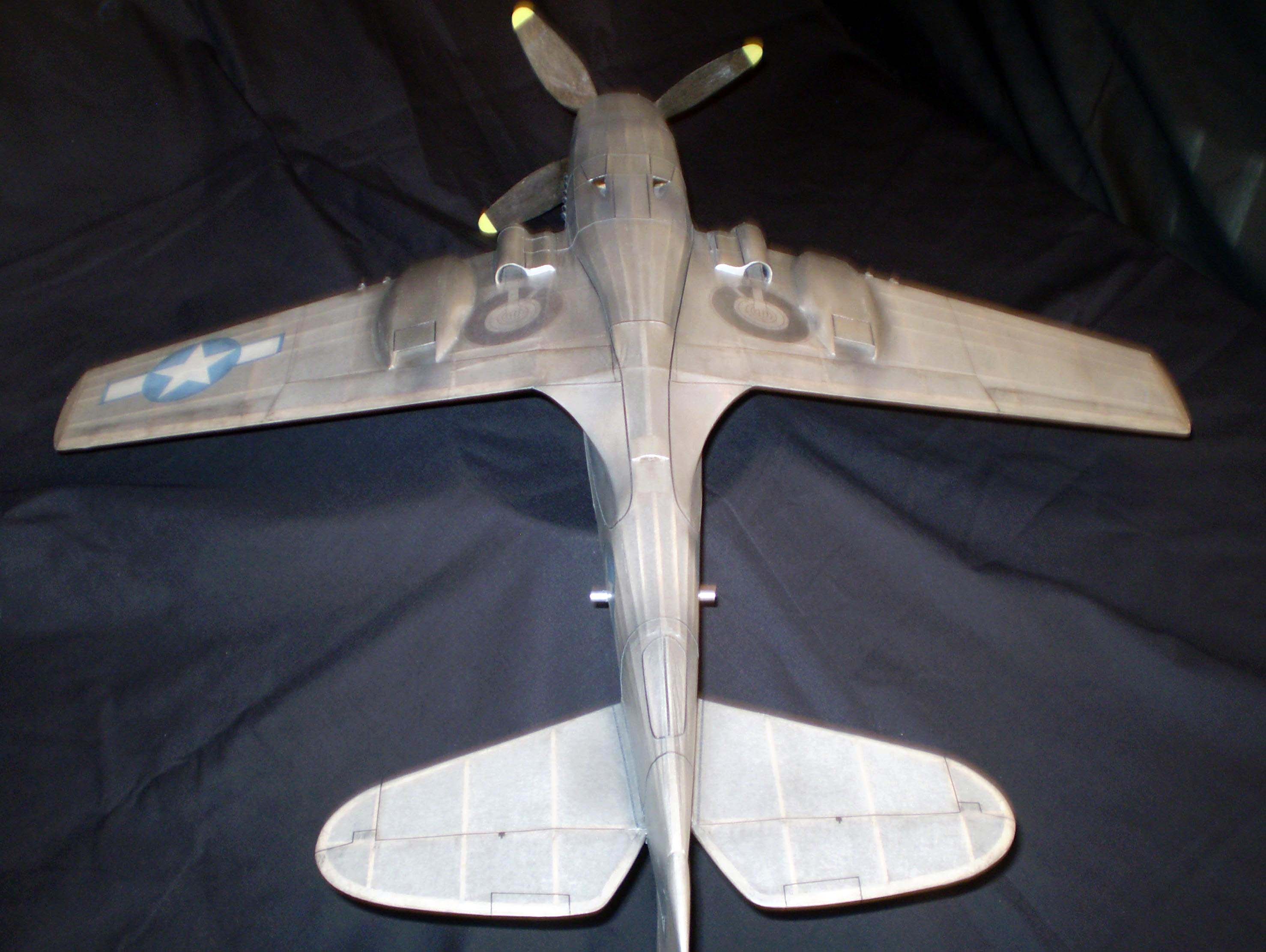

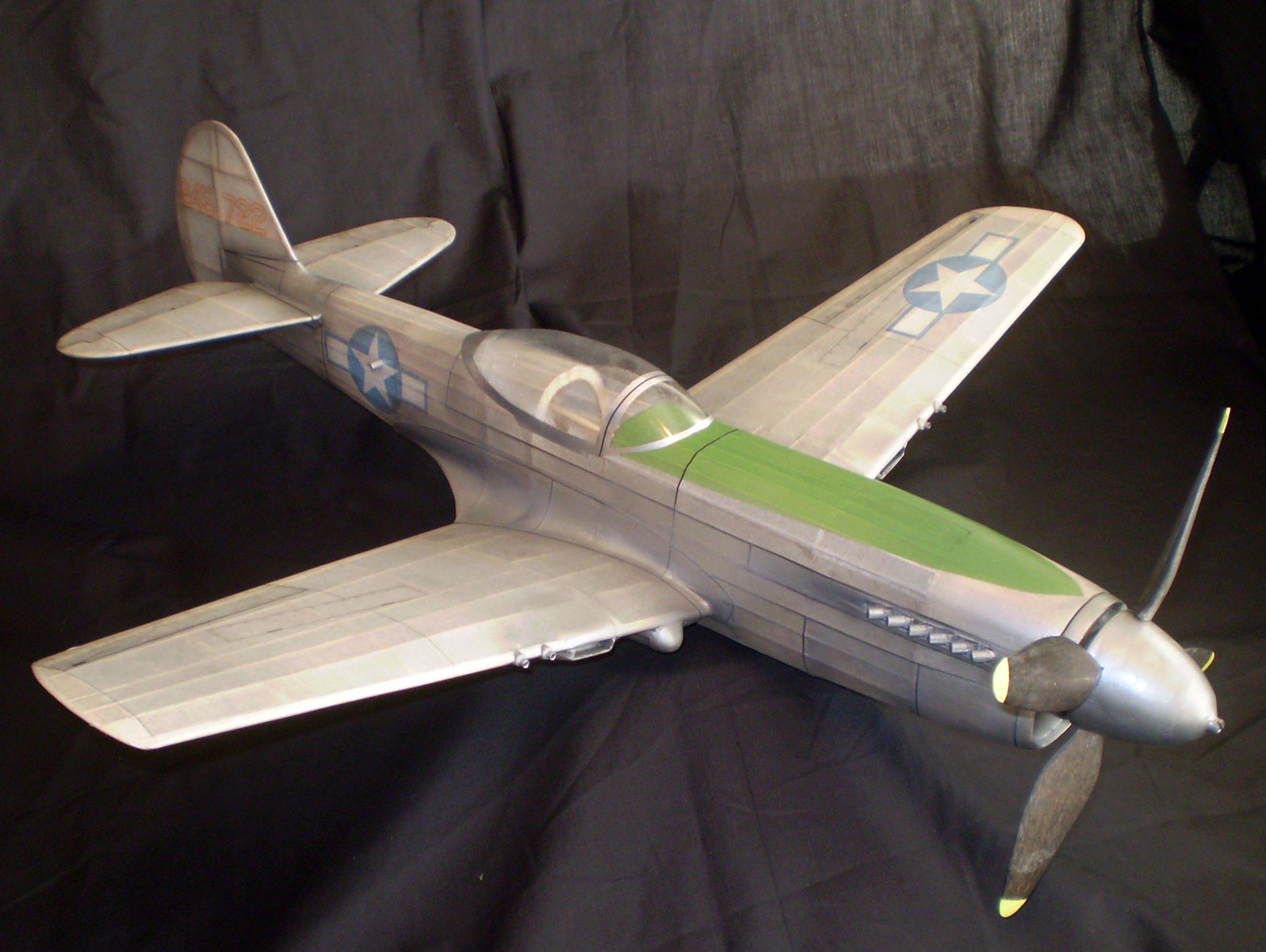

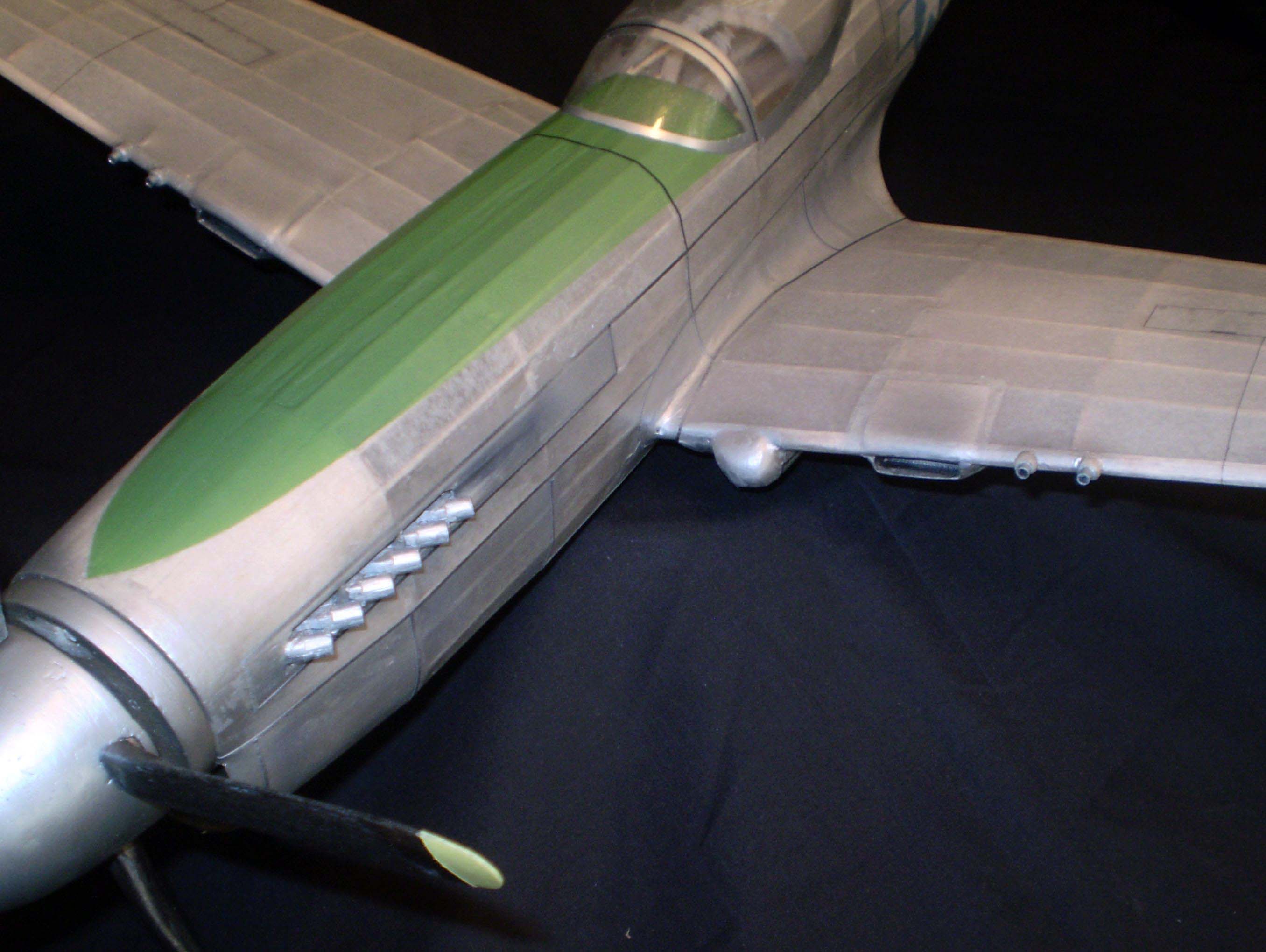

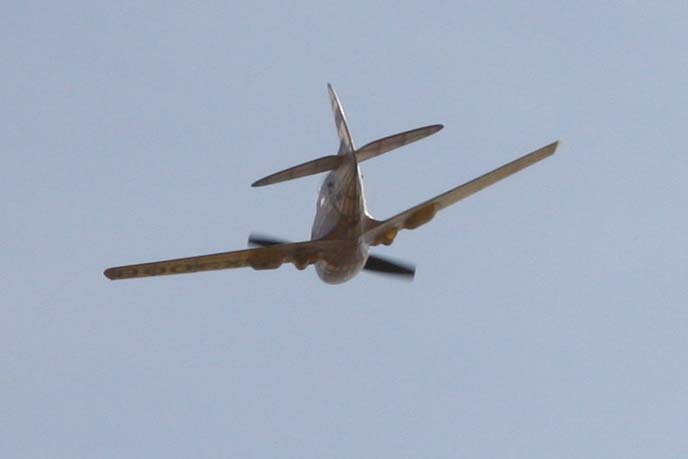

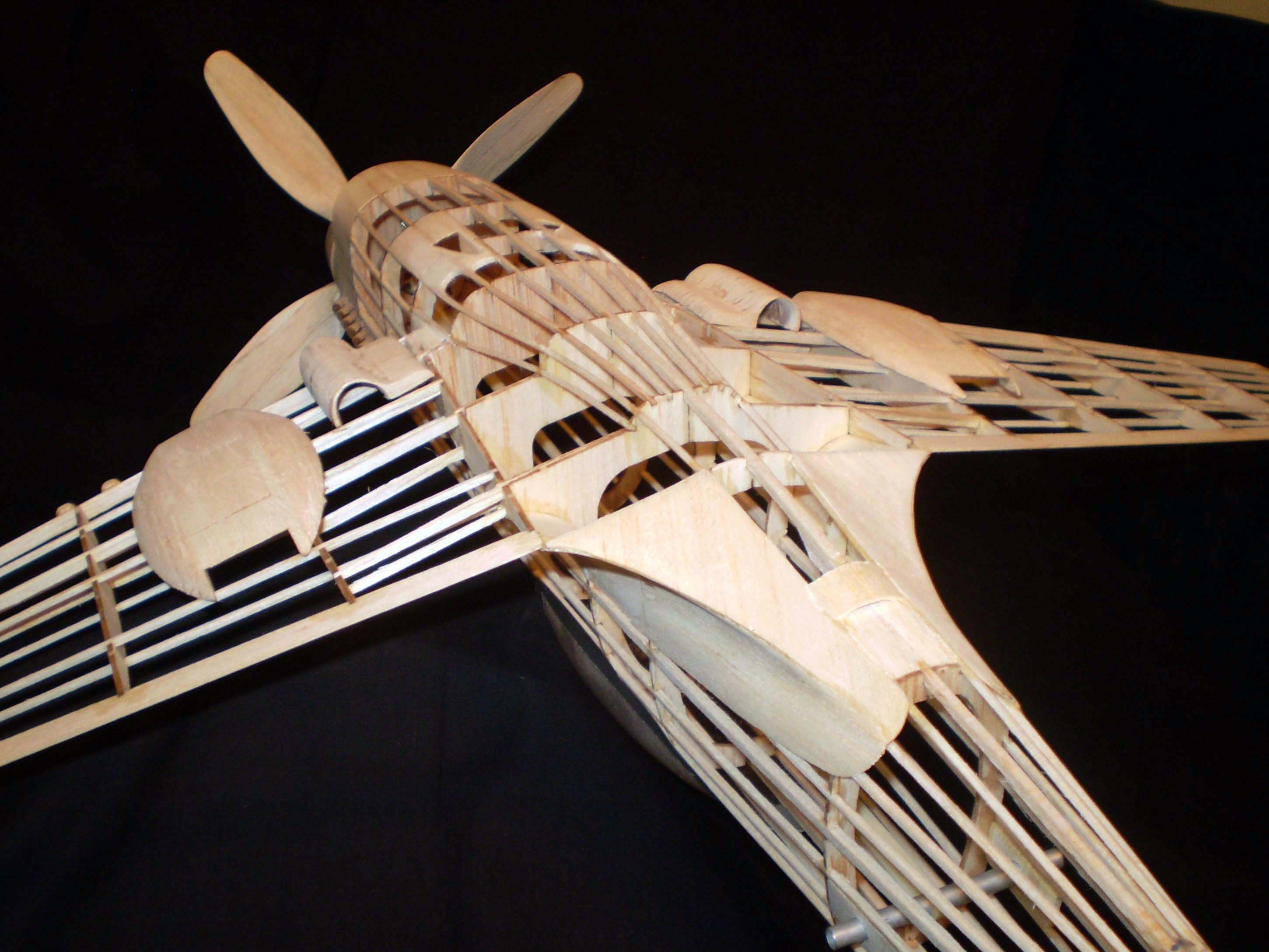

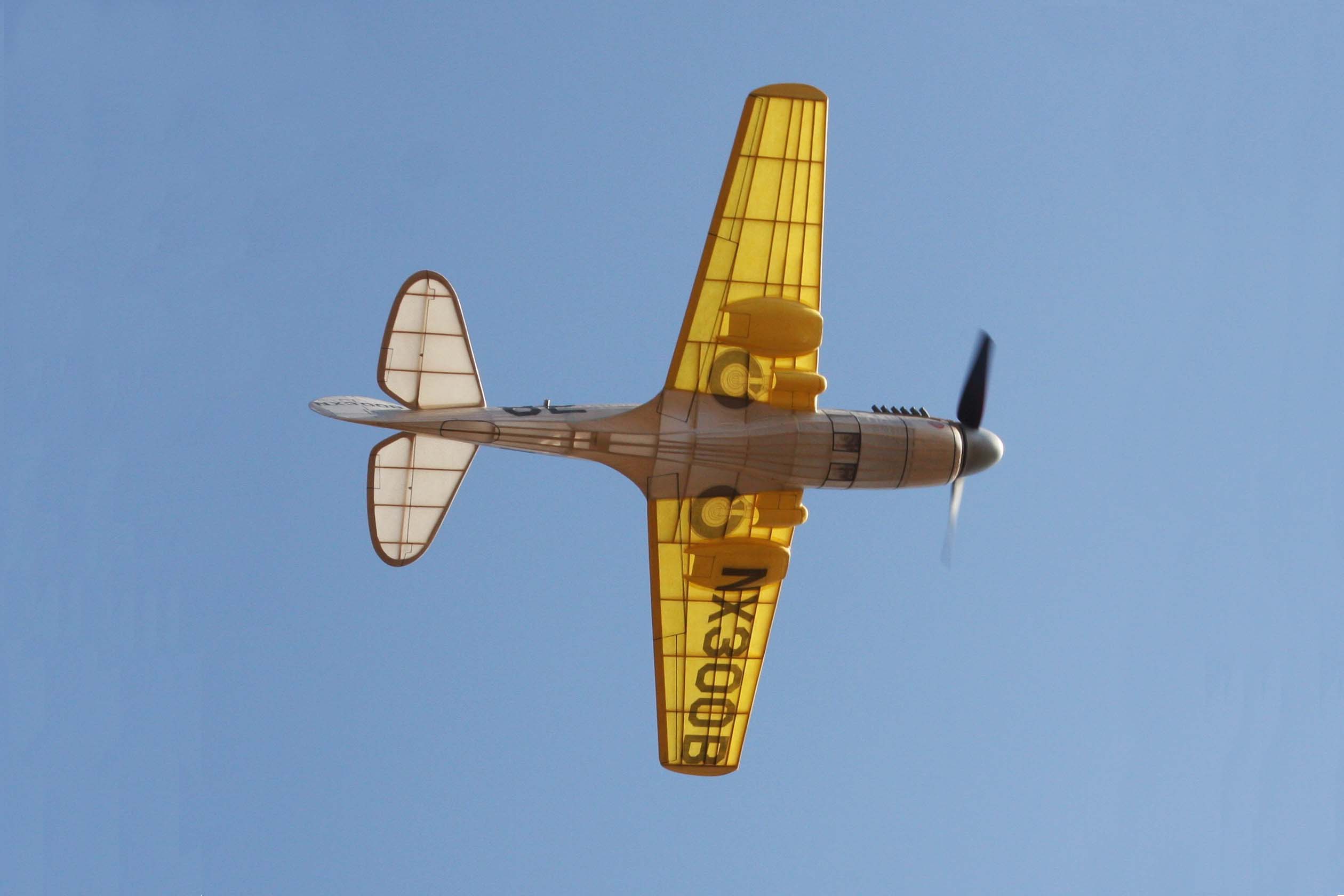

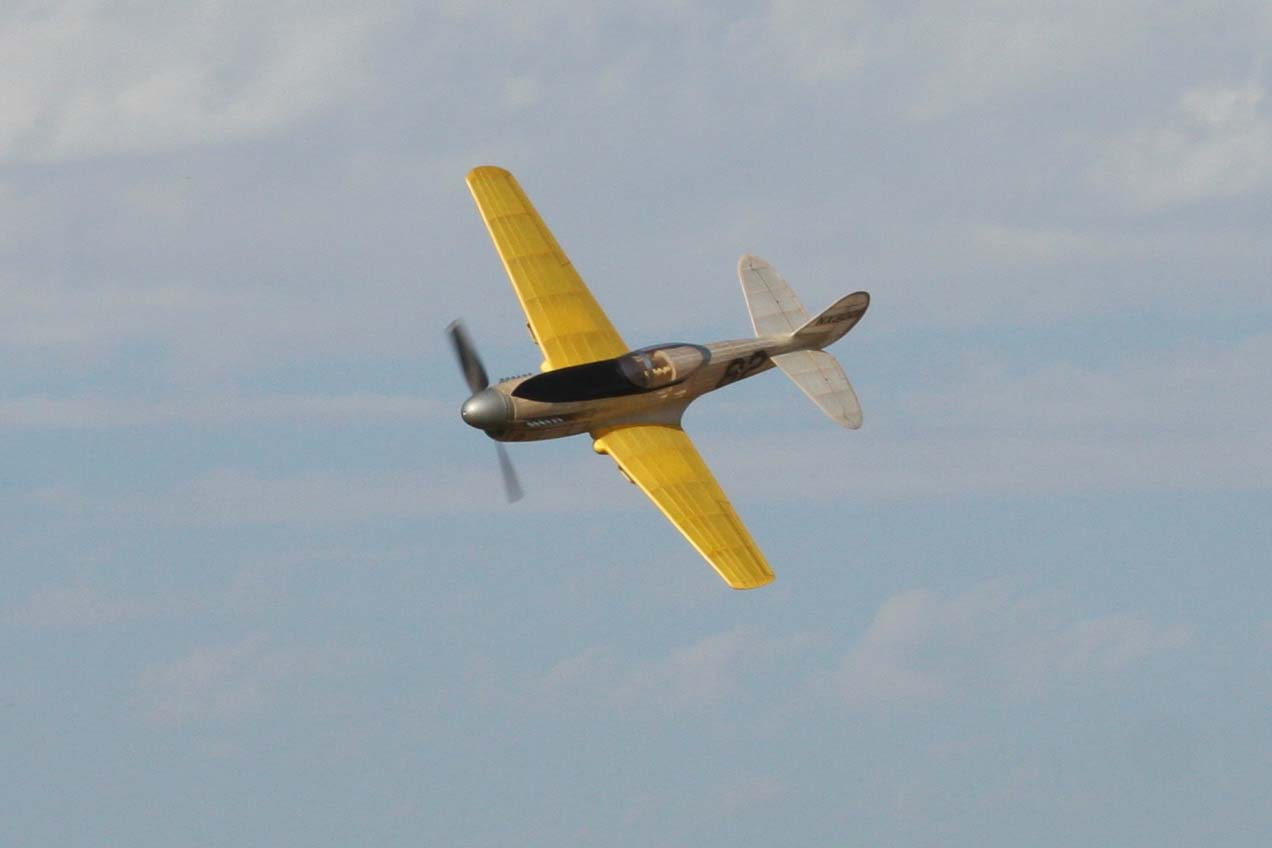

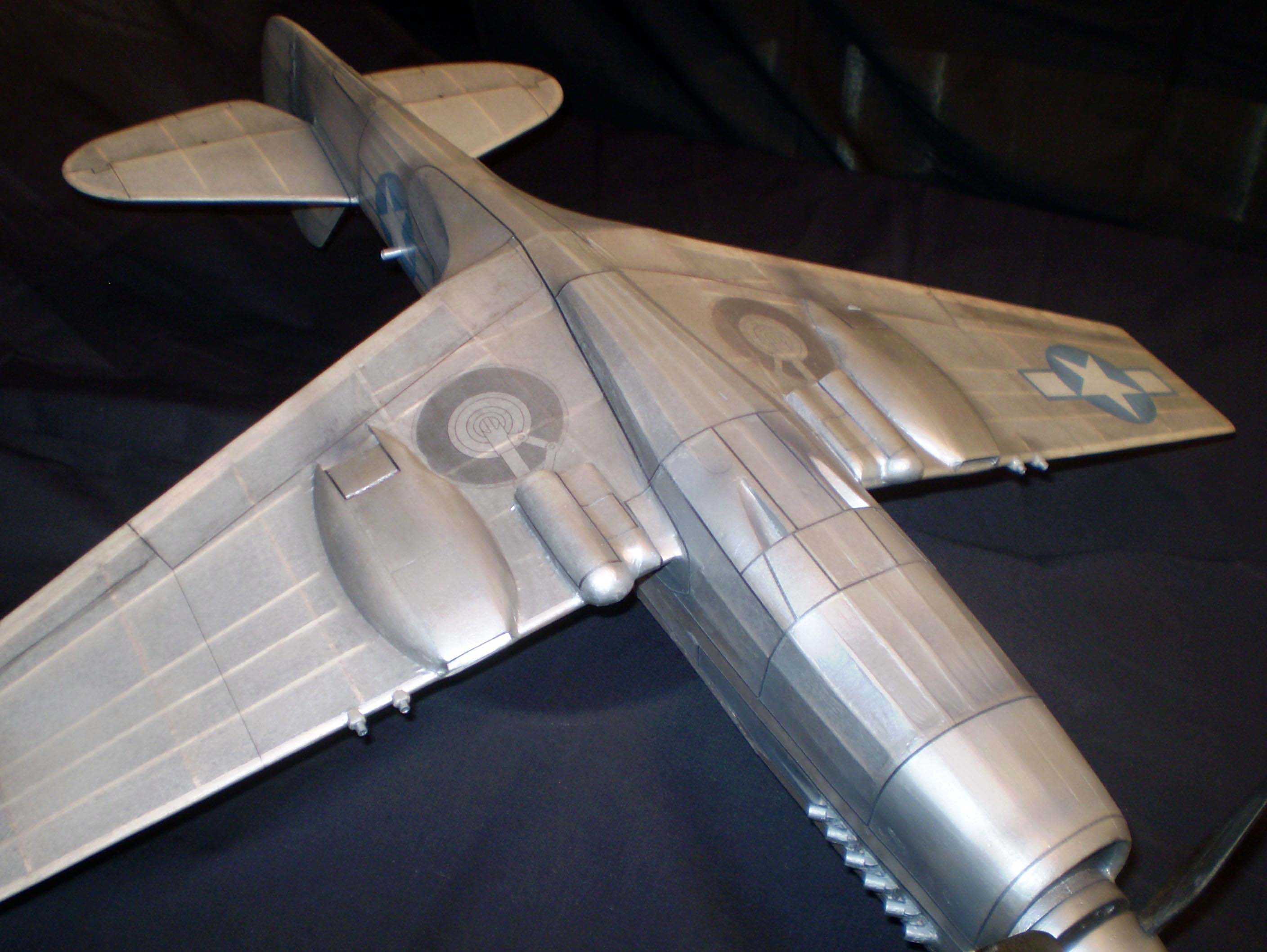

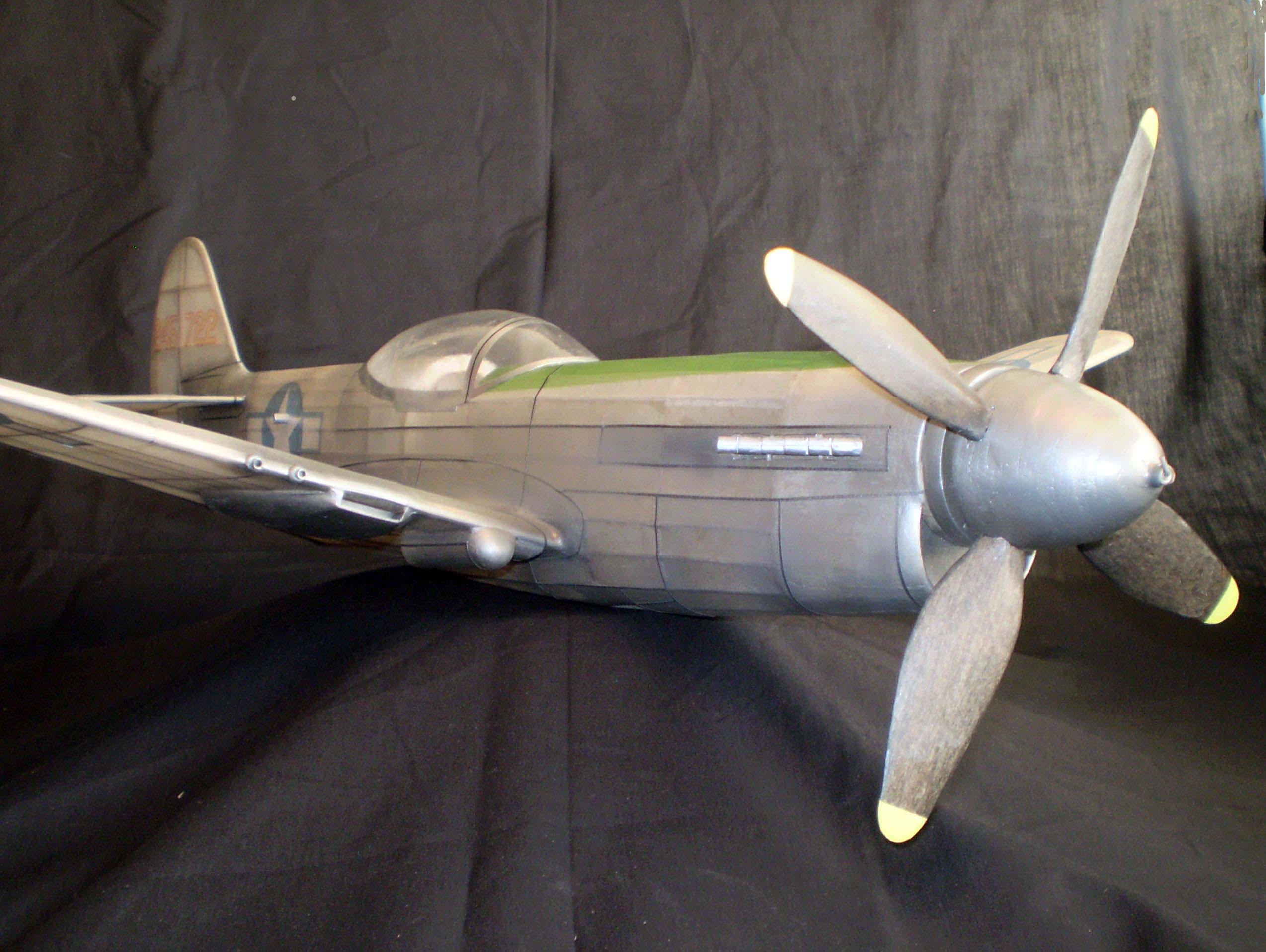

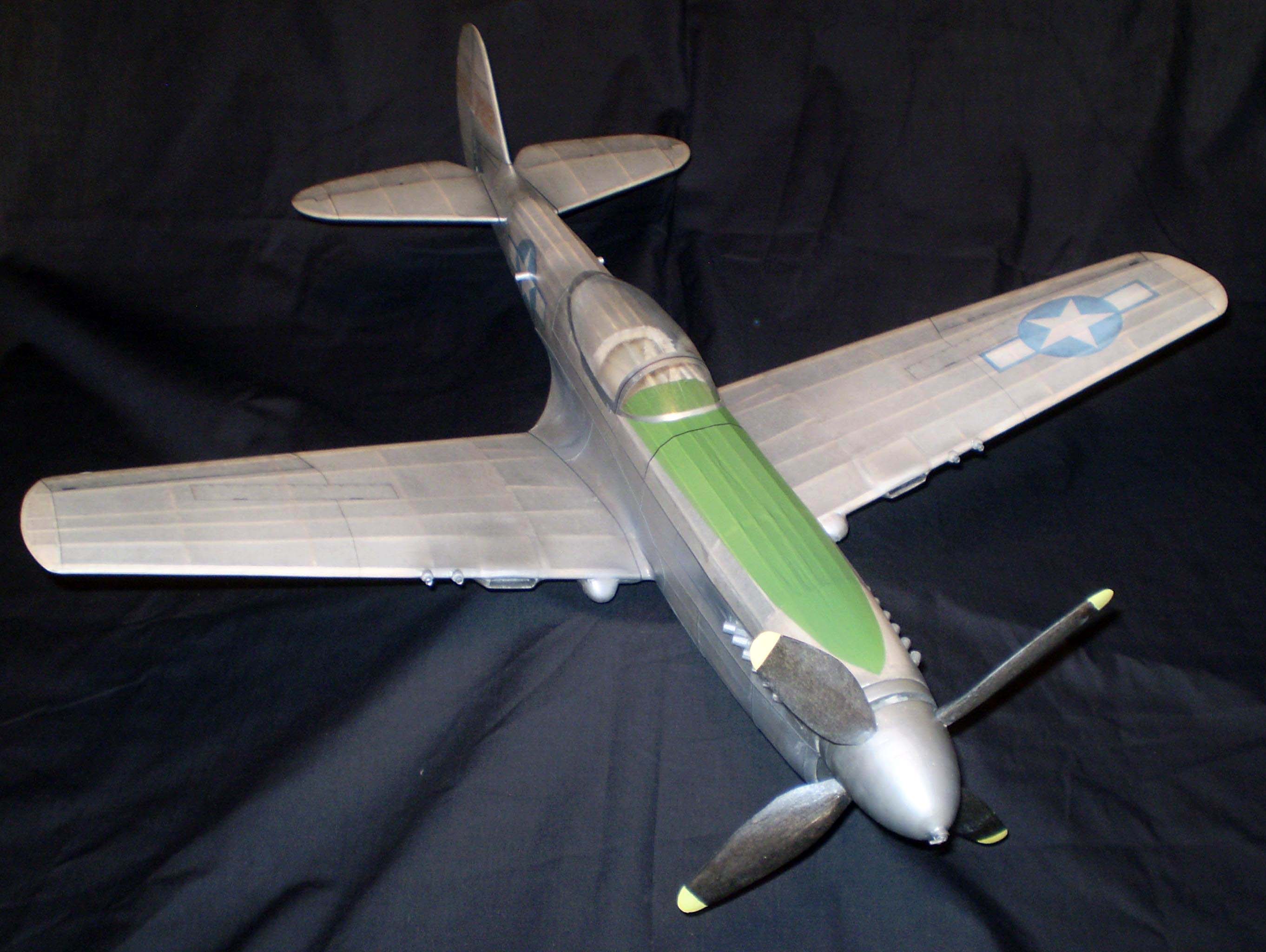

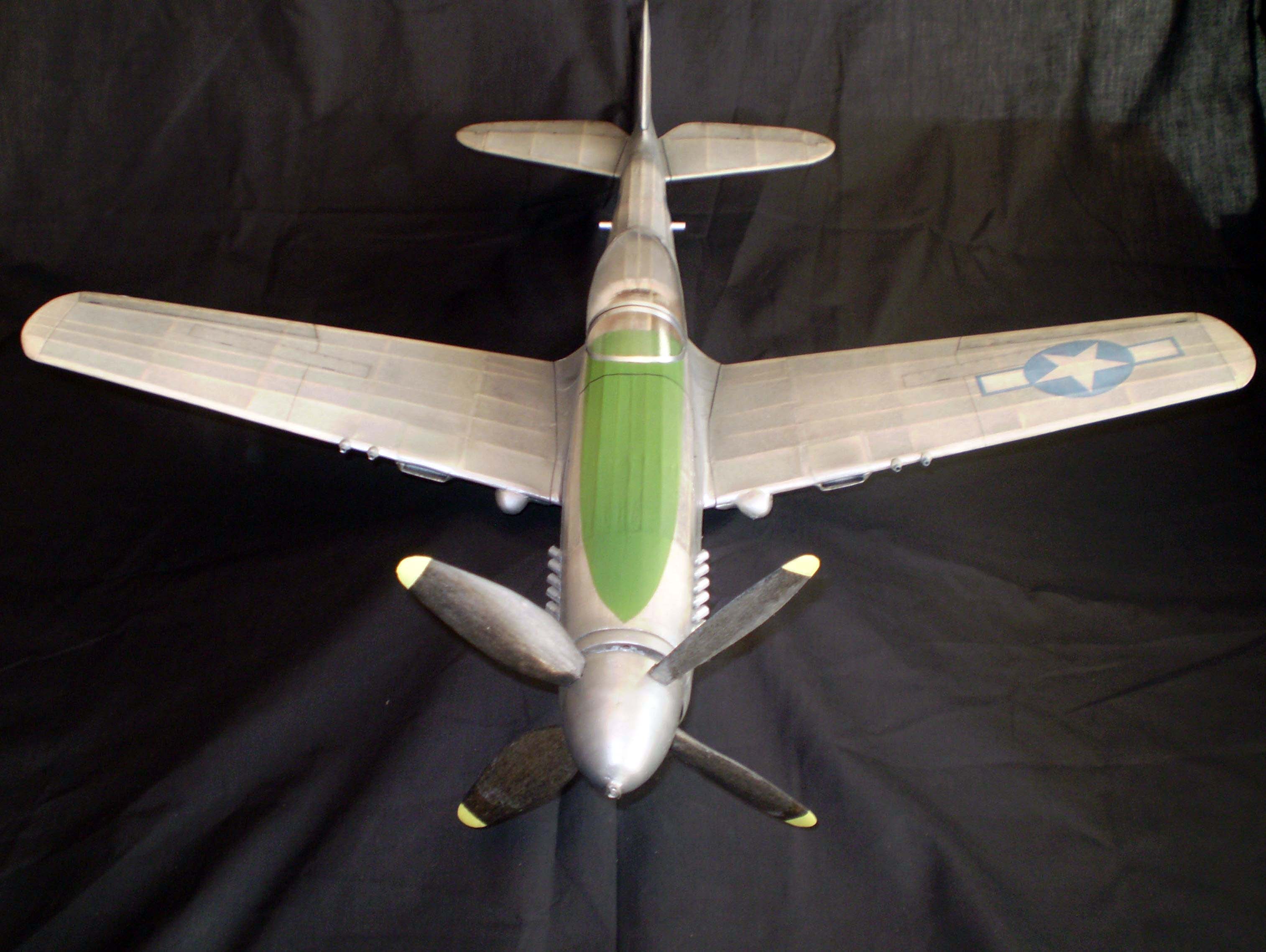

Curtis XP-40Q pictures:
