our products - BOOMER MK III Competition and Sport Model

BOOMER MK III
P-30 Competition and Sport Model

The BOOMER just got even better yet!
Basically the MK III has been re-introduced to the same level as the MONARCH.

The BOOMER MK III kit includes the 9.5 inch Gizmo Geezer Precision Freewheeler with accessories and instructions as well as the Badge viscous timer.

Several changes to the fuselage design with emphasis on weight saving were made as well as a slight change to the wing.

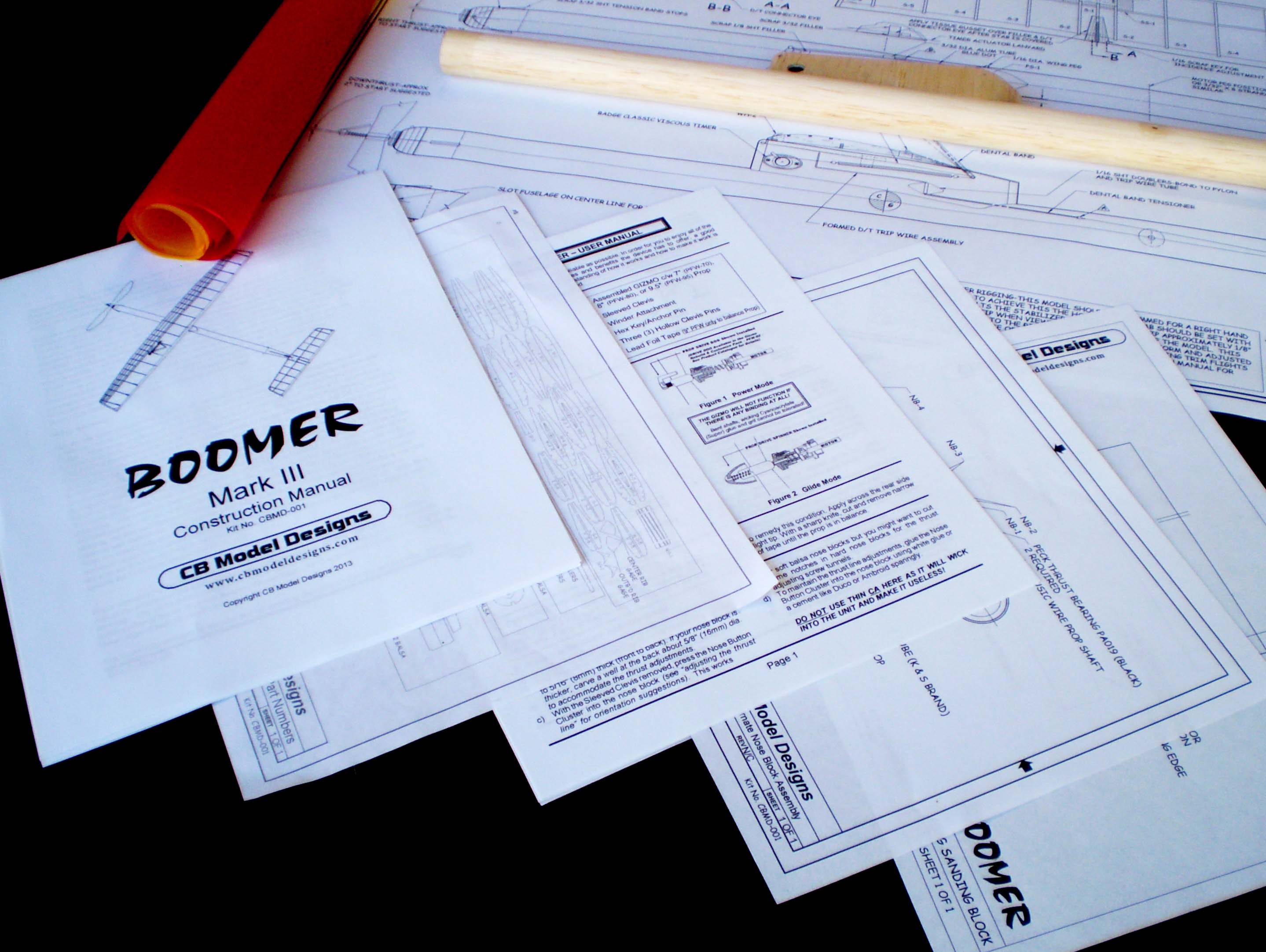

The BOOMER MK III kit includes the printed Construction Manual and an additional Construction Details file is available online that shows the detailed step by step photos of the build.

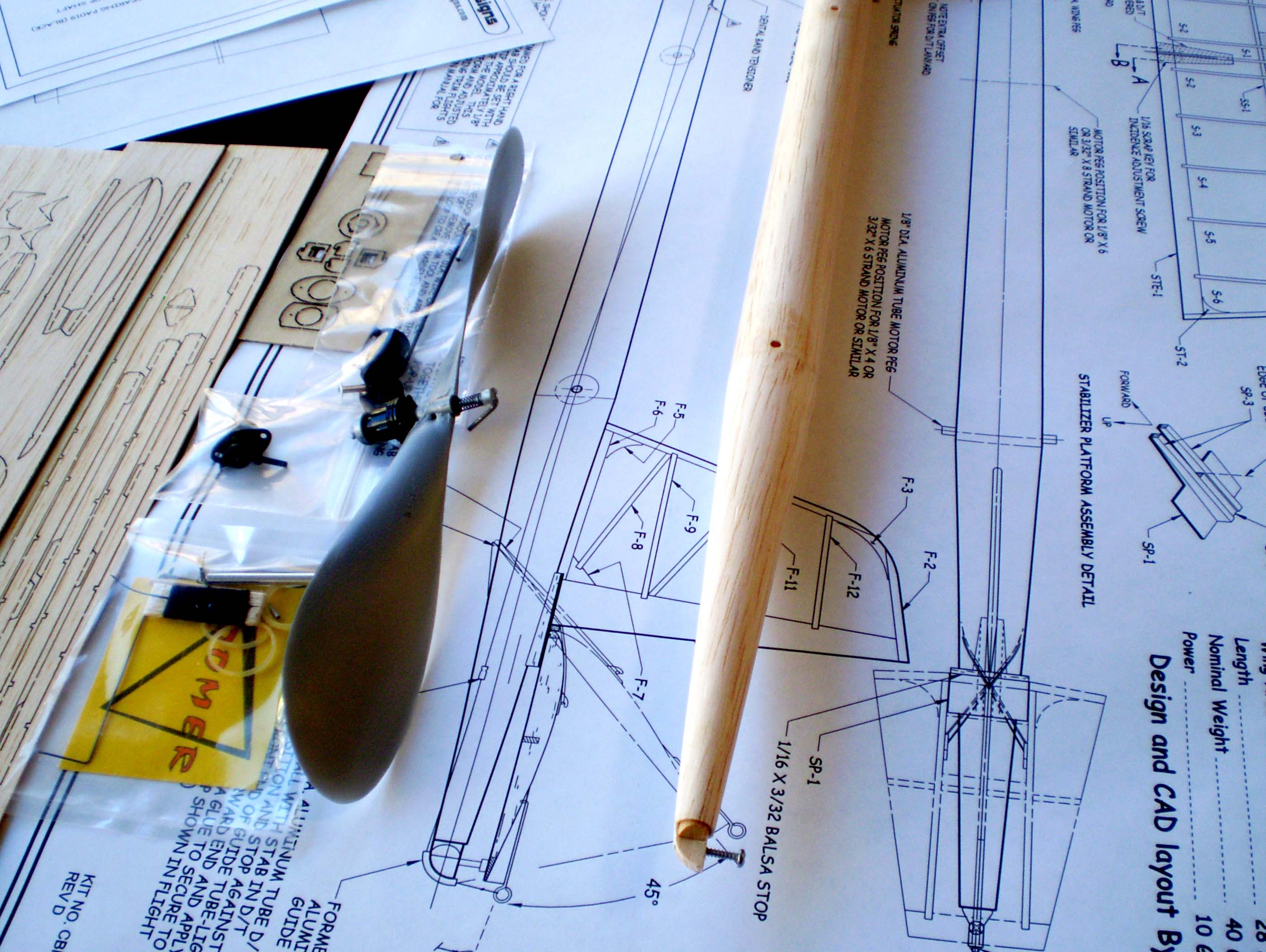

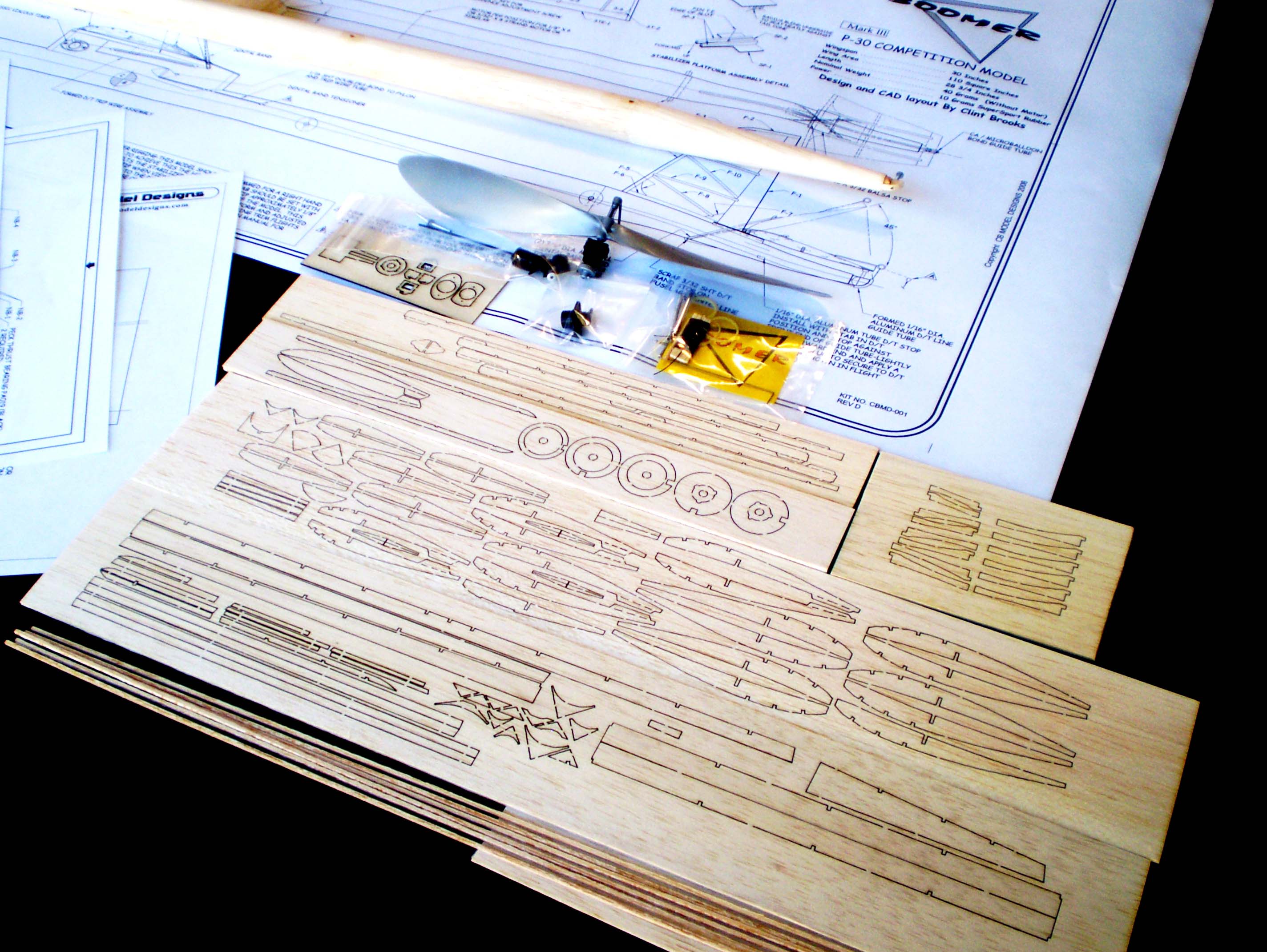

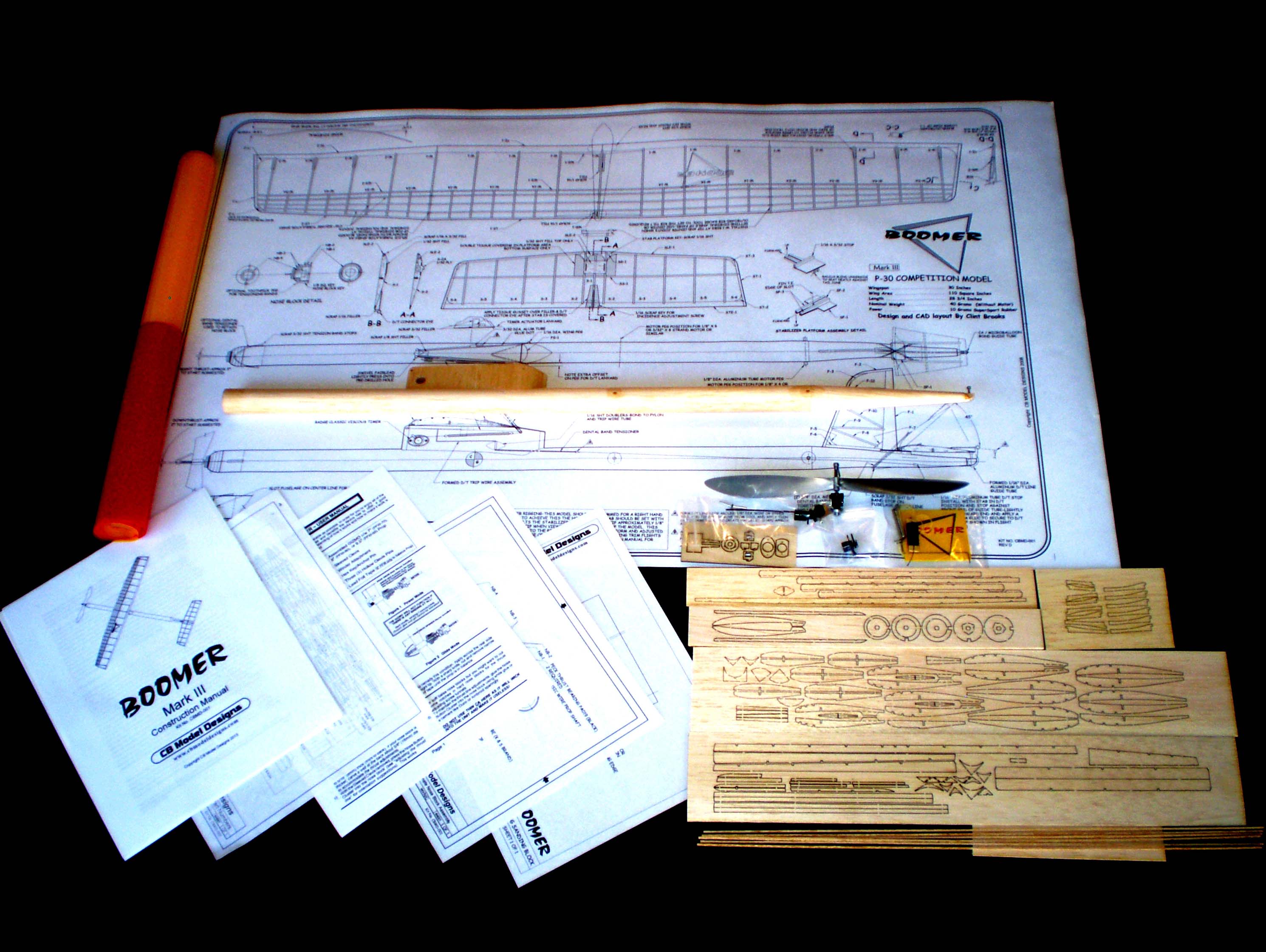

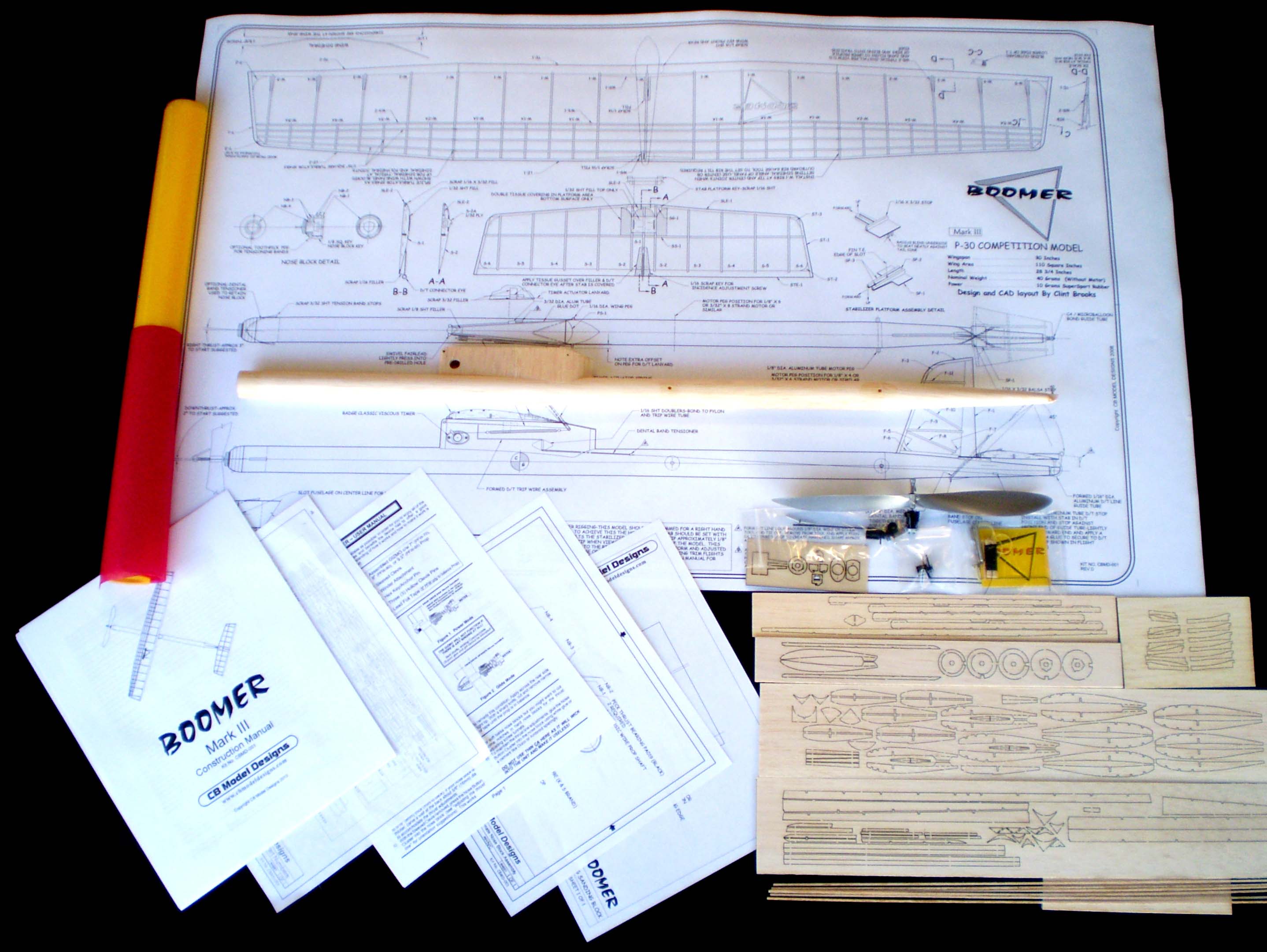

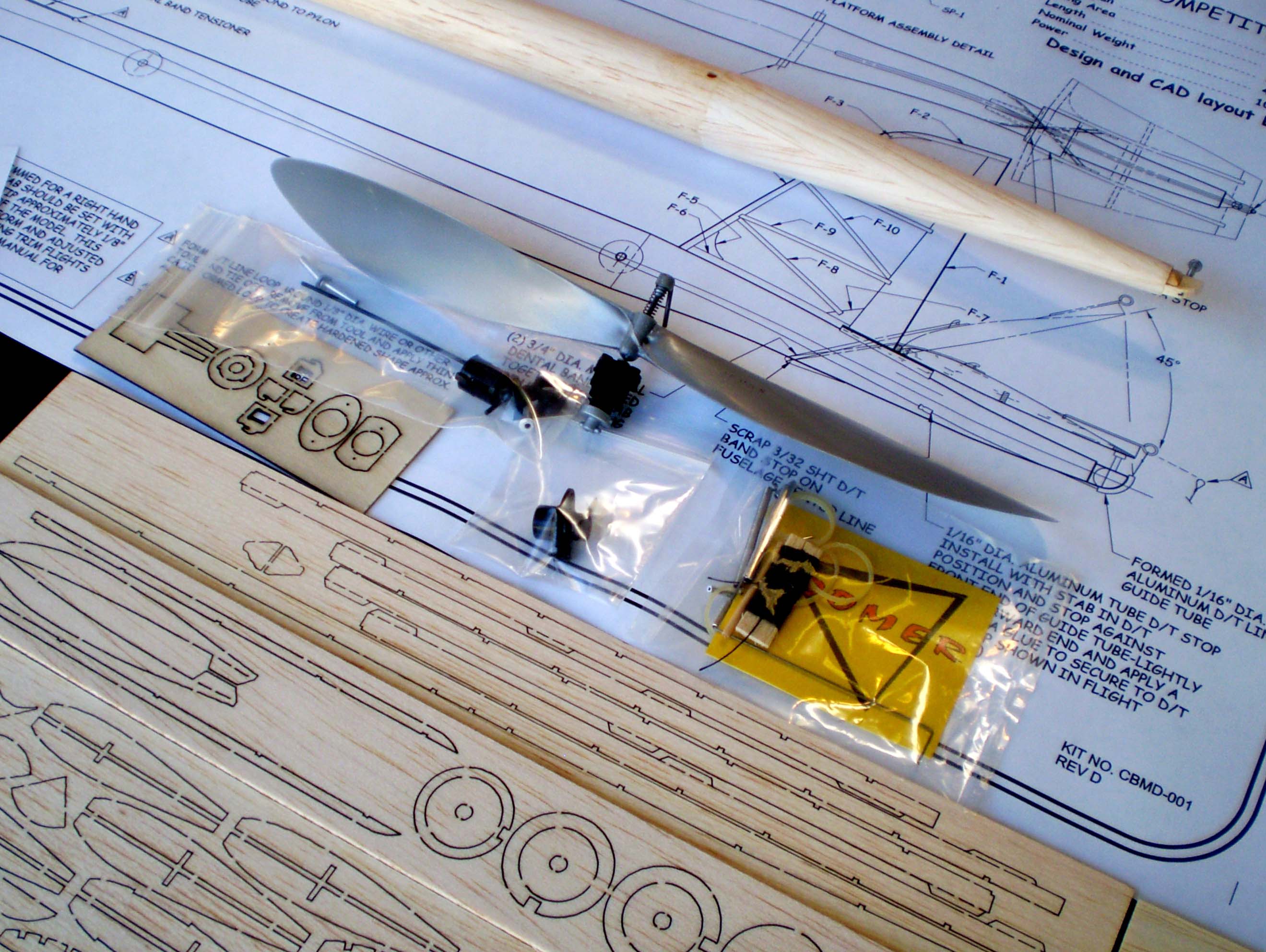

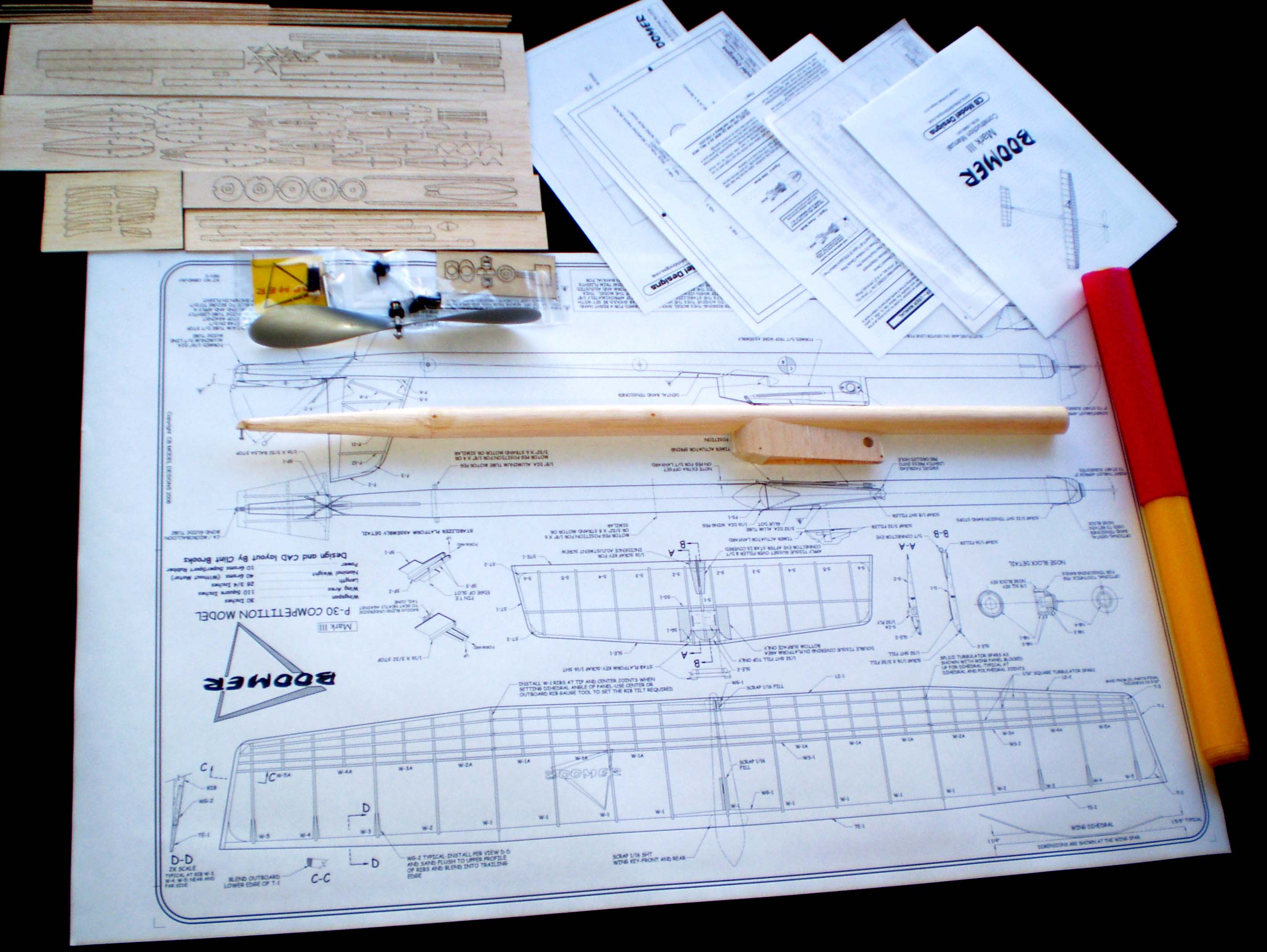

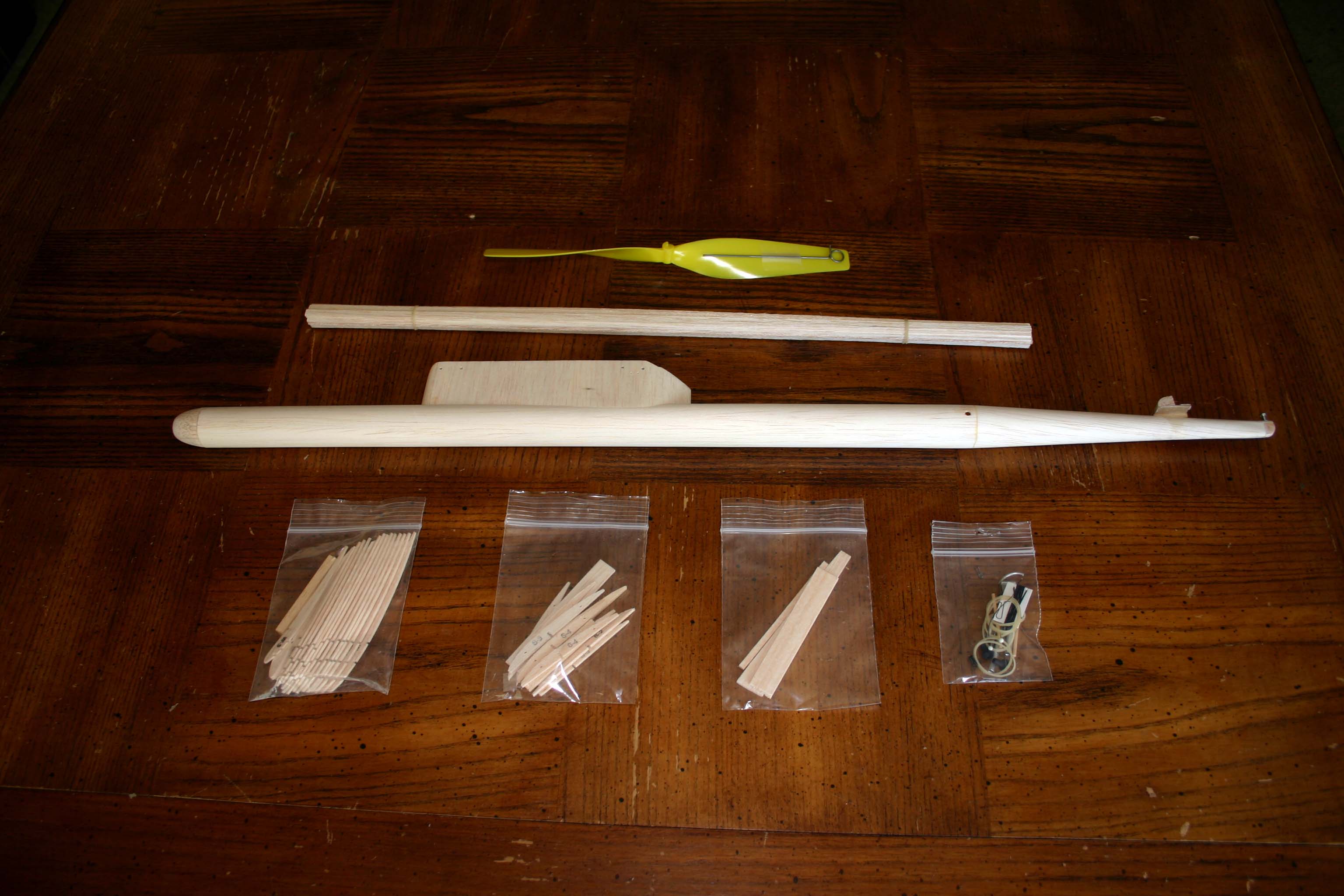

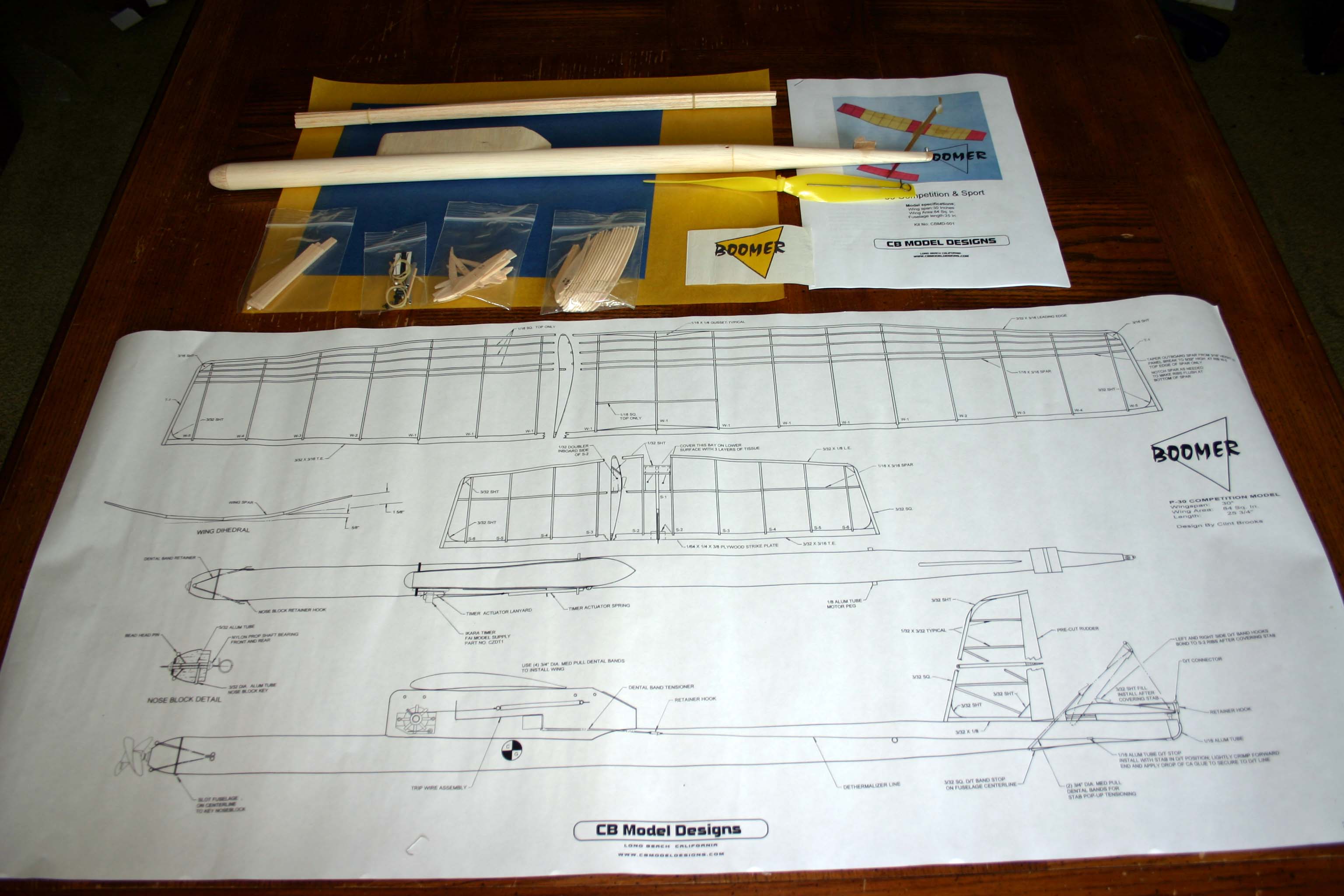

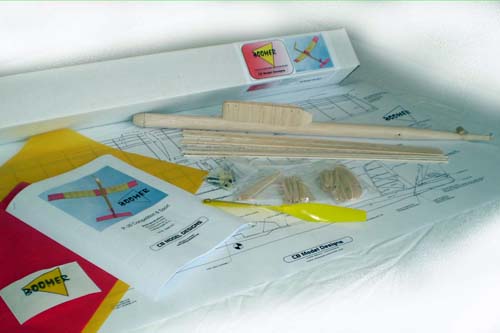

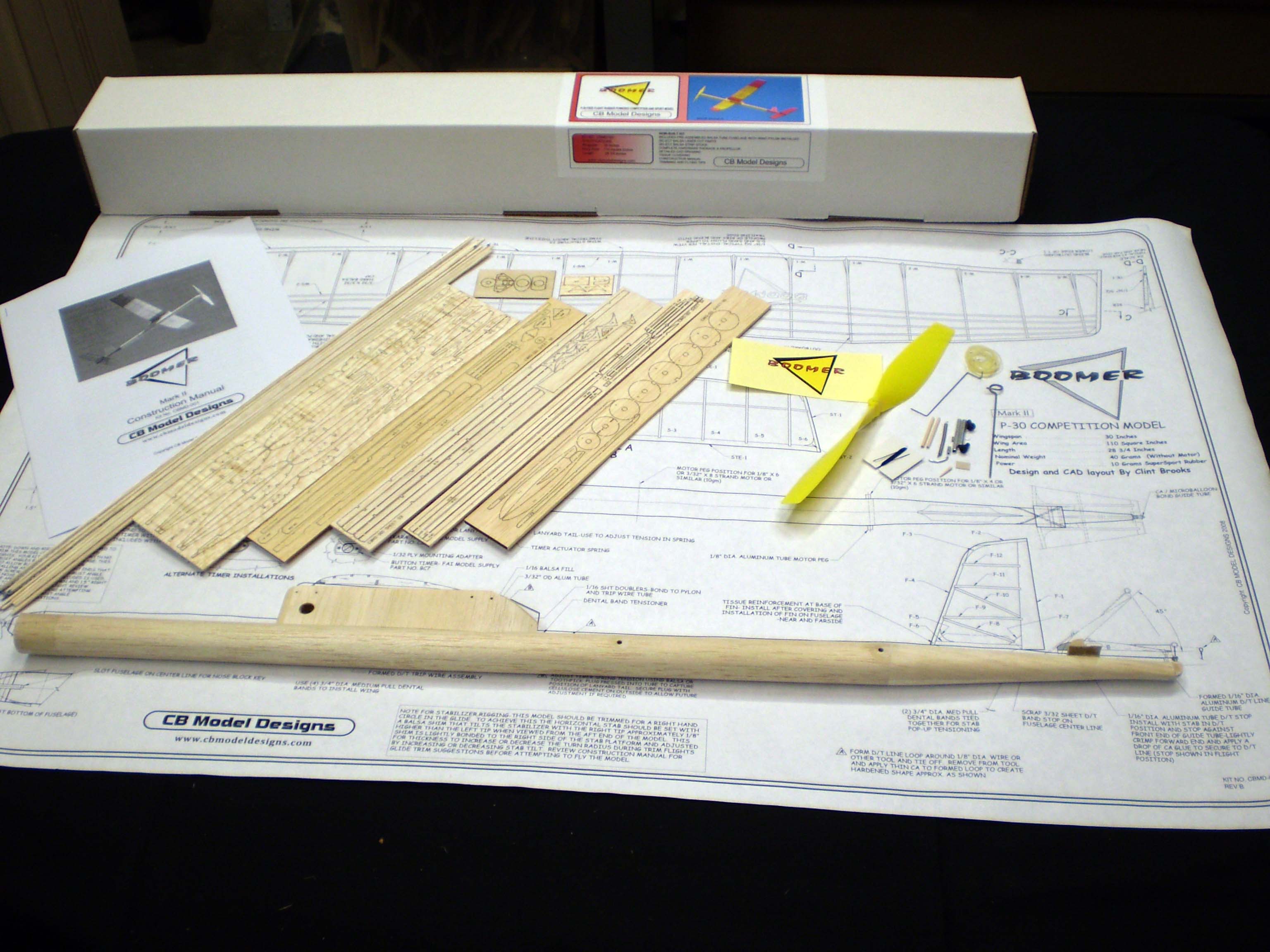

The BOOMER MK III is a turnkey kit ready for quick assembly and outstanding flight performance that includes:

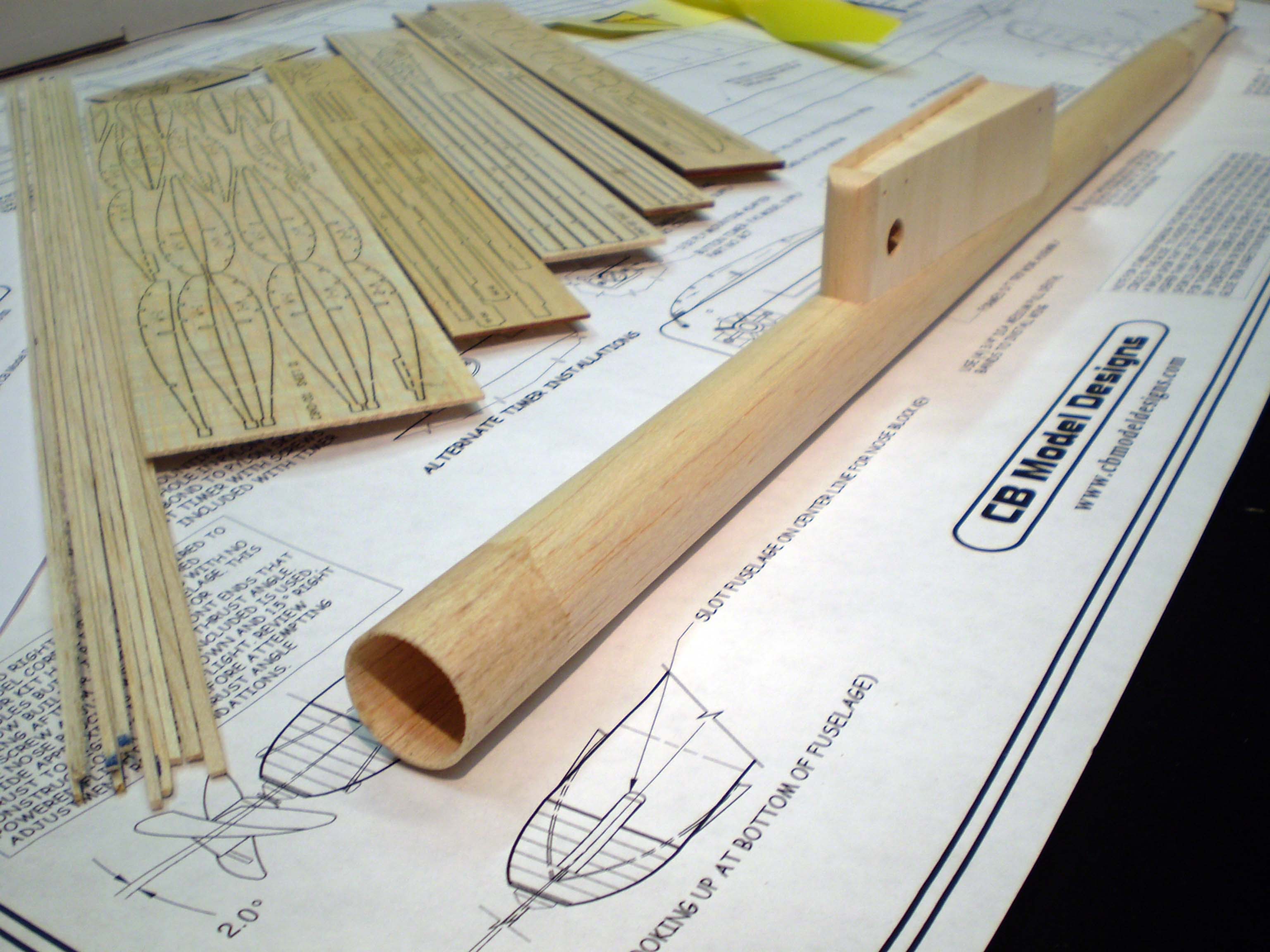

·   Top quality laser cut balsa and plywood parts-fit checked and proven prior to kit design release

·   Quality balsa strip stock

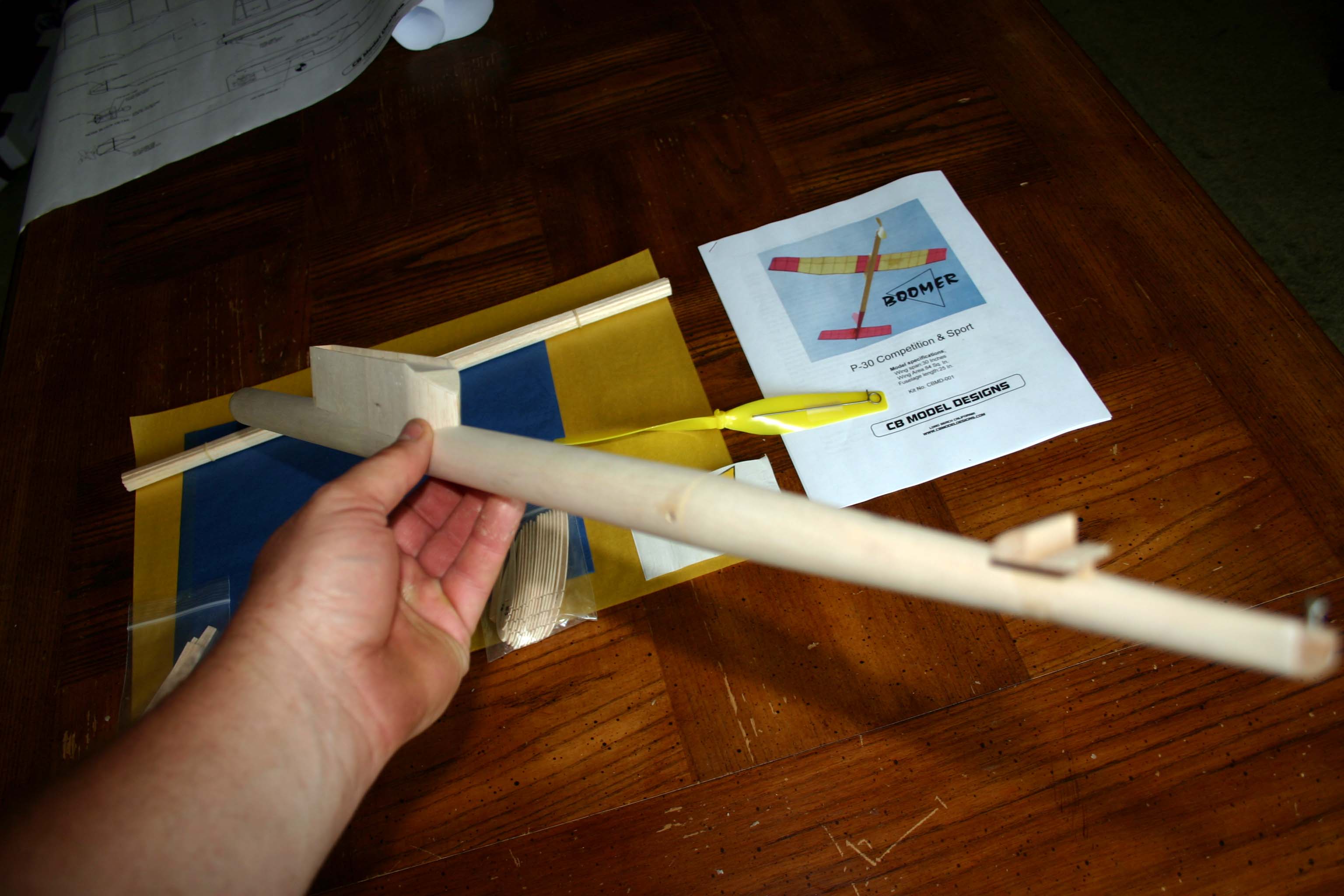

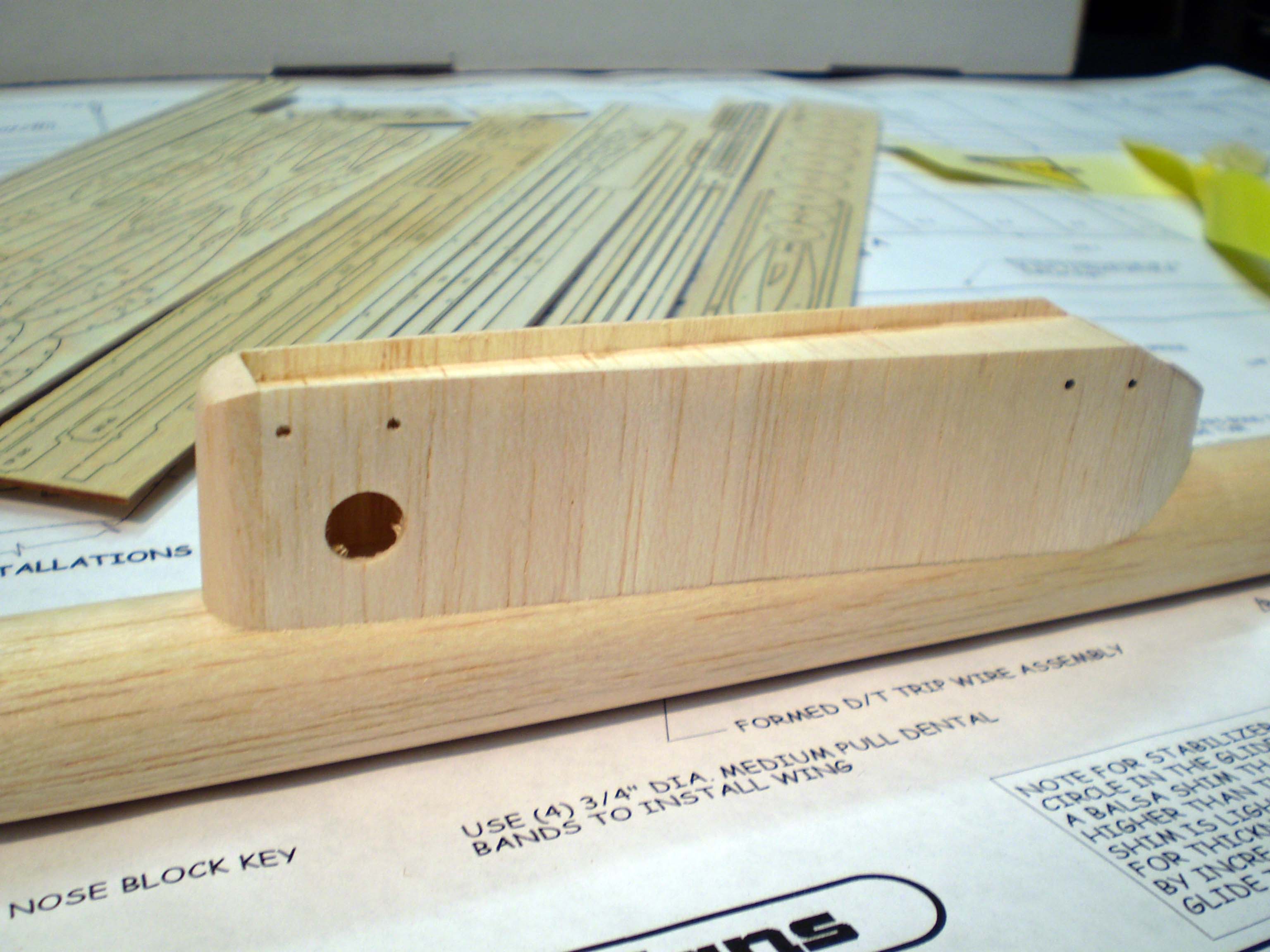

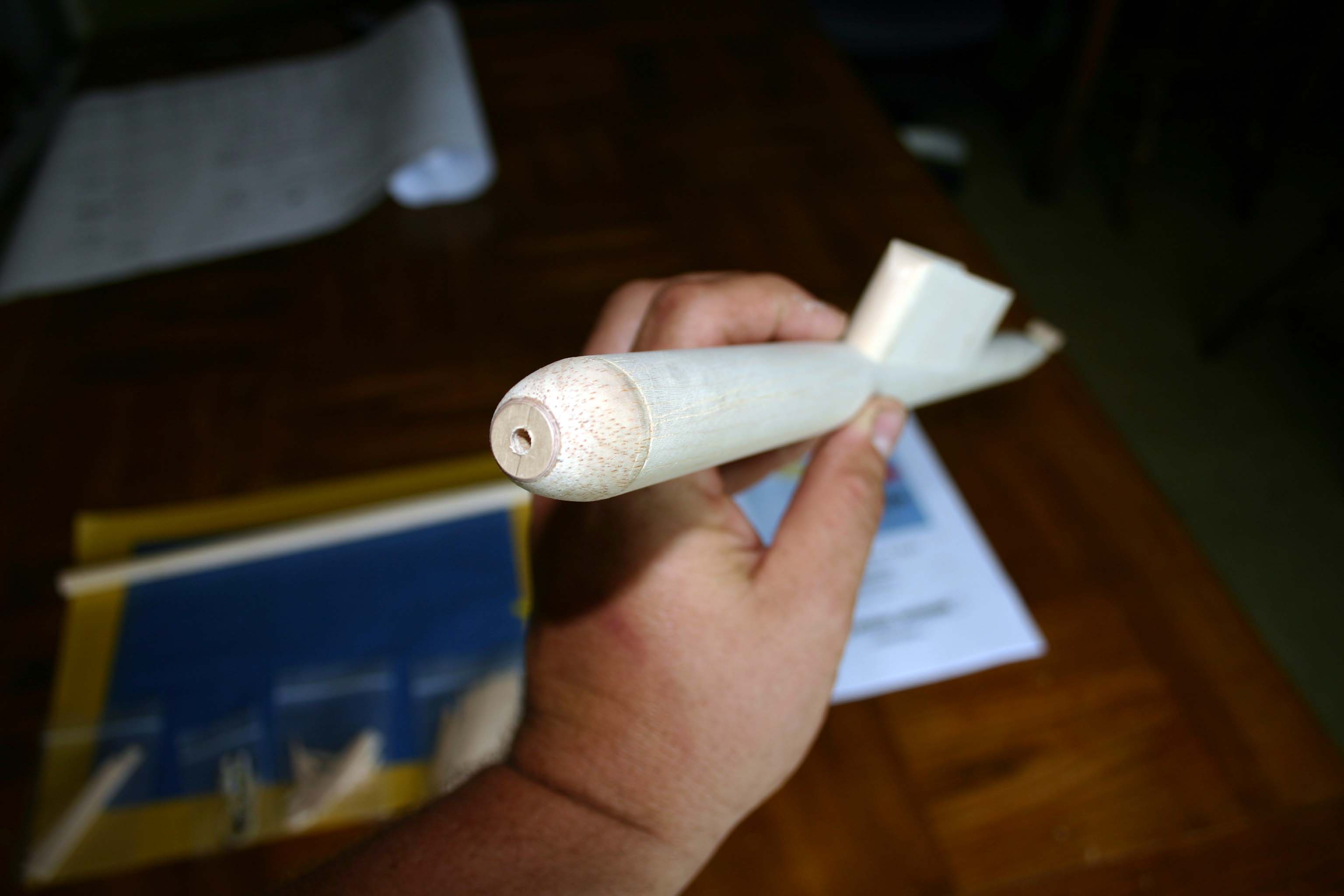

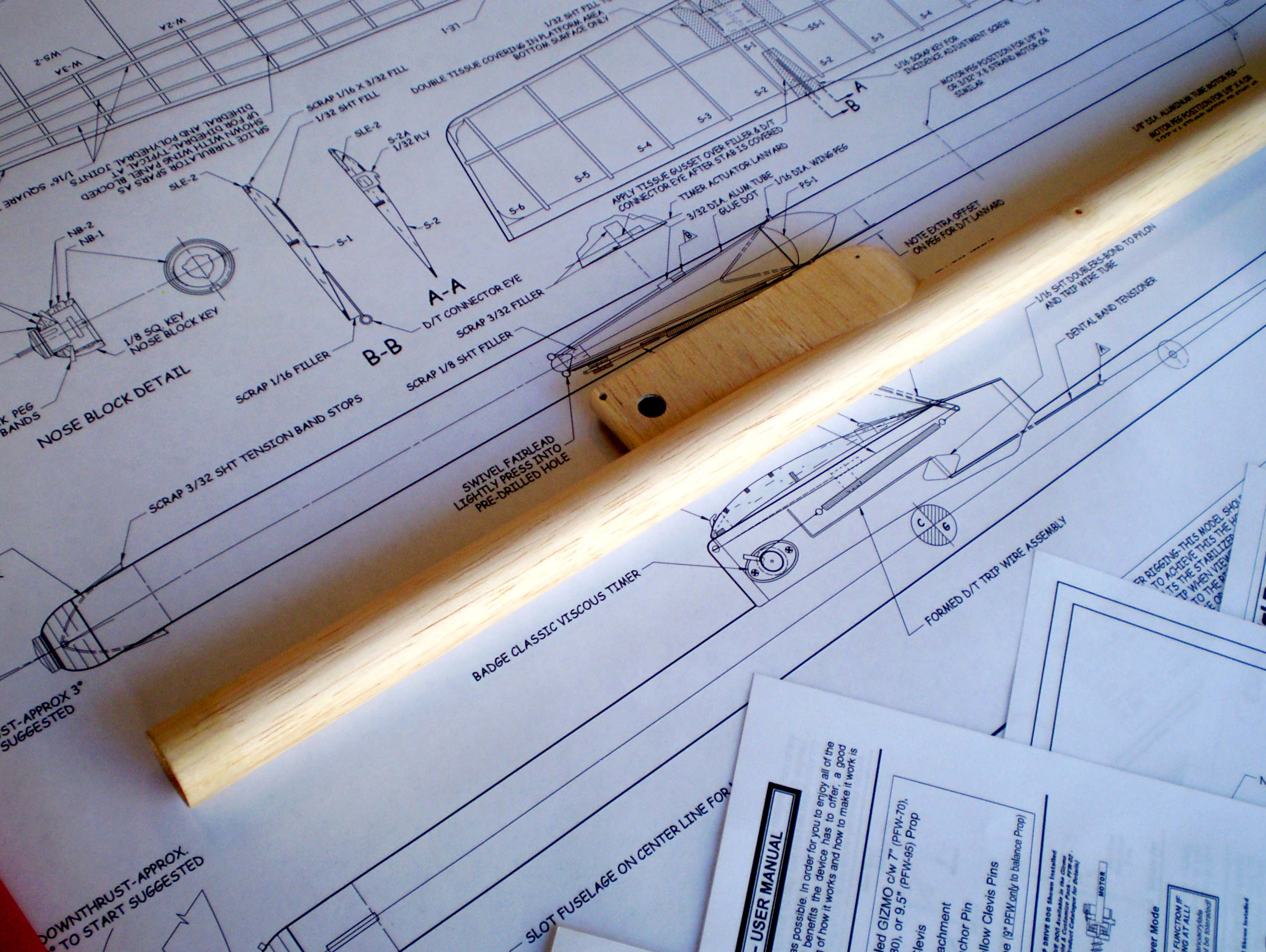

·    Pre-fabricated balsa tube fuselage with pylon installed-ready for final assembly. Motor tube is pre-sealed for motor lube protection on the inside surface.  Motor peg holes are pre-drilled and ready to use, as are the required holes in the pylon to facilitate wing mounting and wing pop-up dethermalizer features.

·   Esaki Tissue covering consisting of one Yellow sheet and half red sheet

·   Esaki Tissue printed wing logo for the Boomer

·   CAD drawing for construction

·   Detailed construction manual

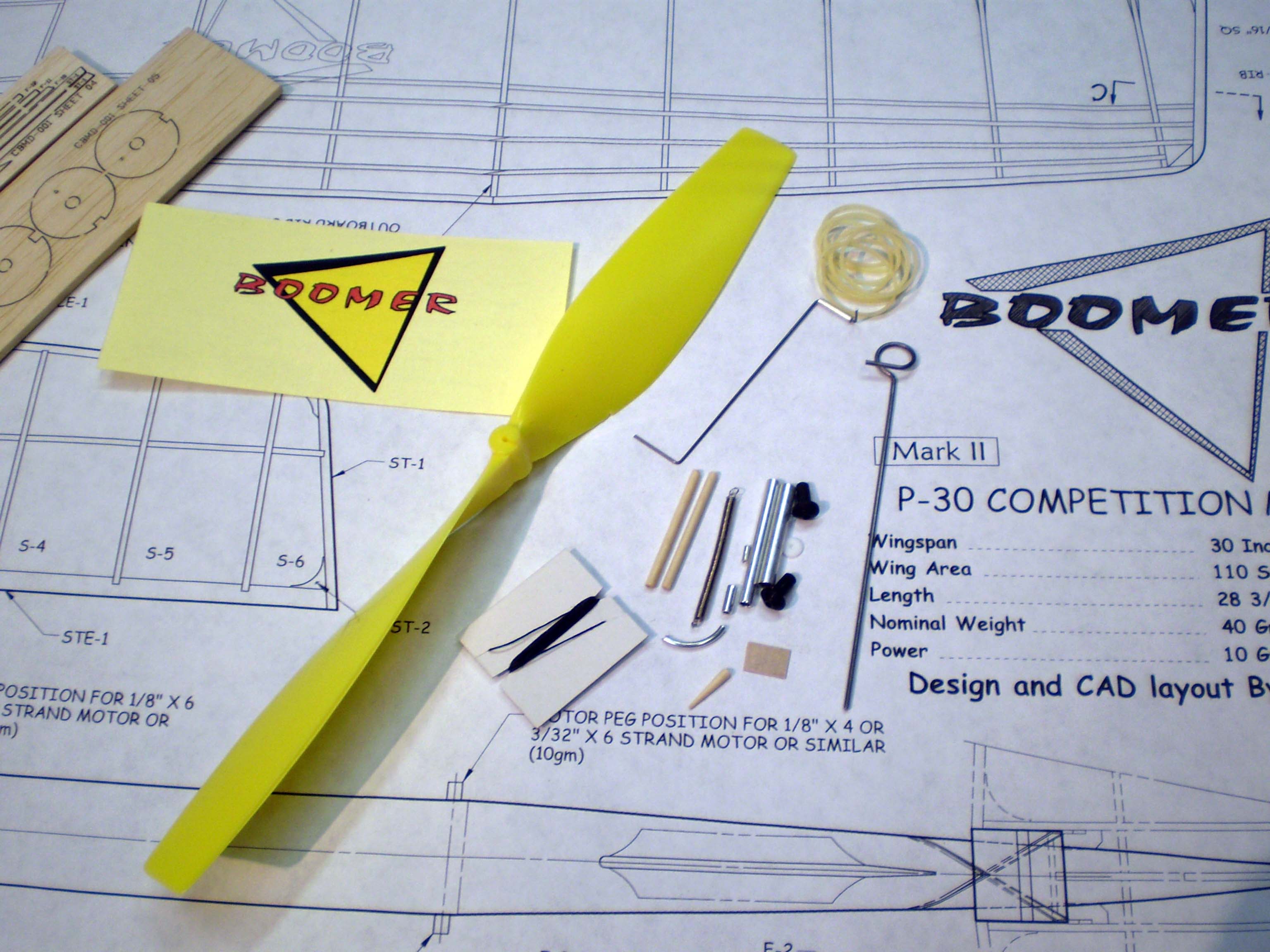

·   Complete hardware package for everything noted on the kit drawing, including the dethermalizer system

·   Badge viscous timer and mounting hardware

·   9.5 inch Gizmo Geezer Precision Freewheeler with accessories and instructions

·   Our own Adjustable Thrust Bearing (ATB) kit, which was used for a short period of time when the Gizmo Geezer front ends were not available, is available separately by special order. Please contact us for pricing and availability of the ATB. Both front end assemblies are shown on the plans.

Design features of the BOOMER:

·   Wing construction includes built-in washout features to provide this important characteristic as you construct the wing.

·   Under cambered airfoil section is 8.6% thick tapering to 7.6% at the tip.

·   Incidence adjustment screw for setting the horizontal stab position makes flight trimming simple and quick.

·   9.5 inch Gizmo Geezer Precision Freewheeler prop assembly with accessories and instructions that makes thrust adjustments easy. and is state of the art for P-30 competition

·    Reliable wing and stabilizer pop-up dethermalizer system is designed into the model-no after sale engineering is required to complete this model to a contest ready standard; all features have been completely proven over years of contest flying

·   Nominal weight of model if built per design and Esaki covering used is 37-38.5 gram range; minimum allowable contest weight is 40 grams.  There is room for strategic weight gain additions by the builder.

·    Excellent loitering glide characteristic for maximum contest performance.

Specifications:
Wingspan 30 inches projected
Wing area 110 square inches
Nominal fuselage length 29.9 inches
Max motor tube length (nose to peg) 21.9 inches
Minimum motor tube length 14.8 inches
Nominal Weight 38 grams without motor
(ballast required for 40 gram minimum weight for P-30 rules)

BOOMER MK III - Construction Manual  (304 KB PDF file)
A printed copy of this Construction Manual is included with each kit

BOOMER MK III - Construction Detail  (~ 9 MB PDF file)
This Construction Detail file is available online only.
It is suitable for viewing online, or if you like, it can be printed out

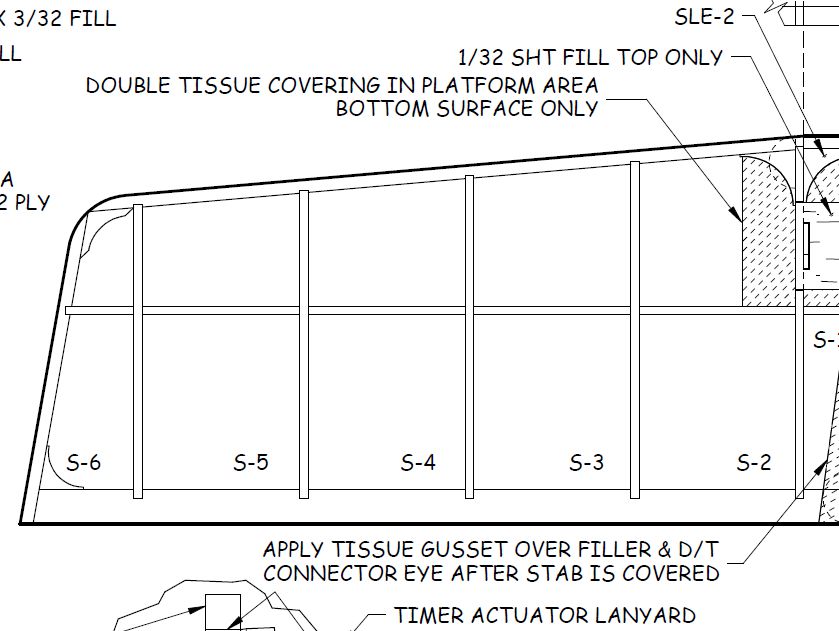

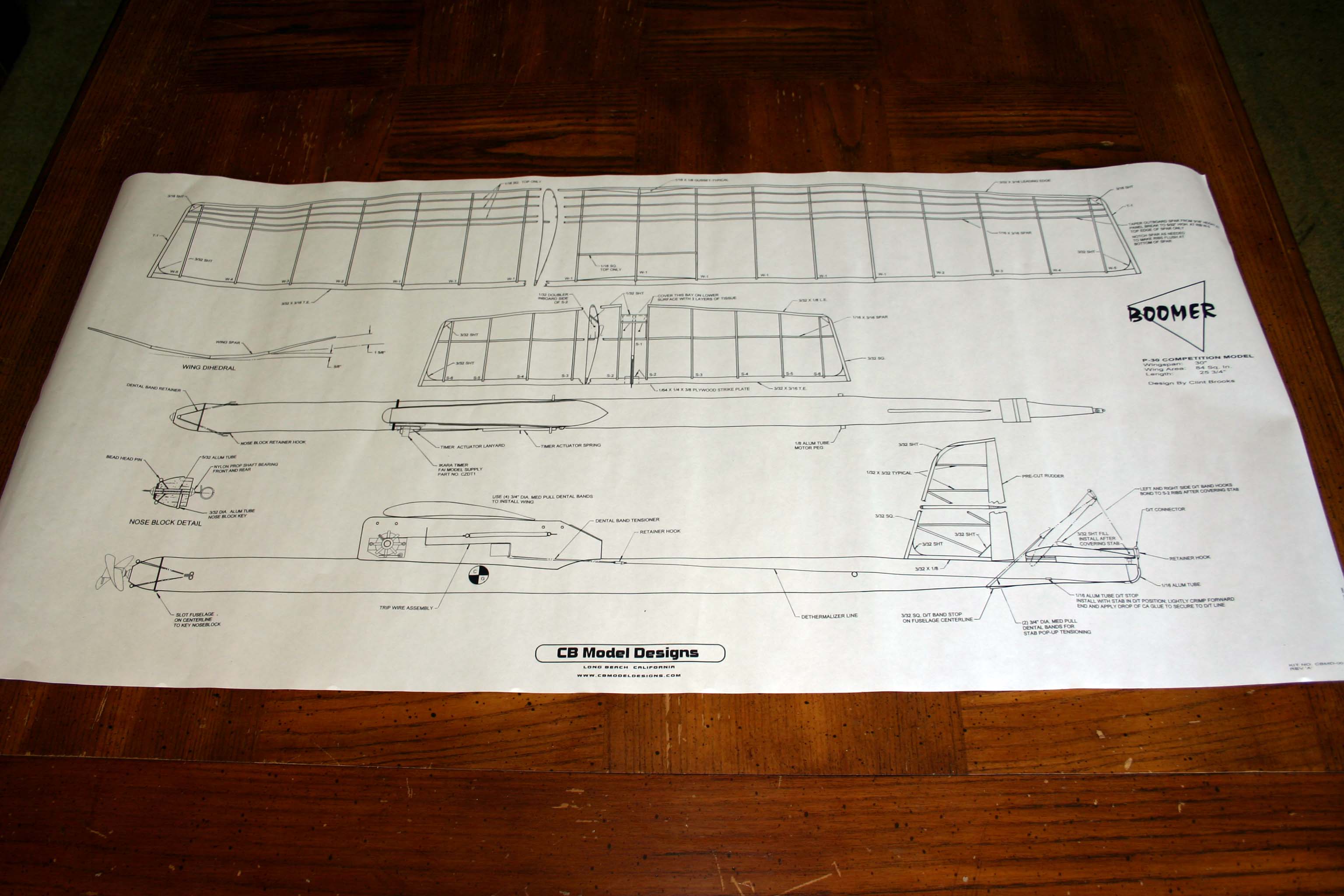

Sample 1 of BOOMER MK-III CAD drawn plans

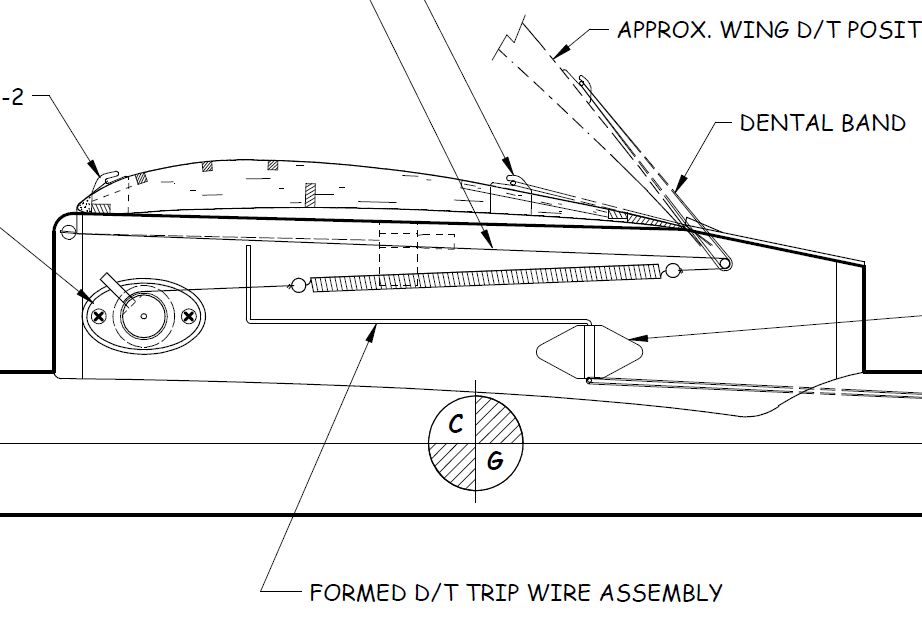

Sample 2 of BOOMER MK-III CAD drawn plans

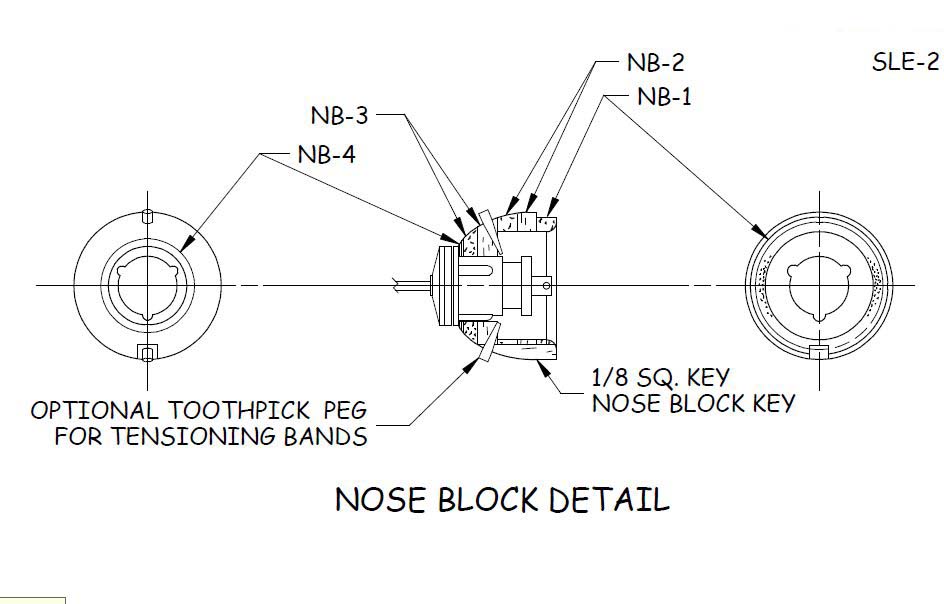

Sample 3 of BOOMER MK-III CAD drawn plans

.

BOOMER MK III Full Kit BOOMER MK III Short Kit

  $118

  $80

Short Kit includes: complete prefabricated fuselage, laser parts, CAD drawing and printed Construction Manual. You provide your own balsa strip wood, tissue covering, hardware, timer and prop

  • Domestic Shipping and Handling charges are based on the costs of shipping our full our partial kits from our west coast facility to the far east coast of the United States. Currently a single full or short kit ships for $12, 2 ship for $17 and 3 for $23.

  • If the actual Shipping and Handling costs to your location are less than what was collected during the PayPal checkout process by $2 or more, a refund will be issued to you PayPal account for the excess shipping costs.

  • Please email us  for an estimate of shipping and handling charges for quantities of kits in excess of 3.

  • sales tax for California residents is 9.25%

  • Please email us to inquire about international shipping and handling charges

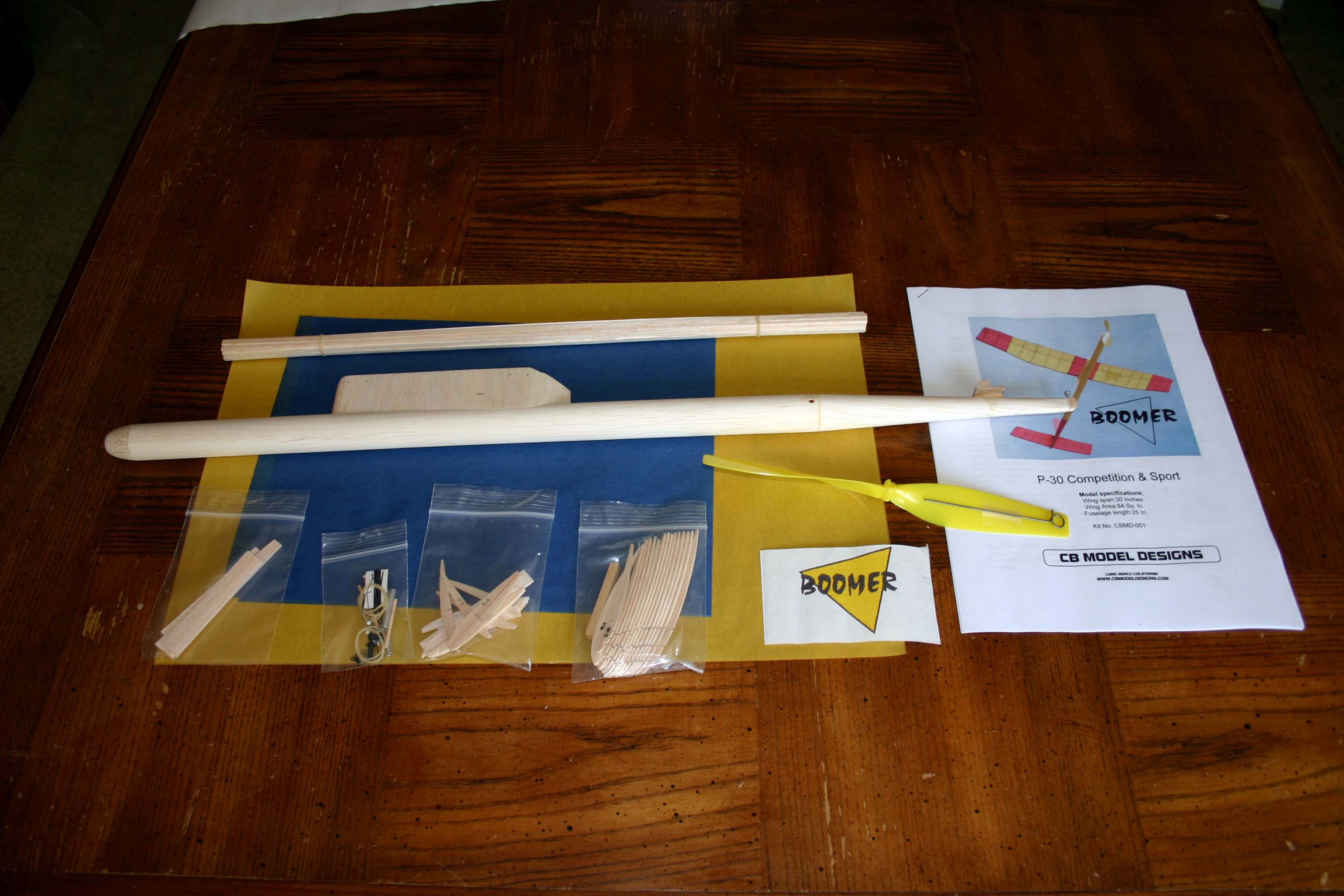

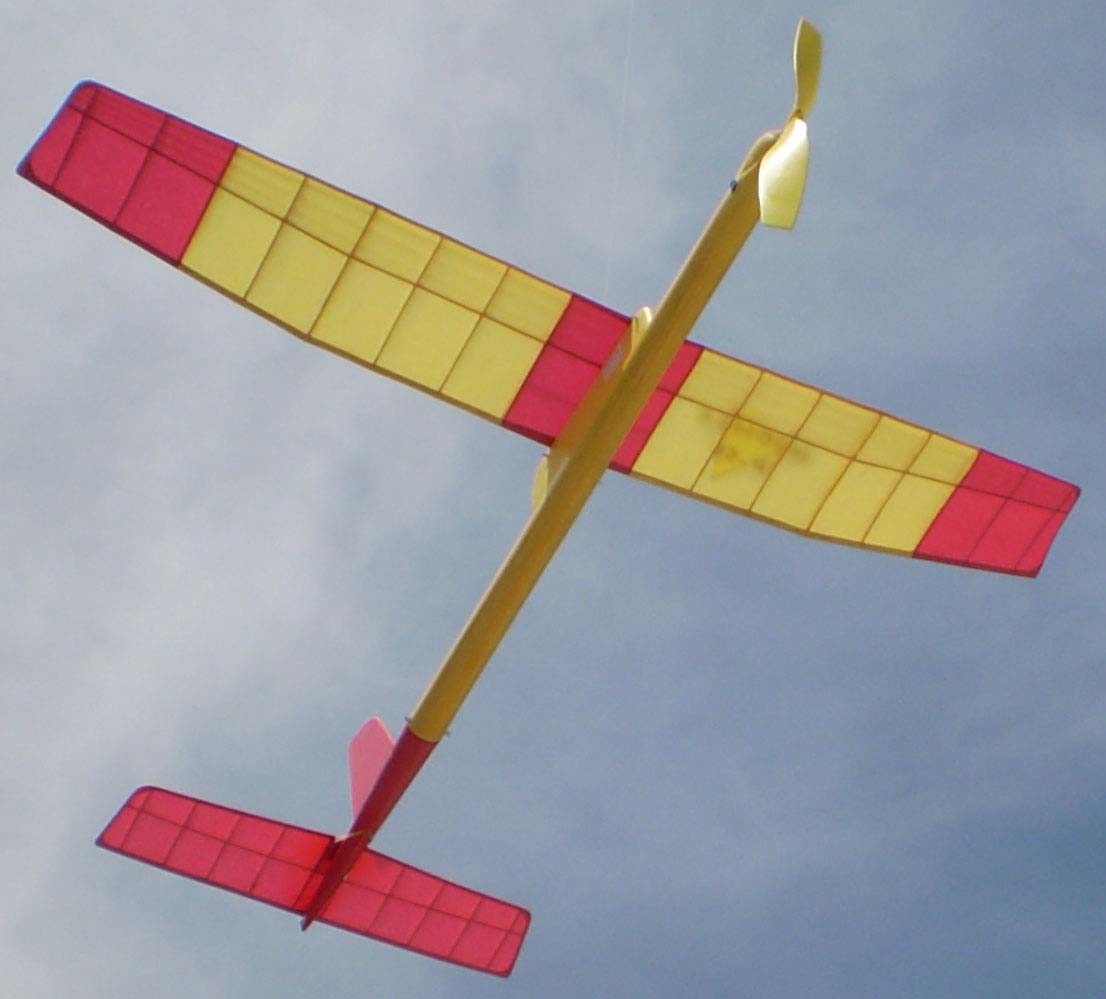

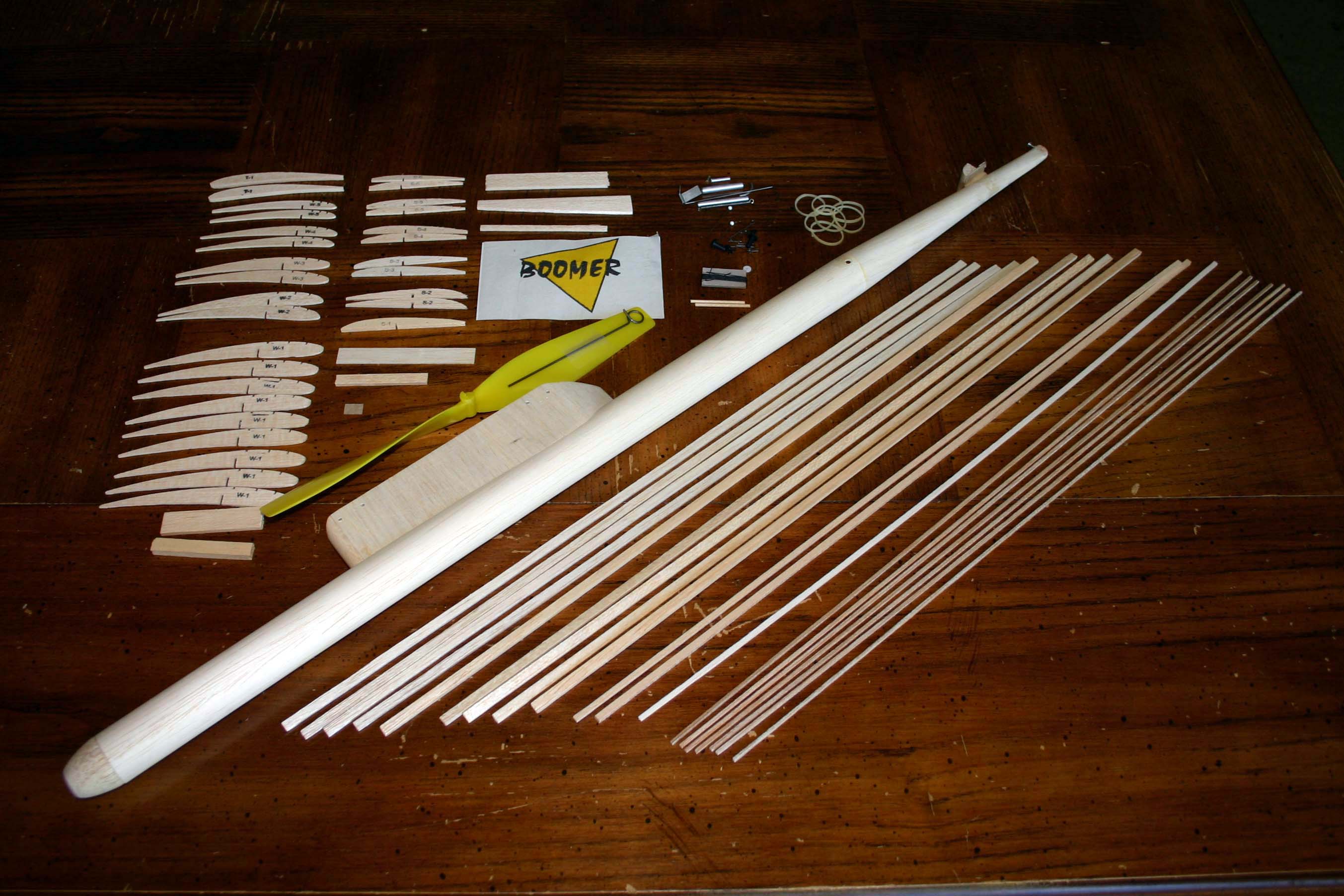

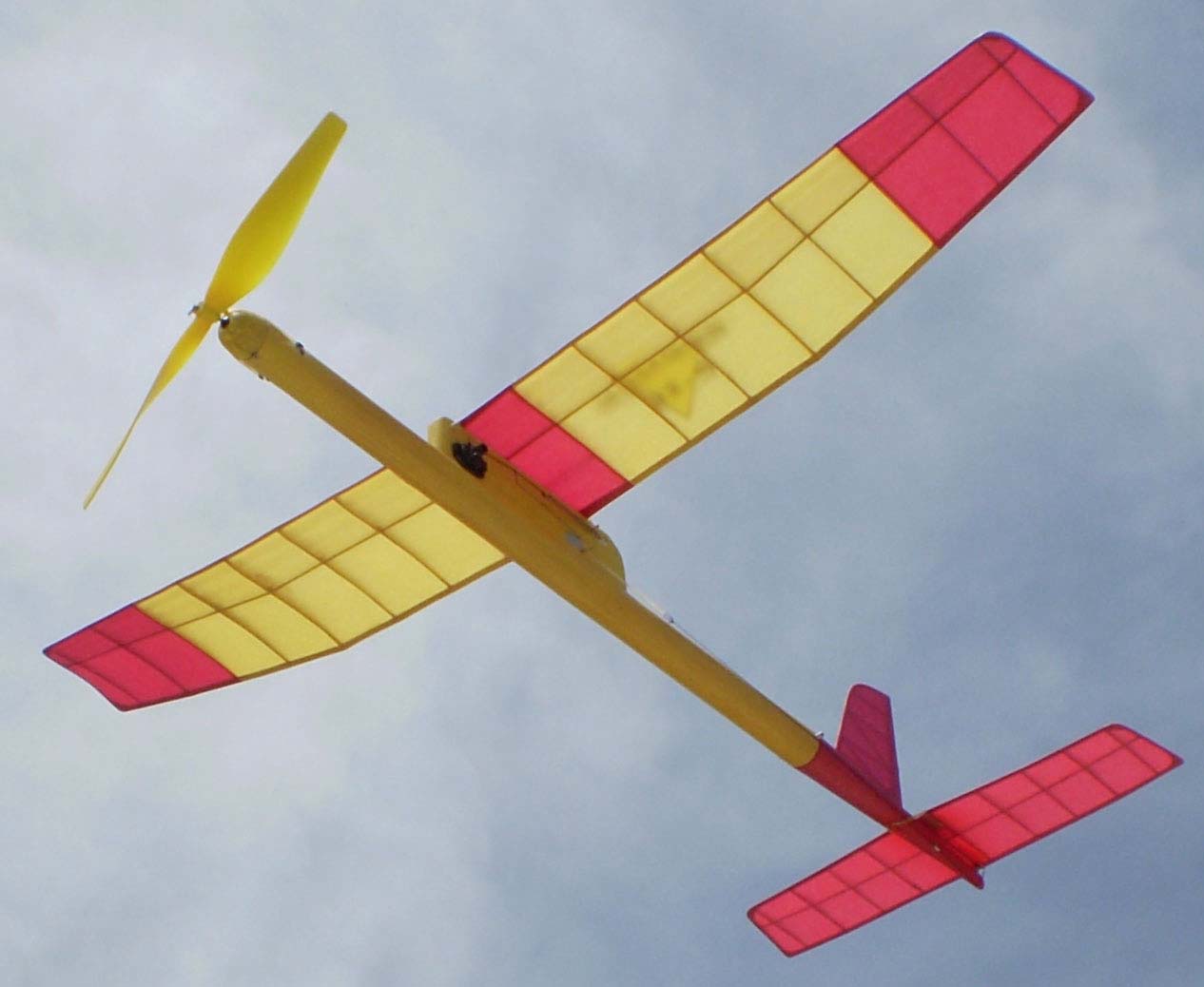

Original BOOMER pics:

. .

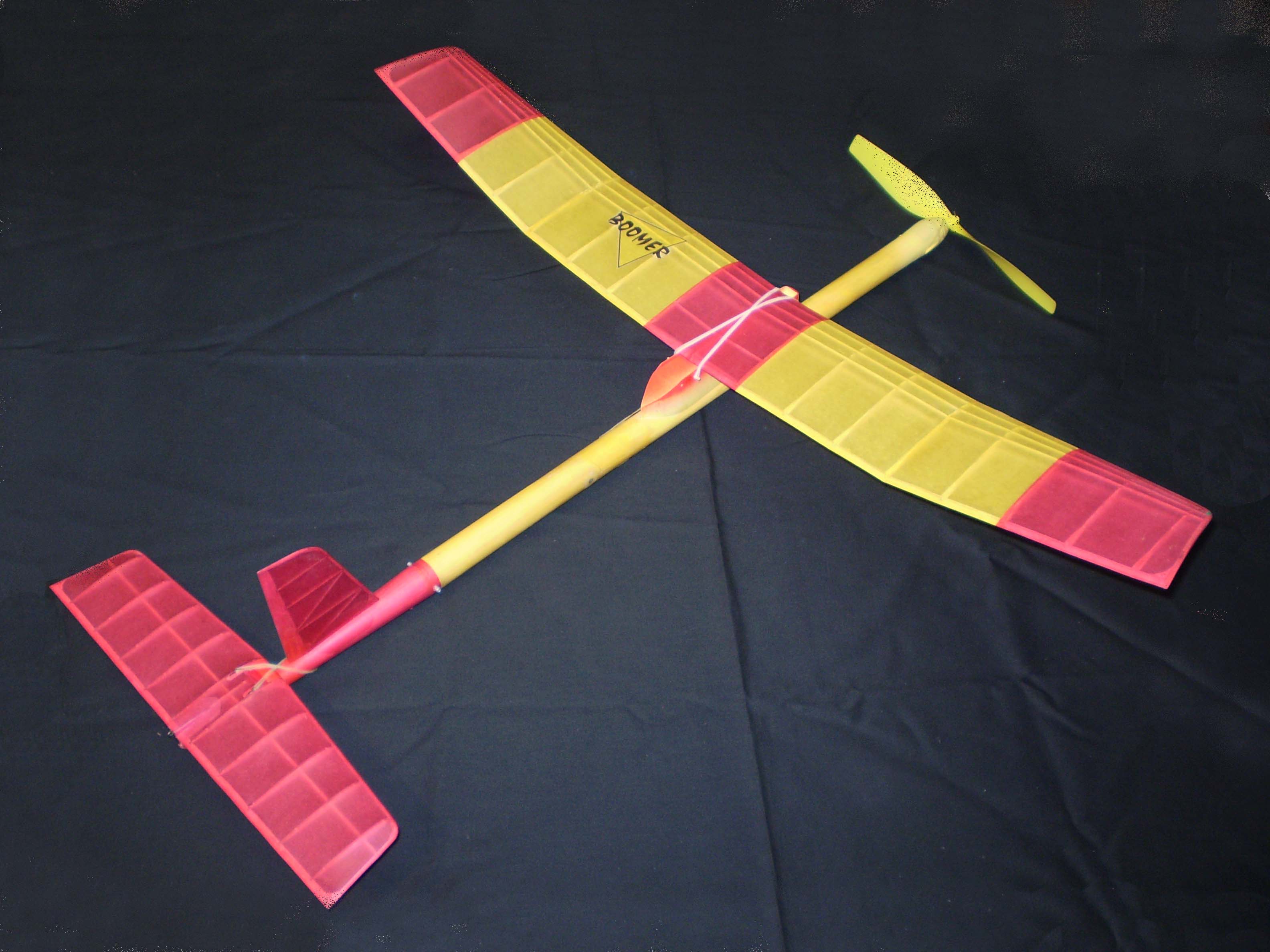

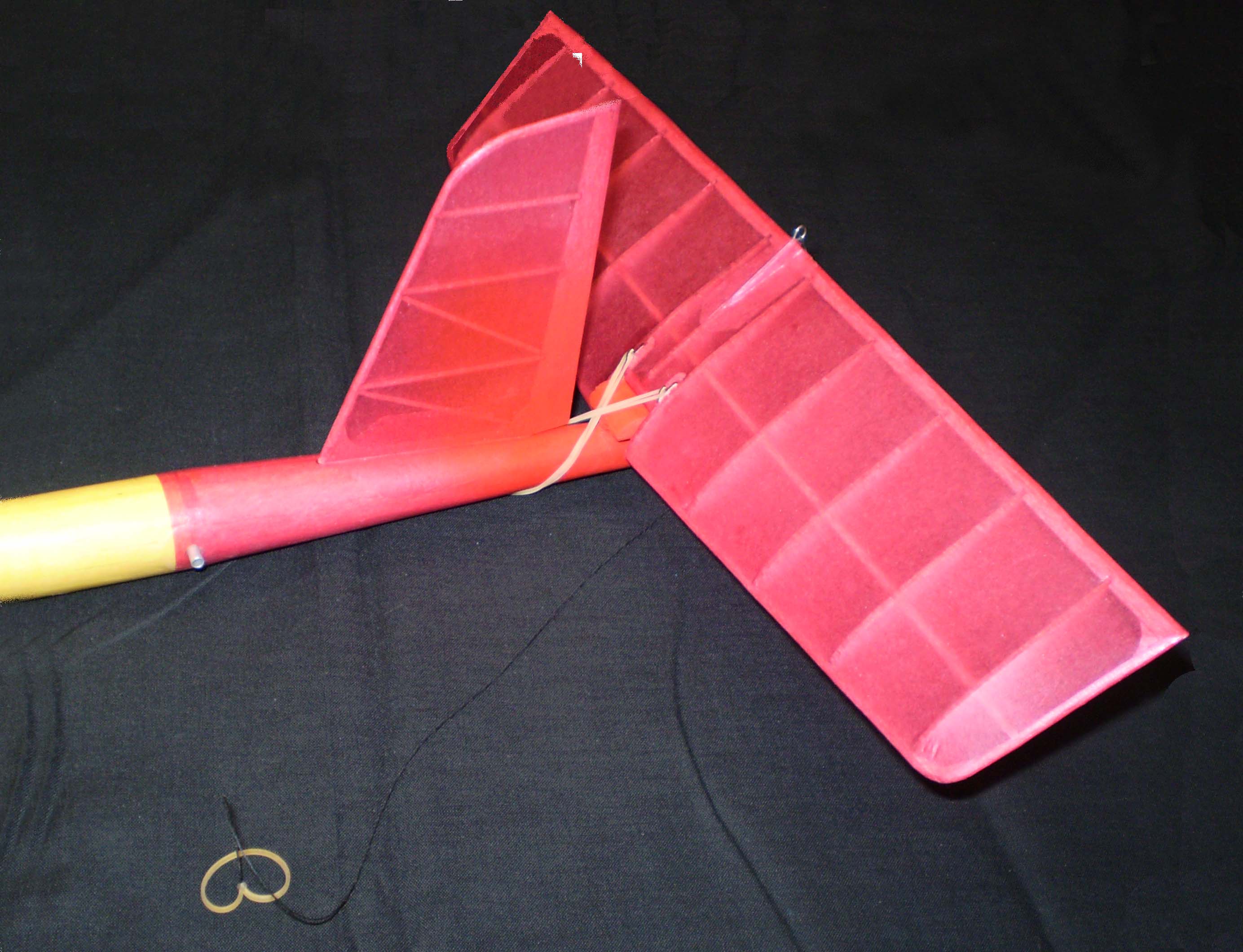

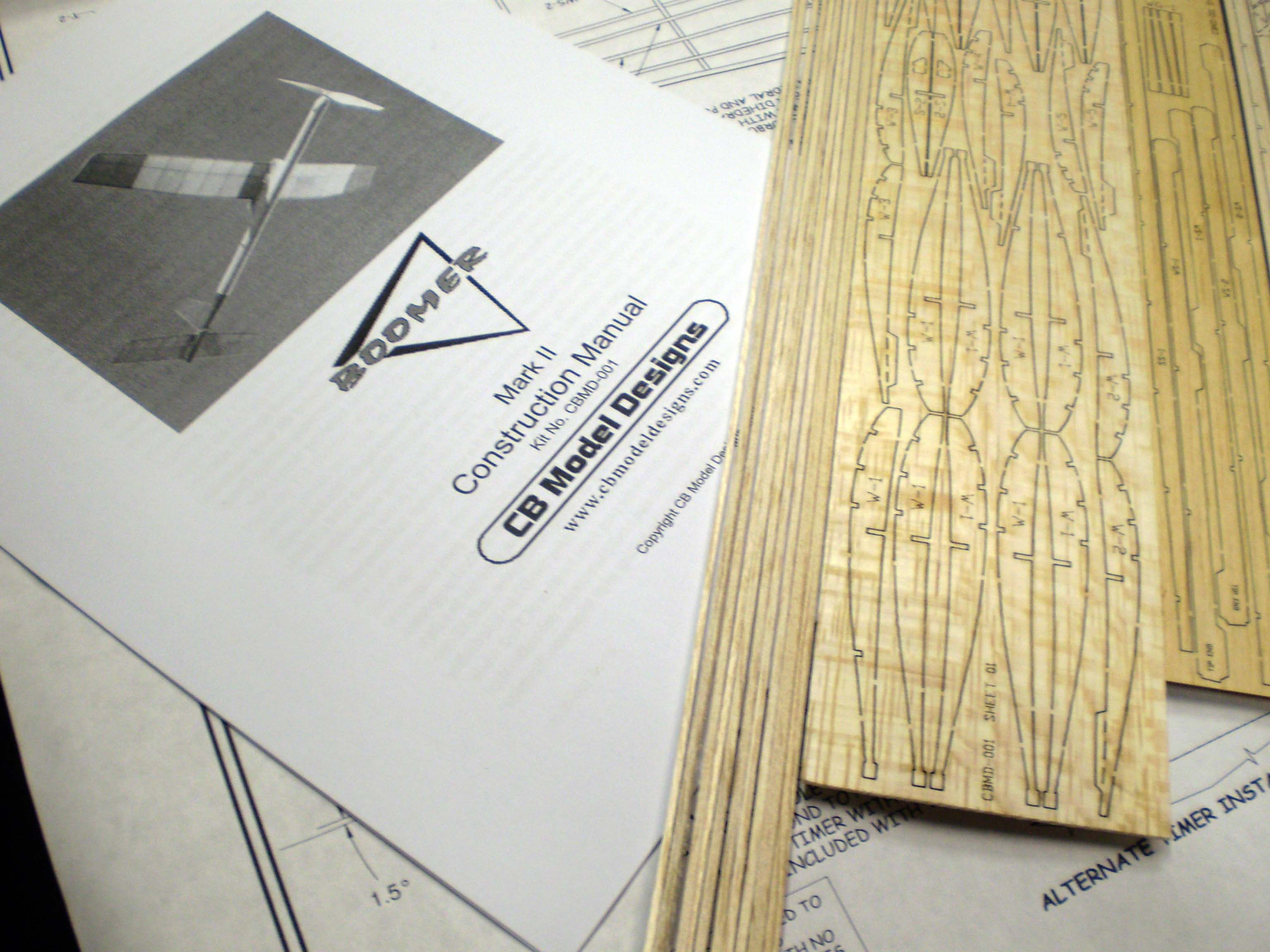

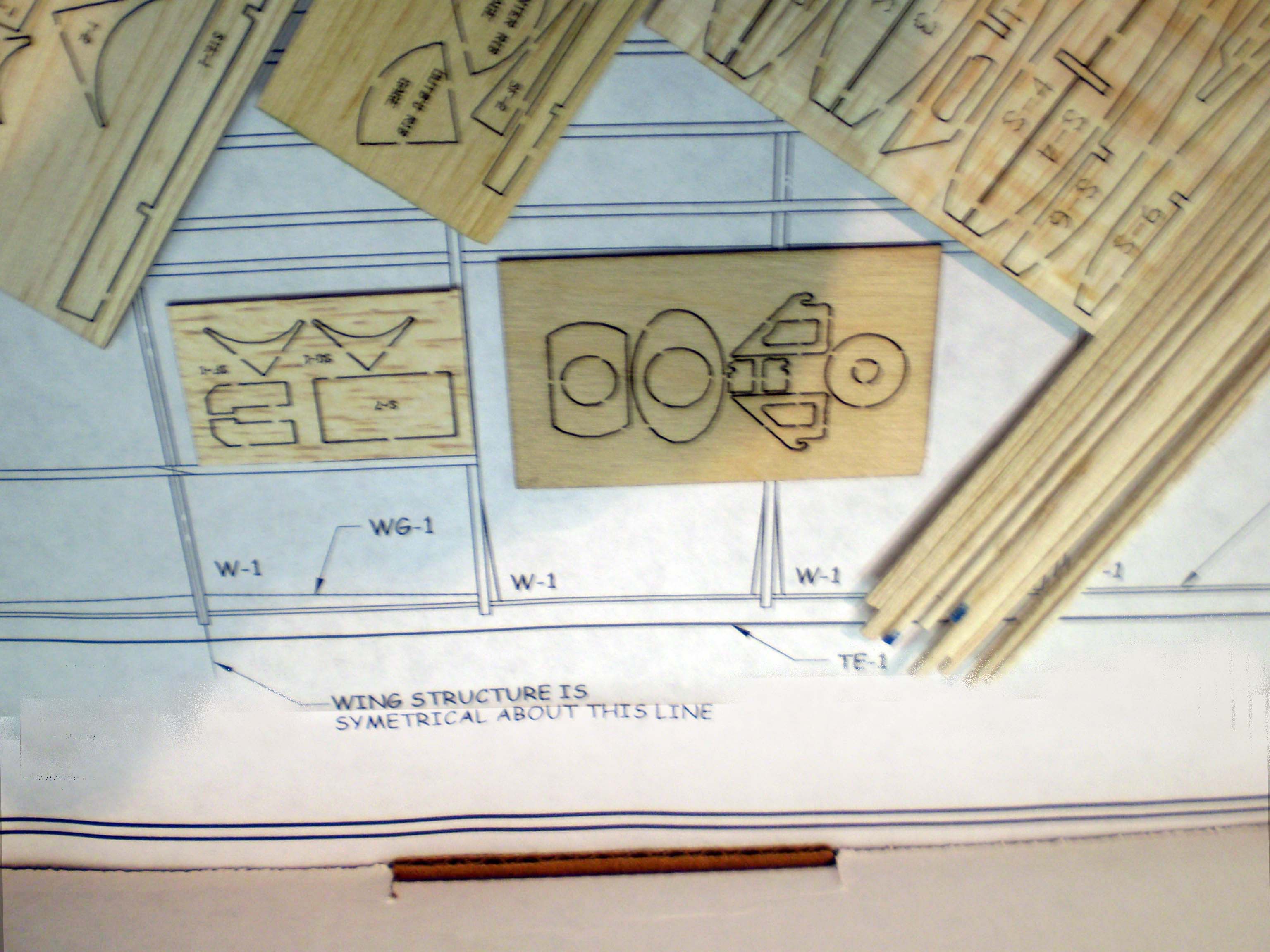

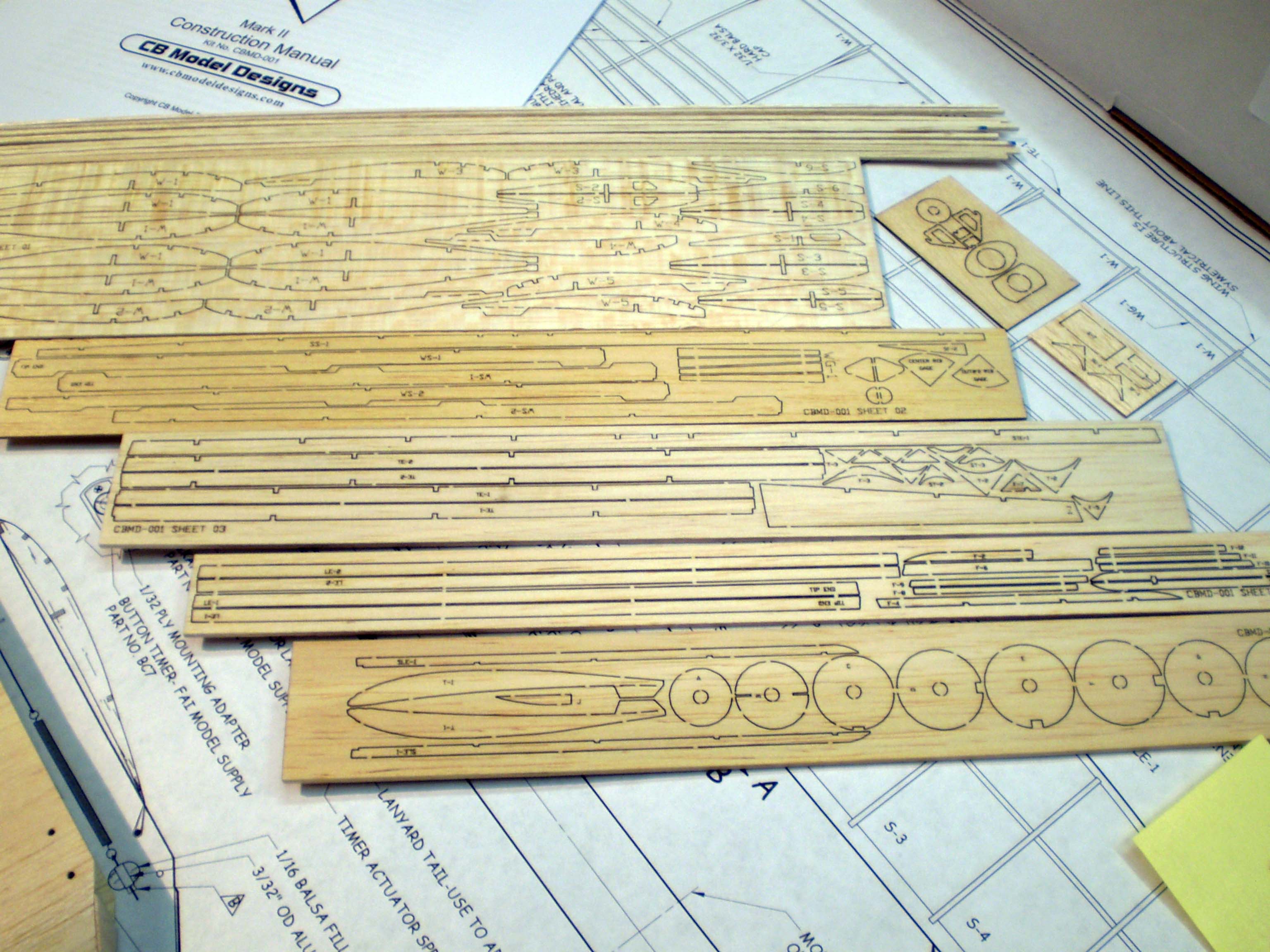

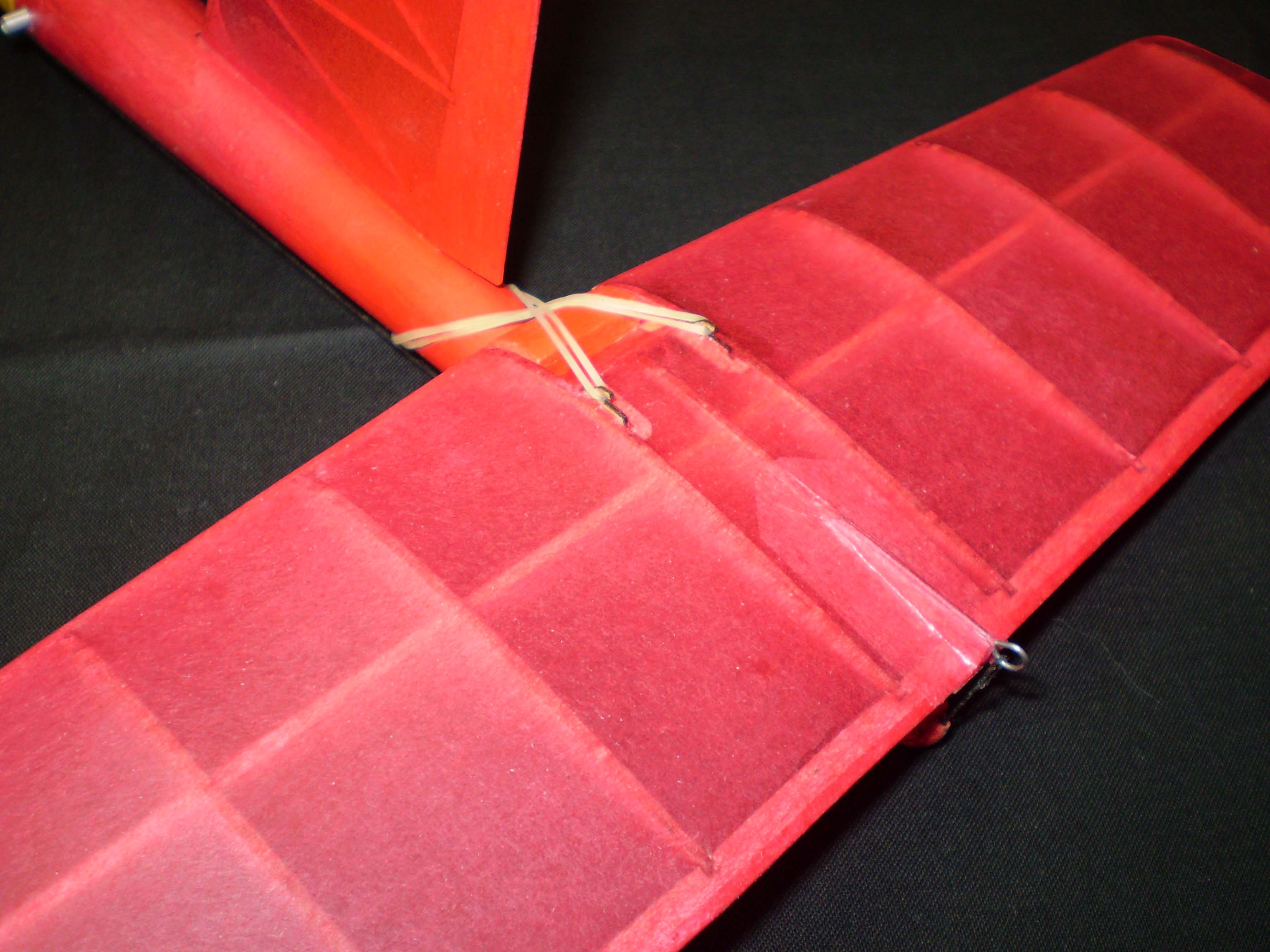

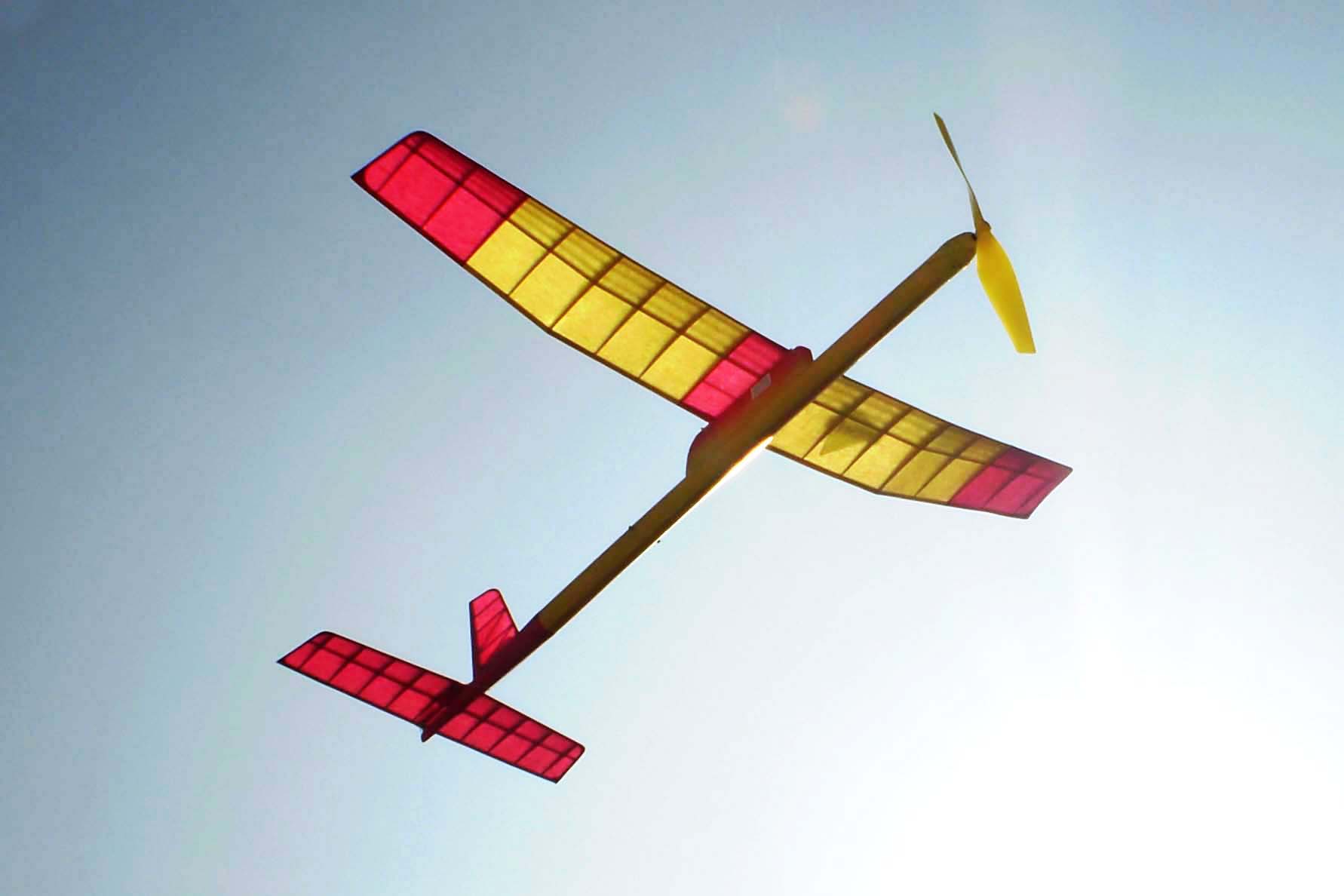

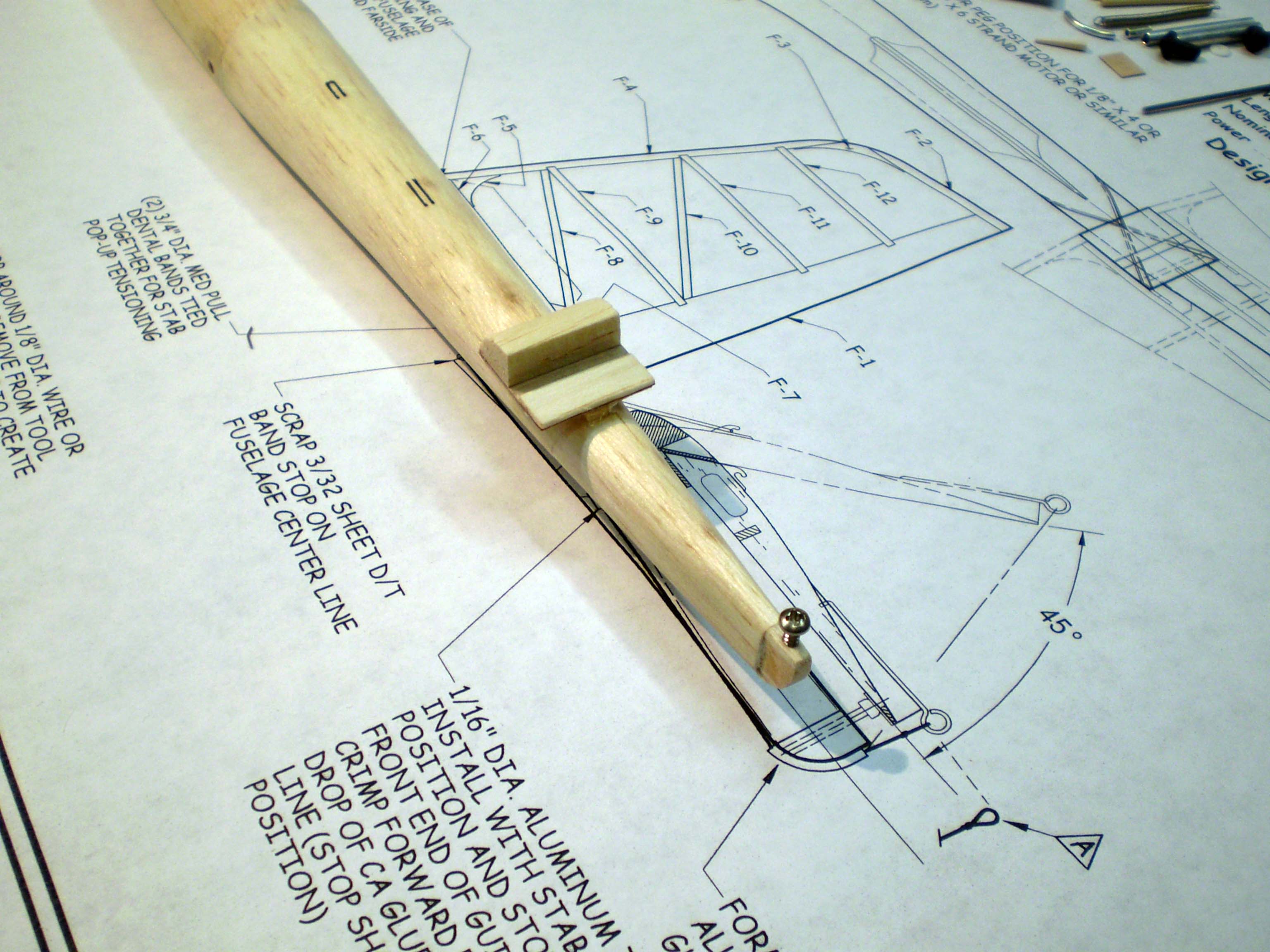

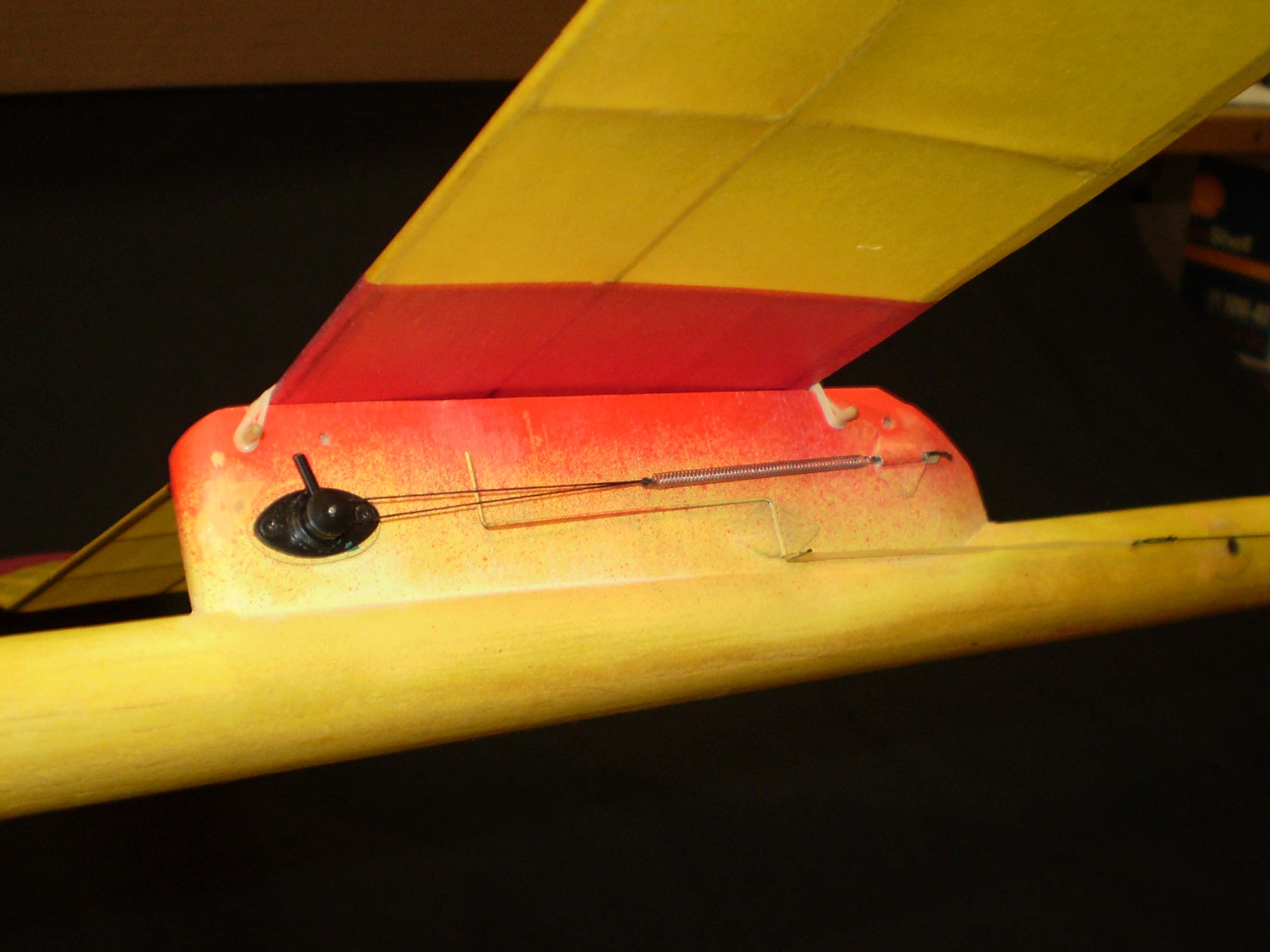

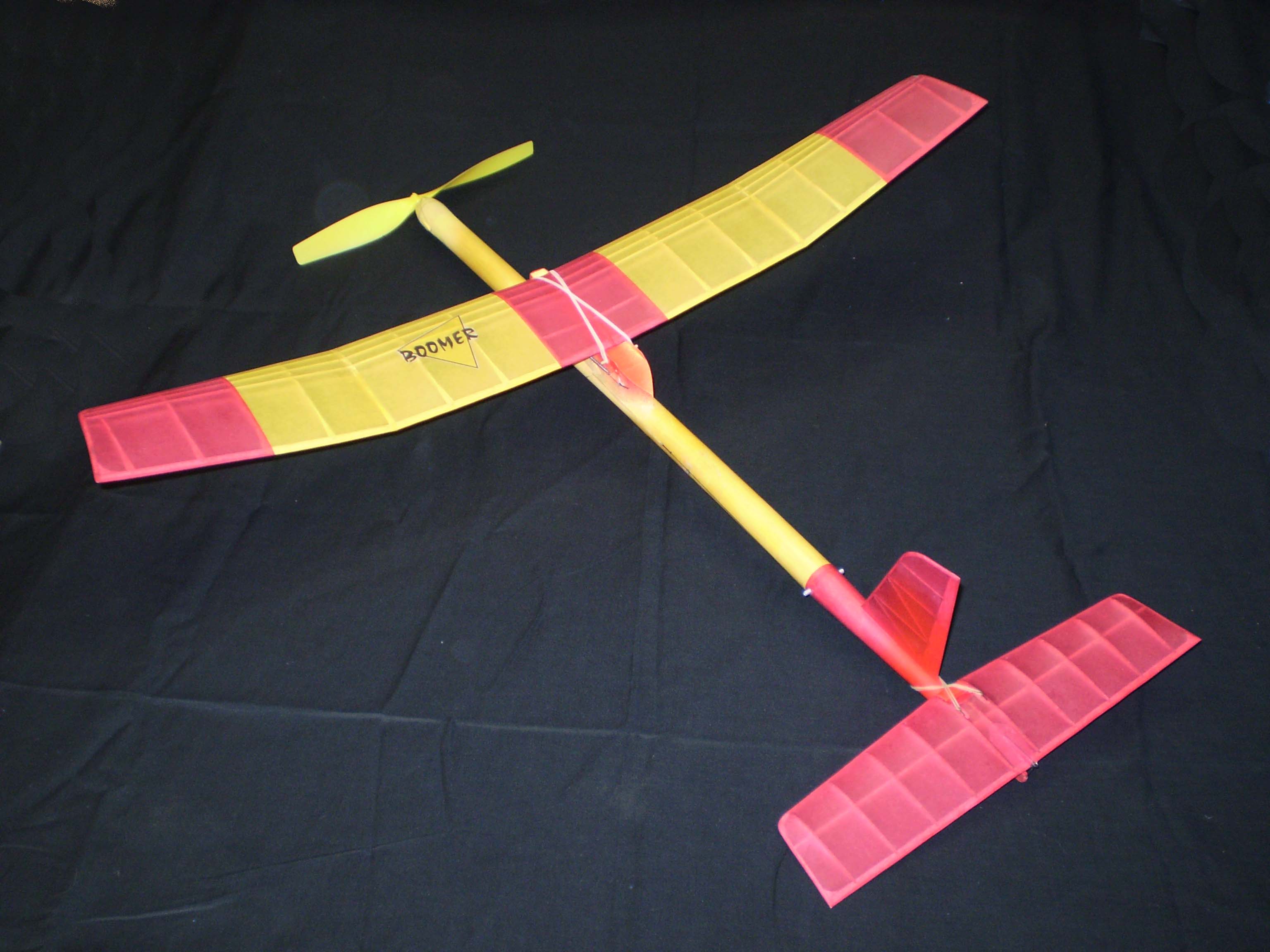

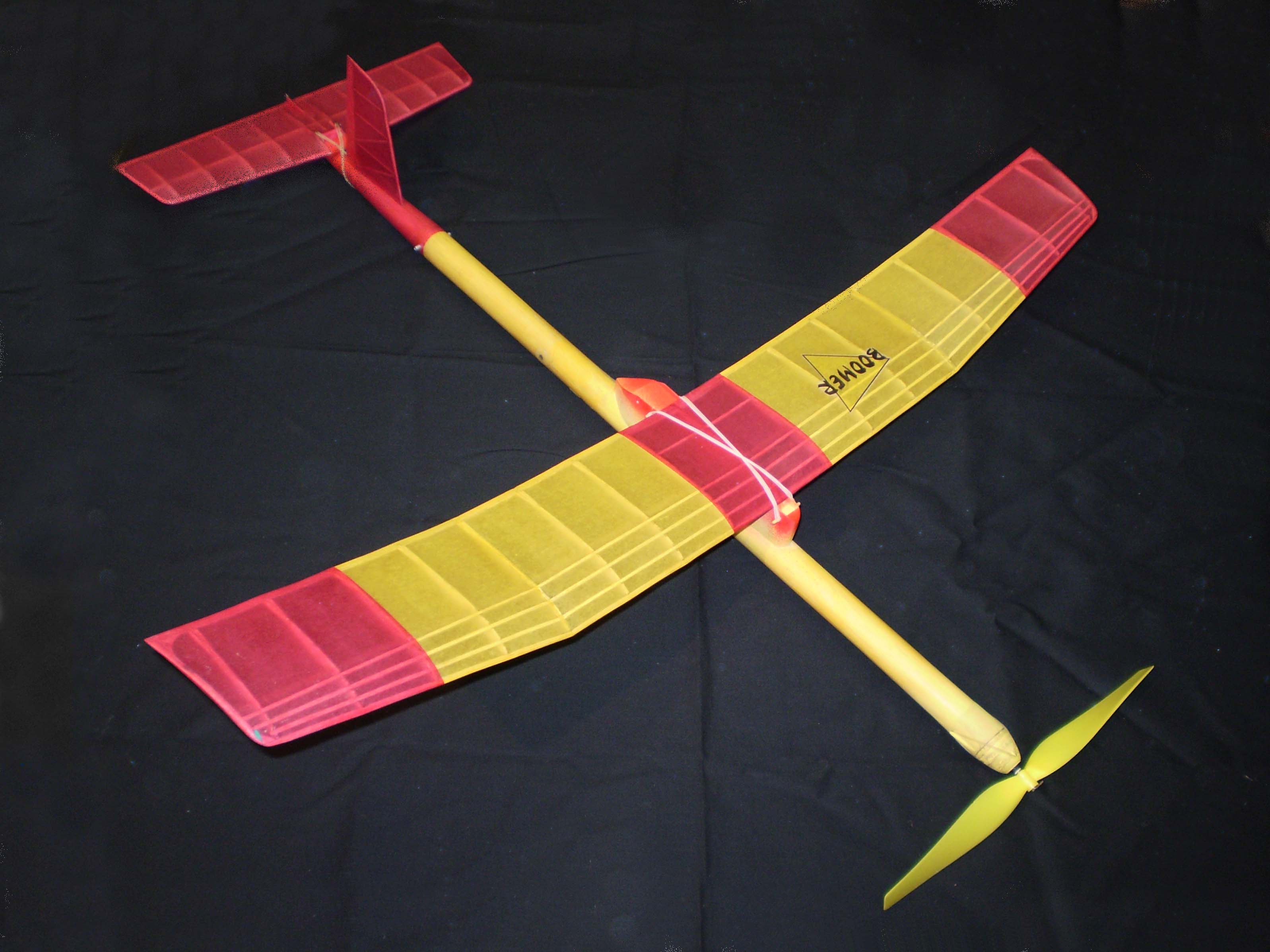

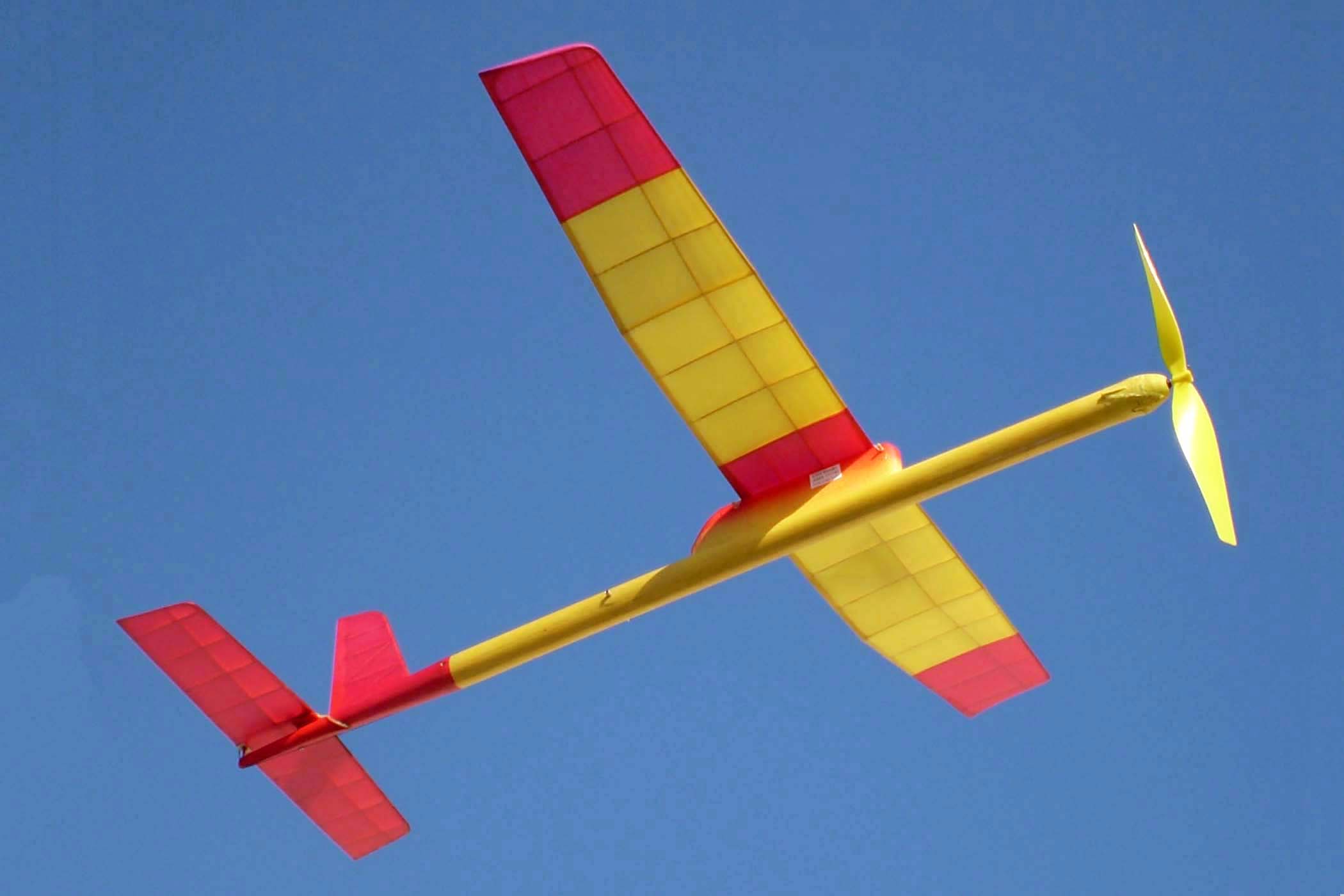

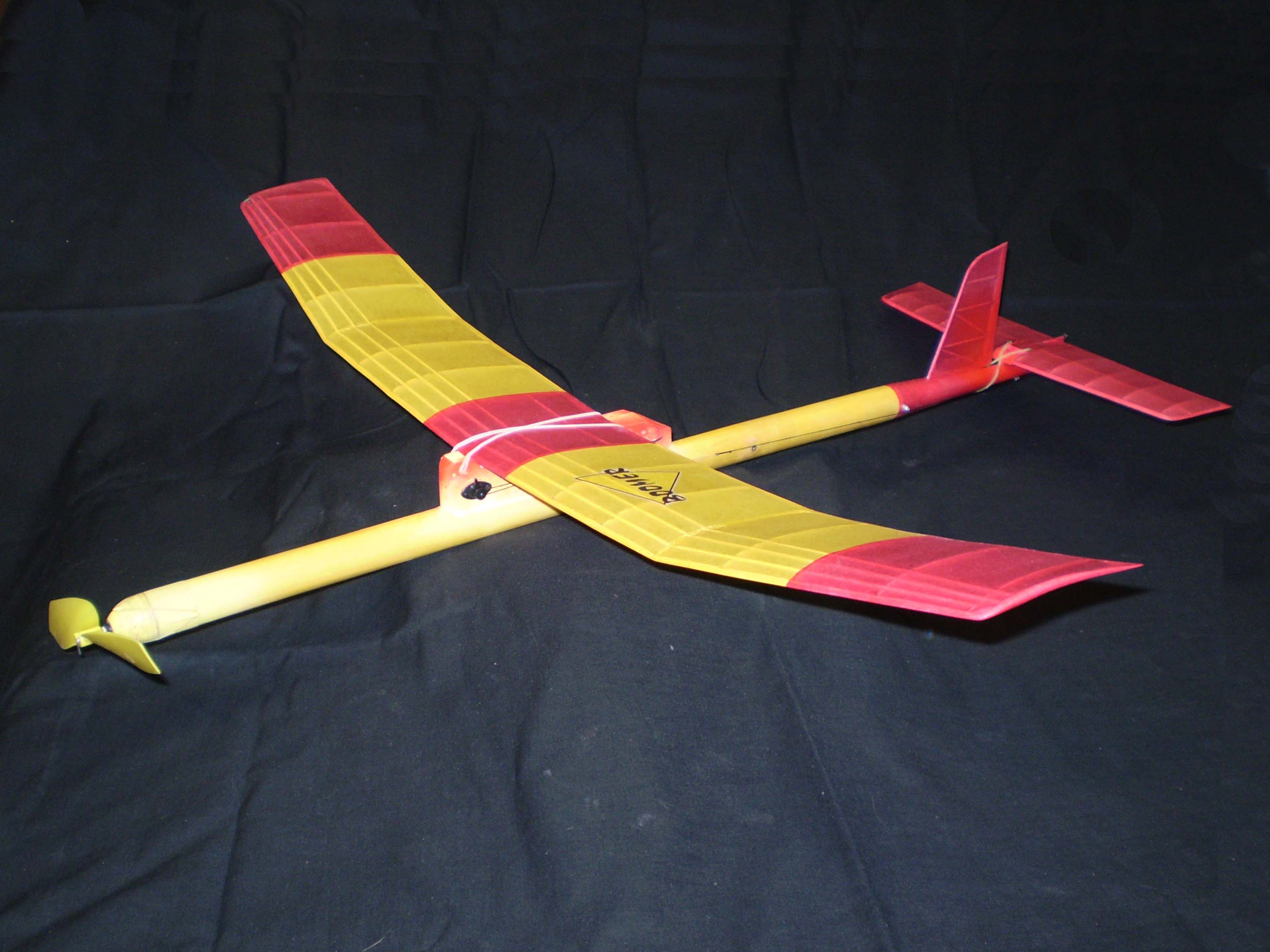

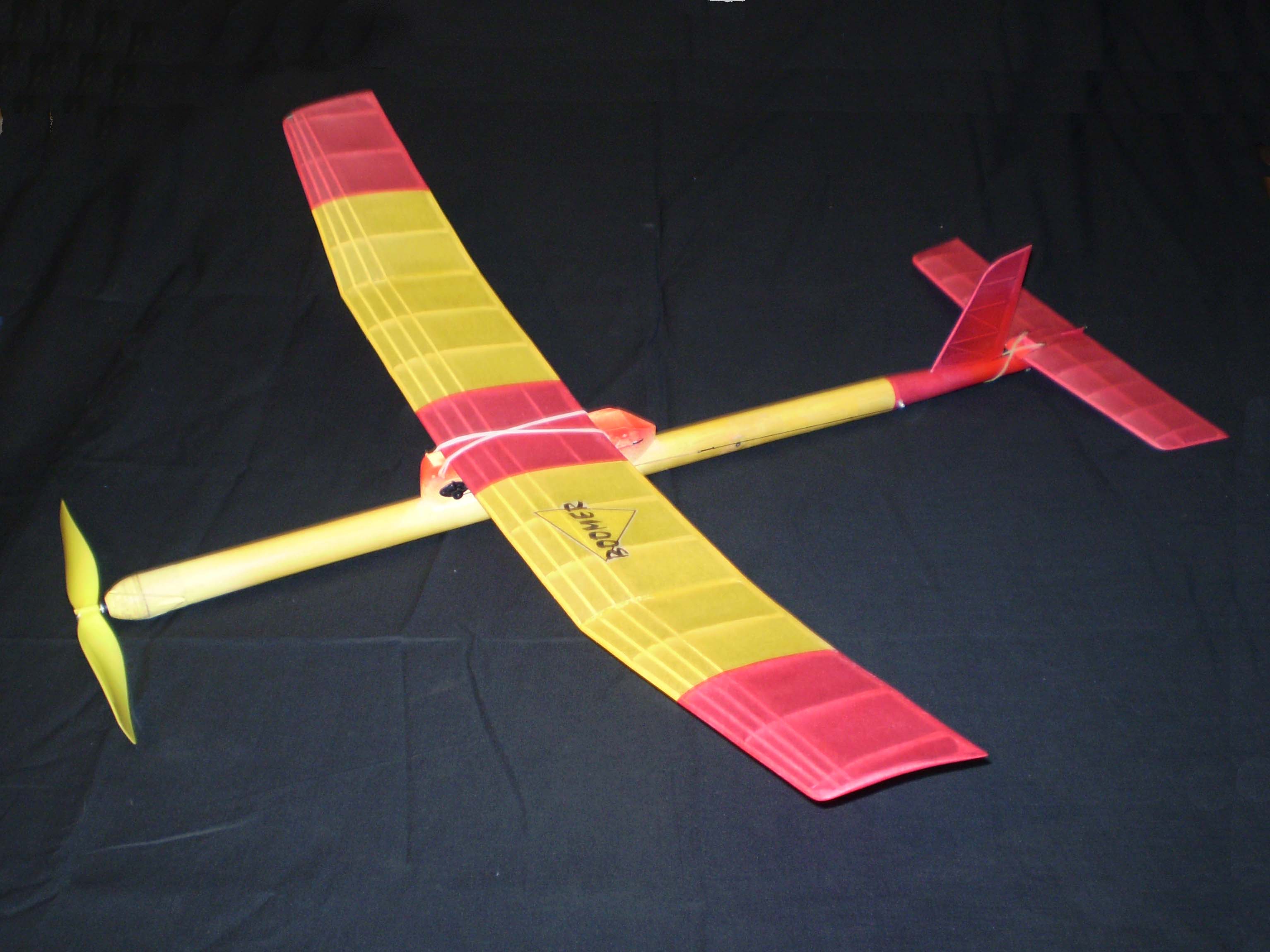

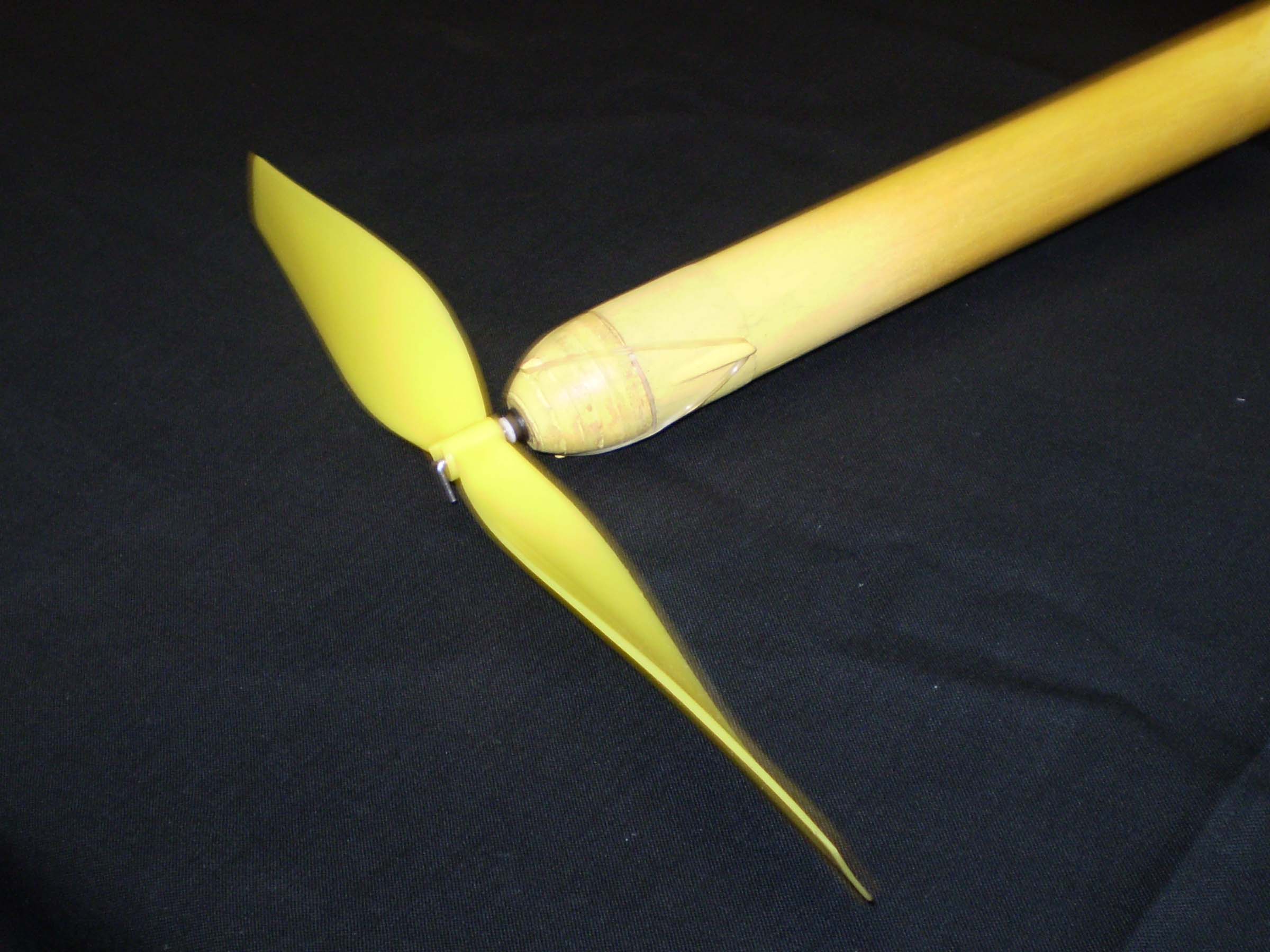

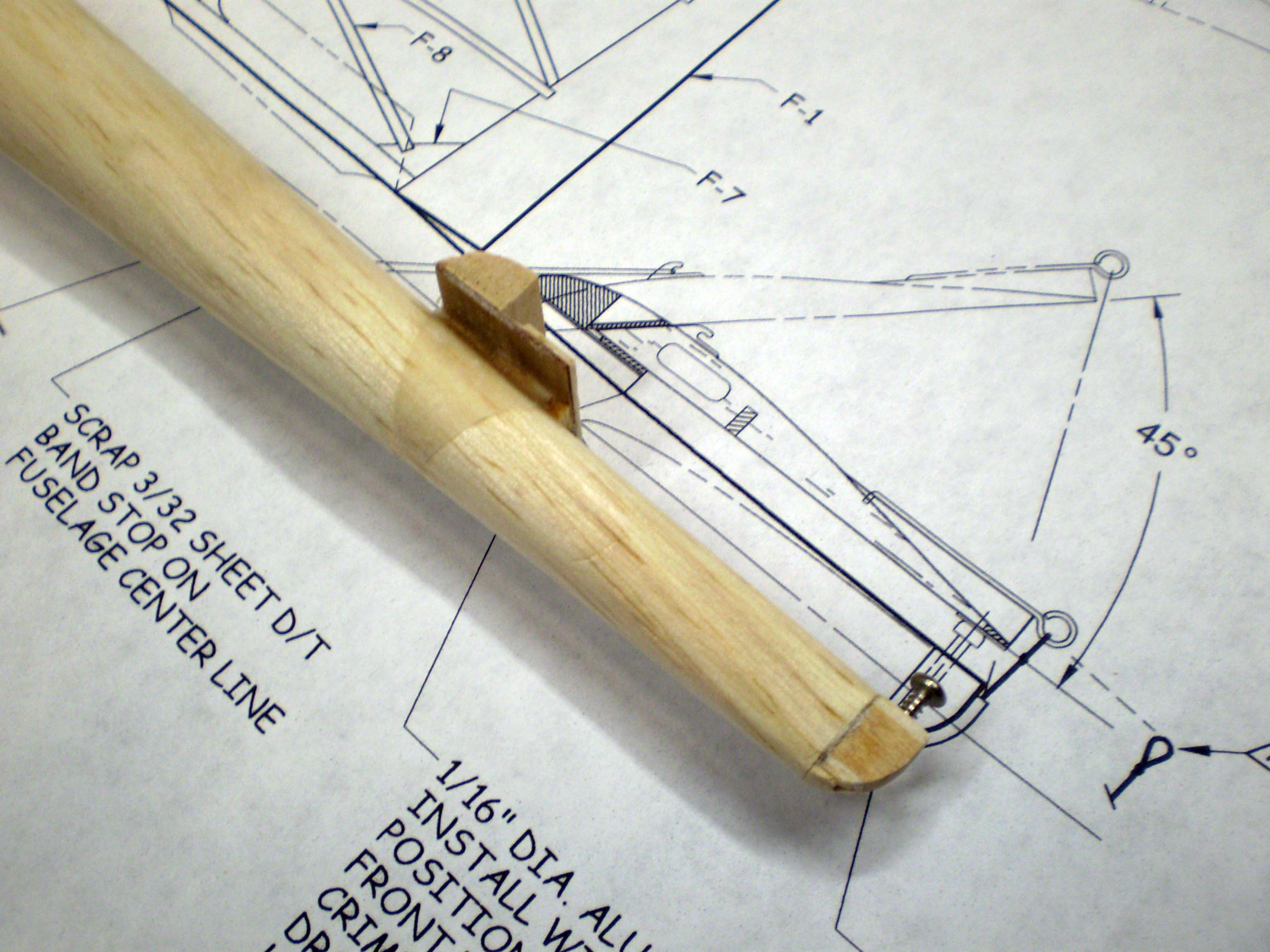

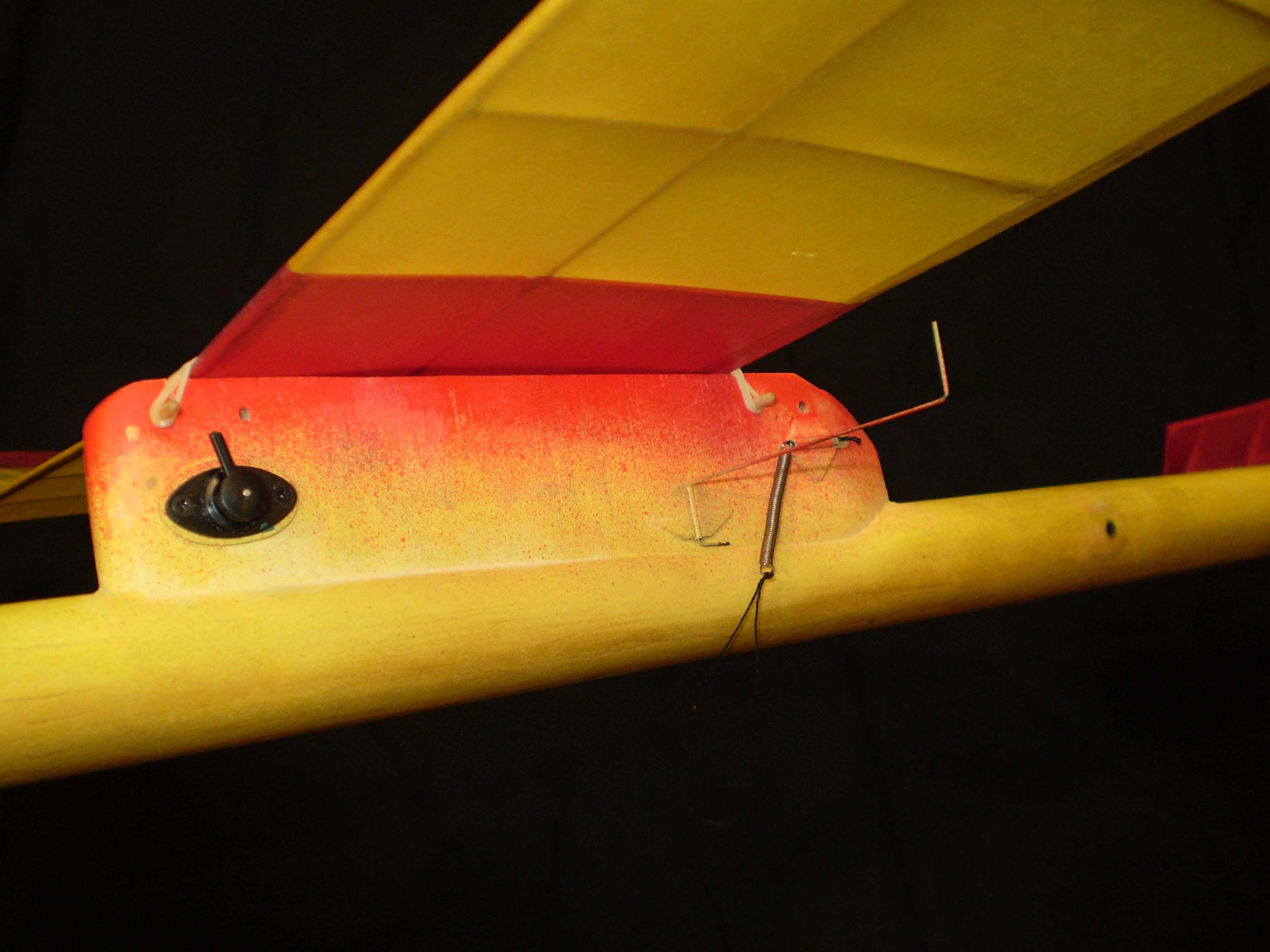

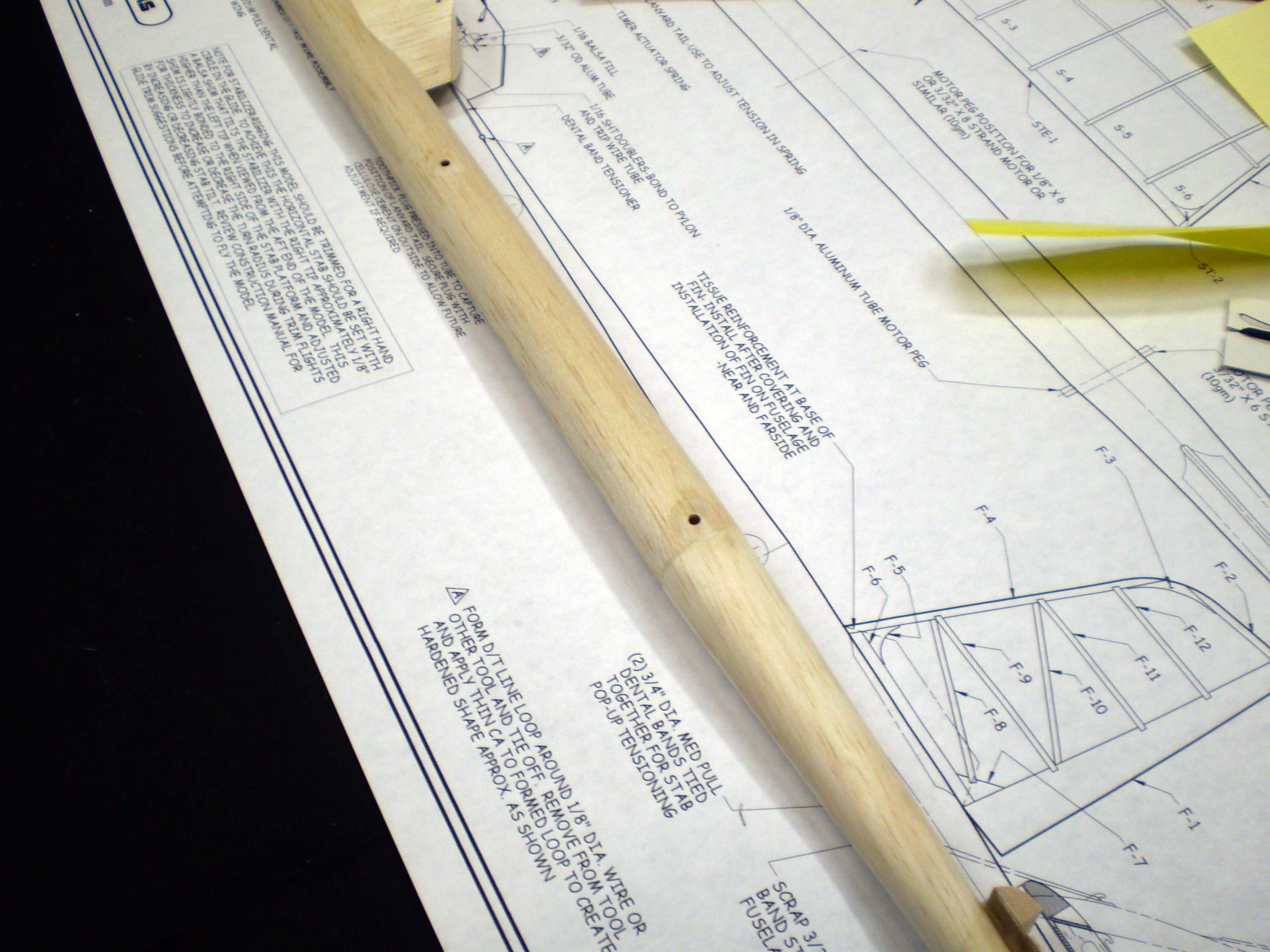

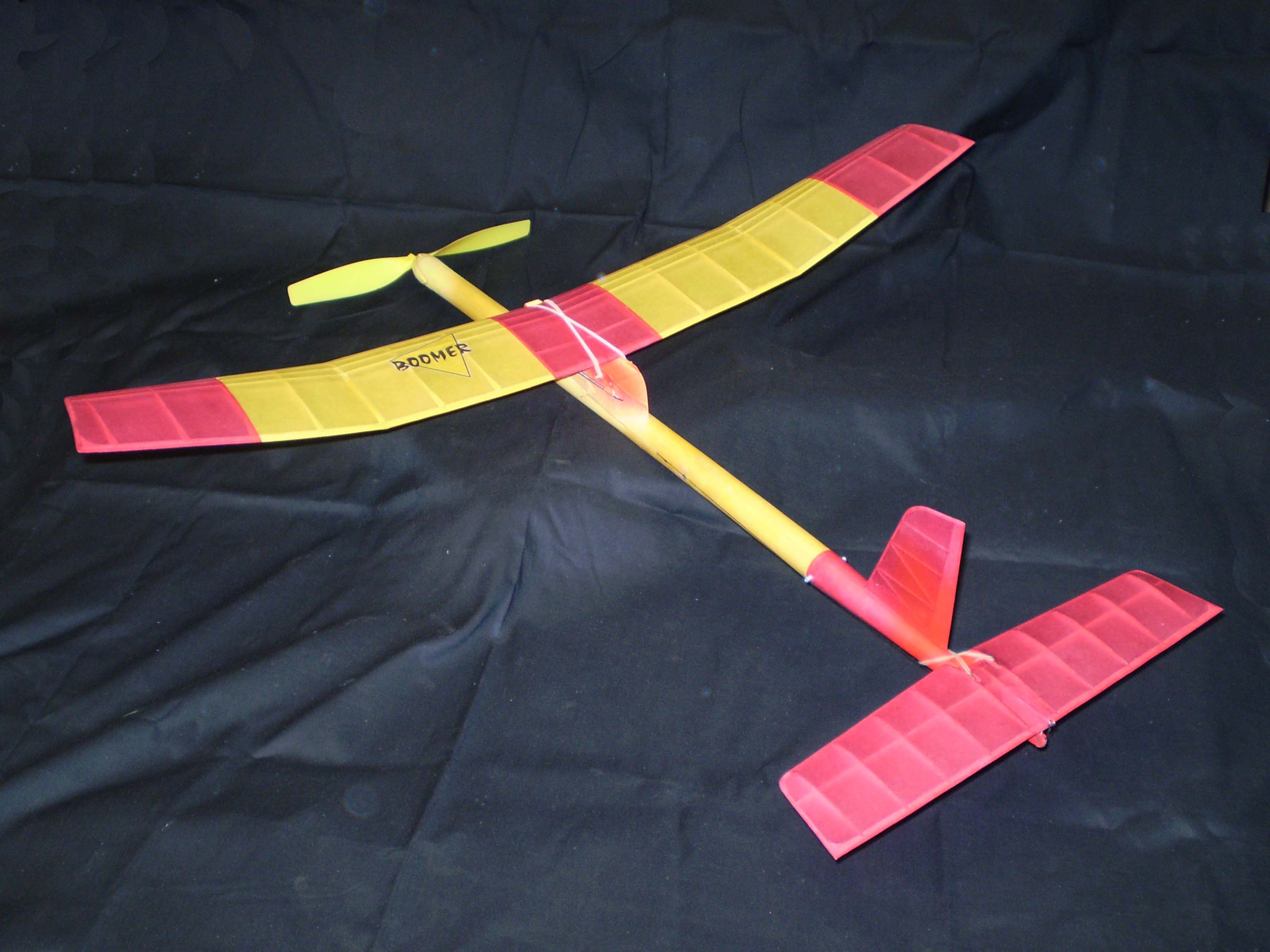

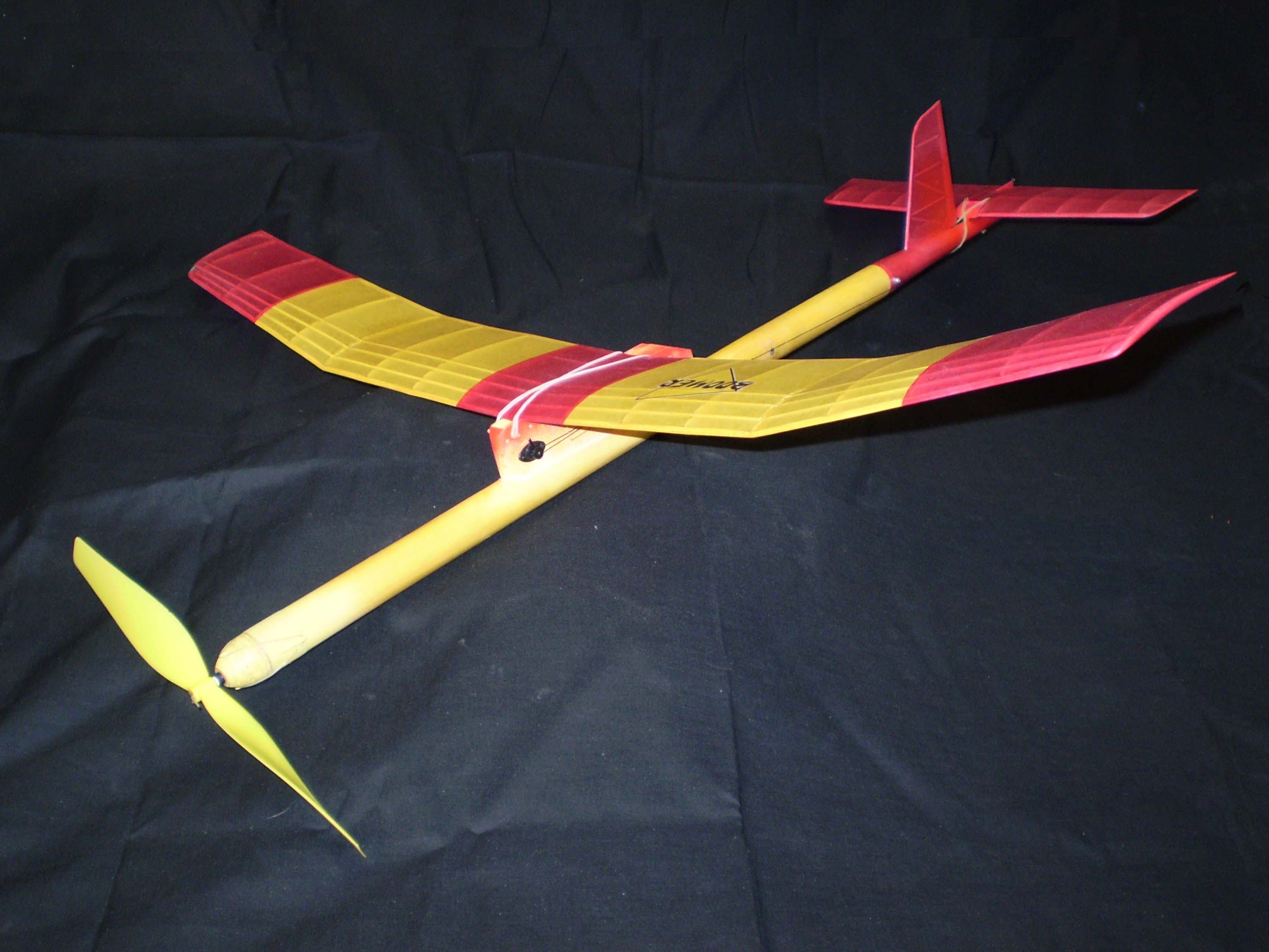

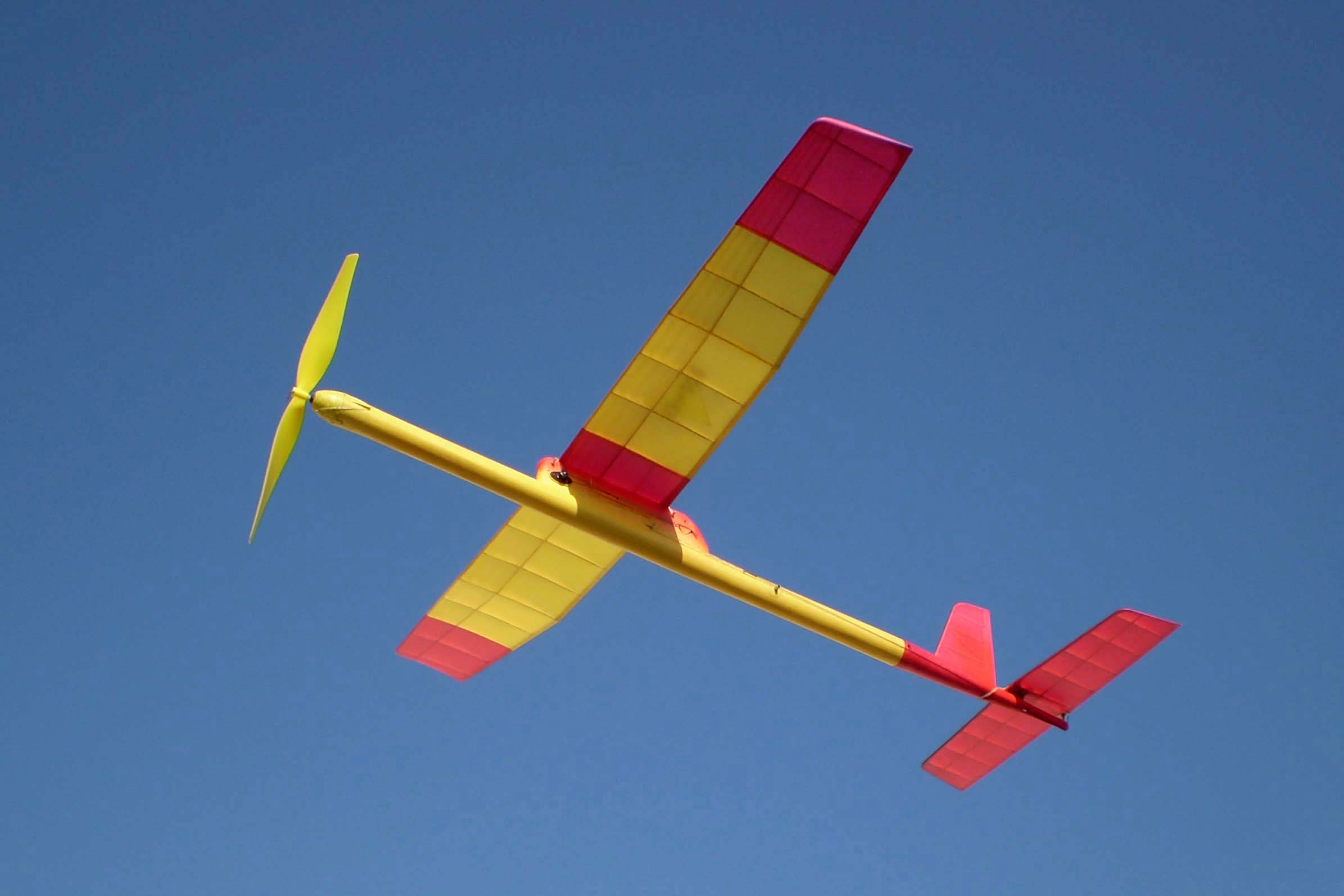

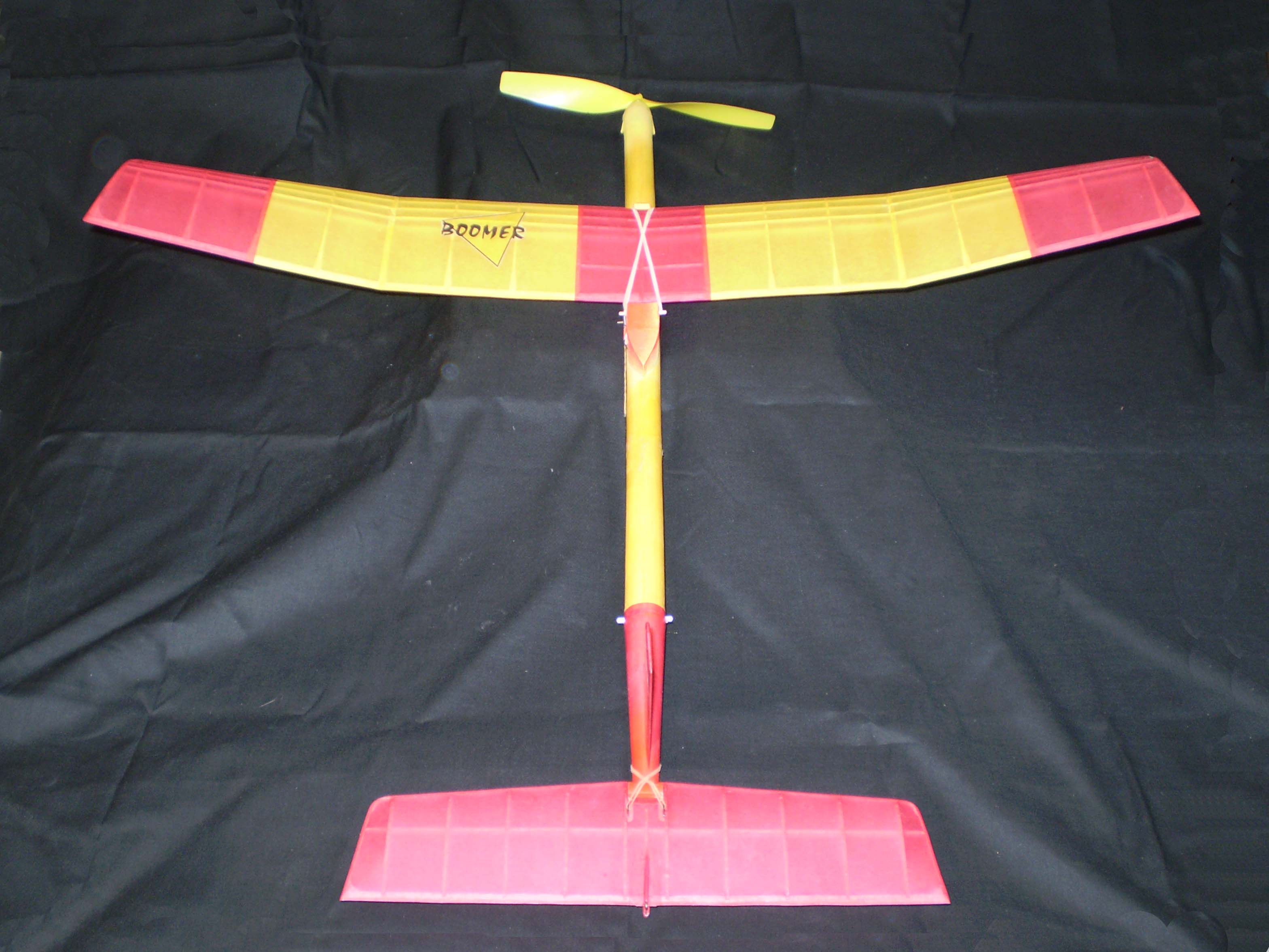

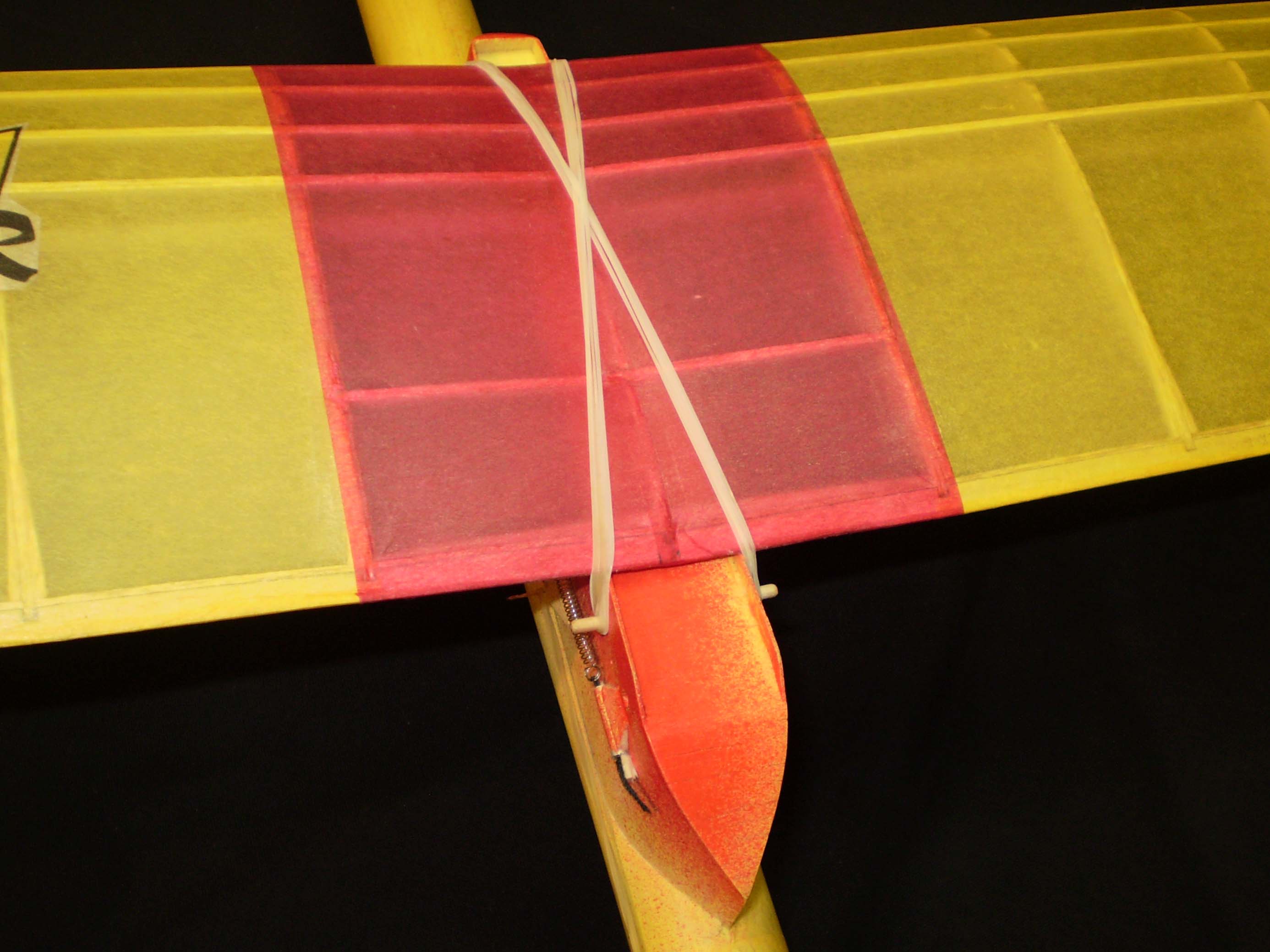

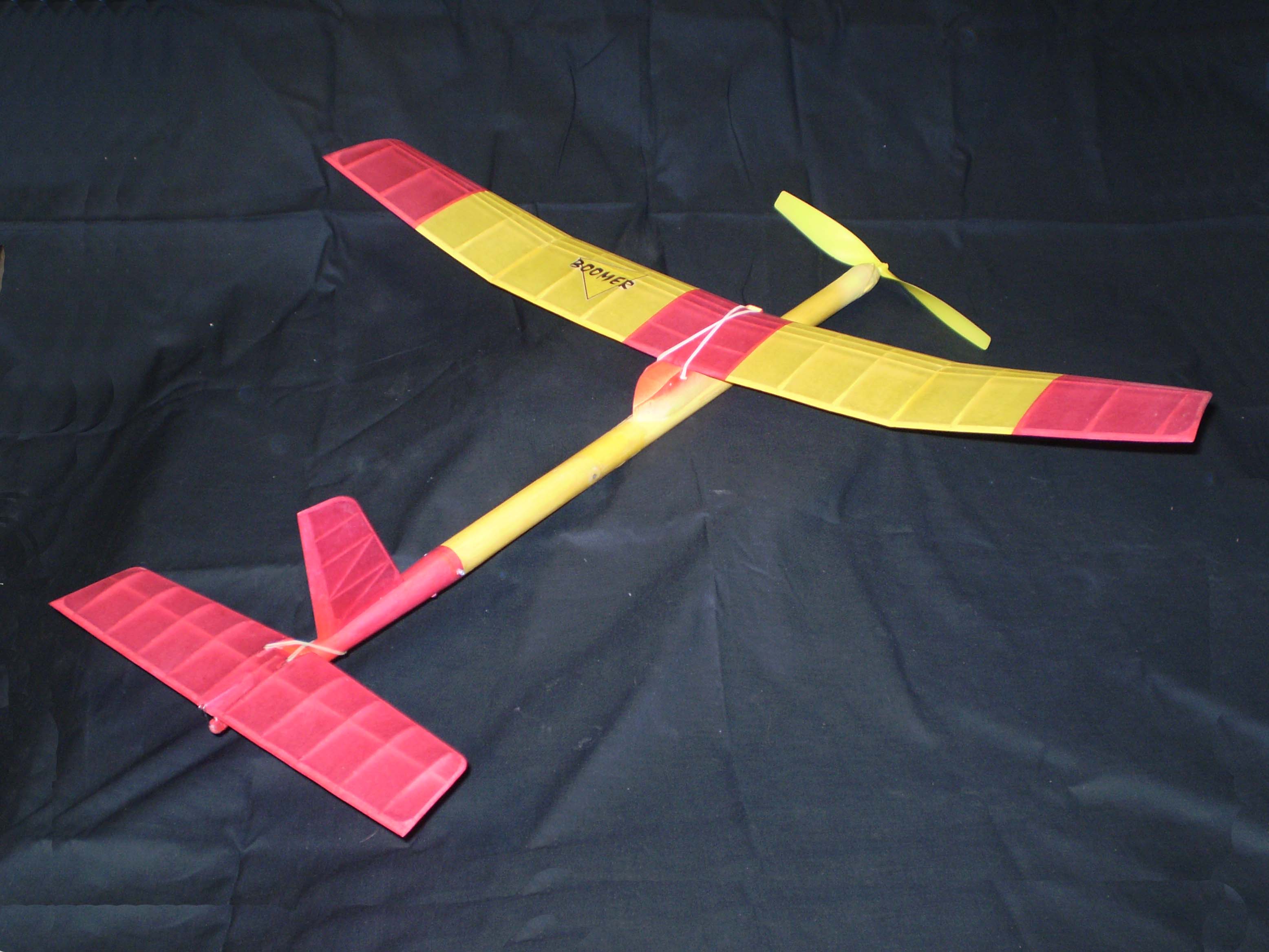

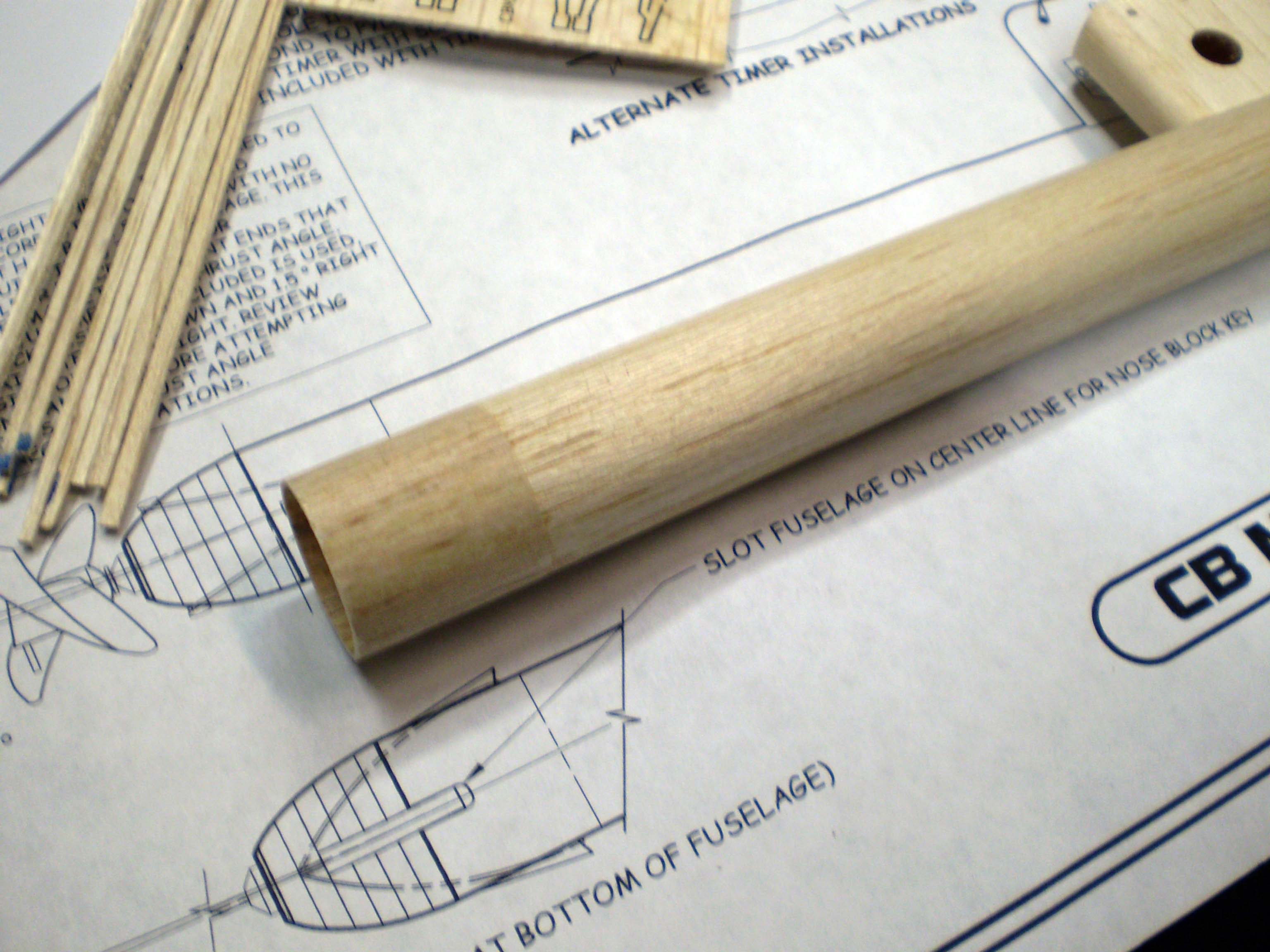

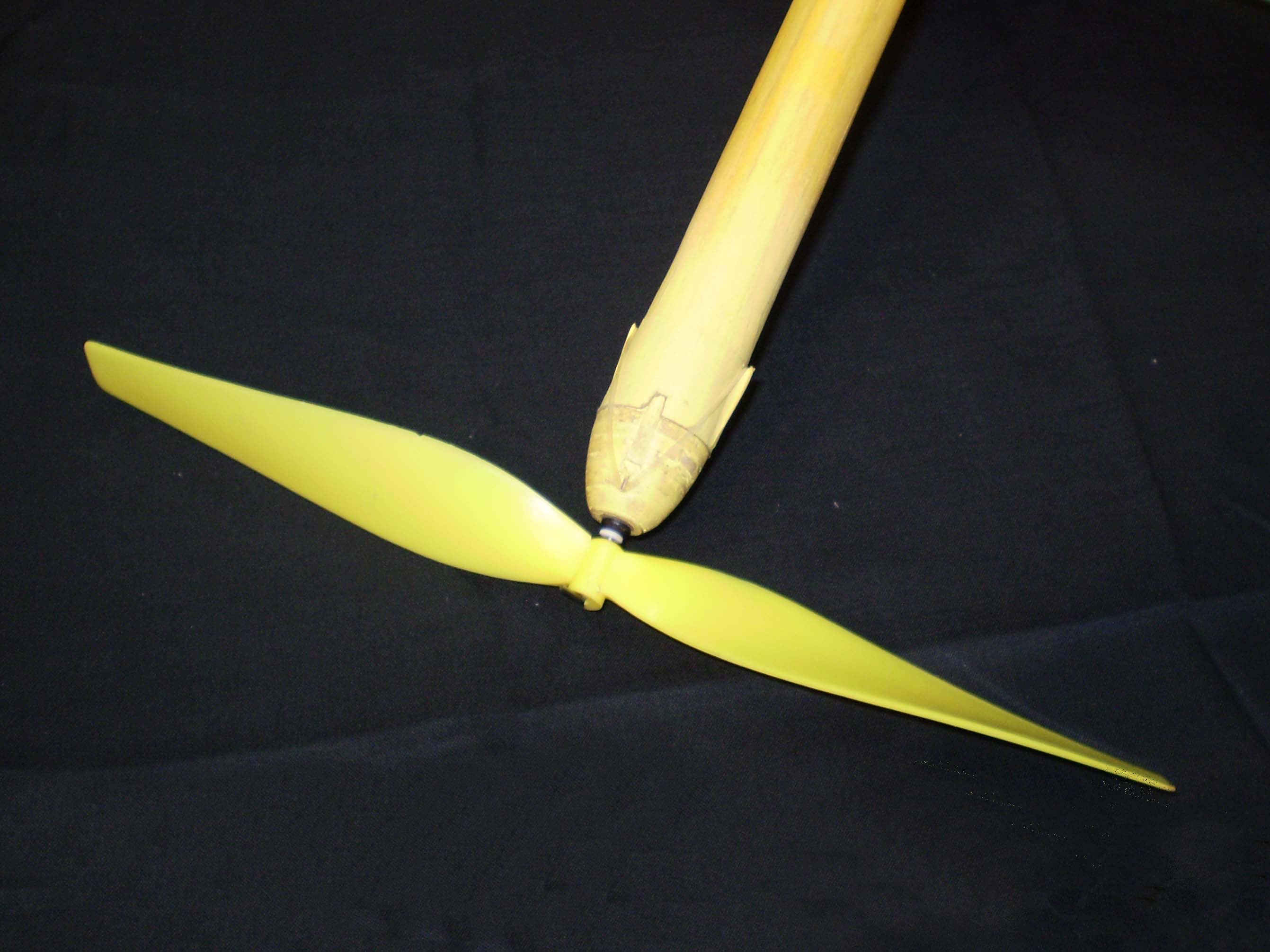

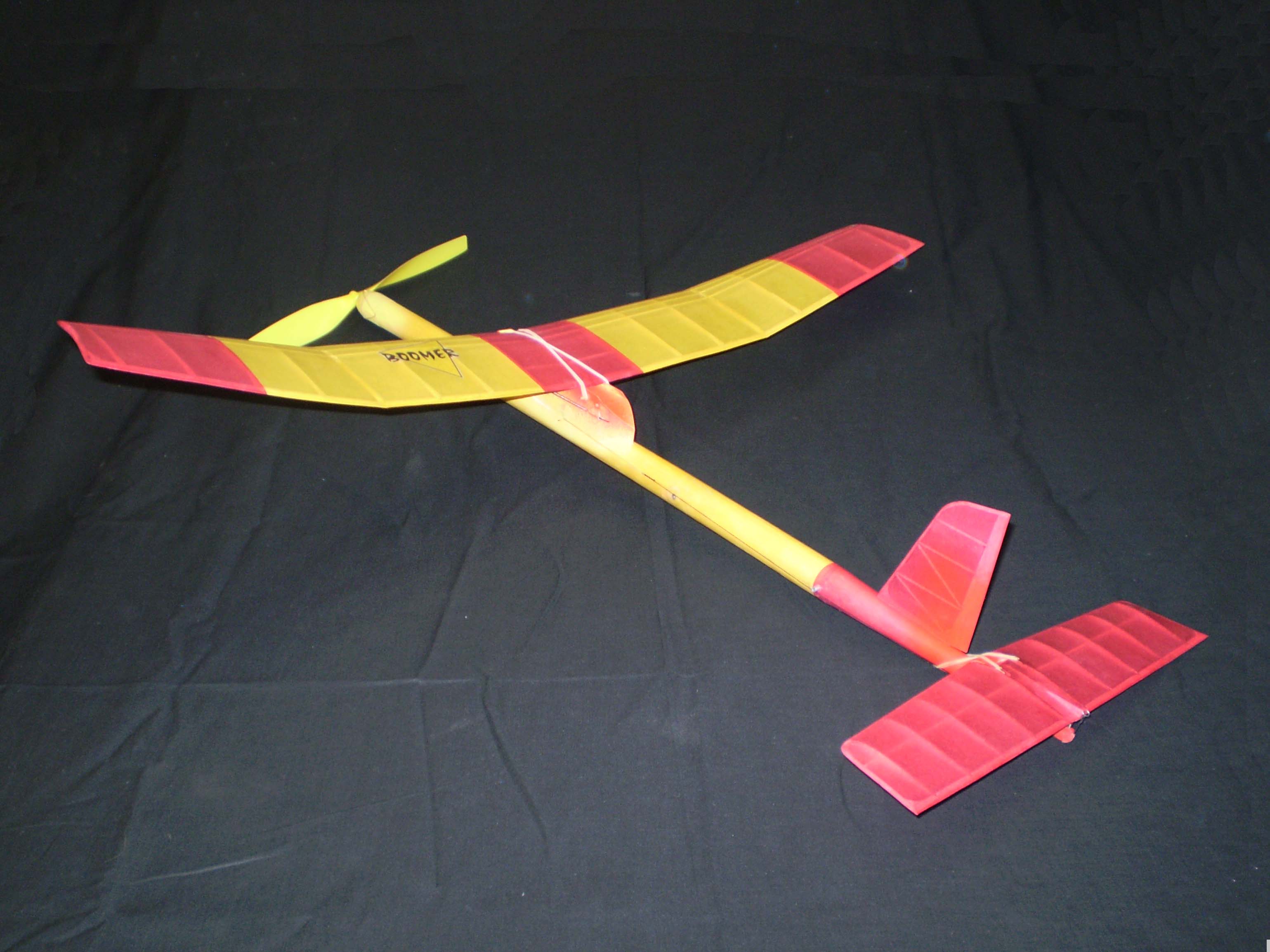

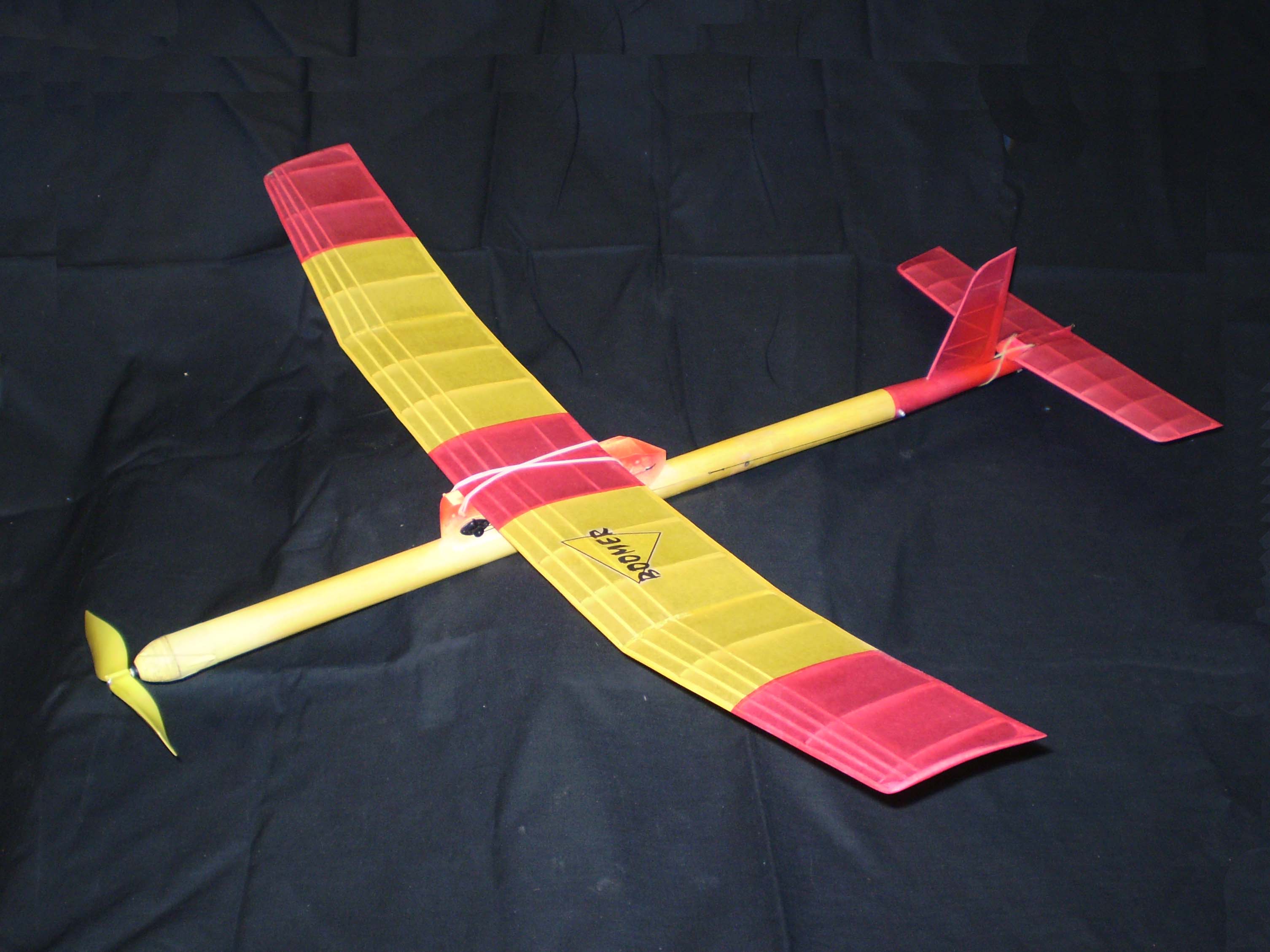

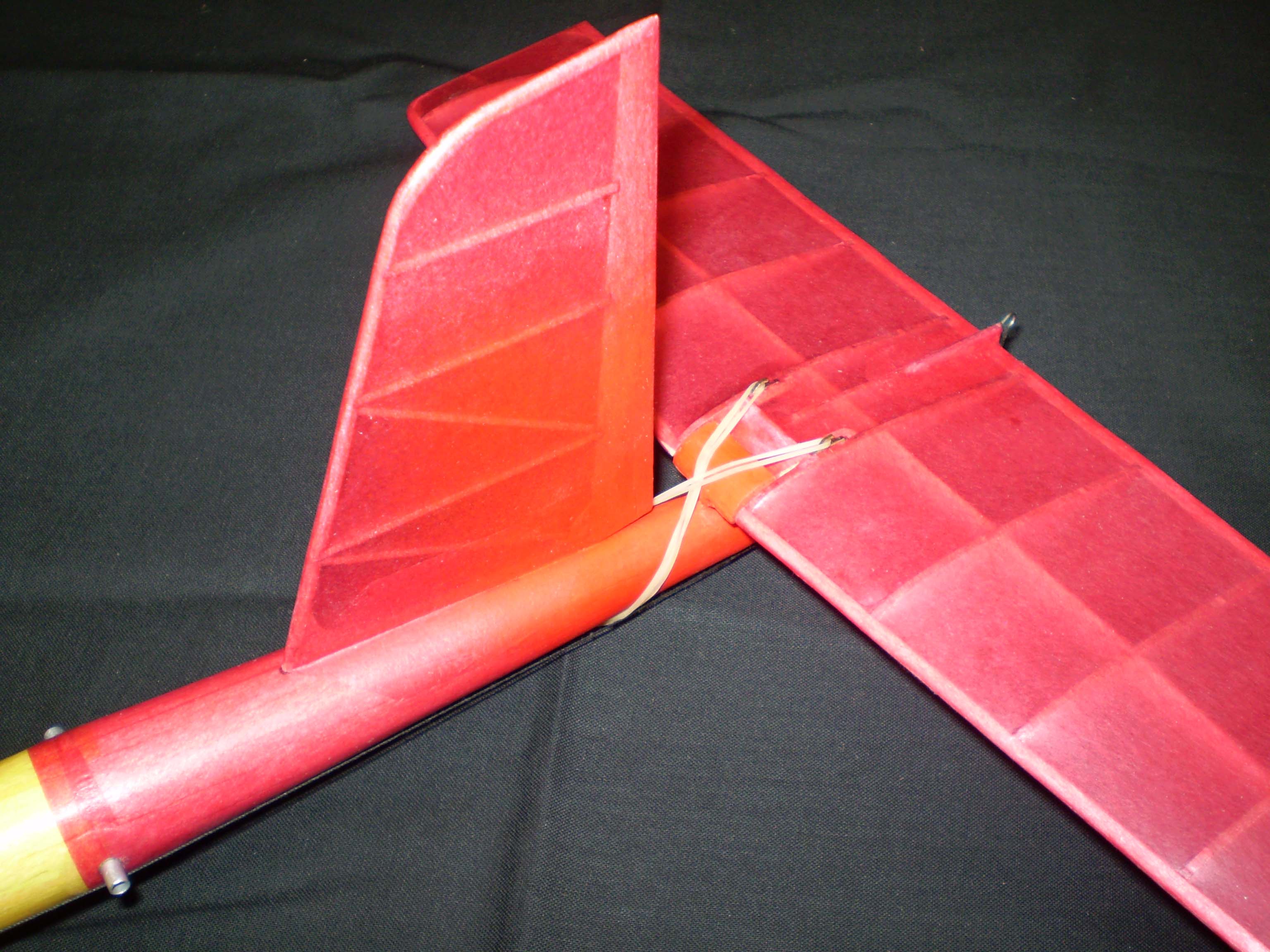

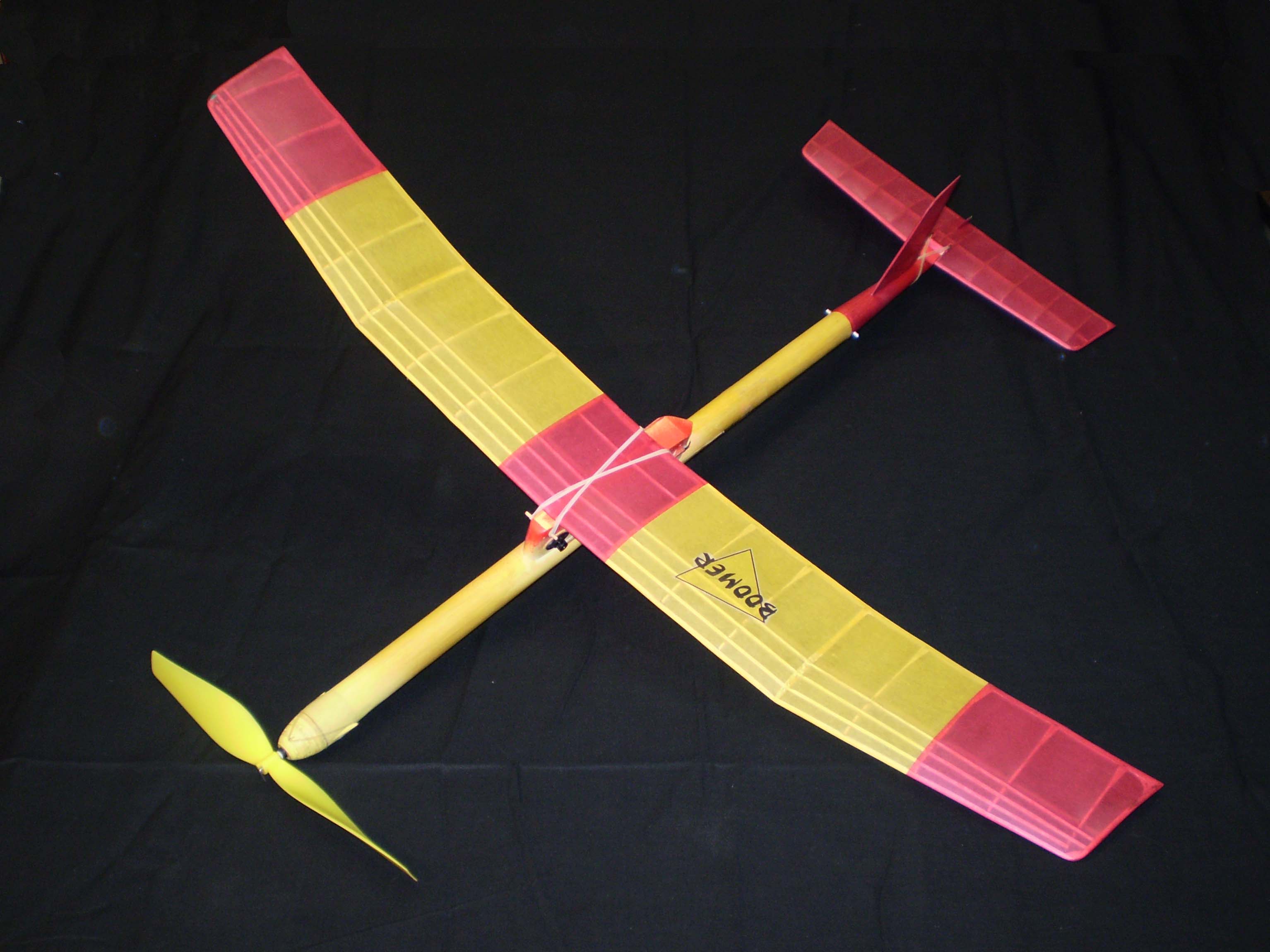

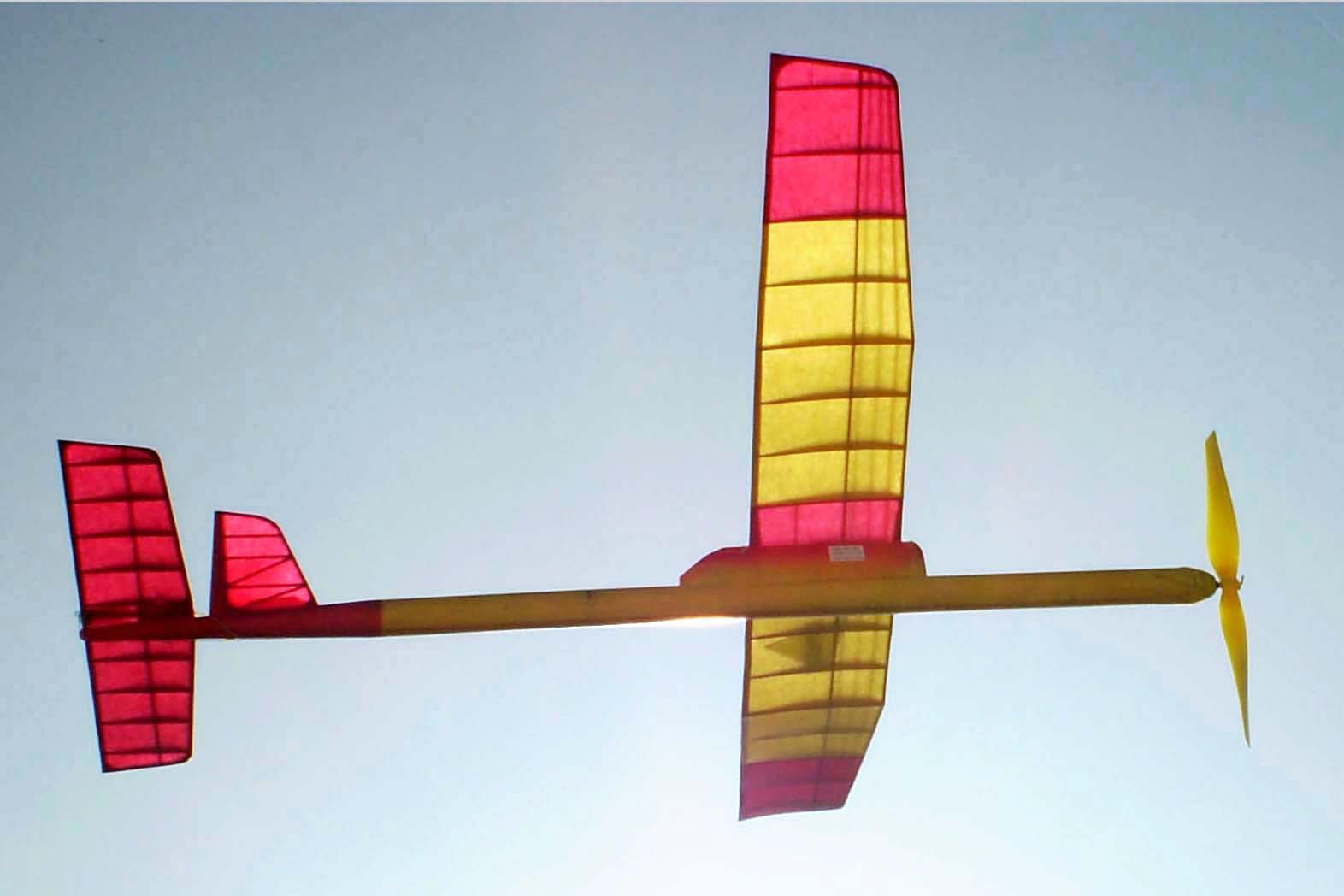

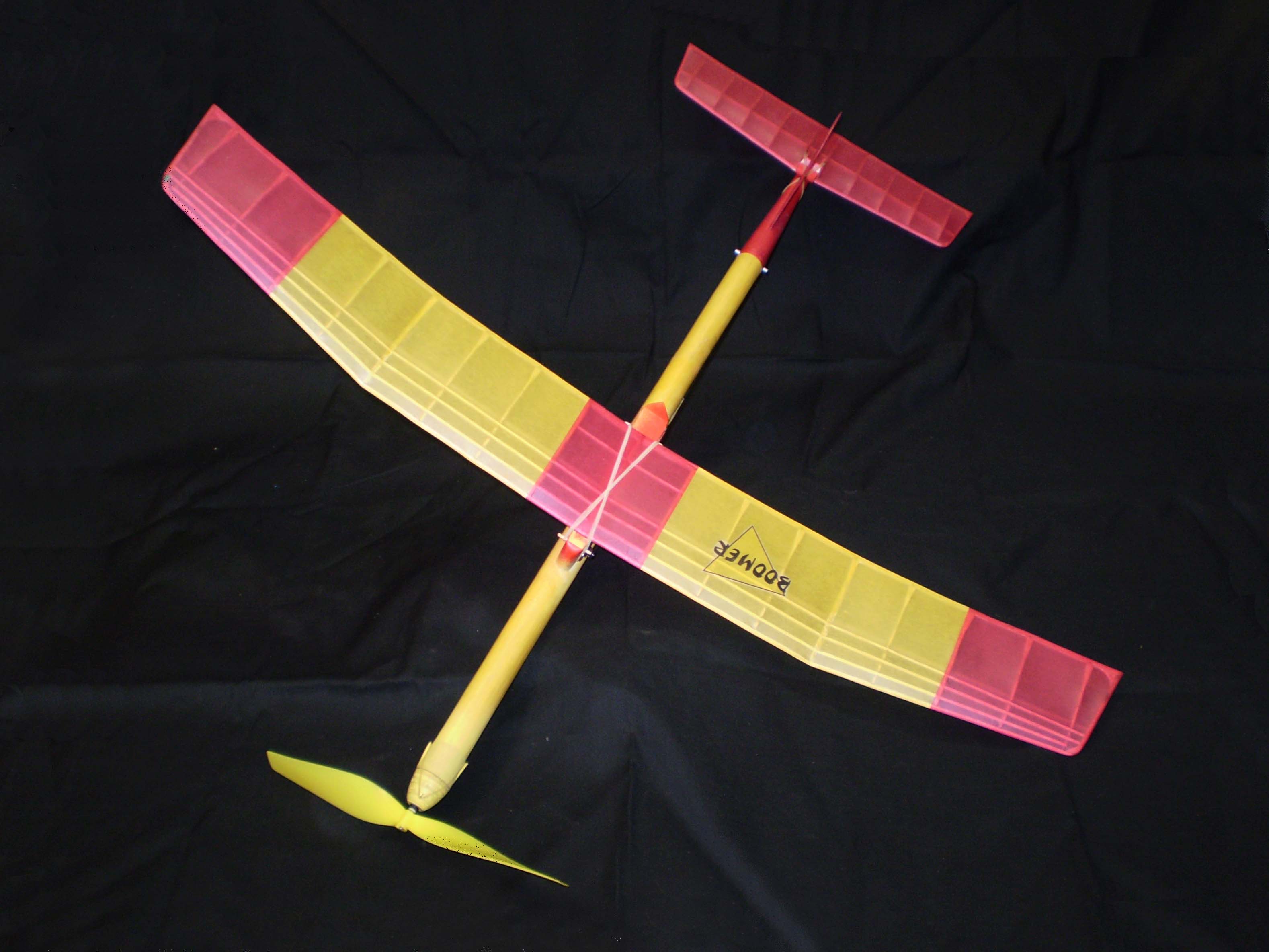

BOOMER MK II pics:

. .

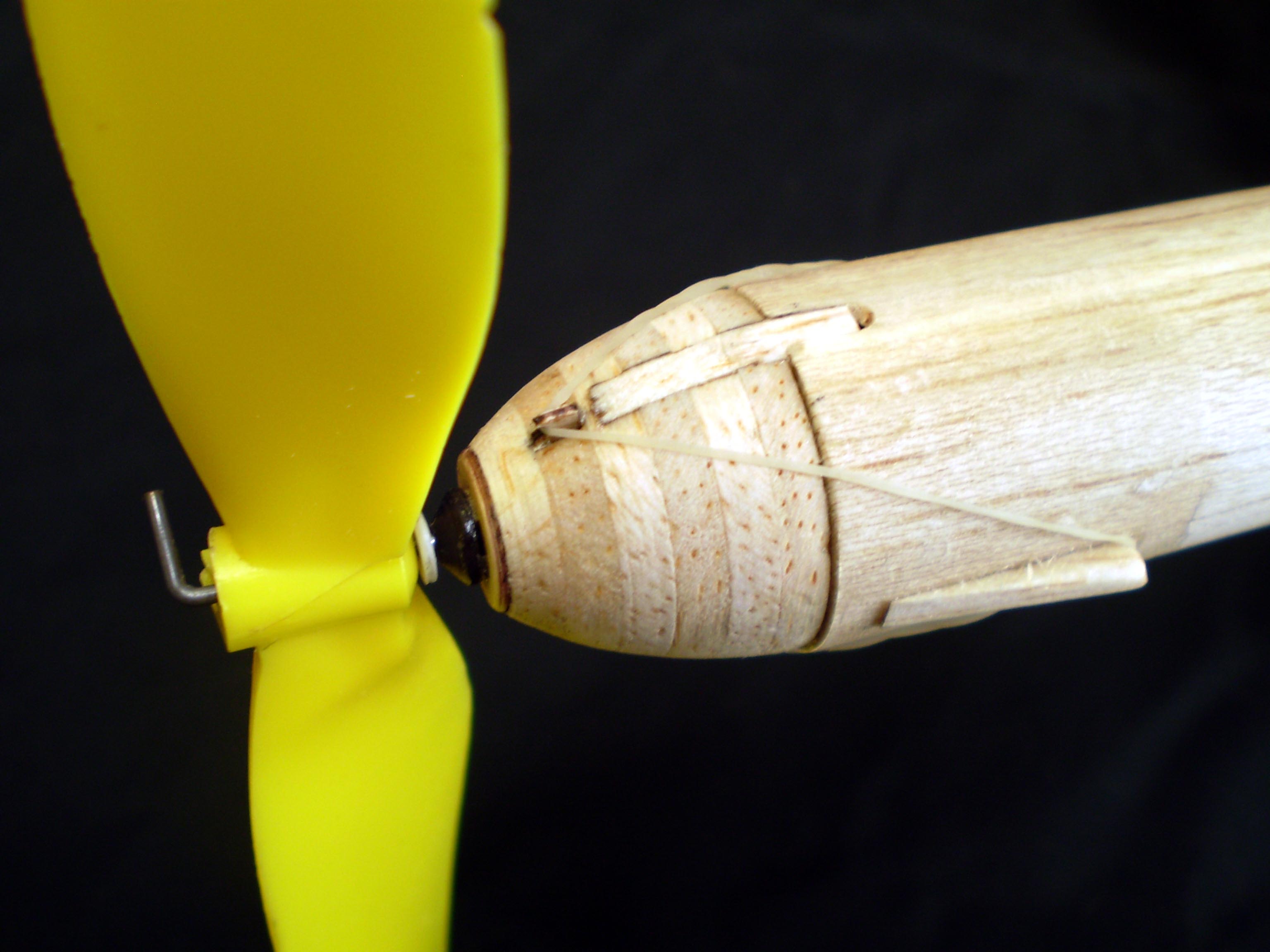

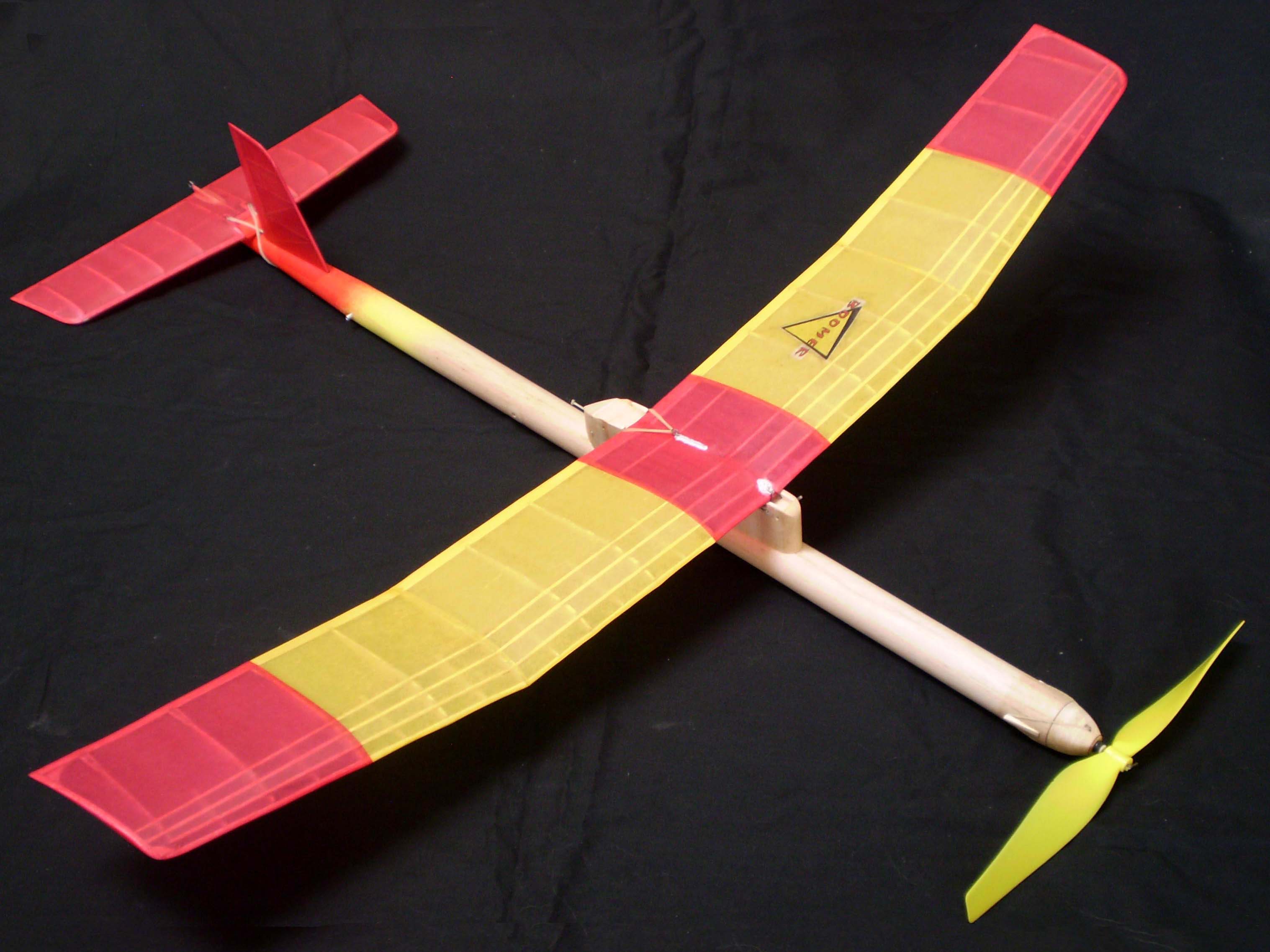

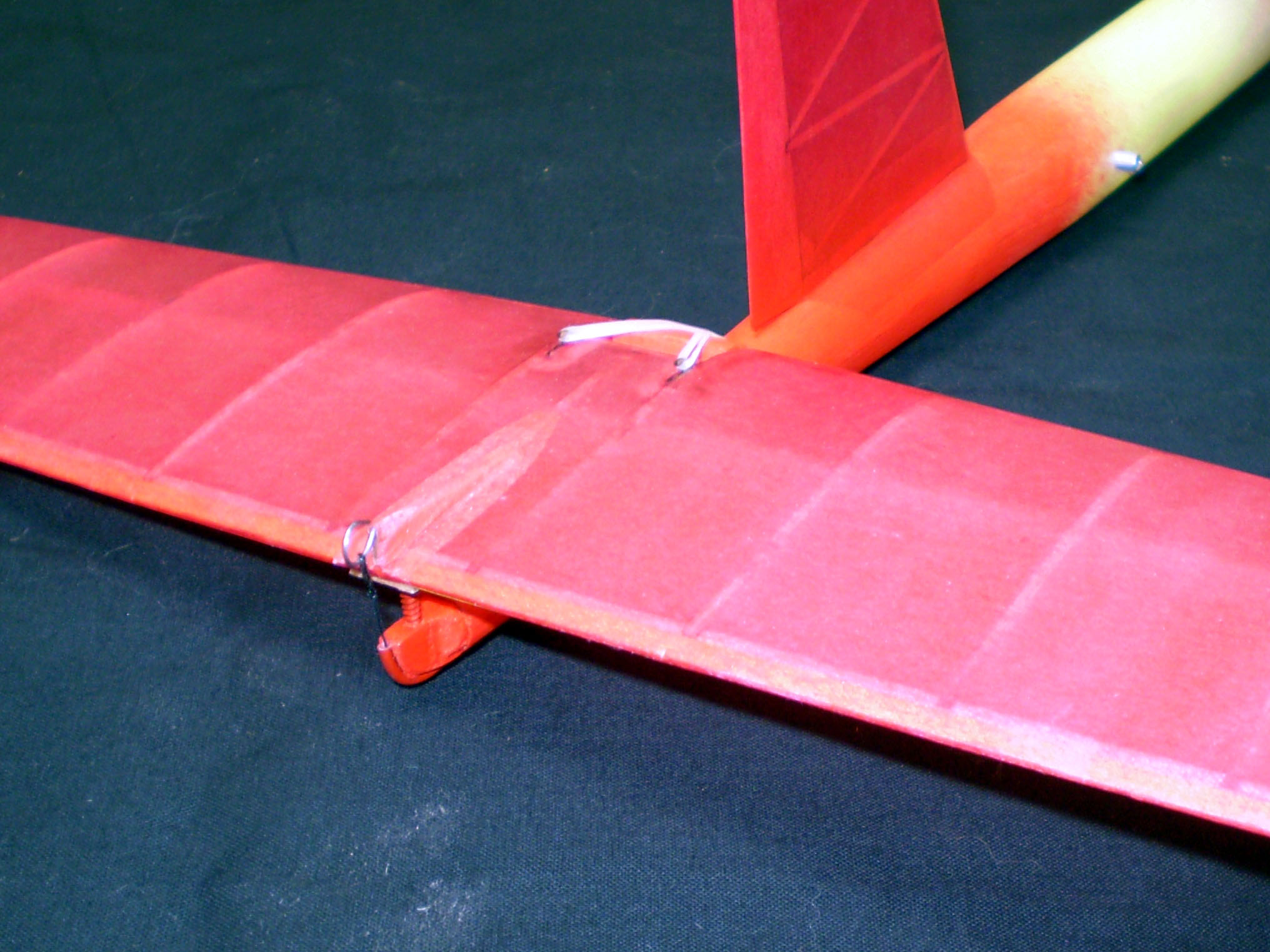

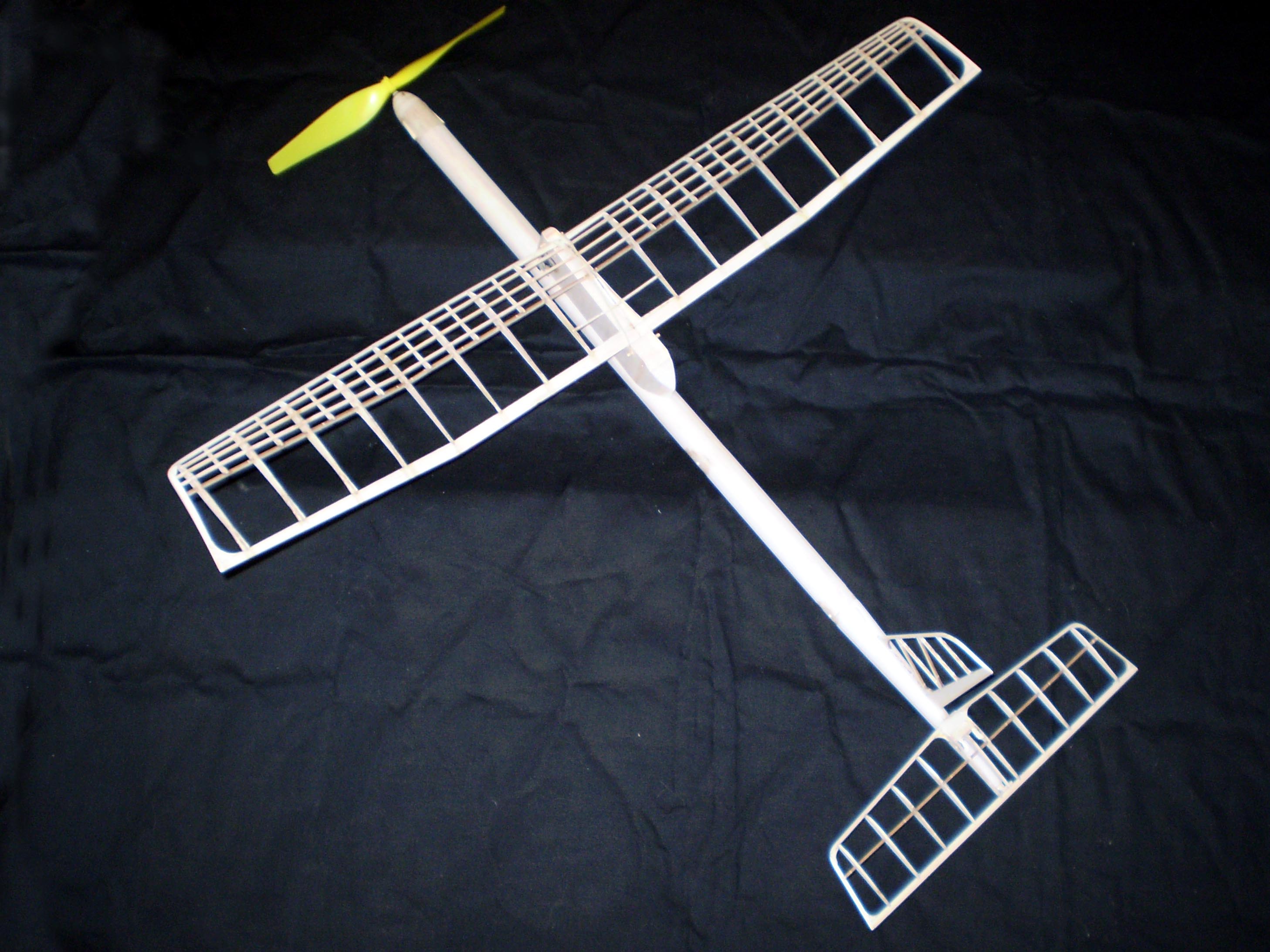

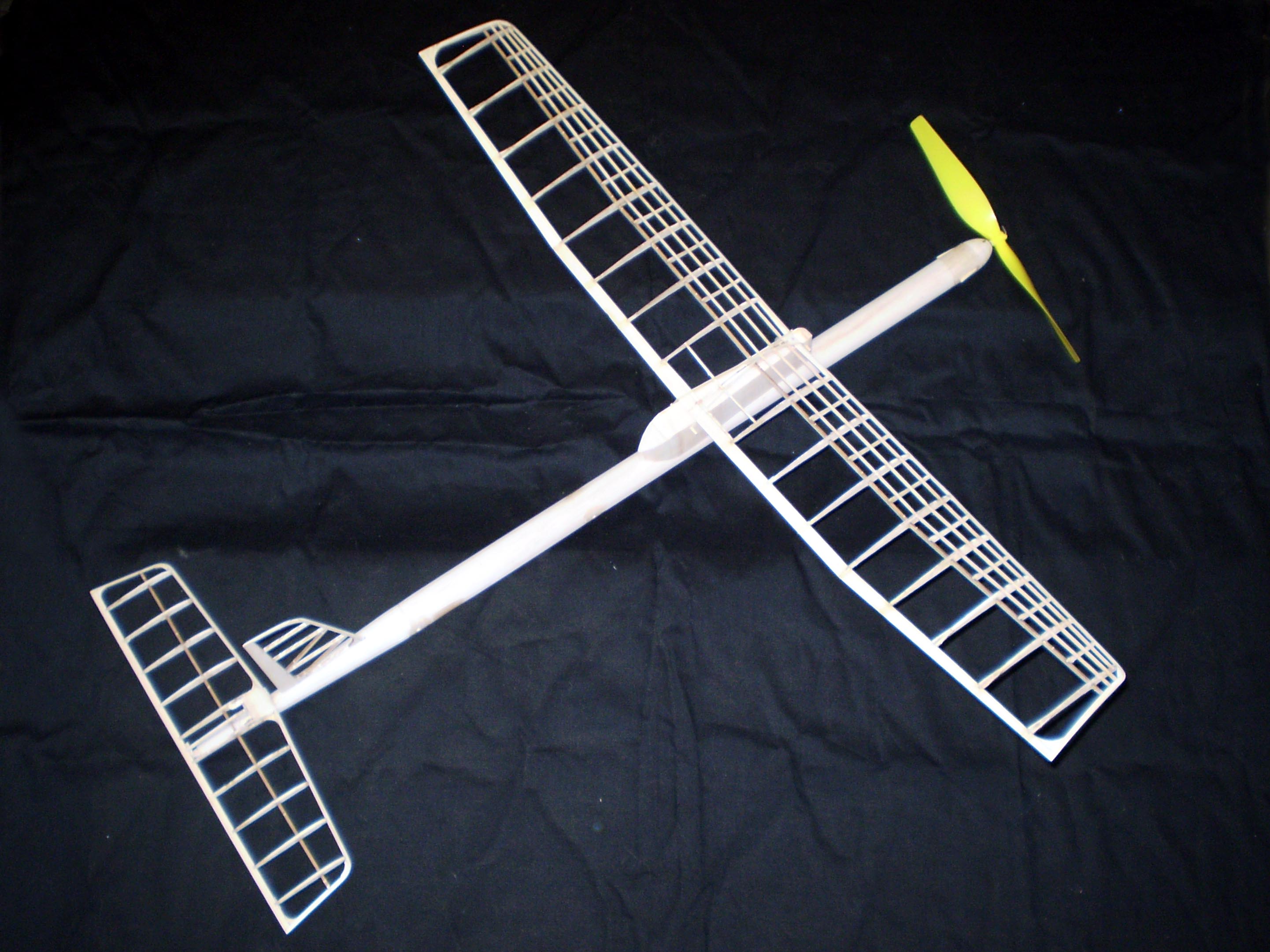

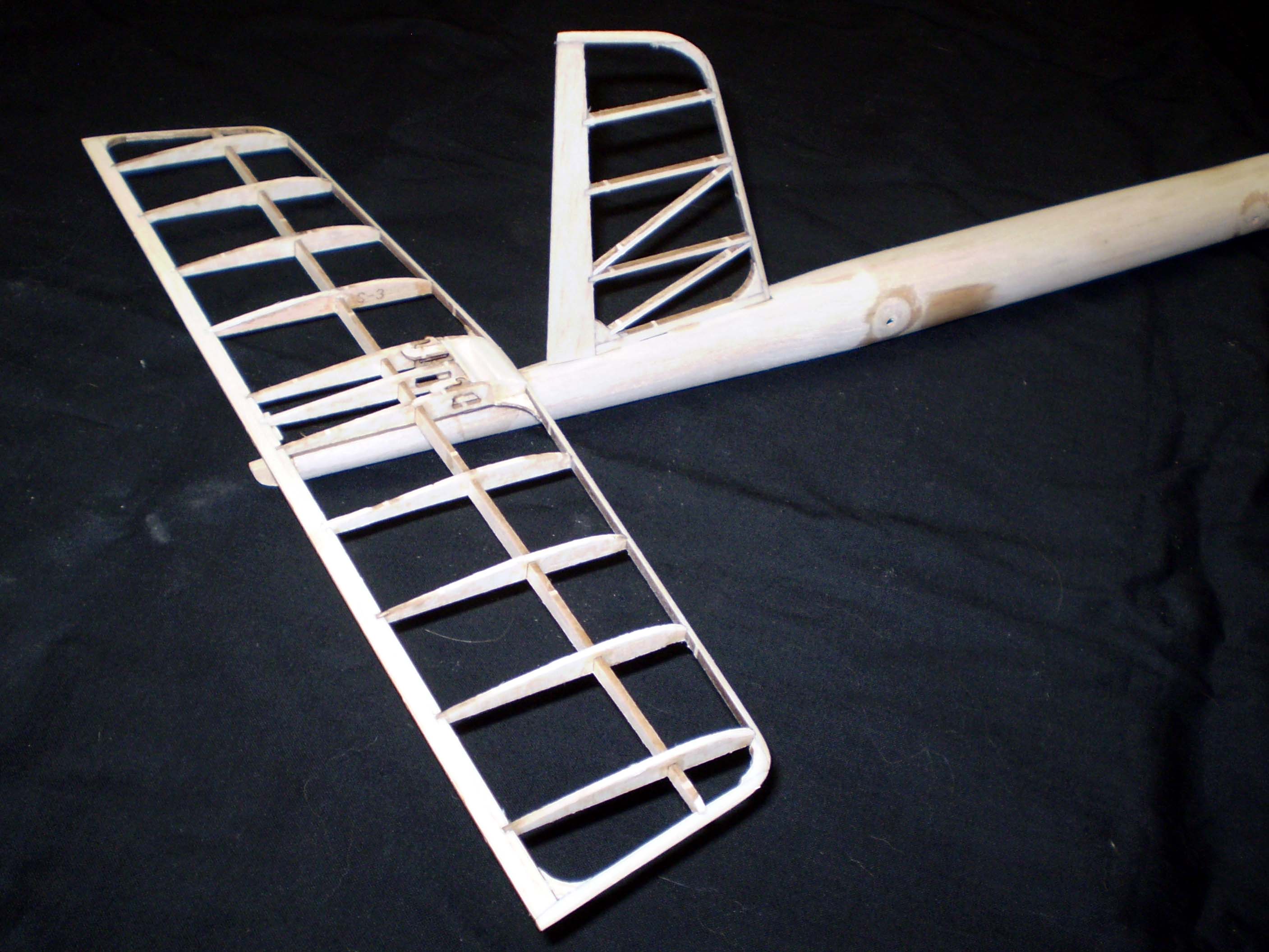

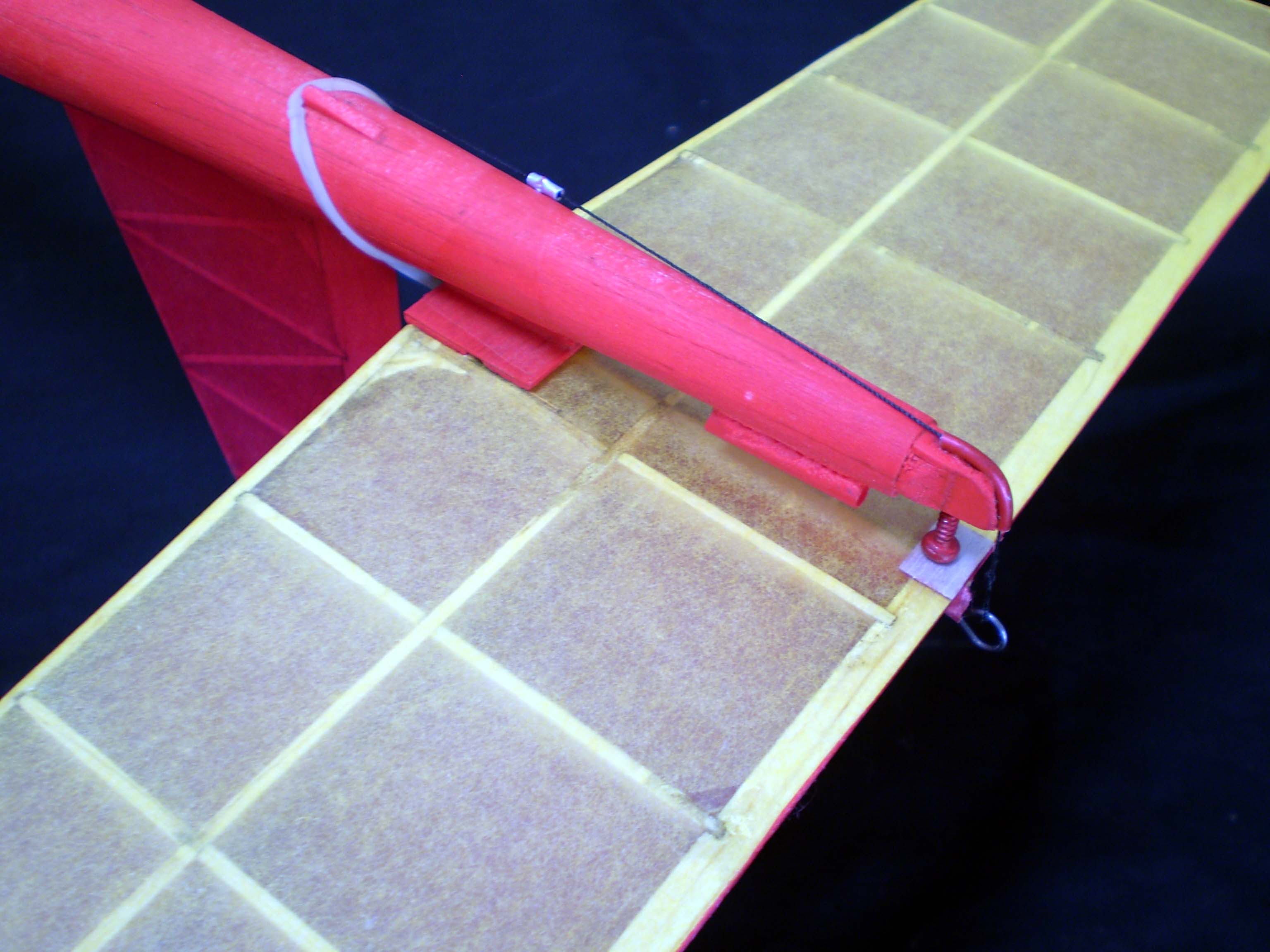

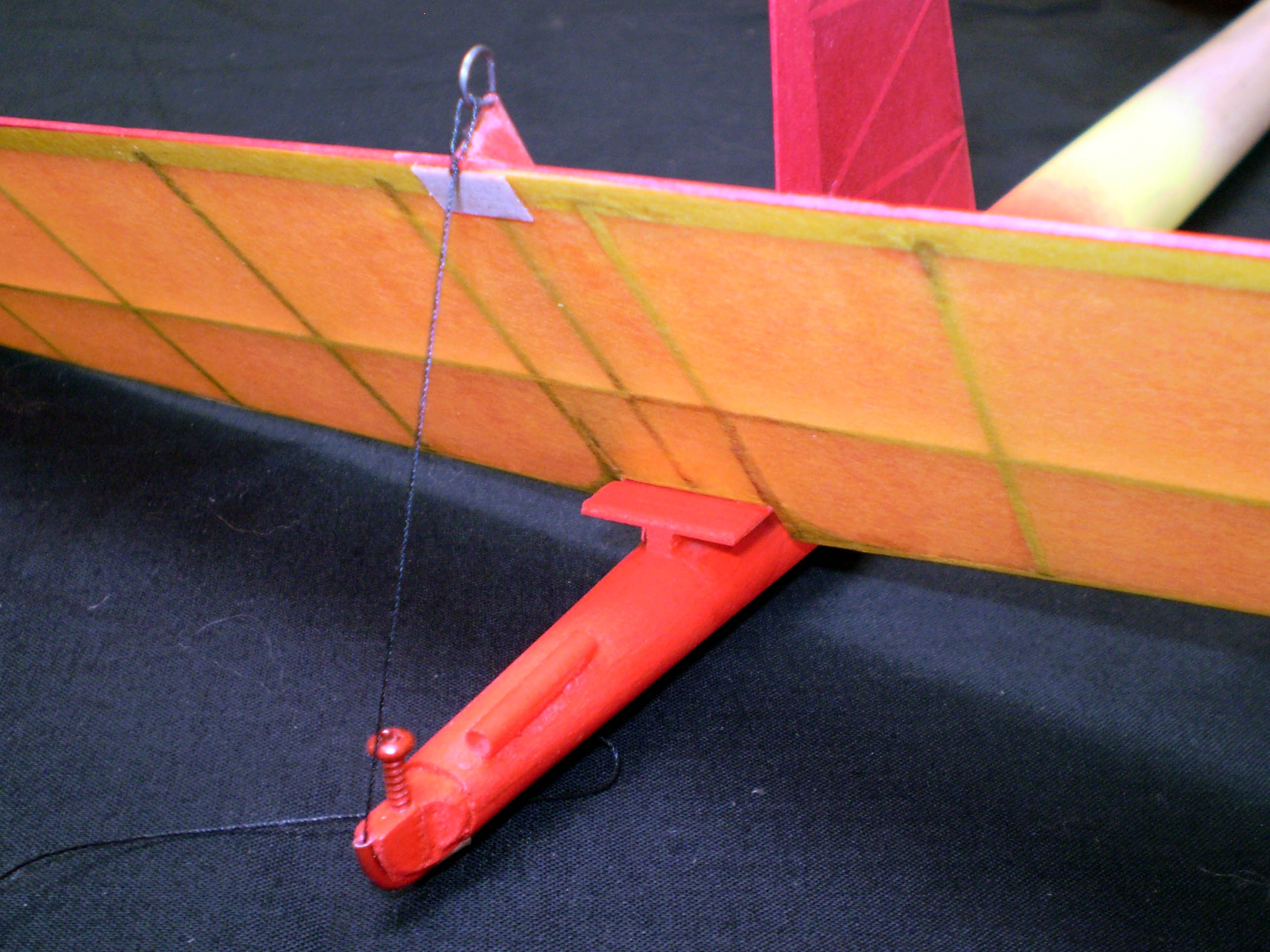

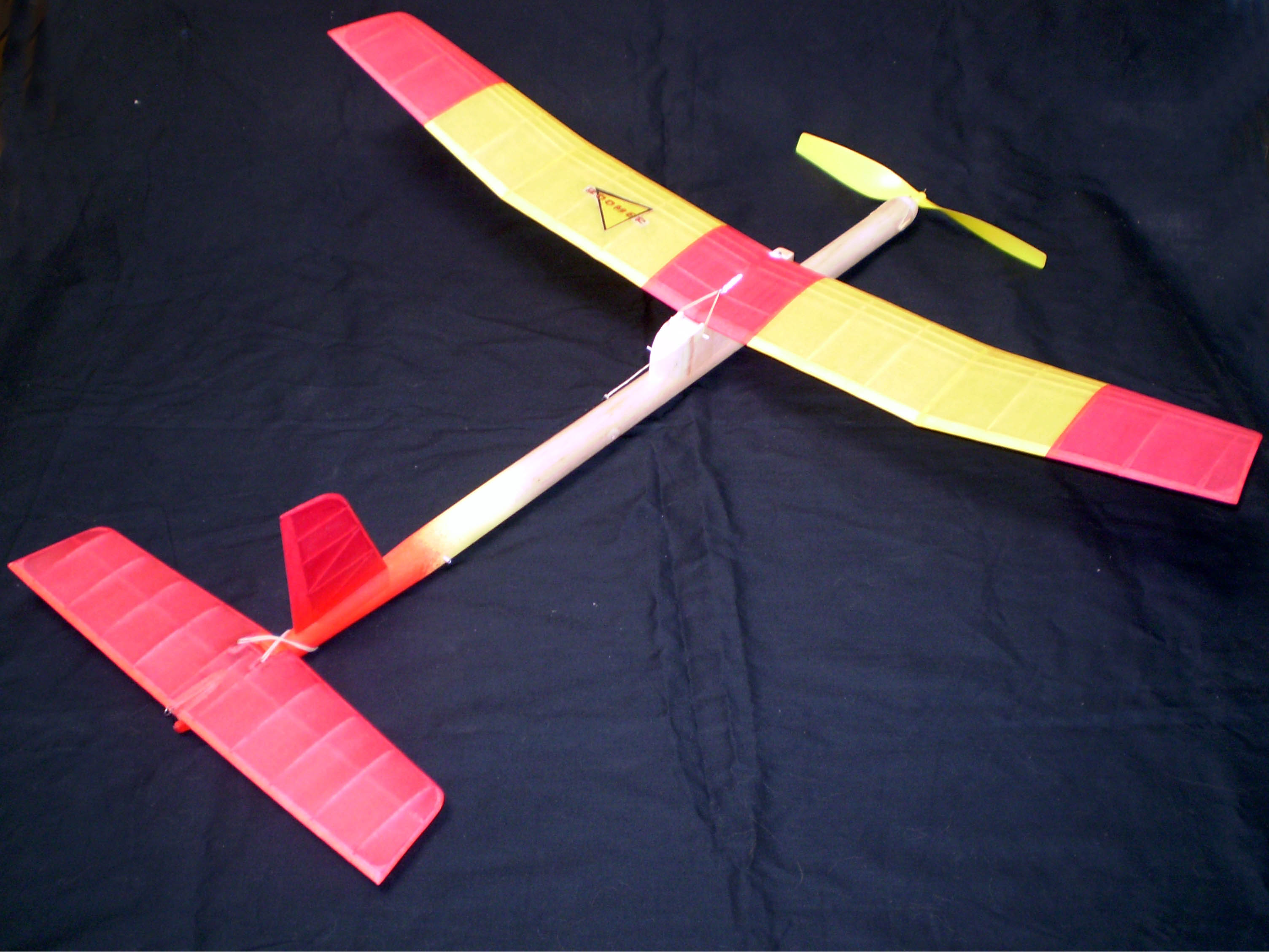

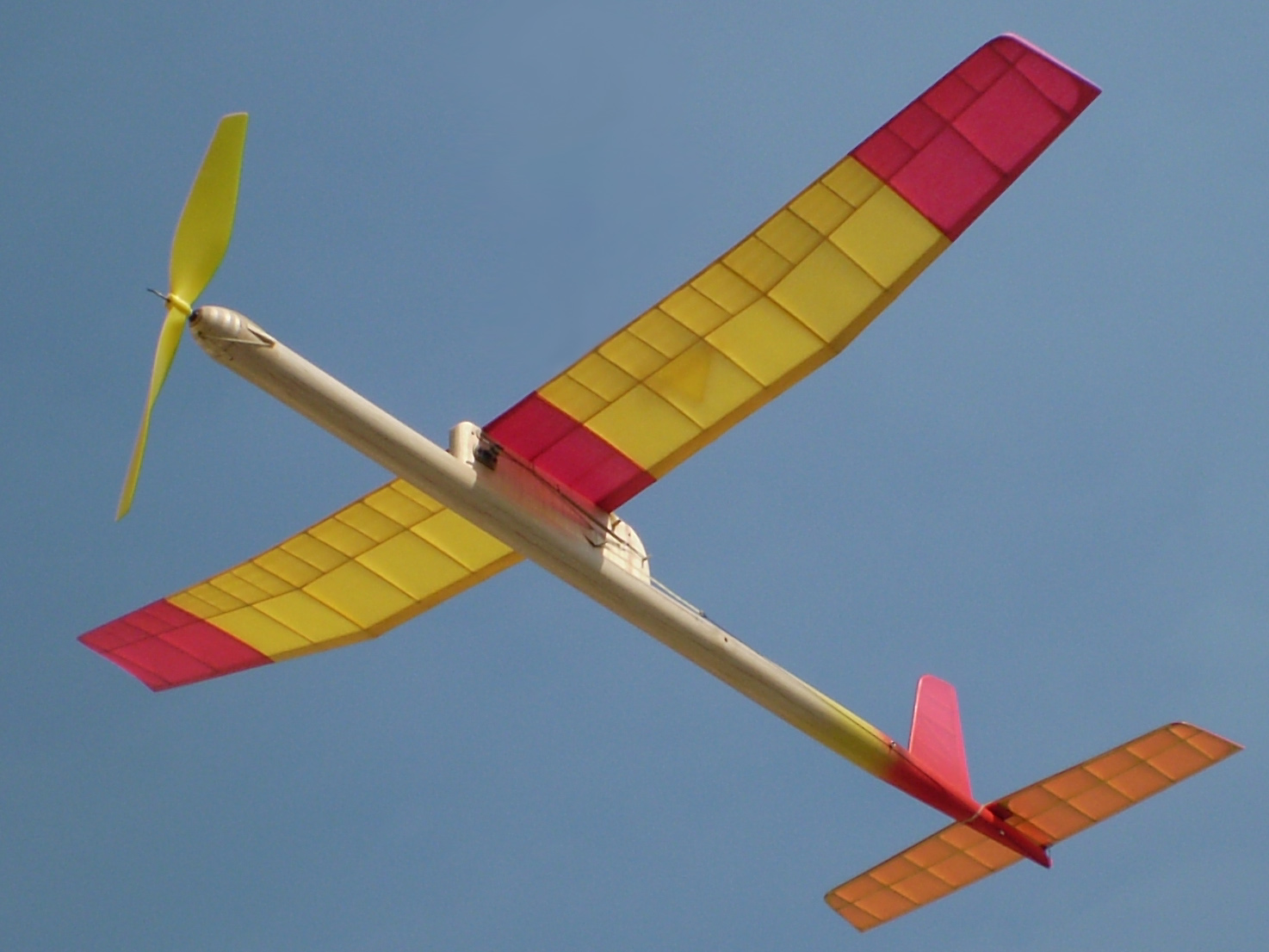

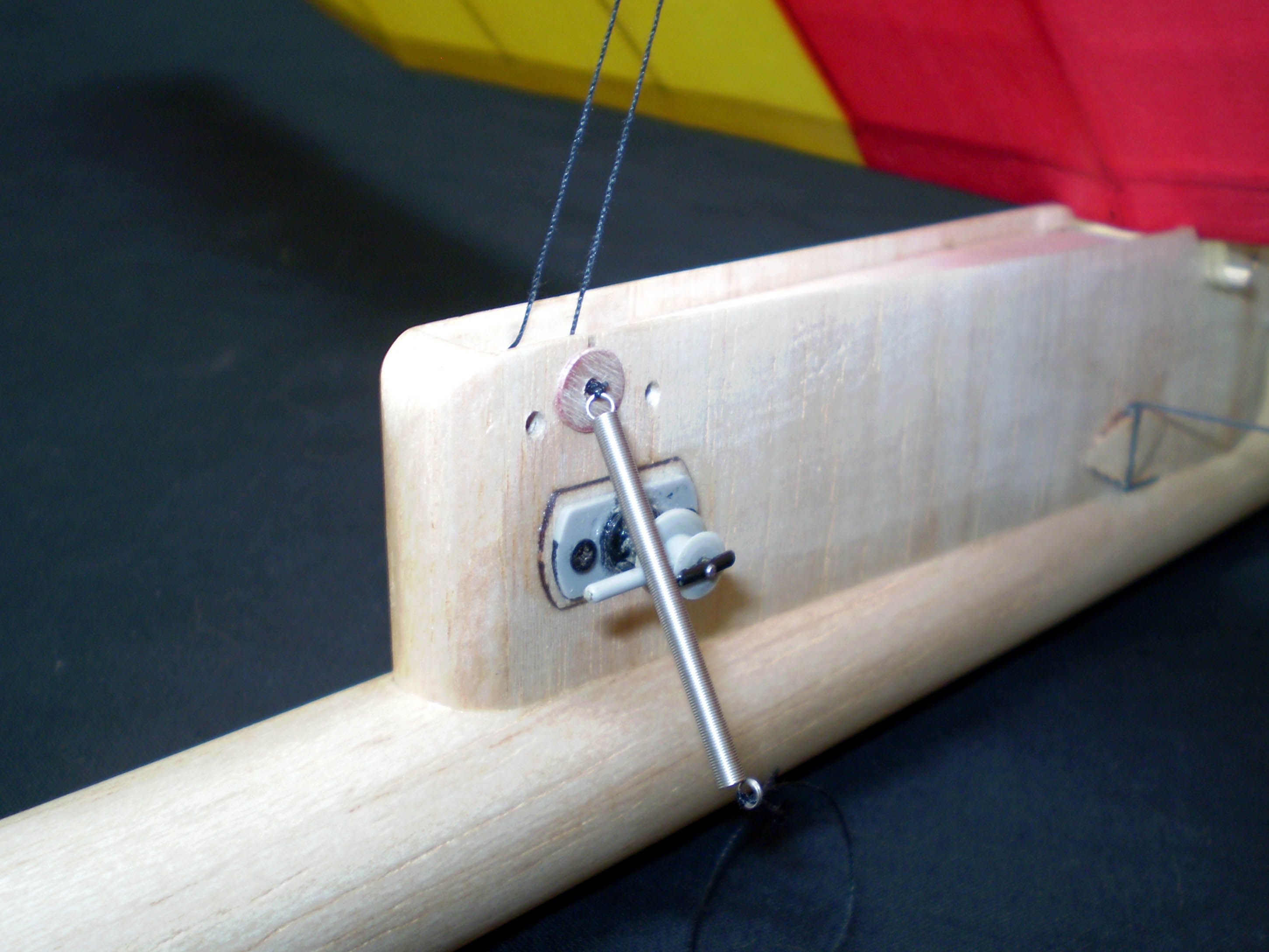

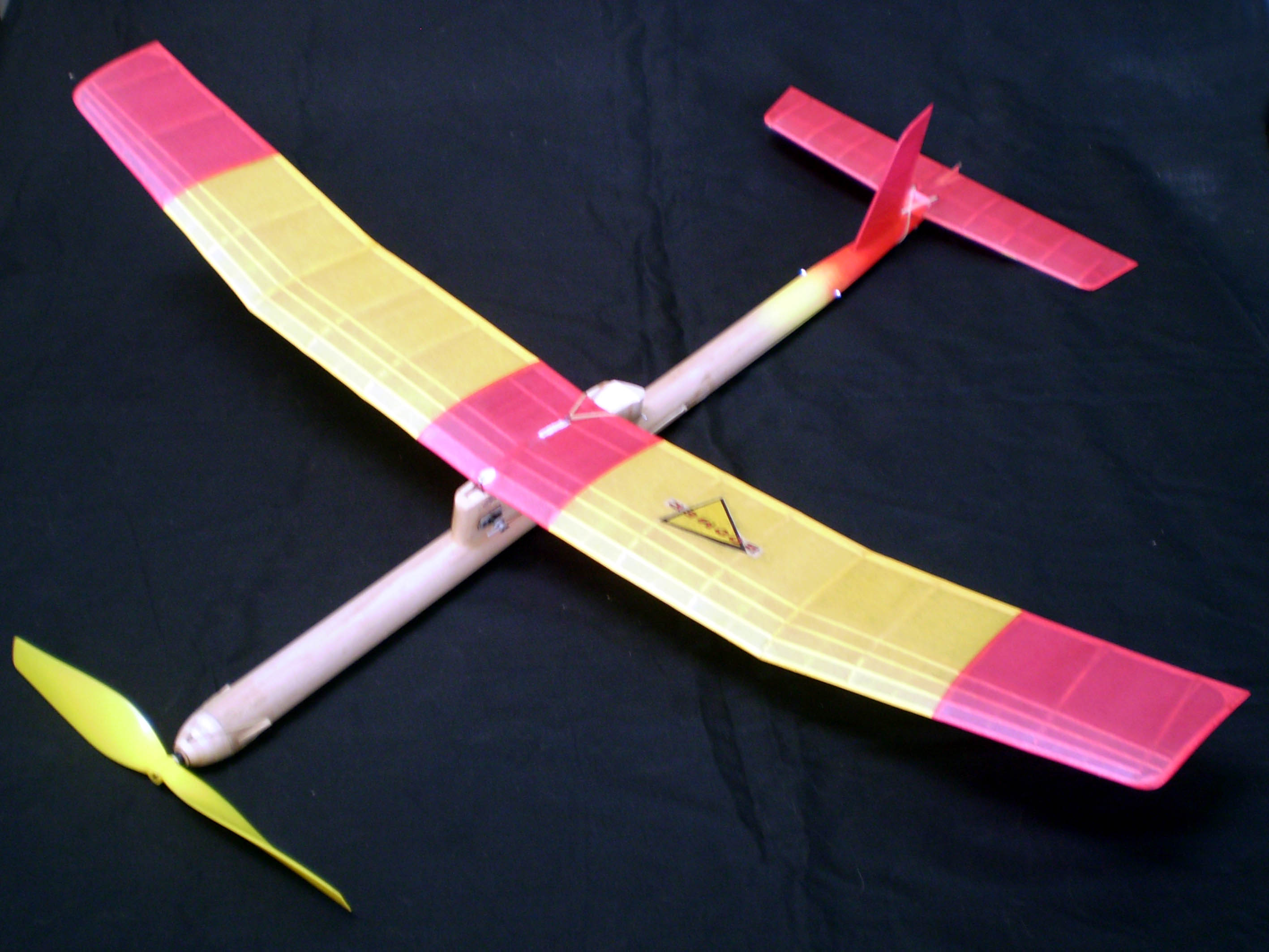

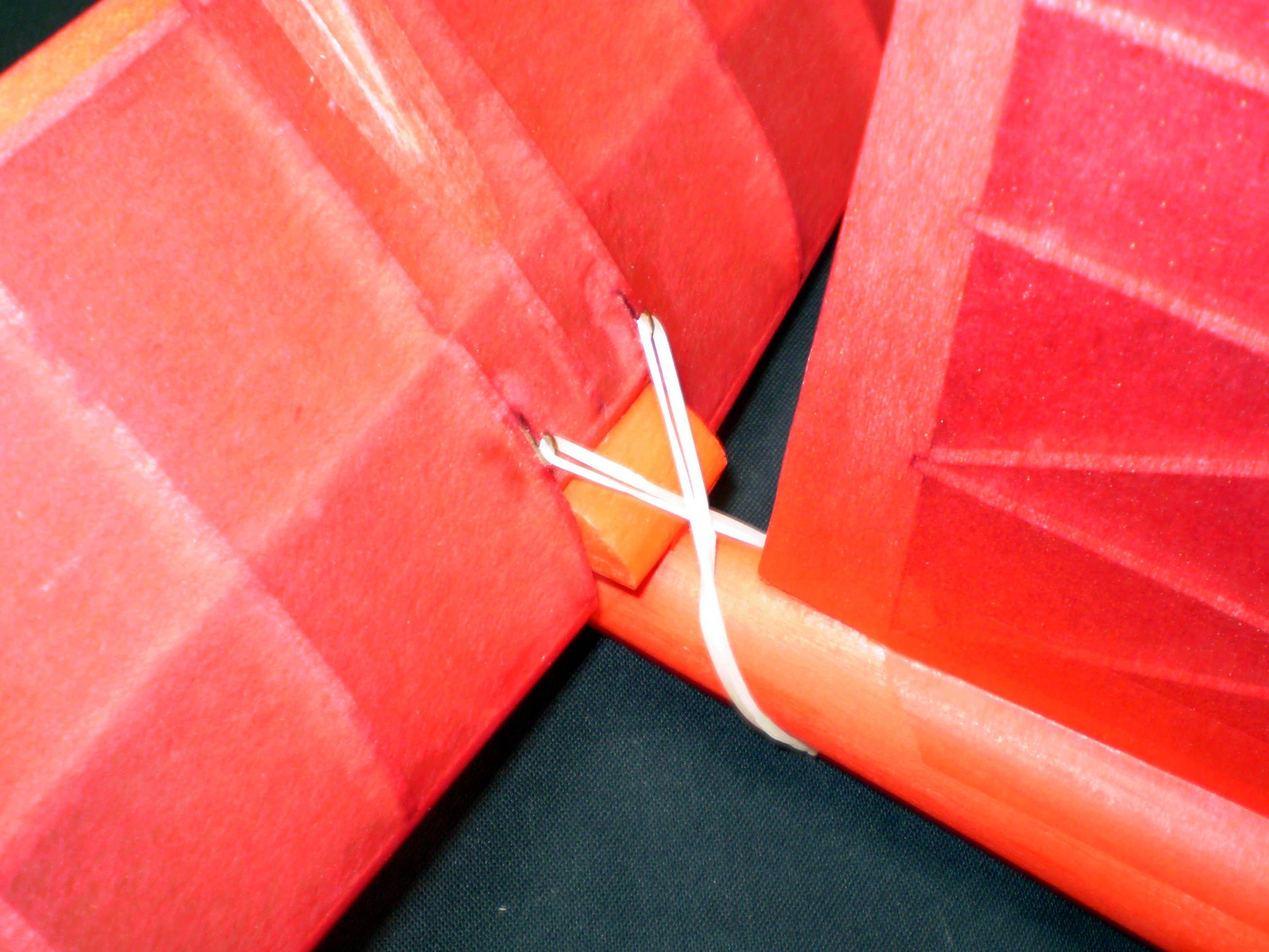

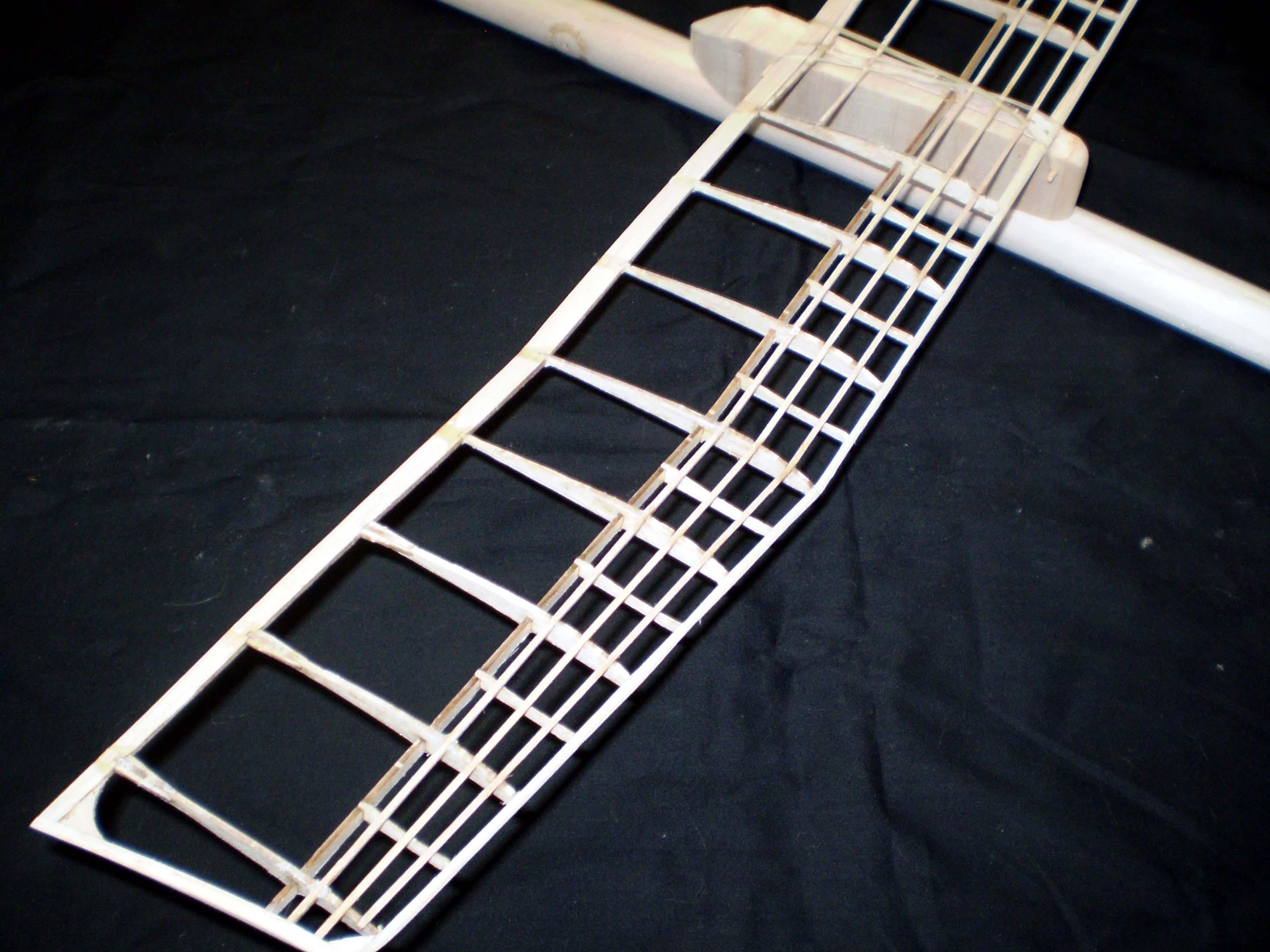

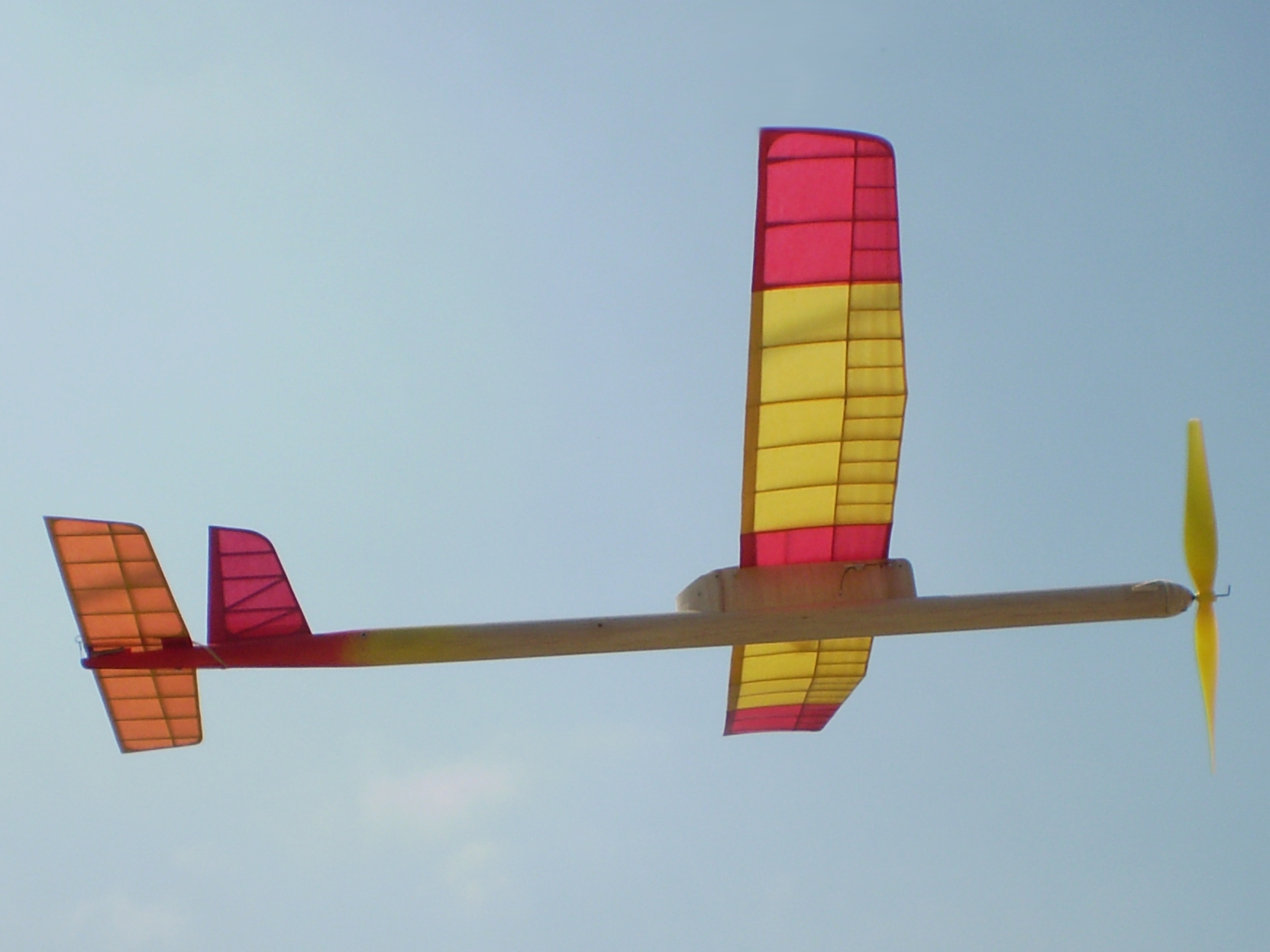

BOOMER MK II - Rev C pics:

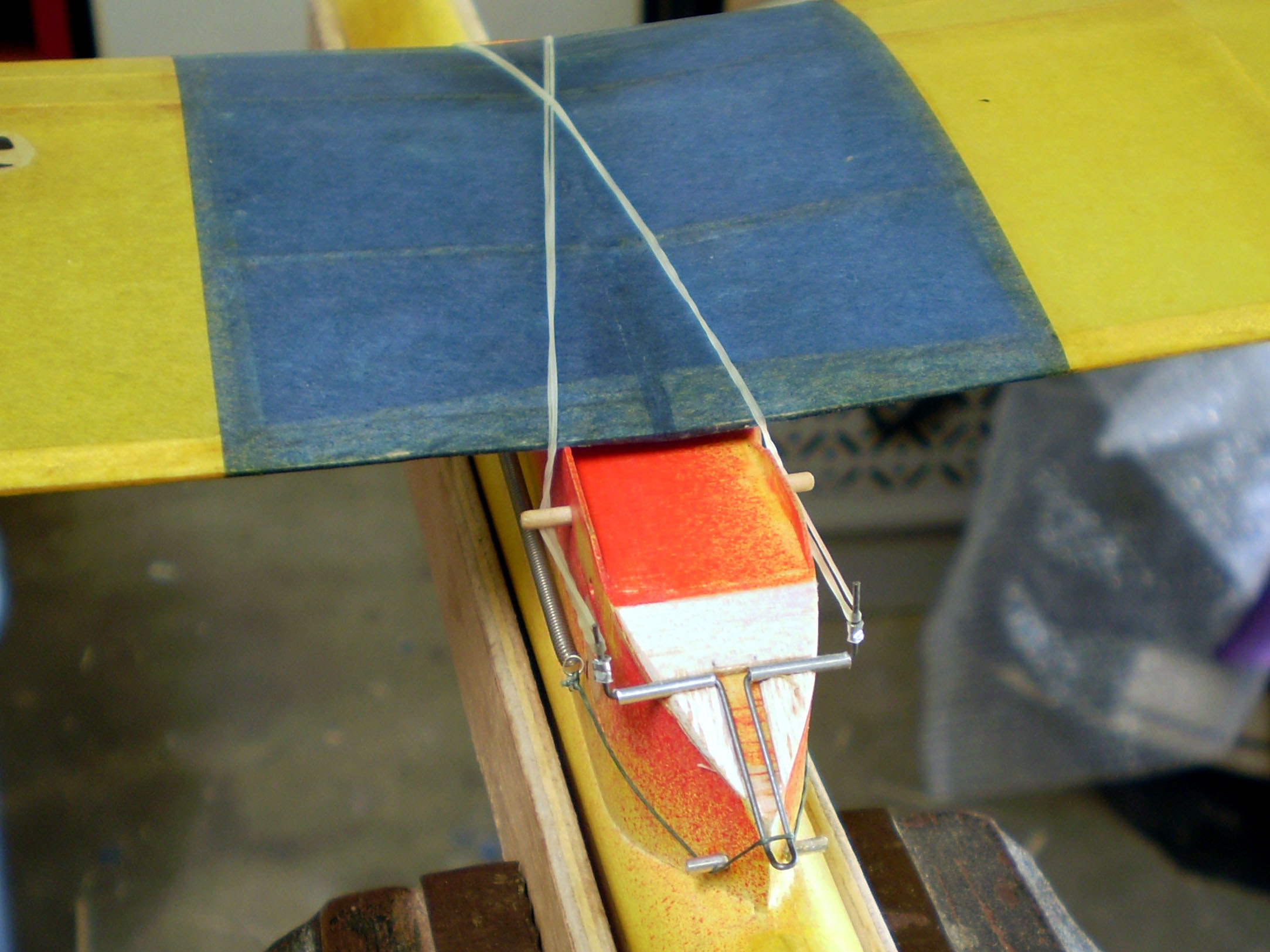

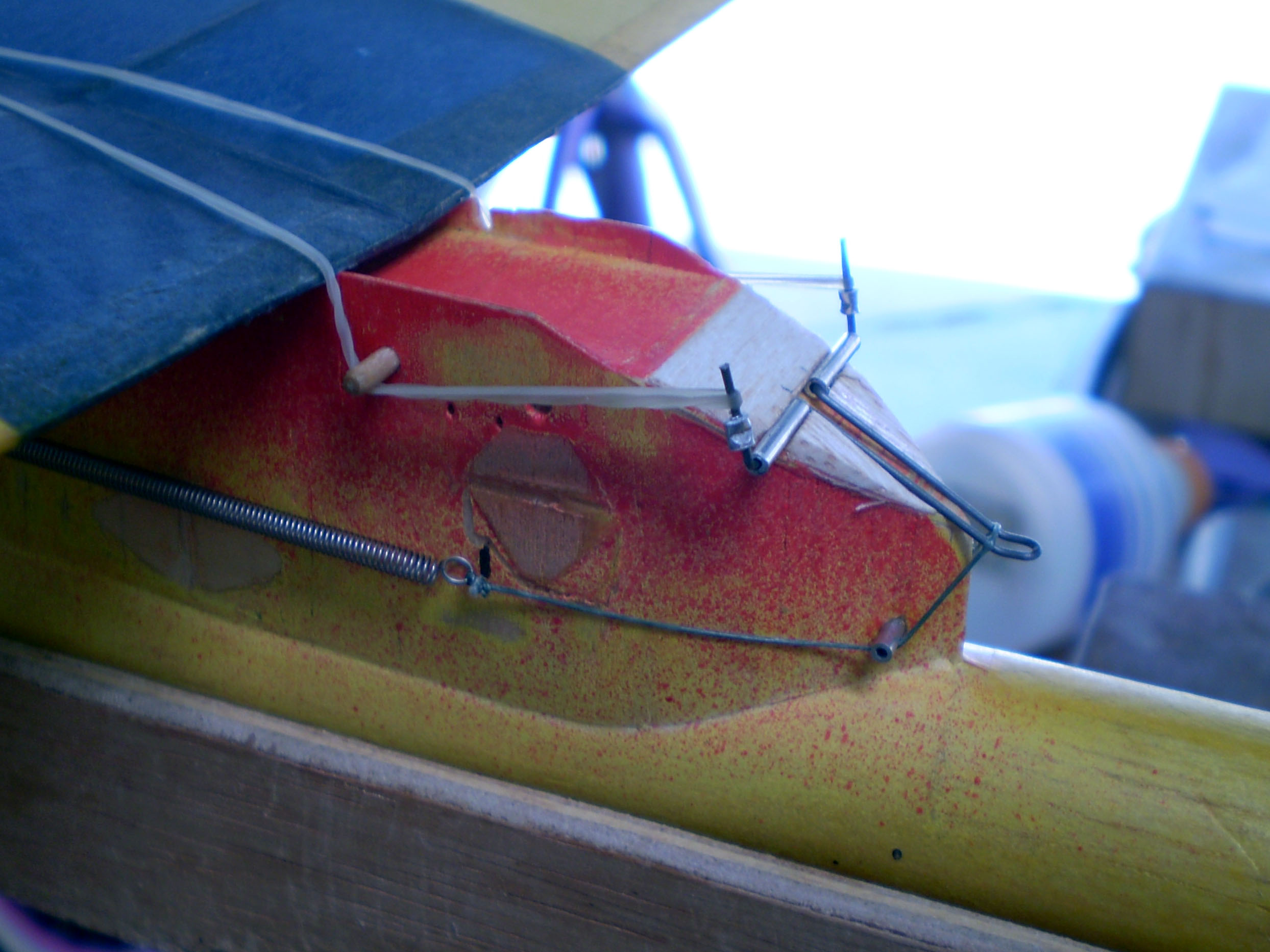

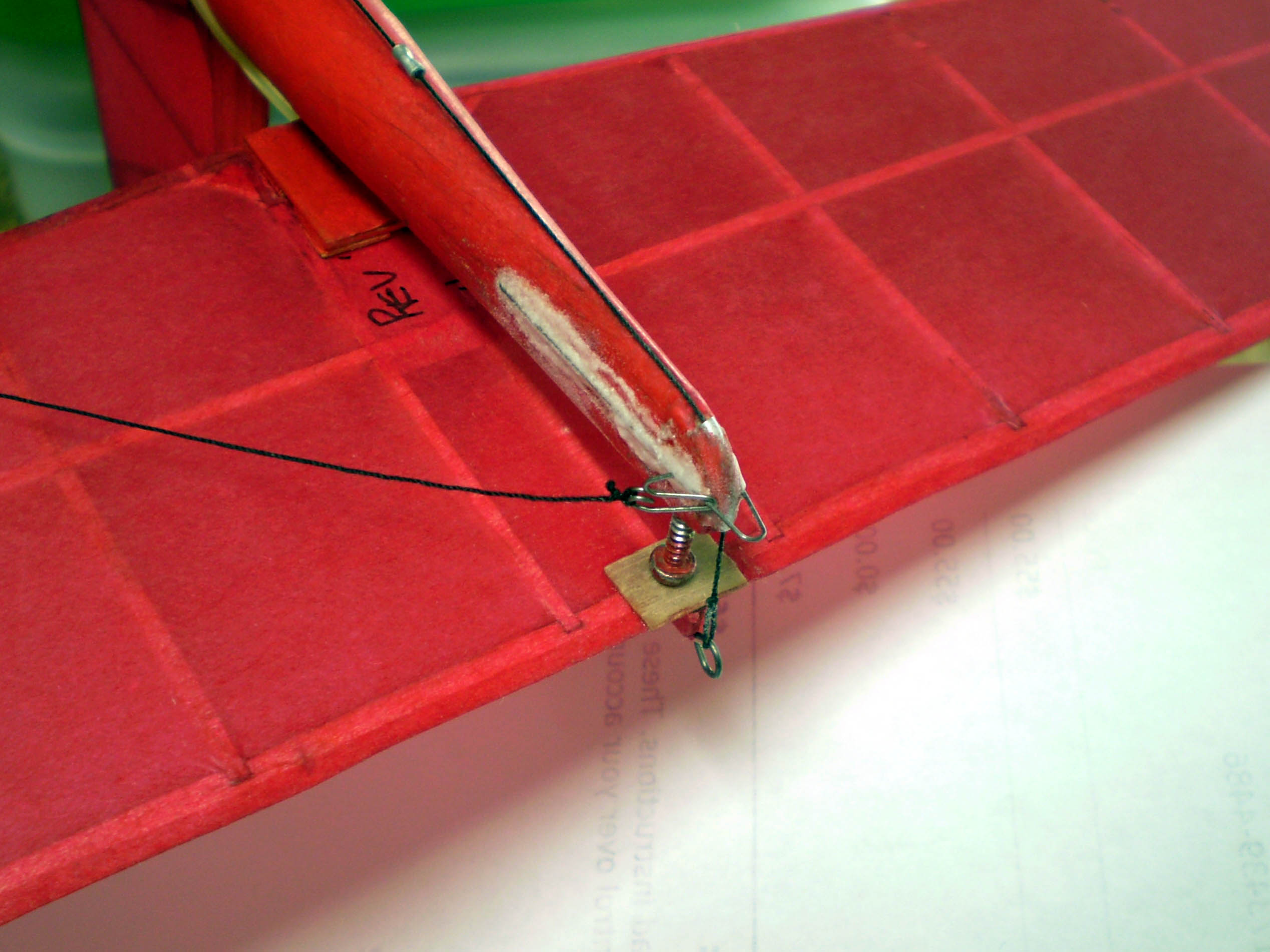

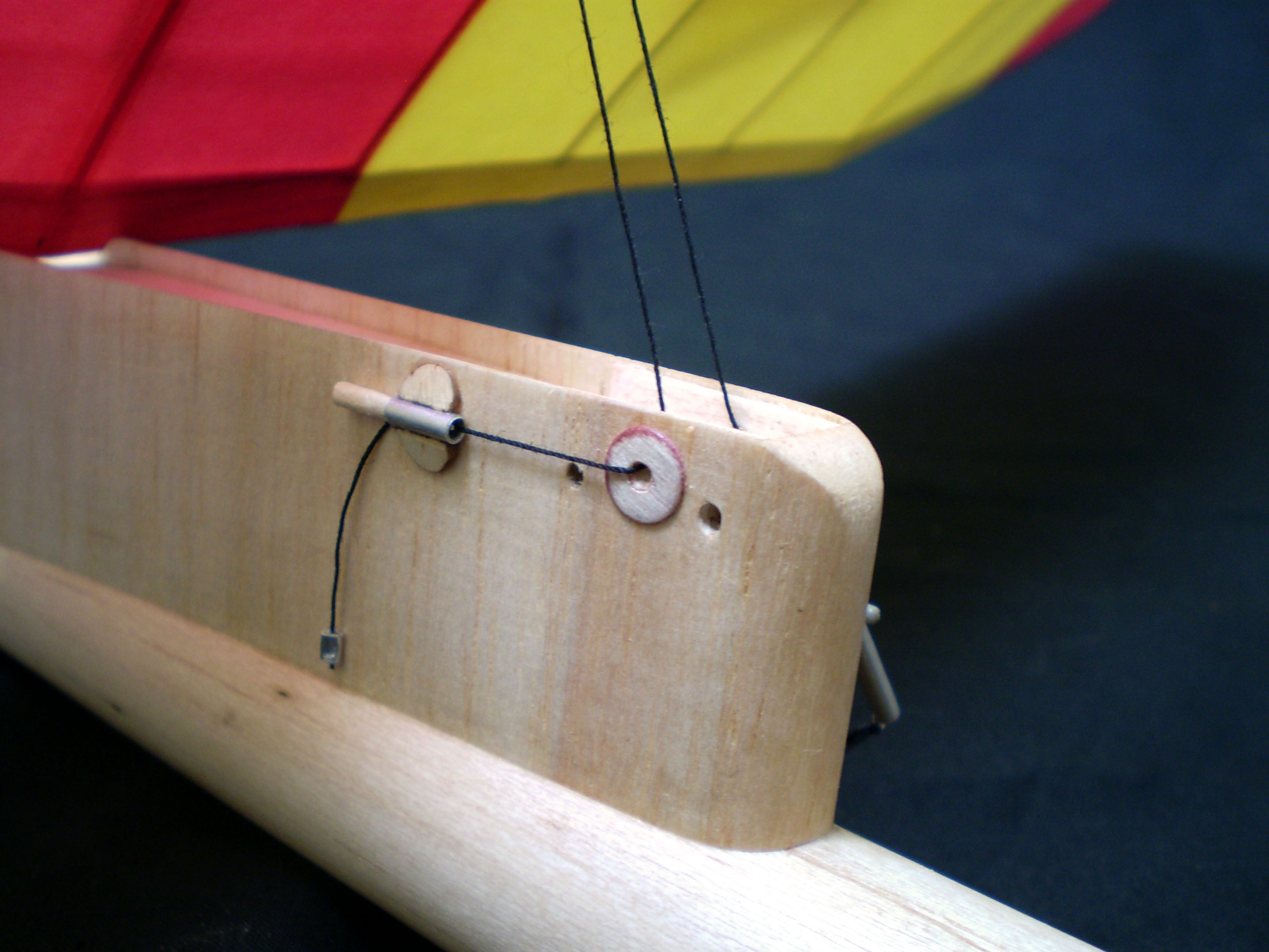

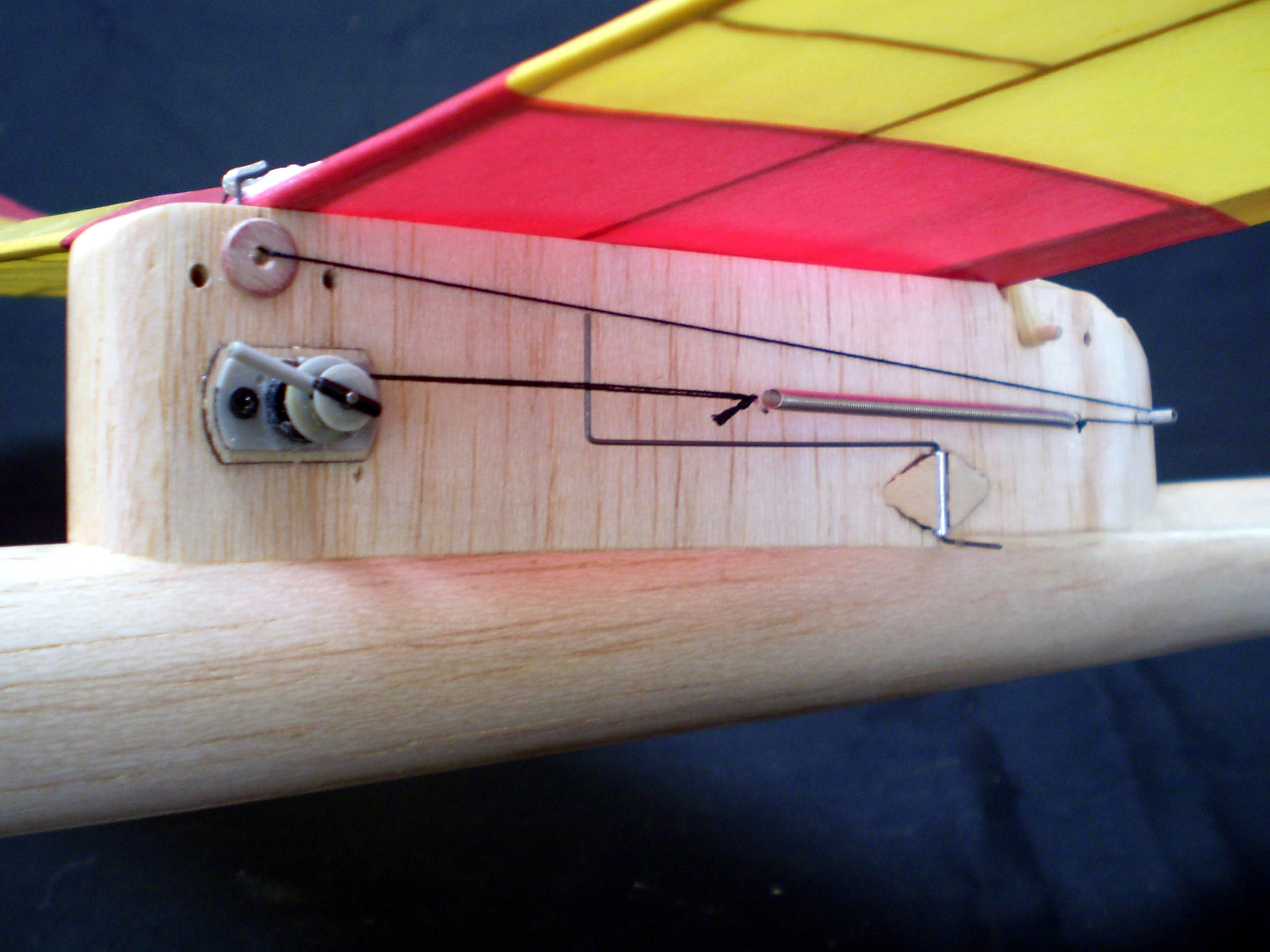

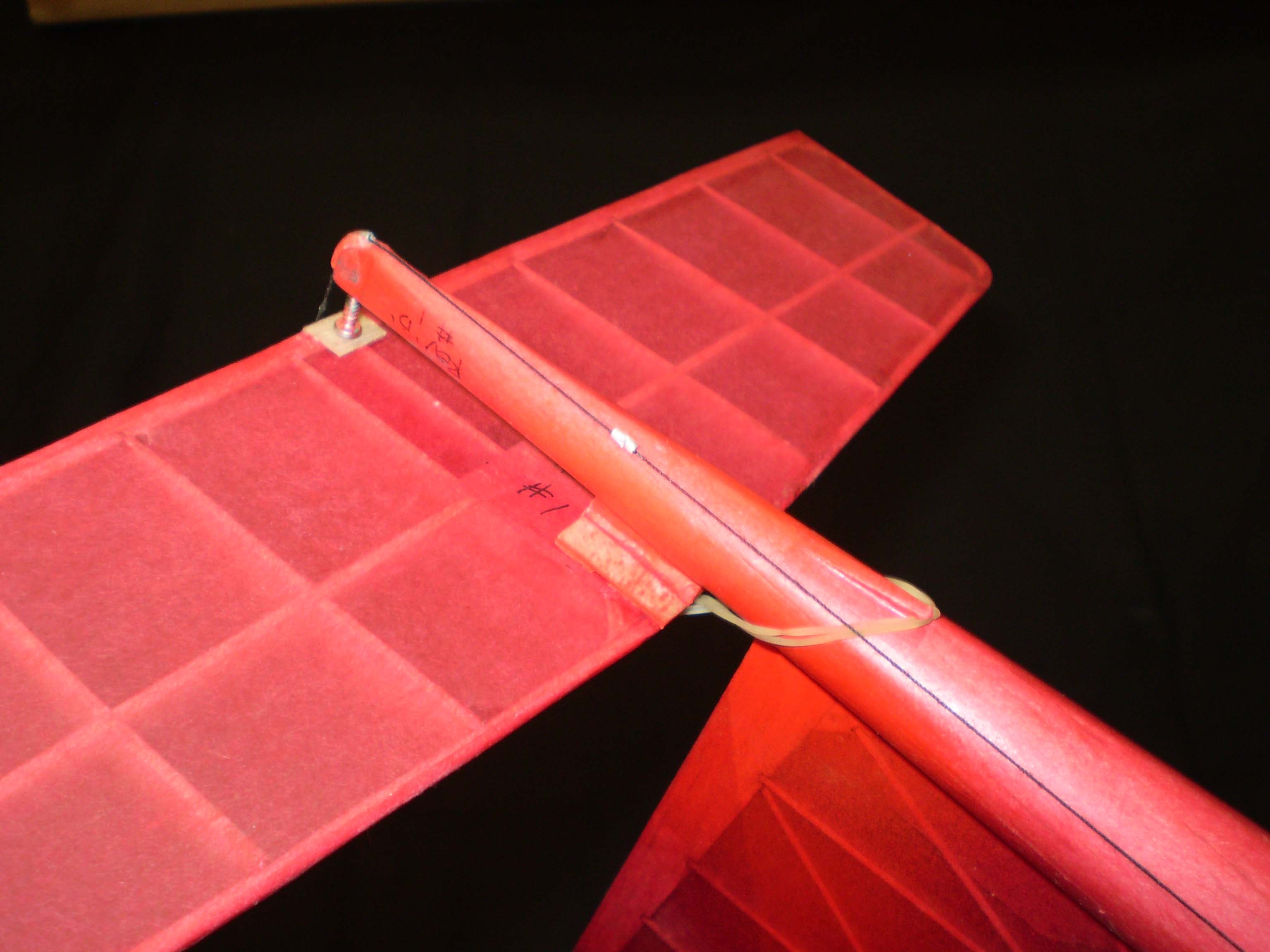

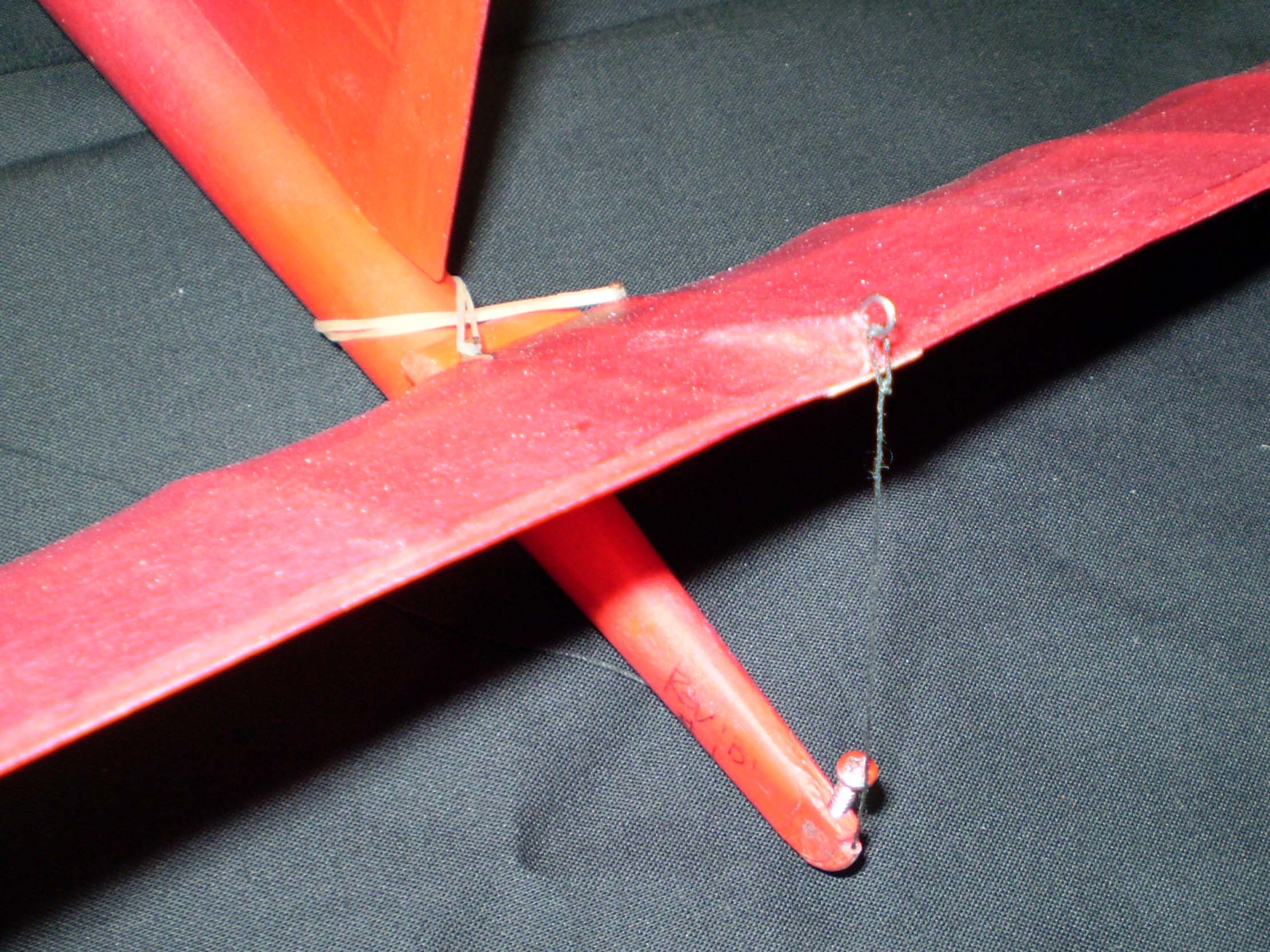

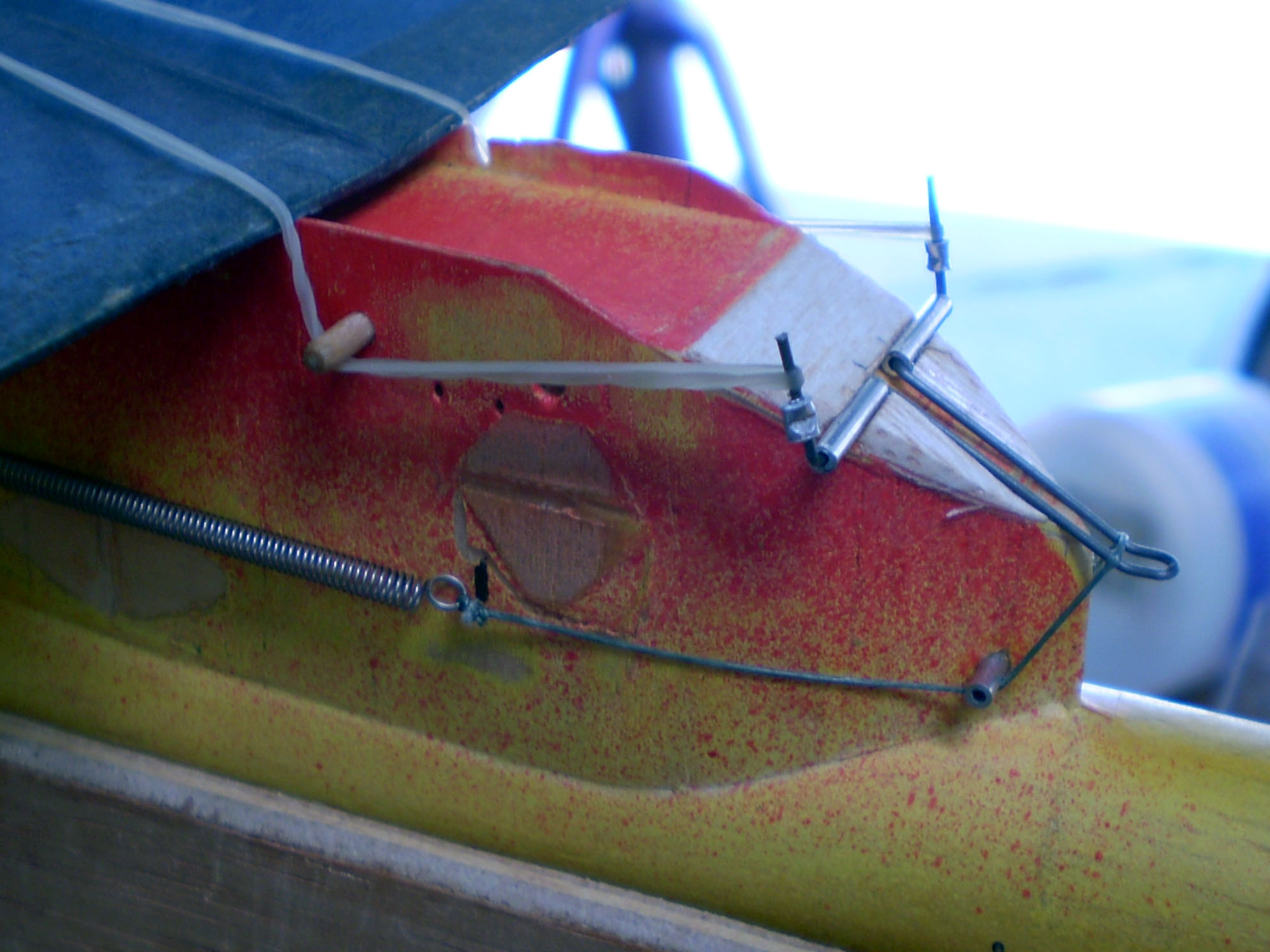

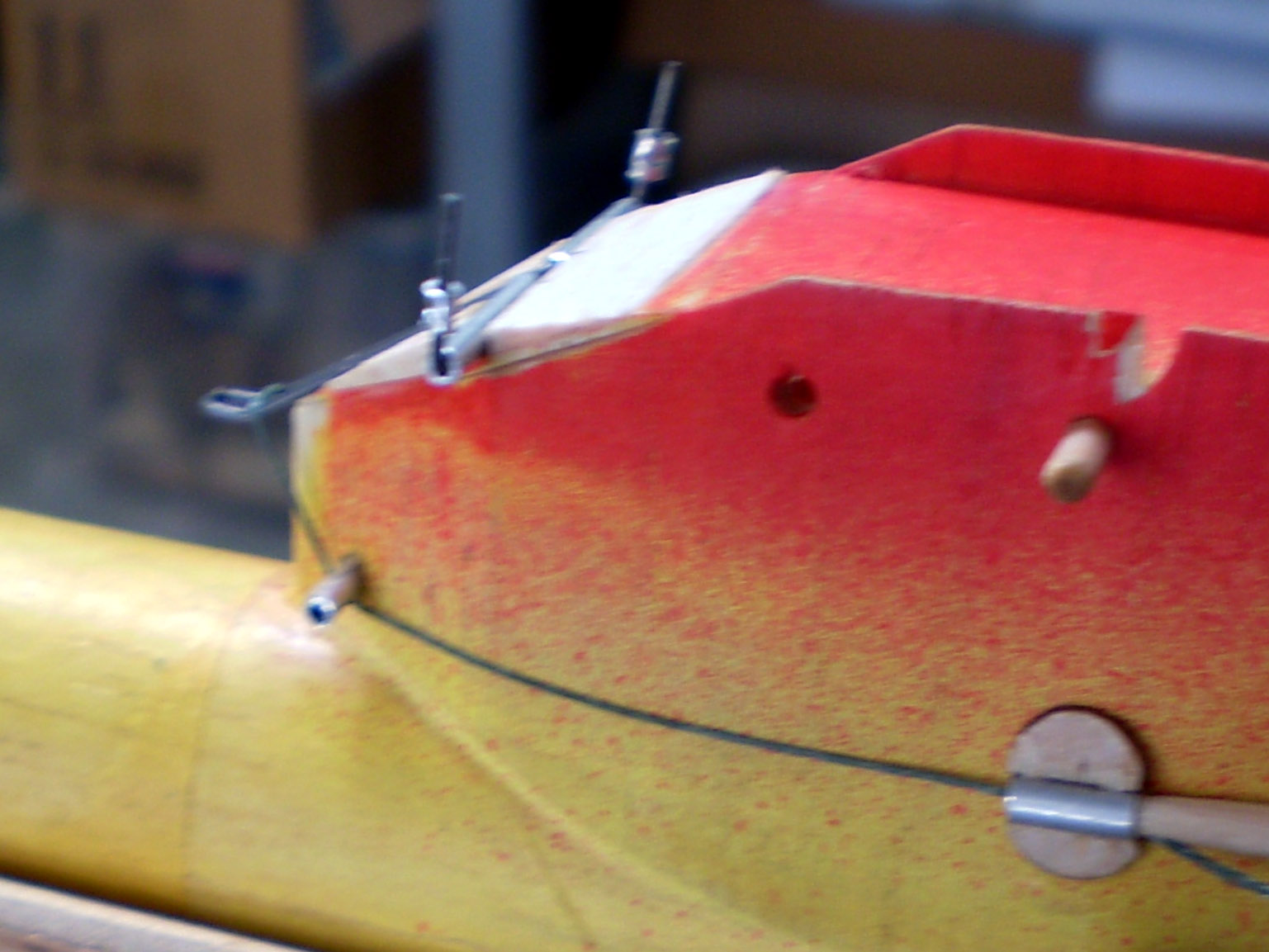

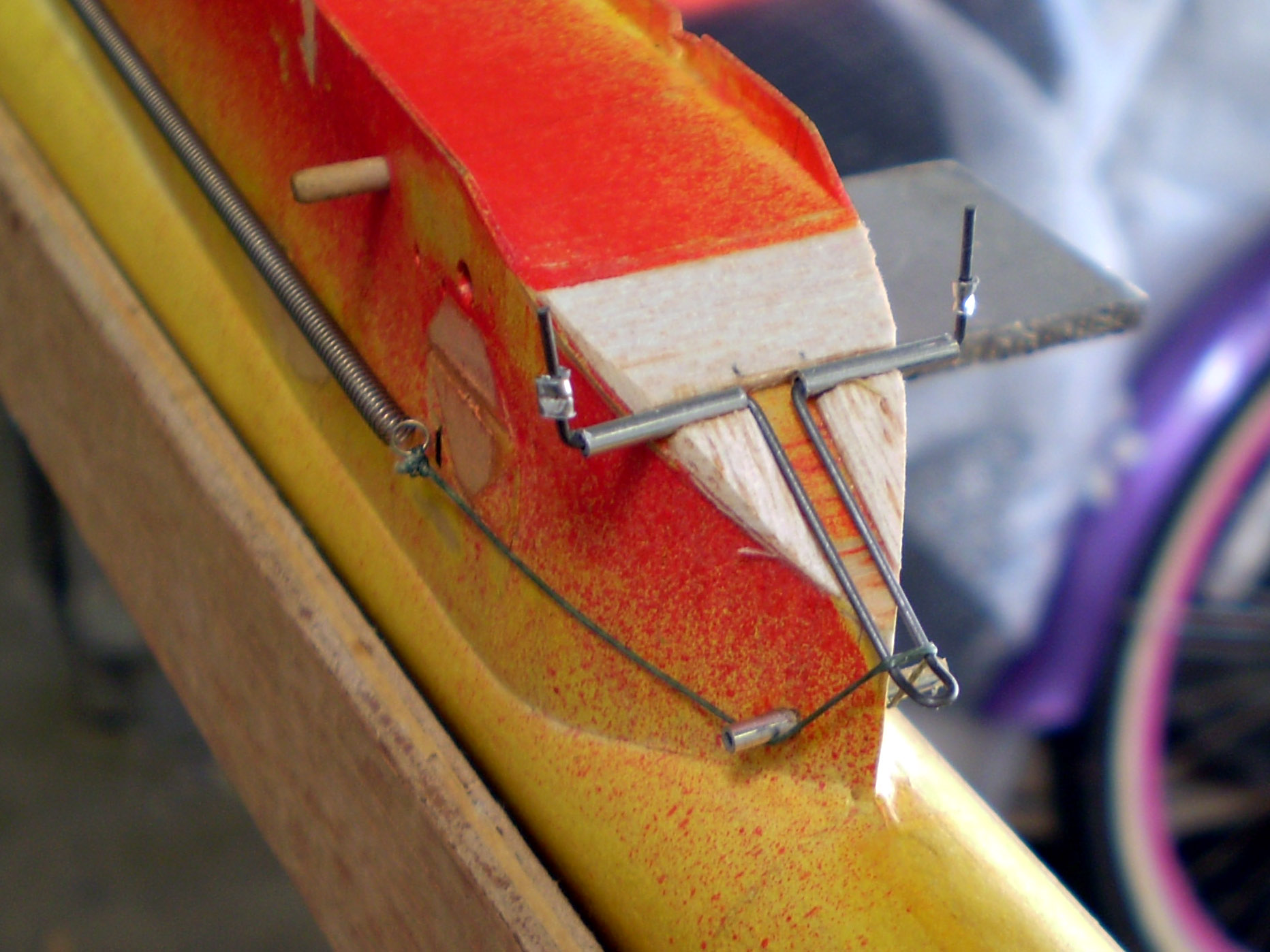

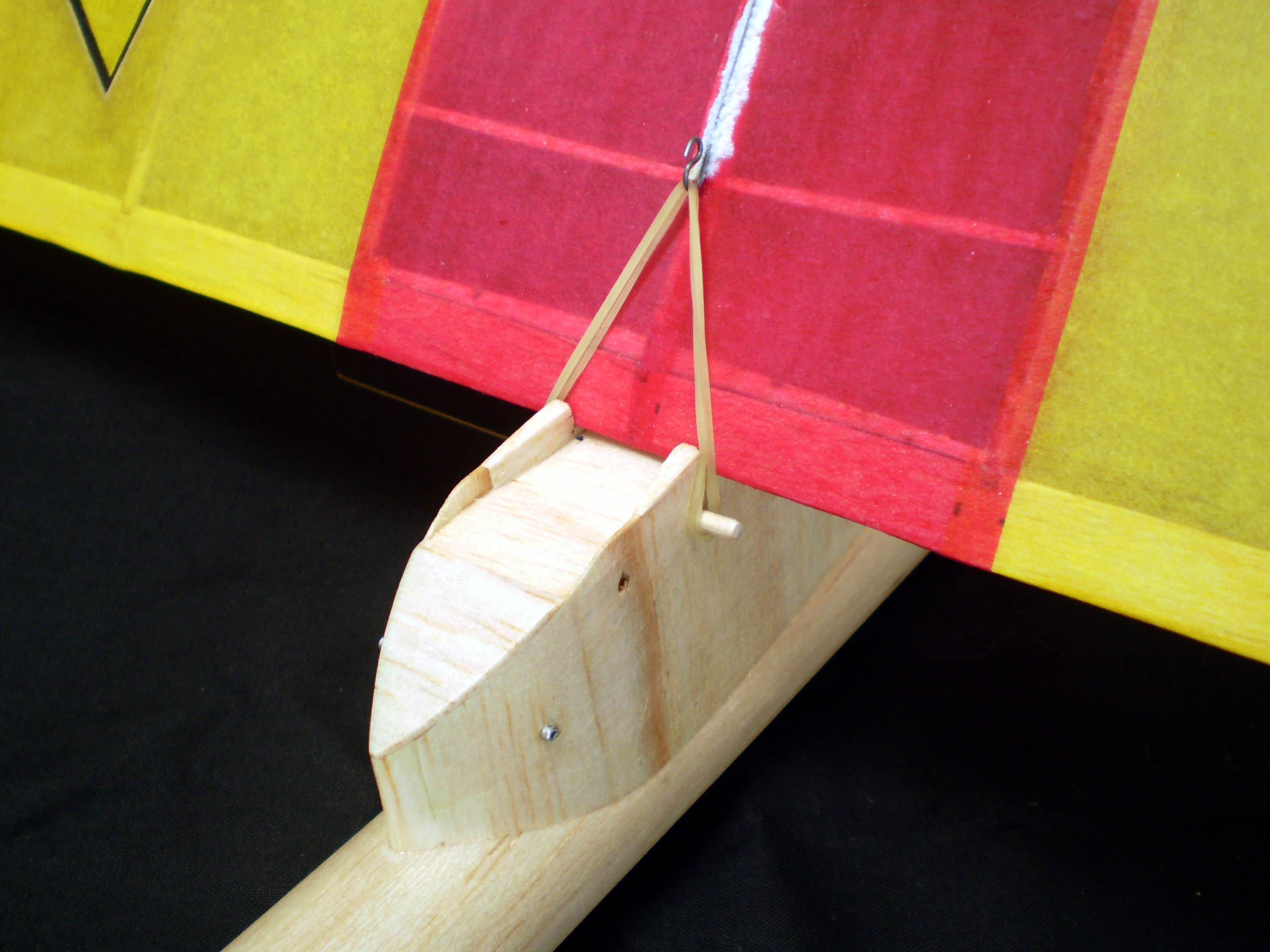

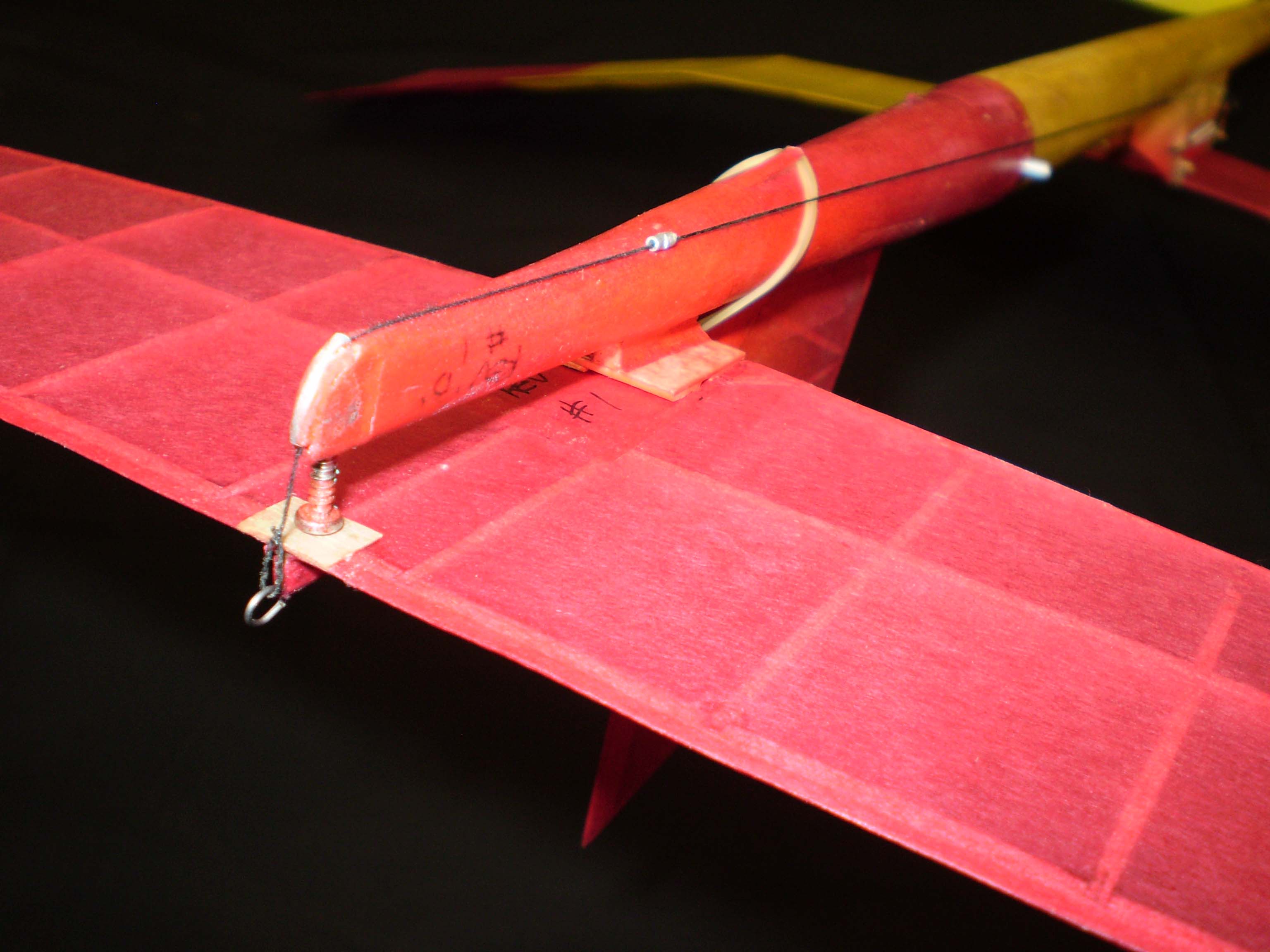

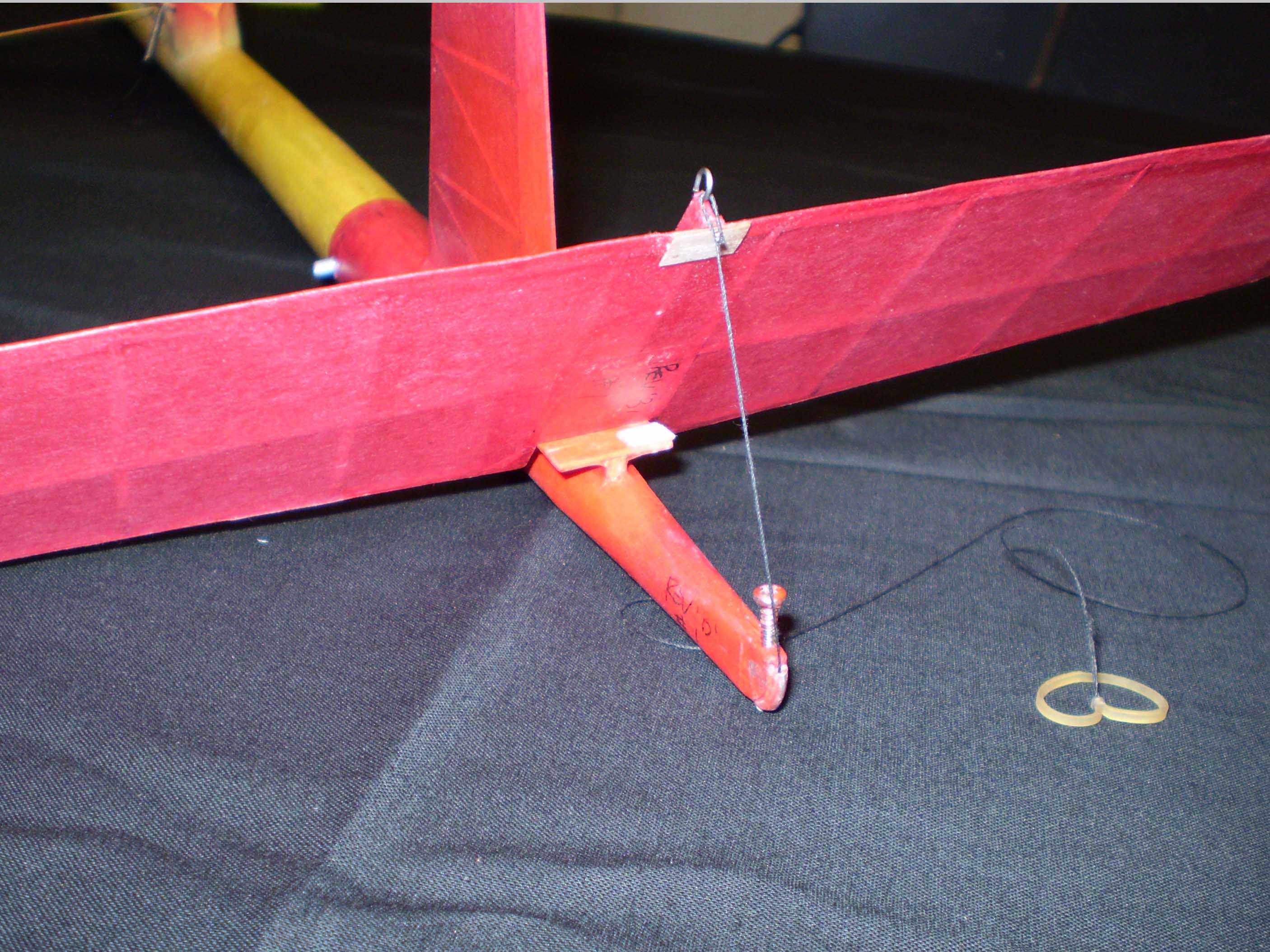

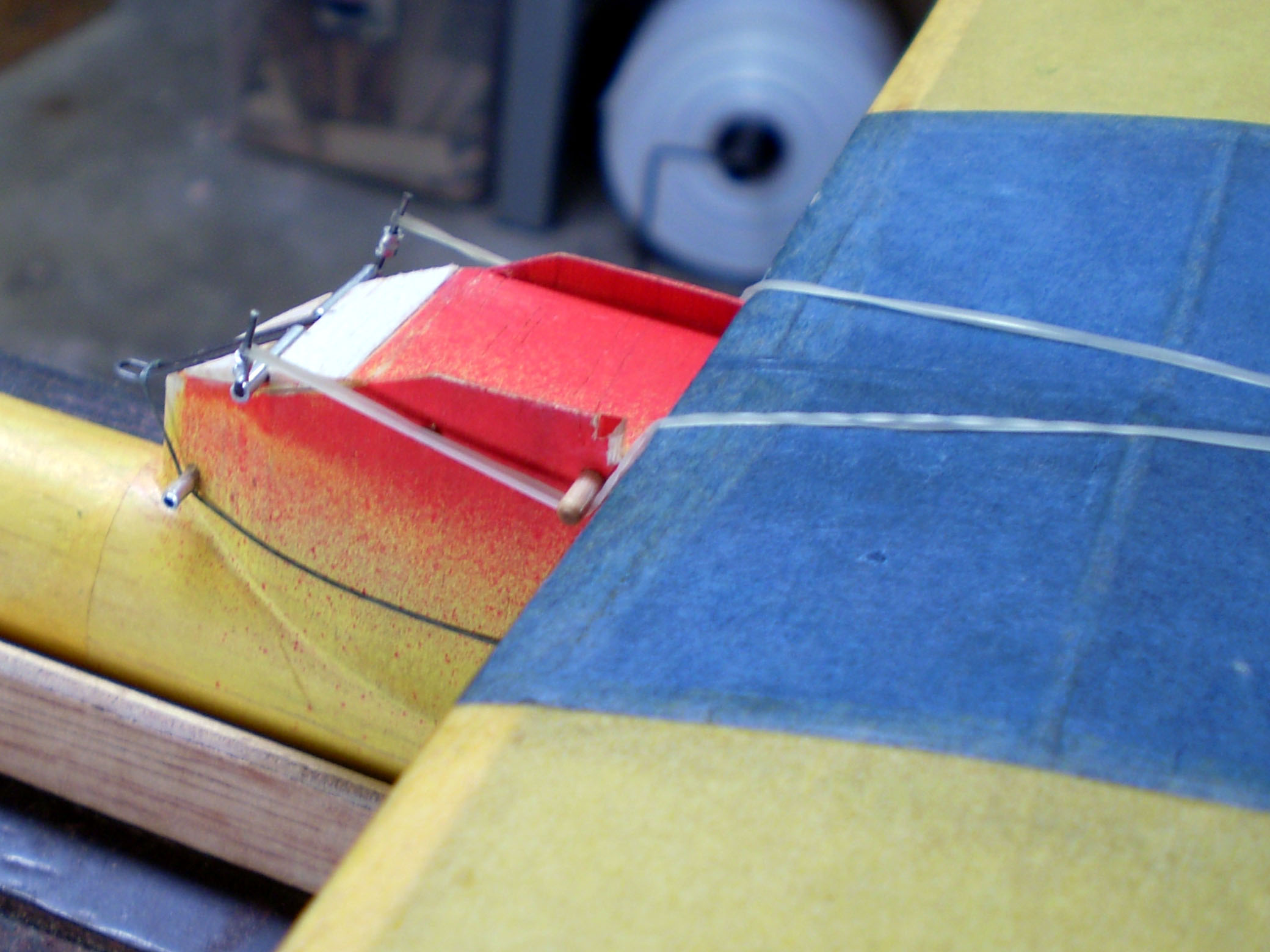

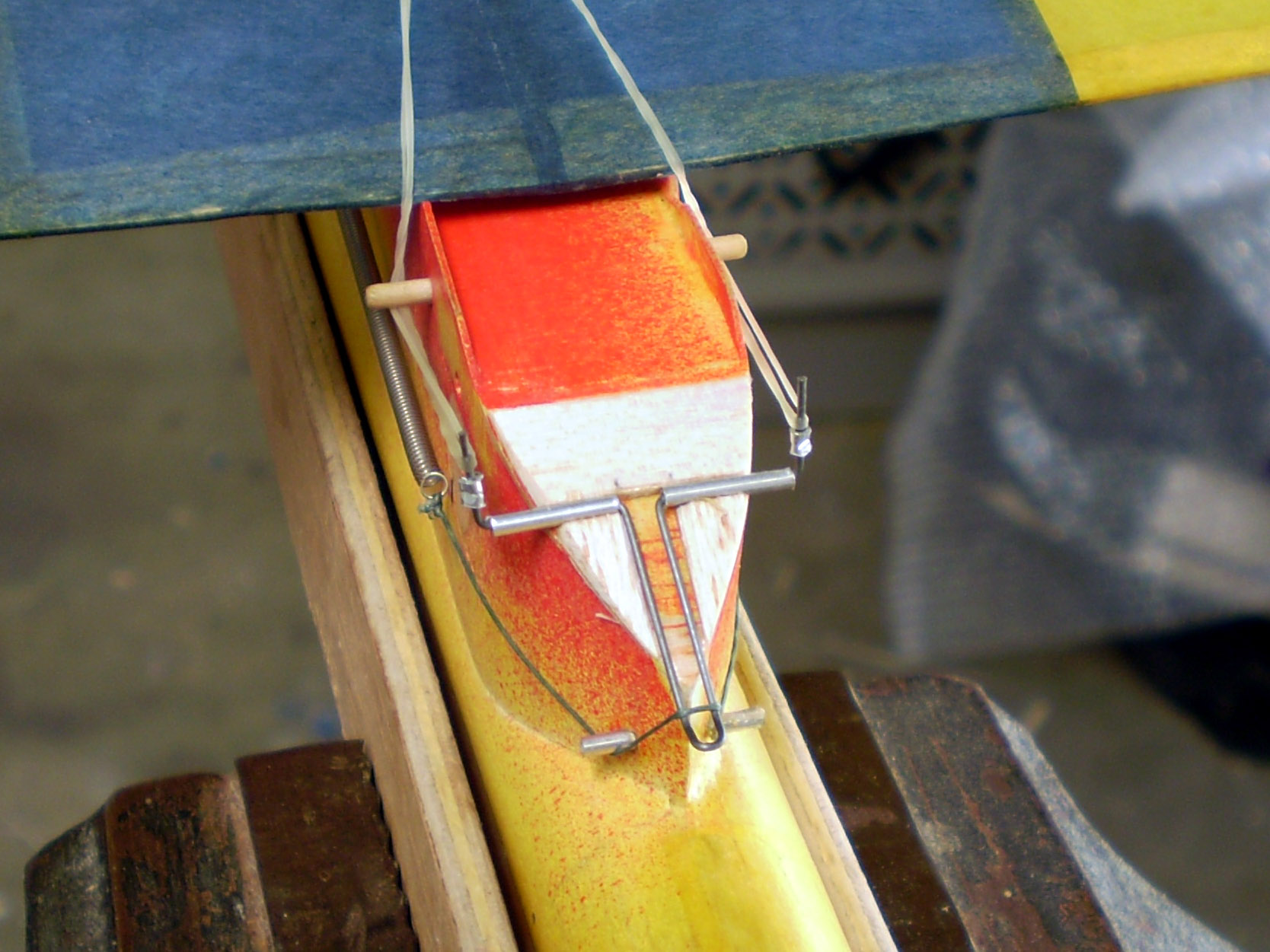

BOOMER MK II - Rev C optional pop-off wing DT pictures:

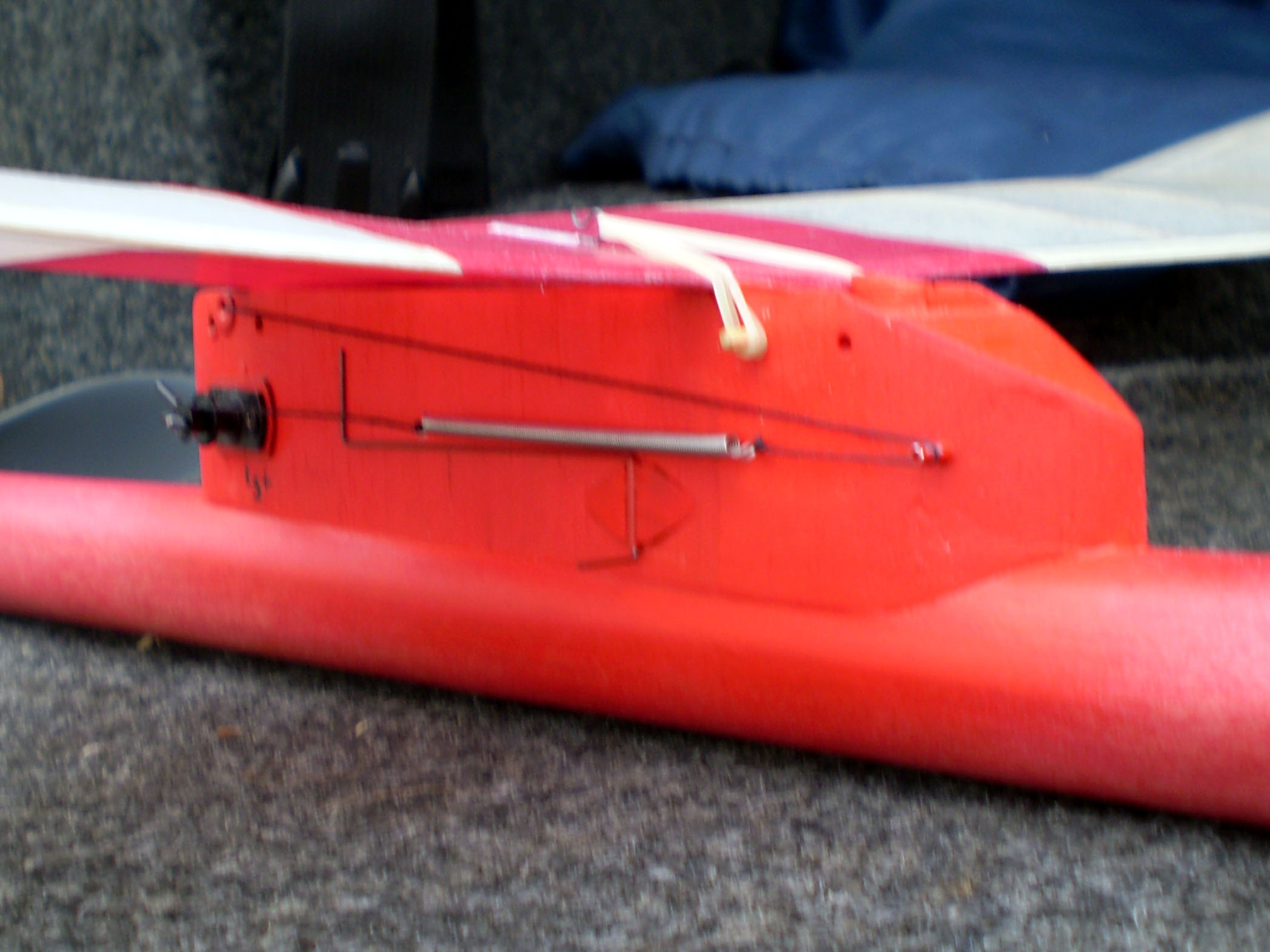

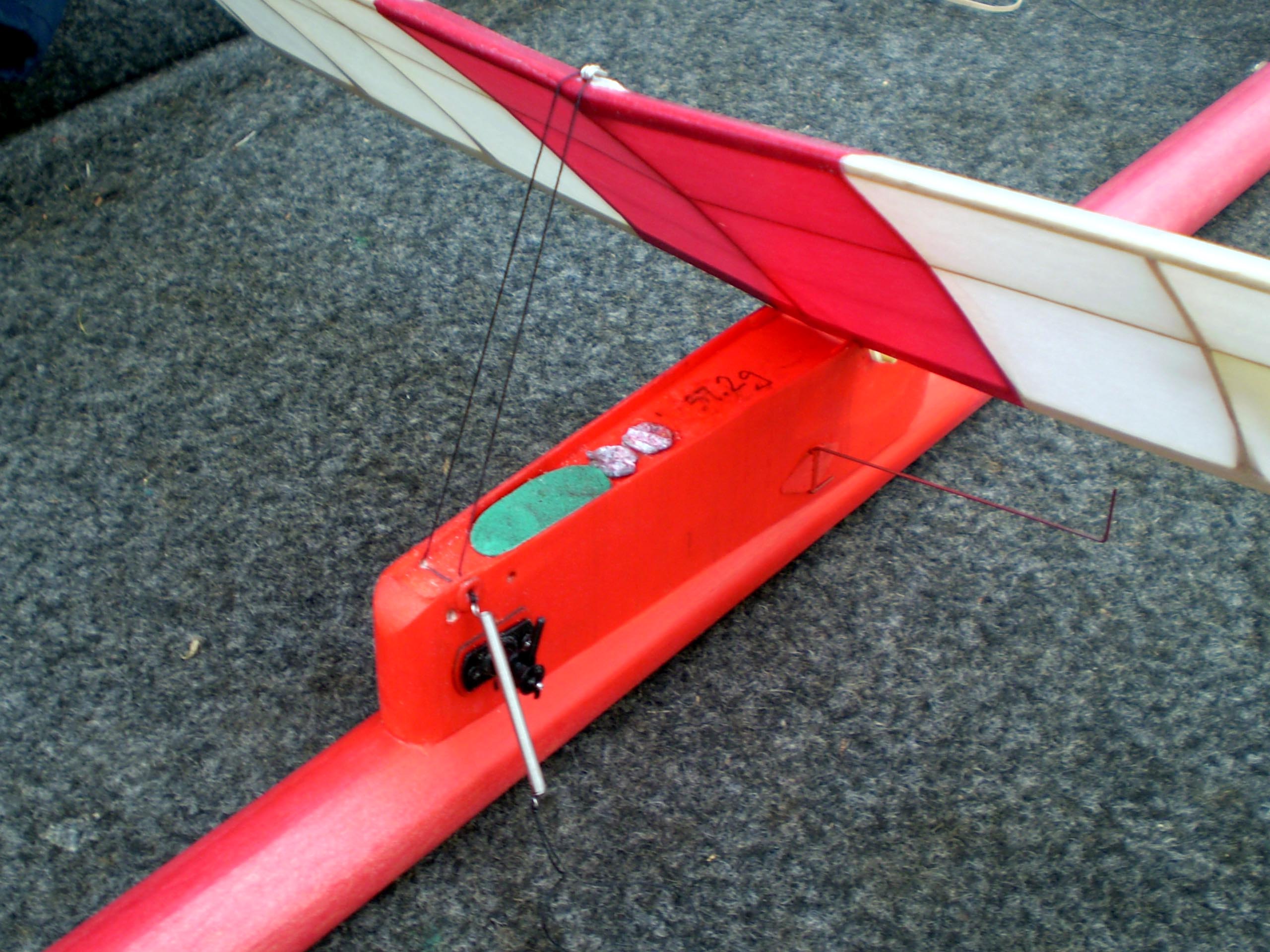

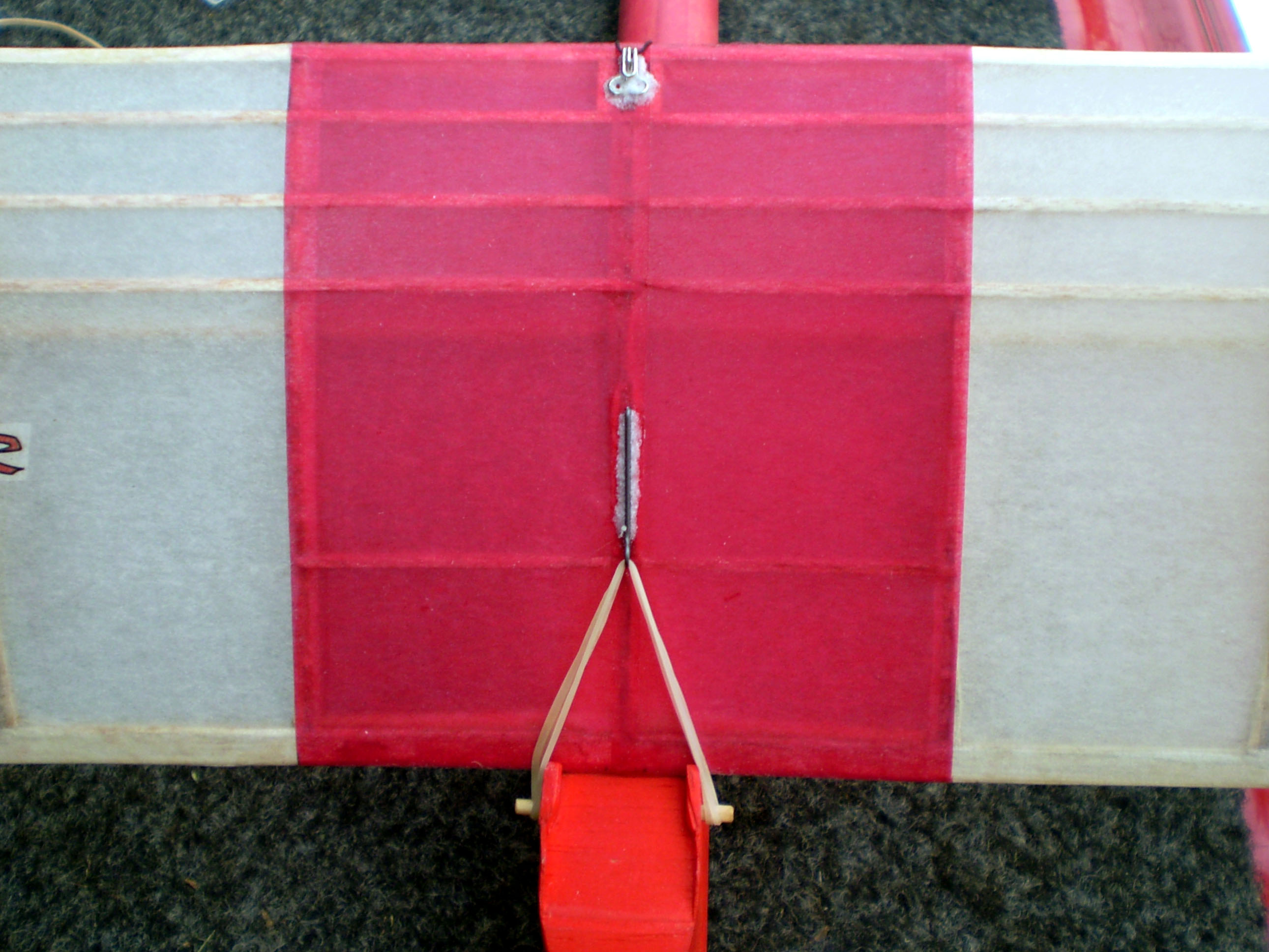

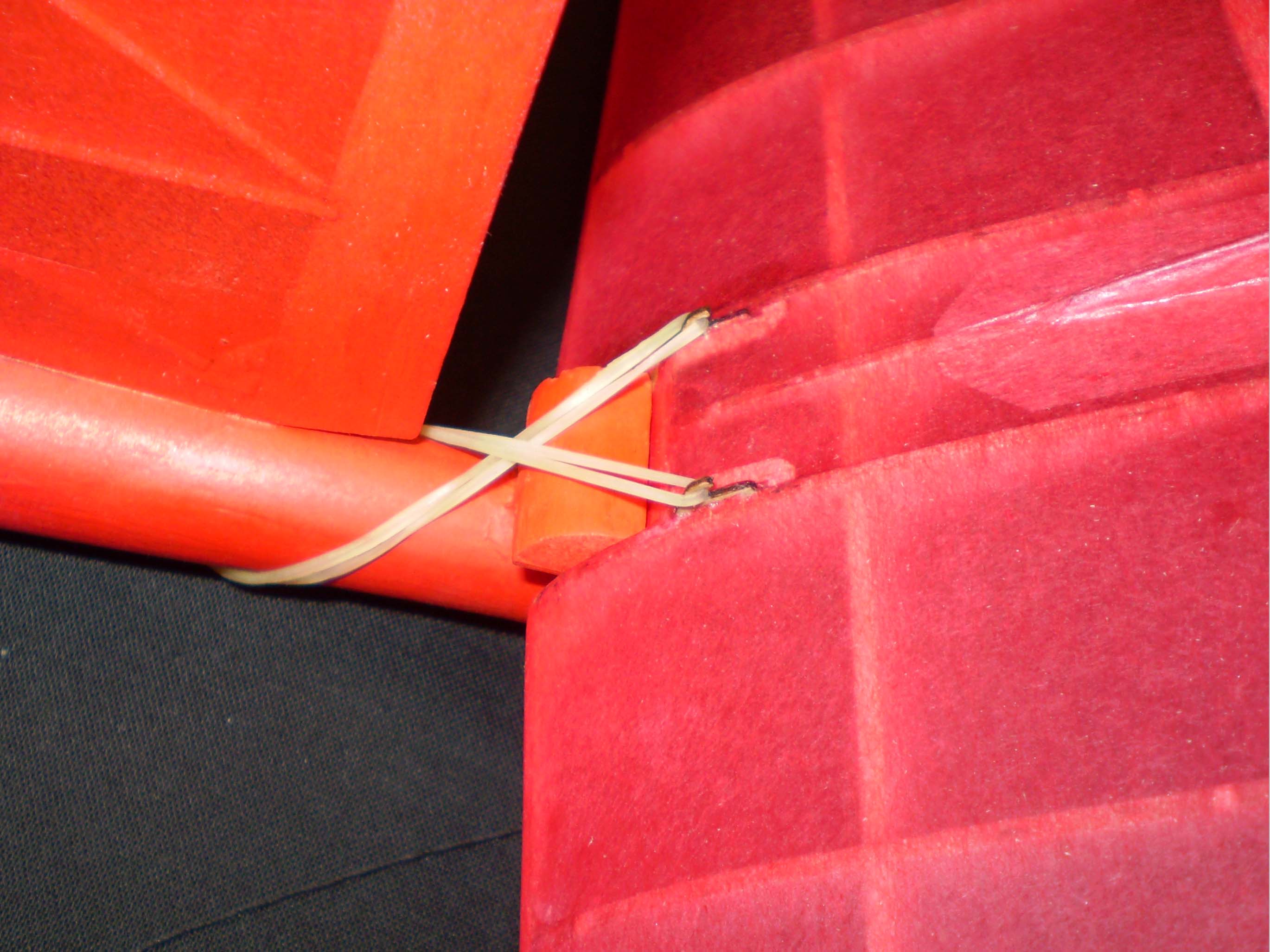

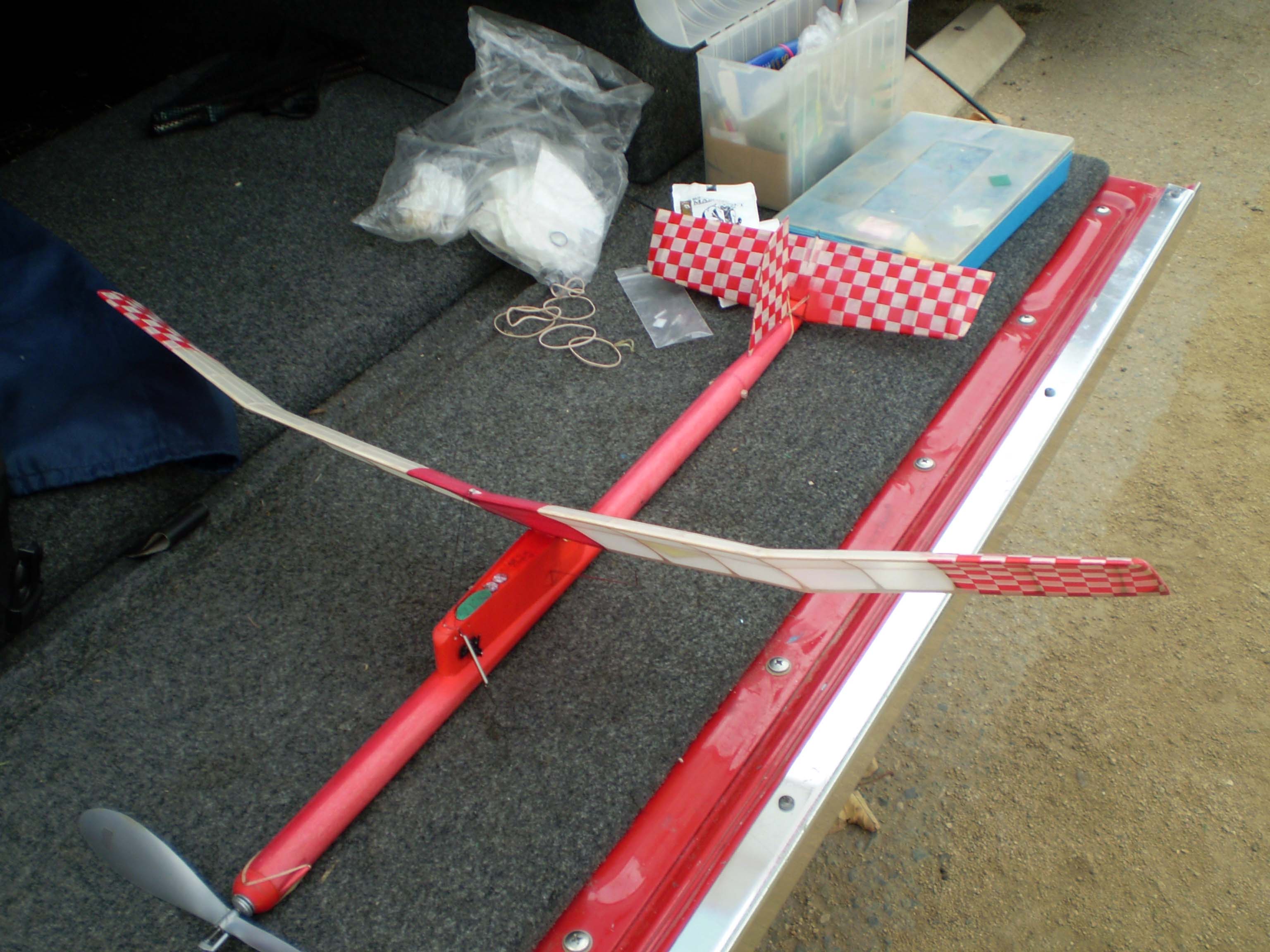

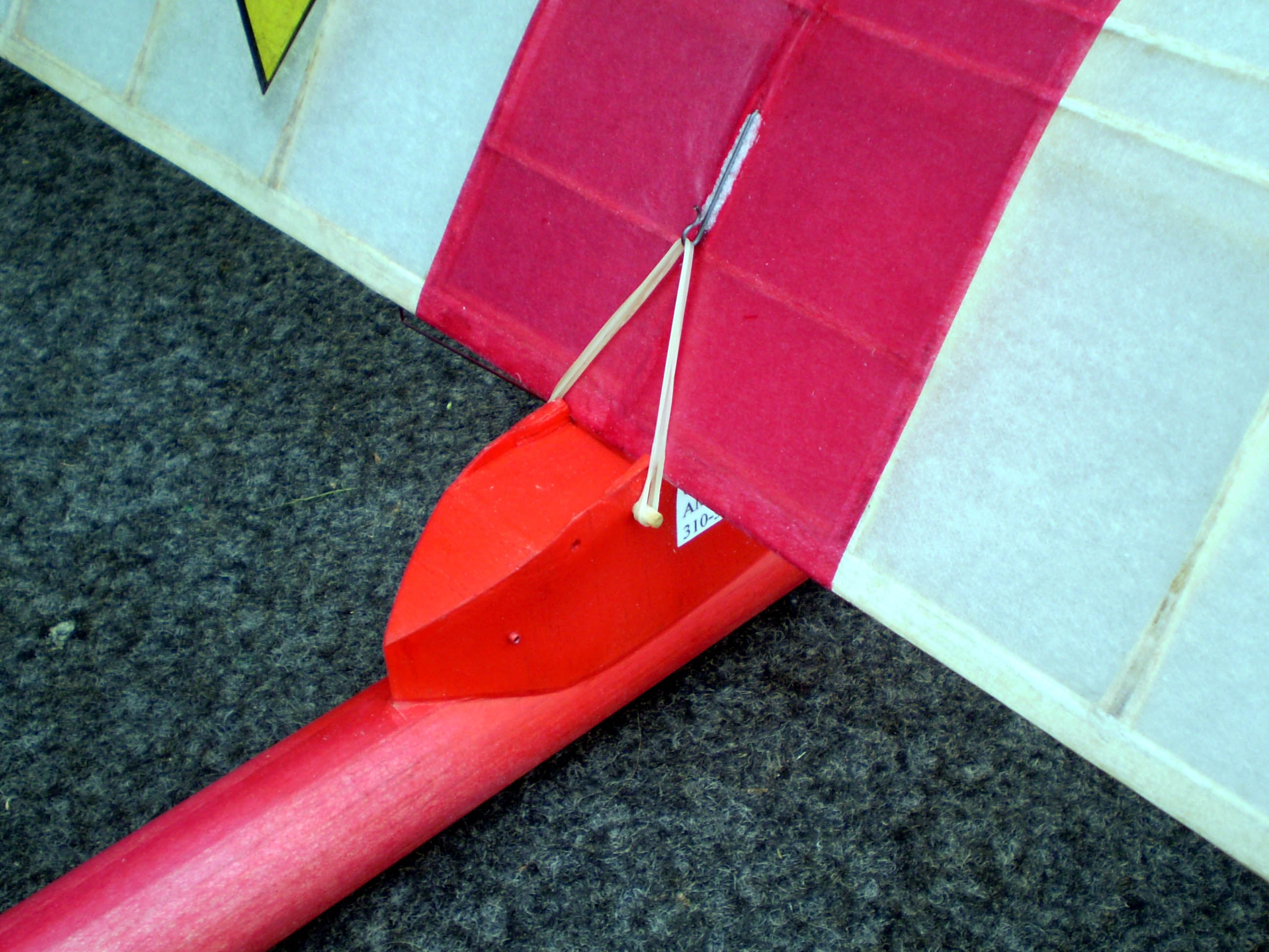

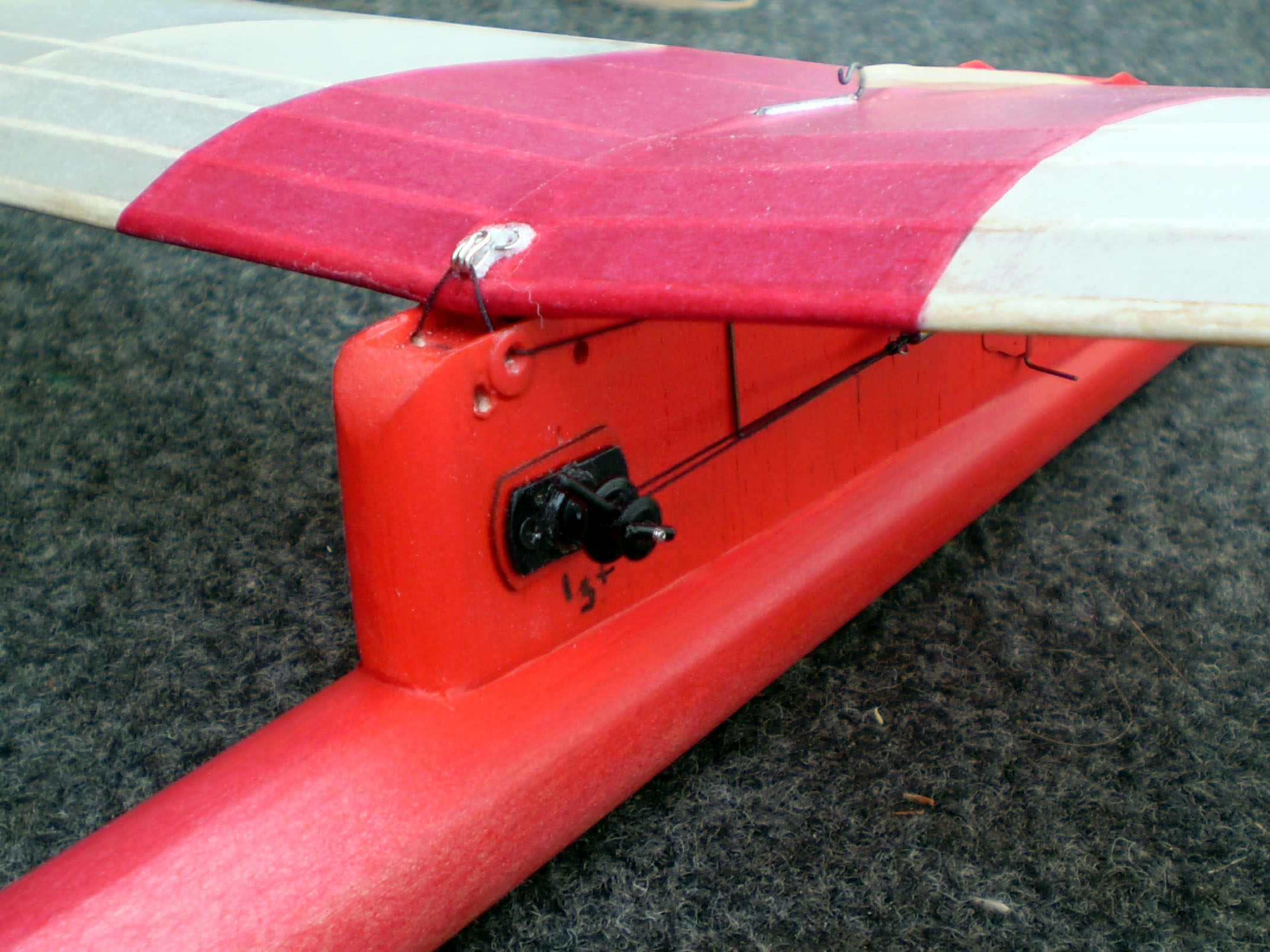

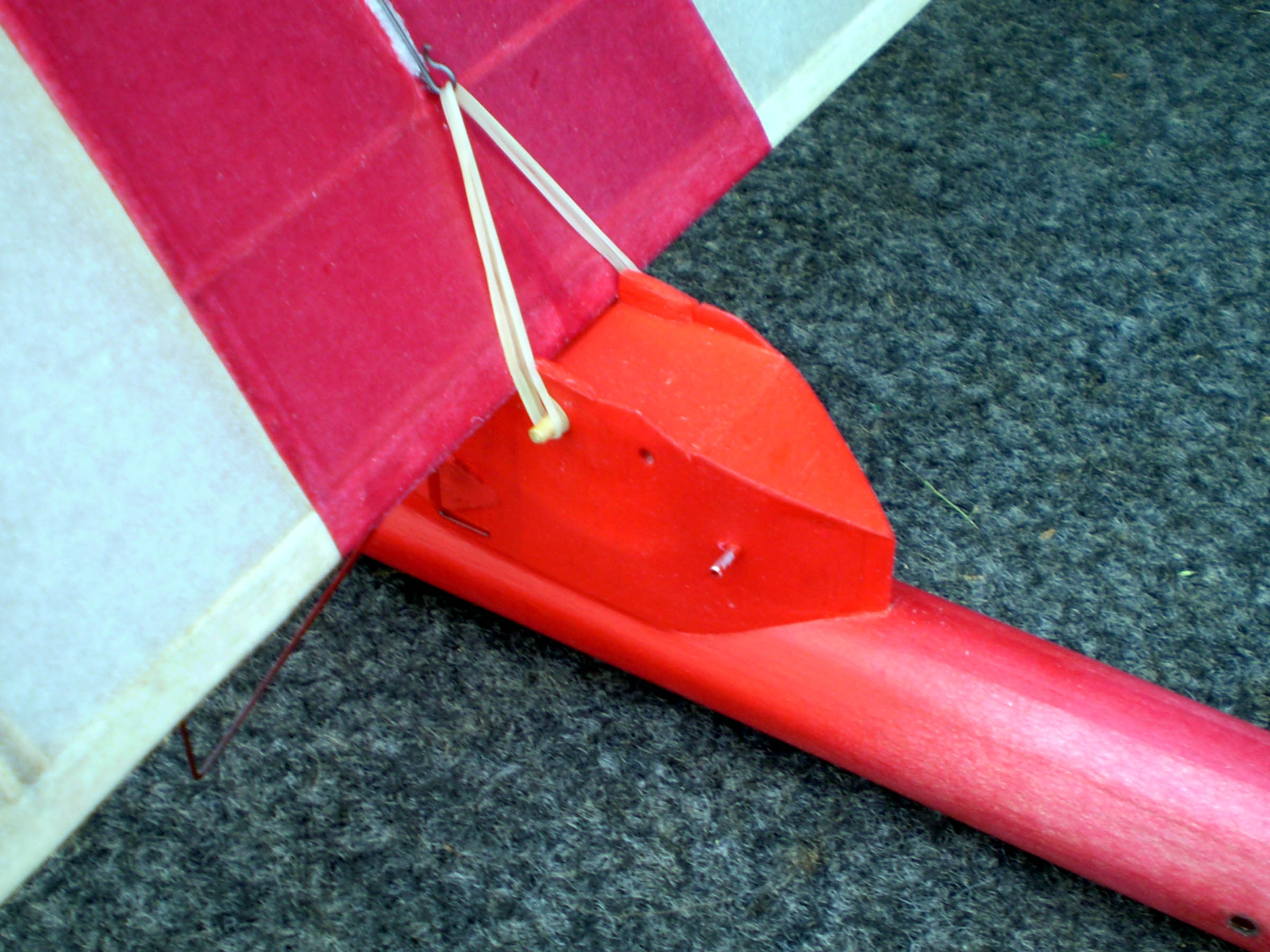

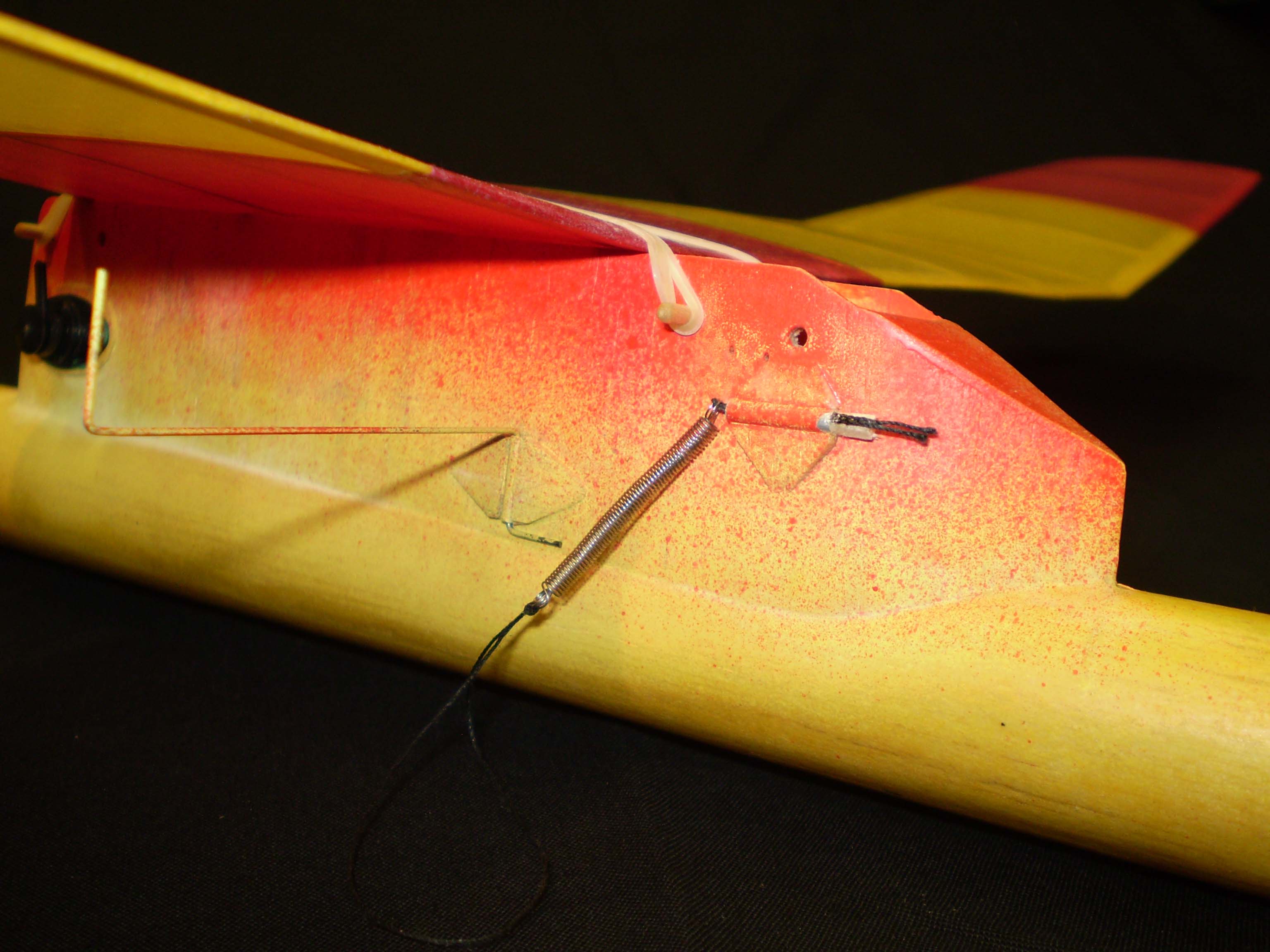

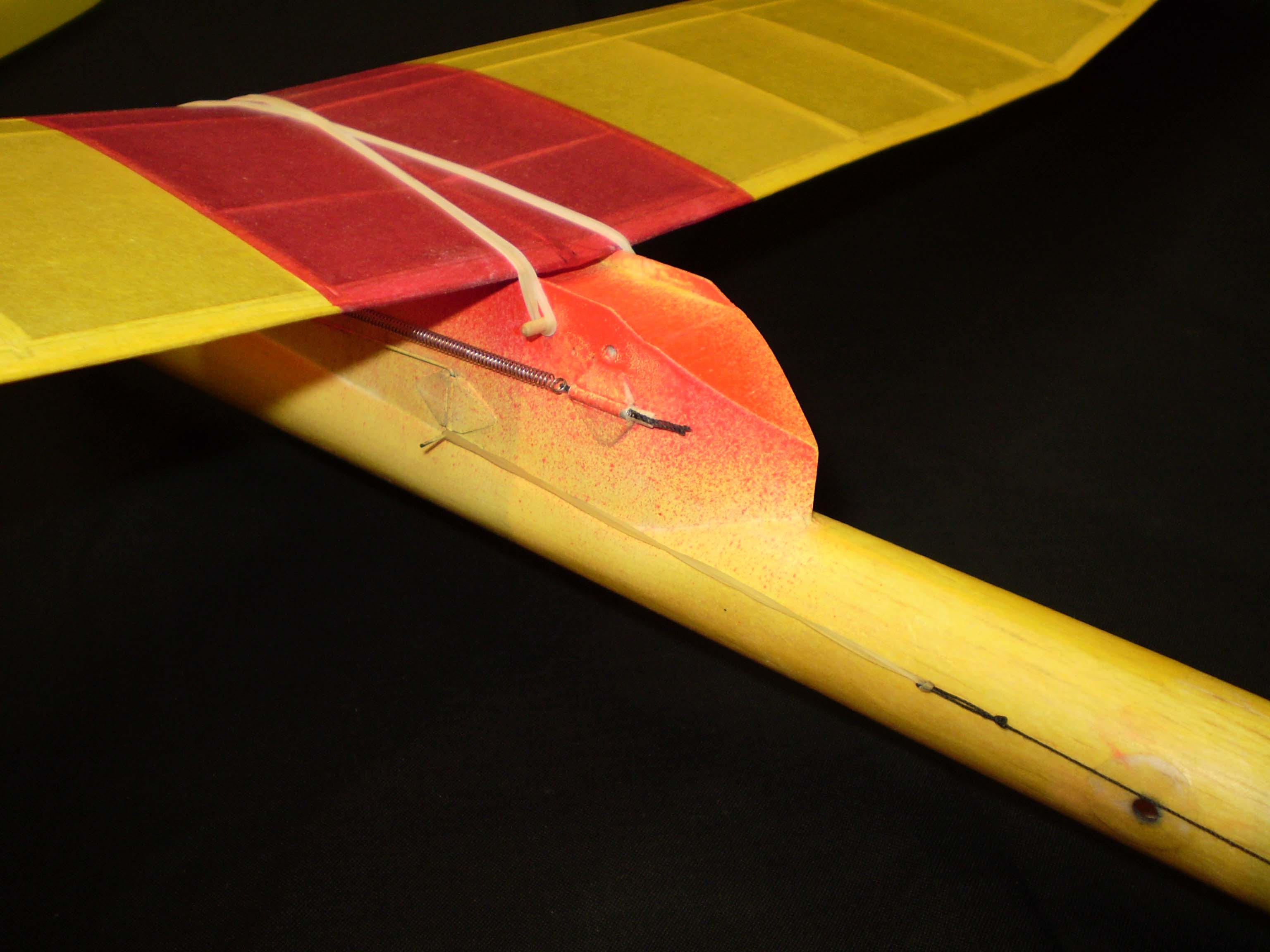

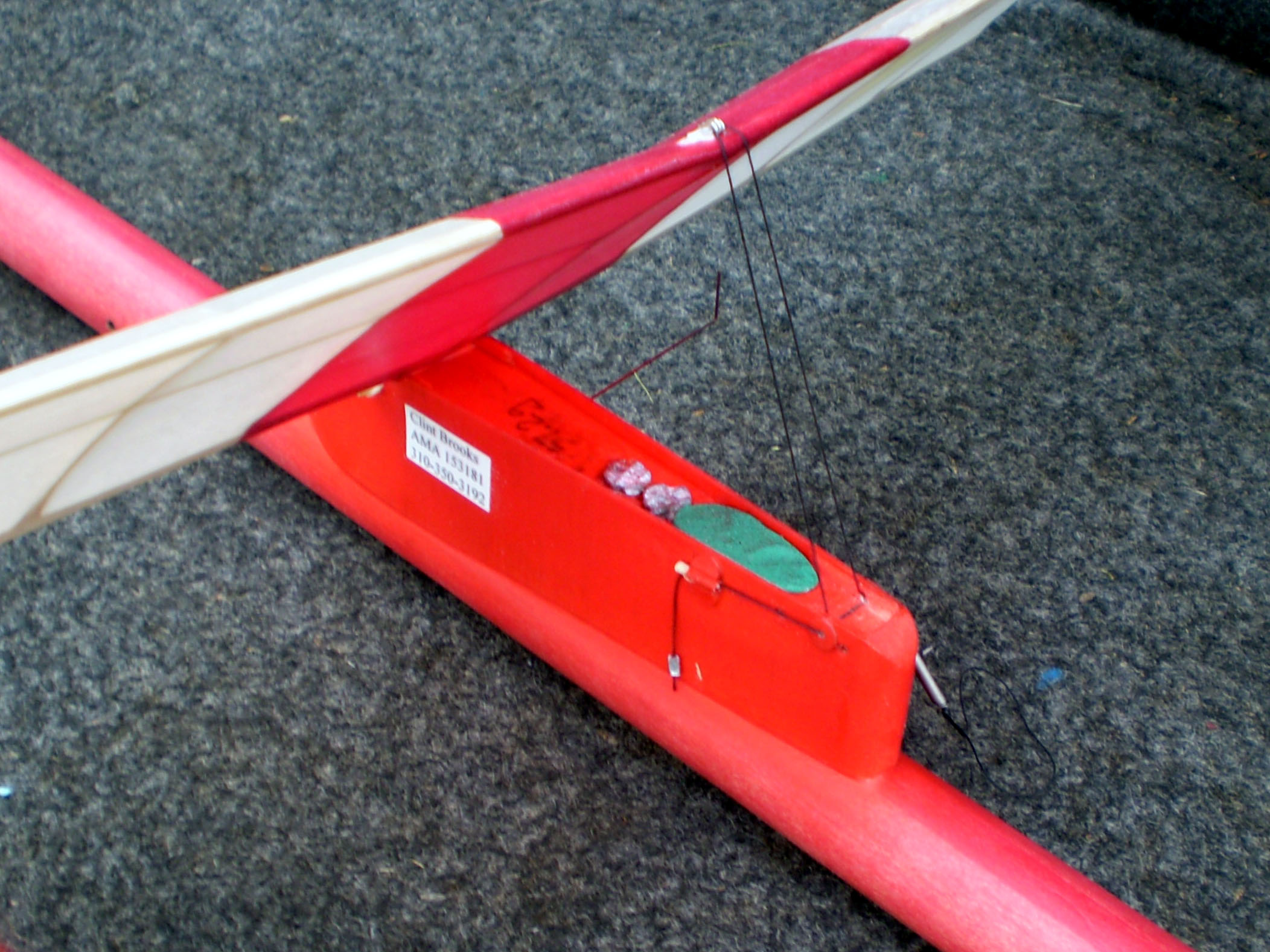

BOOMER MK II optional pop-up wing DT pictures:

.

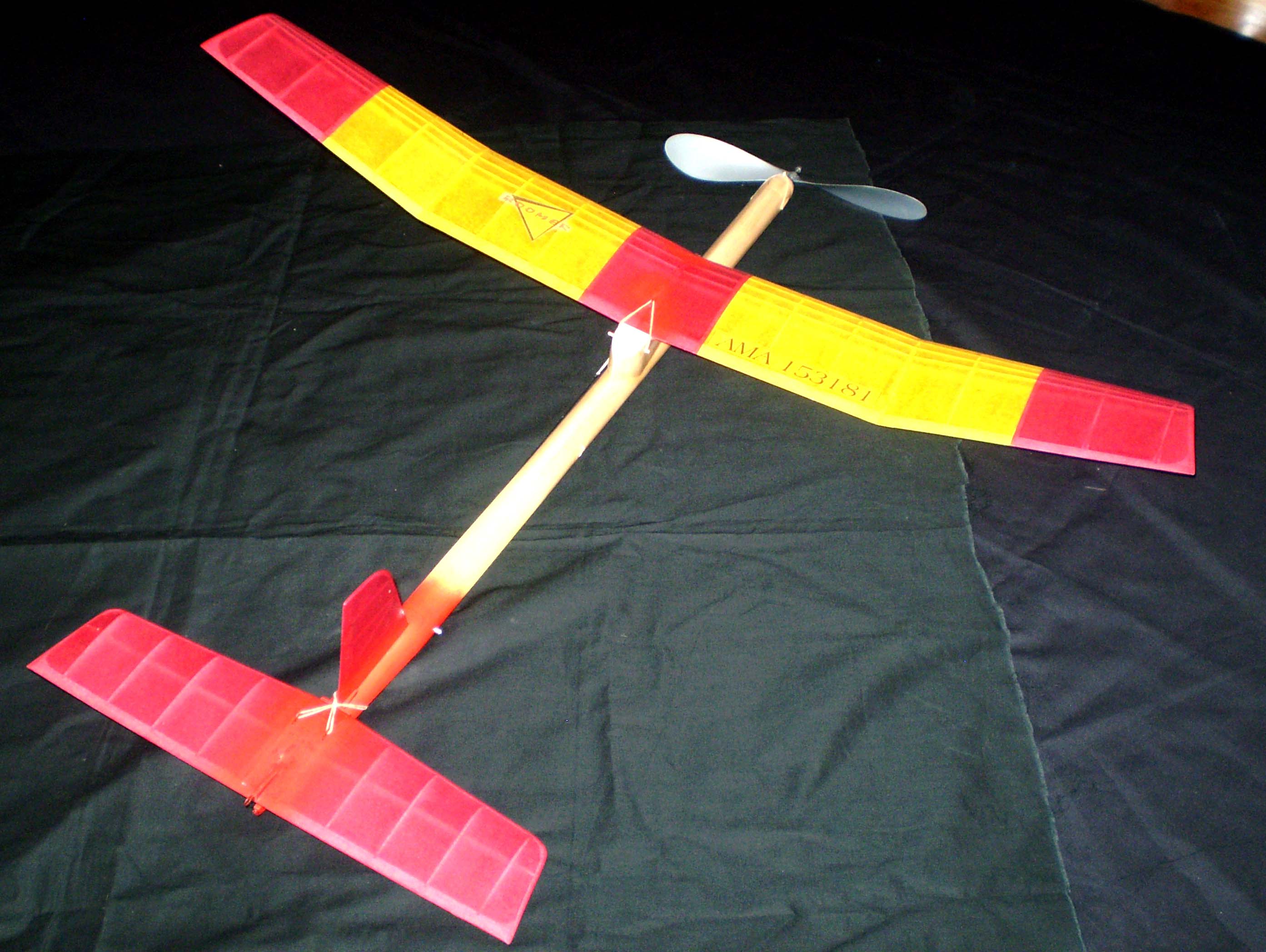

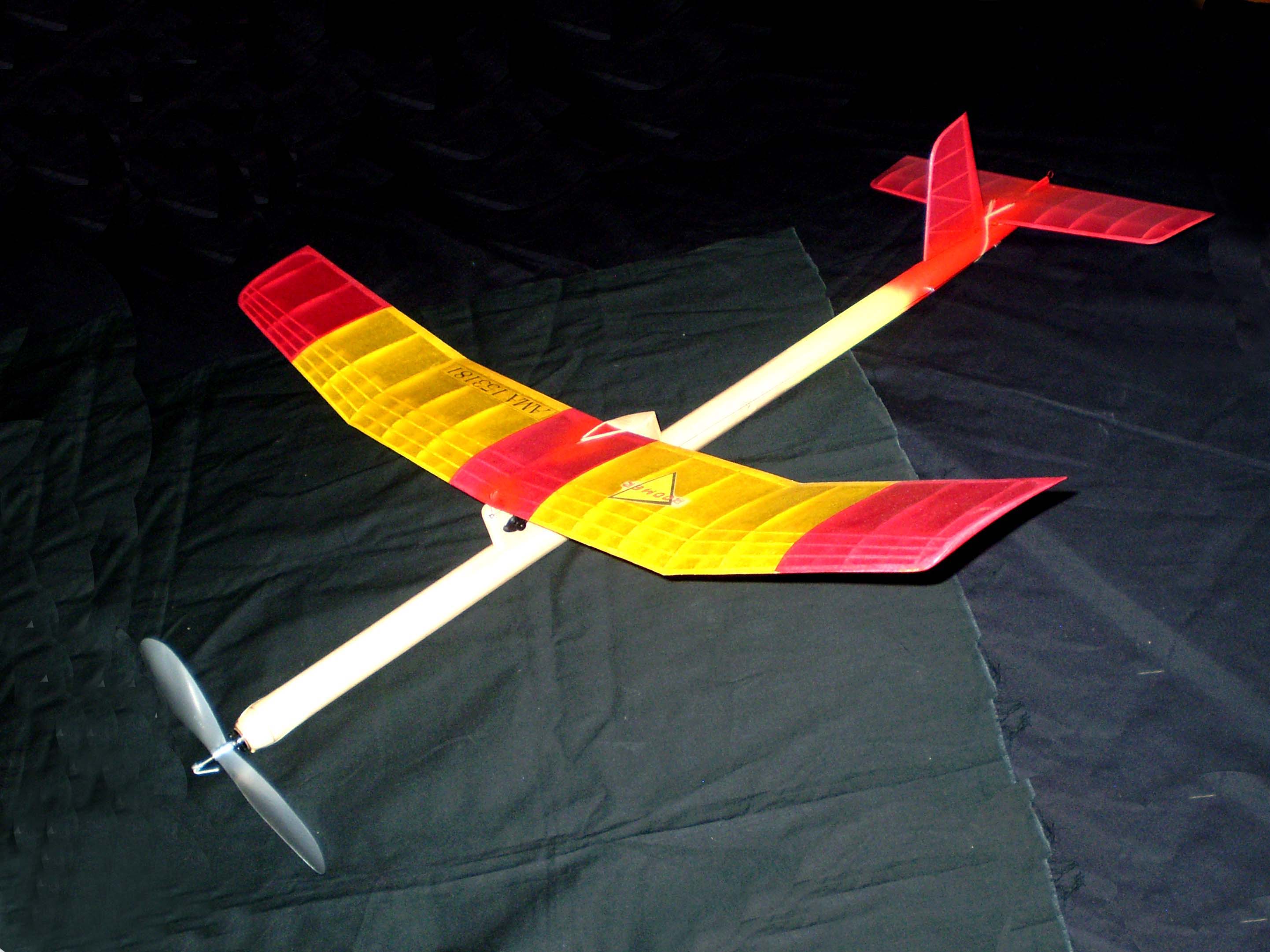

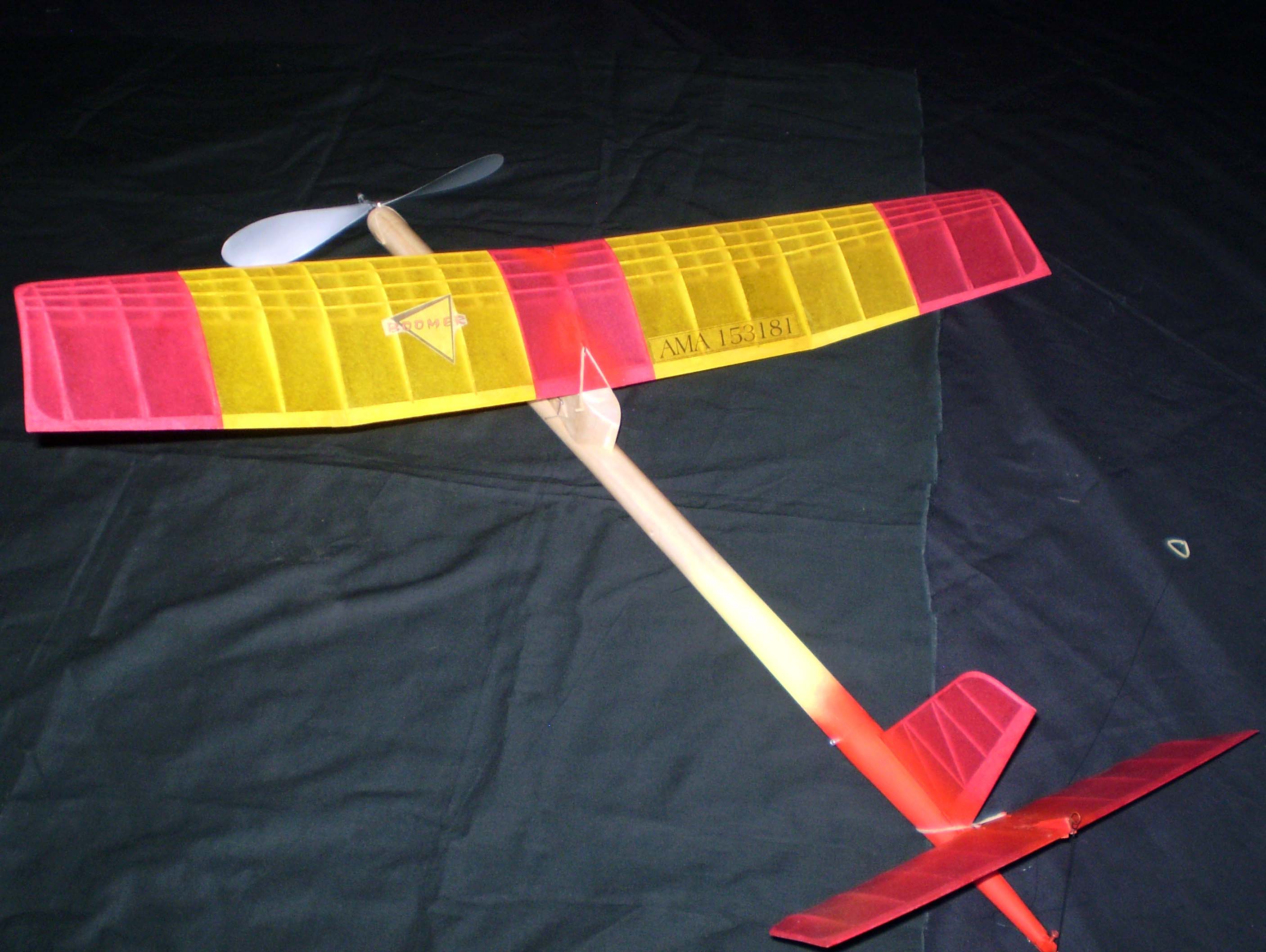

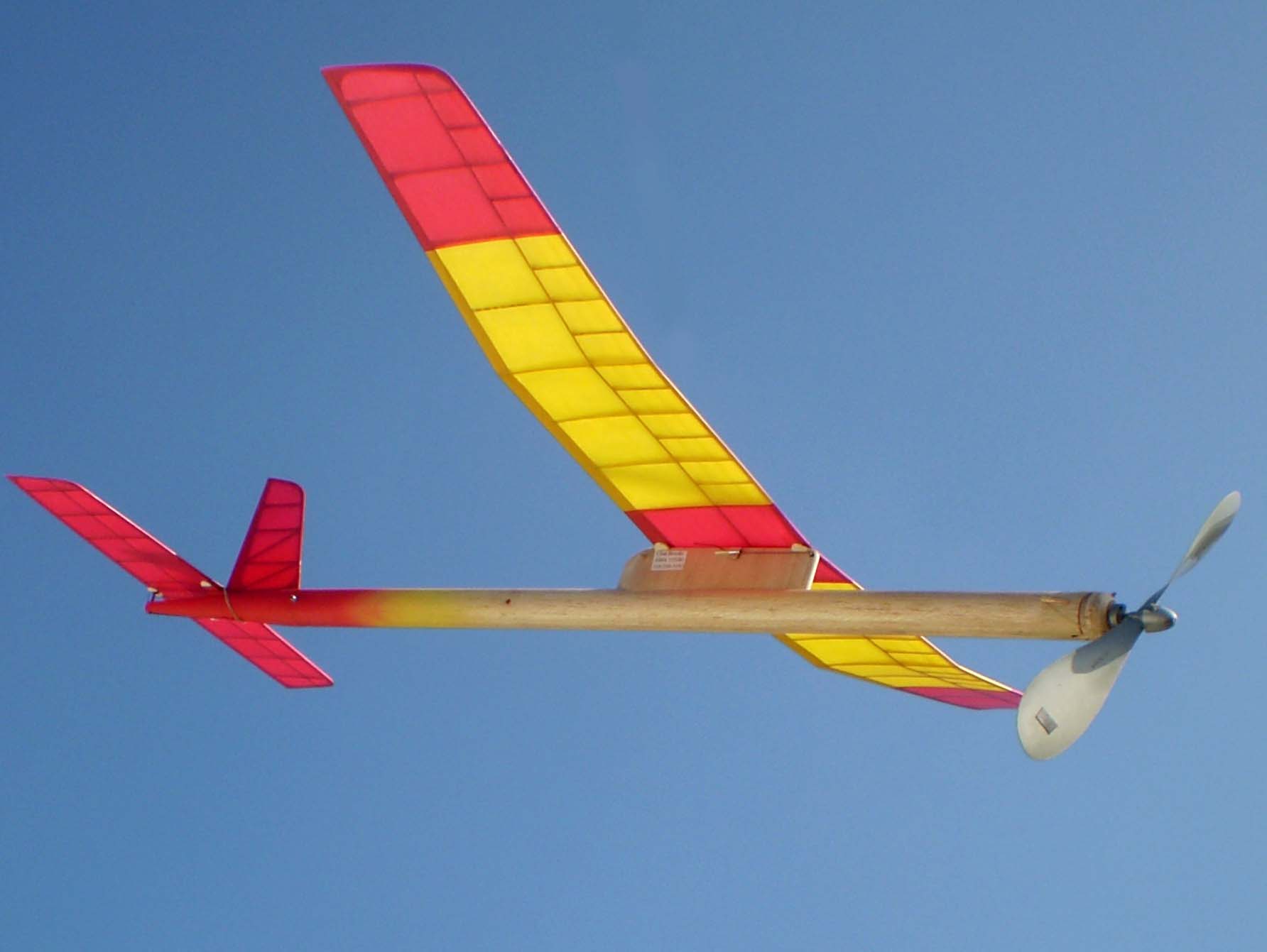

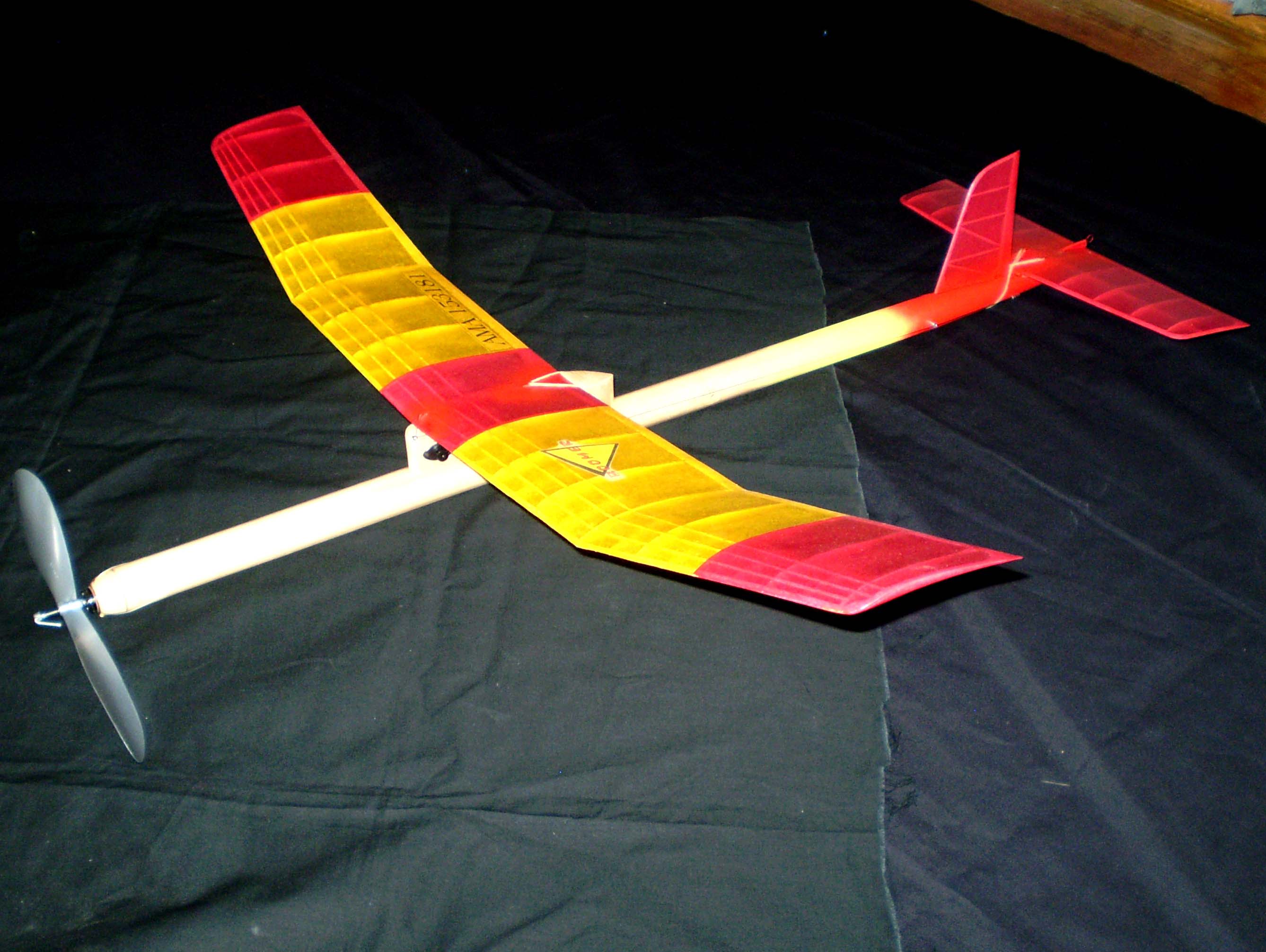

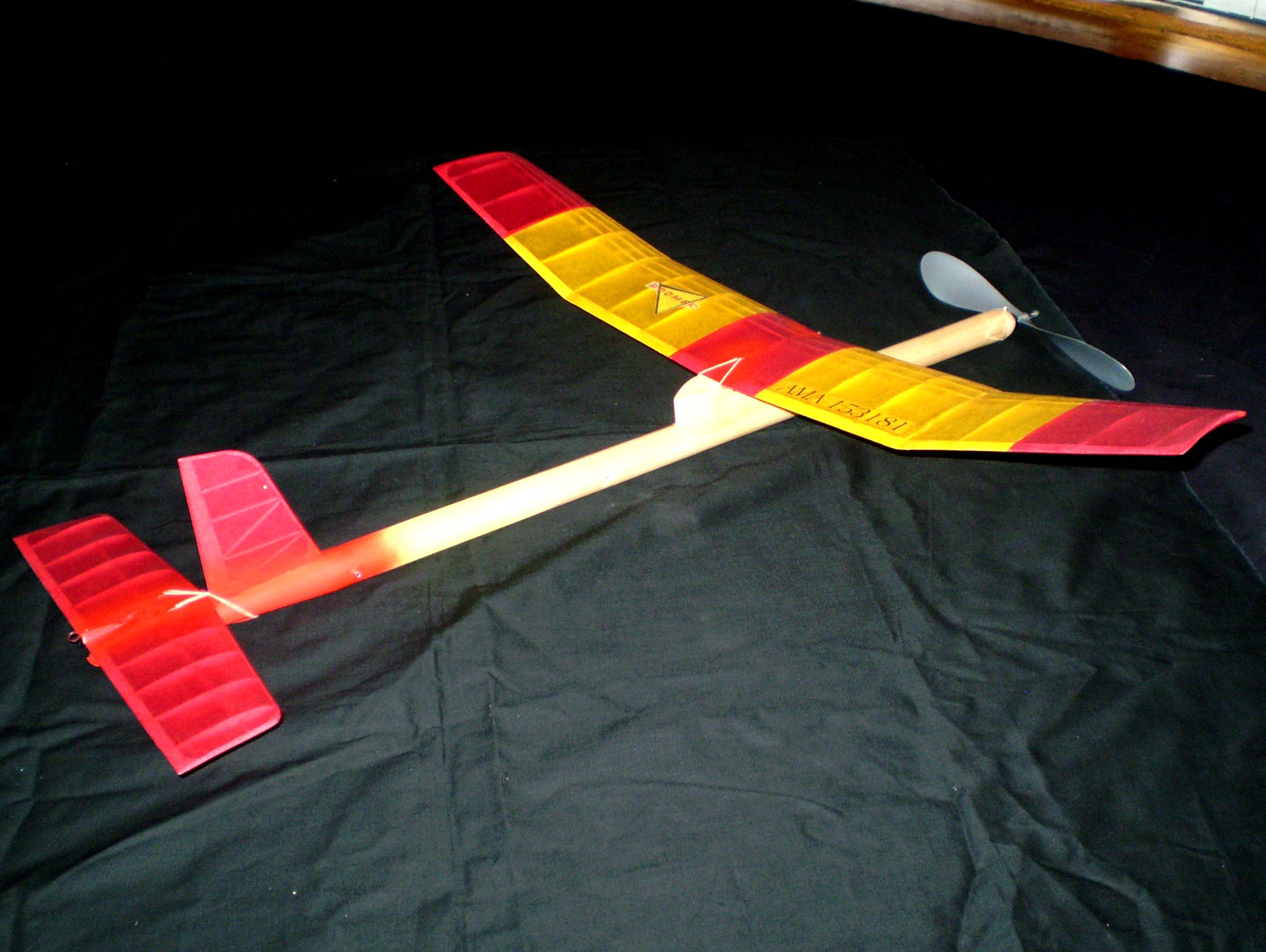

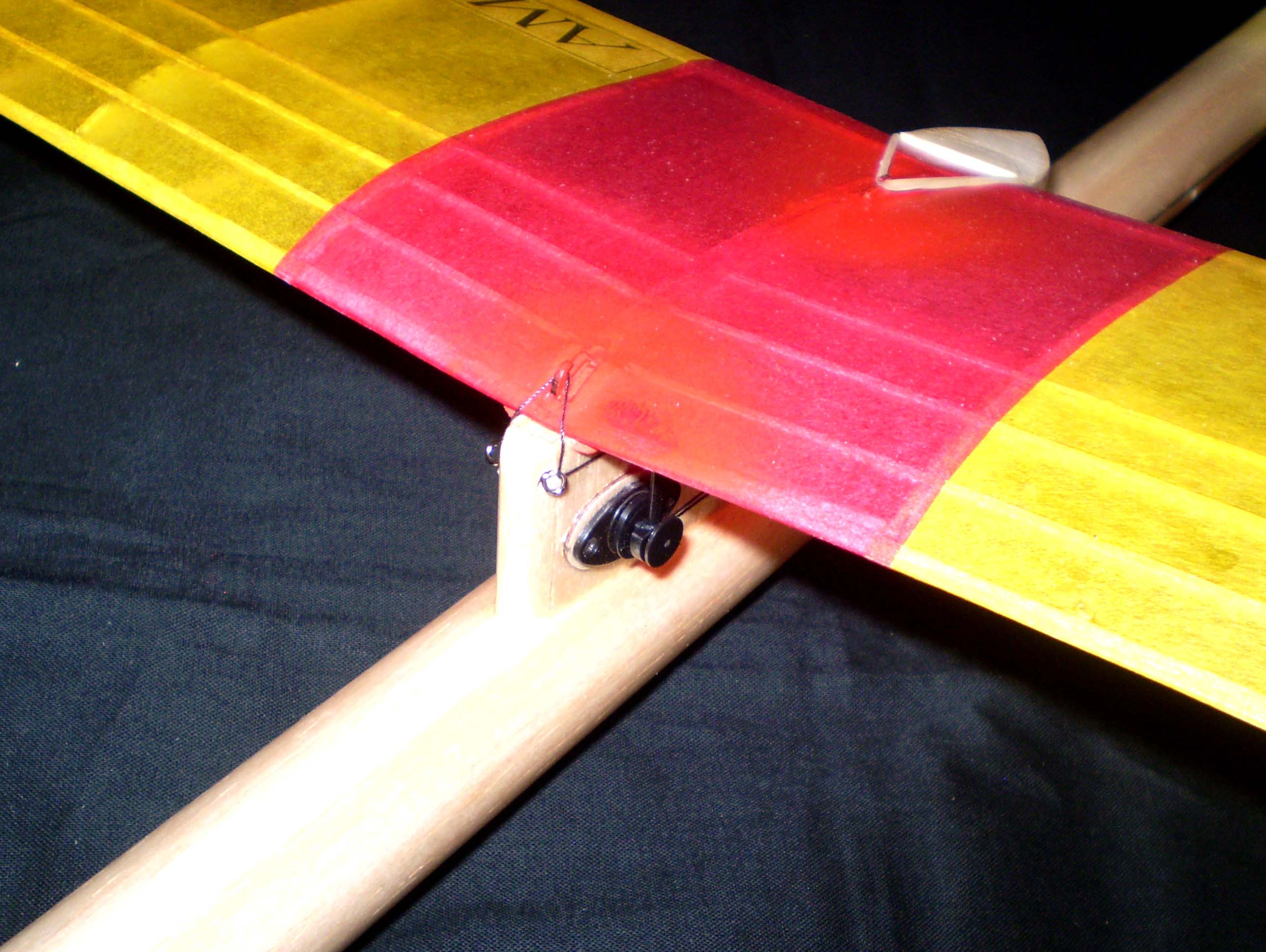

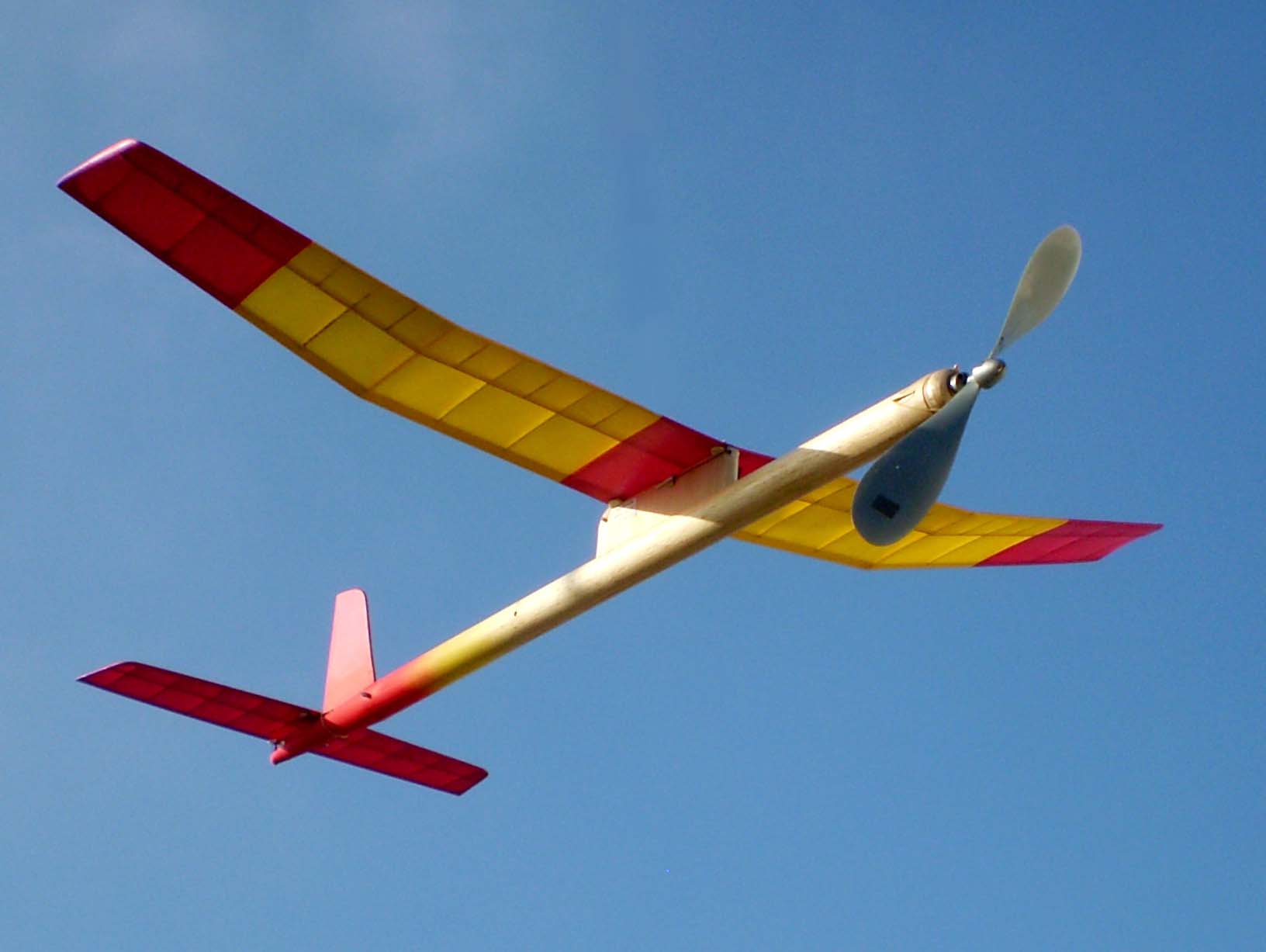

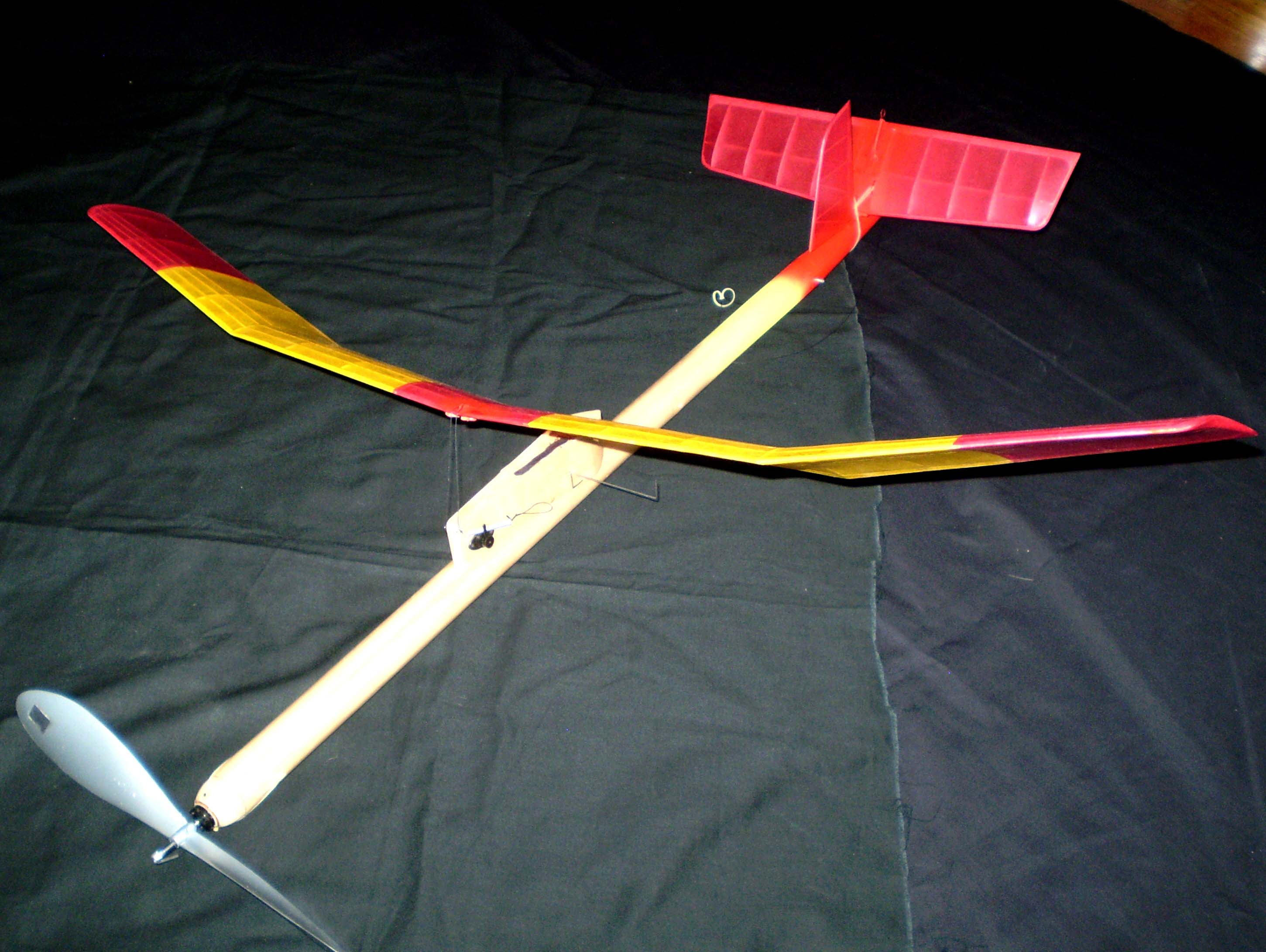

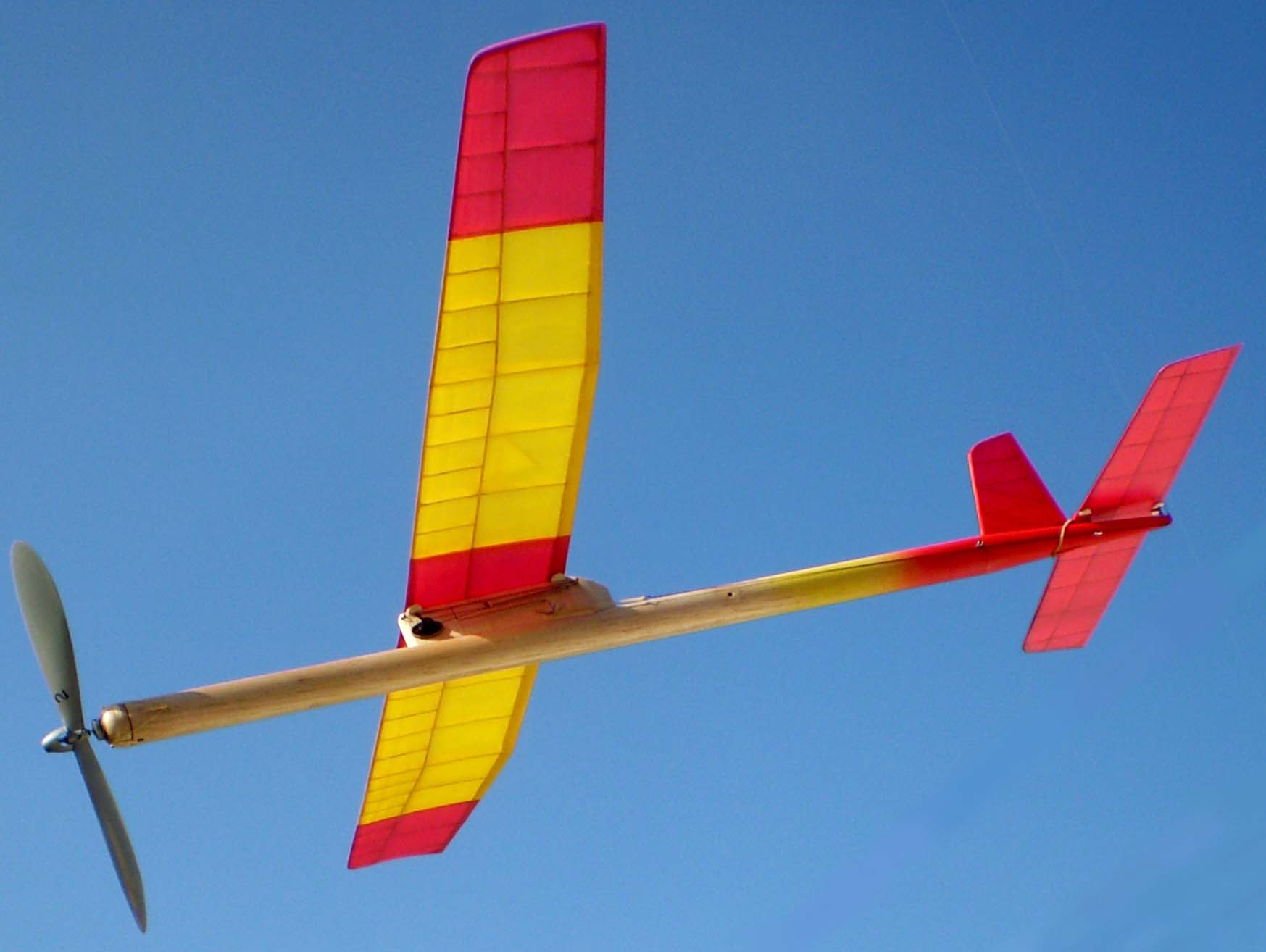

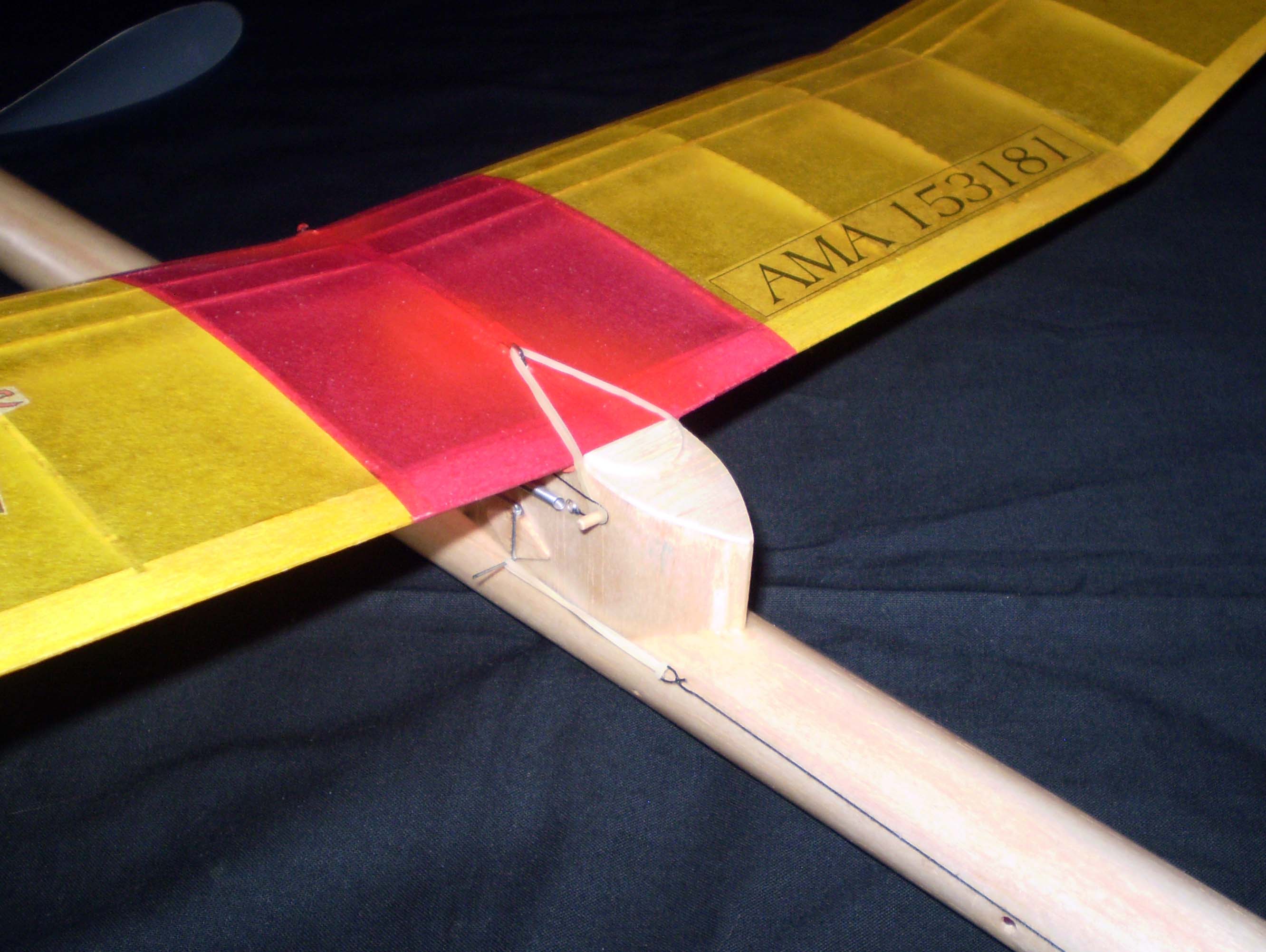

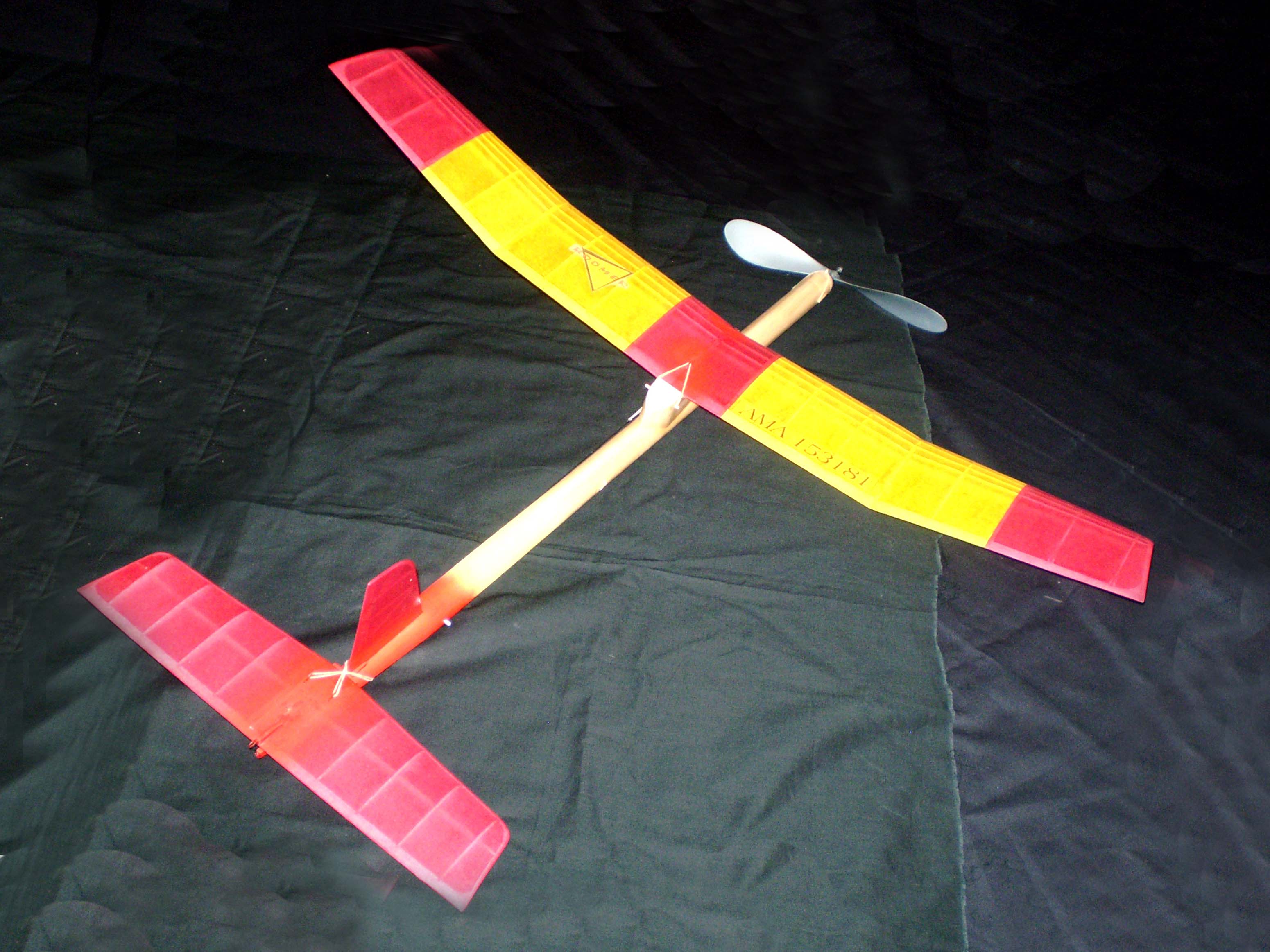

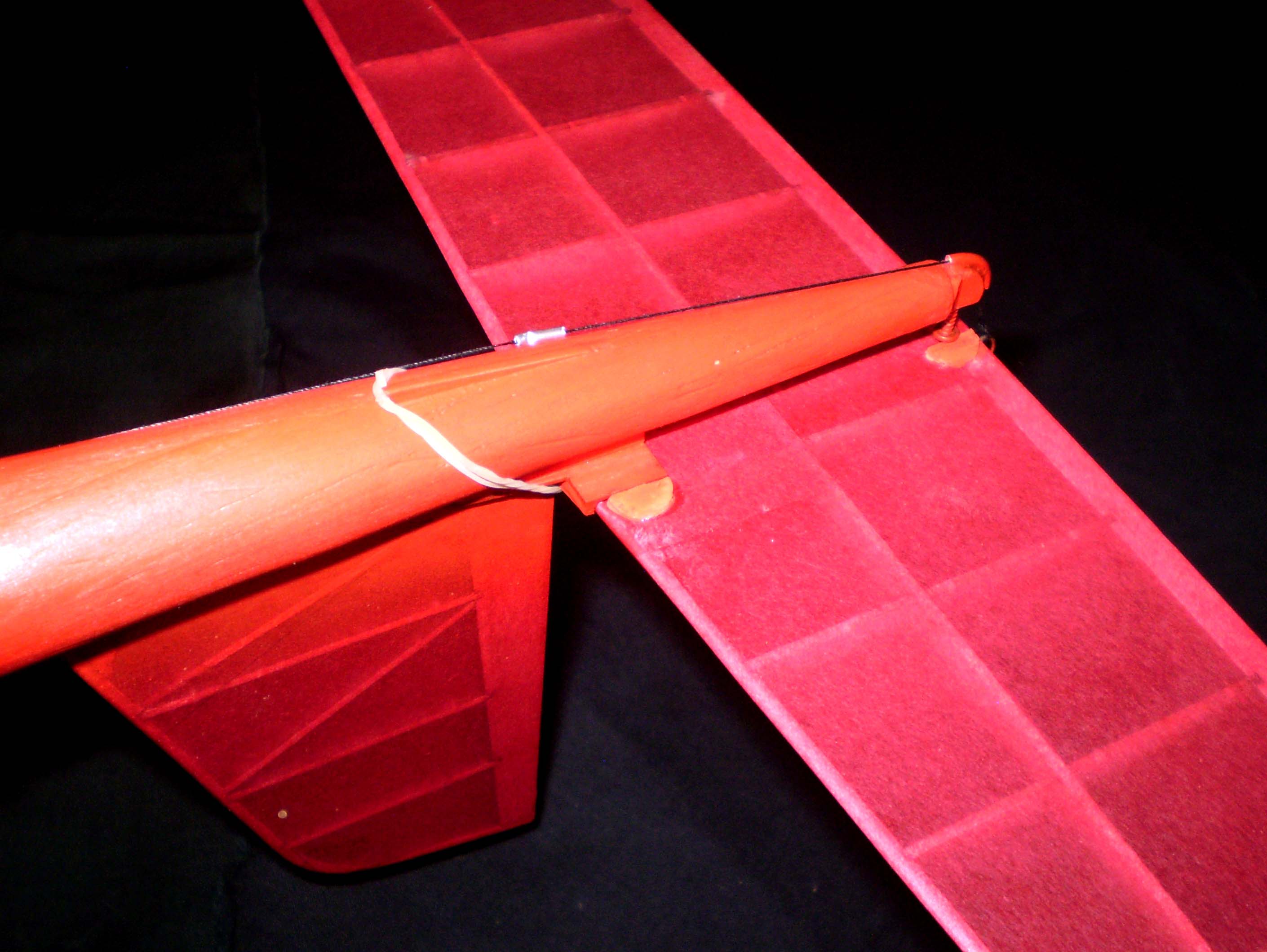

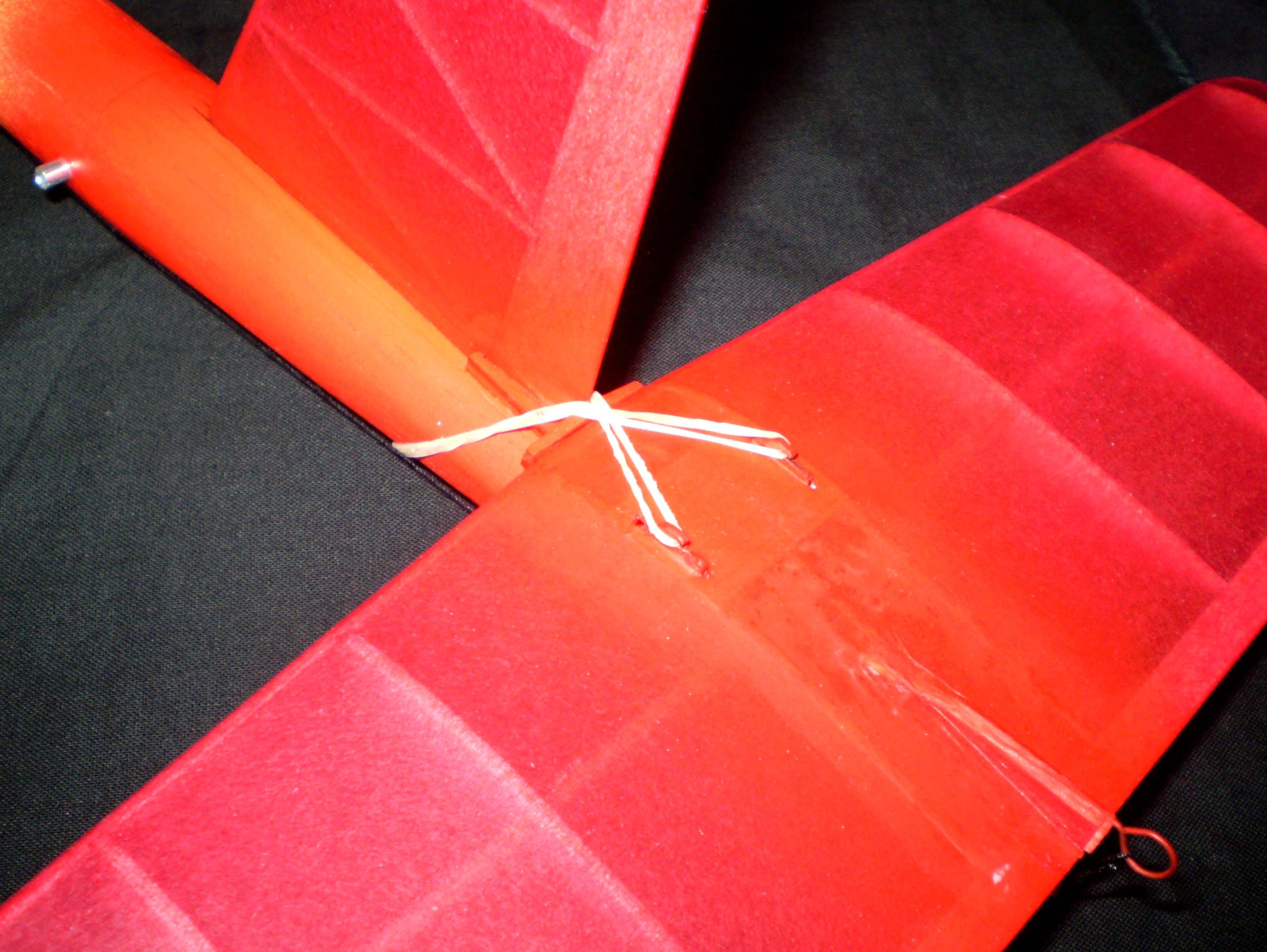

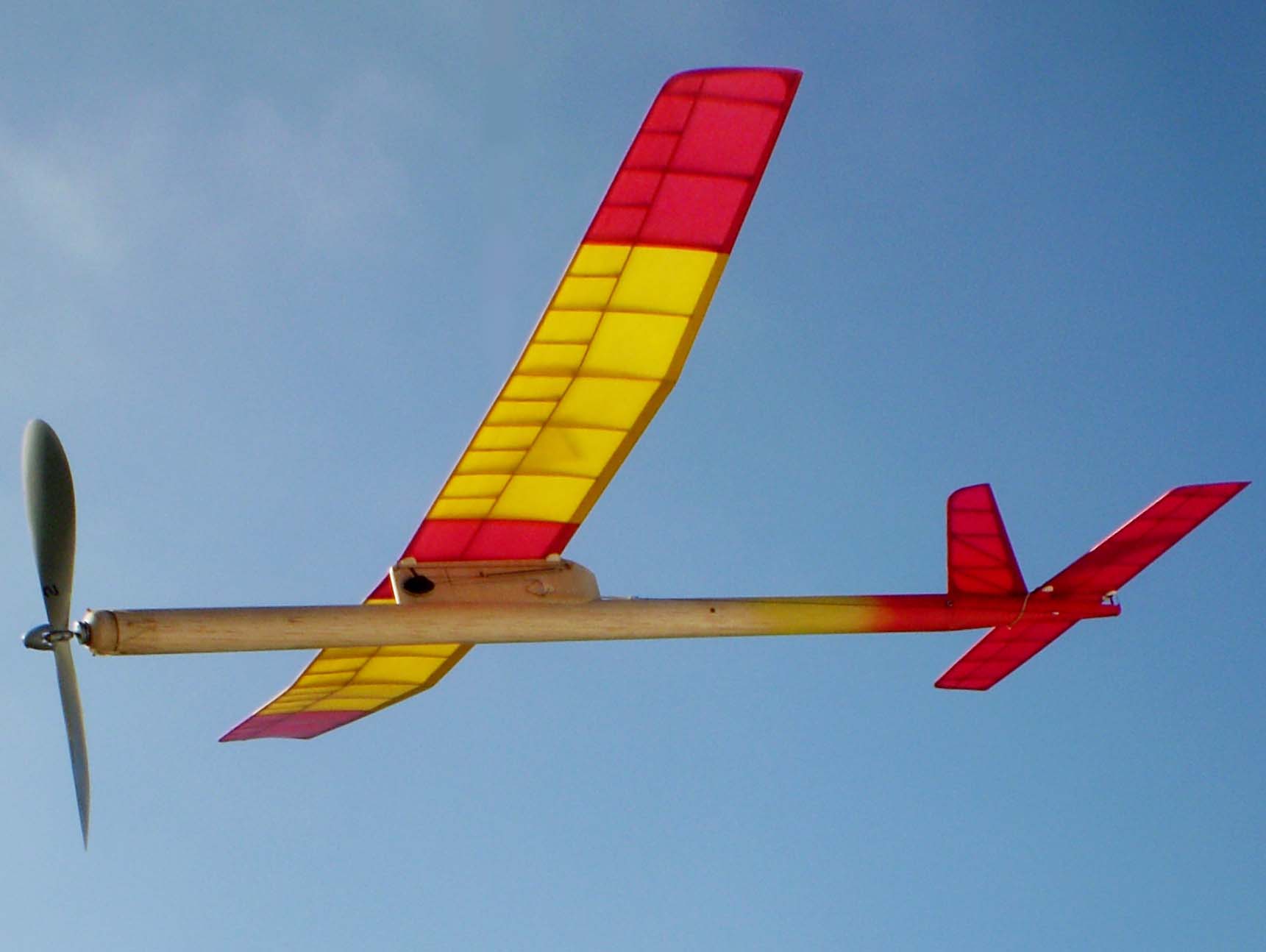

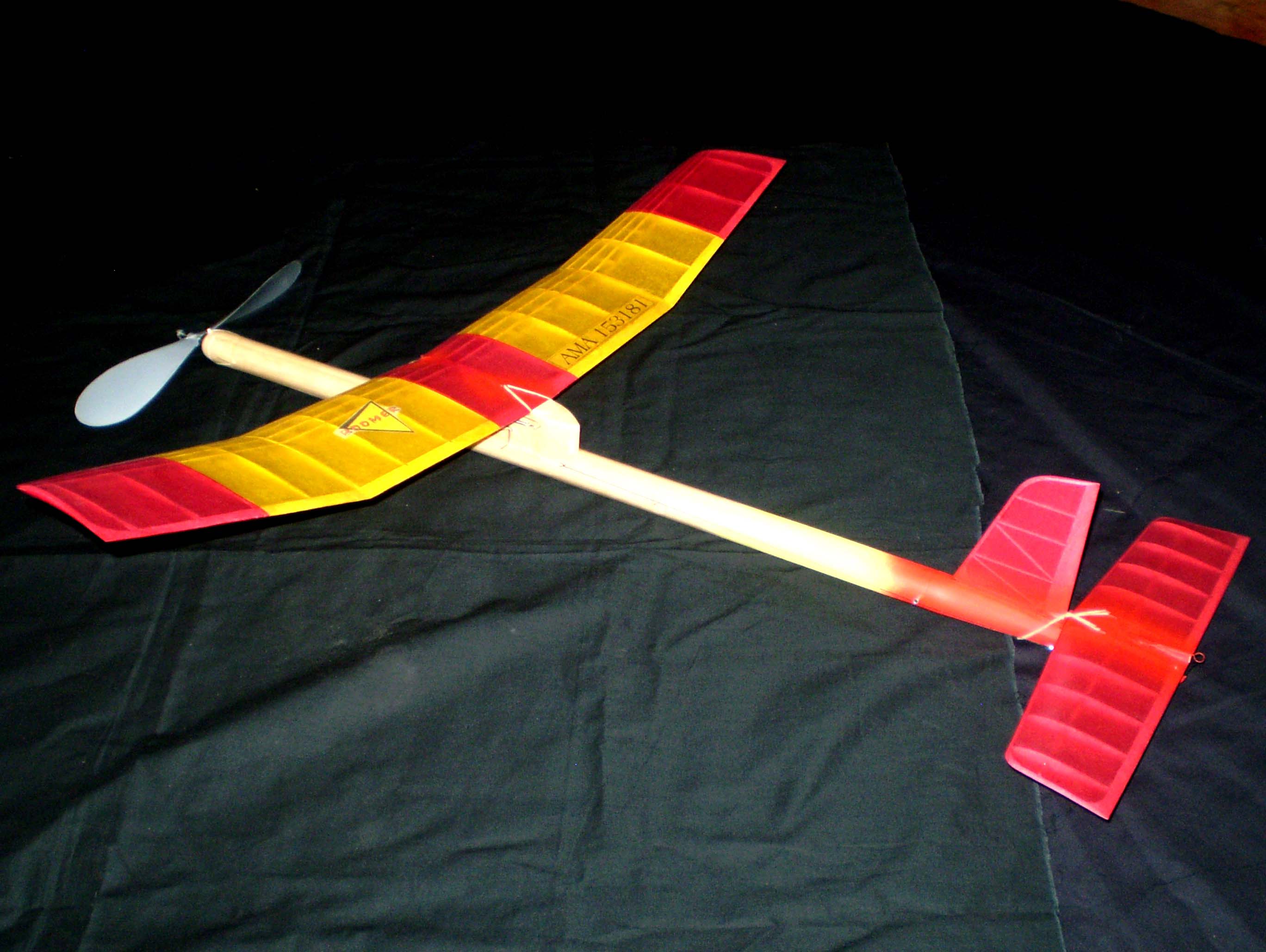

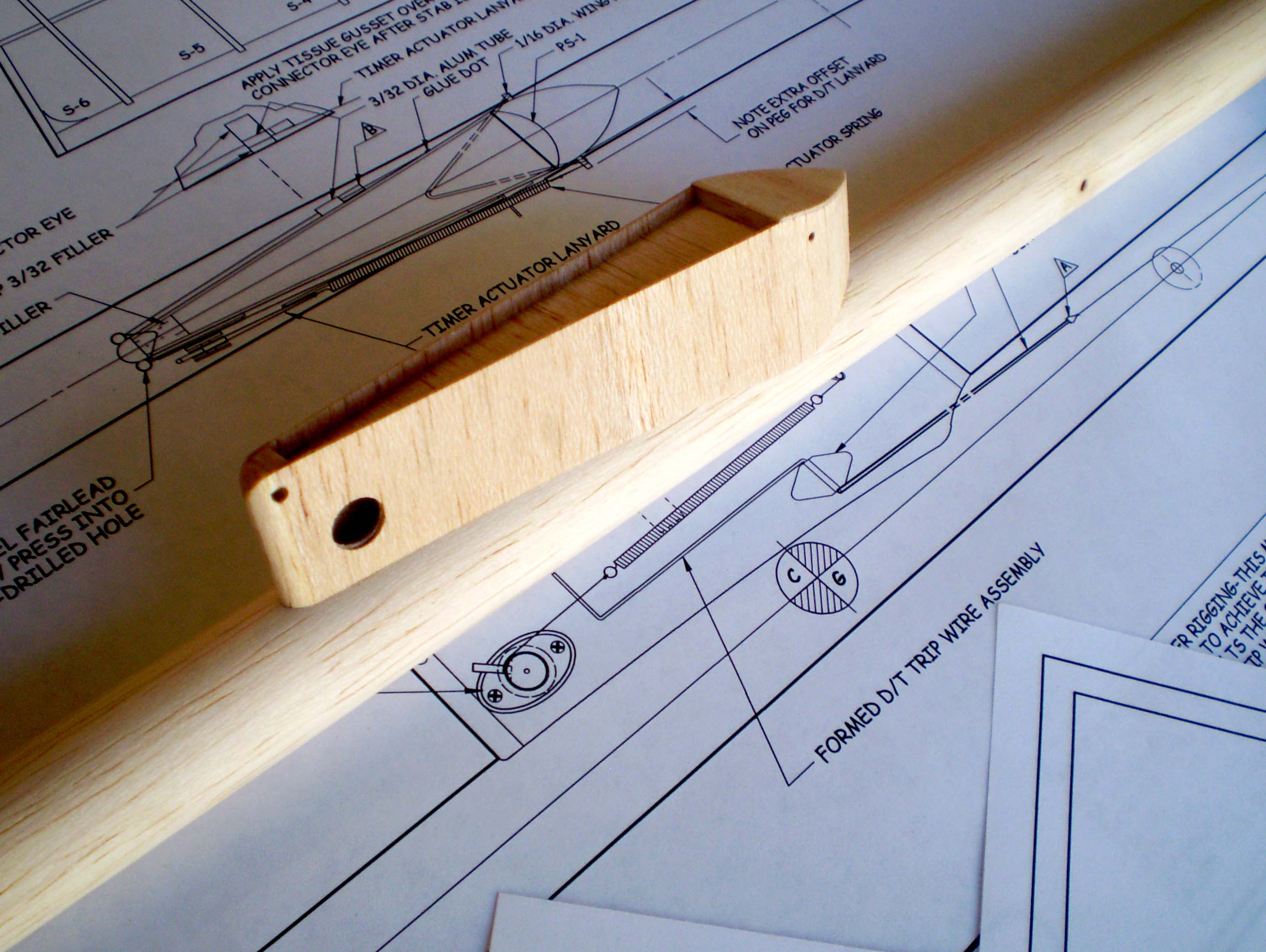

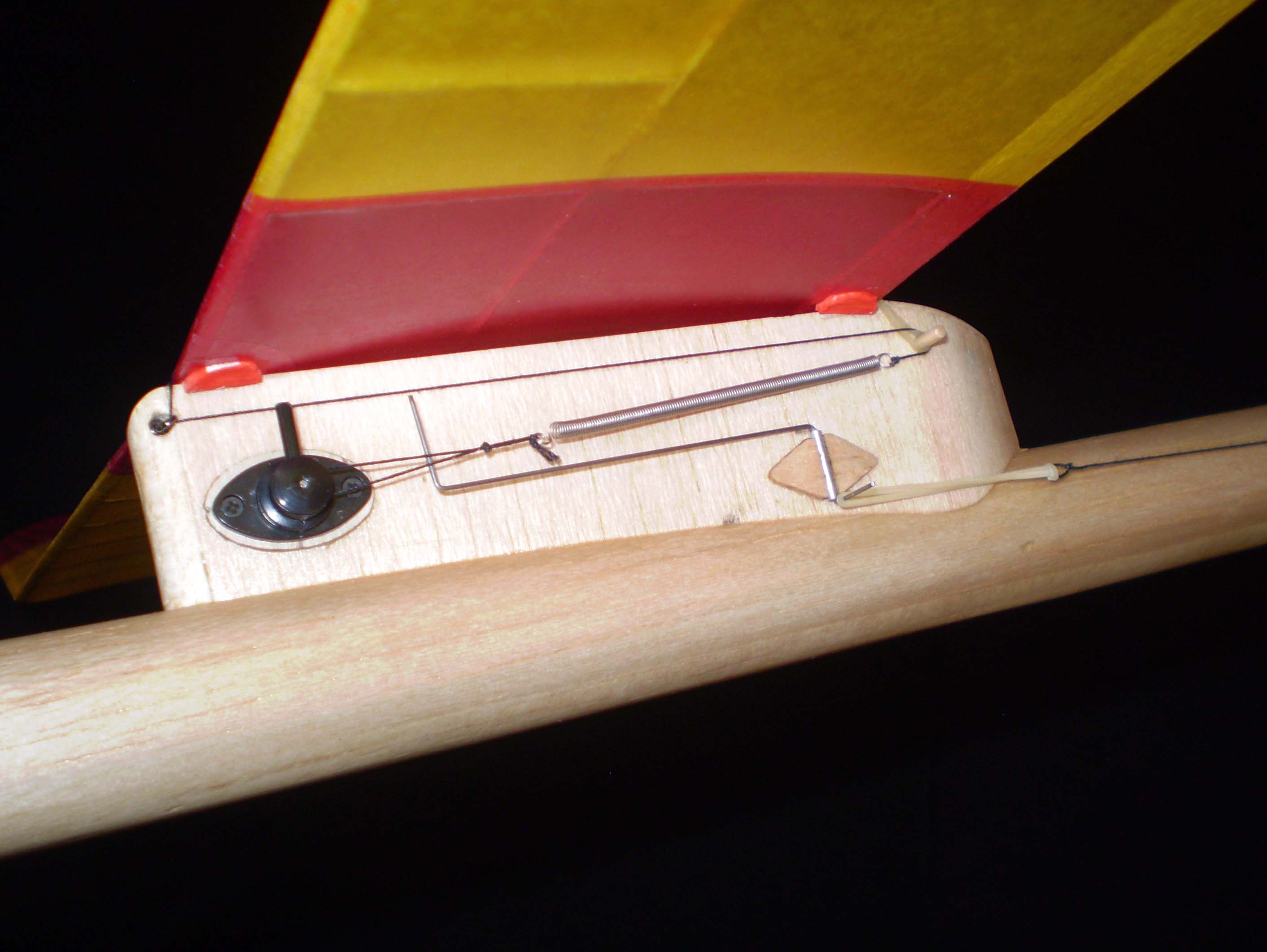

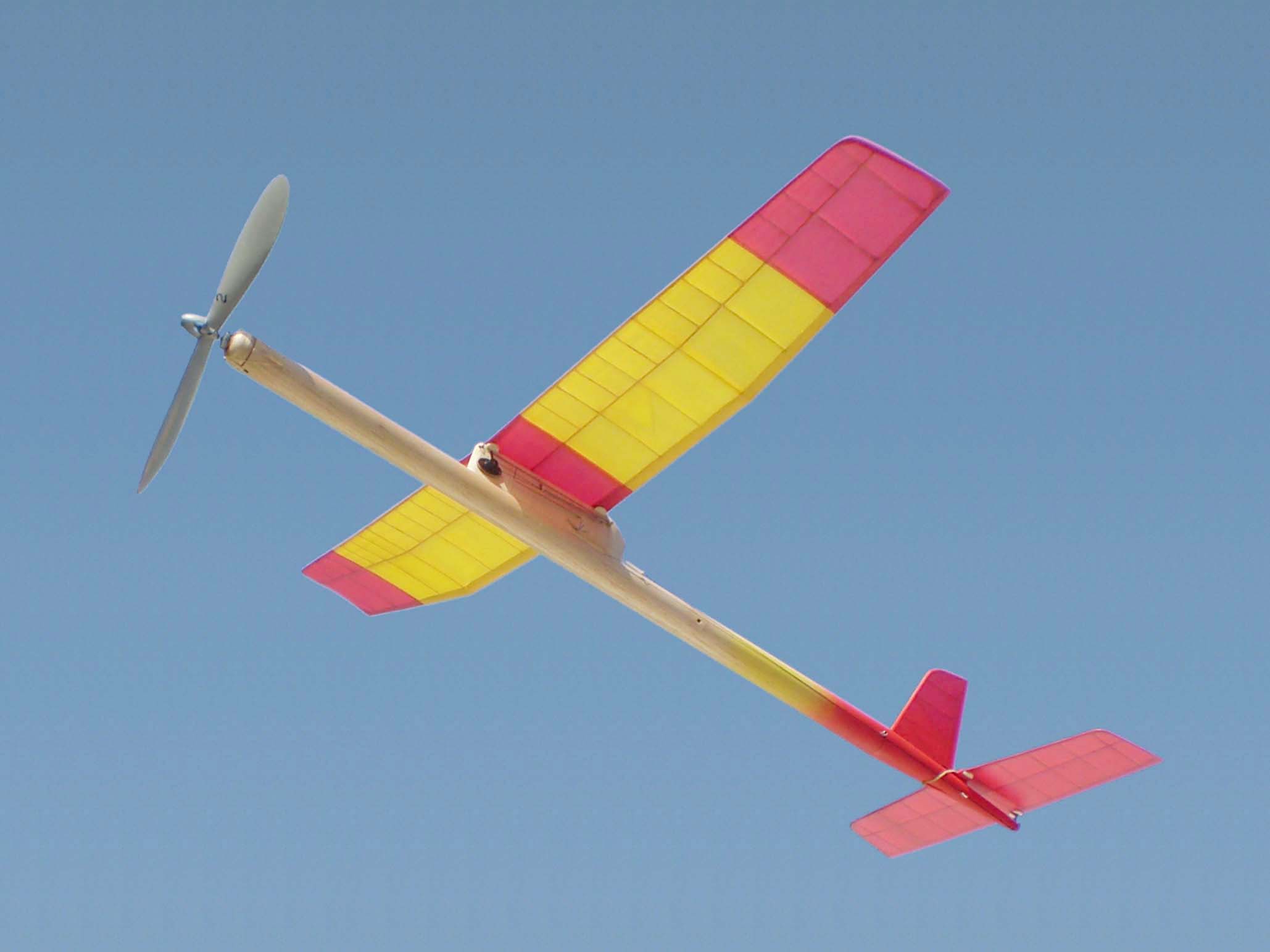

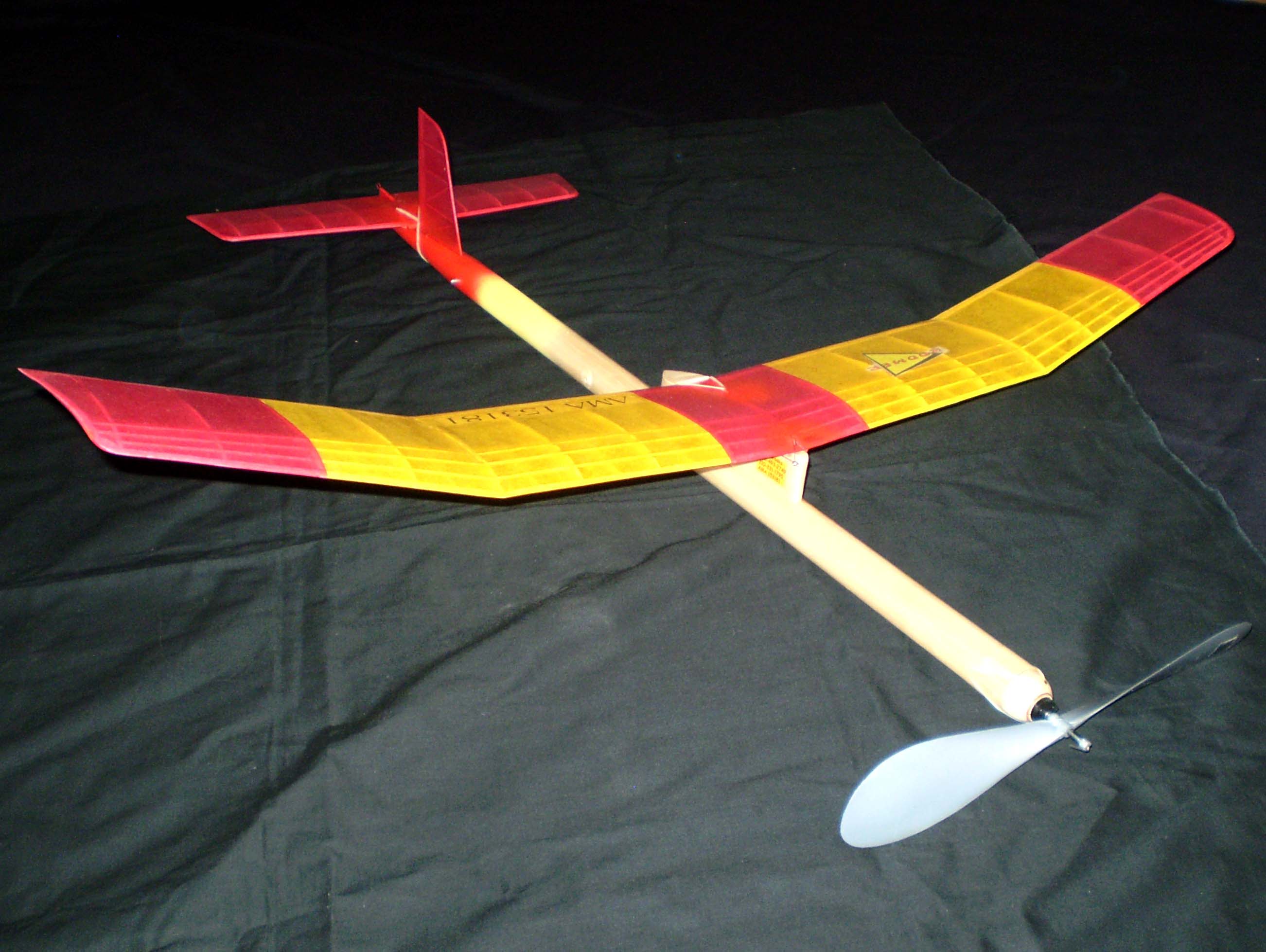

BOOMER MK III pics:
